Develop an API Proxy from Open API Document

An API proxy acts as an intermediary between an existing API and Choreo, intercepting all requests made to the API. It also functions as a managed API, allowing you to apply essential API management features such as security policies and rate limiting.

In this guide, you will:

  • Create an API proxy component to expose an existing API.
  • Deploy the API proxy.
  • Test the API proxy to verify its functionality.
  • Manage the API.
  • Consume the API.

Prerequisites

  • If you're signing in to the Choreo Console for the first time, create an organization:

    1. Go to https://console.choreo.dev/ and sign in using your preferred method.
    2. Enter a unique organization name. For example, Stark Industries.
    3. Read and accept the privacy policy and terms of use.
    4. Click Create.

    This creates the organization and opens the Project Home page of the default project created for you.

Step 1: Create an API proxy

To create an API proxy, you can either upload an OpenAPI document or provide a hosted OpenAPI document's URL. In this guide, you will specify a URL to an OpenAPI definition of a sample API.

  1. Go to https://console.choreo.dev/ and sign in. This opens the project home page.
  2. If you already have one or more components in your project, click + Create. Otherwise, proceed to the next step.
  3. Click the API Proxy card. This opens the Create an API Proxy pane.
  4. Select Upload API Specification option.

  5. Click on Try with sample URL to go ahead with the sample Open API Document.

  6. Specify the following values as Proxy Metadata:

    Note

    While most values are auto-generated from the specification, the context value has been explicitly set to petstore to enhance clarity

    Field Value
    Context petstore
    Version v1.0
    Target https://petstore3.swagger.io/api/v3

  7. Enter following details for the Component Details:

    Info

    The Component Name field must be unique and cannot be changed after creation.

    Field Value
    Component Display Name Petstore Service
    Component Name pet-store-service
    Description Sample proxy for Petstore service

  8. Click Create. This creates the API proxy component and takes you to the Deploy page.

Step 2: Deploy the API proxy

  1. In the left navigation menu, click Deploy.
  2. In the Build Area card, click Configure & Deploy. This opens the Configure & Deploy pane.
  3. Select External as the API access mode and click Deploy. The Development card indicates the Deployment Status as Active when the API proxy is successfully deployed.

Now you are ready to test the API proxy.

Step 3: Test the API proxy

Choreo allows you to test your API proxy using either the integrated OpenAPI Console or cURL. In this guide, you will use the OpenAPI Console.

Tip

Choreo enables OAuth 2.0 to secure APIs by default. Therefore, you need an access token to invoke an API.

  • Choreo automatically generates a key to test the API via the OpenAPI Console. To view the key, click the show key icon in the Security Header field.
  • To disable security for the entire API or a specific resource:
    1. In the left navigation menu, click Deploy.
    2. Go to the Build Area card and click Security Settings.
    3. In the Security Settings pane:
      • To disable security for the entire API, clear the OAuth2 checkbox.
      • To disable security for a specific resource, expand the relevant resource and turn off the Security toggle.
    4. Click Apply.
    5. Then click Deploy.
  1. In the left navigation menu, click Test and then click OpenAPI Console.
  2. Select Development from the environment drop-down list.
  3. Expand the GET /pet/findByStatus resource and click Try it Out.

  4. Select the status available from the dropdown and click Execute. You will see a response similar to the following:

    API proxy response

    This indicates that your API proxy is working as expected.

Step 4: Manage the API proxy

Now that you have a tested API proxy, you can publish it and make it available for application developers to consume. In this guide, you will apply rate limiting to the API and publish it.

Step 4.1: Apply rate limiting to the API proxy

  1. In the left navigation menu, click Deploy.
  2. Go to the required environment card and click the settings icon corresponding to CORS, Rate Limiting and Resiliency.
  3. In the CORS, Rate Limiting and Resiliency pane, click Rate Limiting to expand the section.
  4. Select API Level as the Rate Limiting Level.
  5. Specify appropriate values for the Request Limit and Time Unit fields. You can proceed with the default values.
  6. Click Apply. This applies the rate limiting level to the API proxy and redeploys it.

Step 4.2: Publish the API proxy

Publishing makes your API available in the Choreo Developer Portal, enabling application developers to access and use it.

  1. In the left navigation menu, click Lifecycle under Manage. This takes you to the Lifecycle page.
  2. Click Publish.
  3. In the Publish API dialog, click Confirm to proceed with publishing the API. If you want to change the display name, make the necessary changes and then click Confirm. This changes the API lifecycle state to Published.

Step 5: Invoke the API From DevPortal

To generate credentials for the published API and invoke it via the Choreo Developer Portal, follow these steps:

  1. In the Lifecycle page, click Go to Devportal. This takes you to the Petstore Service in the Choreo Developer Portal.

  2. Invoke the API:

    1. In the Developer Portal left navigation menu, click Try Out.
    2. In the Endpoint list, select Development as the environment to try out the API.
    3. Click Get Test Key to generate an access token.
    4. Expand the GET /pet/findByStatus resource and click Try it out.

    5. Select the status available from the dropdown and click Execute. You will see a response similar to the following:

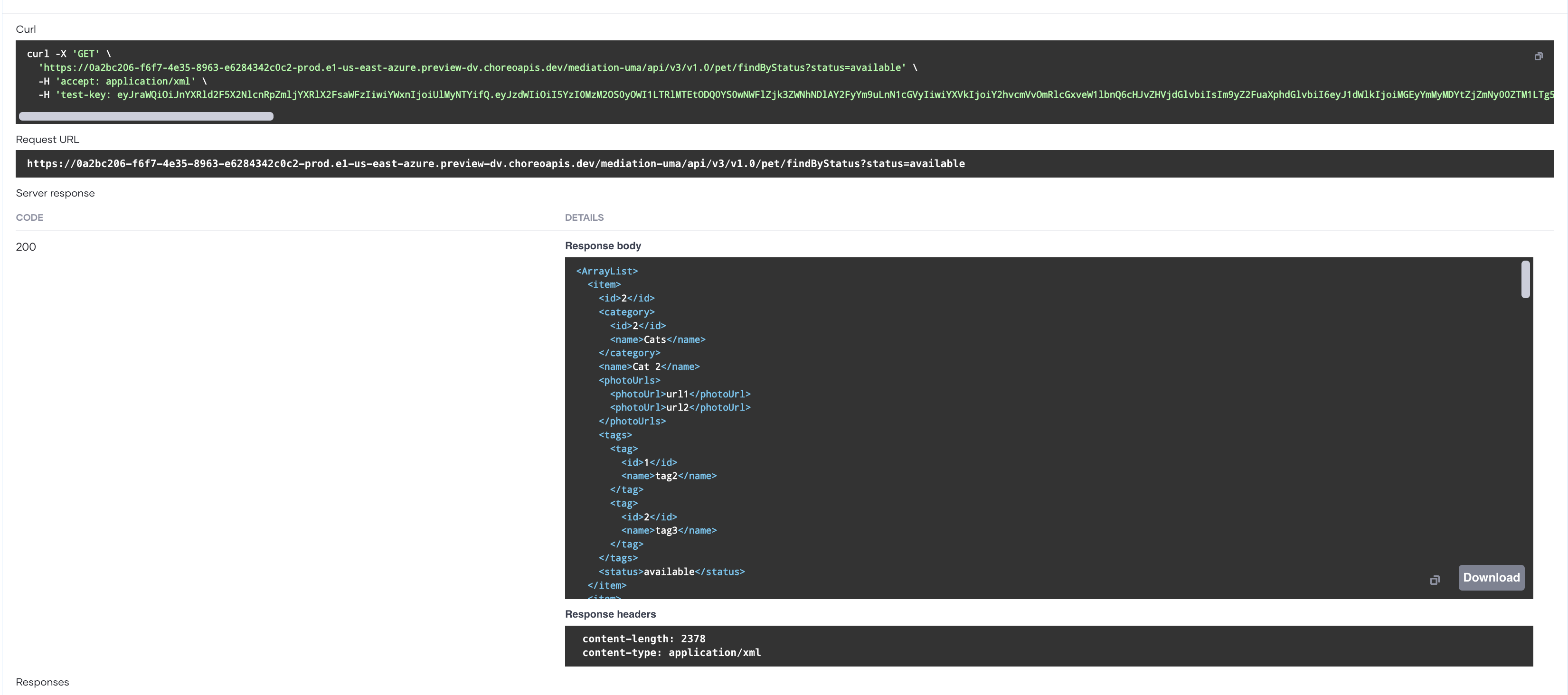

      Try out response

Now, you have gained hands-on experience creating, deploying, testing, and publishing an API proxy using Choreo.
