Deploy Your First AI Agent

Overview

In this guide, you will:

• Create a simple AI agent that provides math tutoring assistance.
• Use Ballerina Integrator to develop the AI agent integration.
• Push the AI agent to Devant from Ballerina Integrator. This will automatically build and deploy it to the development environment.
• Test the AI agent by sending prompts.
• Once verified, promote it to the production environment and expose it as an API.

Prerequisites

1. GitHub account: Create a GitHub account if you don't have one already.
2. If signing in to Devant for the first time, create an organization:
   1. Go to https://console.devant.dev/ and sign in using Google, GitHub, or Microsoft account.
   2. Enter a unique organization name. For example, Stark Industries.
   3. Read and accept the privacy policy and terms of use and click Create.
3. VS Code: Install VS Code if you don't have it installed already.

Step 1: Attach a Git repository

1. Go to https://console.devant.dev/new and sign in. This opens the new integration page.

2. On the new integration page, click Attach a Git Repository.

   Tip

   If you're using a public Git repository, you can skip ahead to sub-step 8. Click Use a Third-Party Public Git Repository and enter the repository URL.

3. Click Authorize with GitHub to connect Devant to your GitHub account. If you haven't connected your GitHub repository to Devant, authorize the WSO2 cloud app with your GitHub account WSO2 Cloud App.

4. Under the Organization dropdown click + Add. This redirects you to the Install WSO2 Cloud App page.

5. Select your GitHub account and install WSO2 Cloud App

   Note

   The WSO2 Cloud App requires:

   • Read and write access to code and pull requests.
   • Read access to issues and metadata.

   You can revoke access at any time. Write access is used to push changes directly to your repository.

6. Under the Organization dropdown, select your organization. If it is still not listed, click the Refetch button.

7. Select a repository to save your integration.
8. Select a Branch and a Path of the selected repository to save your integration.
9. Name and Identifier fields are automatically populated. Additionally, you can edit them to your preference.
10. Select the Technology as Ballerina Integrator.
11. Choose the Integration Type as AI Agent and Click Create.

This redirects you to the overview page of the AI Agent. Now, let's develop the AI Agent.

Step 2: Install the Ballerina Integrator extension

1. Click Install Ballerina Integrator extension on the overview page. This opens the VS Code extensions page.
2. Click Install to install the extension. This installs both Ballerina Integrator and Ballerina extensions on VS Code.

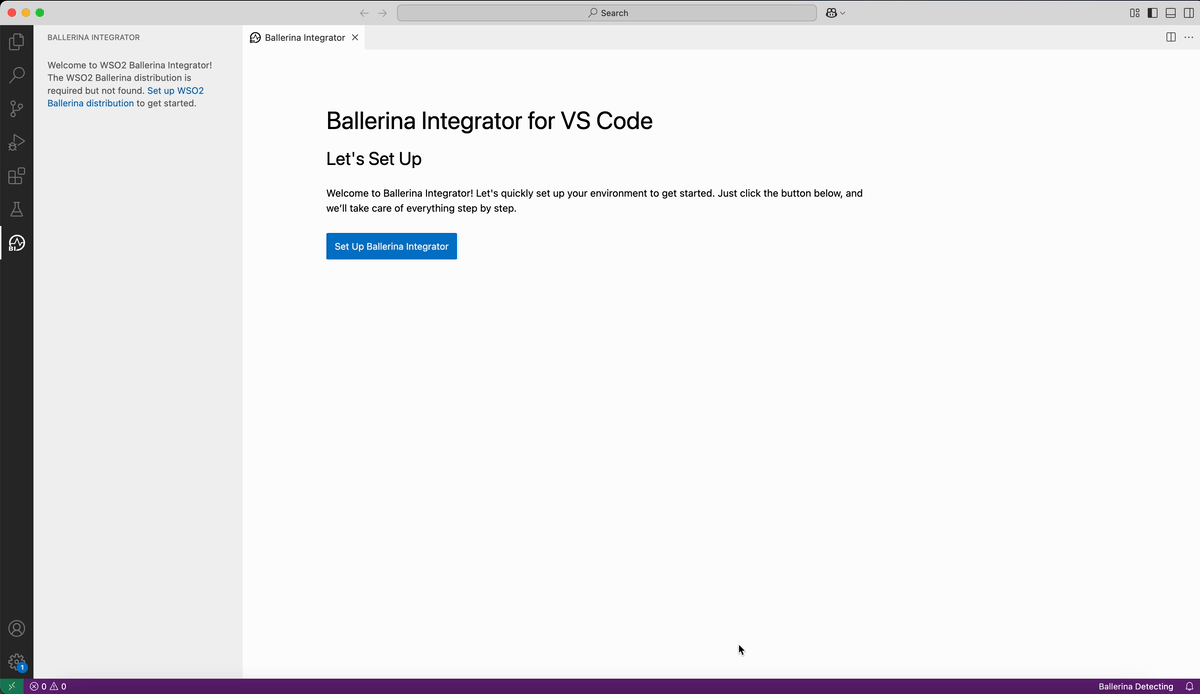

Step 3: Set up Ballerina Integrator for the first time

1. Click the Ballerina Integrator icon on the sidebar.



2. Click Set Up Ballerina Integrator. The setup wizard installs and configures the Ballerina distribution required for the Ballerina Integrator.

3. Click Restart VS Code to complete the setup.



Step 4: Develop the AI Agent in VS Code

To build your AI Agent using Ballerina Integrator, refer to the AI Agent Integration guide on the Learn page.

Step 5: Push to Devant

1. Click the Source Control icon on the sidebar.
2. Click + to stage all changes.
3. Add an appropriate commit message and commit.
4. Click Sync Changes to push the changes to remote.
5. Go back to the Design view using the back arrow in the top left corner.
6. From the right side panel, click the View in Devant to view this integration in Devant.

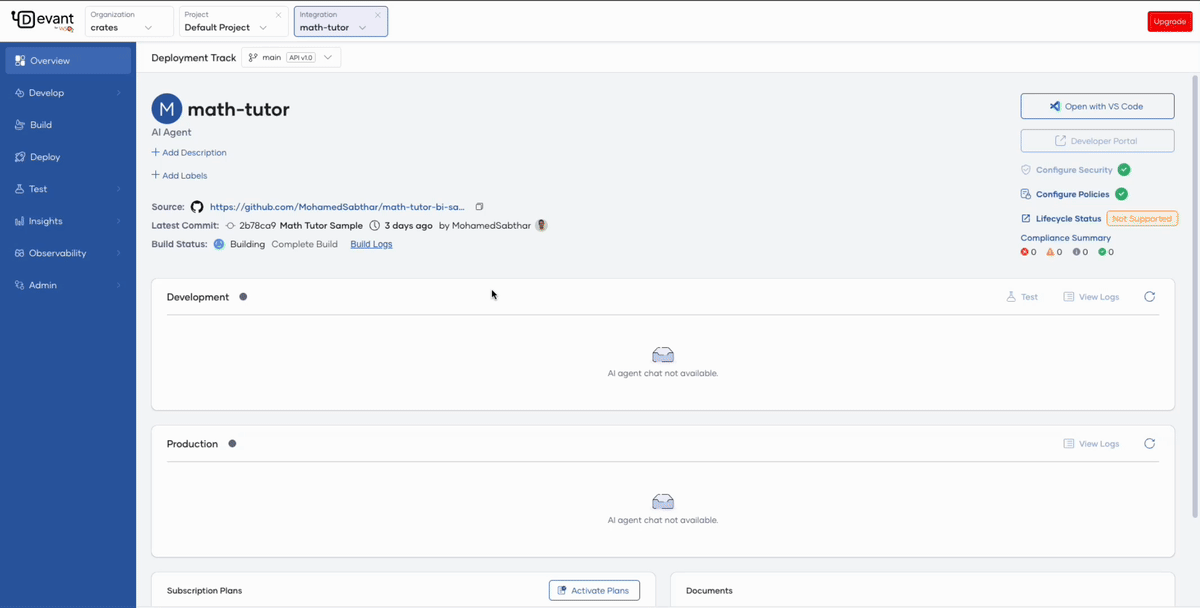

Step 6: Test AI Agent

1. Once you push the changes, the overview page of the Devant AI Agent will automatically refresh and show you the Latest Commit and automatically builds and shows the Build Status.

   Note

   The build process may take some time. Once complete, the build status changes to Success. You can see the Build History by clicking Build in the left navigation.

2. Once the Build Status shows Build completed, it will be automatically deployed into the development card.

3. Then, click the Configure to Continue button, enter the configurable values, and click Apply.

4. Send the prompt What is 87,657 * 67,997 to test your Math Tutor agent. Even though typically LLMs are bad at large multiplication, this agent has tool support to give an accurate answer.



5. After successfully testing, you can promote your AI Agent to production by clicking the Promote button.

6. Once deployed to production, you can access your AI Agent through the API endpoints and embed it in your applications.
