Deploy Your First File Integration

Overview

In this guide, you will:

• Create a FTP listener that fetches recent weather data.
• Use Ballerina Integrator to develop the File integration.
• Push the File Integration to Devant from Ballerina Integrator, which will automatically build and deploy it into the development environment.
• Test the File Integration.
• Promote it to the production environment and use it as an API.

Prerequisites

1. GitHub account: Create a GitHub account if you don't have one already.
2. If signing in to Devant for the first time, create an organization:
   1. Go to https://console.devant.dev/ and sign in using Google, GitHub, or Microsoft account.
   2. Enter a unique organization name. For example, Stark Industries.
   3. Read and accept the privacy policy and terms of use and click Create.
3. VS Code: Install VS Code if you don't have it installed already.

Step 1: Attach a Git repository

1. Go to https://console.devant.dev/new and sign in. This opens the new integration page.

2. On the new integration page, click Attach a Git Repository.

   Tip

   If you're using a public Git repository, you can skip ahead to sub-step 8. Click Use a Third-Party Public Git Repository and enter the repository URL.

3. Click Authorize with GitHub to connect Devant to your GitHub account. If you haven't connected your GitHub repository to Devant, authorize the WSO2 cloud app with your GitHub account WSO2 Cloud App.

4. Under the Organization dropdown click + Add. This redirects you to the Install WSO2 Cloud App page.

5. Select your GitHub account and install WSO2 Cloud App

   Note

   The WSO2 Cloud App requires:

   • Read and write access to code and pull requests.
   • Read access to issues and metadata.

   You can revoke access at any time. Write access is used to push changes directly to your repository.

6. Under the Organization dropdown, select your organization. If it is still not listed, click the Refetch button.

7. Select a repository to save your integration.
8. Select a Branch and a Path of the selected repository to save your integration.
9. Name and Identifier fields are automatically populated. Additionally, you can edit them to your preference.
10. Select the Technology as Ballerina Integrator.
11. Choose the Integration Type as File Integration and Click Create.

This redirects you to the overview page of the File Integration. Now, let's develop the File Integration.

Step 2: Install the Ballerina Integrator extension

1. Click Install Ballerina Integrator extension on the overview page. This opens the VS Code extensions page.
2. Click Install to install the extension. This installs both Ballerina Integrator and Ballerina extensions on VS Code.

Step 3: Set up Ballerina Integrator for the first time

1. Click the Ballerina Integrator icon on the sidebar.



2. Click Set Up Ballerina Integrator. The setup wizard installs and configures the Ballerina distribution required for the Ballerina Integrator.

3. Click Restart VS Code to complete the setup.



   Note

   If you already have the integration logic configured or want to immediately push your existing changes to Devant, you can skip directly to Step 5: Push to Devant

   • You can find a ready-made file integration example here: weather-data-listener

   Otherwise, continue with the steps below to build the FTP-based file integration flow from scratch.

Step 4: Develop File Integration in VS Code

1. Go to the Overview page of the integration you have created and click Develop in Ballerina Integrator. This will clone your project and open it in Ballerina Integrator.

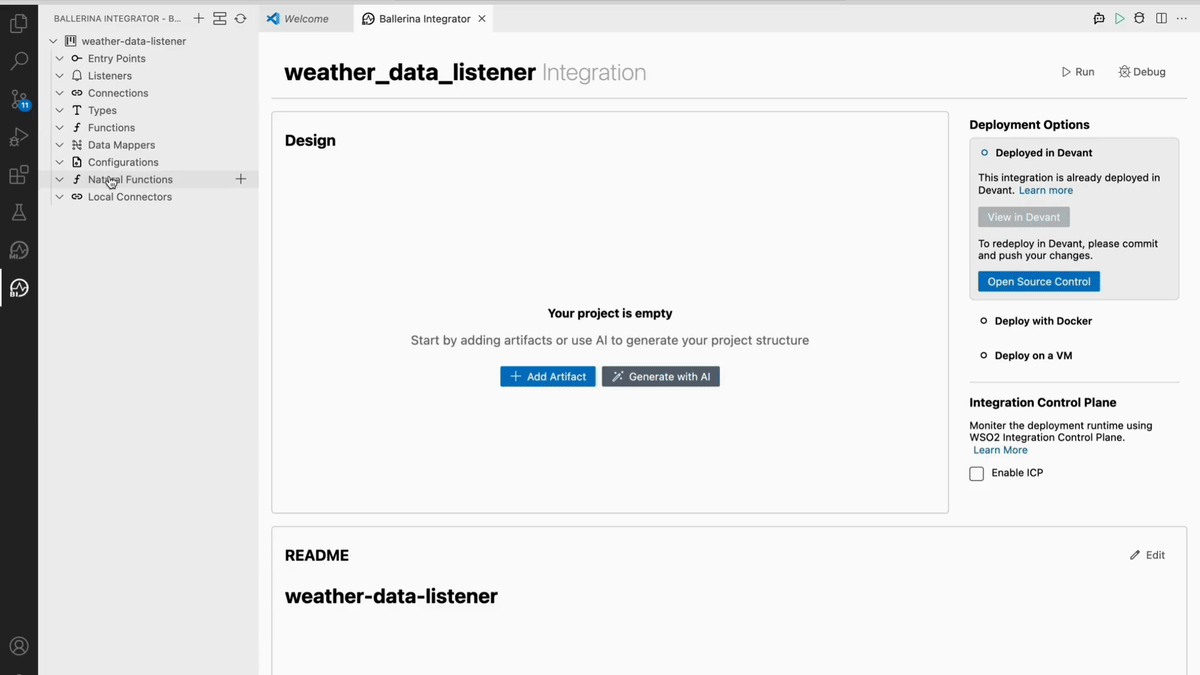

2. From the left side panel, click + on the Configurations, and add the following configurables,

   Configurable	Type	Default
   ftpUser	string	"anonymous"
   ftpPassword	string	""
   ftpHost	string	"tgftp.nws.noaa.gov"

3. Go to the Design View by clicking the Home icon on top left corner.

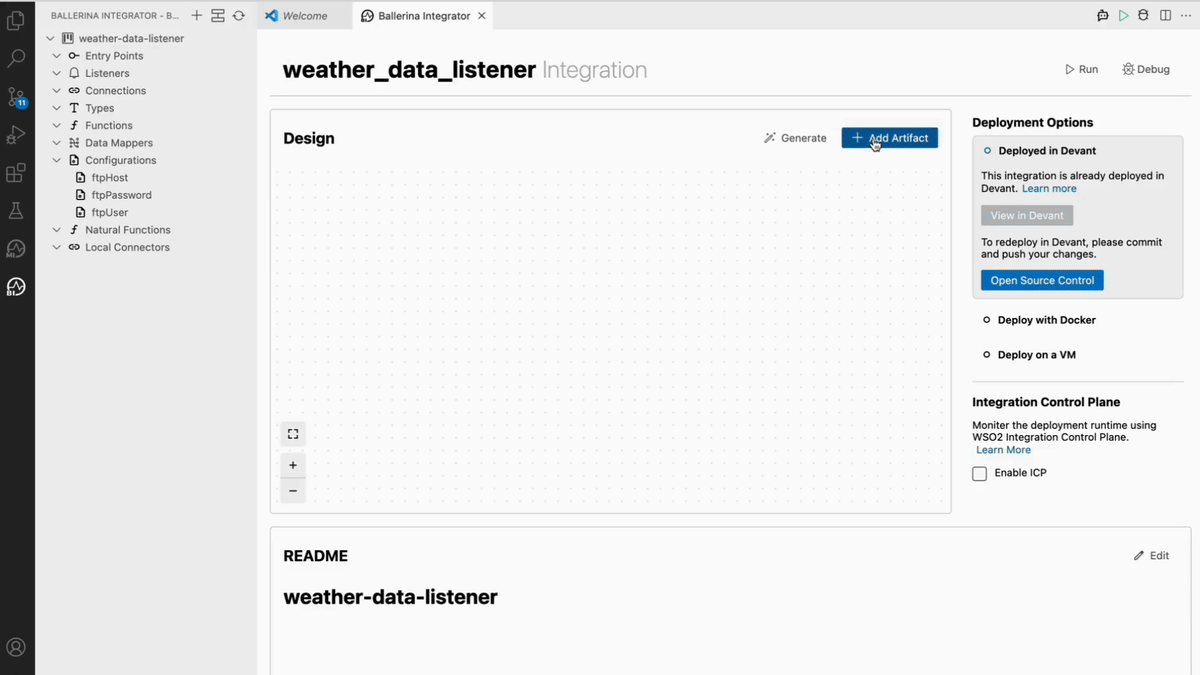

4. In the Ballerina Integrator design view, click Add Artifact.

5. Select FTP Service from the Constructs menu. Choosing the File Integration from the Devant console disables the other options.
6. Provide the name of the Listener Configuration as WeatherListener.

7. Then expand the Advanced Configurations and enter the following configurables:

   Field	Value
   Protocol	ftp:FTP
   Host	ftpHost
   Port	21
   Auth	{ credentials: { username: ftpUser, password: ftpPassword }}
   Path	"/data/observations/metar/decoded/"
   FileNamePattern	"(.*).TXT"
   PollingInterval	10

8. Click Next.

9. Then enter the Service Configuration name as WeatherListener and click on Create. It will redirect you to the Service Designer view.
10. Click the + Function button on top right corner in the Service Designer view.
11. Select the onFileChange as the Available Function and click Save.

12. Then go to the Design view by clicking the Home icon on top left corner of the Service Designer view.

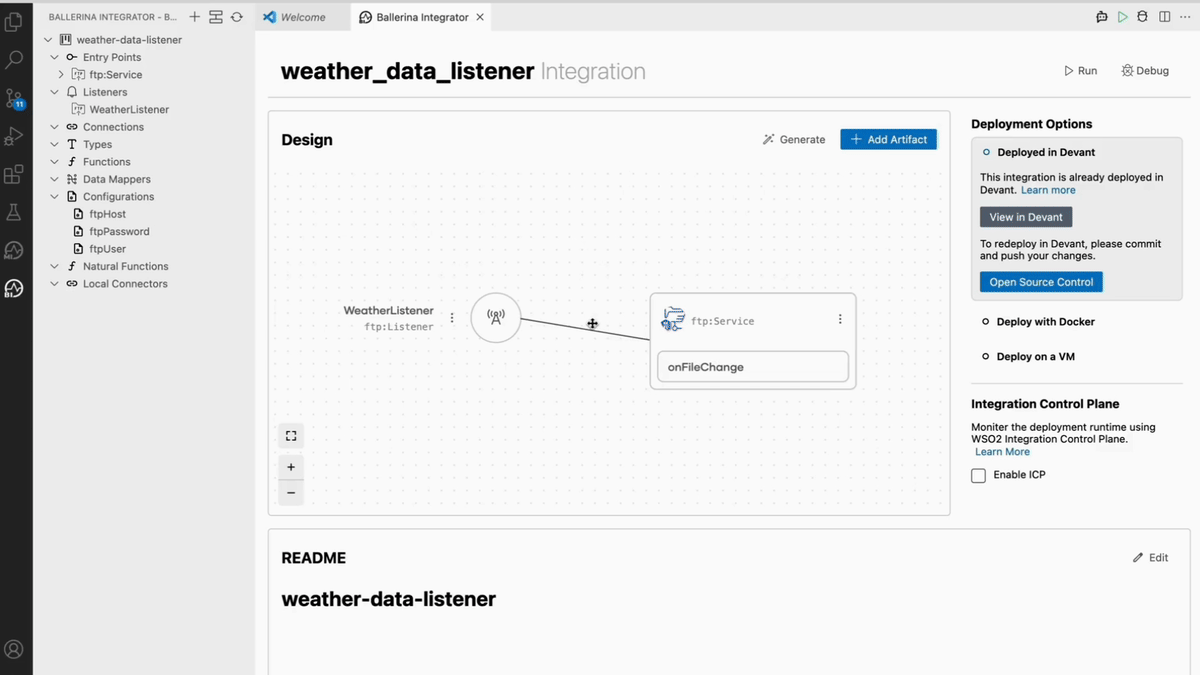

13. In the Design view, click the onFileChange function box. It will redirect you to the flow diagram view.

14. Click the plus icon after the Start node to open the node panel.

15. Select Foreach and enter the following values in relevant fields:

    Field	Value
    Variable Name	addedFile
    Variable Type	ftp:FileInfo
    Collection	event.addedFiles

16. Under the Foreach node, add a Declare Variable node with the following values:

    Field	Value
    Name	fileStream
    Type	stream<byte[] & readonly, io:Error?>
    Expression	caller->get(addedFile.pathDecoded)

17. Add another Declare Variable node with:

    Field	Value
    Name	content
    Type	record {\|byte[] value;\|}\|()
    Expression	check fileStream.next()

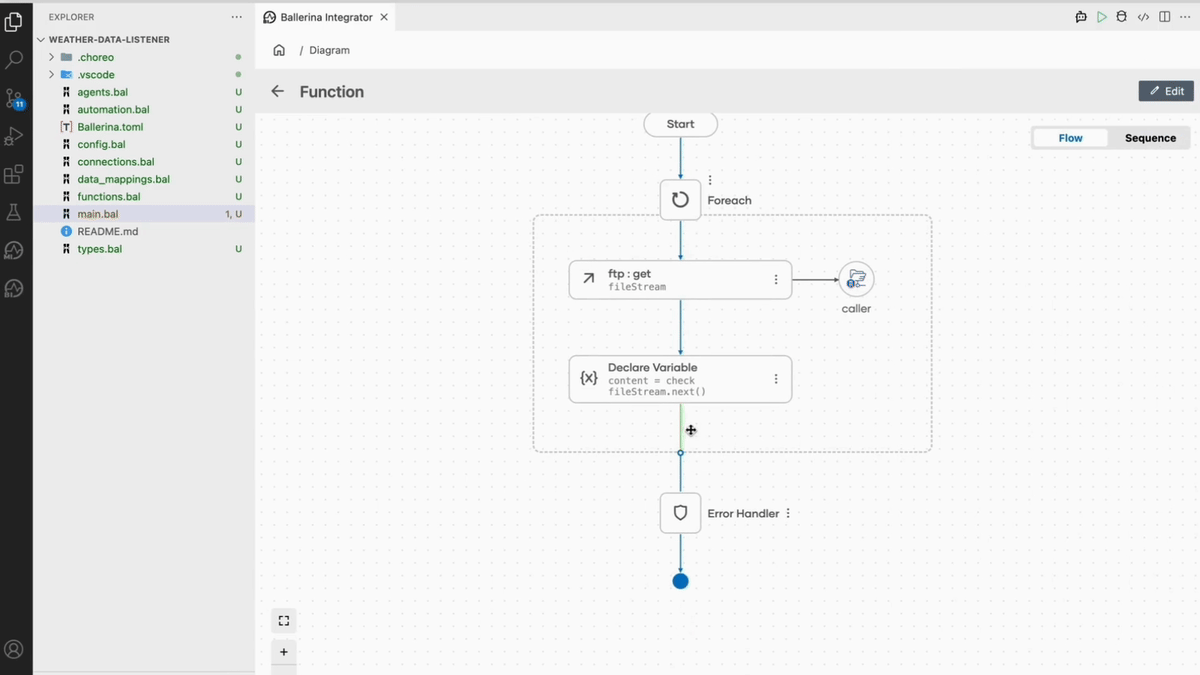

18. Add an If node with the following condition: content is record {| byte[] value; |} Also, click + Add Else Block to define an alternative execution path.

19. The same way, select the Call Function from the node panel and search for fromBytes and select it.

20. Enter the following values in relevant fields and save it:

    Field	Value
    Variable Name	fileContent
    Variable Type	string
    Bytes	content.value

21. Next, select Declare Variable from the node panel and enter the following values:

    Field	Value
    Name	firstLineIndex
    Type	int\|()
    Expression	fileContent.indexOf("\n")

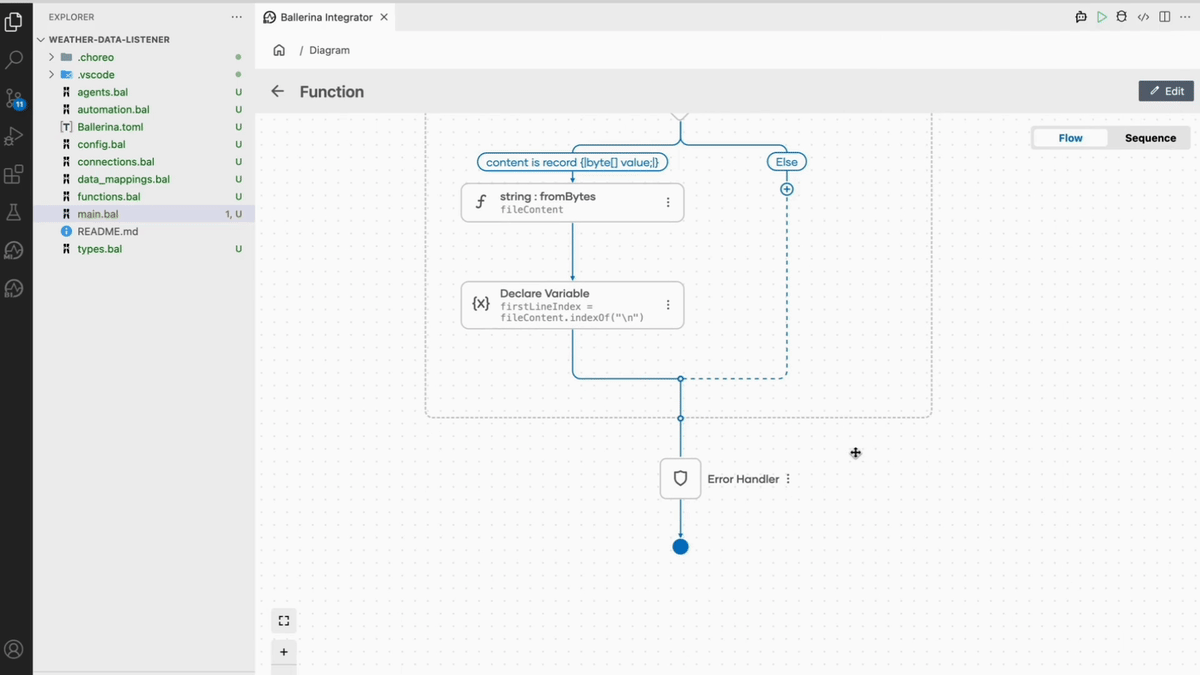

22. Add another If node with the condition: firstLineIndex is int.

23. Inside the if block (where the condition is firstLineIndex is int), add a Declare Variable node with the following properties:

    Field	Value
    Name	location
    Type	string
    Expression	fileContent.substring(0, firstLineIndex)

24. Add a Log Info node below the location variable. Set the Msg to: "Received weather information from: " + location.

25. In the else block of the first if condition (which checks content is record {| byte[] value; |}), add a Log Error node. Set the Msg to: "Failed to read weather content".



Step 5: Push to Devant

1. Click the Source Control icon on the sidebar.
2. Click + to stage all changes.
3. Add an appropriate commit message and commit.
4. Click Sync Changes to push the changes to remote.
5. Go back to the Design view using the back arrow in the top left corner.
6. From the right side panel, click the View in Devant to view this integration in Devant.

Step 6: Test File Integration

1. Once you push the changes, the overview page of the Devant File Integration will automatically refresh and show you the Latest Commit and automatically builds and shows the Build Status.

   Note

   The build process may take some time. Once complete, the build status changes to Success. You can see the Build History by clicking Build in the left navigation.

2. Once the Build Status shows Build completed, it will be automatically deployed into the development card.

3. Once the deployment is successful, you can view the logs printed by the weather listener in the development card. If no logs are visible, try clicking the refresh button.
4. After successfully testing, you can promote your File Integration to production by clicking the Promote button.
5. Once deployed to production, you can access your File Integration through the API endpoints and embed it in your applications.
