RAG Ingestion

Introduction

Retrieval-Augmented Generation (RAG) is an AI framework that enhances Large Language Model (LLM) accuracy by providing contextual data sources. To make use of RAG effectively, data must be systematically ingested into vector databases. This process, known as RAG Ingestion, involves setting up a vector database, utilizing embedding models, processing source files and chunking data. Devant offers a platform to efficiently ingest and manage unstructured documents for RAG. This guide walks through the key steps of RAG Ingestion in Devant.

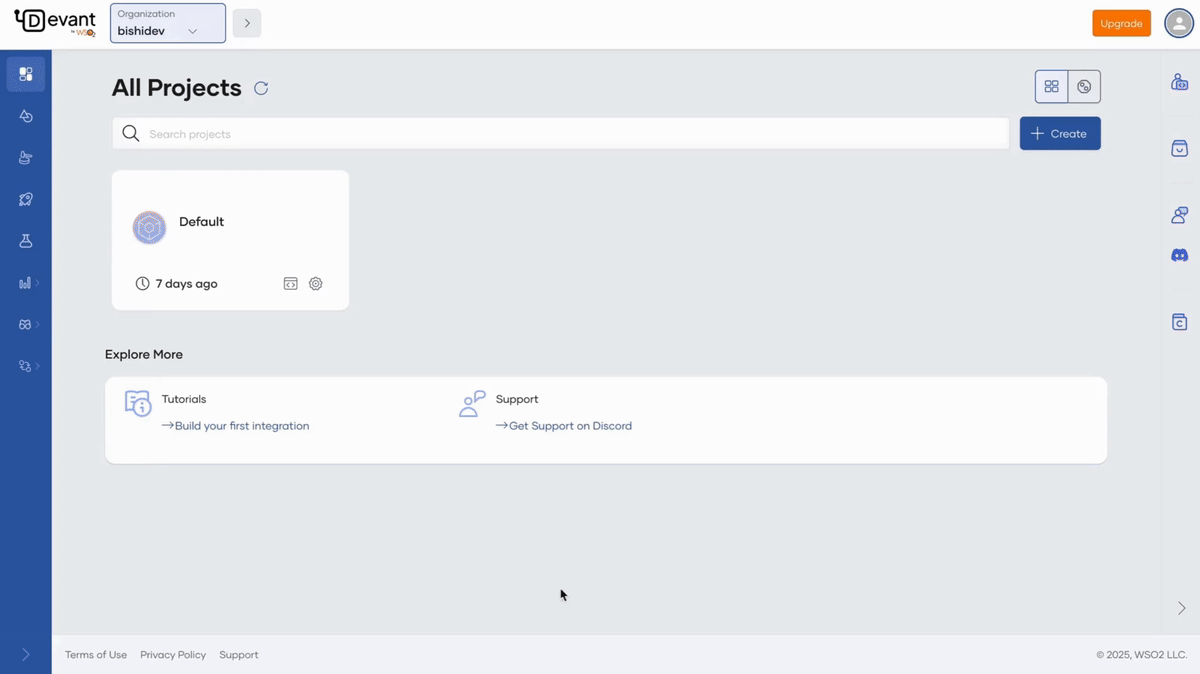

Go to your Organization by selecting the organization from the Organization dropdown in the top left corner. Select RAG Ingestion from the Admin dropdown at the bottom of the left navigation.

Step 1: Initialize Vector Store

LLMs receive contextual information as numerical vectors (embeddings). A vector database stores these embeddings for efficient retrieval. Devant supports a wide range of vector databases like Pinecone, Weaviate, Chroma, and so on.

  1. Select Pinecone as the vector database.

  2. Enter the API key in the API Key field.

    Info

    To create an API key, refer to the Pinecone API Key documentation.

  3. Enter the Collection Name. The collection will be automatically created if it does not exist.

  4. Click Next.

Step 2: Configure the Embedding Model

  1. Select text-embedding-ada-002 embedding model from the Open AI dropdown.

  2. Enter the API key in the Embedding Model API Key field.

    Info

    To create an API key, refer to the OpenAI Platform documentation.

  3. Click Next.

Step 3: Configure Chunking

Chunking is used to break large documents into manageable parts because processing them all at once is not feasible. Chunking strategy, Max segment size, and Max overlap size are automatically populated with default values. You can modify them if needed.

Info
  • Chunking strategy defines how text is split into smaller, manageable pieces (chunks).
  • Max segment size determines the maximum length of tokens for each chunk.
  • Max overlap size defines how many tokens repeat between consecutive chunks.

Step 4: Upload Source Files

Next, upload your source files (e.g., PDFs, CSVs, or text documents) for processing.

  1. Click Select Files. This will open the file explorer on your local machine.
  2. Select the files you want to upload.

  3. Click Upload.

    Note

    When you click Upload it will generate embeddings for the uploaded files and store them in the vector database.

Step 5: Verify

Once processing is complete, execute test queries to ensure proper data retrieval.

  1. Enter a query according to the content of the files uploaded in the previous step in the Query field.

  2. Maximum chunks to retrieve and Minimum similarity threshold are automatically populated with default values. You can modify them if needed.

    Info
    • Maximum chunks to retrieve defines the number of matching chunks to retrieve against the query.
    • Minimum similarity threshold determines whether a chunk is relevant enough to be considered a match for a given query. Expressed as a value between 0 and 1 (for example, 0.7 or 70% similarity).

  3. Click Retrieve. The search results will display the chunks that match the query.
