Configuring Microsoft 365 SAML2 with Asgardeo

This page guides you through using Asgardeo to log in to Google.

Note

  • You need an Office 365 Business account with admin access and a domain added as per the Microsoft documentation.
  • Additionally, ensure a Windows instance with PowerShell is installed.

Create the Microsoft 365 Service Provider

Follow the steps given below to register the Microsoft 365 application in Asgardeo.

  1. On the Asgardeo Console, go to Applications.

  2. Click New Application and select Microsoft 365 from SSO Integrations section.

    Select app type in the WSO2 Identity Server

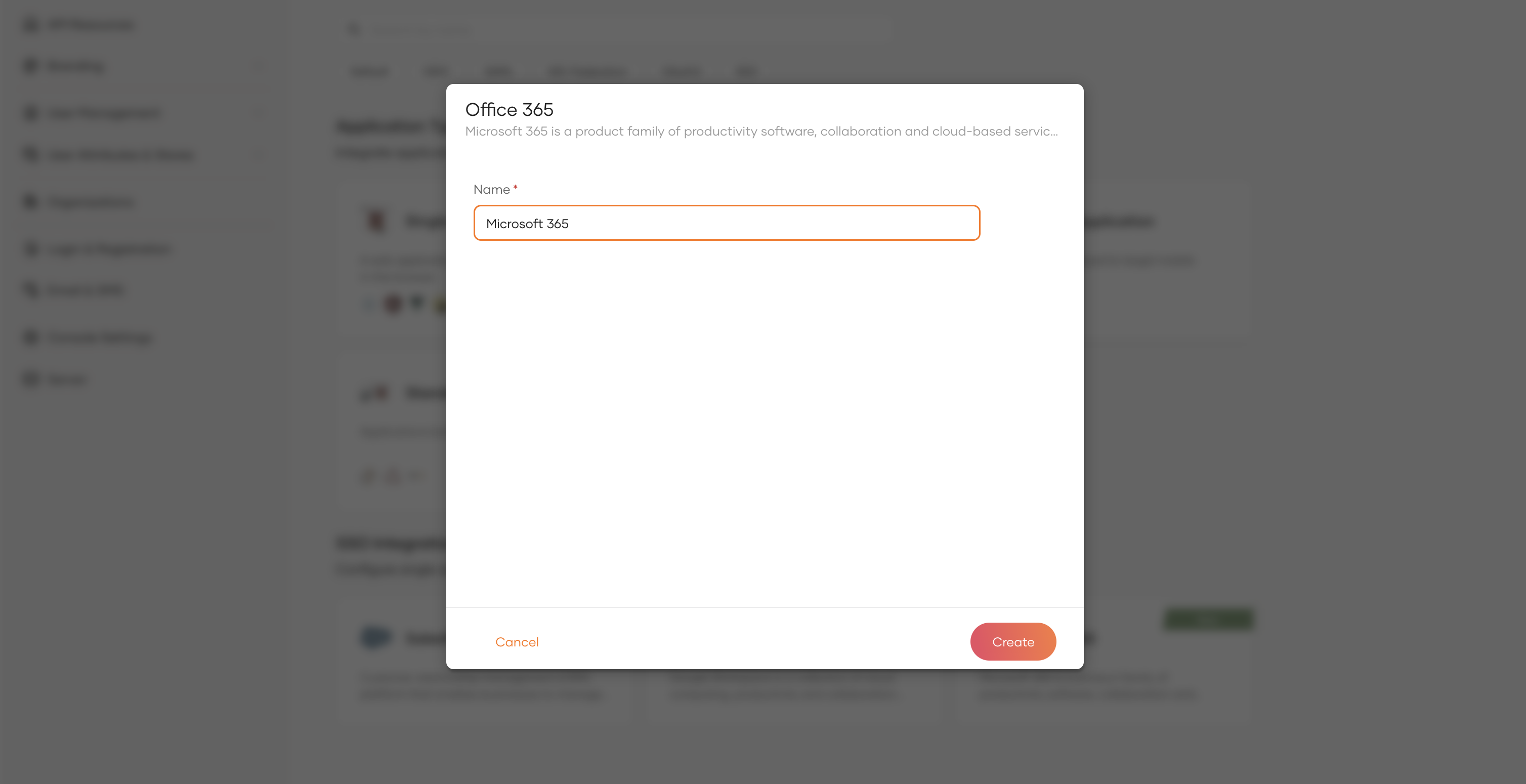

  3. Provide a name for the application.

    Select google workspace app in the WSO2 Identity Server

  4. Click Create to complete the registration.

Install the required modules and connect to Microsoft

A Windows platform Windows Azure Active Directory Powershell installed. If you do not already have the Azure AD module, run the following commands to install the required modules.

#uninstall any existing older version of the AzureAD module
uninstall-module AzureAD


install-module AzureAD
install-module AzureADPreview
install-module MSOnline

Configure Azure AD to trust WSO2 IS

  1. Log in to a Windows machine and start Windows Azure Active Directory Powershell.

  2. Run the following command. It prompts for the Azure AD admin credentials.

    $cred=Get-Credential

  3. Enter the credentials and click OK. Run the following command to connect to the service with the stored credentials.

    Connect-MsolService –Credential $cred

  4. Run the following command to verify the availability of the validated domain.
    The ‘Status’ of the domain should be ‘Verified’, and ‘Authentication’ should be ‘Managed’.

    Get-MsolDomain

  5. Configure the domain as a federated domain by providing the respective federation settings that match the WSO2 IS IdP. Store the federation settings in parameters.

  6. Store your domain.

    $dom = "wso2.cf"

  7. Set the IdP Logon URL for the POST SAML Authentication Request. For this tutorial, you can use the SAML SSO endpoint URL of WSO2 IS.

    $logonurl = "https://localhost:9443/samlsso"

  8. Set the issuer ID of the IdP. This value should be the Identity Provider Entity Id that you configured in the SAML configuration of the Resident IdP of WSO2 IS.

    $issueruri = "localhost"

  9. Set the IdP Logout URL for the POST SAML Logout Request. For this tutorial, you can use the SAML SSO endpoint URL of WSO2 IS.

    $logouturl = "https://localhost:9443/samlsso"

  10. Store the IdP certificate. You can get the certificate value from the Guide section in application.

    $cert = "{certificate}"

    The certificate for the default key store configured in WSO2 IS is given below.

    Sample certificate

    $cert = "MIIDSTCCAjGgAwIBAgIEAoLQ/TANBgkqhkiG9w0BAQsFADBVMQswCQYDVQQGEwJVUzELMAkGA1UECBMCQ0ExFjAUBgNVBAcTDU1vdW50YWluIFZpZXcxDTALBgNVBAoTBFdTTzIxEjAQBgNVBAMTCWxvY2FsaG9zdDAeFw0xNzA3MTkwNjUyNTFaFw0yNzA3MTcwNjUyNTFaMFUxCzAJBgNVBAYTAlVTMQswCQYDVQQIEwJDQTEWMBQGA1UEBxMNTW91bnRhaW4gVmlldzENMAsGA1UEChMEV1NPMjESMBAGA1UEAxMJbG9jYWxob3N0MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAluZFdW1ynitztkWLC6xKegbRWxky+5P0p4ShYEOkHs30QI2VCuR6Qo4Bz5rTgLBrky03W1GAVrZxuvKRGj9V9+PmjdGtau4CTXu9pLLcqnruaczoSdvBYA3lS9a7zgFU0+s6kMl2EhB+rk7gXluEep7lIOenzfl2f6IoTKa2fVgVd3YKiSGsyL4tztS70vmmX121qm0sTJdKWP4HxXyqK9neolXI9fYyHOYILVNZ69z/73OOVhkh/mvTmWZLM7GM6sApmyLX6OXUp8z0pkY+vT/9+zRxxQs7GurC4/C1nK3rI/0ySUgGEafO1atNjYmlFN+M3tZX6nEcA6g94IavyQIDAQABoyEwHzAdBgNVHQ4EFgQUtS8kIYxQ8UVvVrZSdgyide9OHxUwDQYJKoZIhvcNAQELBQADggEBABfk5mqsVUrpFCYTZZhOxTRRpGXqoW1G05bOxHxs42Paxw8rAJ06Pty9jqM1CgRPpqvZa2lPQBQqZrHkdDE06q4NG0DqMH8NT+tNkXBe9YTre3EJCSfsvswtLVDZ7GDvTHKojJjQvdVCzRj6XH5Truwefb4BJz9APtnlyJIvjHk1hdozqyOniVZd0QOxLAbcdt946chNdQvCm6aUOputp8Xogr0KBnEy3U8es2cAfNZaEkPU8Va5bU6Xjny8zGQnXCXxPKp7sMpgO93nPBt/liX1qfyXM7xEotWoxmm6HZx8oWQ8U5aiXjZ5RKDWCCq4ZuXl6wVsUz1iE61suO5yWi8="

  11. Run the following command to establish trust. You can copy the command in Guide section.

    Set-MsolDomainAuthentication –DomainName $dom -Authentication Federated -PassiveLogOnUri $logonurl -SigningCertificate $cert -IssuerUri $issueruri -LogOffUri $logouturl -PreferredAuthenticationProtocol SAMLP

  12. Run the following command to verify the federation settings.

    Get-MsolDomainFederationSettings -Domain $dom

You have now successfully set up trust between the on-premise identity provider of WSO2 IS and the Azure Active Directory.

If you wish to redo the configurations, do the following:

  1. Run the following command to first move your domain back to the 'Managed' authentication mode.
Set-MsolDomainAuthentication -DomainName $dom -Authentication Managed
  1. Re-set the parameters as listed in step 5 and then set the authentication method again as shown in step 6.

Try it out

  1. Create a user on the Asgardeo.
  2. Add that same user to Microsoft using the following command. Here, the ImmutableID should be the UUID of the user.
New-MsolUser -UserPrincipalName yourdomain.com -ImmutableID userID -LastName lastNameOfUser -FirstName firstNameOfUser -DisplayName WSO2 Test User
