What you'll build​

Build an automation that connects to an SAP S/4HANA system and retrieves the top five sales organizations using the SAP S/4HANA API Sales Organization Service connector. The result is stored in the listA_SalesOrganizations variable for downstream processing or verification.

Operations used:

  • listA_SalesOrganizations : Retrieves a list of sales organizations from the SAP S/4HANA API_SALESORGANIZATION_SRV OData service, limited to the top five results

Architecture​

Prerequisites​

  • Access to an SAP S/4HANA system with the API_SALESORGANIZATION_SRV OData service enabled
  • SAP S/4HANA hostname, username, and password

Setting up the SAP S/4HANA API sales organization service integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the SAP S/4HANA API sales organization service connector​

Step 1: Open the add connection panel​

In the WSO2 Integrator sidebar, expand the project tree and select Add Connection to open the connector palette.

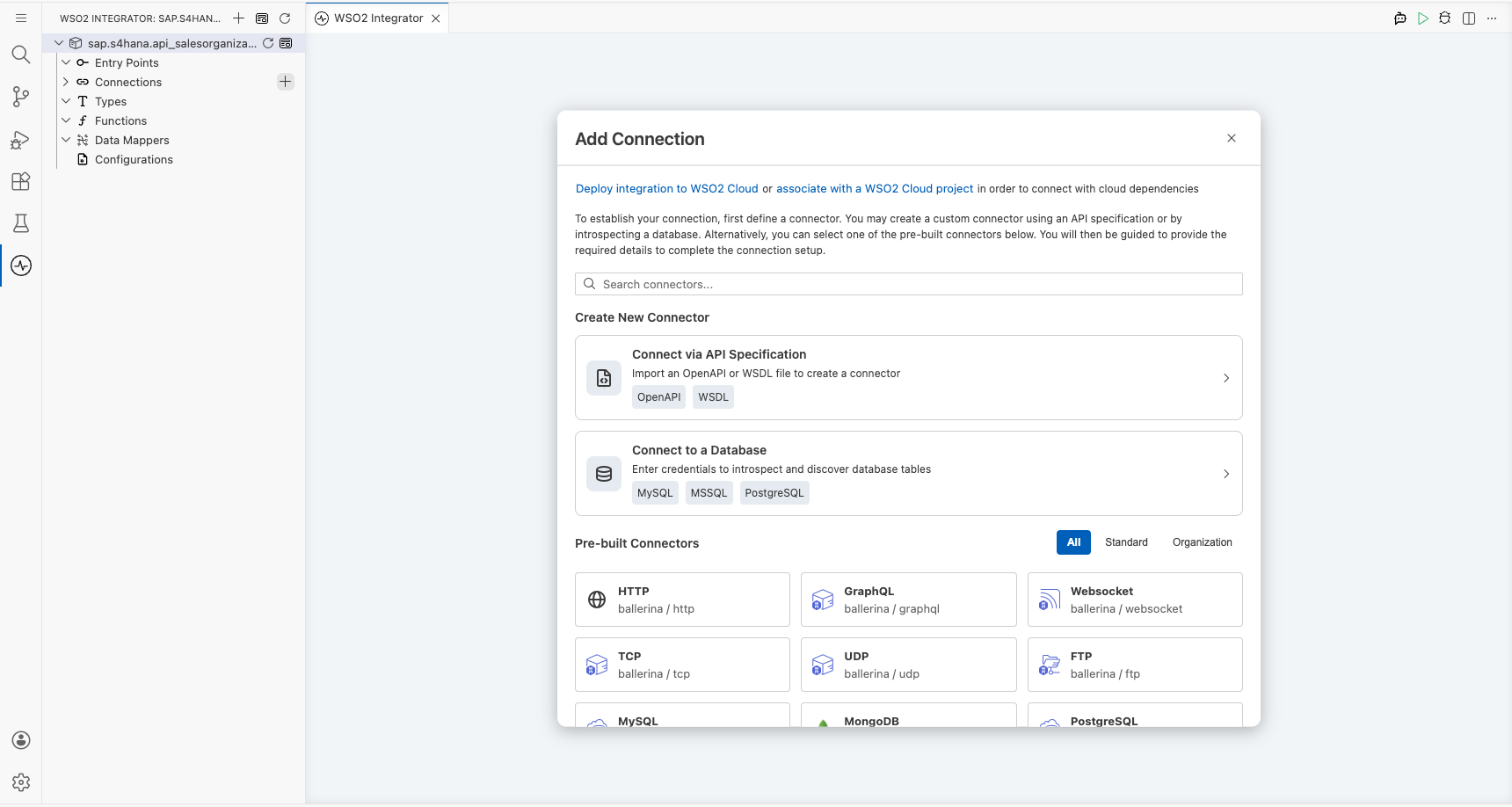

SAP S/4HANA connector palette open with search field before any selection

Step 2: Select the SAP S/4HANA API sales organization service connector​

Search for sap.s4hana.api_salesorganization_srv in the palette and select the SAP S/4HANA API Sales Organization Service connector card to open the connection form.

Configuring the SAP S/4HANA API sales organization service connection​

Step 3: Fill in the connection parameters​

Enter the connection parameters, binding each field to a configurable variable:

  • Config : Authentication object containing sapS4HanaUsername and sapS4HanaPassword configurable variables for secure credential management
  • Hostname : Bound to the sapS4HanaHostname configurable variable representing your SAP S/4HANA system hostname
  • Connection Name : A unique name identifying this connection instance

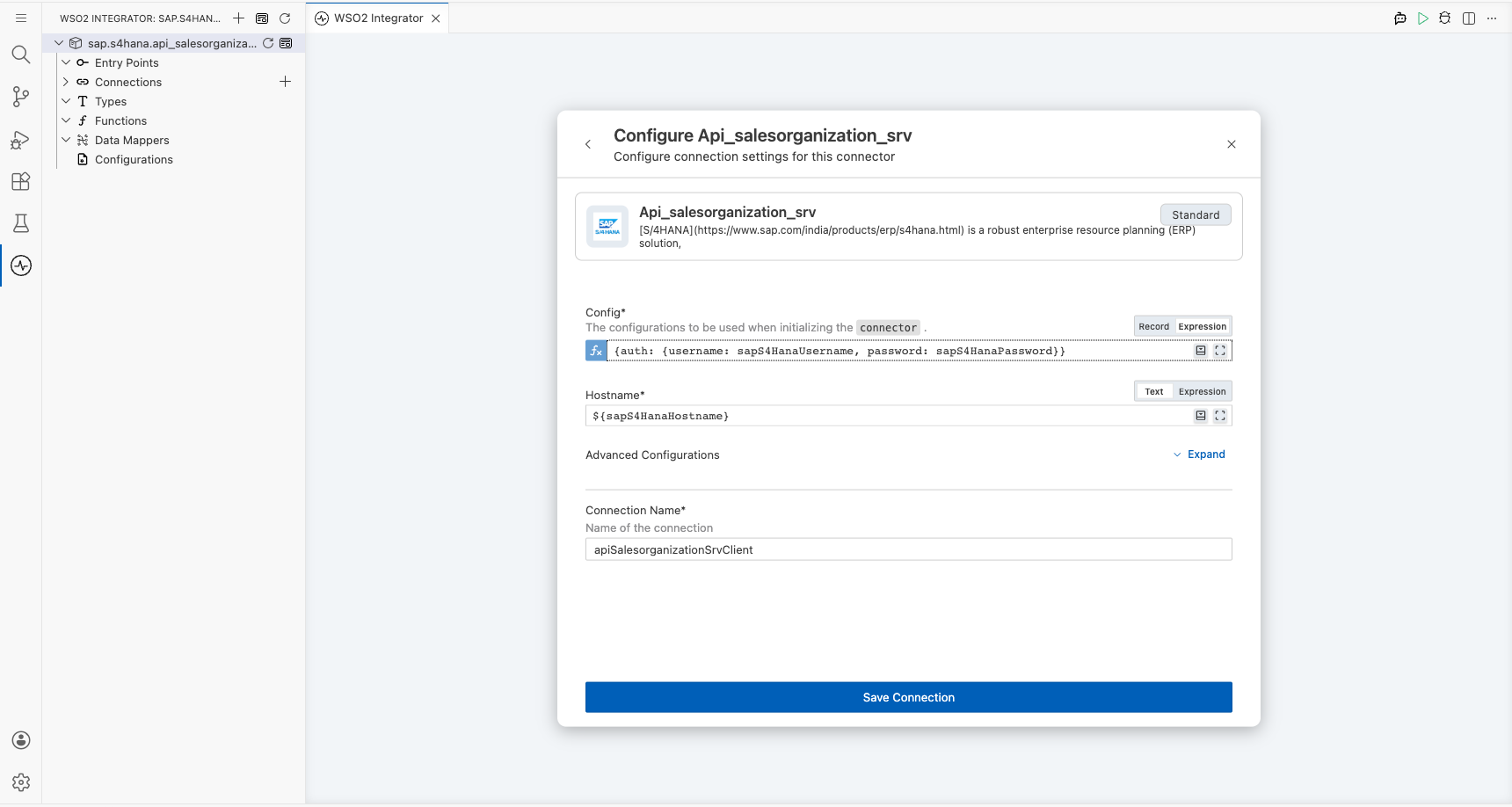

SAP S/4HANA connection form fully filled with all parameters before saving

Step 4: Save the connection​

Select Save to create the connection. The canvas displays apiSalesorganizationSrvClient under the Connections section.

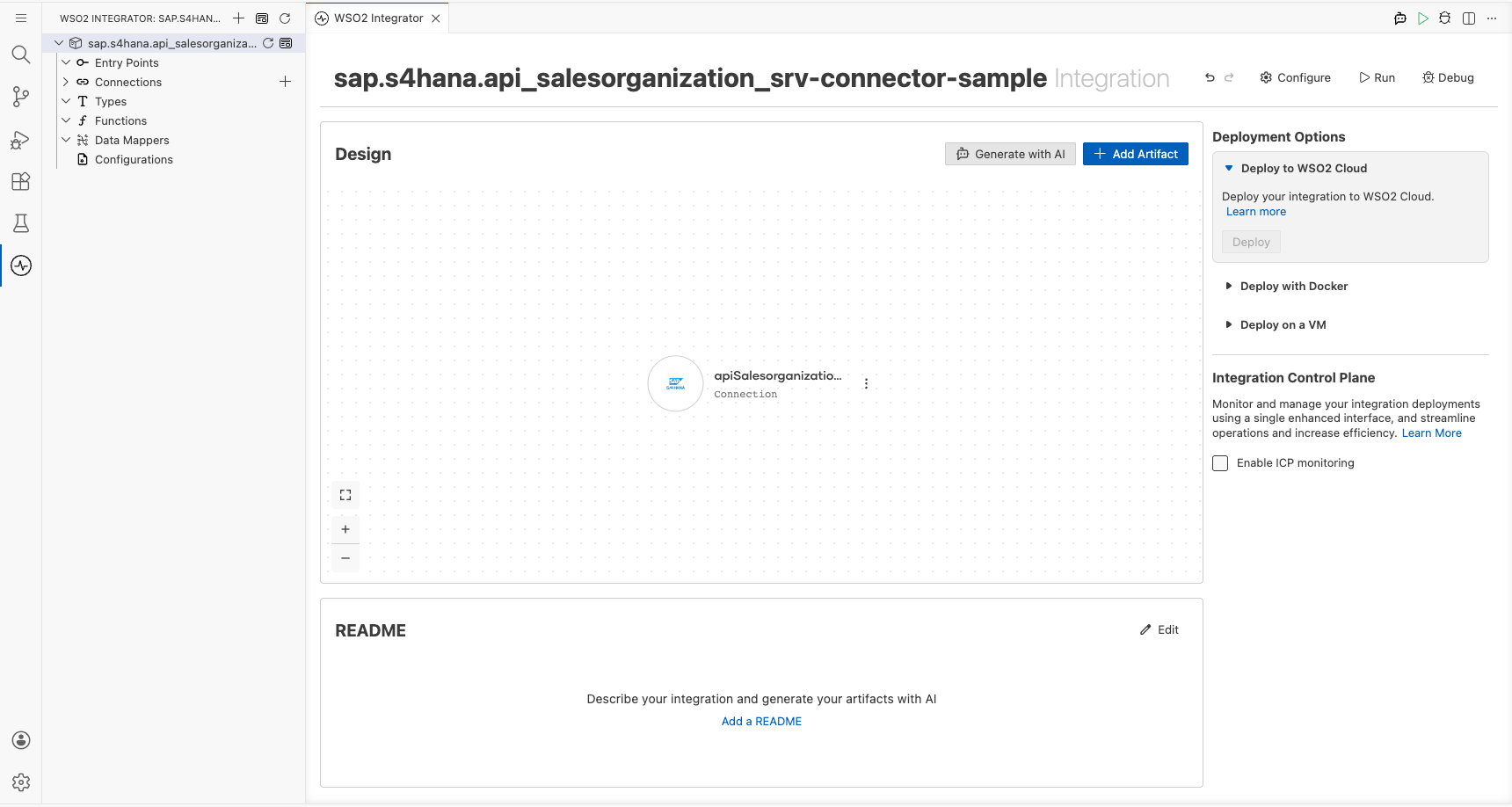

SAP S/4HANA Connections panel showing apiSalesorganizationSrvClient entry after saving

Step 5: Set actual values for your configurables​

In the left panel, select Configurations and set a value for each configurable listed below:

  • sapS4HanaHostname (string) : The hostname of your SAP S/4HANA system
  • sapS4HanaUsername (string) : Your SAP S/4HANA username
  • sapS4HanaPassword (string) : Your SAP S/4HANA password

Configuring the SAP S/4HANA API sales organization service listA_SalesOrganizations operation​

Step 6: Add an automation entry point​

  1. In the WSO2 Integrator sidebar, select Add Artifact.
  2. Select Automation as the entry point type.
  3. Enter main as the name.

Step 7: Select and configure the listA_SalesOrganizations operation​

  1. Select the + button on the canvas between Start and Error Handler.
  2. Under Connections, select apiSalesorganizationSrvClient to expand its operations.
  3. Select listA_SalesOrganizations from the available operations.

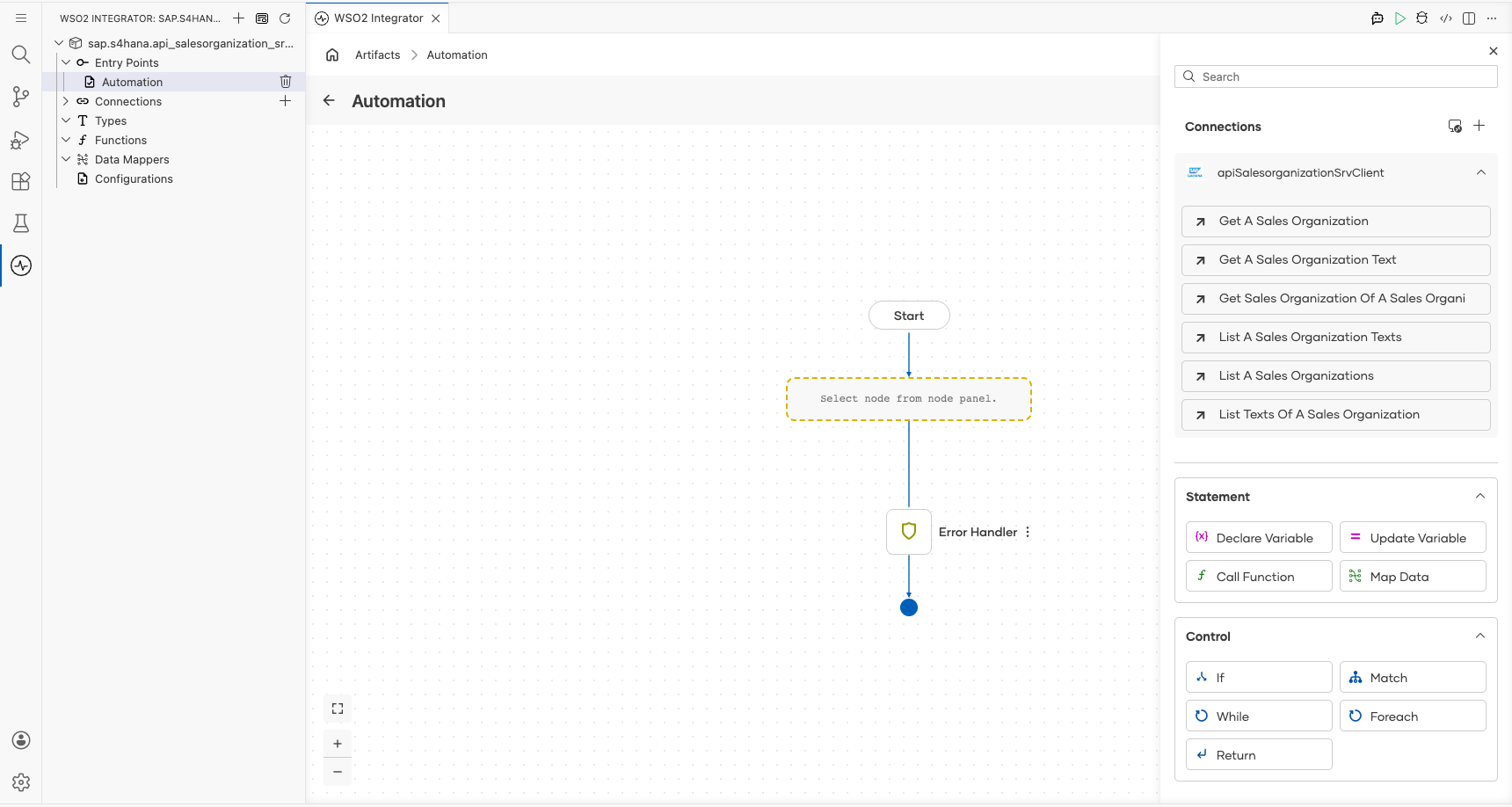

SAP S/4HANA connection node expanded showing all available operations before selection

Configure the operation with the following values:

  • $top : Set to 5 to limit results to the top five sales organizations
  • Result Variable : Name of the variable that stores the operation response
  • Result Type : The response wrapper type for the collection of sales organizations

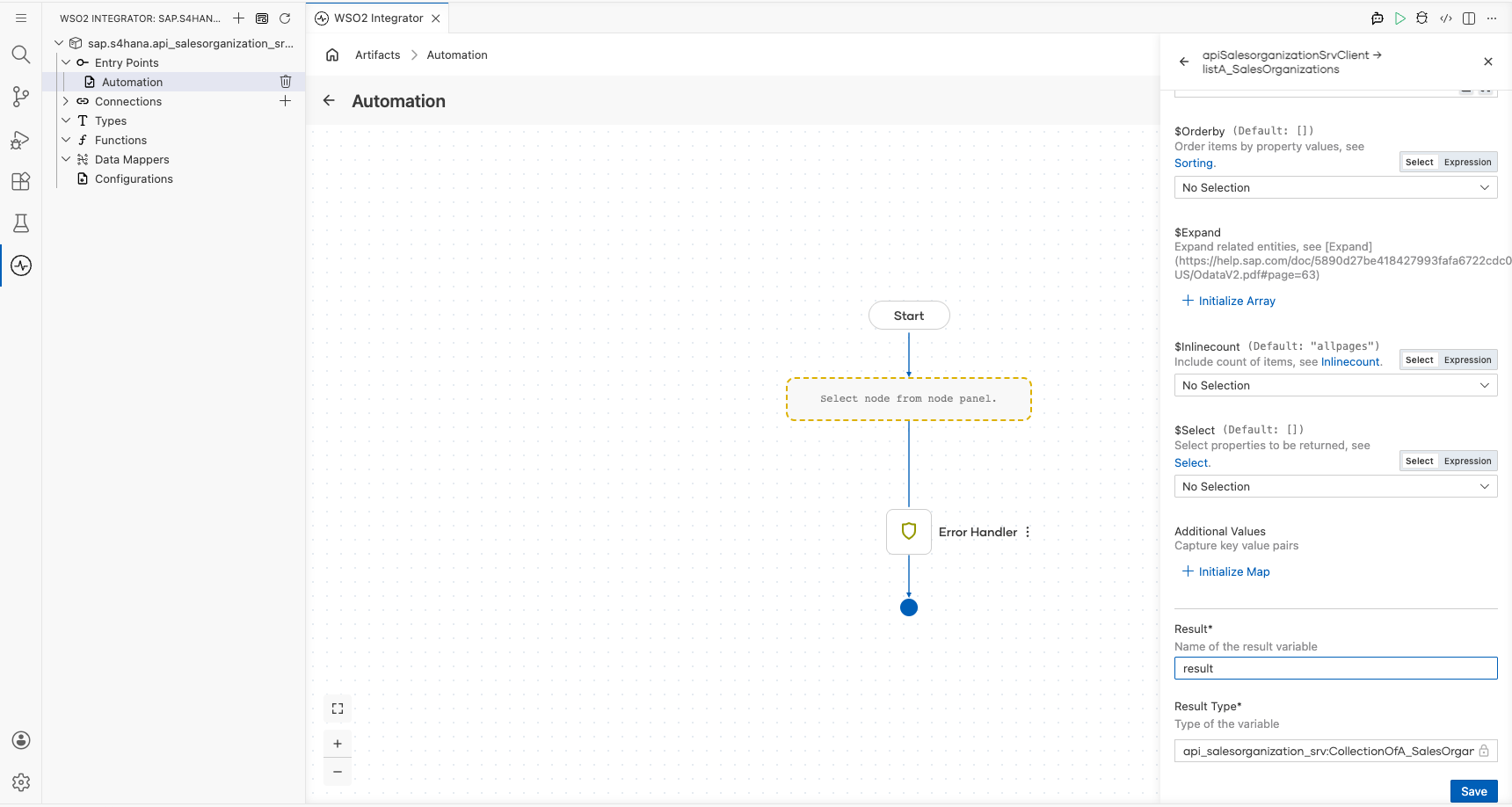

SAP S/4HANA listA_SalesOrganizations operation configuration filled with all values

Select Save to add the operation to the flow.

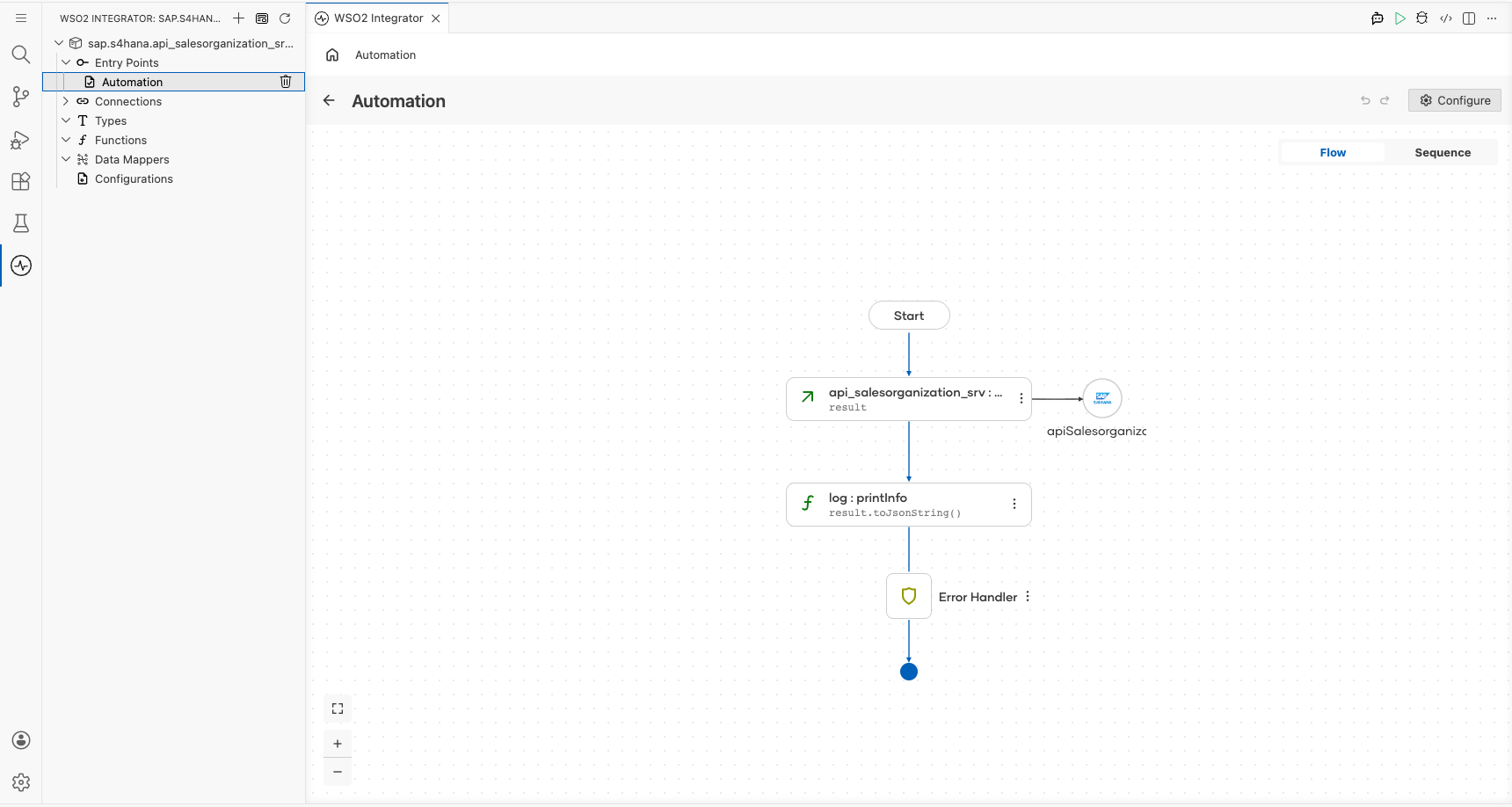

Completed SAP S/4HANA automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The S/4 HANA Sales and Distribution Ballerina connectors provide practical examples illustrating usage in various scenarios. Explore these examples, covering use cases like accessing S/4HANA Sales Order (A2X) API.

  1. Salesforce to S/4HANA Integration - Demonstrates leveraging the sap.s4hana.api_sales_order_srv:Client in Ballerina for S/4HANA API interactions. It specifically showcases how to respond to a Salesforce Opportunity Close Event by automatically generating a Sales Order in the S/4HANA SD module.

  2. Shopify to S/4HANA Integration - Details the integration process between Shopify, a leading e-commerce platform, and SAP S/4HANA, a comprehensive ERP system. The objective is to automate SAP sales order creation for new orders placed on Shopify, enhancing efficiency and accuracy in order management.
