Example

What you'll build​

This example builds an integration that connects to Microsoft Dynamics 365 Finance HR Development and retrieves the collection of skills defined in the environment. The integration logs the retrieved skills collection as a JSON string so you can confirm the operation ran successfully.

Operations used:

  • List Skills : Retrieves the collection of skills configured in Microsoft Dynamics 365 Finance HR Development.

Architecture​

Prerequisites​

  • A Microsoft Dynamics 365 Finance and Operations environment with an Azure Active Directory app registration that has API permissions for Dynamics 365.

  • The application must be registered as a user in the target Dynamics 365 Finance and Operations environment and assigned the security roles required for this connector's operations.

Setting up the Microsoft Dynamics 365 Finance HR Development integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Microsoft Dynamics 365 Finance HR Development connector​

Step 1: Open the connector palette​

Select Add Connection in the Connections section.

Microsoft Dynamics 365 Finance HR Development connector palette open before selection

Step 2: Select the Microsoft Dynamics 365 Finance HR Development connector​

  1. Enter microsoft.dynamics365.finance.hrdev in the search field.
  2. Select the Microsoft Dynamics 365 Finance HR Development connector card.

Configuring the Microsoft Dynamics 365 Finance HR Development connection​

Step 3: Bind the connection parameters to configurable variables​

Bind every required connection field to a configurable variable.

  • Config : Switch to an expression that references the tokenUrl, clientId, clientSecret, and scopes configurables nested under auth. Enter the expression {auth: {tokenUrl, clientId, clientSecret, scopes}}.
  • Service Url : The base URL of the Dynamics 365 Finance environment. Use the OData root, for example https://<your-org>.operations.dynamics.com/data.

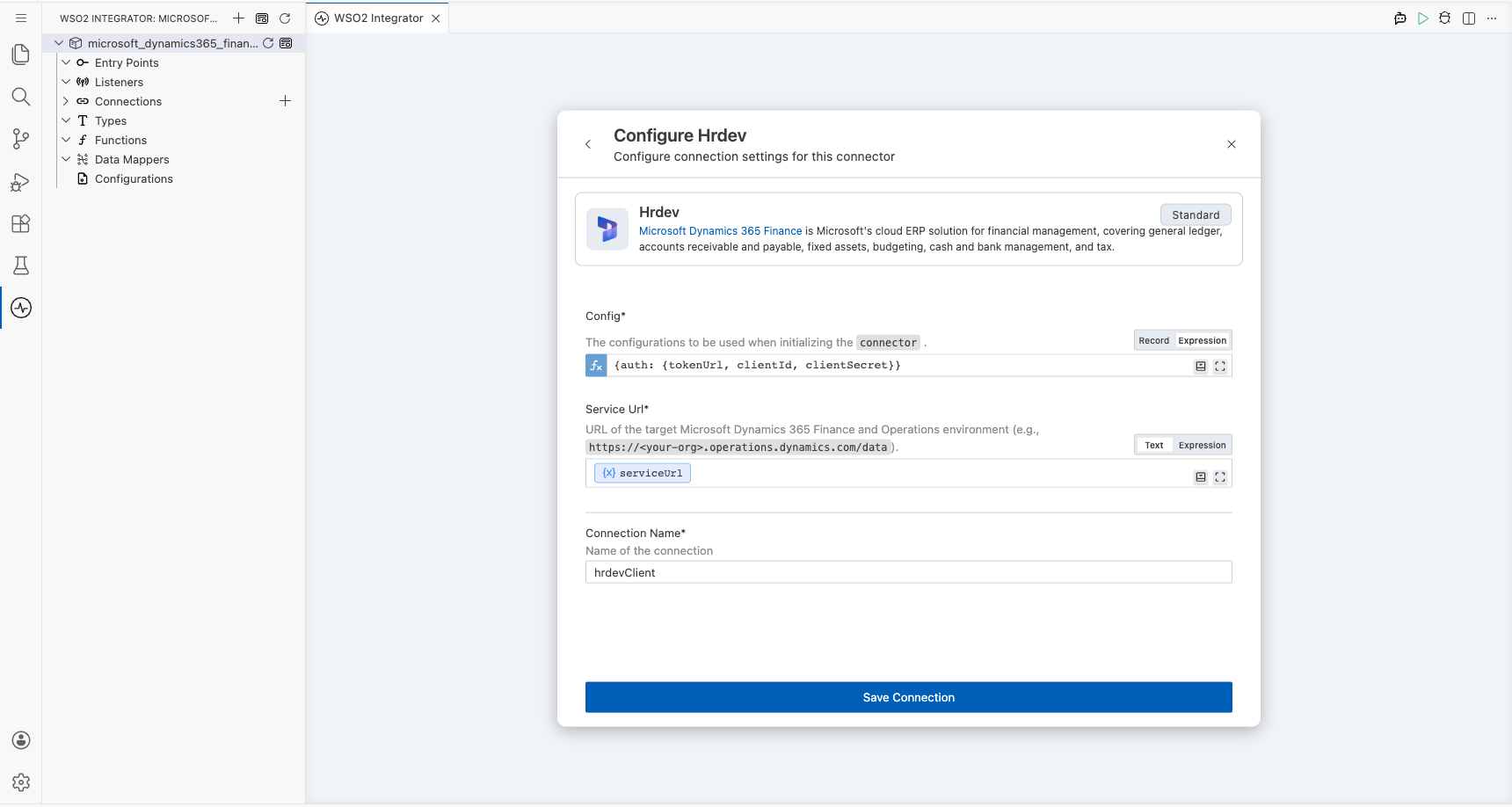

Microsoft Dynamics 365 Finance HR Development connection form with all parameters bound before saving

Step 4: Save the connection​

Select Save and verify that the connection appears in the Connections section.

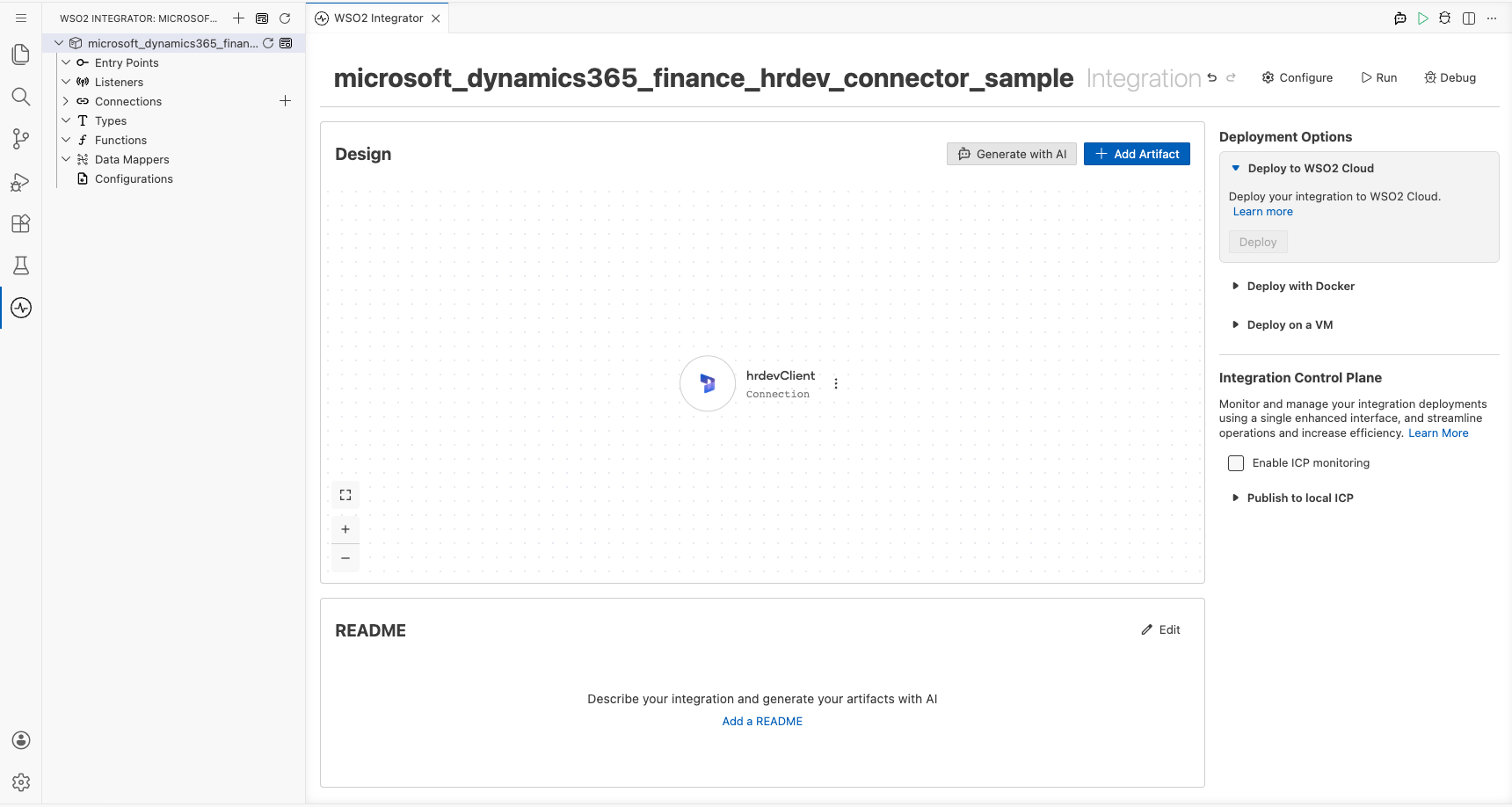

Microsoft Dynamics 365 Finance HR Development connection visible after saving

Step 5: Set actual values for your configurables​

  1. Select Configurations at the bottom of the project tree under Data Mappers.
  2. Enter a value for each configurable listed below before you run the integration.
  • tokenUrl (string) : The OAuth2 token endpoint used to obtain an access token.
  • clientId (string) : The application (client) ID of the Azure AD app registration.
  • clientSecret (string) : The client secret generated for the Azure AD app registration.
  • scopes (string[]) : The OAuth2 scope requested for the client-credentials token, set to the environment base URL followed by /.default
  • serviceUrl (string) : The base URL of the Dynamics 365 Finance environment.

Configuring the Microsoft Dynamics 365 Finance HR Development List Skills operation​

Step 6: Add an automation entry point​

  1. Select Add Entry Point next to Entry Points.
  2. Select Automation.
  3. Select Create to accept the settings.

Step 7: Expand the connection and configure the List Skills operation​

  1. Select Add Step in the automation flow.
  2. Expand hrdevClient to display its operations.

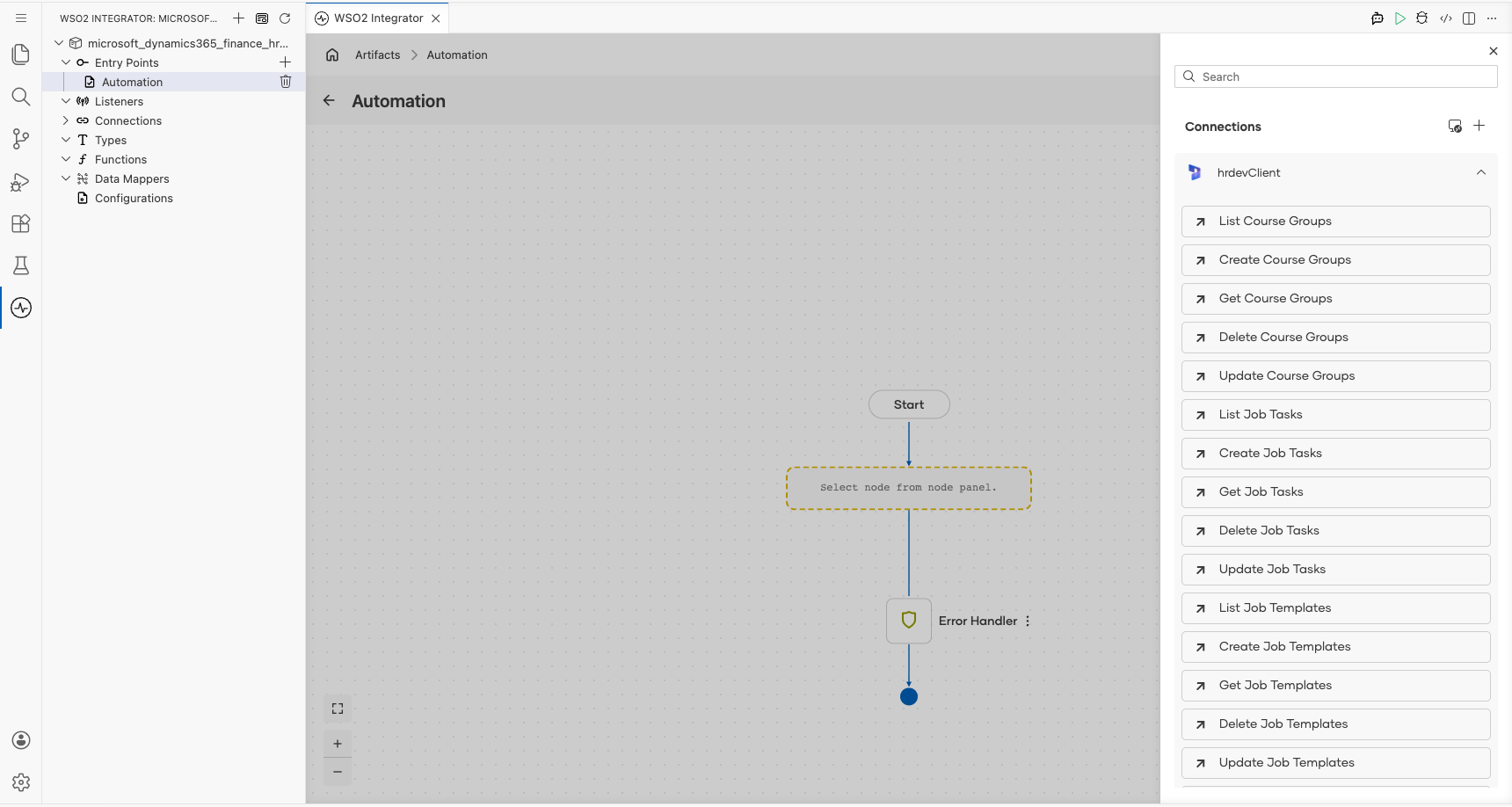

Microsoft Dynamics 365 Finance HR Development connection expanded to display operations before selection

  1. Select List Skills to retrieve the skills collection; this operation requires no additional parameters.

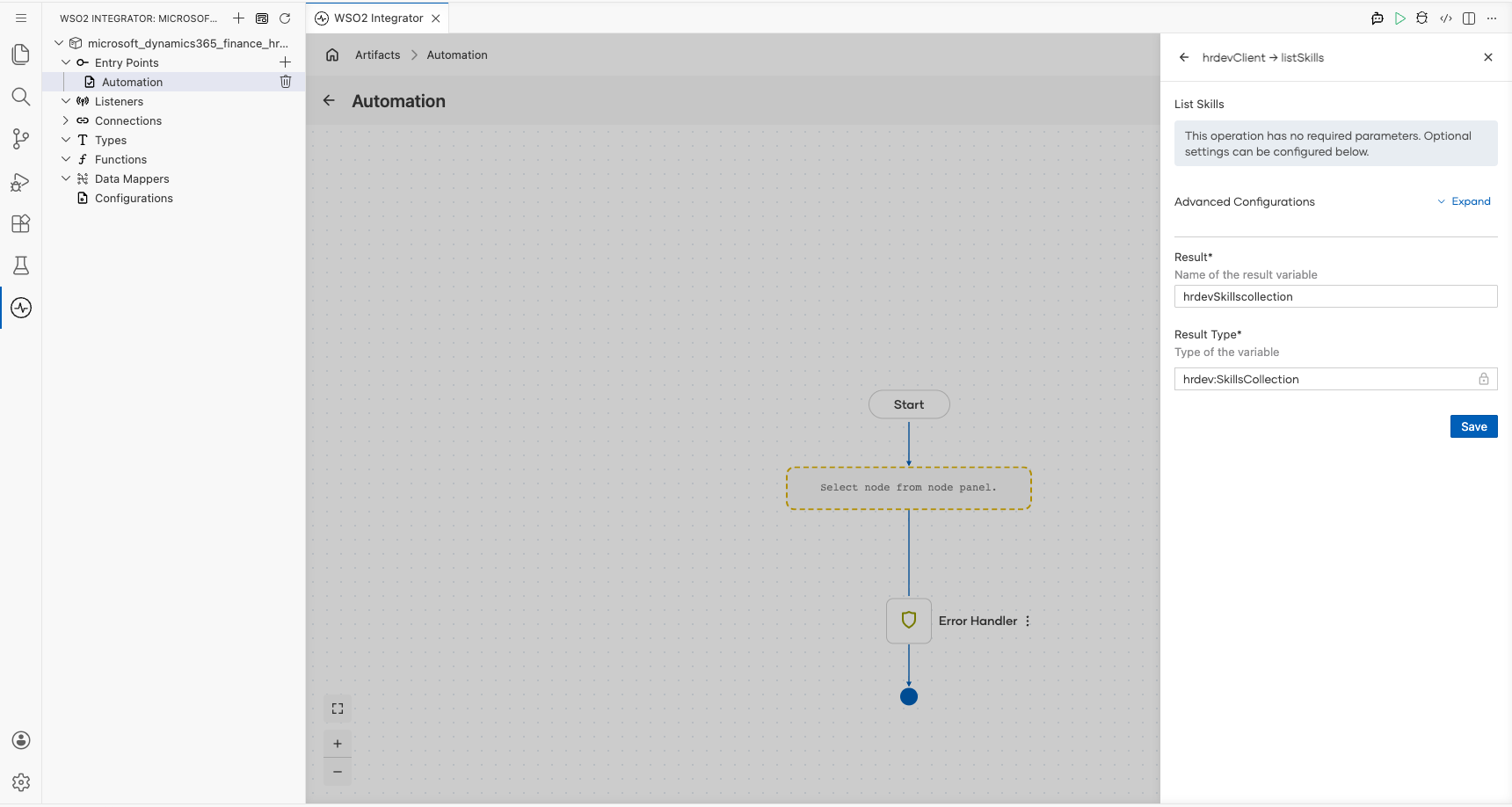

Microsoft Dynamics 365 Finance HR Development List Skills operation with all values entered before saving

  1. Select Save.

Step 8: Log the List Skills result​

Add a Log Info action, switch its Msg field to expression mode, and enter hrdevSkillscollection.toJsonString() to log the result. Return to the visual flow to confirm the complete chain.

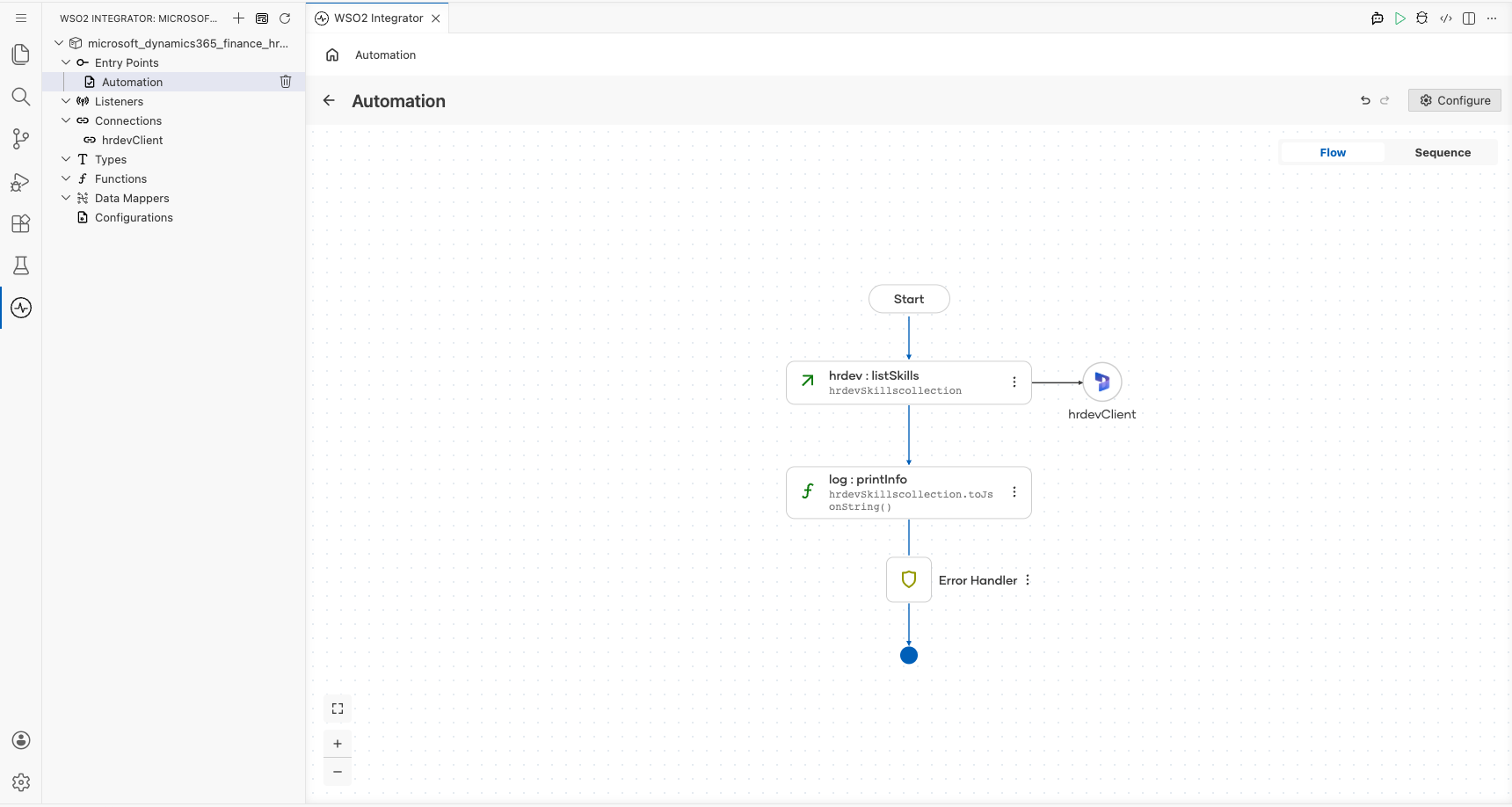

Completed Microsoft Dynamics 365 Finance HR Development flow with the configured operation

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Dynamics 365 Finance Ballerina connectors provide practical examples illustrating usage in various scenarios. Explore these examples.
