What you'll build​

This example builds an automation that connects to Microsoft Dynamics 365 Finance System Config and lists the reason codes configured in the environment. The flow authenticates with Microsoft Entra ID using the OAuth2 client credentials grant, retrieves the reason records, and logs the result as JSON.

Operations used:

  • List Reasons : Reads all Reasons records — the general-purpose reason codes used for write-offs, adjustments, and other transactions — from the connected environment.

Architecture​

Prerequisites​

  • A Microsoft Entra ID application registered with access to a Microsoft Dynamics 365 Finance and Operations environment, along with its client ID, client secret, and OAuth2 token URL.

  • The application must be registered as a user in the target Dynamics 365 Finance and Operations environment and assigned the security roles required for this connector's operations.

Setting up the Microsoft Dynamics 365 Finance System Config integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Microsoft Dynamics 365 Finance System Config connector​

Step 1: Open the connector palette​

Select Add Connection in the Connections section.

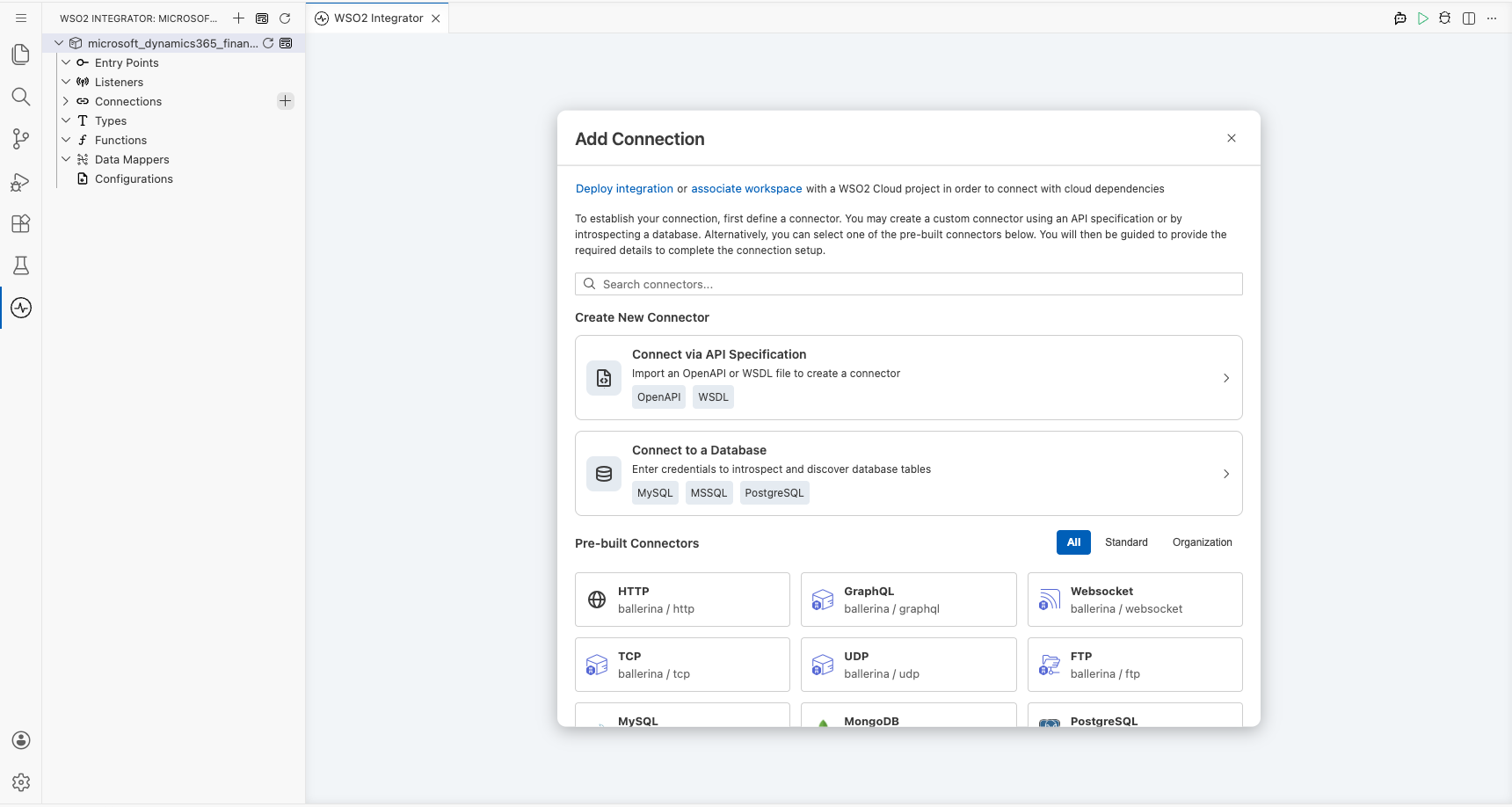

Microsoft Dynamics 365 Finance System Config connector palette open before selection

Step 2: Select the Microsoft Dynamics 365 Finance System Config connector​

  1. Enter microsoft.dynamics365.finance.sysconfig in the search field.
  2. Select the Sysconfig connector card.

Configuring the Microsoft Dynamics 365 Finance System Config connection​

Step 3: Bind the connection parameters to configurable variables​

  1. Select the Config field to open the Record Configuration panel.
  2. Select the auth checkbox to include the OAuth2 client credentials fields; the required clientId and clientSecret fields are included automatically.
  3. Select the optional tokenUrl field as well, since the client credentials grant needs it.
  4. Close the Record Configuration panel, then create three string configurable variables named tokenUrl, clientId, and clientSecret under Configurations.
  5. Return to Add Connection, search for the connector again, and switch the Config field from Record to Expression mode.
  6. Enter {auth: {tokenUrl, clientId, clientSecret, scopes}} as the expression, referencing the three configurable variables.
  7. Open the helper panel for the Service Url field, select the Configurables tab, and create a string configurable named serviceUrl; it's inserted into the field automatically.
  • Config : The OAuth2 client credentials configuration used to authenticate the connection.
  • Service Url : URL of the target Microsoft Dynamics 365 Finance and Operations environment. Use the OData root, for example https://<your-org>.operations.dynamics.com/data.

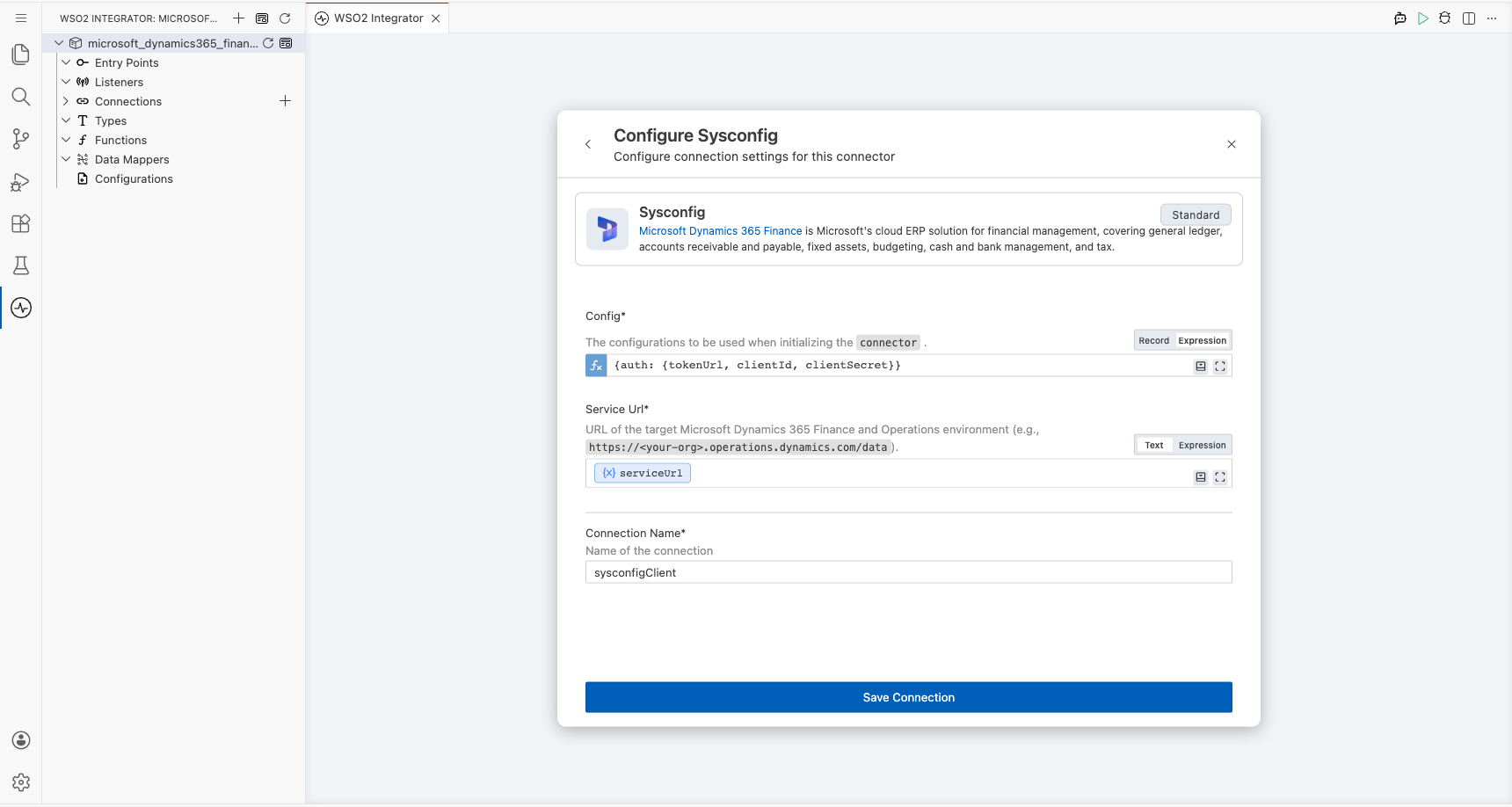

Microsoft Dynamics 365 Finance System Config connection form with all parameters bound before saving

Step 4: Save the connection​

Select Save Connection and verify that sysconfigClient appears in the Connections section.

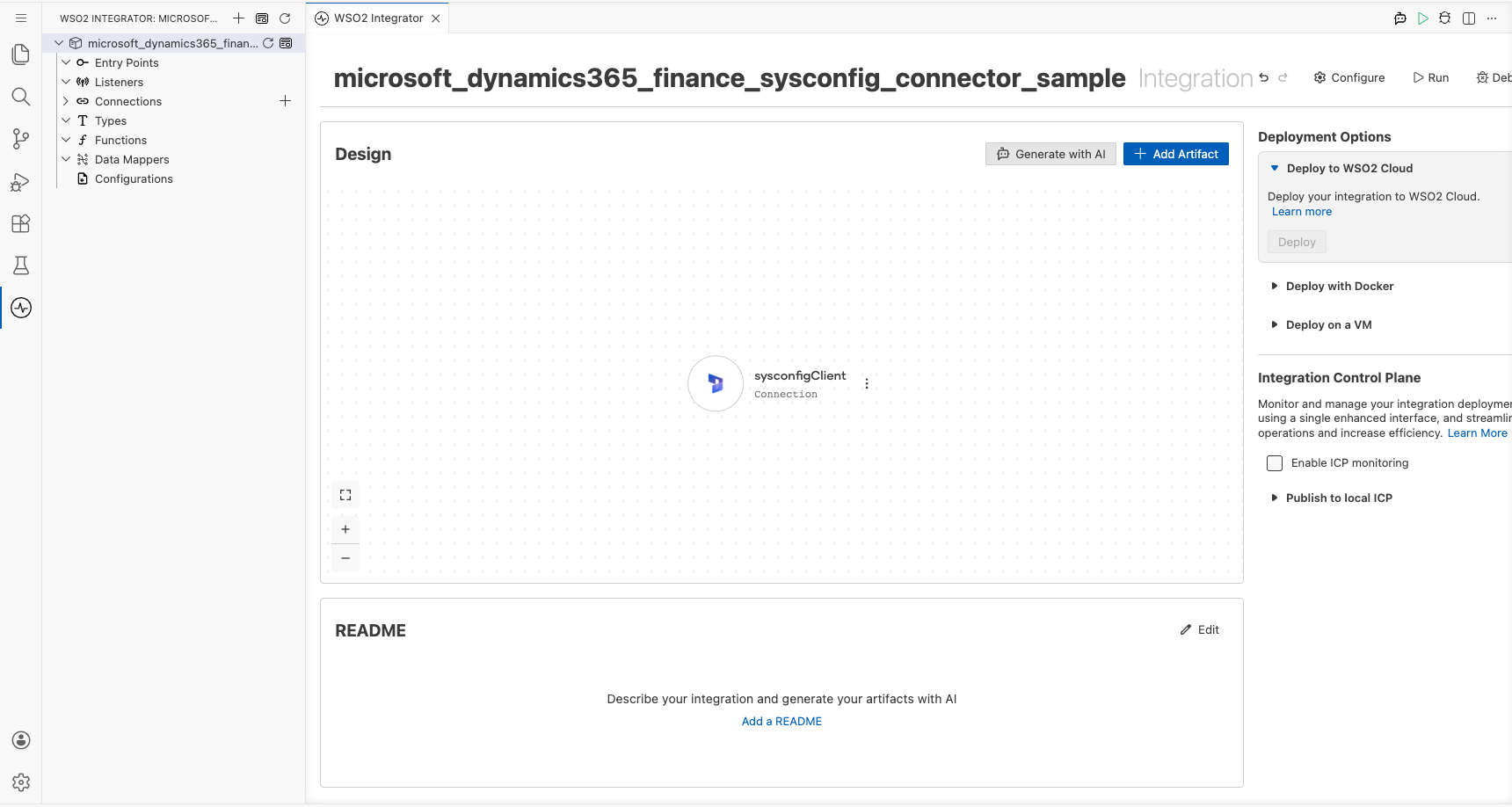

Microsoft Dynamics 365 Finance System Config connection visible after saving

Step 5: Set actual values for your configurables​

  1. Select Configurations at the bottom of the project tree under Data Mappers.
  2. Enter a value for each configurable listed below before you run the integration.
  • tokenUrl (string) : The OAuth2 token endpoint URL for the Microsoft Entra ID application.
  • clientId (string) : The client ID of the registered Microsoft Entra ID application.
  • clientSecret (string) : The client secret of the registered Microsoft Entra ID application.
  • scopes (string[]) : The OAuth2 scope requested for the client-credentials token, set to the environment base URL followed by /.default
  • serviceUrl (string) : URL of the target Microsoft Dynamics 365 Finance and Operations environment.

Configuring the Microsoft Dynamics 365 Finance System Config List Reasons operation​

Step 6: Add an automation entry point​

  1. Select Add Entry Point next to Entry Points.
  2. Select Automation.
  3. Select Create to accept the settings.

Step 7: Expand the connection and configure the List Reasons operation​

  1. Select the add icon on the automation flow.
  2. Expand sysconfigClient to display its operations.

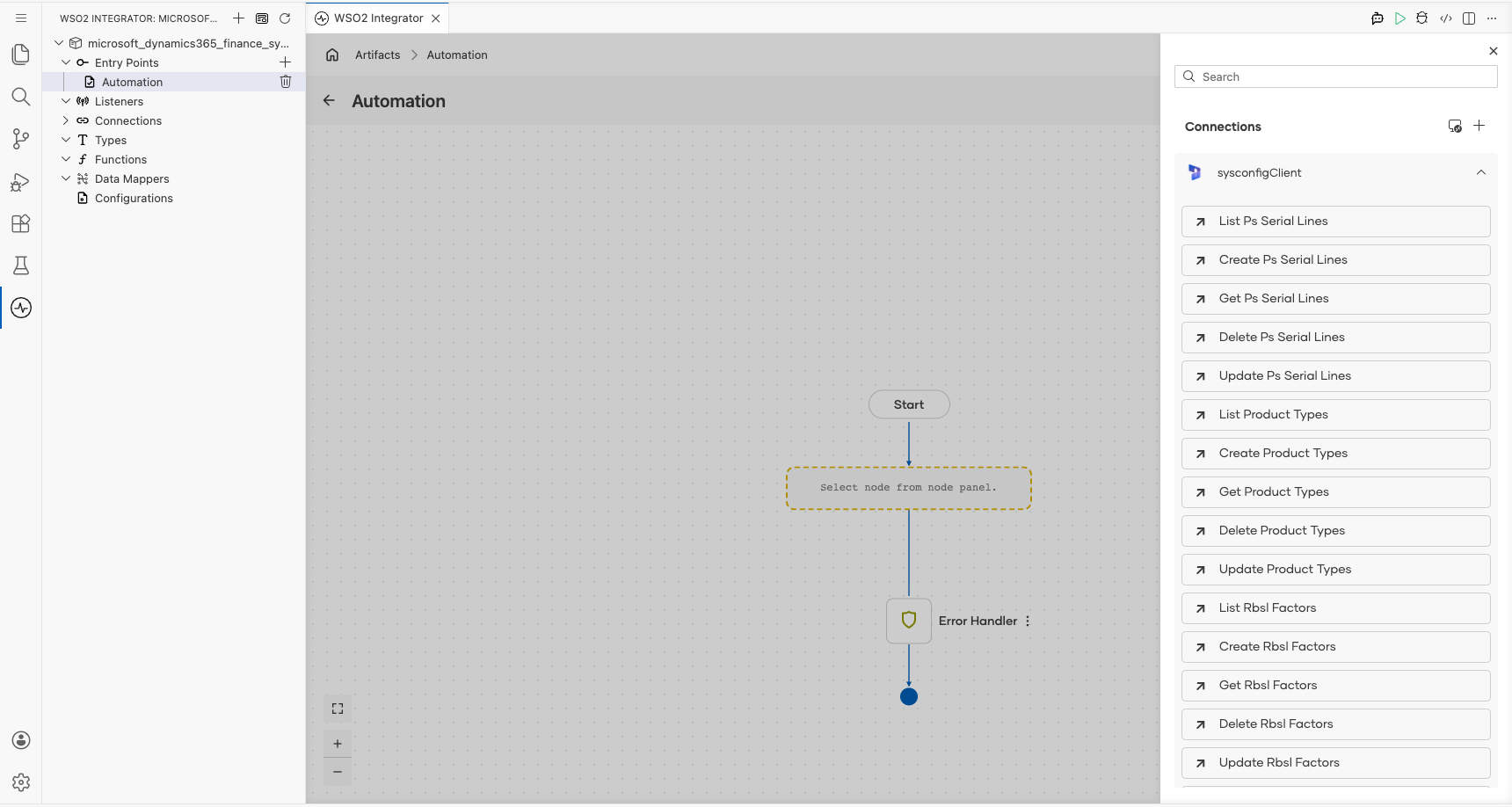

Microsoft Dynamics 365 Finance System Config connection expanded to display operations before selection

  1. Select List Reasons. This operation has no required parameters, so the default result variable name, sysconfigReasonscollection, is sufficient.

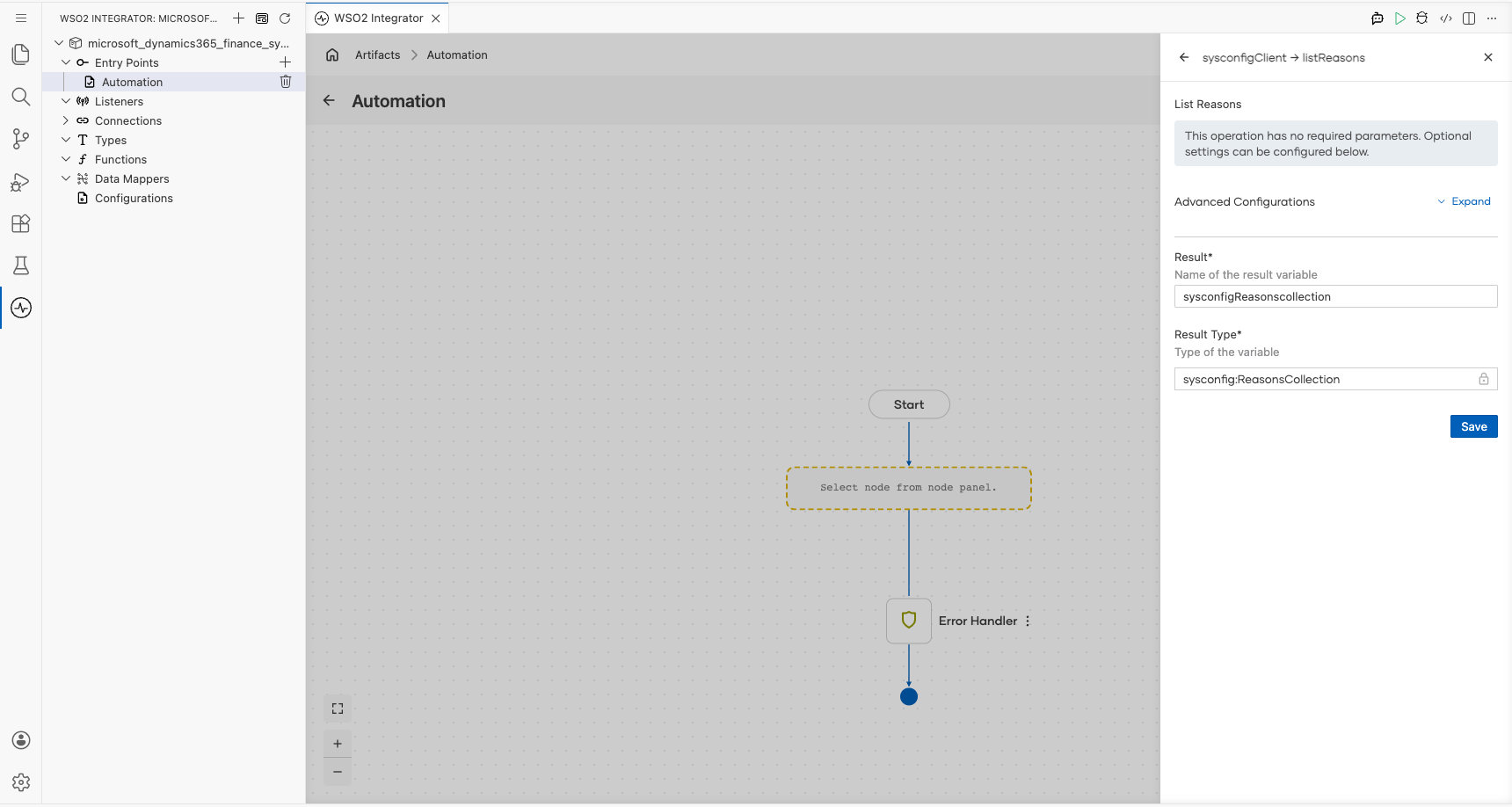

Microsoft Dynamics 365 Finance System Config List Reasons operation with all values entered before saving

  1. Select Save.

Step 8: Log the List Reasons result​

  1. Select the add icon on the link between the List Reasons node and Error Handler.
  2. Expand Logging and select Log Info.
  3. Switch the Msg field to Expression mode and enter sysconfigReasonscollection.toJsonString().
  4. Select Save.

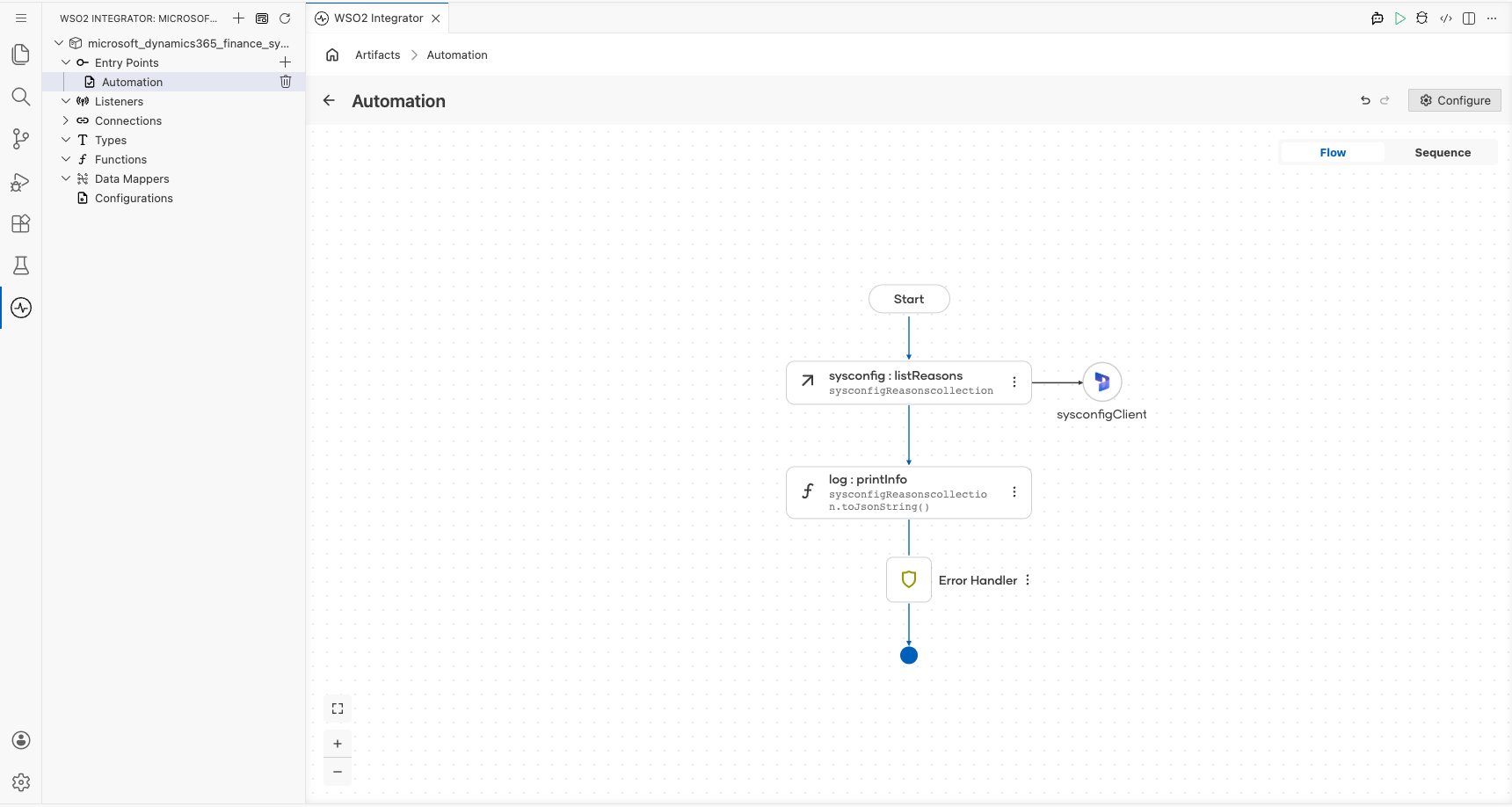

Completed Microsoft Dynamics 365 Finance System Config flow with the configured operation

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Dynamics 365 Finance Ballerina connectors provide practical examples illustrating usage in various scenarios. Explore these examples.
