Example

What you'll build​

This example builds an automation that connects to Microsoft Dynamics 365 Finance Users and lists the system user accounts configured in a Dynamics 365 Finance and Operations environment. The integration retrieves the collection of system users and logs the result as JSON.

Operations used:

  • List System Users : Lists system users, optionally filtered with OData query parameters.

Architecture​

Prerequisites​

  • A Microsoft Dynamics 365 Finance and Operations environment (cloud-hosted or sandbox).

  • An Azure Active Directory (Entra ID) app registration with API permissions for Dynamics 365, including an OAuth2 token endpoint, client ID, and client secret.

  • The application must be registered as a user in the target Dynamics 365 Finance and Operations environment and assigned the security roles required for this connector's operations.

Setting up the Microsoft Dynamics 365 Finance Users integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Microsoft Dynamics 365 Finance Users connector​

Step 1: Open the connector palette​

Select Add Connection in the Connections section.

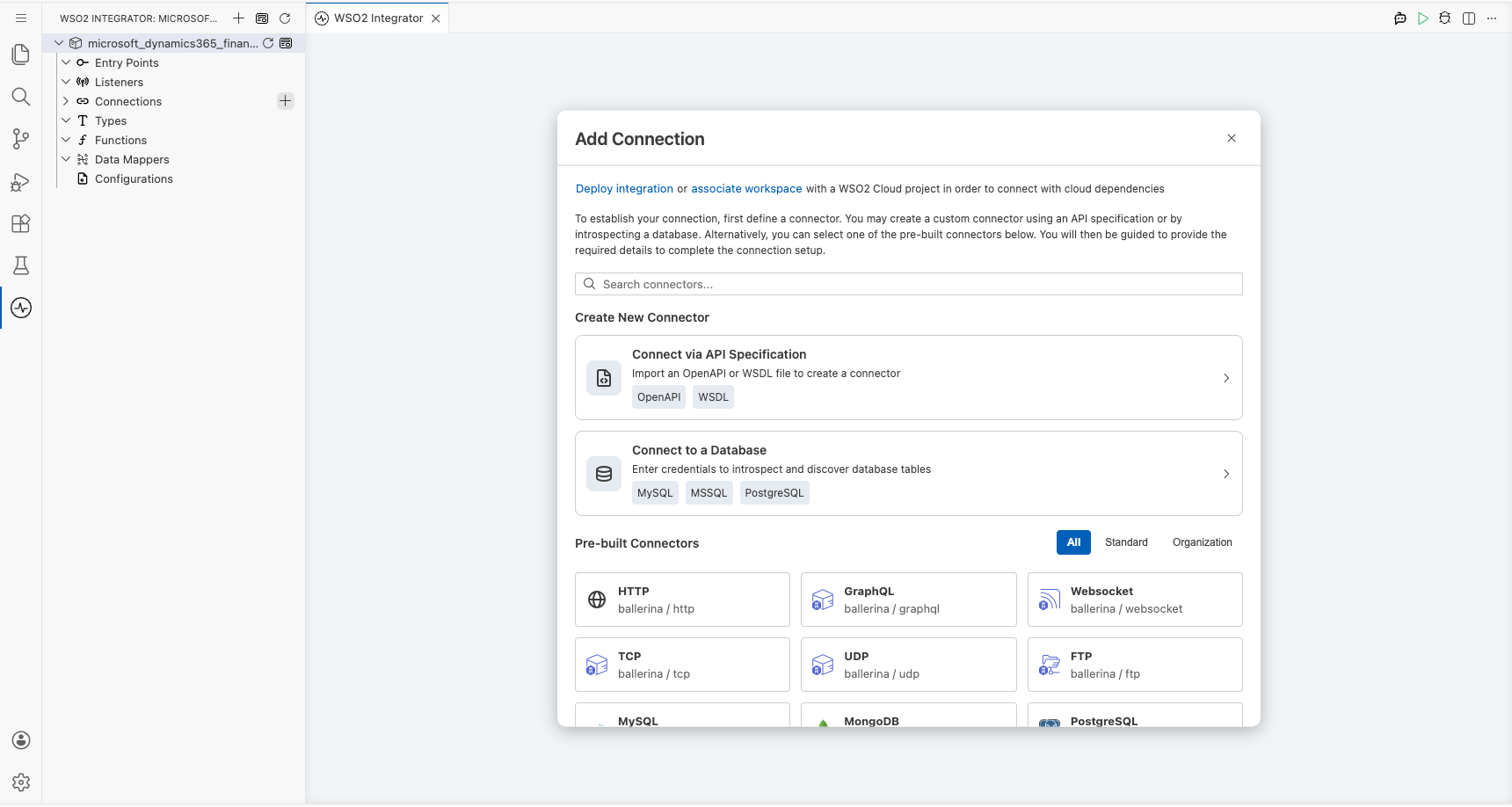

Microsoft Dynamics 365 Finance Users connector palette open before selection

Step 2: Select the Microsoft Dynamics 365 Finance Users connector​

  1. Enter microsoft.dynamics365.finance.users in the search field.
  2. Select the Users connector card.

Configuring the Microsoft Dynamics 365 Finance Users connection​

Step 3: Bind the connection parameters to configurable variables​

Bind the authentication and service fields to configurable variables.

  • Config : Bind to the expression {auth: {tokenUrl, clientId, clientSecret, scopes}}, referencing three configurable variables for the OAuth2 client-credentials grant.
  • Service Url : Bind to the serviceUrl configurable variable, which holds the target Dynamics 365 Finance and Operations environment URL. Use the OData root, for example https://<your-org>.operations.dynamics.com/data.

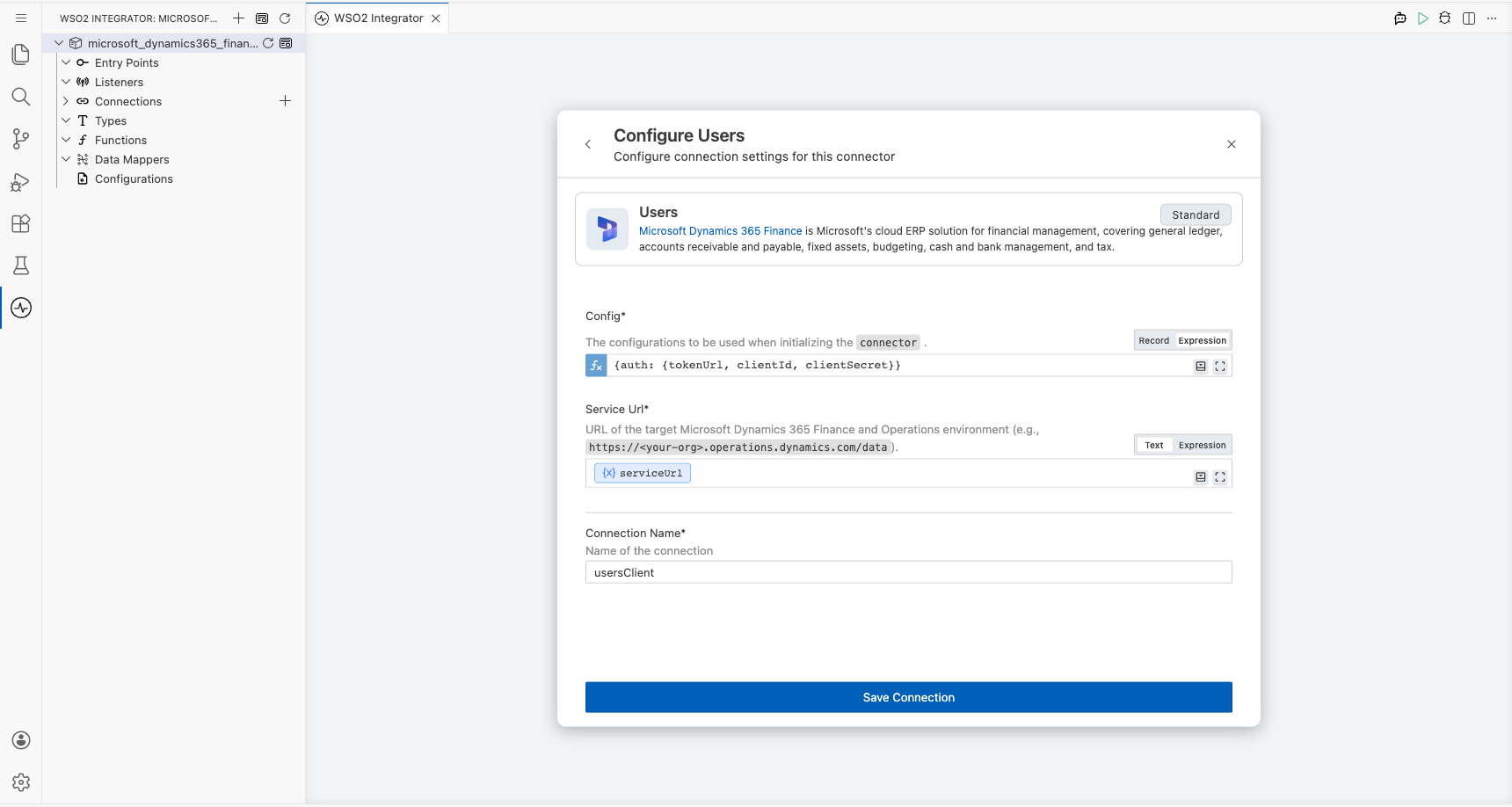

Microsoft Dynamics 365 Finance Users connection form with all parameters bound before saving

Step 4: Save the connection​

Select Save Connection and verify that the connection appears in the Connections section.

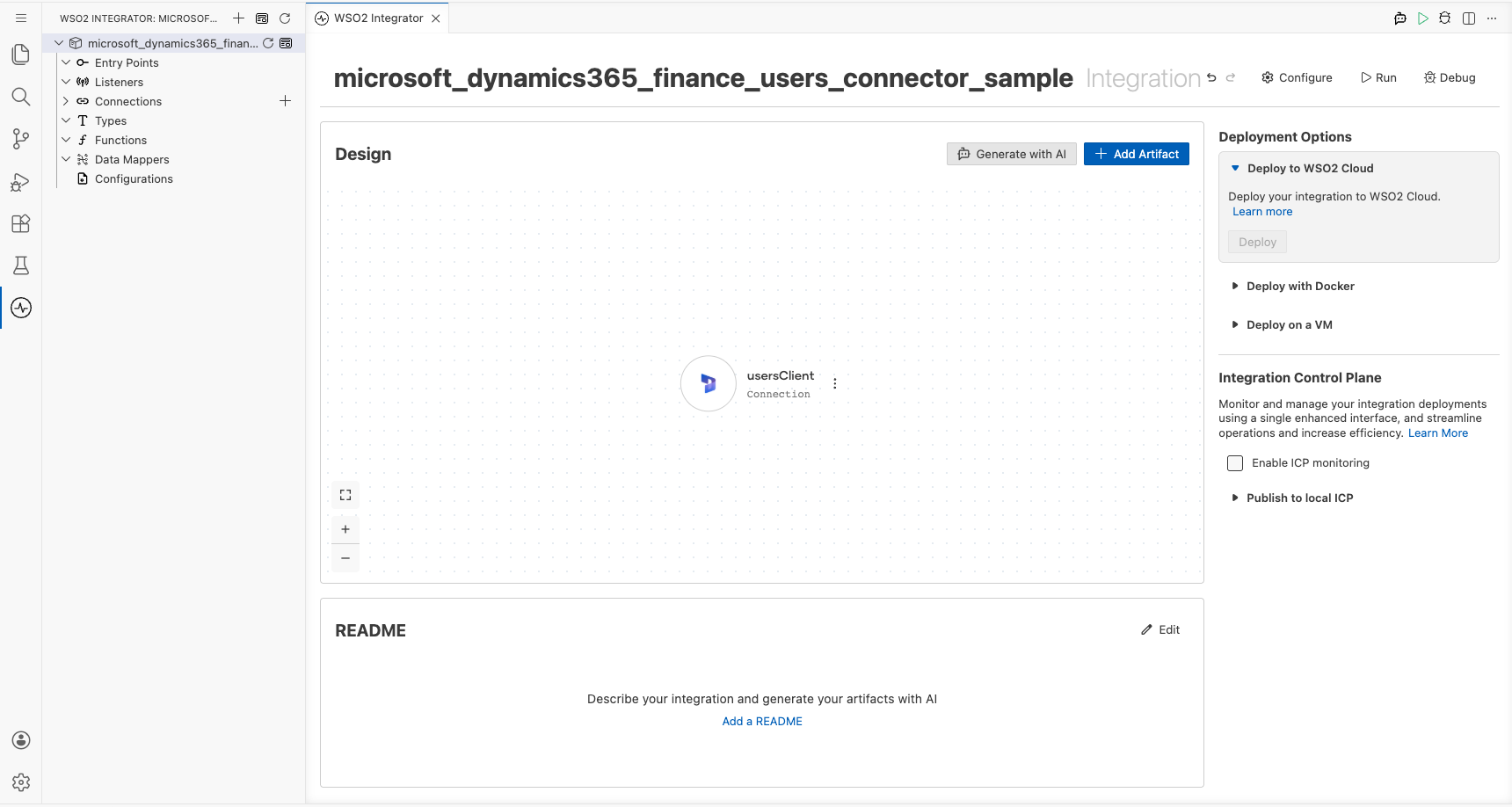

Microsoft Dynamics 365 Finance Users connection visible after saving

Step 5: Set actual values for your configurables​

  1. Select Configurations at the bottom of the project tree under Data Mappers.
  2. Enter a value for each configurable listed below before you run the integration.
  • tokenUrl (string) : The OAuth2 token endpoint URL for Microsoft Entra ID.
  • clientId (string) : The Azure AD application (client) ID.
  • clientSecret (string) : The Azure AD application client secret.
  • scopes (string[]) : The OAuth2 scope requested for the client-credentials token, set to the environment base URL followed by /.default
  • serviceUrl (string) : The base URL of the target Dynamics 365 Finance and Operations environment.

Configuring the Microsoft Dynamics 365 Finance Users List System Users operation​

Step 6: Add an automation entry point​

  1. Select Add Entry Point next to Entry Points.
  2. Select Automation.
  3. Select Create to accept the settings.

Step 7: Expand the connection and configure the List System Users operation​

  1. Select the + icon on the automation flow.
  2. Expand usersClient to display its operations.

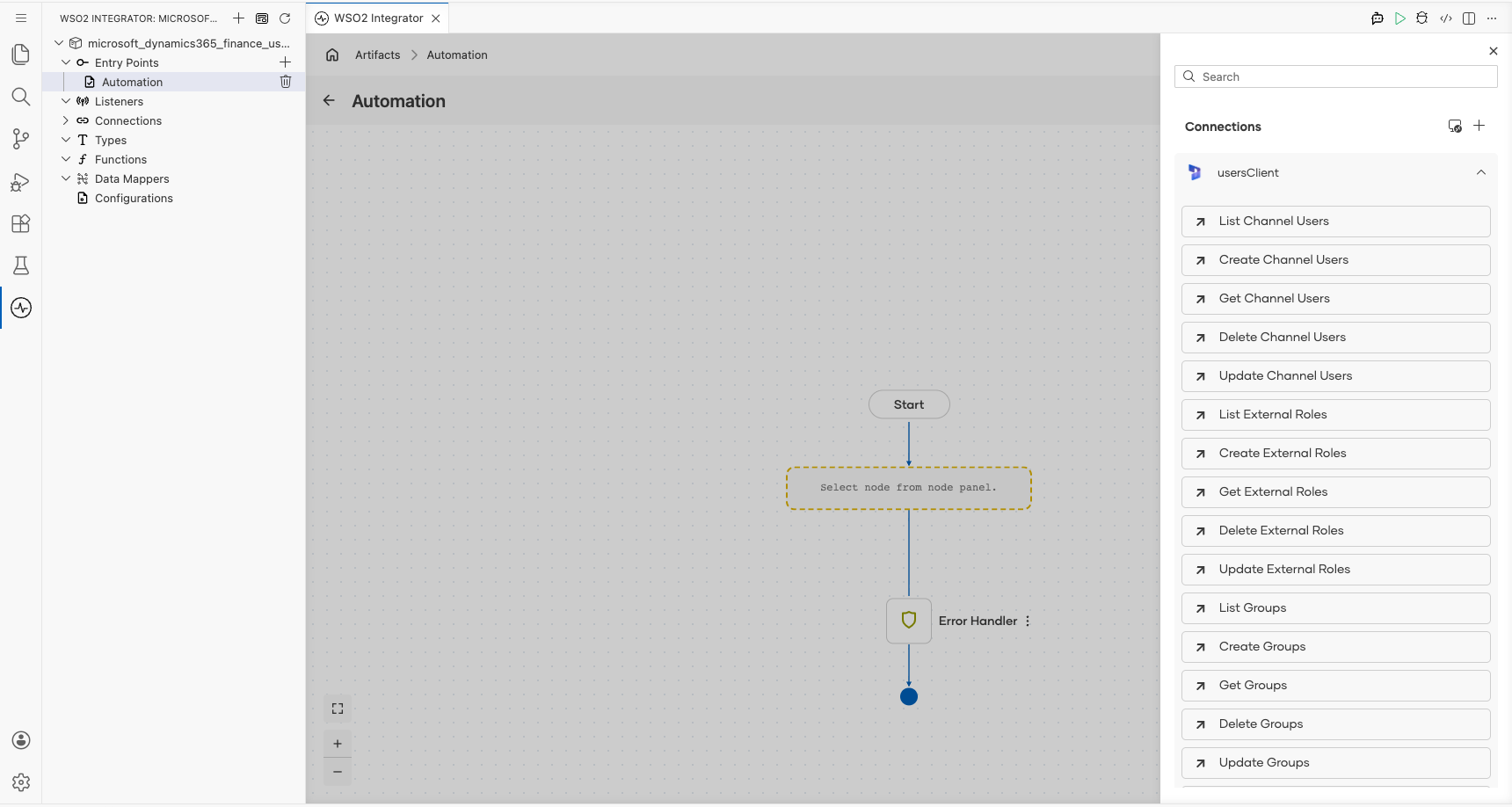

Microsoft Dynamics 365 Finance Users connection expanded to display operations before selection

  1. Select List System Users. This operation has no required parameters, so the default settings are ready to save.

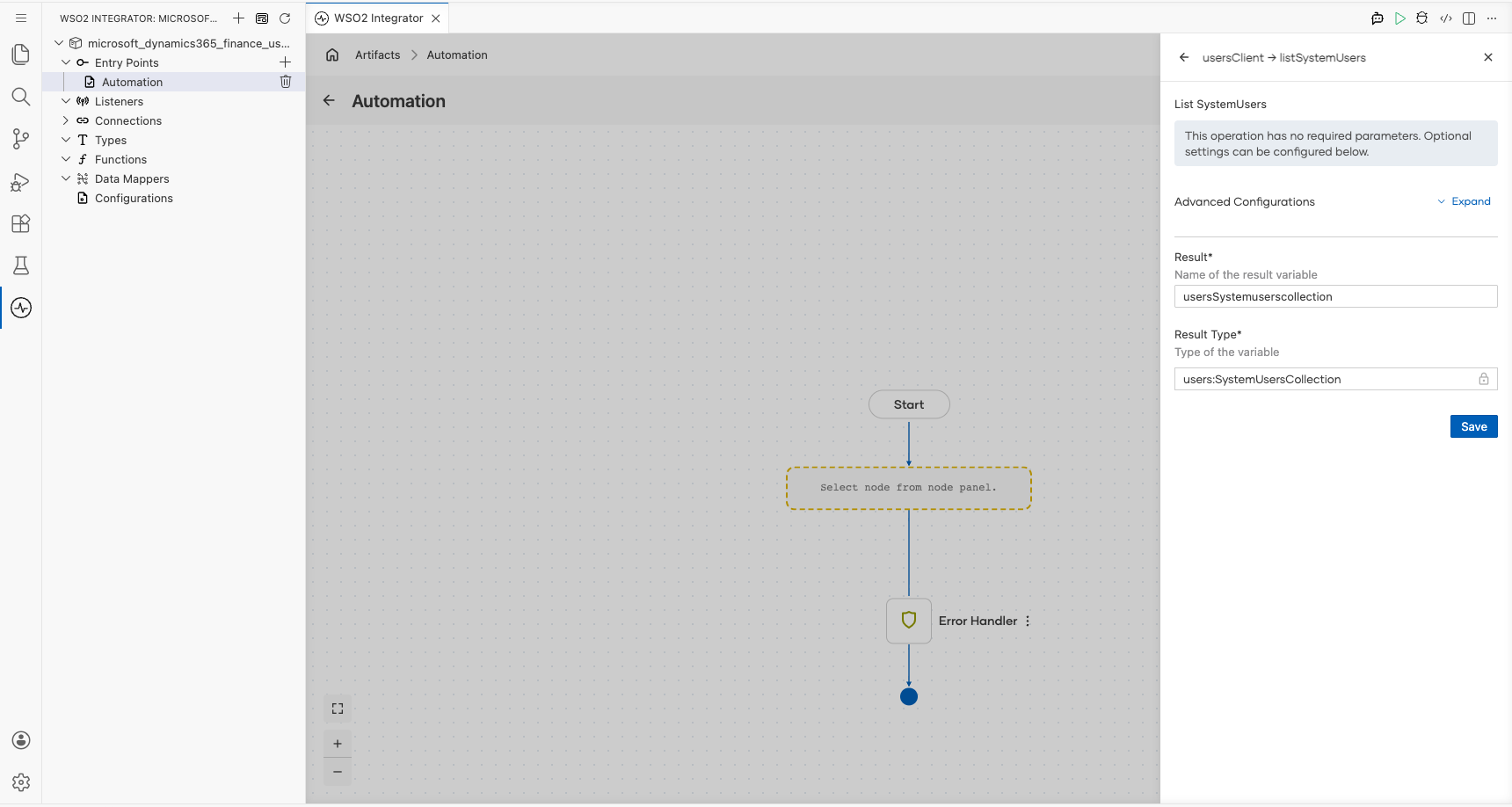

Microsoft Dynamics 365 Finance Users List System Users operation with default values before saving

  1. Select Save.

Step 8: Log the List System Users result​

  1. Select the + icon between the operation node and Error Handler.
  2. Expand Logging and select Log Info.
  3. Switch the Msg field to expression mode and enter usersSystemuserscollection.toJsonString() to log the result.
  4. Select Save.

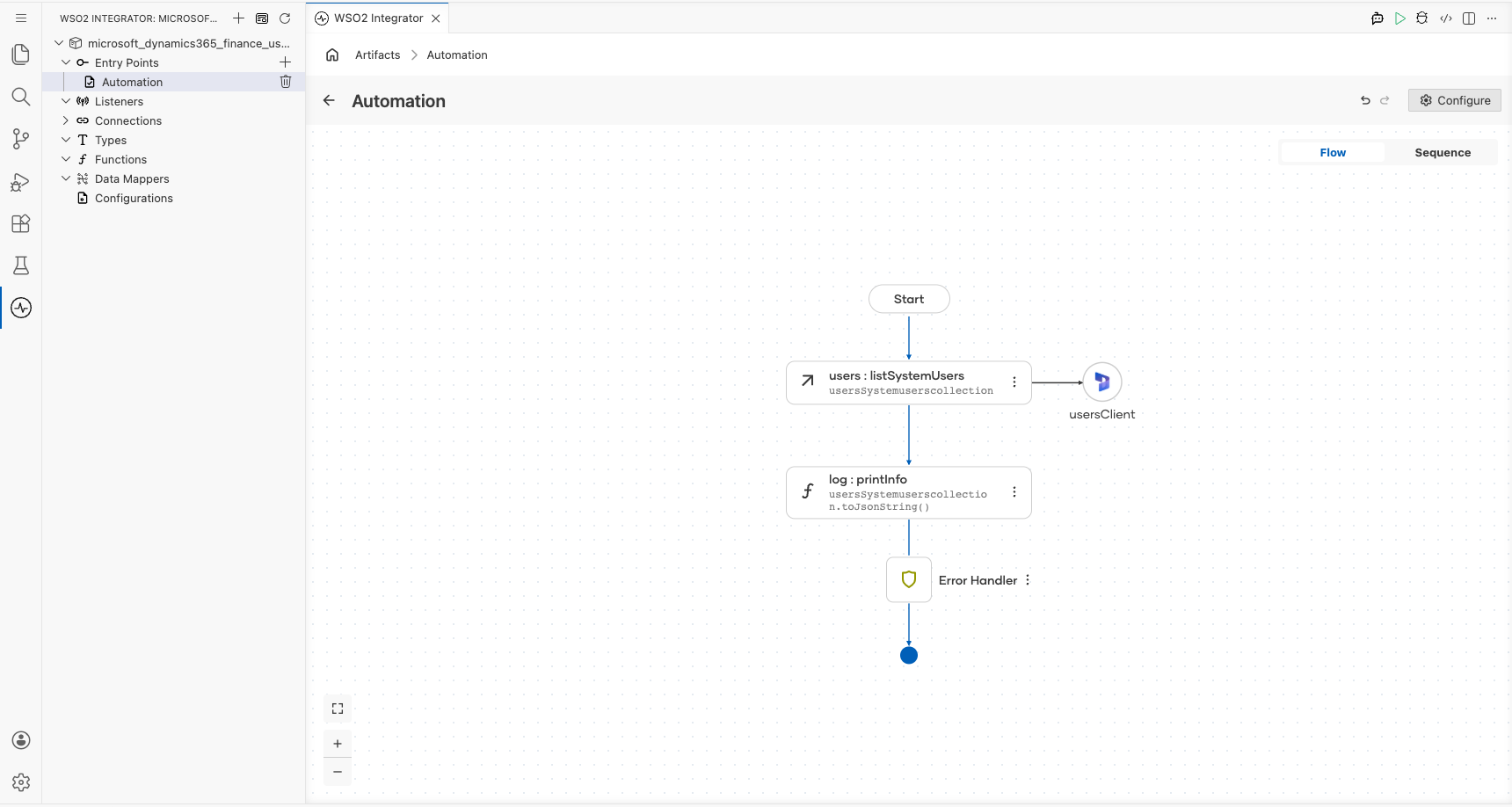

Completed Microsoft Dynamics 365 Finance Users flow with the configured operation

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Dynamics 365 Finance Ballerina connectors provide practical examples illustrating usage in various scenarios. Explore these examples.
