Example

What you'll build​

This example builds an automation that connects to Microsoft Dynamics 365 Finance and retrieves extended vendor records through the Vendor Extended connector. The flow lists the version 2 vendor collection and logs the result for inspection.

Operations used:

  • List Vendors V2 : Retrieves the collection of extended vendor master records from the connected Microsoft Dynamics 365 Finance environment.

Architecture​

Prerequisites​

  • A Microsoft Dynamics 365 Finance and Operations environment, cloud-hosted or sandbox.

  • An Azure Active Directory (Entra ID) application registration with API permissions for Microsoft Dynamics 365, including its client ID, client secret, and token URL.

  • The application must be registered as a user in the target Dynamics 365 Finance and Operations environment and assigned the security roles required for this connector's operations.

Setting up the Microsoft Dynamics 365 Finance Vendor Extended integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Microsoft Dynamics 365 Finance Vendor Extended connector​

Step 1: Open the connector palette​

Select Add Connection in the Connections section.

Microsoft Dynamics 365 Finance Vendor Extended connector palette open before selection

Step 2: Select the Microsoft Dynamics 365 Finance Vendor Extended connector​

  1. Enter microsoft.dynamics365.finance.vendorextended in the search field.
  2. Select the Vendorextended connector card.

Configuring the Microsoft Dynamics 365 Finance Vendor Extended connection​

Step 3: Bind the connection parameters to configurable variables​

Bind every required connection field to a configurable variable.

  • Config : An expression referencing the auth record, which carries the tokenUrl, clientId, and clientSecret configurables for the OAuth2 client-credentials grant. Enter the expression {auth: {tokenUrl, clientId, clientSecret, scopes}}.
  • Service Url : The base URL of the target Microsoft Dynamics 365 Finance and Operations environment, bound to the serviceUrl configurable. Use the OData root, for example https://<your-org>.operations.dynamics.com/data.

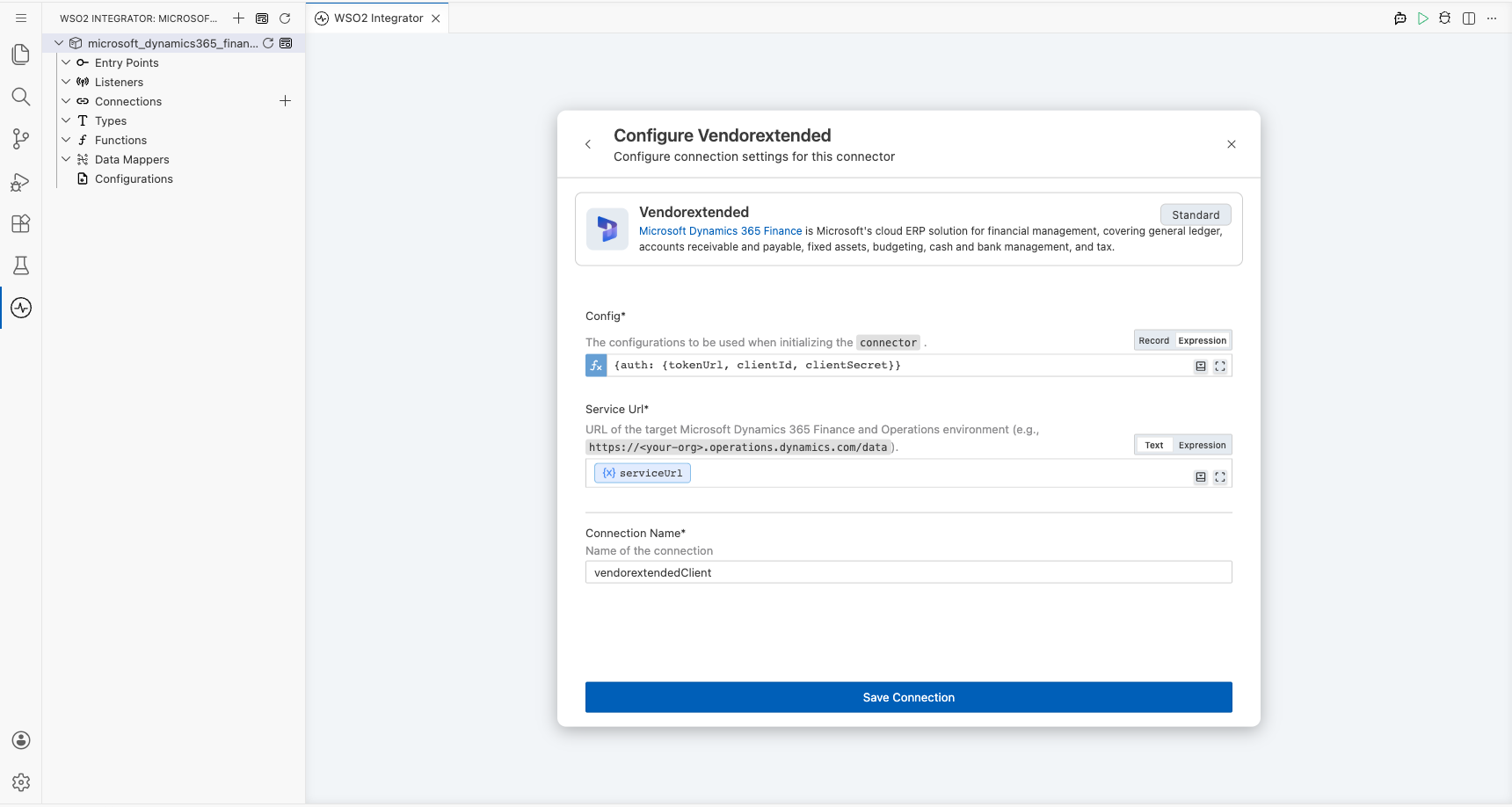

Microsoft Dynamics 365 Finance Vendor Extended connection form with all parameters bound before saving

Step 4: Save the connection​

Select Save Connection and verify that the connection appears in the Connections section.

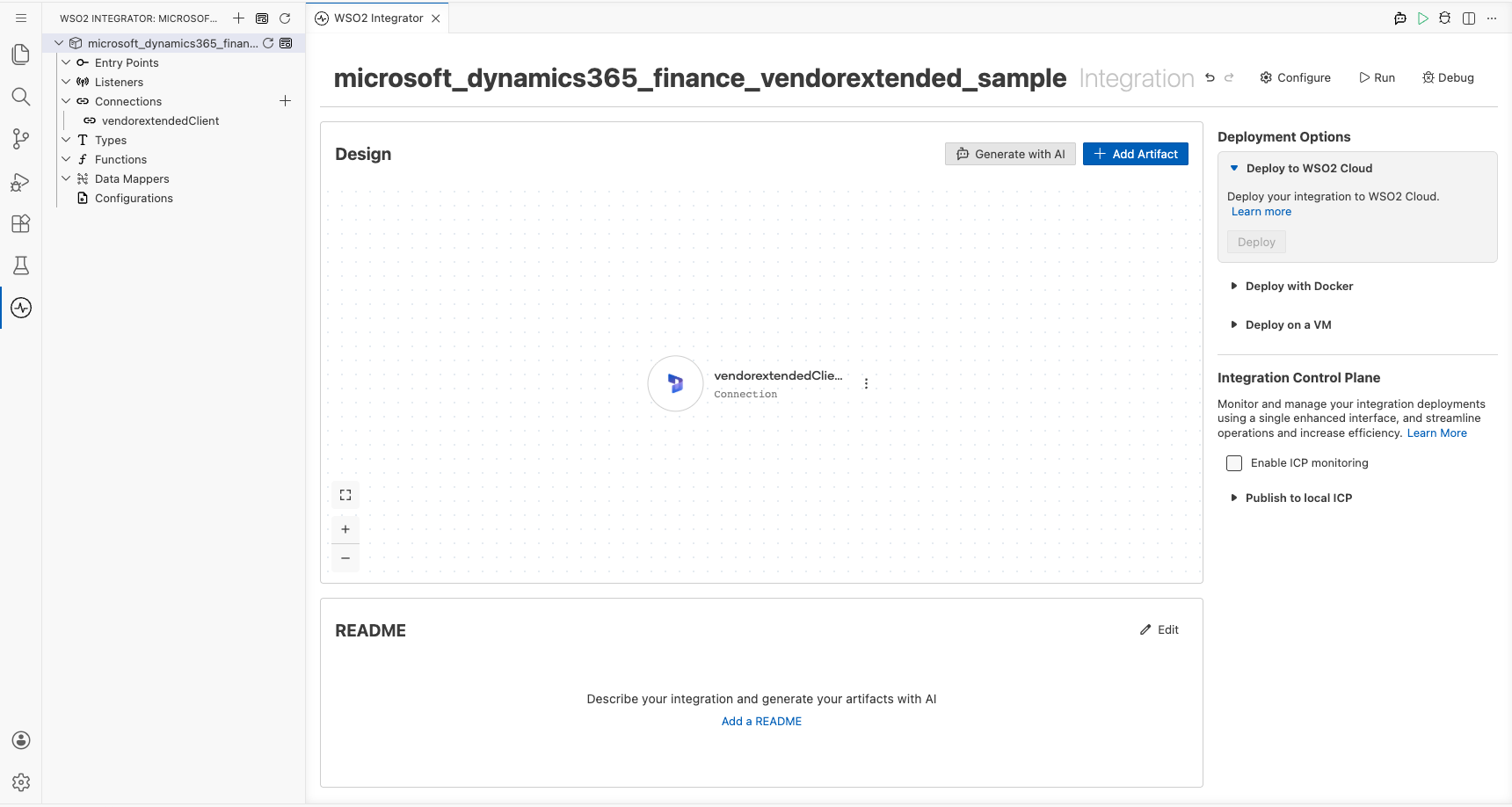

Microsoft Dynamics 365 Finance Vendor Extended connection visible after saving

Step 5: Set actual values for your configurables​

  1. Select Configurations at the bottom of the project tree under Data Mappers.
  2. Enter a value for each configurable listed below before you run the integration.
  • tokenUrl (string) : The OAuth2 token endpoint URL for the Azure AD application registration.
  • clientId (string) : The application (client) ID of the Azure AD application registration.
  • clientSecret (string) : The client secret generated for the Azure AD application registration.
  • scopes (string[]) : The OAuth2 scope requested for the client-credentials token, set to the environment base URL followed by /.default
  • serviceUrl (string) : The base URL of the target Microsoft Dynamics 365 Finance and Operations environment.

Configuring the Microsoft Dynamics 365 Finance Vendor Extended List Vendors V2 operation​

Step 6: Add an automation entry point​

  1. Select Add Entry Point next to Entry Points.
  2. Select Automation.
  3. Select Create to accept the settings.

Step 7: Expand the connection and configure the List Vendors V2 operation​

  1. Select the add icon on the automation flow.
  2. Expand vendorextendedClient to display its operations.

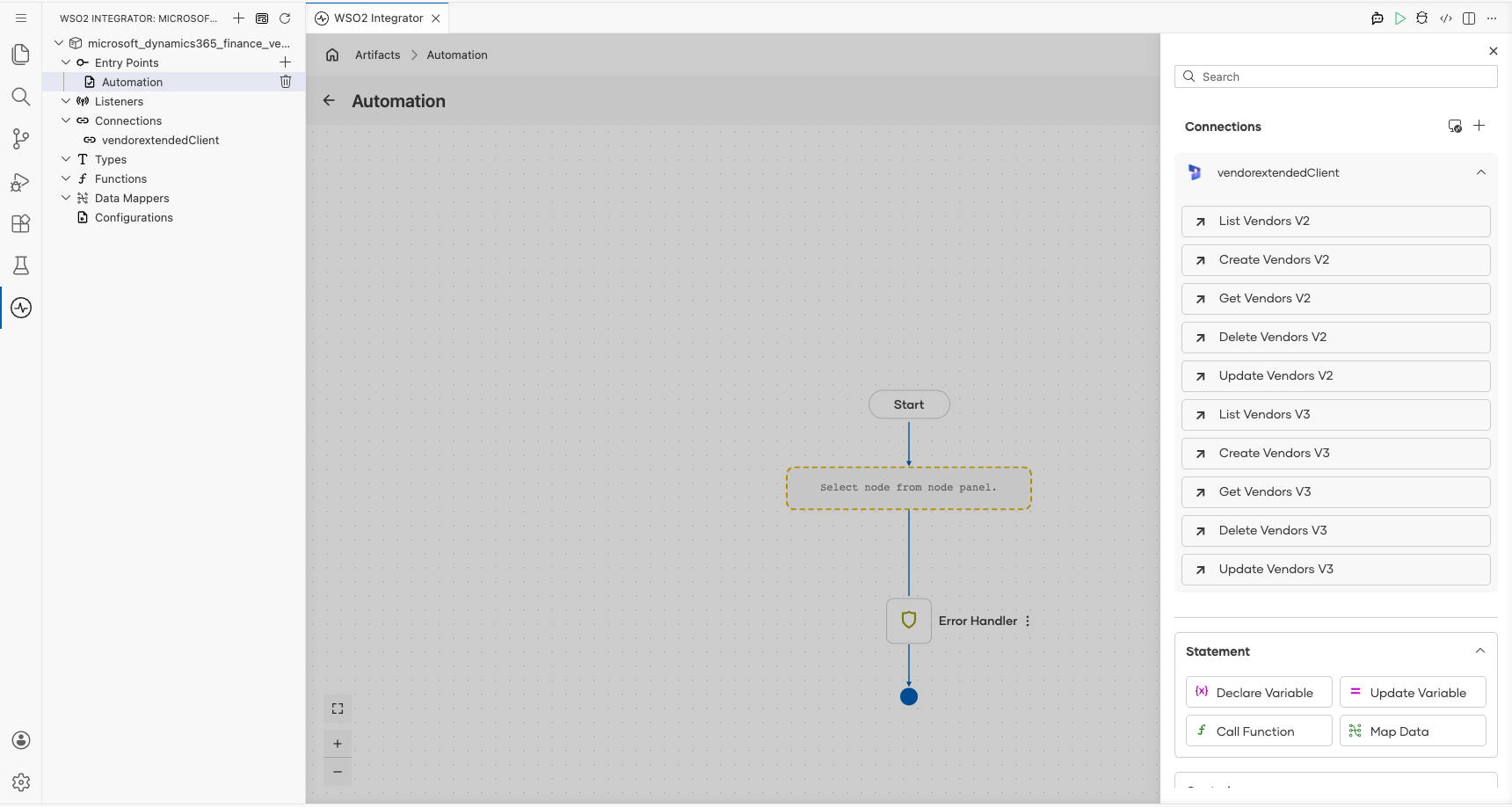

Microsoft Dynamics 365 Finance Vendor Extended connection expanded to display operations before selection

  1. Select List Vendors V2. This operation has no required parameters.

Microsoft Dynamics 365 Finance Vendor Extended List Vendors V2 operation before saving

  1. Select Save.

Step 8: Log the List Vendors V2 result​

Add a Log Info action, switch its Msg field to expression mode, and enter vendorextendedVendorsv2collection.toJsonString() to log the result.

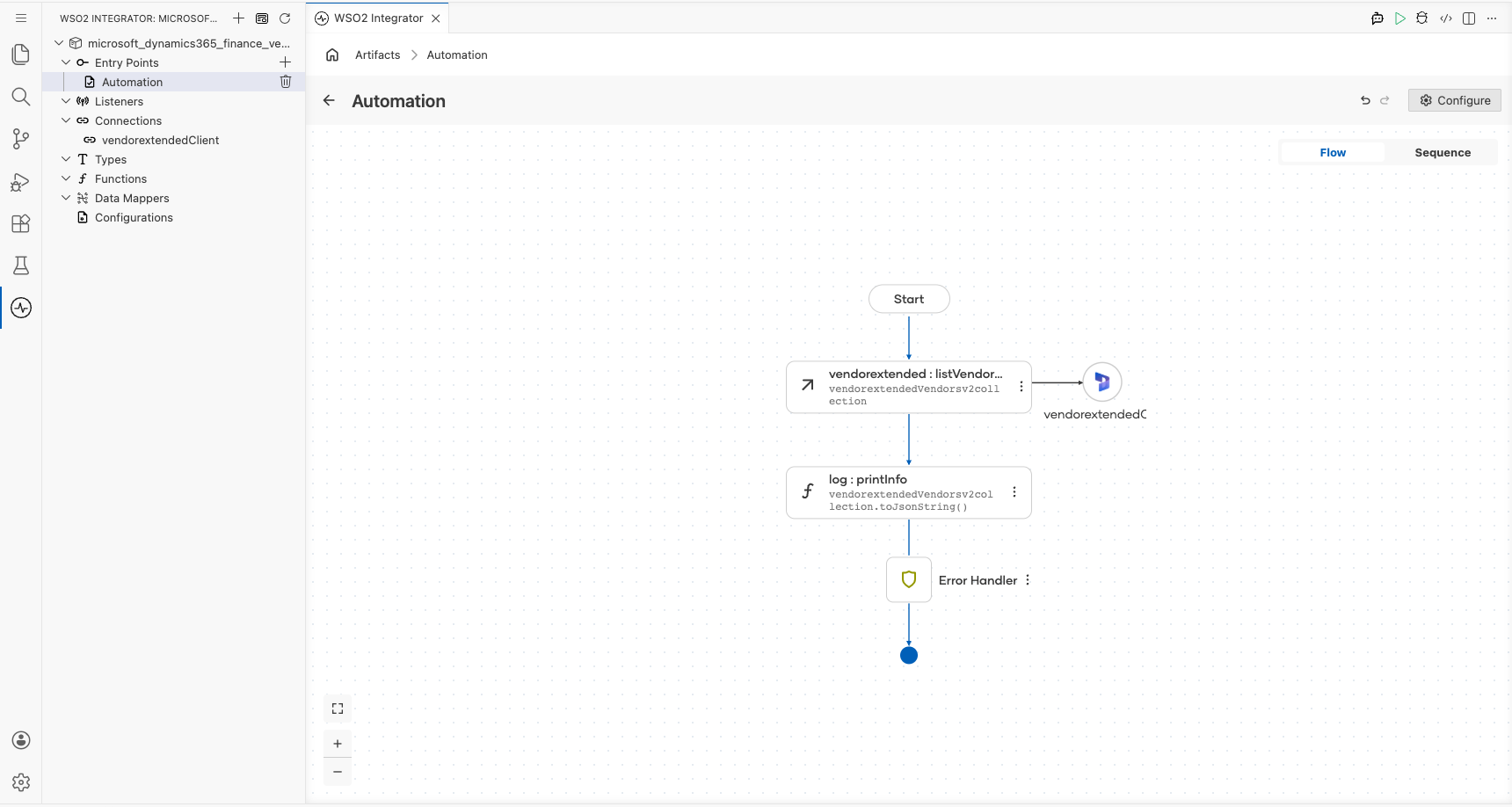

Completed Microsoft Dynamics 365 Finance Vendor Extended flow with the configured operation

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Dynamics 365 Finance Ballerina connectors provide practical examples illustrating usage in various scenarios. Explore these examples.
