Example

What you'll build​

This example builds an automation that connects to Microsoft Dynamics 365 Finance and retrieves the configured vendor payment methods through the Microsoft Dynamics 365 Finance Vendor Payment connector. The automation logs the returned collection so you can confirm the connection and operation work end to end.

Operations used:

  • List Vendor Payment Methods : Retrieves a collection of vendor payment methods from Microsoft Dynamics 365 Finance.

Architecture​

Prerequisites​

  • A Microsoft Dynamics 365 Finance and Operations environment, either cloud-hosted or sandbox.

  • A Microsoft Entra ID (Azure Active Directory) app registration with API permissions for Dynamics 365 Finance, providing a token URL, client ID, and client secret for the OAuth2 client-credentials grant.

  • The application must be registered as a user in the target Dynamics 365 Finance and Operations environment and assigned the security roles required for this connector's operations.

Setting up the Microsoft Dynamics 365 Finance Vendor Payment integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Microsoft Dynamics 365 Finance Vendor Payment connector​

Step 1: Open the connector palette​

Select Add Connection in the Connections section.

Microsoft Dynamics 365 Finance Vendor Payment connector palette open before selection

Step 2: Select the Microsoft Dynamics 365 Finance Vendor Payment connector​

  1. Enter microsoft.dynamics365.finance.vendorpayment in the search field.
  2. Select the Vendorpayment connector card.

Configuring the Microsoft Dynamics 365 Finance Vendor Payment connection​

Step 3: Bind the connection parameters to configurable variables​

Bind the authentication fields and the service URL to configurable variables.

  1. Check the auth field, along with its tokenUrl field, in the record configuration panel to pull in the OAuth2 client-credentials fields.
  2. Switch Config to expression mode and enter {auth: {tokenUrl, clientId, clientSecret, scopes}}, referencing three configurables created under Configurations.
  3. Open the Service Url field's helper panel, select Configurables, and create a new configurable named serviceUrl.
  • Config : The OAuth2 client-credentials configuration used to authenticate with Microsoft Entra ID.
  • Service Url : URL of the target Microsoft Dynamics 365 Finance and Operations environment. Use the OData root, for example https://<your-org>.operations.dynamics.com/data.

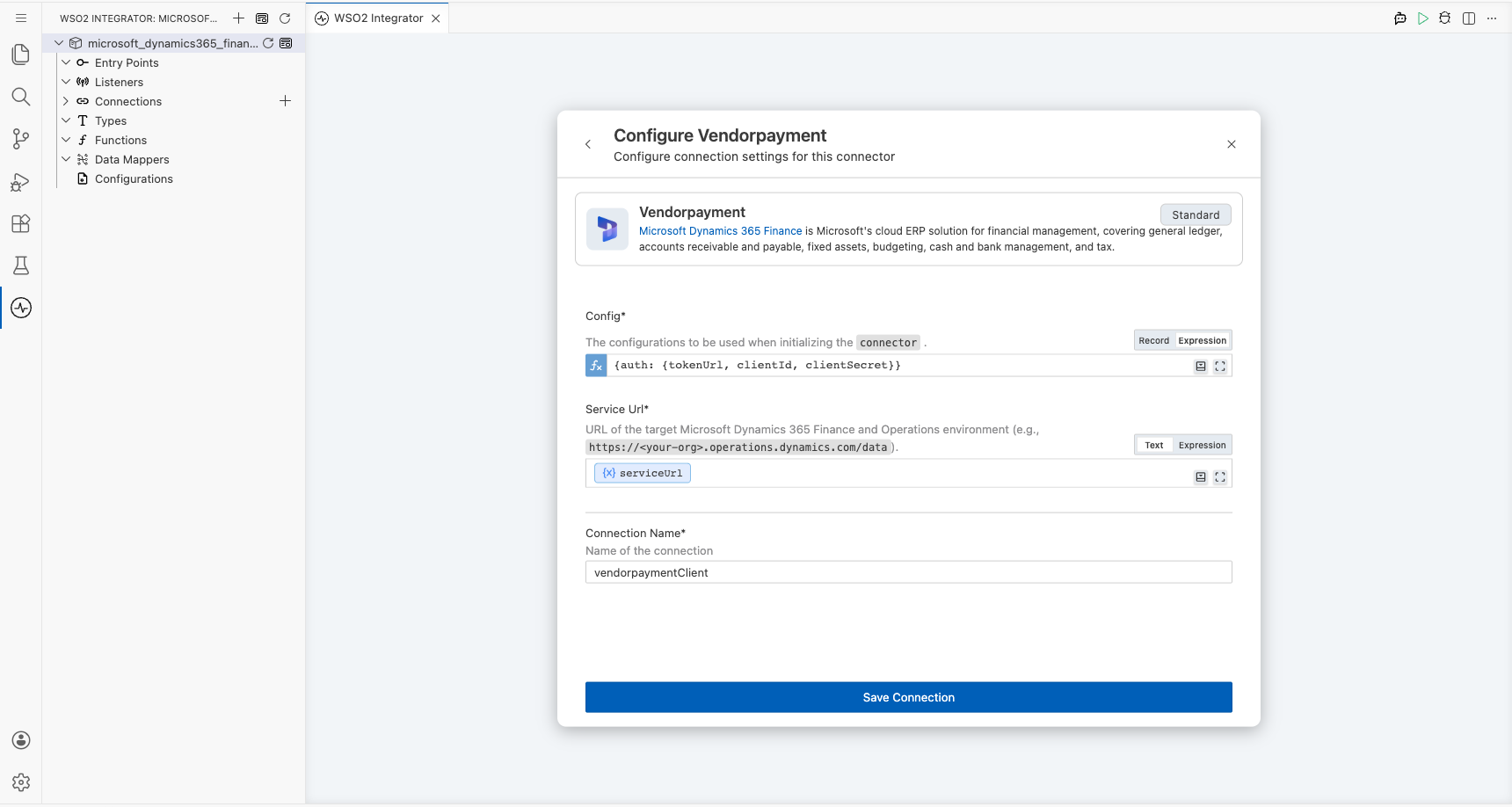

Microsoft Dynamics 365 Finance Vendor Payment connection form with all parameters bound before saving

Step 4: Save the connection​

Select Save Connection and verify that vendorpaymentClient appears in the Connections section.

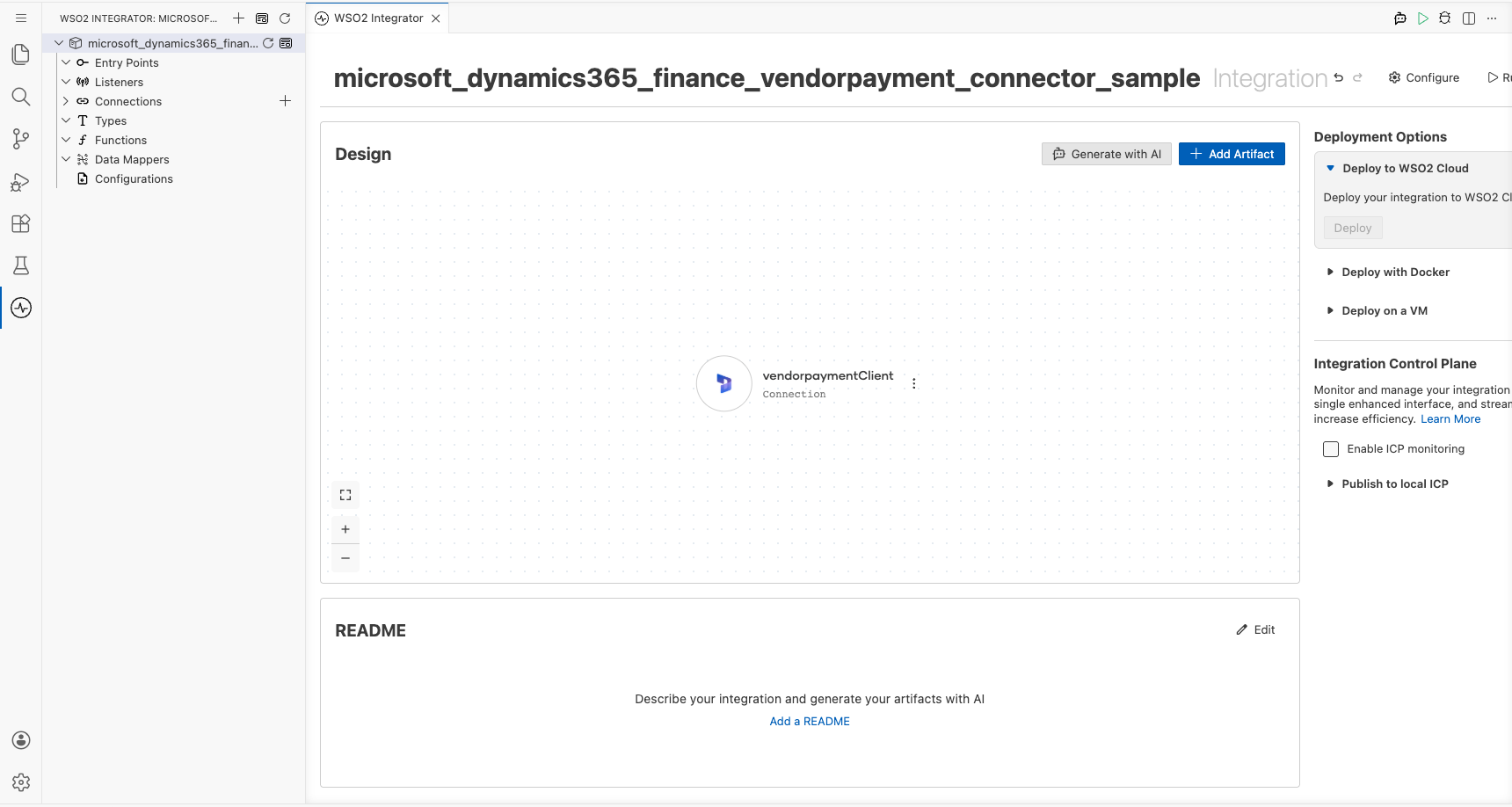

Microsoft Dynamics 365 Finance Vendor Payment connection visible after saving

Step 5: Set actual values for your configurables​

  1. Select Configurations at the bottom of the project tree under Data Mappers.
  2. Enter a value for each configurable listed below before you run the integration.
  • tokenUrl (string) : Token endpoint URL for the Microsoft Entra ID OAuth2 client-credentials grant.
  • clientId (string) : Client ID of the Microsoft Entra ID app registration.
  • clientSecret (string) : Client secret of the Microsoft Entra ID app registration.
  • scopes (string[]) : The OAuth2 scope requested for the client-credentials token, set to the environment base URL followed by /.default
  • serviceUrl (string) : Base URL of the target Microsoft Dynamics 365 Finance and Operations environment.

Configuring the Microsoft Dynamics 365 Finance Vendor Payment List Vendor Payment Methods operation​

Step 6: Add an automation entry point​

  1. Select Add Entry Point next to Entry Points.
  2. Select Automation.
  3. Select Create to accept the settings.

Step 7: Expand the connection and configure the List Vendor Payment Methods operation​

  1. Select the + icon on the automation flow.
  2. Expand vendorpaymentClient to display its operations.

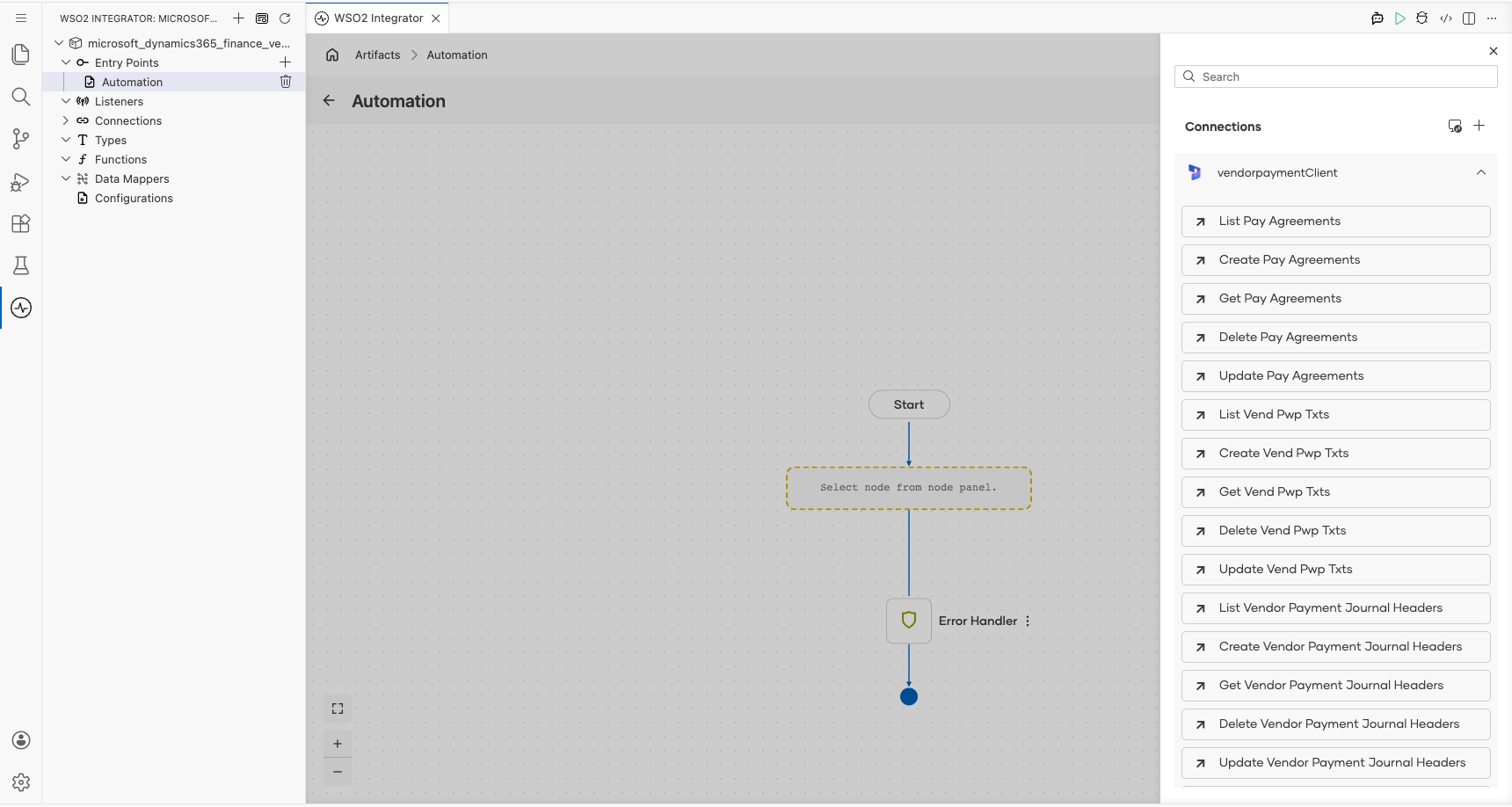

Microsoft Dynamics 365 Finance Vendor Payment connection expanded to display operations before selection

  1. Select List Vendor Payment Methods. This operation has no required parameters, so the default settings are ready to save.

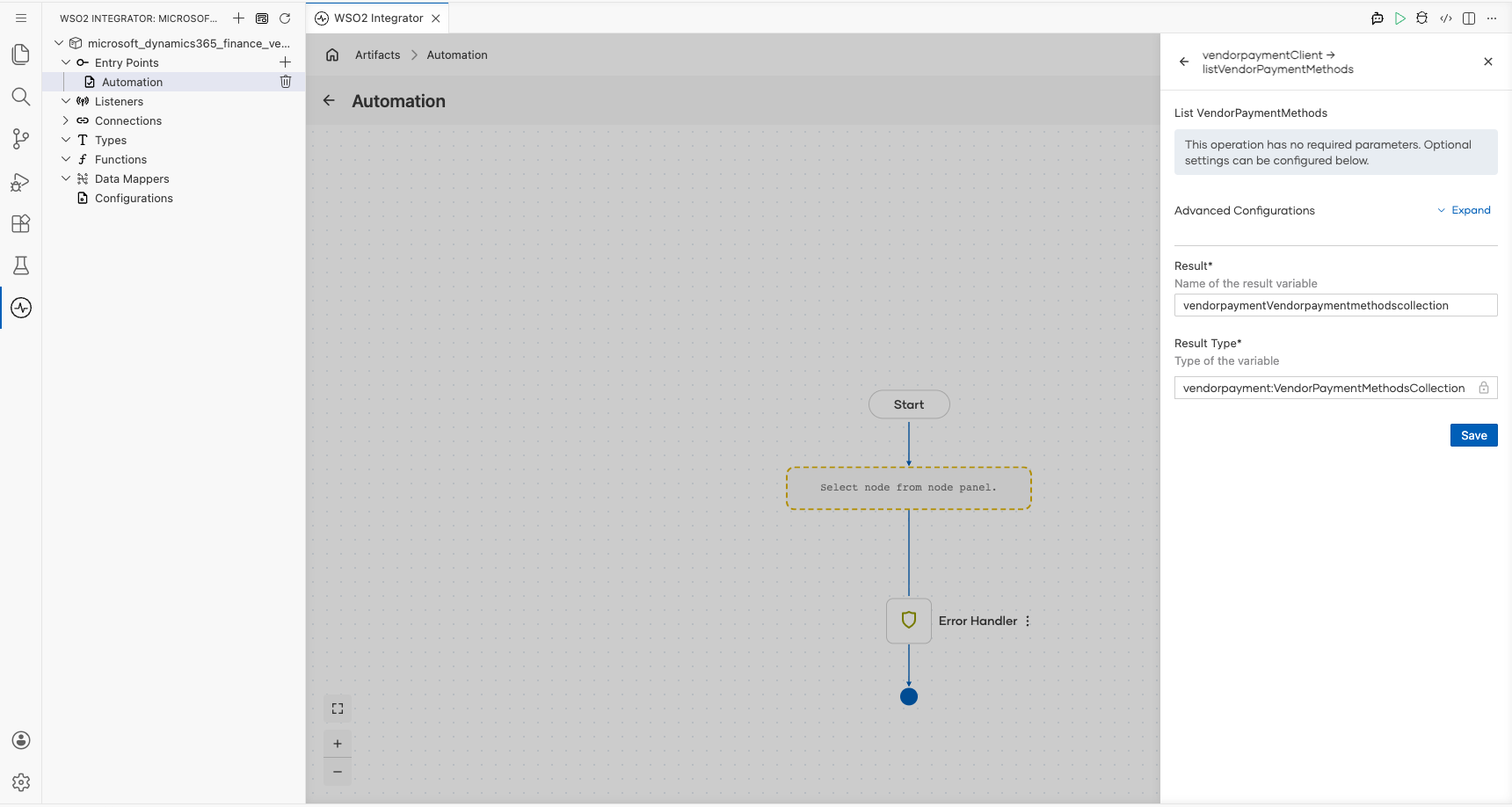

Microsoft Dynamics 365 Finance Vendor Payment List Vendor Payment Methods operation with all values entered before saving

  1. Select Save.

Step 8: Log the List Vendor Payment Methods result​

Select the + icon on the connecting line between the operation node and Error Handler, expand Logging, and select Log Info. Switch its Msg field to expression mode, and enter vendorpaymentVendorpaymentmethodscollection.toJsonString() to log the result.

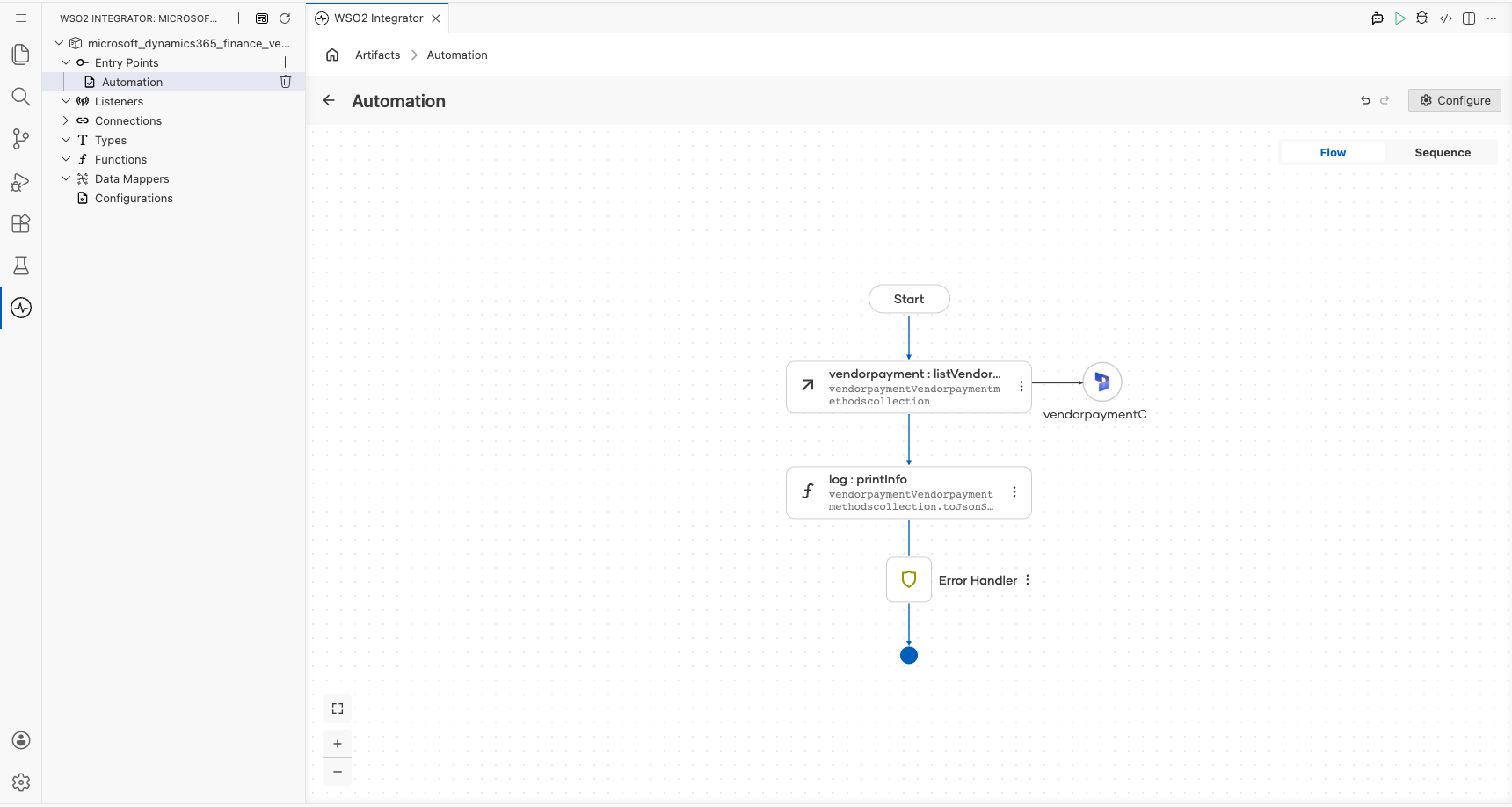

Completed Microsoft Dynamics 365 Finance Vendor Payment flow with the configured operation

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Dynamics 365 Finance Ballerina connectors provide practical examples illustrating usage in various scenarios. Explore these examples.
