High-Availability Production Deployment¶

This guide covers deploying the API Platform Gateway in a production-grade, highly available configuration using Helm on Kubernetes. Development mode is disabled, security is hardened, PostgreSQL backs the deployment state, and workloads are replicated across nodes.

Prerequisites¶

Disable development mode

All production deployments must set gateway.developmentMode: false in your Helm values. Development mode disables encryption key requirements, uses default credentials, and skips several security checks. It must never be enabled in production.

gateway:
  developmentMode: false

Ensure the following tools are installed and configured before starting:

Tool	Requirement
`kubectl`	Configured against your target cluster
`helm`	Version 3+
`openssl`	Available in your local shell

Verify your environment:

kubectl cluster-info
kubectl get nodes
helm version

Cluster Topology¶

Use at least two worker nodes for high availability. The recommended minimum production topology separates system and gateway workloads into dedicated node pools:

Node Pool	Purpose	Recommended Size
`systempool`	Kubernetes system workloads	1–2 nodes
`gatewaypool`	Gateway runtime + controller	Minimum 2 nodes

This separation provides:

No single-node failure causes a full outage
Safer autoscaling without disrupting system pods
Improved workload isolation and resource predictability

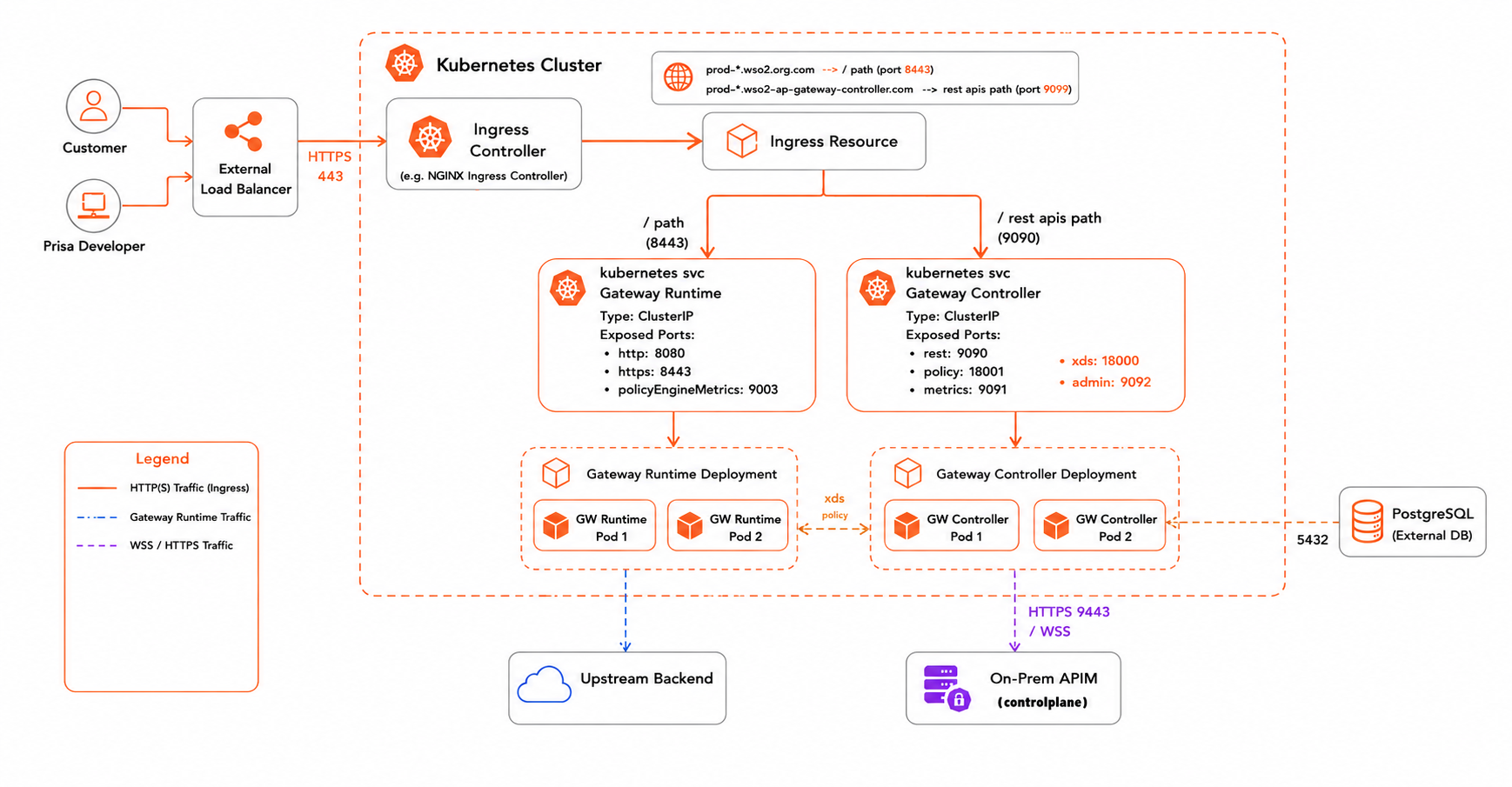

Architecture¶

The self-hosted gateway can be deployed in a highly available manner by running multiple Gateway Controller replicas and multiple Gateway Runtime replicas across different network zones or environments.

In this deployment model, API deployments are received by one of the Gateway Controller replicas. The controller persists the API deployment information in the shared PostgreSQL database. Other Gateway Controller replicas then read the updated deployment state from the database and synchronize the relevant configuration with the Gateway Runtime instances connected to them.

This ensures that all Gateway Controller replicas operate with a consistent deployment state and that each runtime environment receives the latest API configuration.

Architecture Overview¶

The deployment consists of the following main components:

Component	Description
Gateway Controller	Receives API deployment requests, stores deployment state in the database, and synchronizes runtime configuration with connected Gateway Runtime instances.
PostgreSQL Database	Acts as the shared source of truth for API metadata, deployment state, and gateway configuration.
Gateway Runtime	Receives configuration from its connected Gateway Controller and enforces API gateway policies at runtime.

Deployment Synchronization Flow¶

When an API deployment request is received, it is handled by one of the available Gateway Controller replicas.

The controller that receives the request validates the deployment and stores the API metadata and deployment state in the shared PostgreSQL database. This database acts as the common source of truth for all Gateway Controller replicas.

Other Gateway Controller replicas continuously read or synchronize the latest deployment state from the database. Once a controller detects a new or updated API deployment, it generates the required runtime configuration and synchronizes it with the Gateway Runtime instances connected to that controller.

Each Gateway Runtime then applies the received configuration and starts serving the deployed APIs.

Each Gateway Controller replica can manage one or more Gateway Runtime replicas.

High Availability Behavior¶

High availability is achieved by removing dependency on a single controller instance.

If an API deployment request is received by Gateway Controller Replica 01, that replica stores the deployment state in PostgreSQL. Gateway Controller Replica 02 can then read the same deployment state from the database and synchronize it with the Gateway Runtime replicas connected to it.

If one Gateway Controller replica becomes unavailable, another replica can continue to process deployment requests and synchronize runtime configuration based on the state stored in the database.

Similarly, multiple Gateway Runtime replicas can be deployed in each environment to ensure API traffic continues to be served even if one runtime replica becomes unavailable.

Configuration Synchronization¶

The PostgreSQL database is the central synchronization point between Gateway Controller replicas. It maintains the latest API deployment state and allows all controller replicas to operate consistently.

Gateway Runtime replicas do not directly read from the database. Instead, they receive the required runtime configuration from their connected Gateway Controller. This keeps the runtime layer lightweight and allows the controller layer to manage configuration generation and synchronization.

Before You Begin¶

Start with the Base Values File¶

Download the default values.yaml for the gateway Helm chart and use it as the starting point for your production configuration. All steps in this guide reference fields within this file.

curl -o values.yaml https://raw.githubusercontent.com/wso2/api-platform/refs/tags/gateway/v1.1.0/kubernetes/helm/gateway-helm-chart/values.yaml

Pin the Image Versions¶

Before making any other changes, set the controller and runtime image tags to the release you want to deploy. The latest stable release is 1.1.0.

gateway:
  controller:
    image:
      tag: "1.1.0"
  gatewayRuntime:
    image:
      tag: "1.1.0"

Tip

Check the gateway releases page for the latest available version. Always align the image tag with the Helm chart version used during install.

WSO2 Subscription Users

If you have a WSO2 subscription, use image tag 1.1.0.0 instead of 1.1.0 to receive the latest updates and patches from the WSO2 private registry. See WSO2 Subscription Users below for registry configuration.

WSO2 Subscription Users¶

If you have a WSO2 Subscription, images are pulled from the WSO2 private registry (registry.wso2.com) instead of the public GHCR registry. A single Helm field activates this mode end-to-end.

Step 1 — Create the image pull secret

Create a docker-registry Secret in the namespace where the chart will be installed (replace <namespace>, <wso2-email>, and <wso2-password-or-token> with your values):

kubectl create secret docker-registry wso2-subscription-creds \
  --namespace <namespace> \
  --docker-server=registry.wso2.com \
  --docker-username=<wso2-email> \
  --docker-password=<wso2-password-or-token>

Note

Credentials are intentionally kept out of Helm release state. The chart only stores the name of the Secret.

Step 2 — Set wso2.subscription.imagePullSecret in values.yaml

wso2:
  subscription:
    imagePullSecret: wso2-subscription-creds

Setting this field causes the chart to:

Rewrite all default image repositories from ghcr.io/wso2/api-platform/ to registry.wso2.com/wso2-api-platform/ automatically.
Inject the named Secret into the imagePullSecrets block of every component.

Any explicit image.repository override (for example, pointing to an internal mirror) is passed through unchanged, so the rewrite only applies to default images.

When wso2.subscription.imagePullSecret is empty (the default), the chart renders identically to a non-subscription install and pulls from the public GHCR registry with no imagePullSecrets block.

Setup Steps¶

Complete the following steps to configure a production-ready deployment:

Security Hardening — encryption keys, TLS, and authentication
Database Configuration
Resources & Scaling
Deploy & Verify
Control Plane Connection (optional)
