Design APIs using API Designer

You can use API Designer to create and improve your OpenAPI 3.x specification with AI-assisted workflows and form-based editing.

Start with AI design

The API Designer extension includes the api-design skill for specification design. Open GitHub Copilot Chat and provide a prompt to design an API. Based on your prompt intent, Copilot automatically picks and uses the skill to draft the specification.

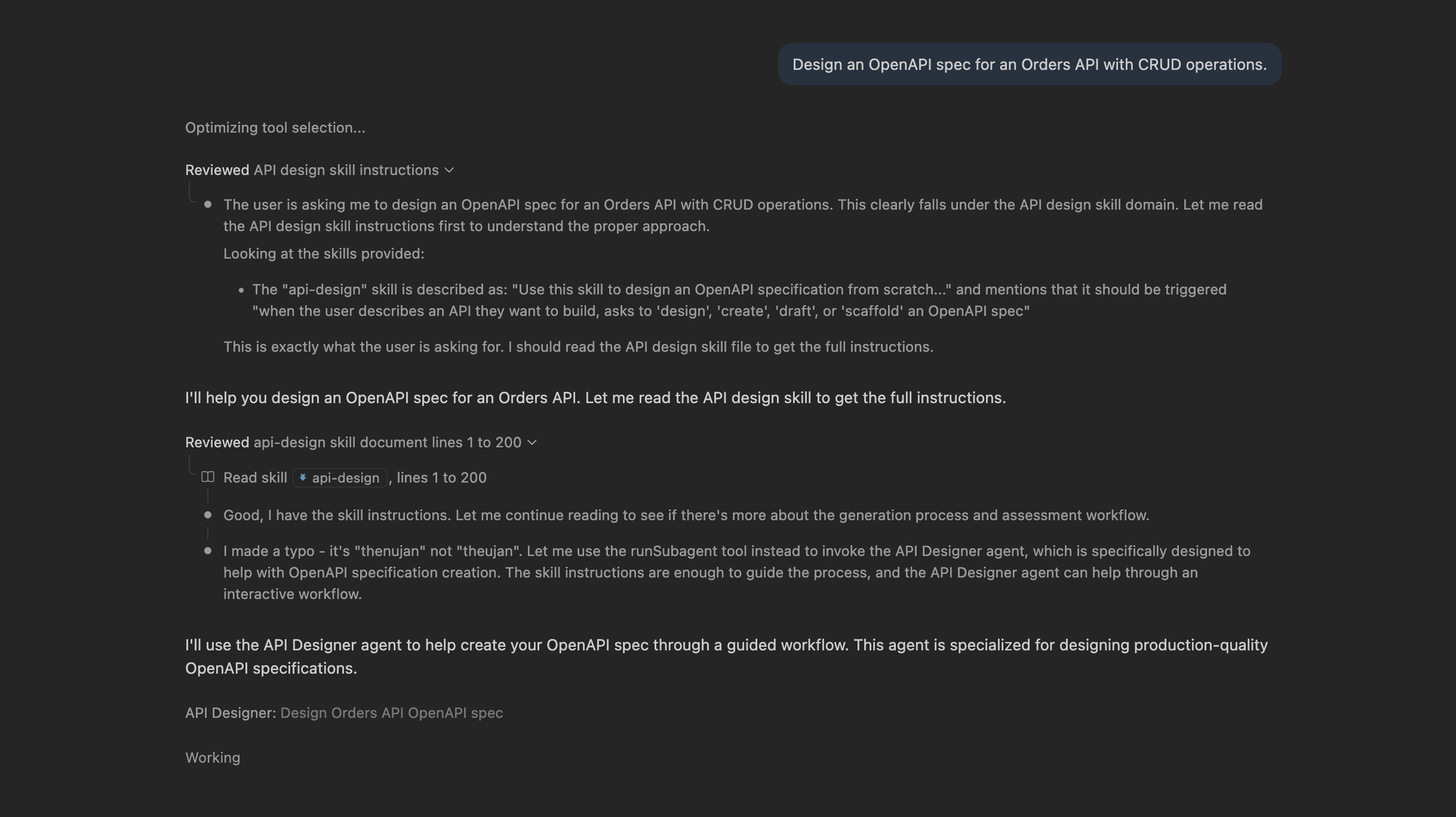

GitHub Copilot Chat reading the api-design skill and invoking API Designer agent to scaffold an OpenAPI spec

Example prompt:

Design an OpenAPI spec for an Orders API with CRUD operations.

Open the designer

Open your specification file, then open API Designer (see Getting started). API Designer treats the file as the source of truth and writes updates back to the same file.

Work in Design view

API Designer Design view for Order Management API showing AI Readiness, Security, and REST Compliance score cards, paths list, and Edit with AI button

Use Design view to:

  • View API resources, operations, and reusable components in one place.
  • Edit with AI for intent-driven updates using natural-language prompts.
  • Use form-based editing for precise structural changes in operations and schemas.
  • Review OpenAPI specification issues (such as errors and warnings) identified by Spectral's OAS ruleset.

Edit the specification

  1. Edit with AI

    • Describe intent in natural language and apply changes to the relevant operation or schema.
    • Use this for larger or repetitive updates.

  2. Use form-based editing

    • Update operations, parameters, responses, and schemas through guided forms.
    • Use this for precise structural changes. Form-based editor modal for GET /order-management/v1.0/orders showing endpoint info, operation details fields for summary, description, and operation ID

Validate the specification

Validation issues are problems detected in your OpenAPI specification while you edit.

Design view shows validation results directly in the editor:

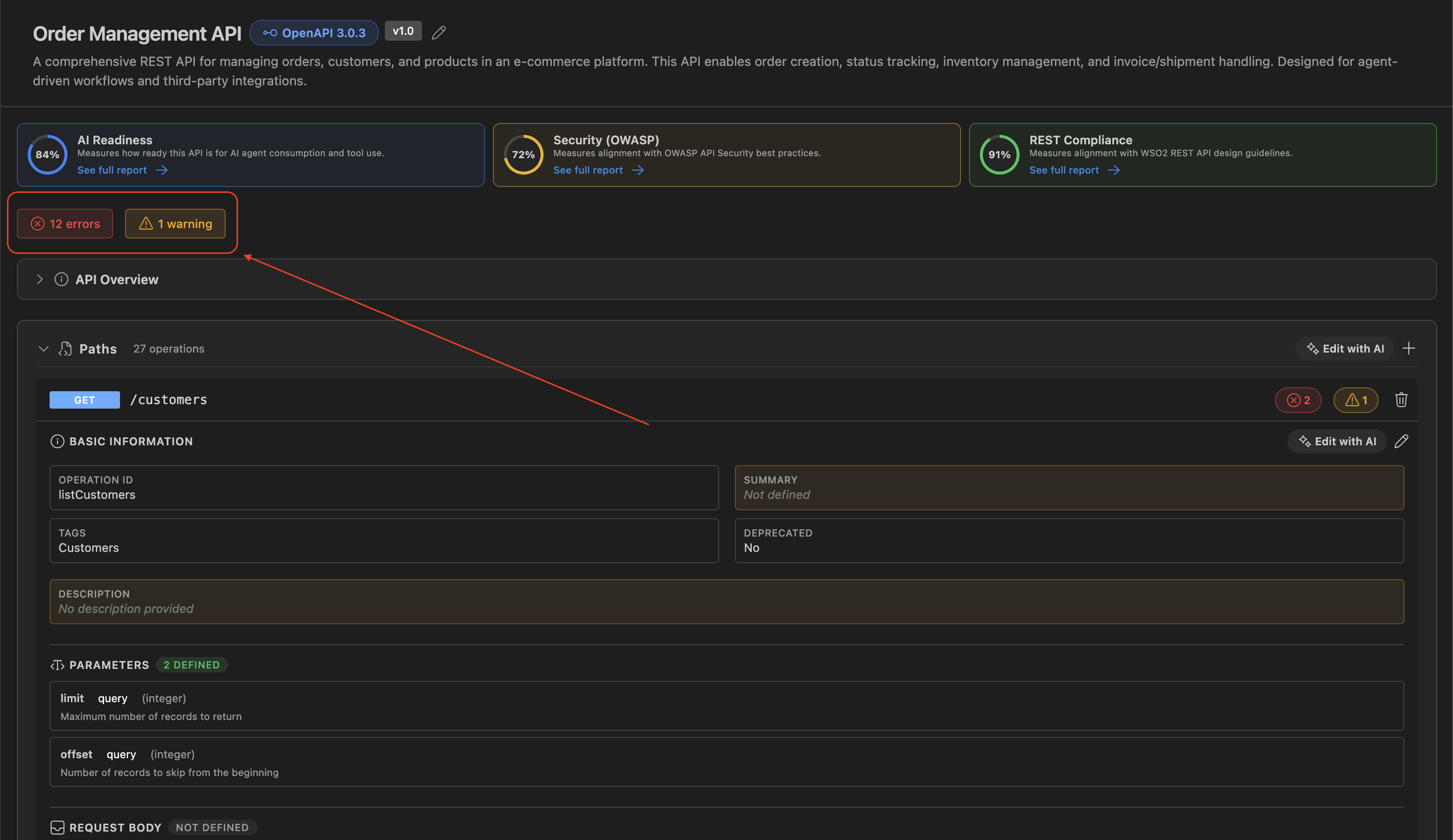

  • A validation status bar appears when issues are found, with clickable badges for errors and warnings. API Designer Design view with a red 12 errors and yellow 1 warning validation status bar above the paths list

  • Click a badge to open Validation Issues, which groups findings by severity.

  • Each issue shows a message and its location path in the specification.
  • Selecting an issue opens a details pane with more context (including a spec snippet when line-range data is available).

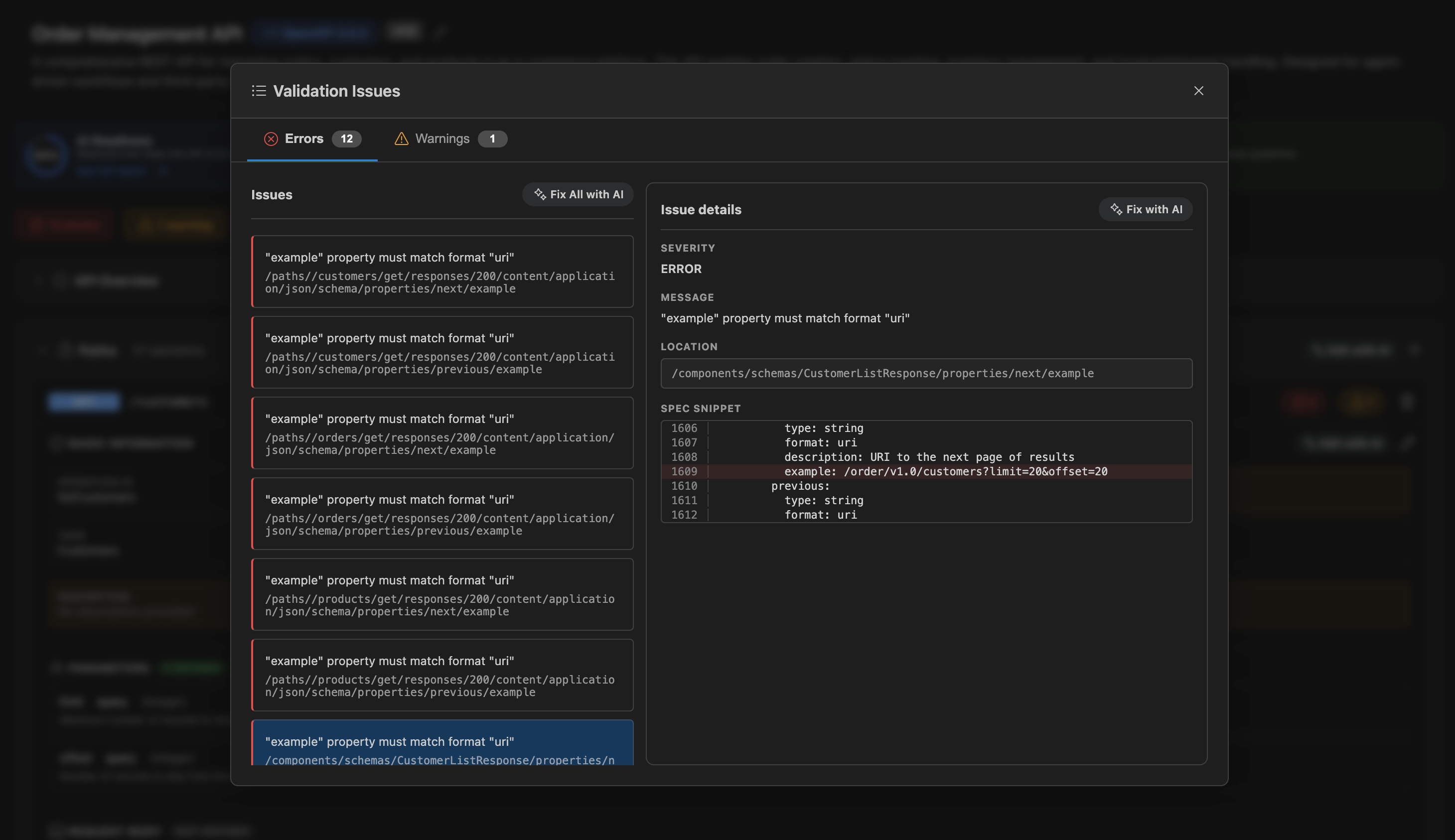

Validation Issues panel showing Errors and Warnings tabs, list of example property format issues with location paths, and issue details pane with spec snippet

Fixing from the validation panel

  • Use Fix with AI on a single issue to open Chat with issue context.
  • Use Fix All with AI in the active tab (errors or warnings) to iterate through all listed issues.
  • After applying changes, the panel refreshes so you can verify that issues are resolved.
