Example

What you'll build​

Build an automation that retrieves the SAP Business One Banks collection. The flow uses the SAP Business One Banking connection, stores the returned collection, and writes an info log when the request completes.

Operations used:

  • List Banks : Queries the Banks collection.

Architecture​

Prerequisites​

  • An SAP Business One installation with the Service Layer enabled.
  • A company database name, user name, and password for an SAP Business One account.

Setting up the SAP Business One Banking integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the SAP Business One Banking connector​

Step 1: Open the connector palette​

Select Add Connection in the Connections section.

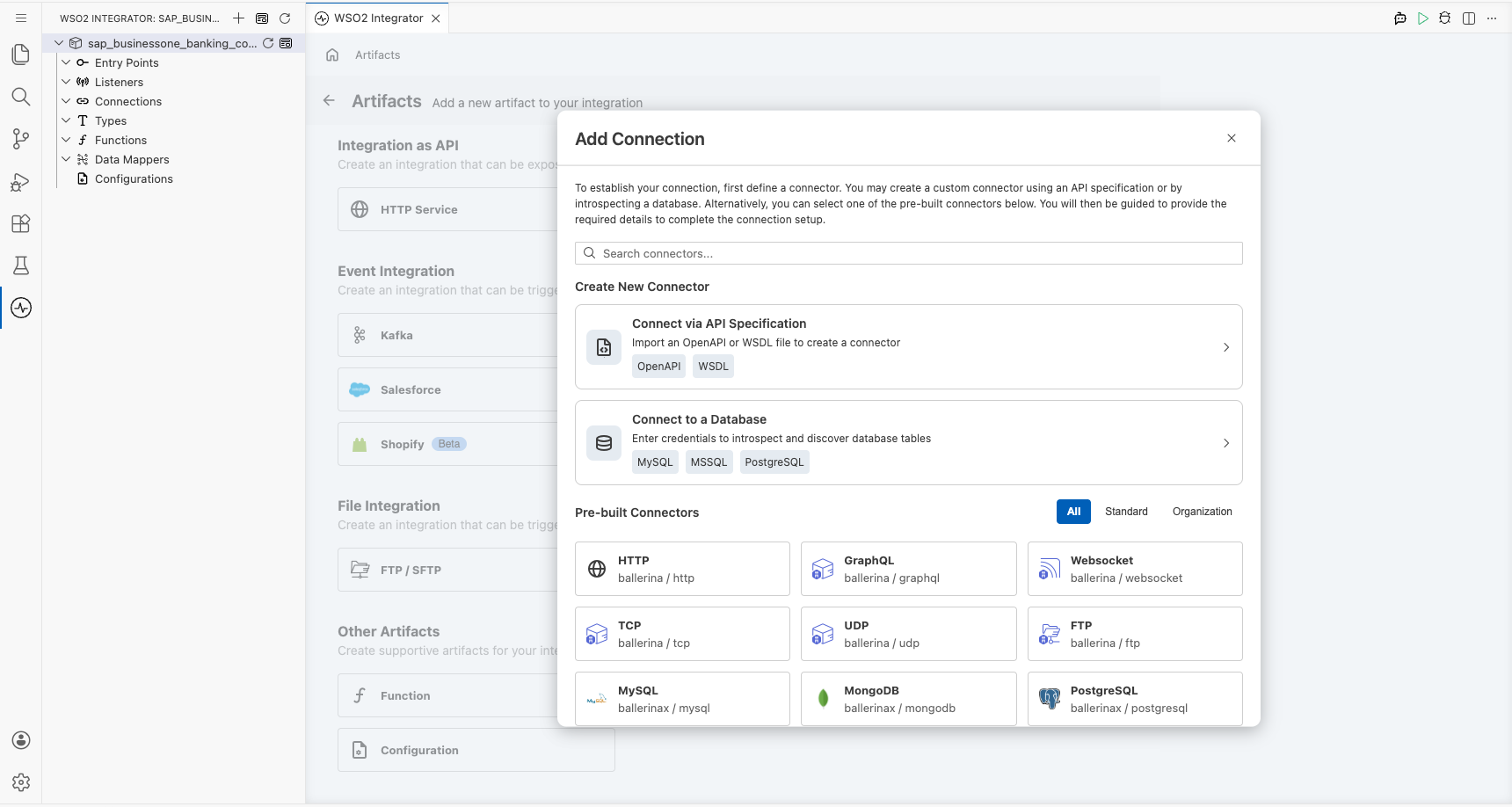

SAP Business One Banking connector palette open before selection

Step 2: Select the SAP Business One Banking connector​

  1. Enter sap.businessone.banking in the search field.
  2. Select the Banking connector card.

Configuring the SAP Business One Banking connection​

Step 3: Bind the connection parameters to configurable variables​

Enter the SAP Business One session details in SessionConfig.

  • companyDb : SAP Business One company database name.
  • username : SAP Business One user name.
  • password : SAP Business One password.

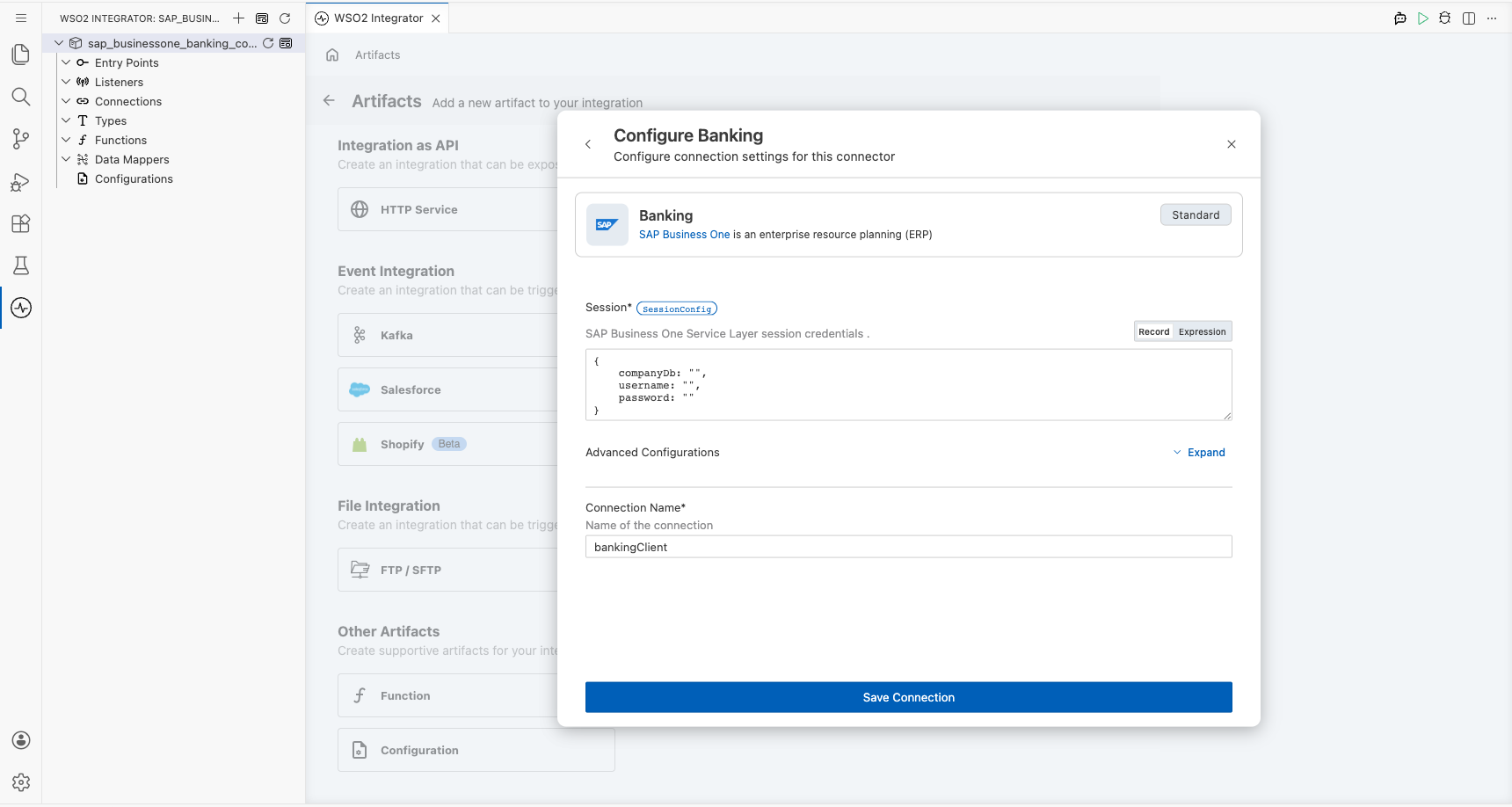

SAP Business One Banking connection form with session parameters before saving

Step 4: Save the connection​

Select Save and verify that bankingClient appears in the Connections section.

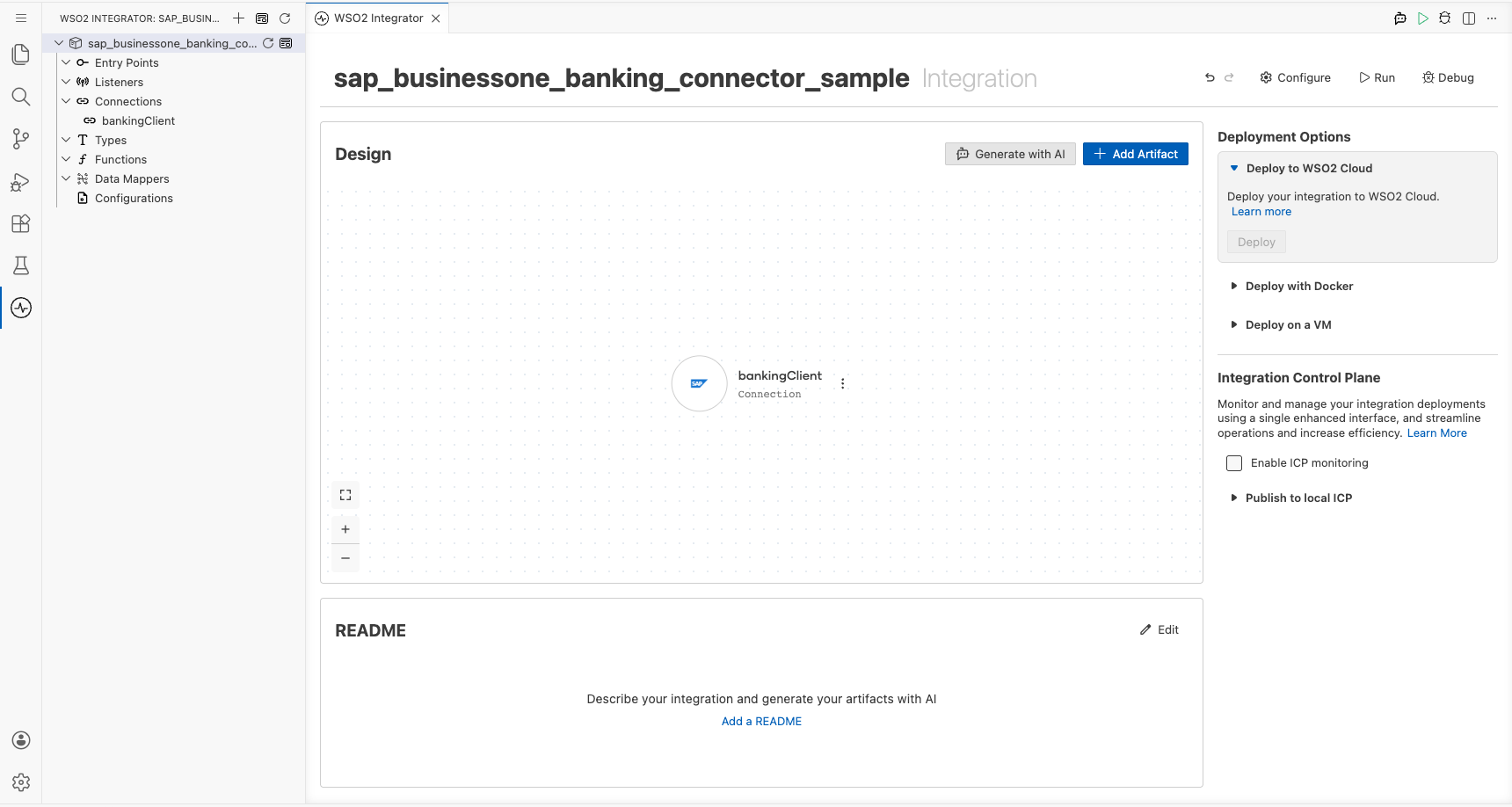

SAP Business One Banking connection visible after saving

Step 5: Set actual values for your configurables​

  1. Select Configurations at the bottom of the project tree under Data Mappers.
  2. Enter the SAP Business One session values before you run the integration.
  • companyDb (string) : SAP Business One company database name.
  • username (string) : SAP Business One user name.
  • password (string) : SAP Business One password.

Configuring the SAP Business One Banking List Banks operation​

Step 6: Add an automation entry point​

  1. Select Add Entry Point next to Entry Points.
  2. Select Automation.
  3. Select Create to accept the settings.

Step 7: Expand the connection and configure the List Banks operation​

  1. Select Add Step in the automation flow.
  2. Expand bankingClient to display its operations.

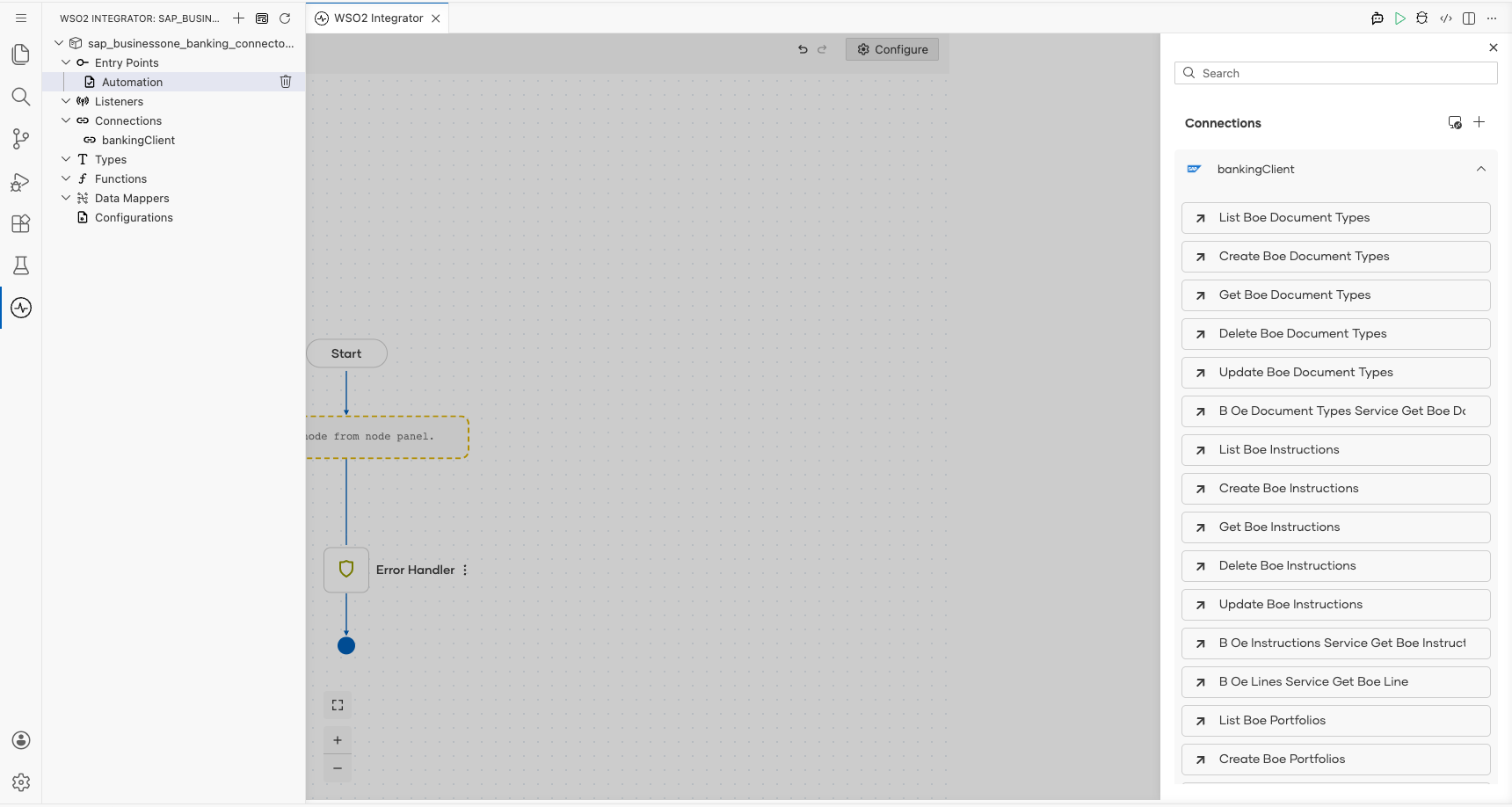

SAP Business One Banking connection expanded to display operations before selection

  1. Select List Banks.
  2. Keep the generated result variable and response format.
  • Result : Stores the Banks collection response.
  • Response format : Uses banking:BanksCollectionResponse for the response.

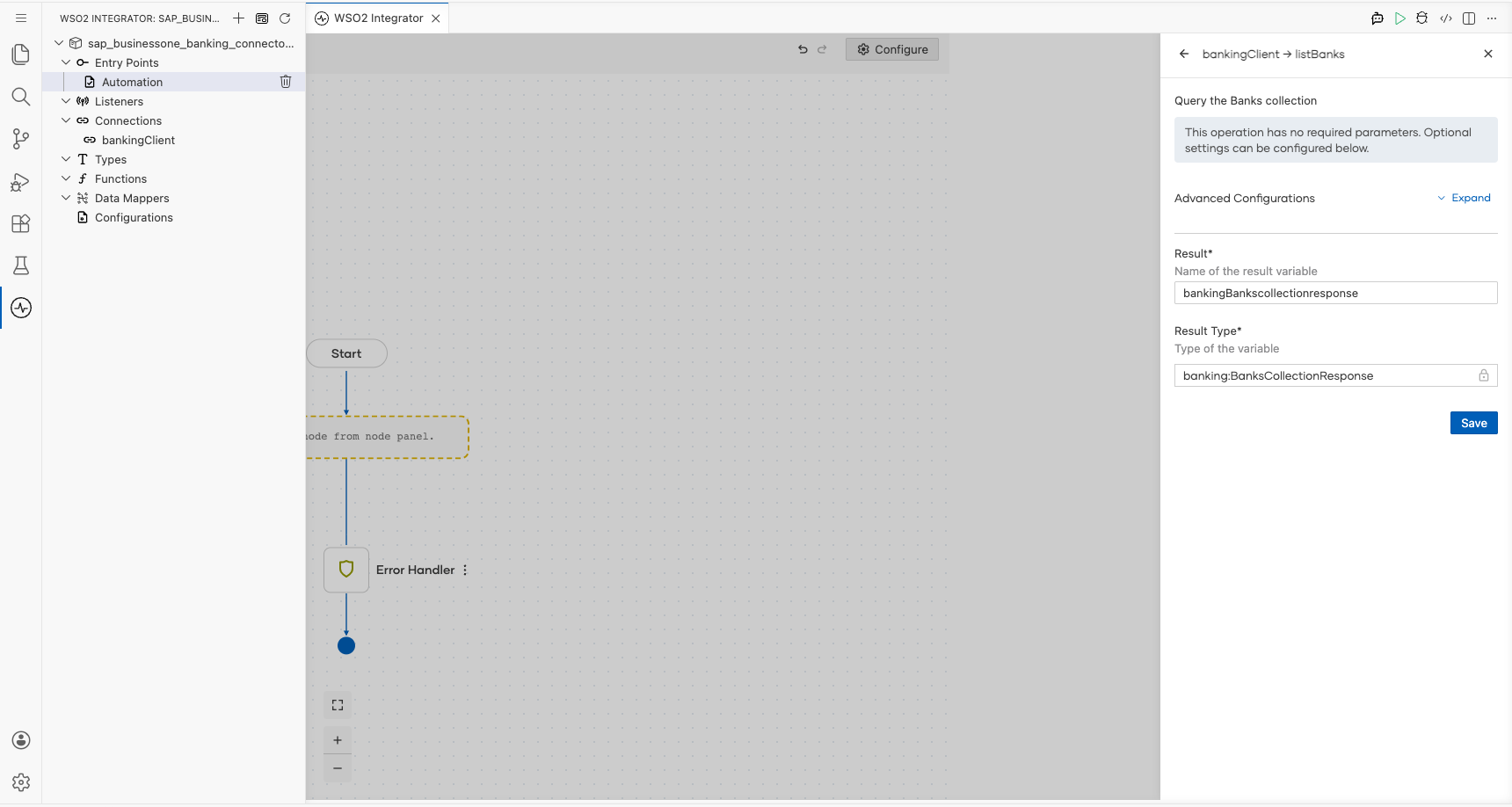

List Banks operation with the generated result before saving

  1. Select Save.

Step 8: Log the List Banks result​

Add Log Info with the message List Banks completed., then return to the visual flow.

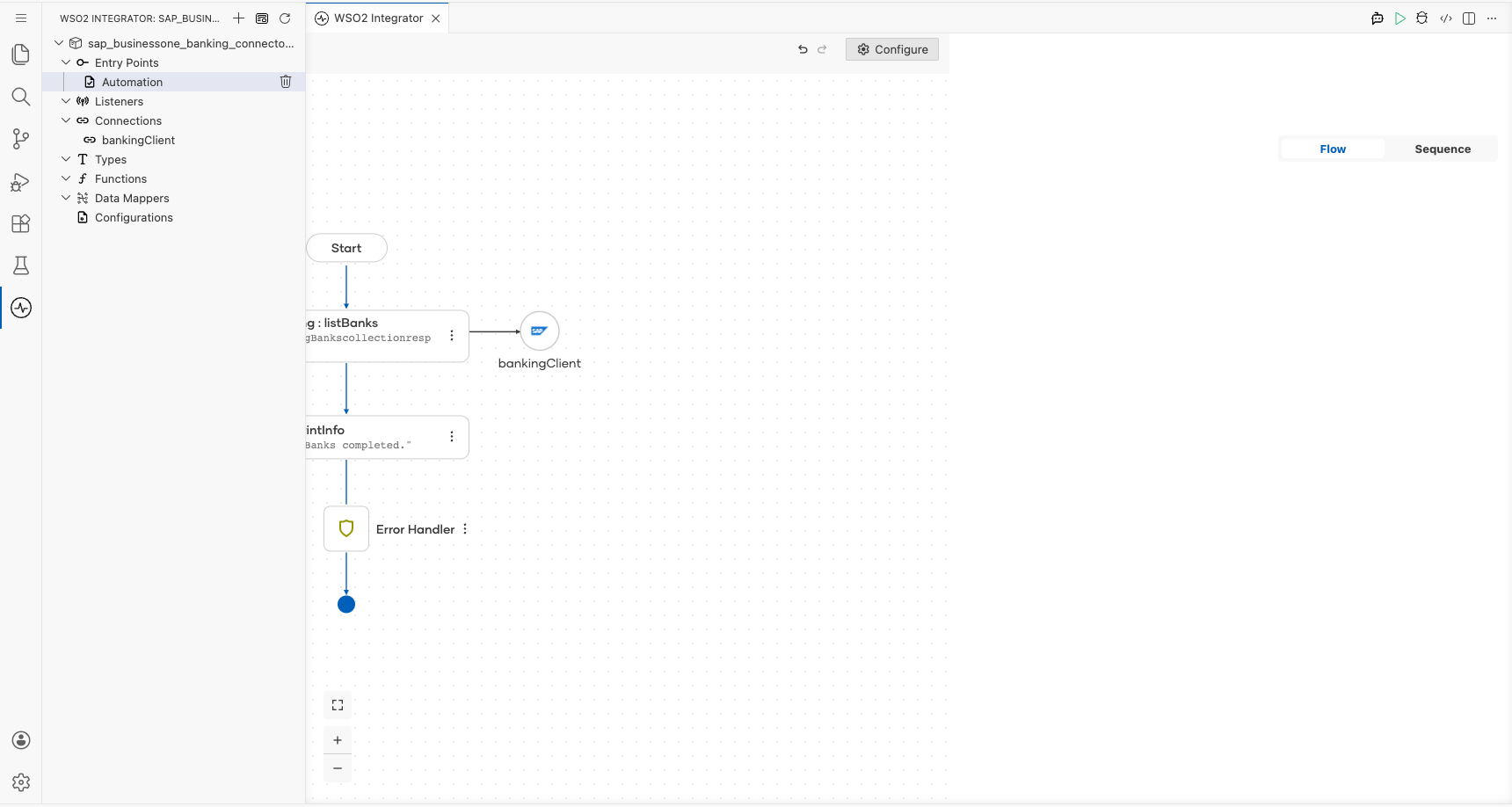

Completed SAP Business One Banking flow with List Banks and Log Info

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The SAP Business One connectors provide practical examples illustrating usage in various scenarios. Explore these examples, covering use cases like listing open sales orders, reporting inventory stock, and logging CRM activities.
