Example

What you'll build​

This example creates a new Business Partner (customer, vendor, or lead) in an SAP Business One system through its Service Layer API. The integration binds connection credentials to configurable variables and creates a Business Partner record using the connector's create operation.

Operations used:

  • Create Business Partners : creates a new Business Partner record in SAP Business One

Architecture​

Prerequisites​

  • Access credentials for an SAP Business One Service Layer instance, including the company database name, username, and password.

Setting up the SAP Business One Business Partners integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the SAP Business One Business Partners connector​

Step 1: Open the Add Connection palette​

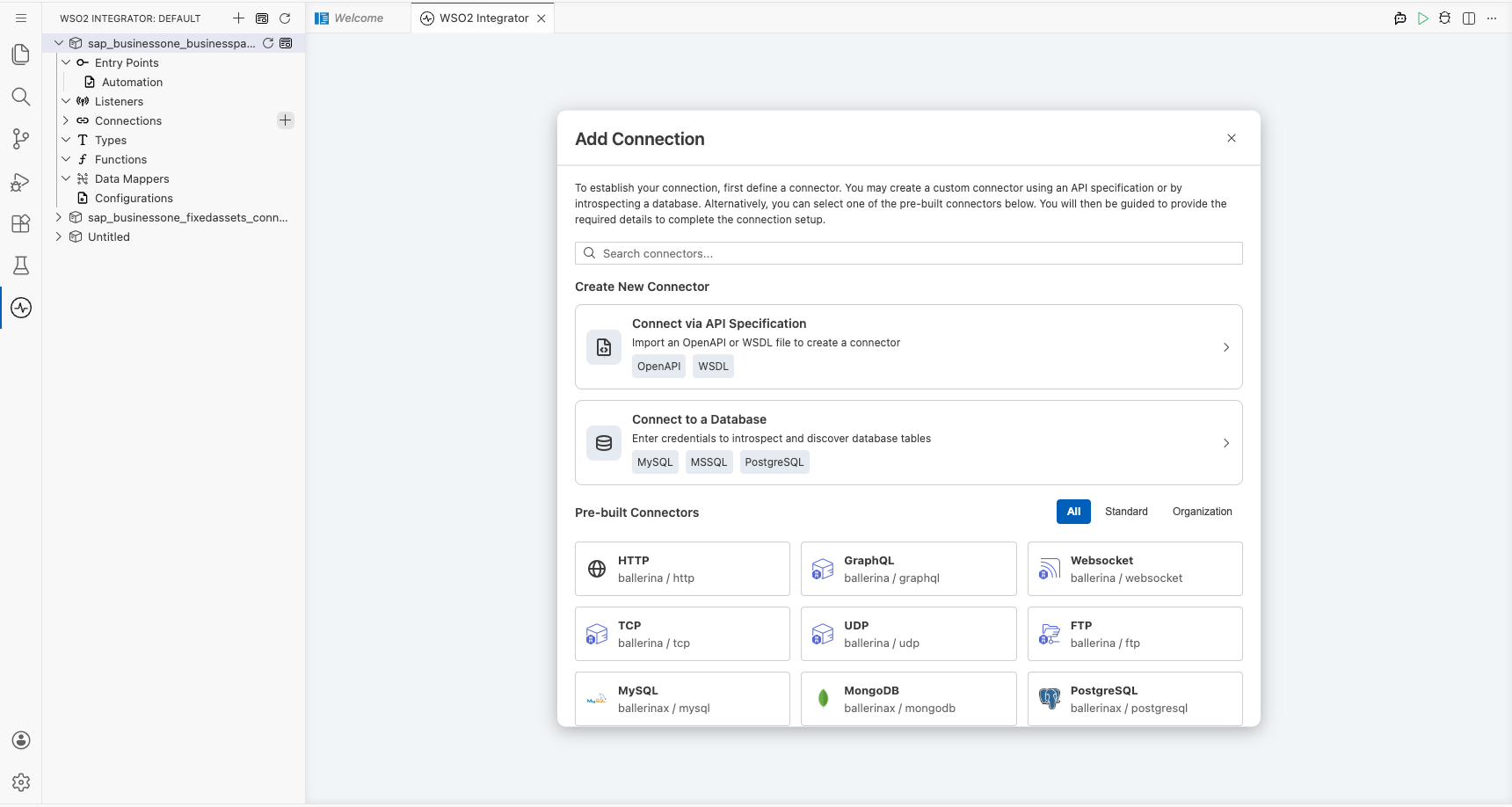

Select Add Connection in the Connections section of the sidebar to open the connector palette. The palette shows options to create a connector from an OpenAPI or WSDL spec, connect to a database, or select a pre-built connector. SAP Business One Business Partners connector palette open with search field before any selection

Step 2: Locate and select the connector​

  1. Enter sap.businessone.businesspartners in the palette's search field.
  2. Select the Businesspartners connector card to open the Configure Businesspartners connection form.

Configuring the SAP Business One Business Partners connection​

Step 3: Bind connection parameters to configurable variables​

Bind each field of the required Session record to a new configurable variable so the Service Layer credentials aren't hardcoded in the flow. Leave the optional Config and Service Url advanced fields at their defaults.

  • companyDb : the SAP Business One company database name
  • username : the Service Layer username

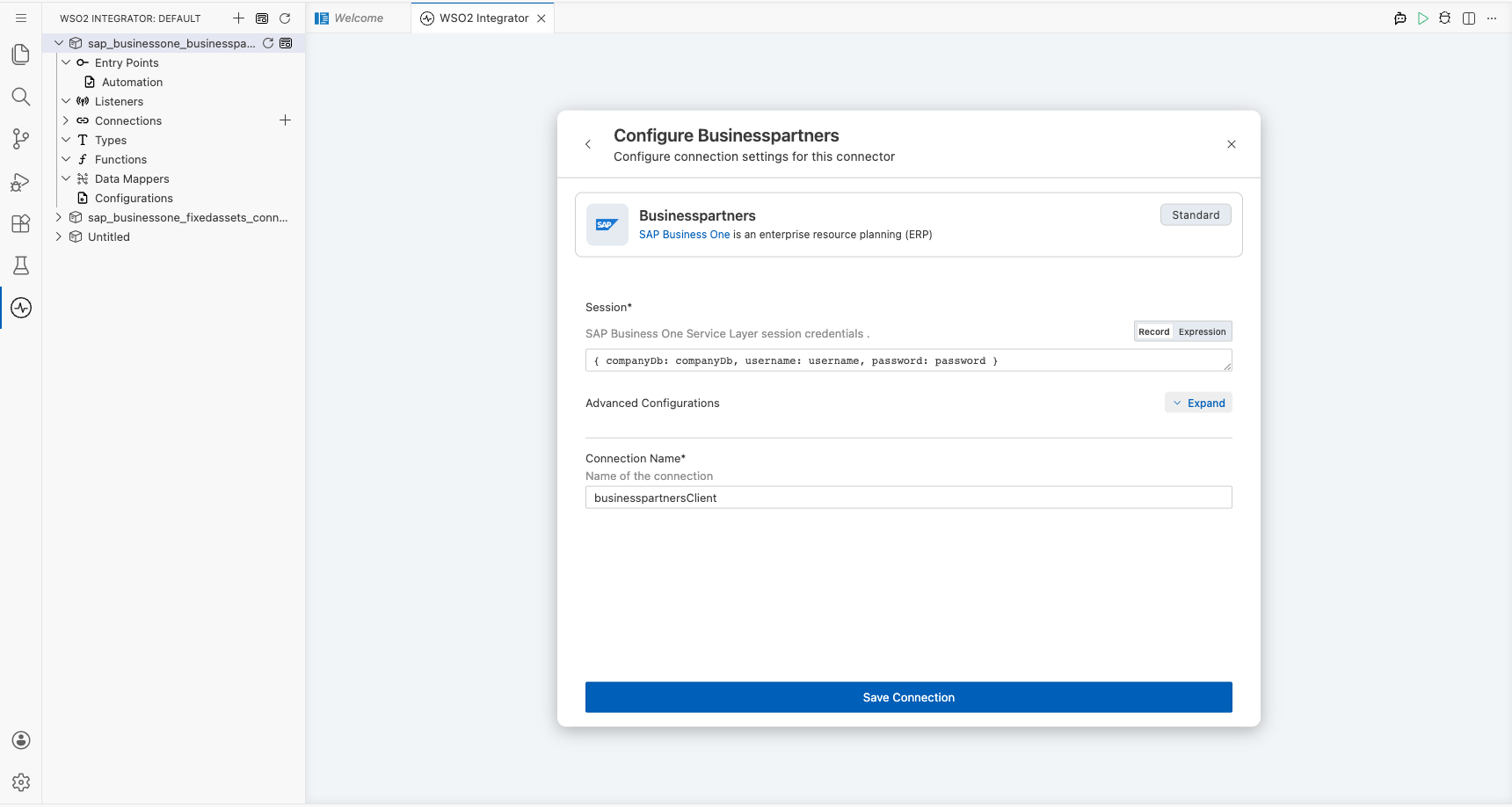

  • password : the Service Layer password SAP Business One Business Partners connection form fully filled with all parameters before saving

Step 4: Save the connection​

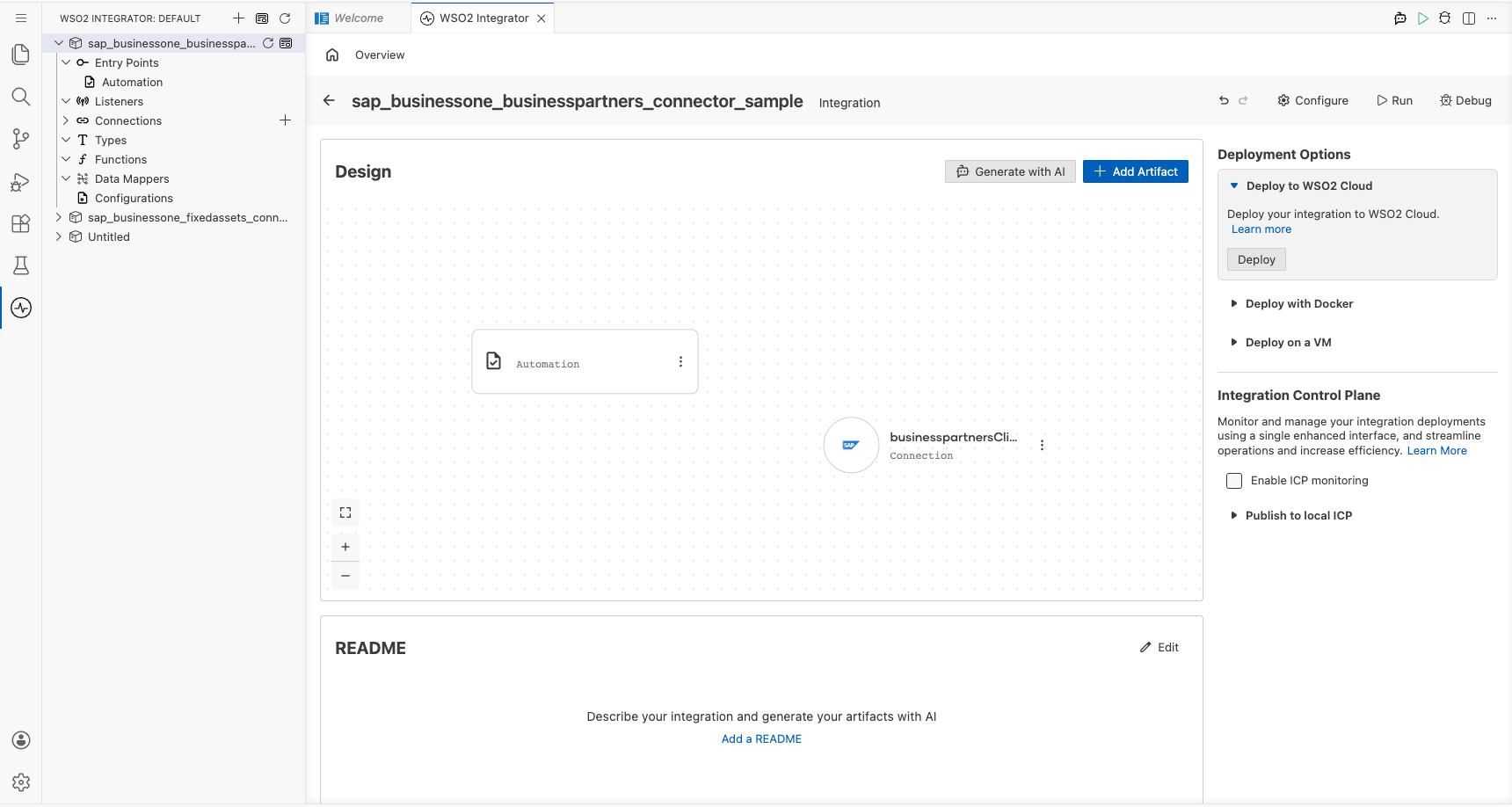

Select Save Connection to add the businesspartnersClient connection node to the Connections panel and the design canvas. SAP Business One Business Partners Connections panel showing businesspartnersClient entry after saving

Step 5: Set actual values for your configurables​

Select Configurations in the left panel, at the bottom of the project tree under Data Mappers, and set a value for each configurable variable.

  • companyDb (string) : the SAP Business One company database name to connect to
  • username (string) : the Service Layer username for authentication
  • password (string) : the Service Layer password for authentication

Configuring the SAP Business One Business Partners Create Business Partners operation​

Step 6: Add an Automation entry point​

Select the Automation pattern from the entry-point palette to create a main automation artifact with a Start and Error Handler flow on the canvas.

Step 7: Expand the connector's operations​

  1. Select the + node beneath Start to open the node panel.
  2. Expand the businesspartnersClient connection entry to reveal every available operation, including Business Partner Groups, Contacts, Industries, Payment Terms, Relationships, Territories, and the primary Create, Get, List, Update, and Delete Business Partners operations.

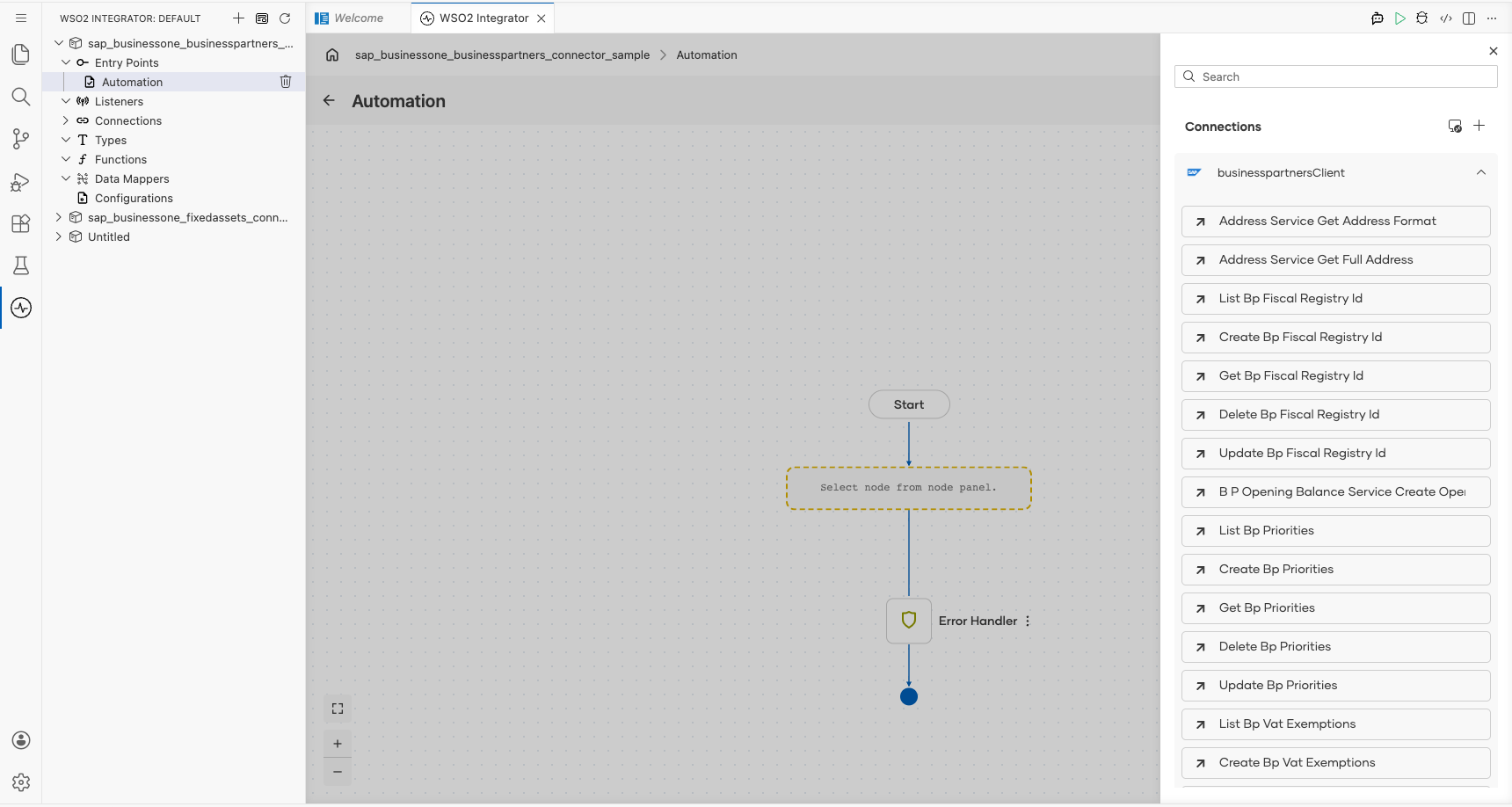

SAP Business One Business Partners connection node expanded showing all available operations before selection

Step 8: Configure the Create Business Partners operation​

  1. Select Create Business Partners to open the businesspartnersClient → createBusinessPartners configuration form.
  2. In the Record Configuration panel, enable the CardCode, CardName, and CardType fields and enter the values below.
  • CardCode : "C00001"
  • CardName : "Acme Corp"
  • CardType : "cCustomer", selected from the enum dropdown for a customer-type Business Partner

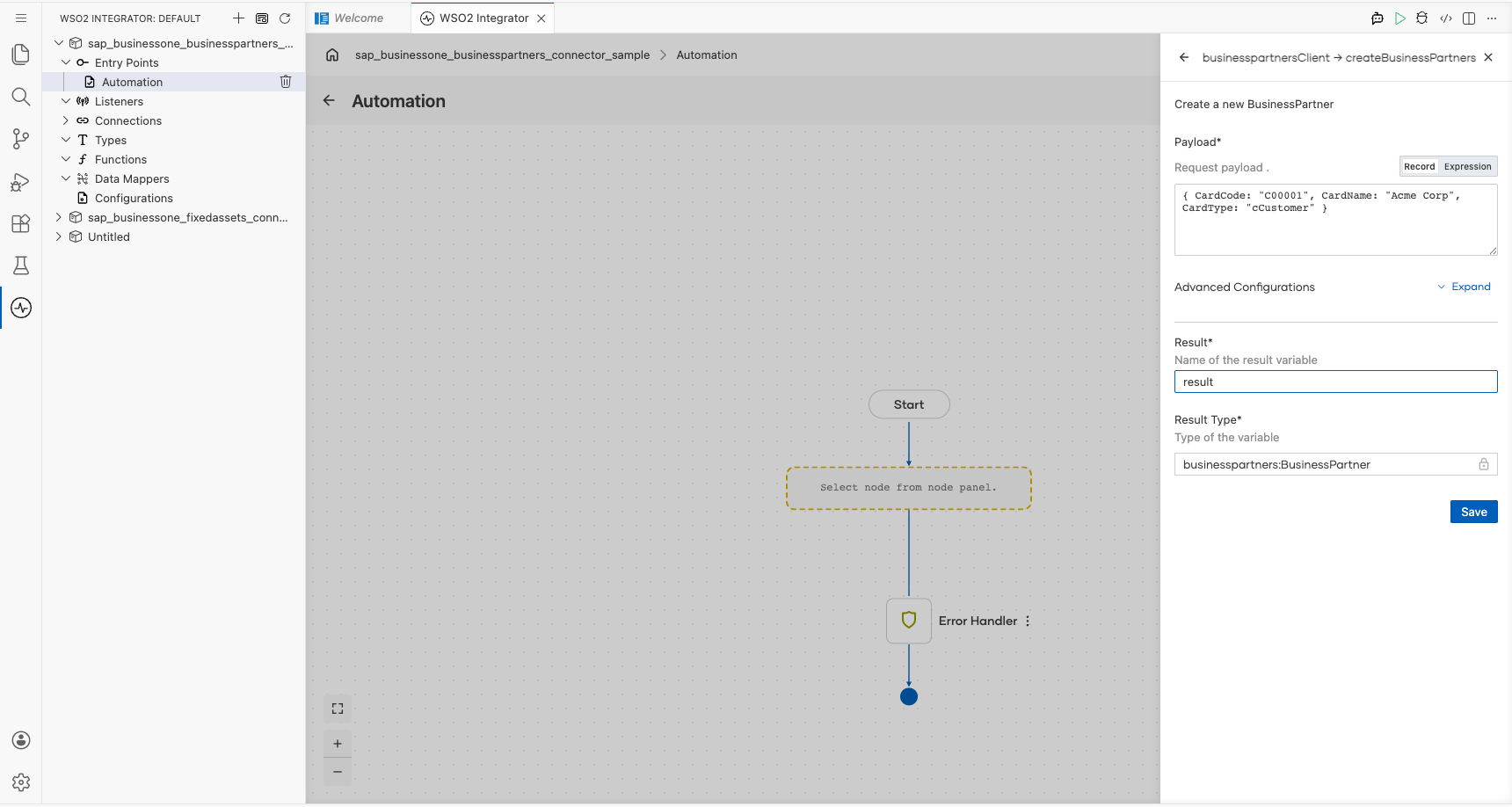

Close the Record Configuration panel and rename the operation's result variable to result (type businesspartners:BusinessPartner). SAP Business One Business Partners Create Business Partners operation configuration filled with all values

Step 9: Save the operation node​

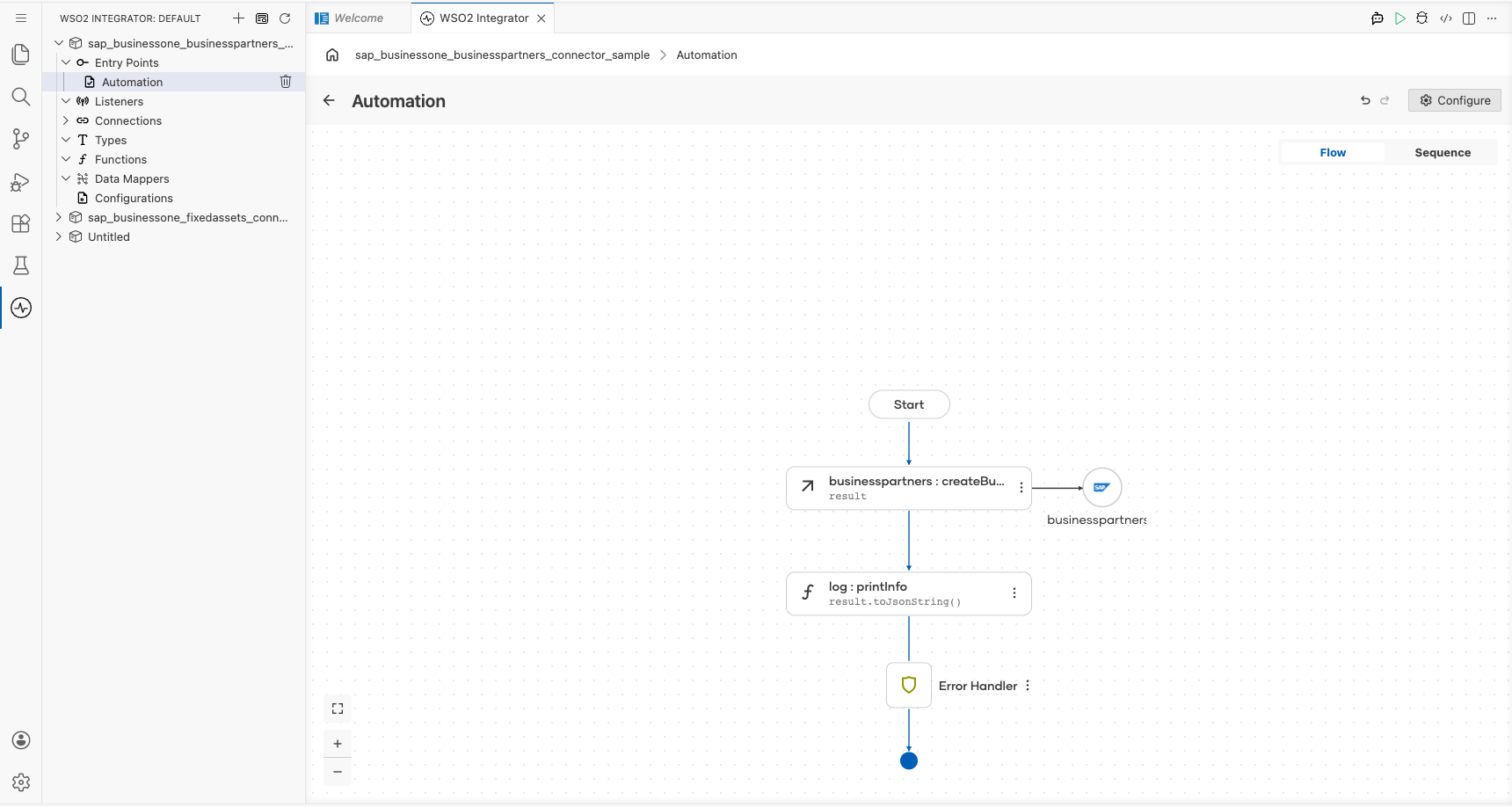

Select Save to add the businesspartners : createBusinessPartners node to the canvas, wired between Start and Error Handler, with the businesspartnersClient connection as its target. Completed SAP Business One Business Partners automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The SAP Business One connectors provide practical examples illustrating usage in various scenarios. Explore these examples, covering use cases like listing open sales orders, reporting inventory stock, and logging CRM activities.
