Example

What you'll build​

Build an automation that retrieves inventory items from SAP Business One. The flow logs the returned collection for monitoring or downstream processing.

Operations used:

  • List Items : Retrieves the Items collection from SAP Business One.

Architecture​

Prerequisites​

  • An SAP Business One installation with the Service Layer component enabled.
  • A company database name, user name, and password with permission to read inventory items.

Setting up the Inventory integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Inventory connector​

Step 1: Open the connector palette​

Select Add Connection in the Connections section.

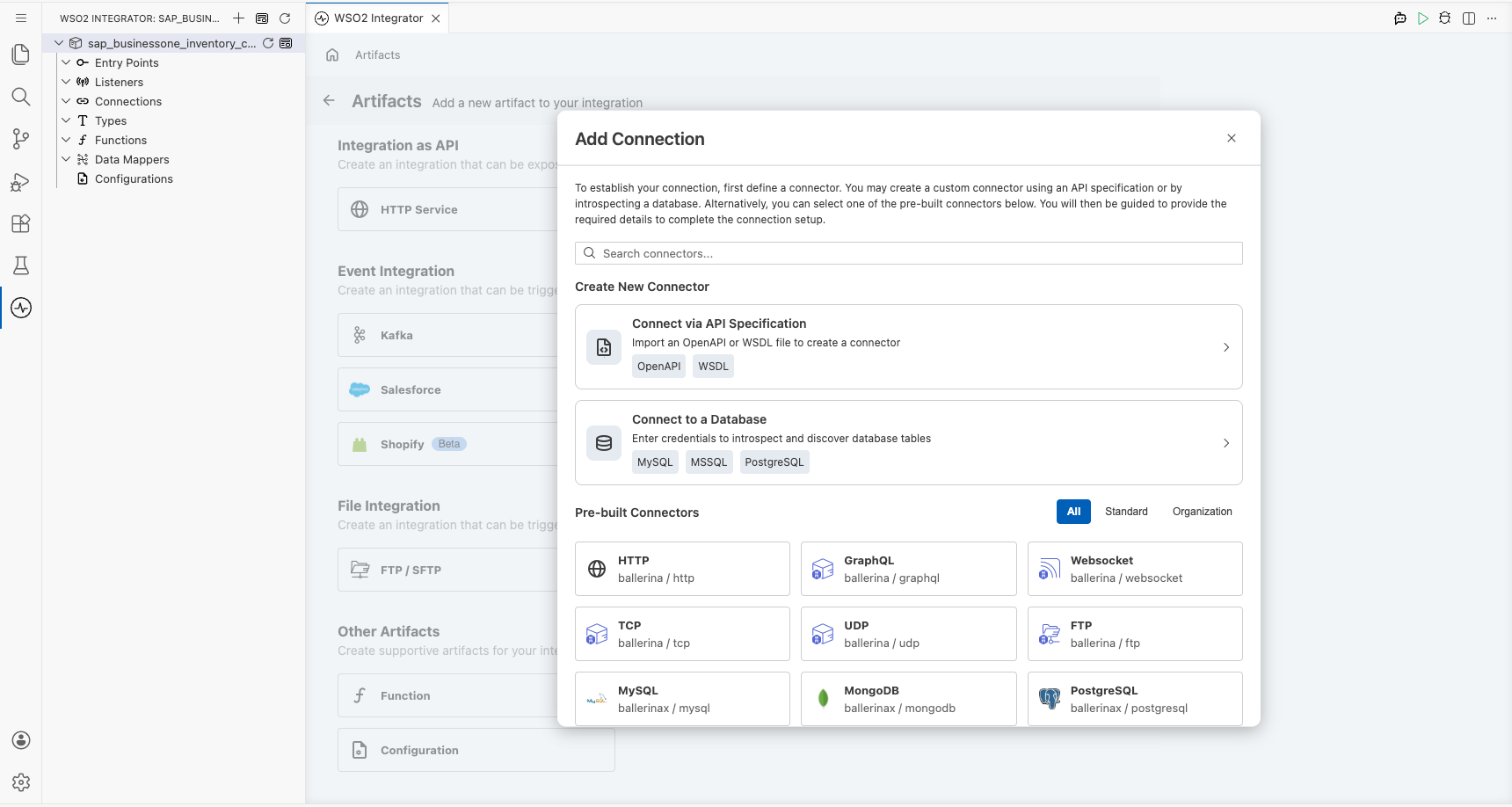

Inventory connector palette open before selection

Step 2: Select the Inventory connector​

  1. Enter sap.businessone.inventory in the search field.
  2. Select the Inventory connector card.

Configuring the Inventory connection​

Step 3: Bind the connection parameters to configurable variables​

Bind the SAP Business One session fields to configurable variables.

  • Session : Supplies the company database, user name, and password for a Service Layer session.

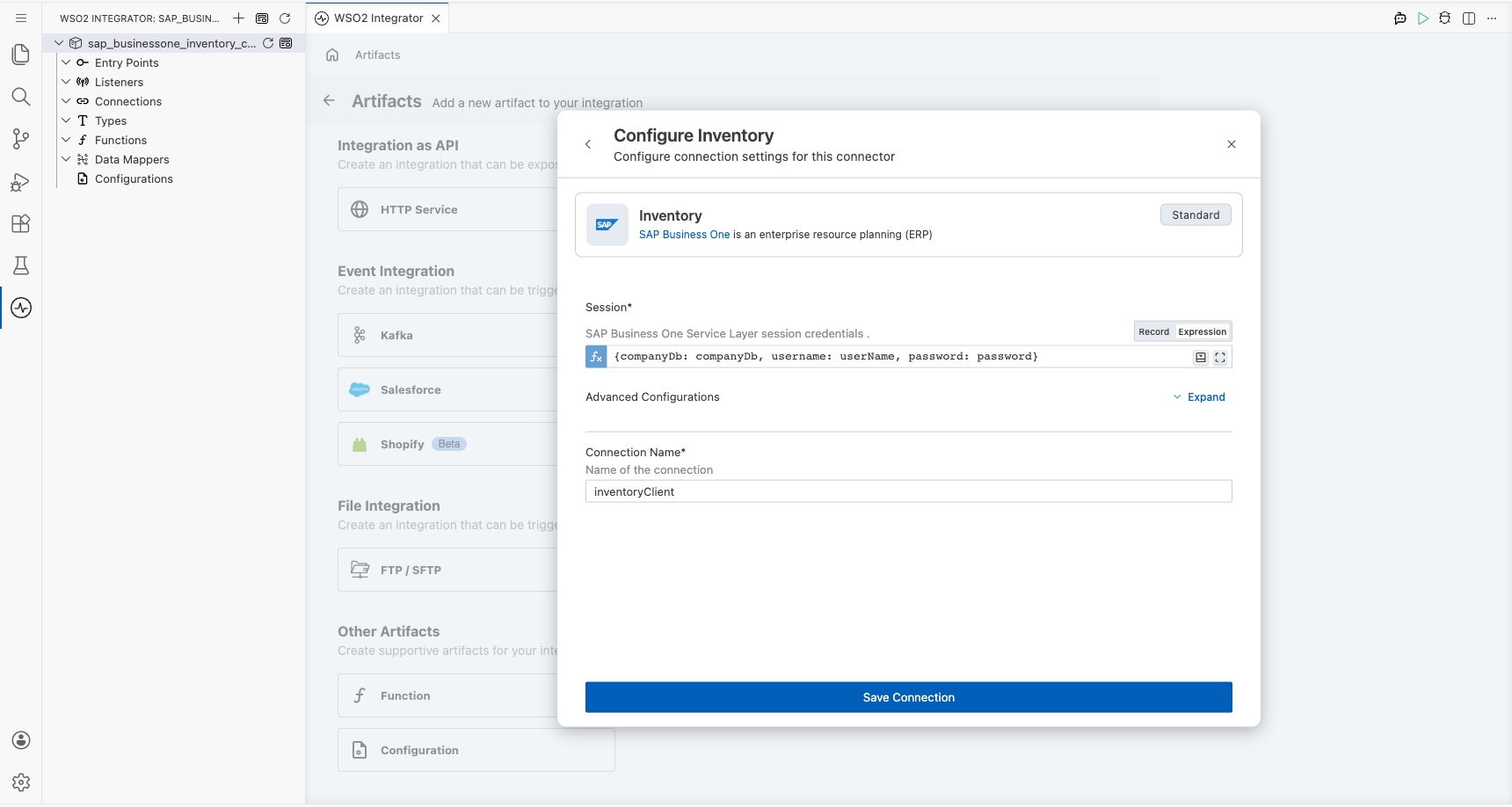

Inventory connection form with the session parameters bound before saving

Step 4: Save the connection​

Select Save Connection and verify that the connection appears in the Connections section.

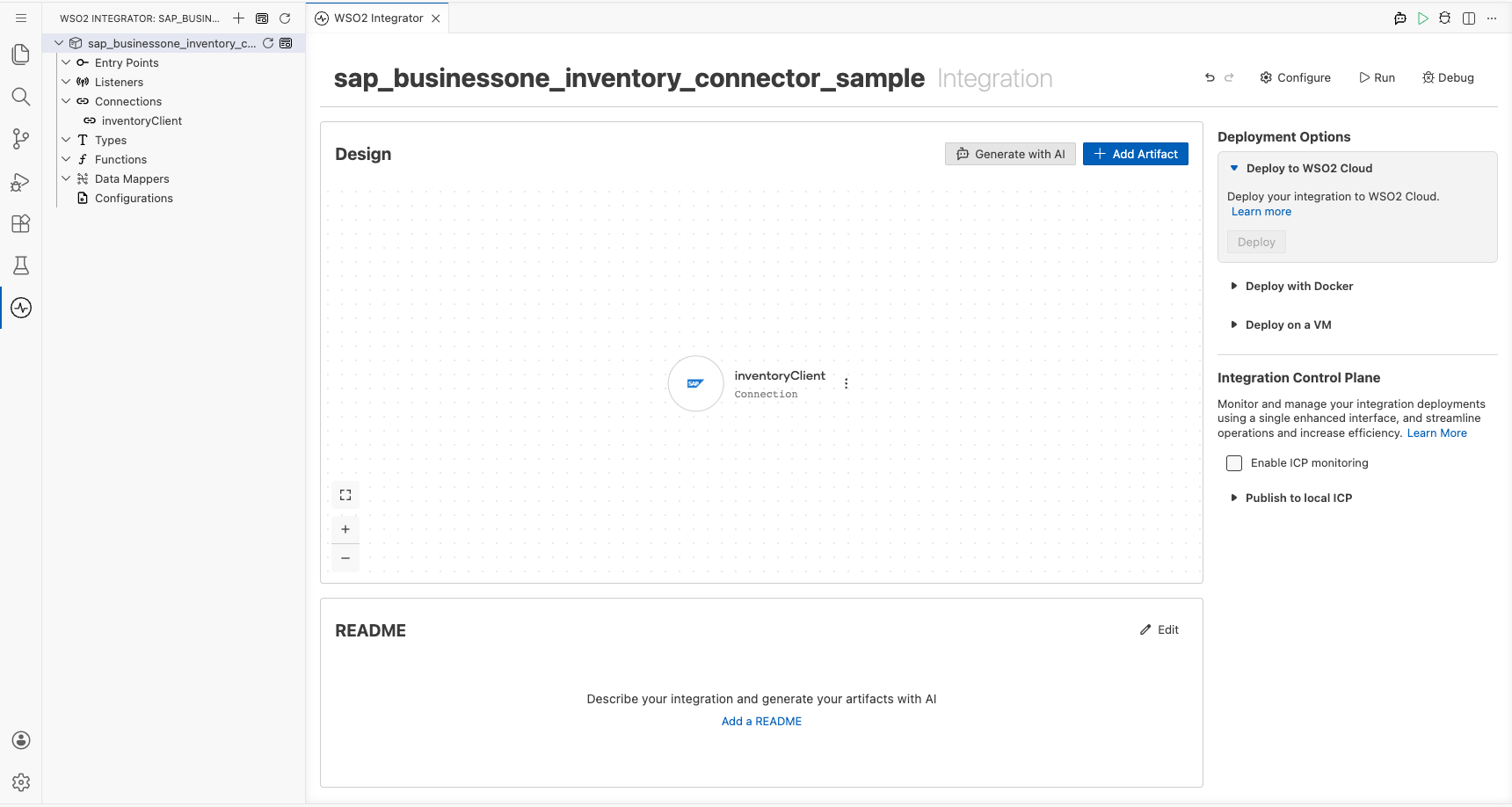

Inventory connection visible after saving

Step 5: Set actual values for your configurables​

  1. Select Configurations at the bottom of the project tree under Data Mappers.
  2. Enter a value for each configurable listed below before you run the integration.
  • companyDb (string) : Company database name for the SAP Business One session.
  • userName (string) : User name with permission to read inventory items.
  • password (string) : Password for the SAP Business One user.

Configuring the Inventory List Items operation​

Step 6: Add an automation entry point​

  1. Select Add Entry Point next to Entry Points.
  2. Select Automation.
  3. Select Create to accept the settings.

Step 7: Expand the connection and configure the List Items operation​

  1. Select Add Step in the automation flow.
  2. Expand inventoryClient to display its operations.

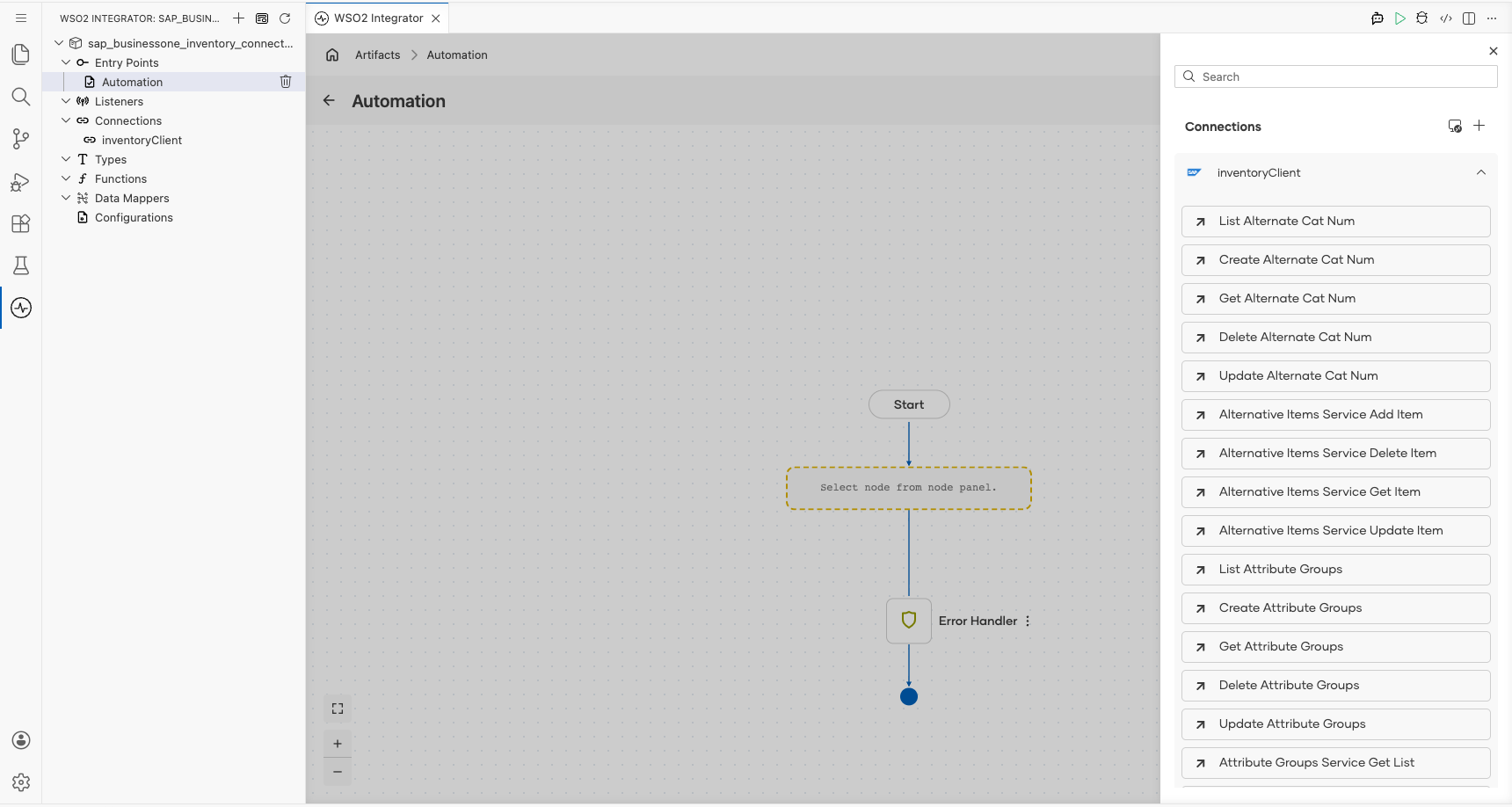

Inventory connection expanded to display operations before selecting List Items

  1. Select List Items.
  2. Enter inventoryItems in Result.
  • Result : Names the variable that stores the returned items collection.

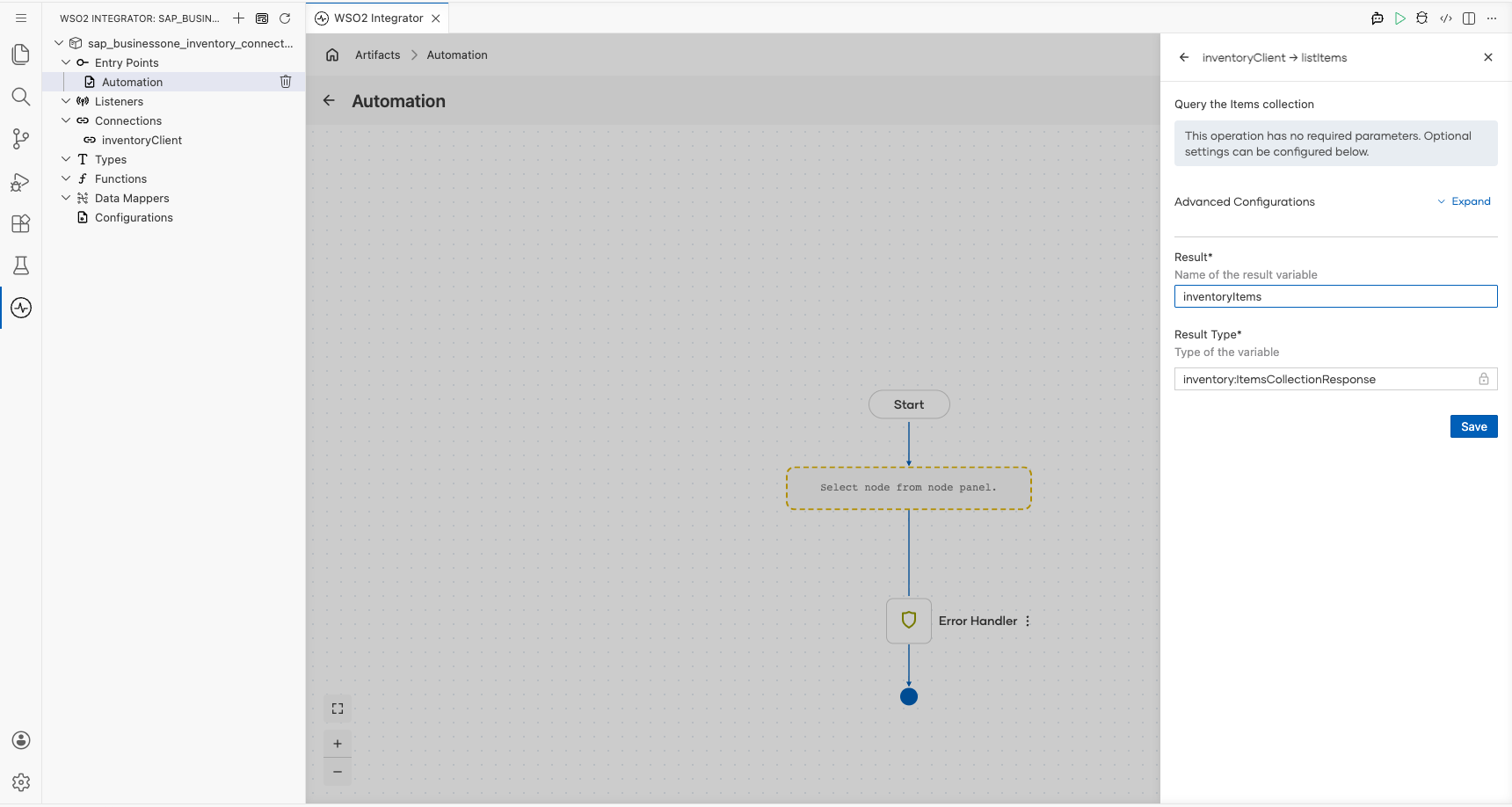

Inventory List Items operation with the result variable entered before saving

  1. Select Save.

Step 8: Log the List Items result​

  1. Select Add Step after the connector operation.
  2. Expand Logging and select Log Info.
  3. Switch Msg to Expression mode.
  4. Enter inventoryItems.toJsonString() to log the returned inventory collection.
  5. Select Save and return to the visual flow.

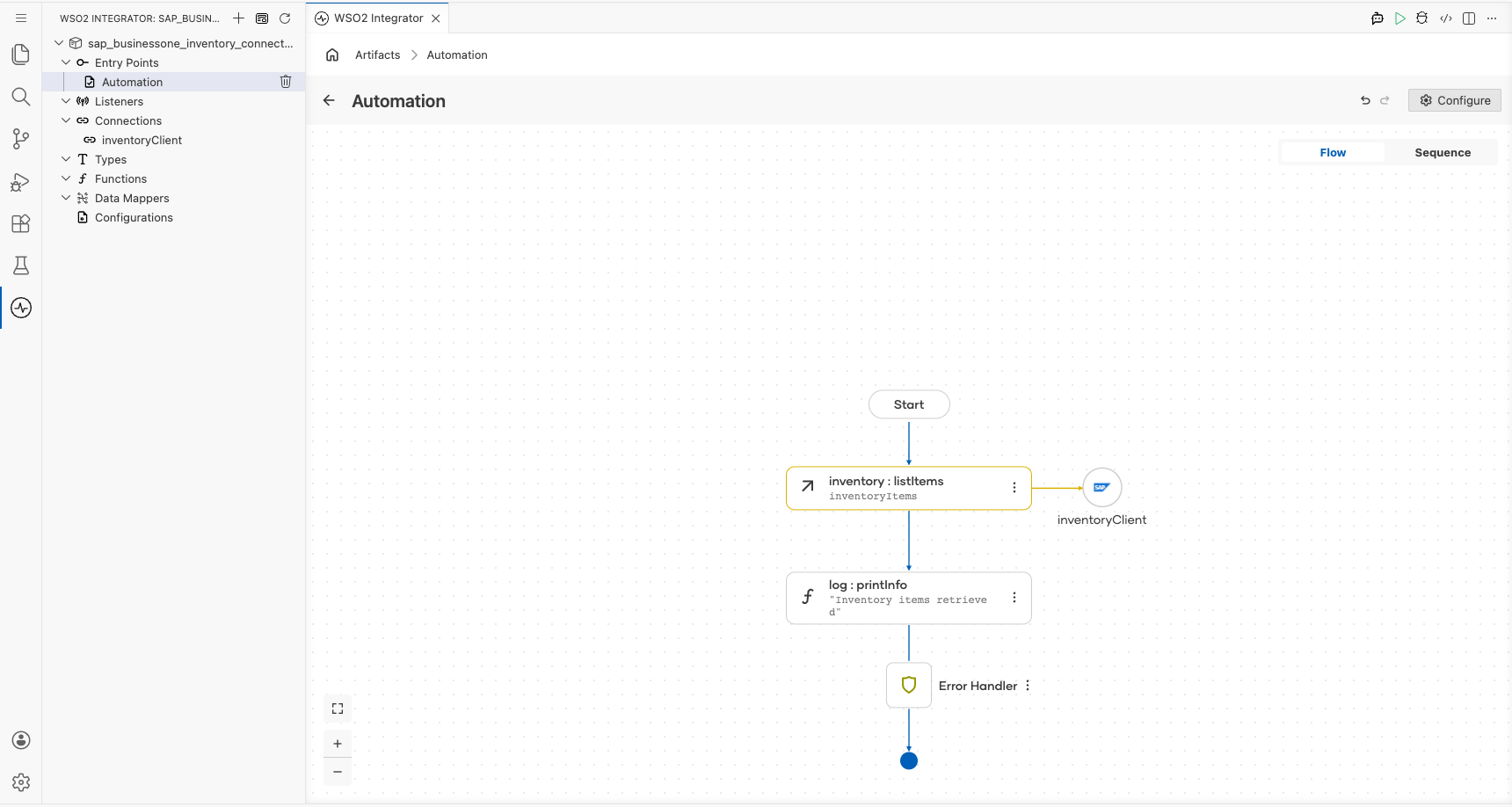

Completed Inventory flow with List Items and result logging

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The SAP Business One connectors provide practical examples illustrating usage in various scenarios. Explore these examples, covering use cases like listing open sales orders, reporting inventory stock, and logging CRM activities.
