Setup Guide

This guide walks you through setting up an Asgardeo Machine-to-Machine (M2M) application and obtaining the OAuth 2.0 client credentials required to use the SCIM connector.

Prerequisites

• An active Asgardeo account. If you do not have one, sign up for a free Asgardeo organization.

Step 1: Register a machine-to-machine (M2M) application

1. Log in to the Asgardeo Console.

2. Select Applications in the left navigation menu.

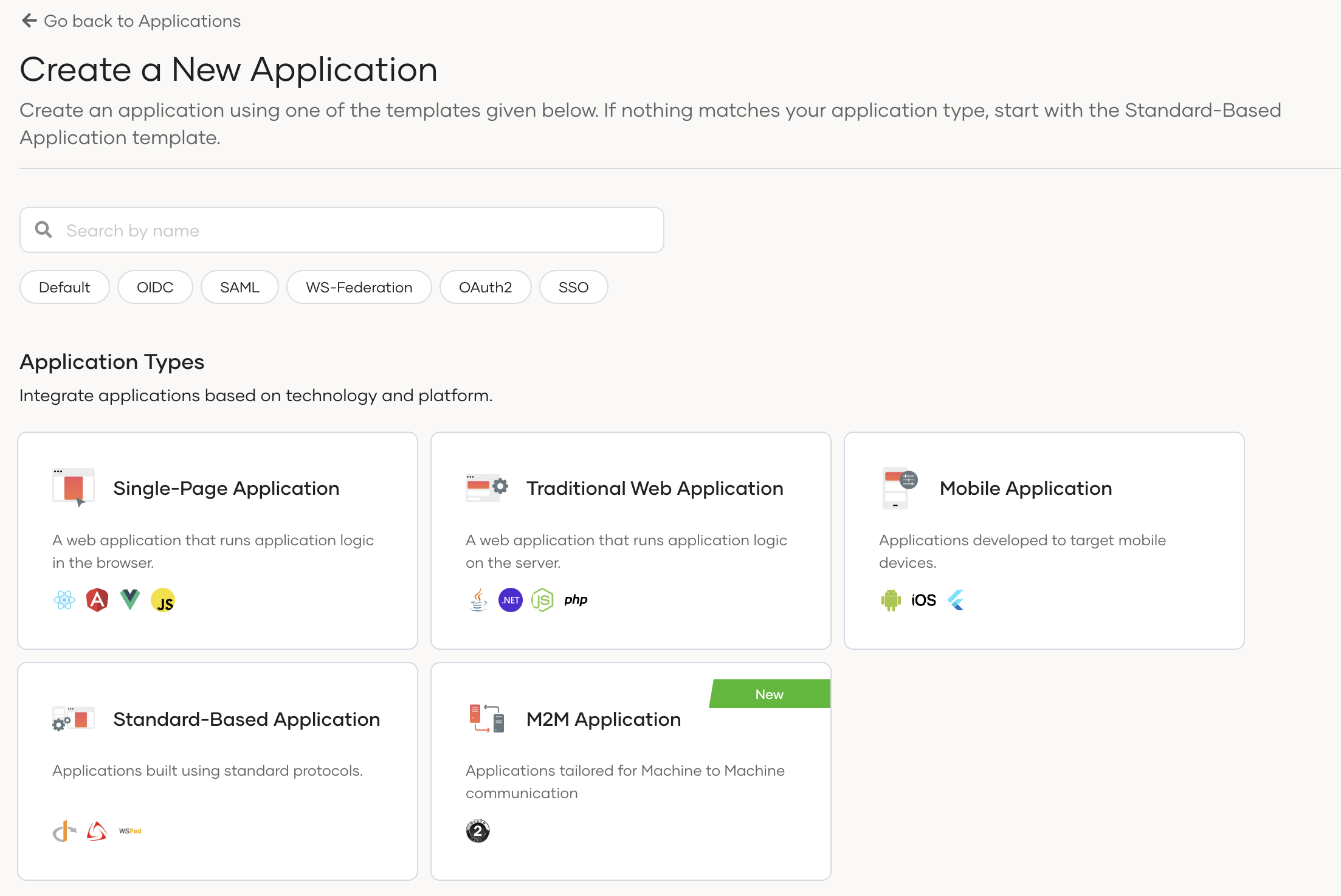

3. Select New Application and select M2M Application.

4. In the Name field, enter a unique name to identify your application (for example, Ballerina SCIM Connector).

5. Select Register to complete the registration.

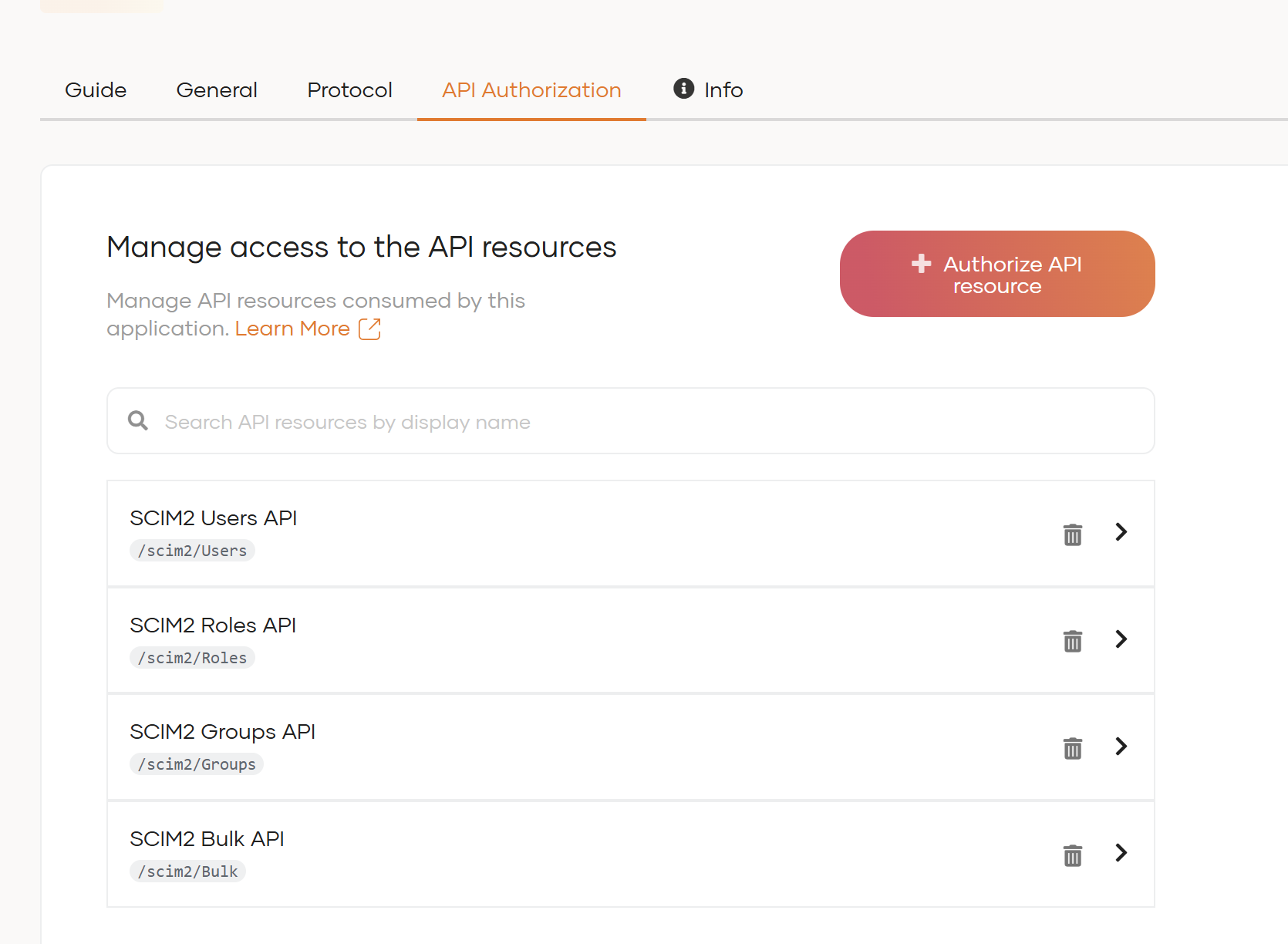

Step 2: Authorize the API resources for the app

1. Navigate to the API Authorization tab of the newly registered application.

2. Authorize the SCIM2 API resources and select the required scopes (permissions), such as:

   • internal_user_mgt_list: List and filter users
   • internal_user_mgt_view: View user details
   • internal_user_mgt_create: Create users
   • internal_user_mgt_update: Update users
   • internal_user_mgt_delete: Delete users
   • internal_group_mgt_view: View group details
   • internal_group_mgt_create: Create groups
   • internal_group_mgt_update: Update groups
   • internal_group_mgt_delete: Delete groups



3. Select Update to save the authorization settings.

tip

Only authorize the scopes your integration needs. Following the principle of least privilege improves security.

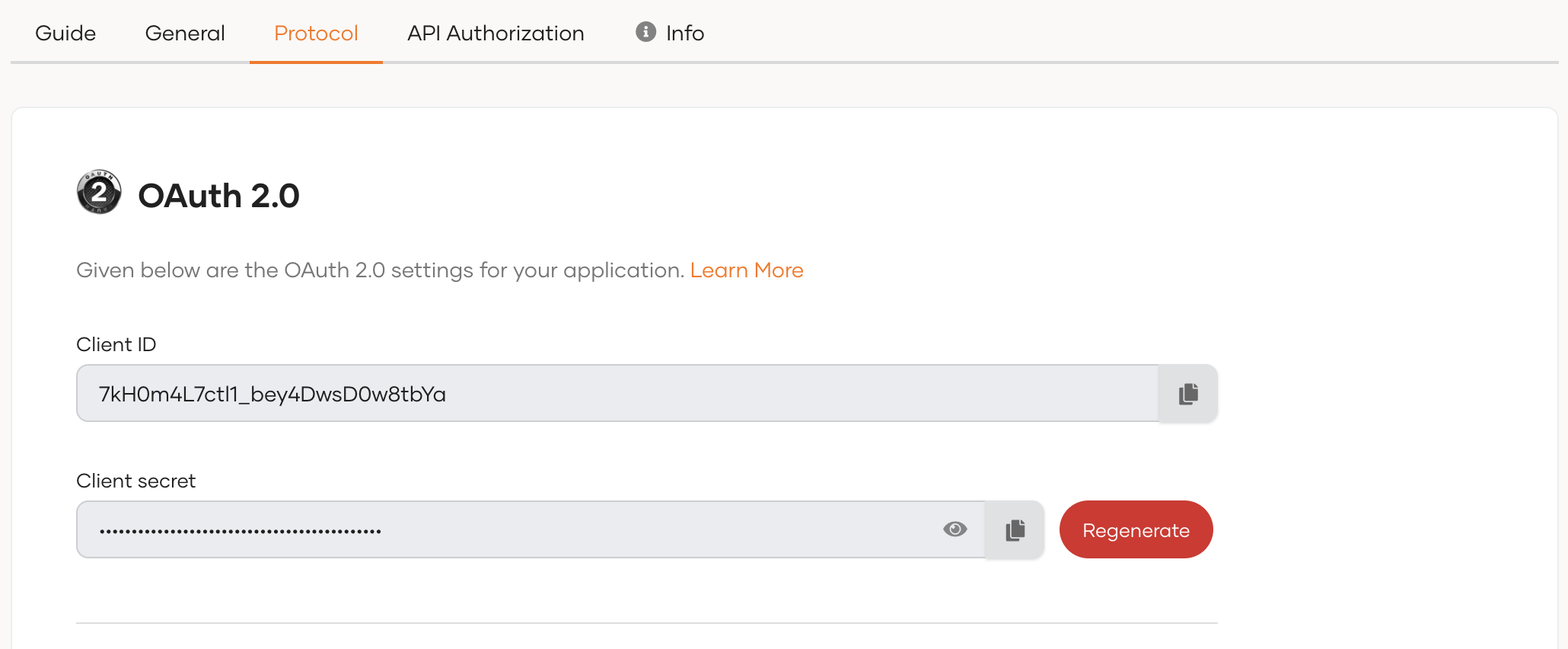

Step 3: Get the client ID and client secret

1. Navigate to the Protocol tab of the M2M application.

2. Copy the Client ID — this is your clientId.

3. Copy the Client Secret — this is your clientSecret.



tip

Store the Client ID and Client Secret securely. Do not commit them to source control. Use Ballerina's configurable feature and a Config.toml file to supply them at runtime.

Step 4: Identify your organization name and token URL

Your Asgardeo organization name is used to construct both the SCIM service URL and the OAuth token URL:

• SCIM Service URL: https://api.asgardeo.io/t/<orgName>/scim2
• Token URL: https://api.asgardeo.io/t/<orgName>/oauth2/token

You can find your organization name in the Asgardeo Console URL (for example, https://console.asgardeo.io/t/myorg).

What's next

• Action reference: Available operations
