Datadog

Users can observe integrations with Datadog, which is a comprehensive observability and monitoring platform for cloud-scale applications. It provides developers, IT operations teams, and business users with tools to monitor, troubleshoot, and optimize performance across their entire technology stack, including applications, servers, databases, and services. Both metrics and tracing of an integration can be viewed with Datadog.

Create a new account in Datadog. Select a billing plan according to your needs (A free plan is also included).

Then follow the steps below to set up your Datadog account to view metrics and tracing provided by Ballerina.

Step 1: Create a Datadog Account and API Key

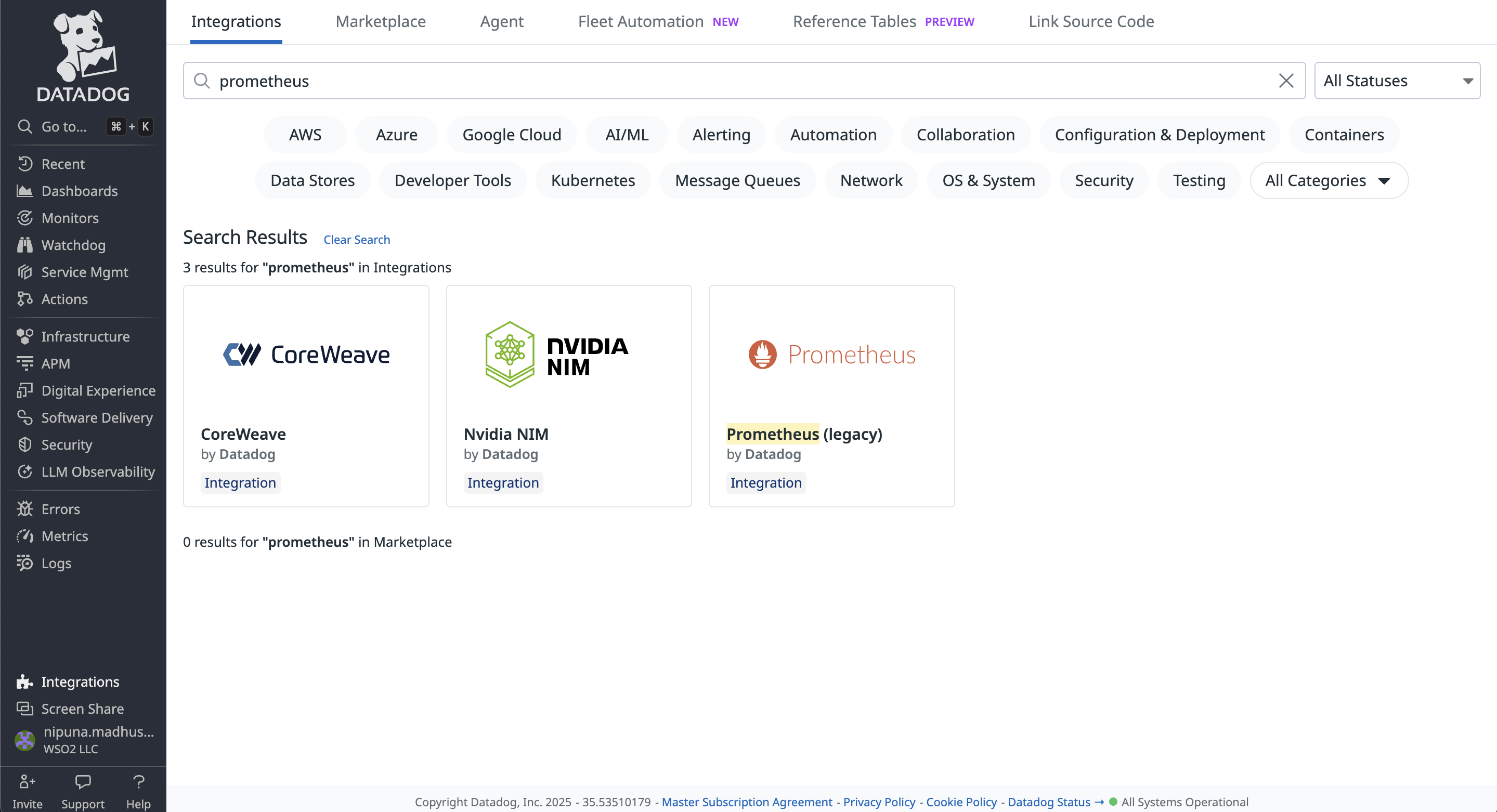

Add Prometheus to the Integrations for your account

You need to add Prometheus in the Integrations. Please go to the Integrations tab and search for Prometheus.

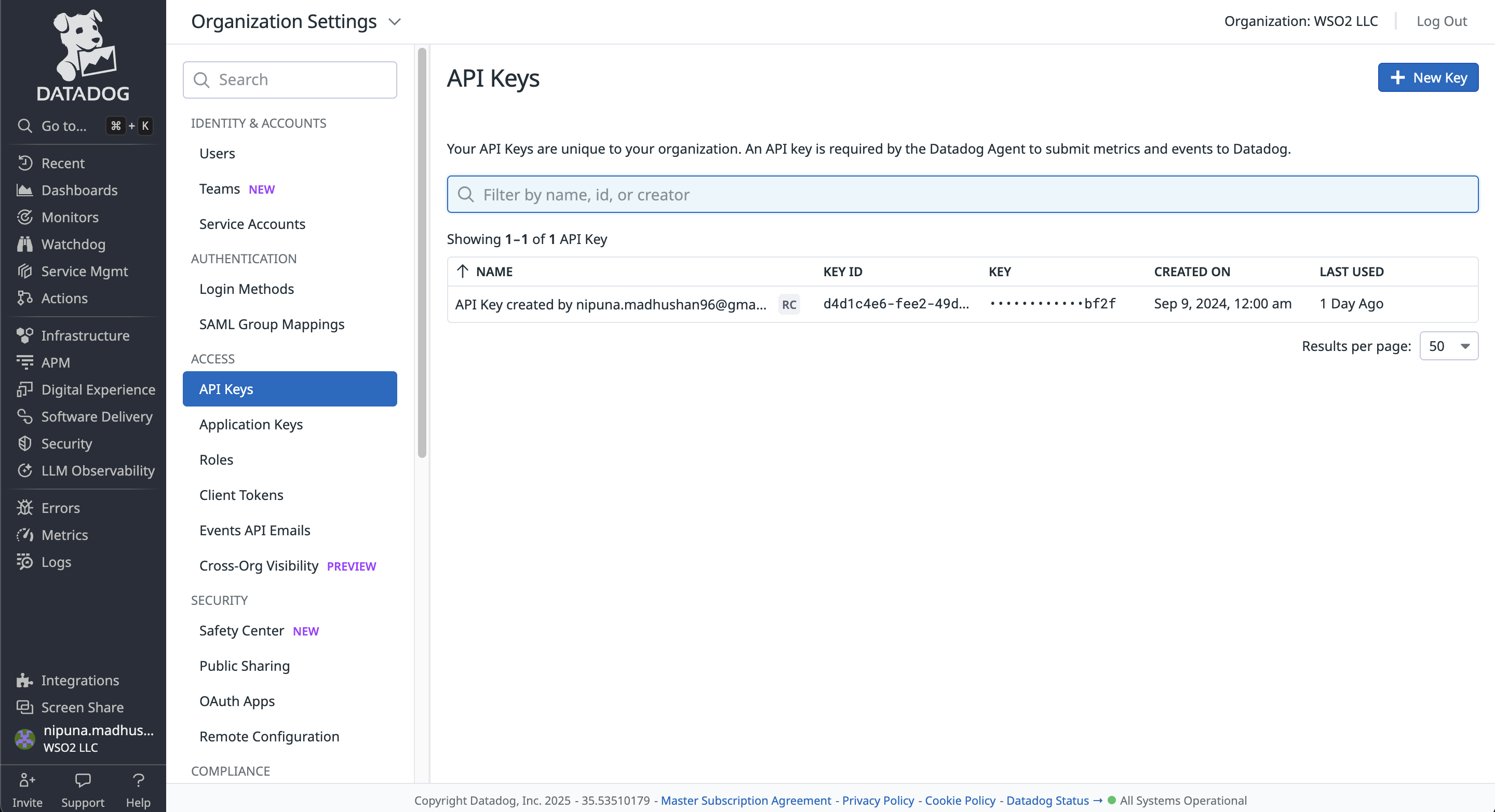

Create an API key

You need to create an API key for the Datadog agent. To create an API key,

Click Profile → Organization Settings → API keys

Step 2: Set Up the Datadog Agent

After setting up your Datadog account, you need to set up a Datadog Agent in your instance.

You can follow this documentation to get started with the Datadog agent on your local machine.

You need to include the API key you generated in your Datadog account to datadog.yaml in the datadog-agent/etc folder.

Then follow the steps below to configure metrics and tracing data publishing to Datadog.

Add configuration for metrics

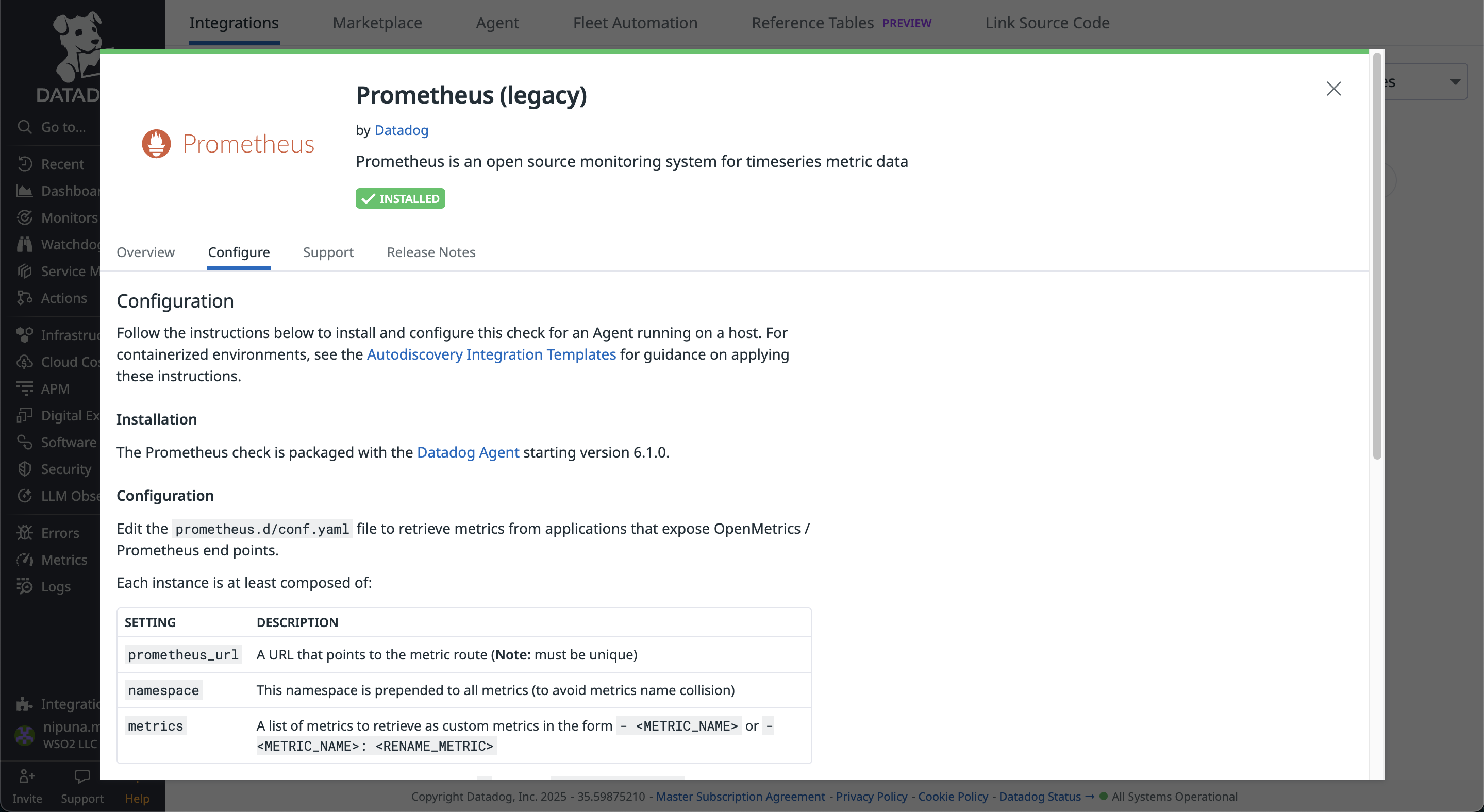

Once you add Prometheus by following step 1, you will get a guide to configure a Datadog agent in your instance.

You can follow the instructions given in the above configuration to set up a Datadog agent.

A sample of the conf.yaml file which you should include in the prometheus.d folder can be found here.

init_config:

instances:
  - prometheus_url: http://localhost:9797/metrics
    namespace: ballerina
    metrics:
      - response_time_seconds_value
      - response_time_seconds_max
      - response_time_seconds_min
      - response_time_seconds_mean
      - response_time_seconds_stdDev
      - response_time_seconds
      - response_time_nanoseconds_total_value
      - requests_total_value
      - response_errors_total_value
      - inprogress_requests_value
      - kafka_publishers_value
      - kafka_consumers_value
      - kafka_errors_value
    headers:
    Accept: "text/plain; version=0.0.4"

Add configuration for tracing

You need to use the following configurations in the datadog.yaml.

To view traces in Datadog, we need to enable the APM (Application Performance Monitoring) in your Datadog agent.
```
apm_config:
enabled: true
```
Ballerina uses OpenTelemetry to provide traces. Therefore, we need to set up OpenTelemetry configurations as follows.
```
otlp_config:
    receiver:
        protocols:
            grpc:
            endpoint: 0.0.0.0:4317
```

Step 3: Import Prometheus and Jaeger Extensions

To include the Prometheus and Jaeger extensions into the executable, the ballerinax/prometheus and ballerinax/jaeger modules need to be imported into your integration. Open the the file explorer in WSO2 Integrator add the below to the main.bal file.

import ballerinax/prometheus as _;
import ballerinax/jaeger as _;

To support Prometheus as the metrics reporter, an HTTP endpoint starts with the context of /metrics in default port 9797 when starting the Ballerina service.

Jaeger extension has an Opentelemetry GRPC Span Exporter which will push tracing data as batches to the endpoint (default - http://localhost:4317) in OpenTelemetry format.

Step 4: Configure Runtime Configurations

Add the below to Ballerina.toml file.

[build-options]
remoteManagement = true

Tracing and metrics can be enabled in your integration using configurations similar to the following in your Config.toml file.

You can find the above files in File explorer view.

[ballerina.observe]
tracingEnabled=true
tracingProvider="jaeger"
metricsEnabled=true
metricsReporter="prometheus"

[ballerinax.prometheus]
port=9797
host="0.0.0.0"

[ballerinax.jaeger]
agentHostname="localhost"
agentPort=4317
samplerType="const"
samplerParam=1.0
reporterFlushInterval=2000
reporterBufferSize=1000

The table below provides the descriptions of each configuration option and possible values that can be assigned.

Configuration key	Description	Default value	Possible values
`ballerinax.prometheus.port`	The value of the port to which the `/metrics` service will bind. This service will be used by Prometheus to scrape the information of the Ballerina service.	`9797`	Any suitable value for port 0 - 65535. However, within that range, ports 0 - 1023 are generally reserved for specific purposes, therefore it is advisable to select a port without that range.
`ballerinax.prometheus.host`	The name of the host to which the `/metrics` service will bind. This service will be used by Prometheus to scrape the information of the Ballerina service.	`0.0.0.0`	IP or Hostname or `0.0.0.0` of the node in which the Ballerina service is running.
`ballerinax.jaeger.agentHostname`	Hostname of the Jaeger agent	`localhost`	IP or hostname of the Jaeger agent. If it is running on the same node as Ballerina, it can be `localhost`.
`ballerinax.jaeger.agentPort`	Port of the Jaeger agent	`4317`	The port on which the Jaeger agent is listening.
`ballerinax.jaeger.samplerType`	Type of the sampling methods used in the Jaeger tracer.	`const`	`const`, `probabilistic`, or `ratelimiting`.
`ballerinax.jaeger.samplerParam`	It is a floating value. Based on the sampler type, the effect of the sampler param varies.	`1.0`	For `const`: `0` (no sampling) or `1` (sample all spans), for `probabilistic`: `0.0` to `1.0`, for `ratelimiting`: any positive integer (rate per second).
`ballerinax.jaeger.reporterFlushInterval`	The Jaeger client will be sending the spans to the agent at this interval.	`2000`	Any positive integer value.
`ballerinax.jaeger.reporterBufferSize`	Queue size of the Jaeger client.	`1000`	Any positive integer value.

Step 5: Send Requests

Run the service and send requests to http://localhost:8090/shop/products.

Example cURL commands:

curl -X GET http://localhost:8090/shop/products

curl -X POST http://localhost:8090/shop/product \
-H "Content-Type: application/json" \
-d '{
    "id": 4,
    "name": "Laptop Charger",
    "price": 50.00
}'

curl -X POST http://localhost:8090/shop/order \
-H "Content-Type: application/json" \
-d '{
    "productId": 1,
    "quantity": 1
}'

curl -X GET http://localhost:8090/shop/order/0

Step 6: View Metrics on Datadog

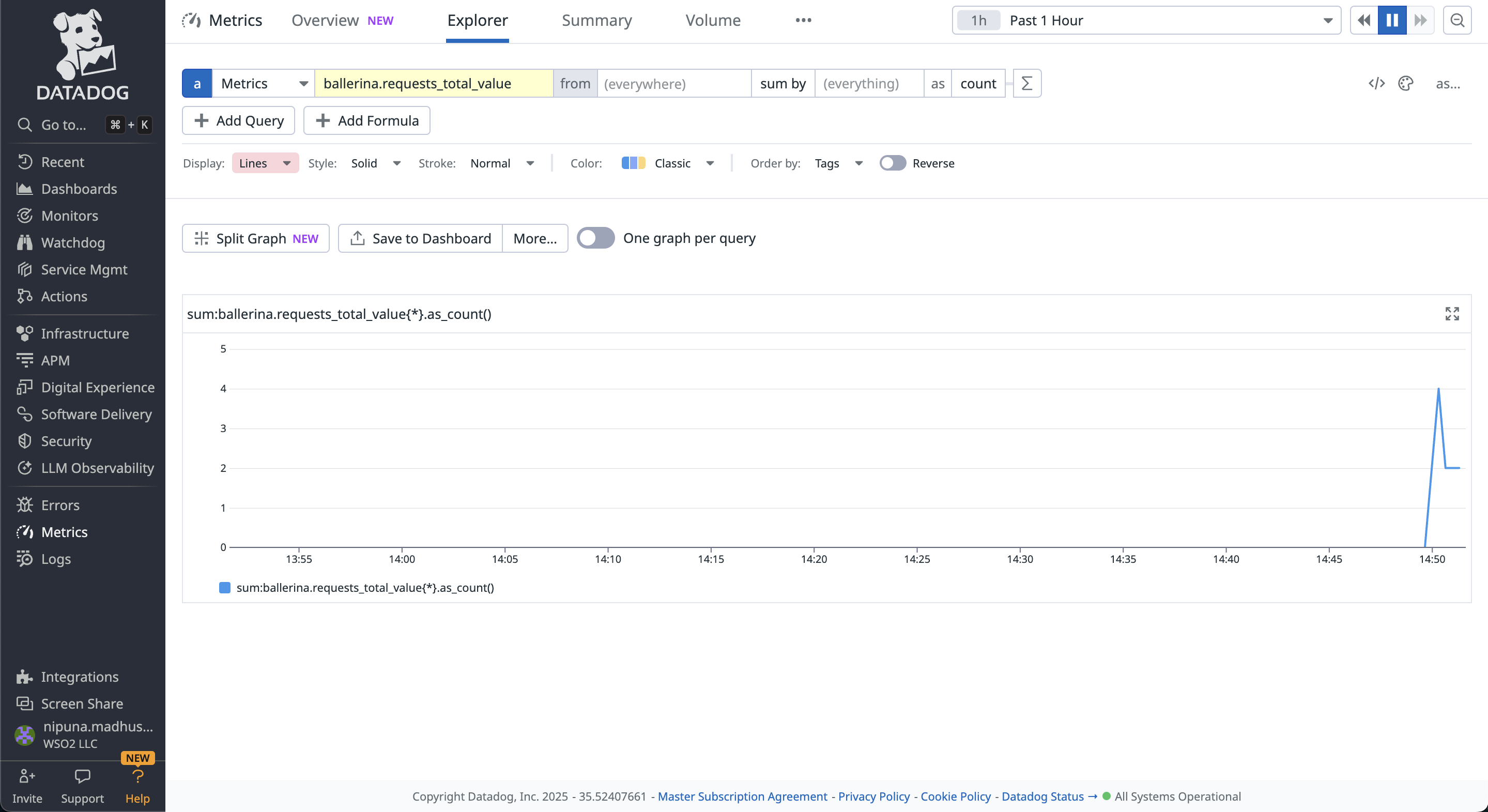

You can observe the metrics in the Datadog platform under the Metrics tab in the left navigation.

You can add filters and use functions in the Datadog to visualize what you want with the metrics provided by Ballerina.

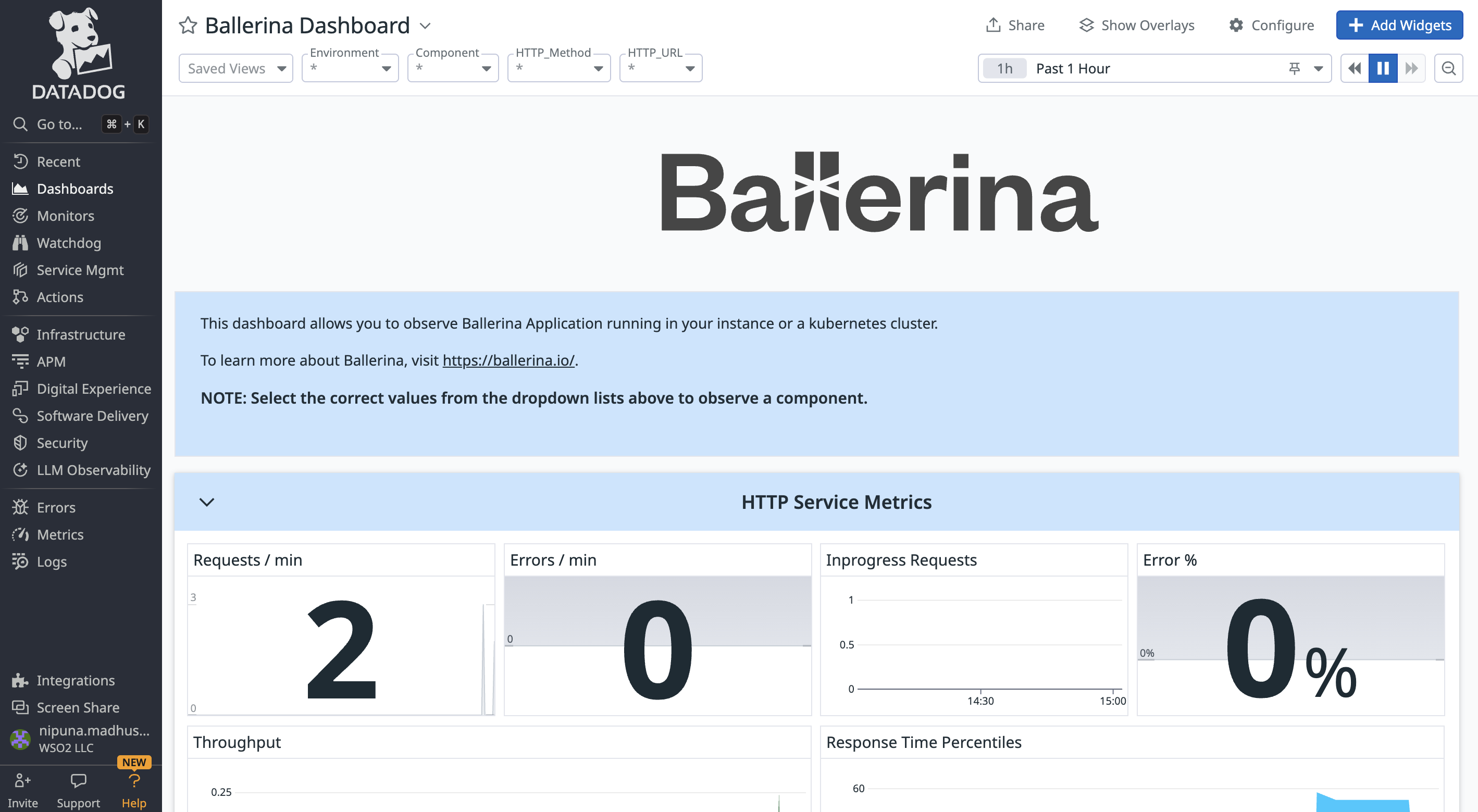

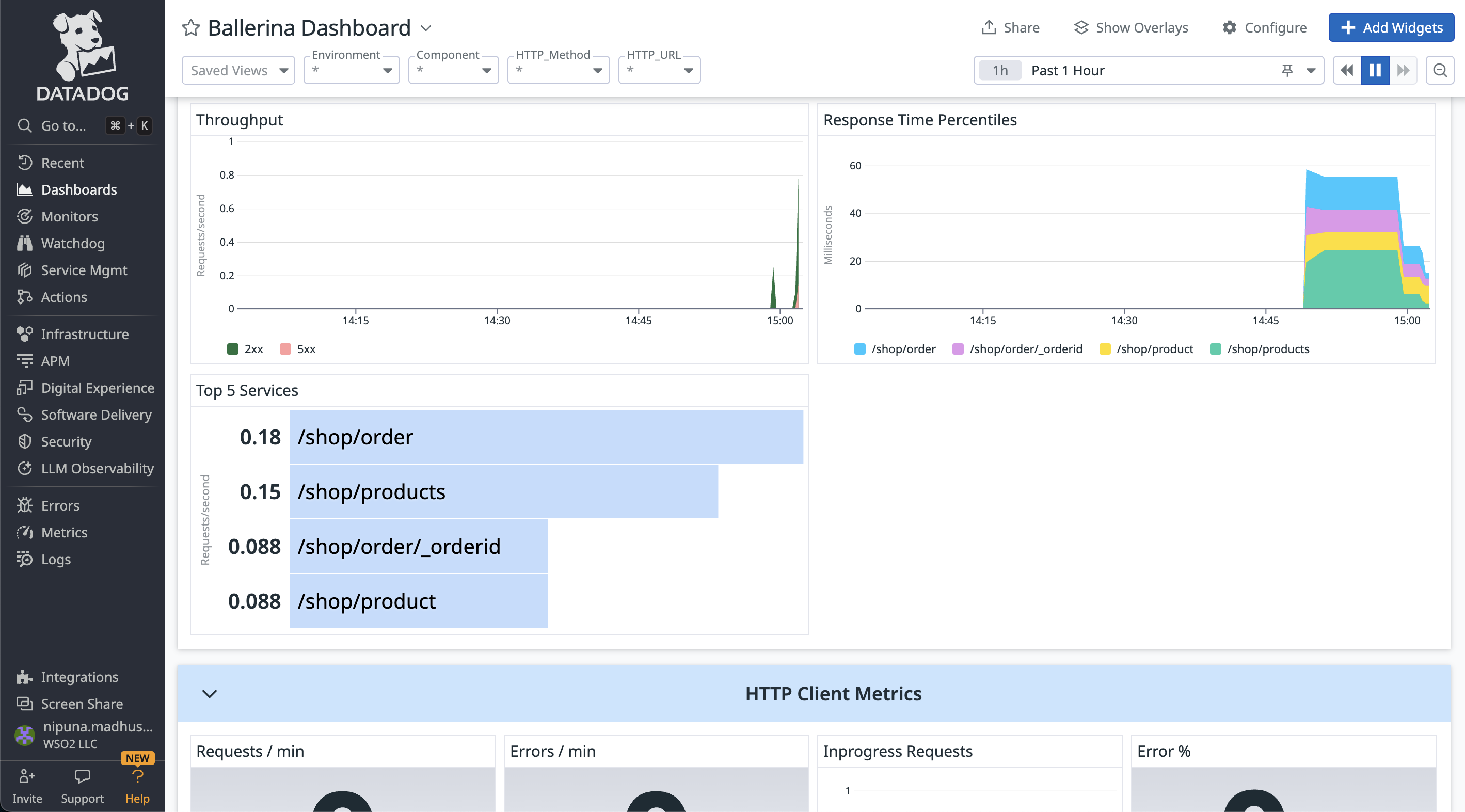

Ballerina provides a dashboard in the Datadog to observe metrics in Ballerina applications.

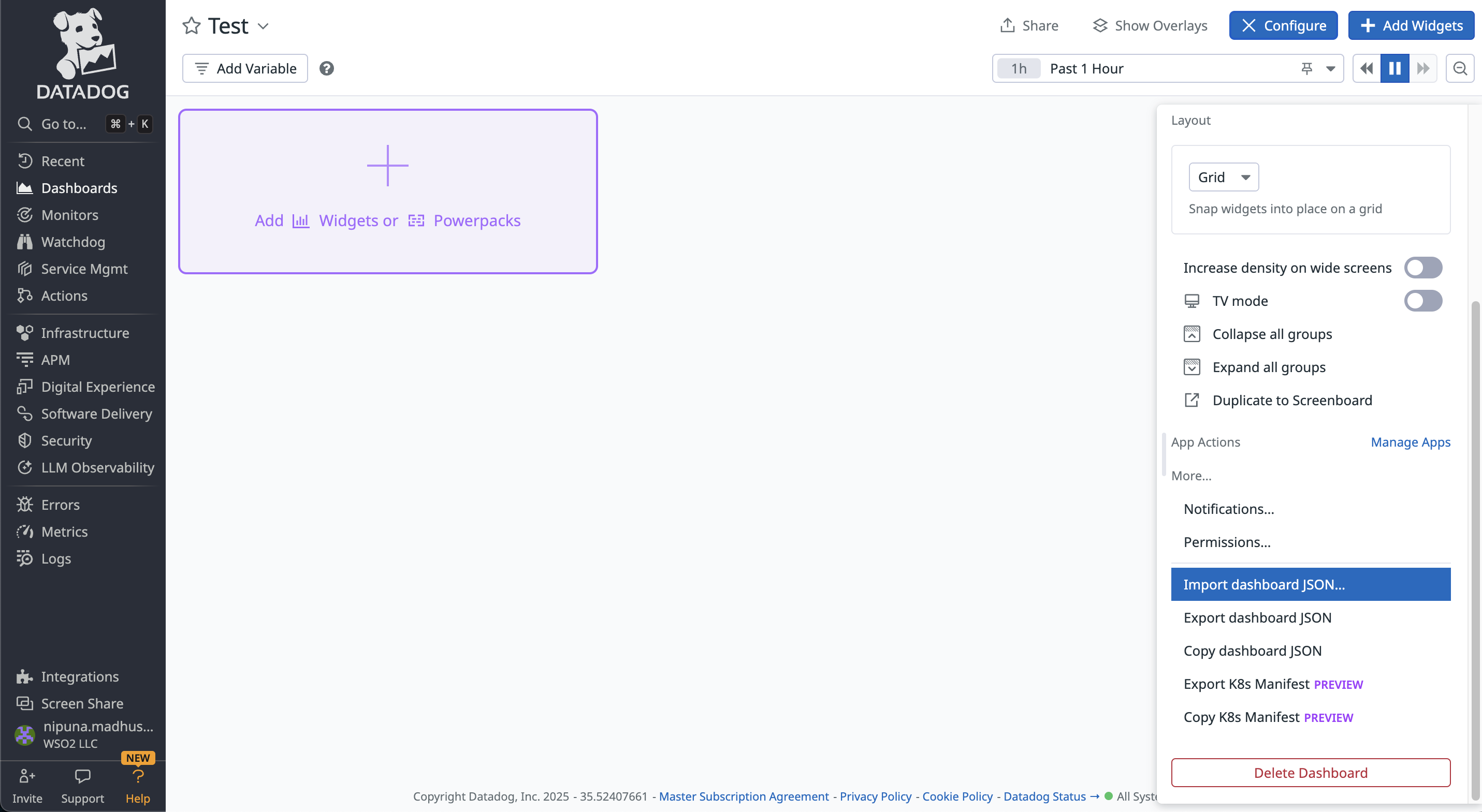

You can add a new dashboard in the Datadog under the Dashboards tab in the left navigation. After creating the new dashboard, go to the Configure tab in the dashboard. Import the dashboard.json file provided above.
