CDC for Microsoft SQL Server

Microsoft SQL Server CDC integrations capture row-level changes from SQL Server tables in real time using Debezium-based Change Data Capture. Use them for data synchronization, audit logging, and event-driven workflows that must react to database inserts, updates, and deletes without polling. This page covers creating the integration, configuring the service and listener, and adding event handlers for insert, update, delete and read events.

Prerequisites

CDC must be enabled on the SQL Server database and on each table you want to track before creating this integration. See the CDC connector setup guide for step-by-step instructions.

Create a CDC service for Microsoft SQL Server

Visual Designer

1. Click + Add Artifact in the canvas or click + next to Entry Points in the sidebar.

2. In the Artifacts panel, select CDC for Microsoft SQL Server under Event Integration.

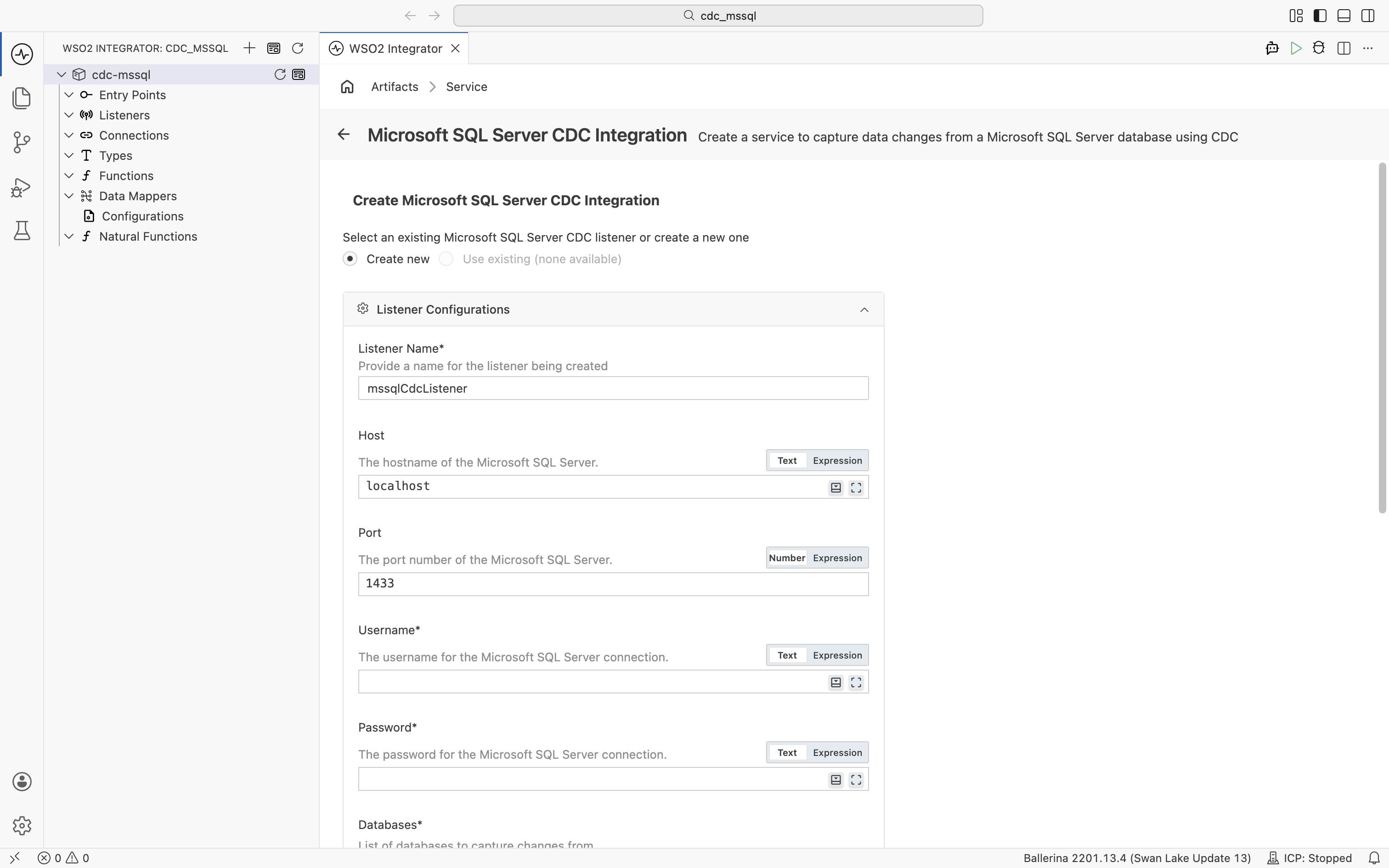

3. In the creation form, select Create new to configure a new listener.



   Under Listener Configurations, fill in the following fields:

   Field	Description	Default
   Host	Hostname of the Microsoft SQL Server.	localhost
   Port	Port number of the Microsoft SQL Server.	1433
   Username	Username for the SQL Server connection.	Required
   Password	Password for the SQL Server connection.	Required
   Databases	List of databases to capture changes from. Click + Add Item to add each database name.	Required
   Schemas	Regular expressions matching schema names to capture changes from. Click + Add Item to add each pattern.	—

   Expand Advanced Configurations for additional settings:

   Field	Description	Default
   Listener Name	Identifier for the listener created with this service.	mssqlCdcListener
   Database Instance	Microsoft SQL Server named instance (if applicable).	—
   Secure Socket	SSL/TLS configuration for a secure connection.	—
   Options	Additional options for the CDC engine as a record expression. Common keys include snapshotMode (for example, "no_data" to skip the initial snapshot) and skippedOperations (for example, [cdc:TRUNCATE, cdc:UPDATE, cdc:DELETE] to capture only inserts).	—

   Under Table, enter the fully qualified table name to capture events from in the format <database>.<schema>.<table> (for example, mydb.dbo.customers).

4. Click Create.

5. WSO2 Integrator creates the empty service and opens it in the Service Designer. The canvas shows the attached listener pill and the table name pill. The service has no handlers yet.



Ballerina Code

import ballerina/log;
import ballerinax/cdc;
import ballerinax/mssql;
// Loads the SQL Server JDBC driver at runtime; required for CDC to work.
import ballerinax/mssql.cdc.driver as _;

// Credentials and target table loaded from Config.toml at startup.
configurable string username = ?;
configurable string password = ?;
configurable string dbName = "mydb";
configurable string dbTable = "mydb.dbo.customers";

// CDC listener that connects to SQL Server and streams row-level changes.
listener mssql:CdcListener mssqlCdcListener = new (database = {
    hostname: "localhost",
    port: 1433,
    username,
    password,
    databaseNames: [dbName],
    includedSchemas: ["dbo"]
});

// Typed record that mirrors the columns of the tracked table.
// Declare a matching record so handlers receive a typed value and can
// access fields directly (for example, `after.id`) instead of working
// with an untyped `record {}`.
type Customer record {|
    int id;
    string name;
    string email;
|};

// Scopes the service to a specific fully qualified table.
@cdc:ServiceConfig {
    tables: dbTable
}
service cdc:Service on mssqlCdcListener {

    // Fires when a new row is inserted. The inserted row is bound to `after` as a `Customer`.
    remote function onCreate(Customer after) returns error? {
        log:printInfo("Row inserted", id = after.id, name = after.name);
    }

    // Fires when a row is updated. Both states are bound to `Customer` records,
    // so you can compare fields directly (for example, `before.email != after.email`).
    remote function onUpdate(Customer before, Customer after) returns error? {
        log:printInfo("Row updated",
                id = after.id,
                oldEmail = before.email,
                newEmail = after.email);
    }

    // Fires when a row is deleted. The deleted row is bound to `before`.
    remote function onDelete(Customer before) returns error? {
        log:printInfo("Row deleted", id = before.id);
    }

    // Fires when the listener encounters a processing error.
    remote function onError(error err) returns error? {
        log:printError("CDC error", 'error = err);
    }
}

To accept any row shape without defining a record type, declare handler parameters as record {}. With a typed record like Customer, the runtime binds the change-event payload to your record fields automatically.

Service configuration

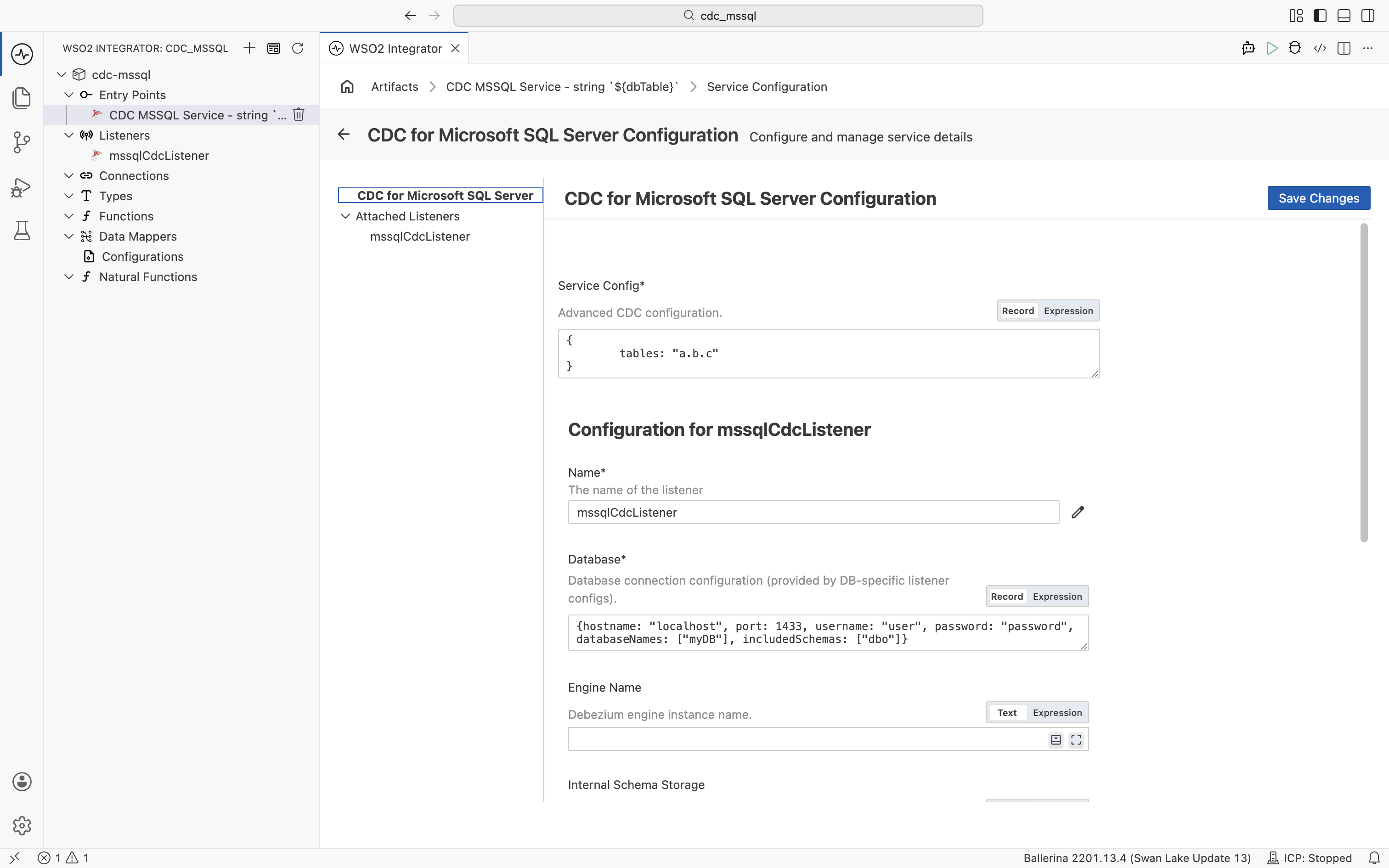

In the Service Designer, click the Configure icon in the header to open the CDC for Microsoft SQL Server Configuration panel. Select CDC for Microsoft SQL Server in the left panel.

Visual Designer

Field	Description
Service Config	Advanced CDC configuration as a record expression. The tables field sets the table(s) to capture changes from, using the fully qualified format <database>.<schema>.<table>. Provide a single table as a string (for example, "mydb.dbo.customers"), or multiple tables as a string array (for example, ["mydb.dbo.customers", "mydb.dbo.orders"]).

Ballerina Code

The tables field accepts either a single table name as a string or multiple tables as a string array.

// Single table: the service receives change events only for `customers`.
@cdc:ServiceConfig {
    tables: "mydb.dbo.customers"
}
service cdc:Service on mssqlCdcListener { }

// Multiple tables: the service receives events for both `customers` and `orders`,
// and the same handlers run for each.
@cdc:ServiceConfig {
    tables: ["mydb.dbo.customers", "mydb.dbo.orders"]
}
service cdc:Service on mssqlCdcListener { }

Listener configuration

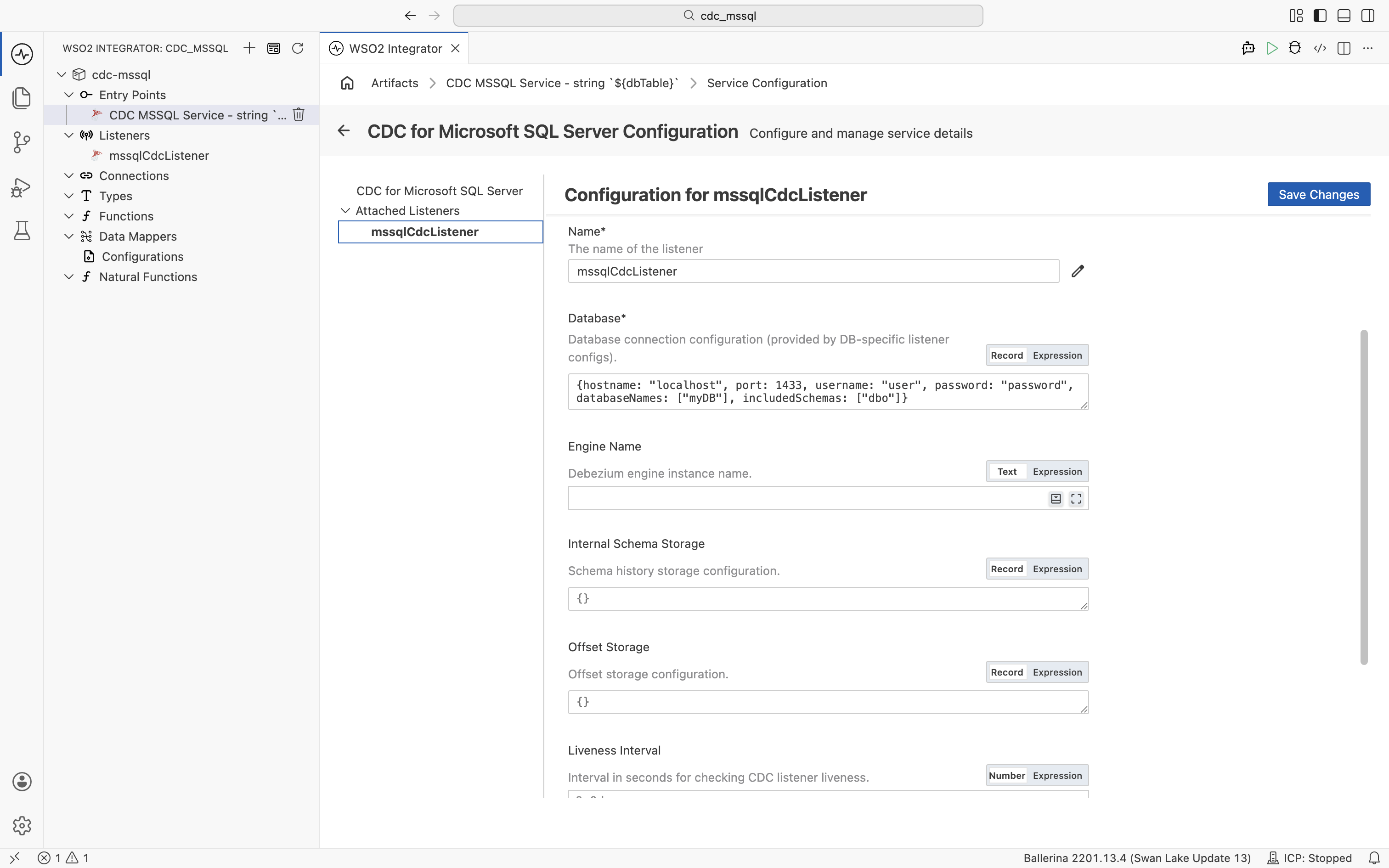

In the CDC for Microsoft SQL Server Configuration panel, select mssqlCdcListener under Attached Listeners to configure the listener.

A single service can be attached to more than one listener. Attach multiple listeners when one service needs to process change events from more than one SQL Server source. For example, you can capture changes from two separate SQL Server instances, or from two databases with different connection settings, and route every event through the same handler logic.

Visual Designer

Field	Description	Default
Name	Identifier for the listener.	mssqlCdcListener
Database	Database connection configuration as a record expression with hostname, port, username, password, and databaseNames fields.	Required
Engine Name	Debezium engine instance name.	ballerina-cdc-connector
Internal Schema Storage	Schema history storage configuration.	{fileName: "tmp/dbhistory.dat"}
Offset Storage	Offset storage configuration for tracking CDC progress.	{fileName: "tmp/debezium-offsets.dat"}
Liveness Interval	Interval in seconds for checking CDC listener liveness.	60.0
Options	Additional connector options as a record expression.	{}

Click + Attach Listener to attach an additional listener to the same service.

Click Save Changes to apply updates.

Polling interval

The Debezium SQL Server connector reads changes from CDC change tables on a polling cycle. To tune the cycle, set Debezium properties such as poll.interval.ms in the Options field (for example, { "poll.interval.ms": "1000" }).

Ballerina Code

// Listener configuration: connection details for the SQL Server instance
// and the databases and schemas to track.
listener mssql:CdcListener mssqlCdcListener = new (database = {
    hostname: "localhost",
    port: 1433,
    username,
    password,
    databaseNames: ["mydb"],         // Databases to capture changes from.
    includedSchemas: ["dbo"]         // Restrict CDC to the `dbo` schema.
});

mssql:MsSqlListenerConfiguration accepts the following top-level fields:

Field	Type	Default	Description
database	mssql:MsSqlDatabaseConnection	Required	Database connection (see fields below)
engineName	string	"ballerina-cdc-connector"	Debezium engine instance name
internalSchemaStorage	cdc:InternalSchemaStorage	{fileName: "tmp/dbhistory.dat"}	Schema history storage configuration
offsetStorage	cdc:OffsetStorage	{fileName: "tmp/debezium-offsets.dat"}	Offset storage configuration
livenessInterval	decimal	60.0	Liveness check interval in seconds
options	mssql:MssqlOptions	{}	SQL Server-specific CDC options

The database value (mssql:MsSqlDatabaseConnection) has these fields:

Field	Type	Default	Description
hostname	string	"localhost"	SQL Server hostname
port	int	1433	SQL Server port
username	string	Required	Database username
password	string	Required	Database password
databaseNames	string|string[]	Required	Databases to capture changes from
includedSchemas	string|string[]?	—	Regex patterns for schemas to capture
excludedSchemas	string|string[]?	—	Regex patterns for schemas to exclude
includedTables	string|string[]?	—	Regex patterns for tables to capture
excludedTables	string|string[]?	—	Regex patterns for tables to exclude
databaseInstance	string?	—	SQL Server named instance
secure	cdc:SecureDatabaseConnection?	—	SSL/TLS connection configuration
tasksMax	int	1	Maximum connector tasks (raise when capturing from multiple databases)
connectTimeout	decimal?	—	Connection timeout in seconds

For the full set of fields (including messageKeyColumns, includedColumns, excludedColumns, and streamingConfig), see the ballerinax/mssql package on Ballerina Central.

Event handlers

Adding an event handler

Visual Designer

In the Service Designer, click + Add Handler. The Select Handler to Add panel lists onRead, onCreate, onUpdate, onDelete, and onError.

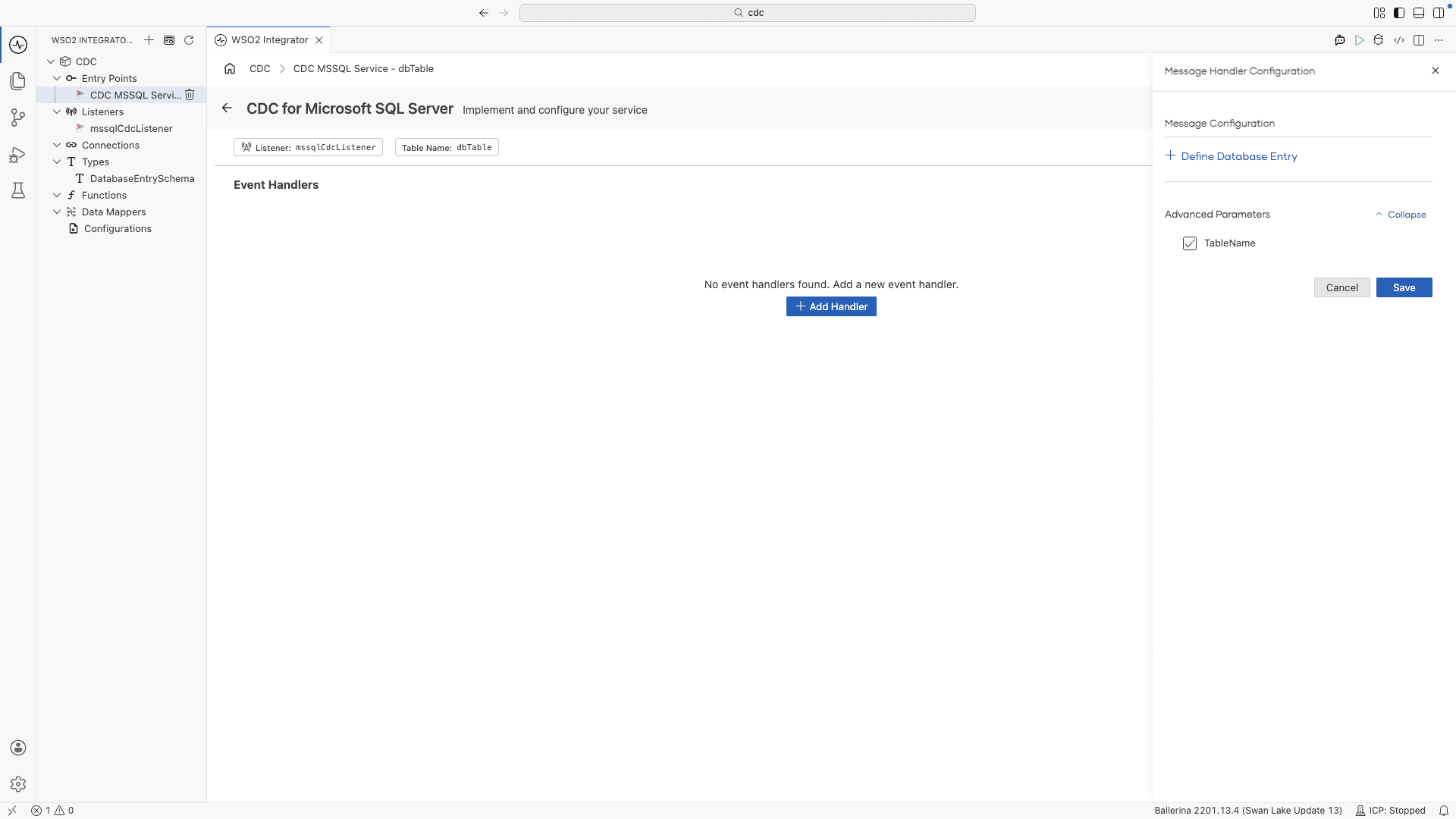

onRead, onCreate, onUpdate, and onDelete each open a Message Handler Configuration panel for the row payload. onError is added directly without additional configuration.

The configuration panel exposes the following fields:

Field	Description
+ Define Database Entry	Defines the record type representing one row of the tracked table. The handler receives this record at runtime with values from the change event.
Advanced Parameters > TableName	Scopes the handler to a specific table. This is selected by default so that the handler only runs for changes on the table it was added for. Clear the checkbox if you want the handler to run for changes on every table the service is attached to.

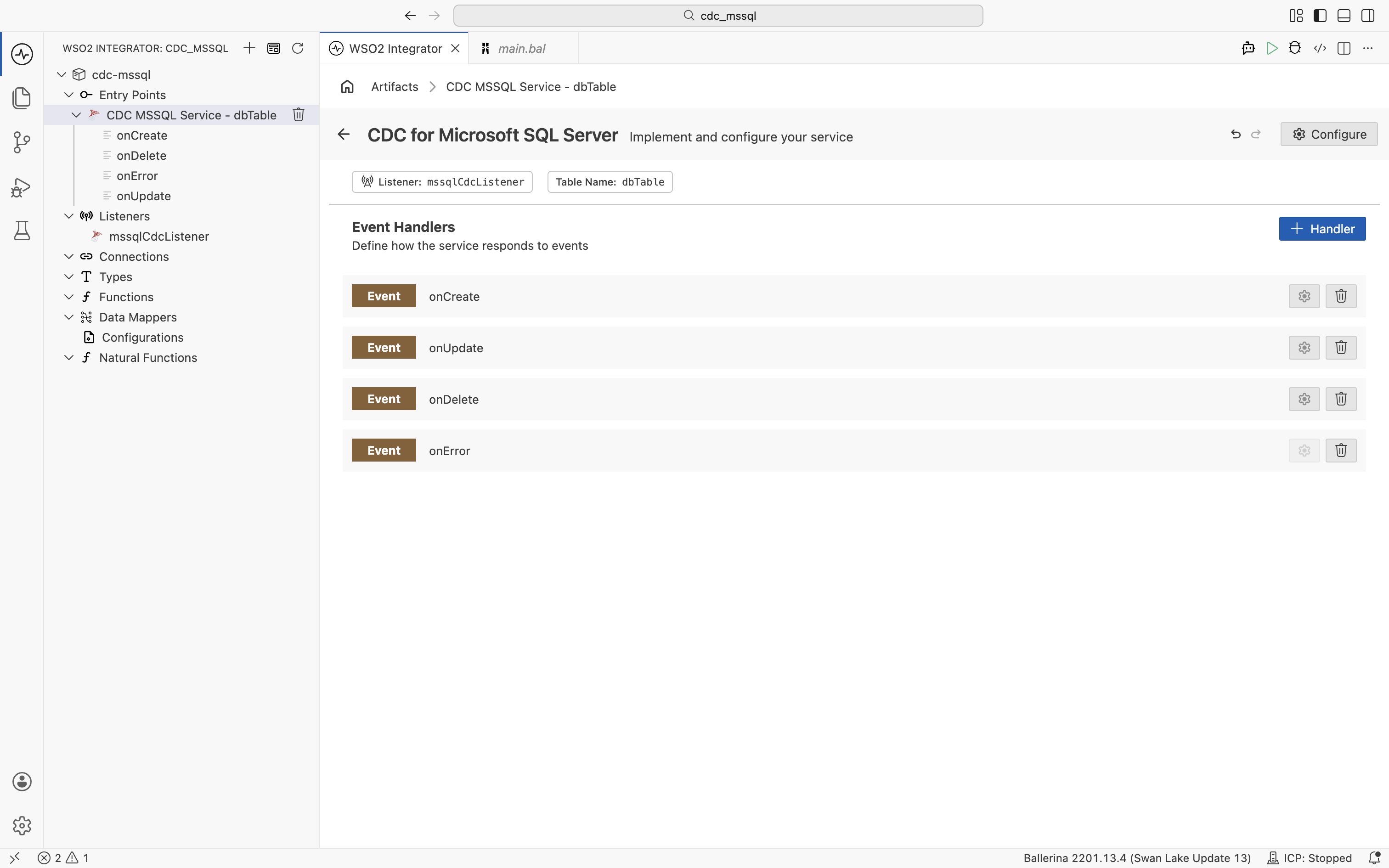

Click Save to add the handler. Added handlers appear in the Event Handlers list on the Service Designer, where you can edit or remove each one.

Ballerina Code

// Typed record that mirrors the columns of the `customers` table.
// Declaring the type lets handlers work with fields like `after.id`
// instead of a raw `record {}` value.
type Customer record {|
    int id;
    string name;
    string email;
|};

@cdc:ServiceConfig {
    tables: "mydb.dbo.customers"
}
service cdc:Service on mssqlCdcListener {

    // Insert handler: the newly inserted row arrives as `after`.
    remote function onCreate(Customer after) returns error? {
        log:printInfo("Row inserted", data = after.toString());
        check syncToDownstream("INSERT", after);
    }

    // Update handler: receives both the previous (`before`) and new (`after`) row state.
    remote function onUpdate(Customer before, Customer after) returns error? {
        log:printInfo("Row updated",
                before = before.toString(),
                after = after.toString());
        check syncToDownstream("UPDATE", after);
    }

    // Delete handler: only `before` is available, since the row no longer exists.
    remote function onDelete(Customer before) returns error? {
        log:printInfo("Row deleted", data = before.toString());
        check syncToDownstream("DELETE", before);
    }

    // Error handler: invoked when the listener fails to process a change event.
    remote function onError(error err) returns error? {
        log:printError("CDC processing error", 'error = err);
    }
}

The handler parameter types are inferred at runtime from the row data. Declare a record type that matches your table columns (as shown by Customer above), or use record {} to accept any shape.

Handler types

Handler	Triggered when	Use when
onRead	A row is read during the initial snapshot of the table	Bootstrapping downstream systems with existing data
onCreate	A row is inserted into the tracked table	Syncing new records to downstream systems
onUpdate	A row is updated in the tracked table	Propagating field changes
onDelete	A row is deleted from the tracked table	Removing records from downstream systems
onError	A CDC processing error occurs	Logging failures and sending alerts
