Example

What you'll build​

This integration connects to Microsoft Teams and retrieves the channels that belong to a team. An automation runs the flow, calls the connector, and logs the returned channel collection. You'll bind every credential to a configurable variable, so no secret is stored in the integration itself.

Operations used:

  • List Channels : Retrieves the collection of channels in the specified team.

Architecture​

Prerequisites​

  • A Microsoft 365 account with access to Microsoft Teams.
  • An application registered in Microsoft Entra ID, with a client secret and admin-consented Microsoft Graph application permissions.
  • The directory (tenant) ID of your organization, which forms the OAuth2 token endpoint.

Setting up the Microsoft Teams integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Microsoft Teams connector​

Step 1: Open the connector palette​

Select Add Connection in the Connections section.

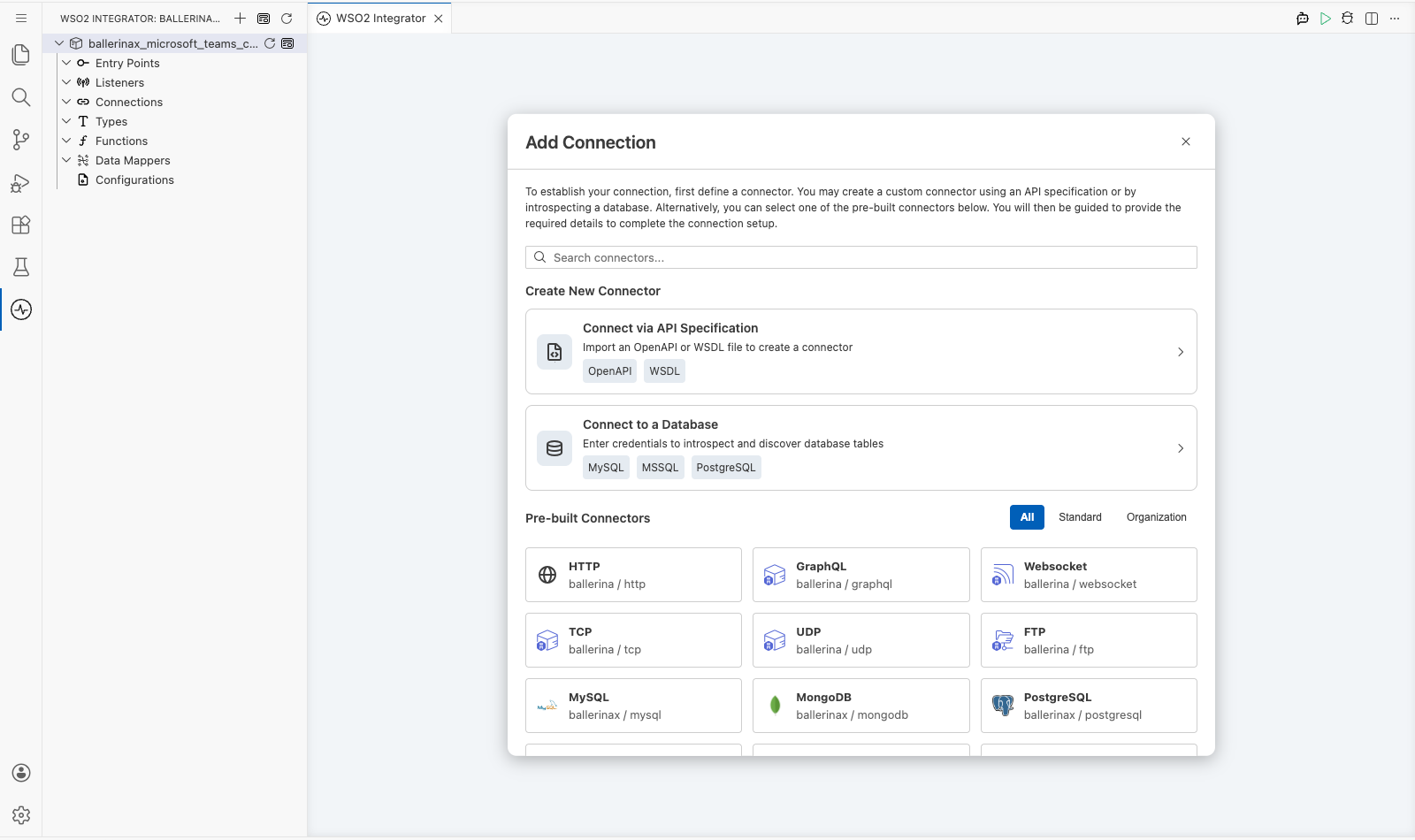

Microsoft Teams connector palette open before selection

Step 2: Select the Microsoft Teams connector​

  1. Enter microsoft.teams in the search field.
  2. Select the Teams connector card.

Configuring the Microsoft Teams connection​

Step 3: Bind the connection parameters to configurable variables​

Switch Config to expression mode, then bind each authentication value to a configurable variable.

  • Config : The configuration used to initialize the connector, holding the OAuth2 client credentials.
  • Connection Name : The name that identifies this connection across the integration.

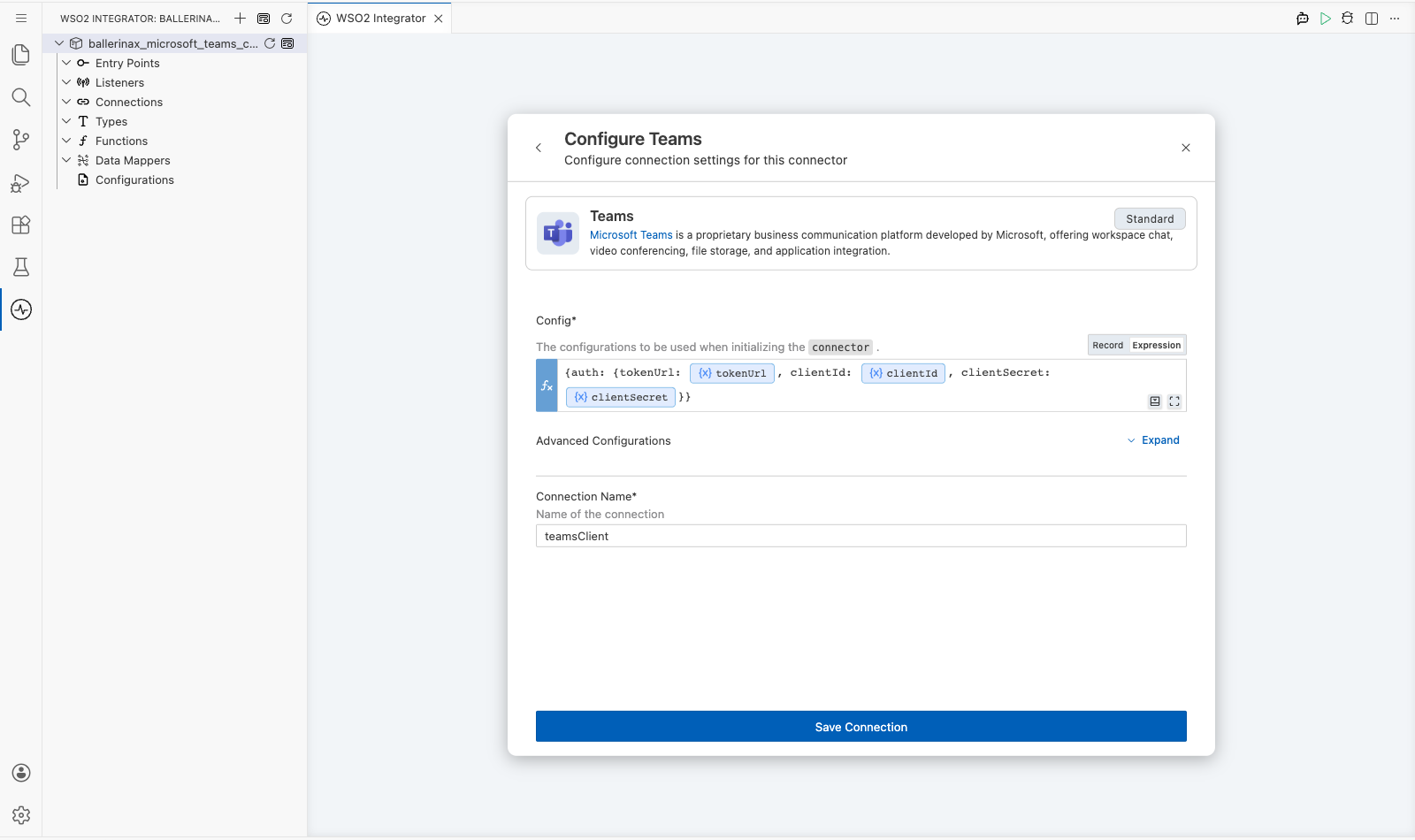

Microsoft Teams connection form with all parameters bound before saving

Step 4: Save the connection​

Select Save Connection and verify that the connection appears in the Connections section.

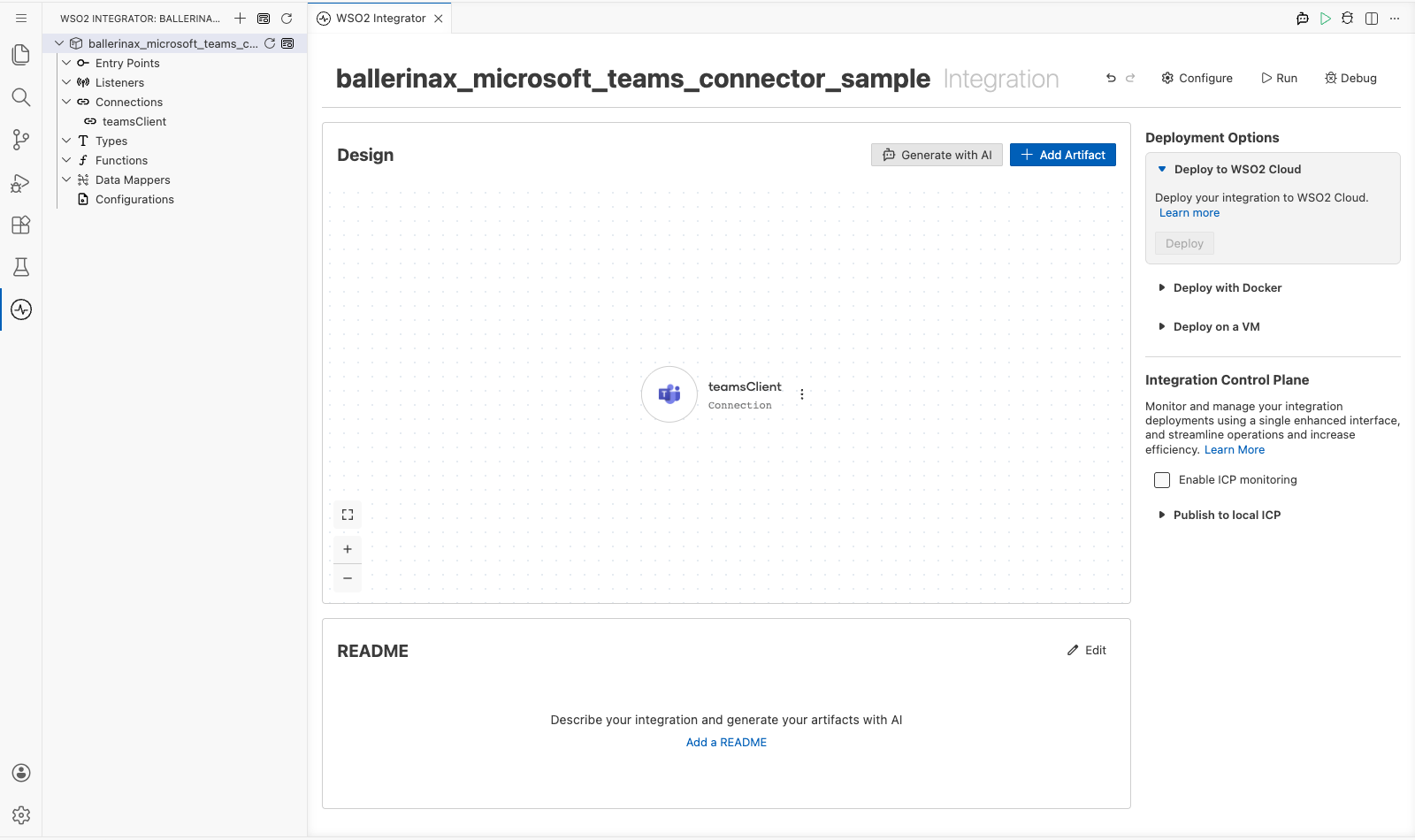

Microsoft Teams connection visible after saving

Step 5: Set actual values for your configurables​

  1. Select Configurations at the bottom of the project tree under Data Mappers.
  2. Enter a value for each configurable listed below before you run the integration.
  • tokenUrl (string) : The Microsoft Entra ID OAuth2 token endpoint for your tenant.
  • clientId (string) : The application (client) ID of your registered application.
  • clientSecret (string) : The client secret generated for your registered application.
  • teamId (string) : The unique identifier of the team whose channels you want to list.

Configuring the Microsoft Teams List Channels operation​

Step 6: Add an automation entry point​

  1. Select Add Entry Point next to Entry Points.
  2. Select Automation.
  3. Select Create to accept the settings.

Step 7: Expand the connection and configure the List Channels operation​

  1. Select the + node between Start and Error Handler.
  2. Expand teamsClient to display its operations.

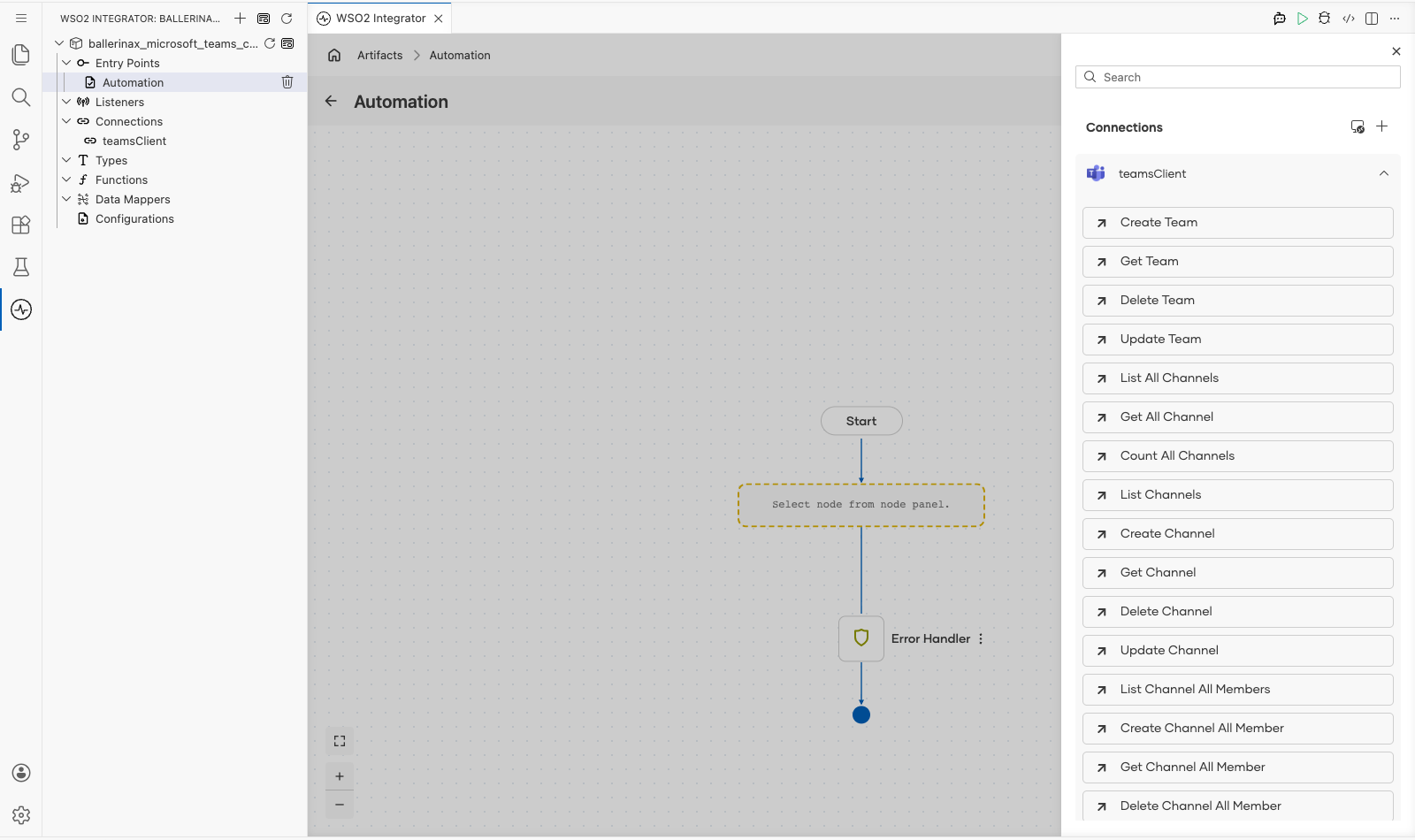

Microsoft Teams connection expanded to display operations before selection

  1. Select List Channels and enter its required values.
  • Team Id : The unique identifier of the team, bound to a configurable variable.
  • Result : The name of the variable that holds the returned channel collection.
  • Result Type : The response type of the operation, which the editor sets for you.

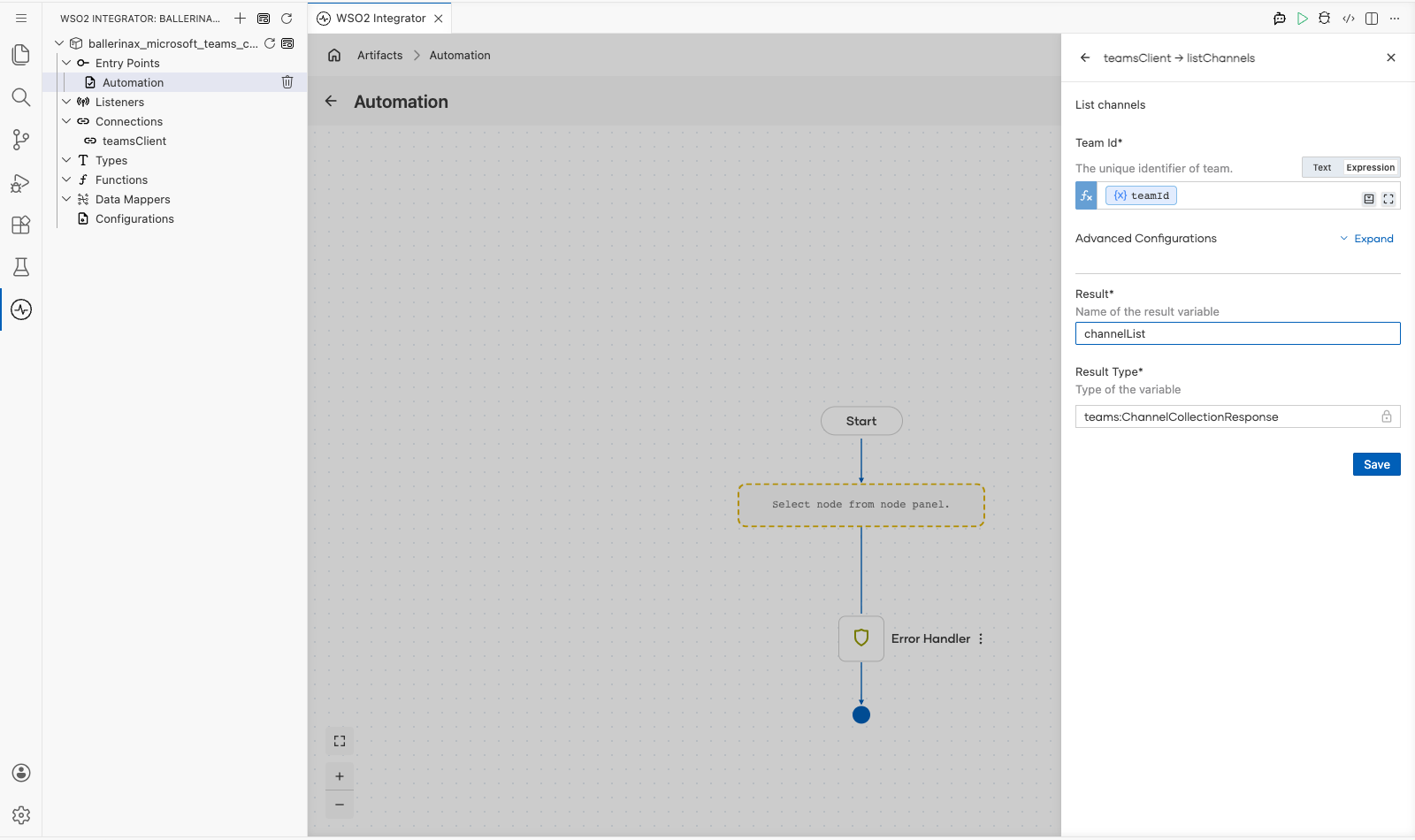

Microsoft Teams List Channels operation with all values entered before saving

  1. Select Save.

Step 8: Log the List Channels result​

  1. Select the + node between List Channels and Error Handler.
  2. Expand Logging, then select Log Info.
  3. Switch Msg to expression mode and reference the result variable.
  4. Select Save to return to the visual flow.

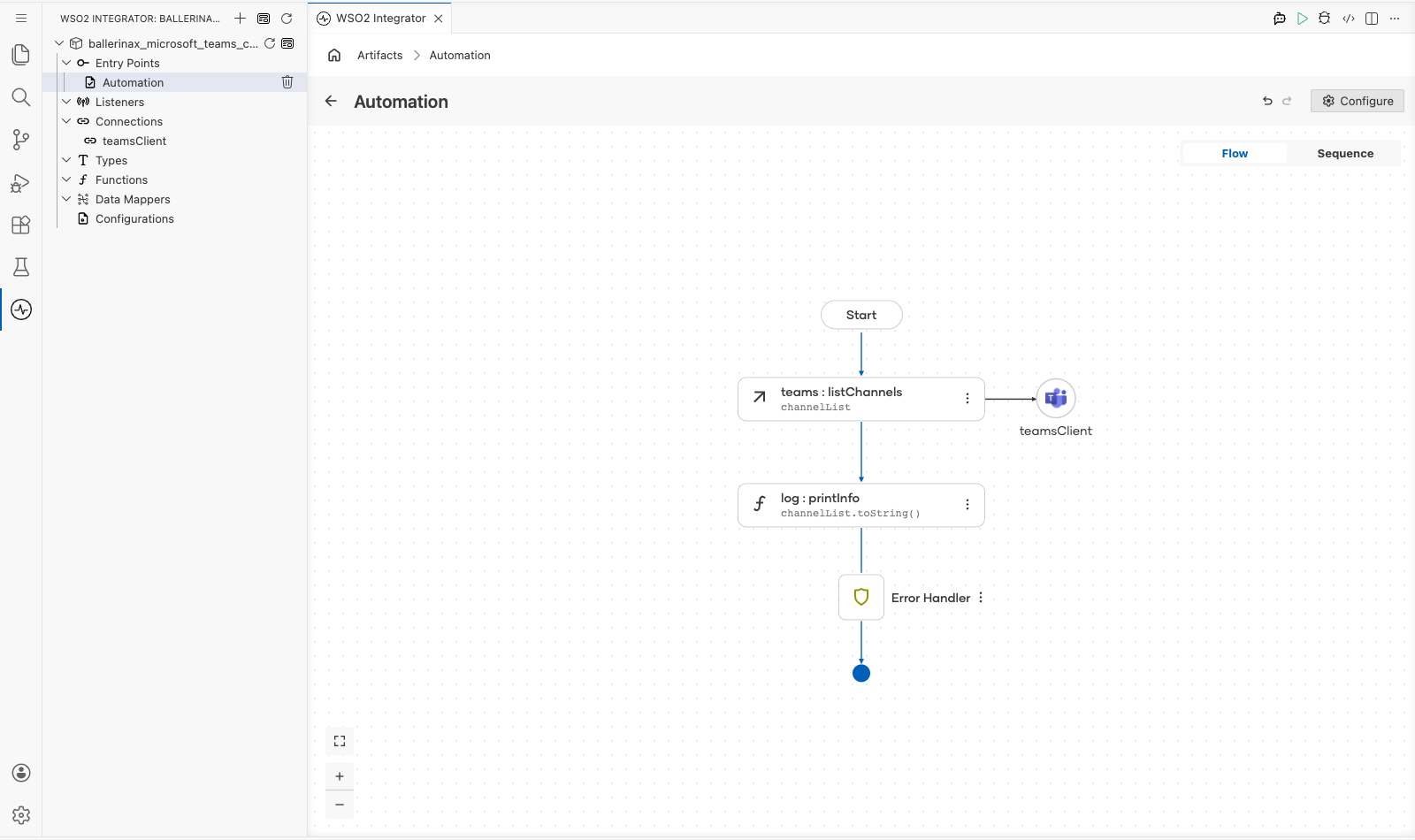

Completed Microsoft Teams flow with the configured operation and log step

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Microsoft Teams connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Team and channel setup — Provision a new team and create a channel within it.
  2. Channel message thread — Post a message to a channel, reply to it, and add a reaction.
  3. Channel member management — Create a private channel with an owner and list its members.
  4. Team tag management — Create a teamwork tag on a team and list all its tags.
