Setup Guide

This guide walks you through creating a HubSpot developer app and obtaining the OAuth 2.0 credentials and developer API key required to use the HubSpot Automation Actions connector.

Prerequisites​

  • A HubSpot developer account. If you do not have one, sign up for a free account.
  • A HubSpot account with a Professional or higher plan (Marketing Hub, Sales Hub, or Service Hub) to use Automation Actions.

Step 1: Log in to the HubSpot developer portal​

Log in to your HubSpot developer account.

Step 2: Create a HubSpot app​

  1. Navigate to Apps in the top navigation bar.
  2. Select Create app and provide a name and optional description.

Step 3: Configure the OAuth settings​

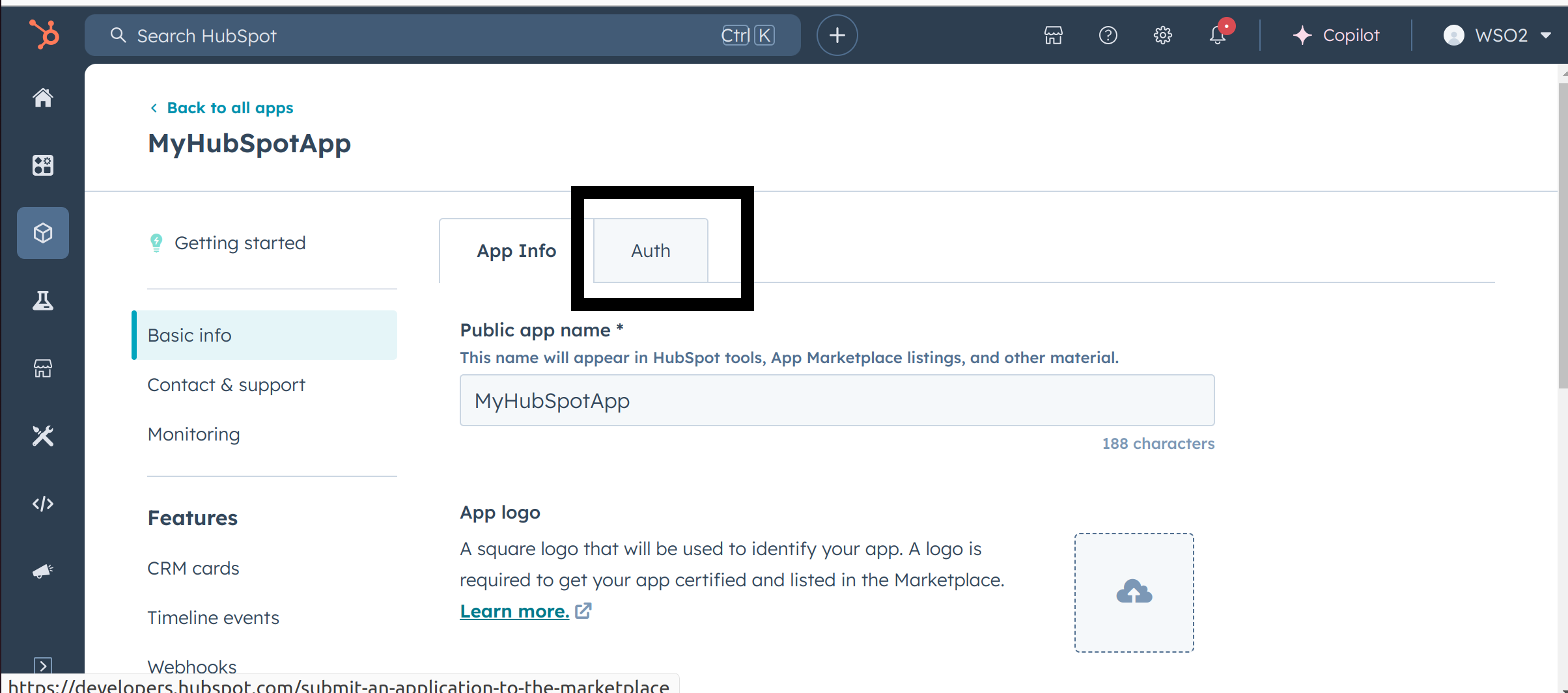

  1. Go to the Auth tab of your app.

    Auth tab

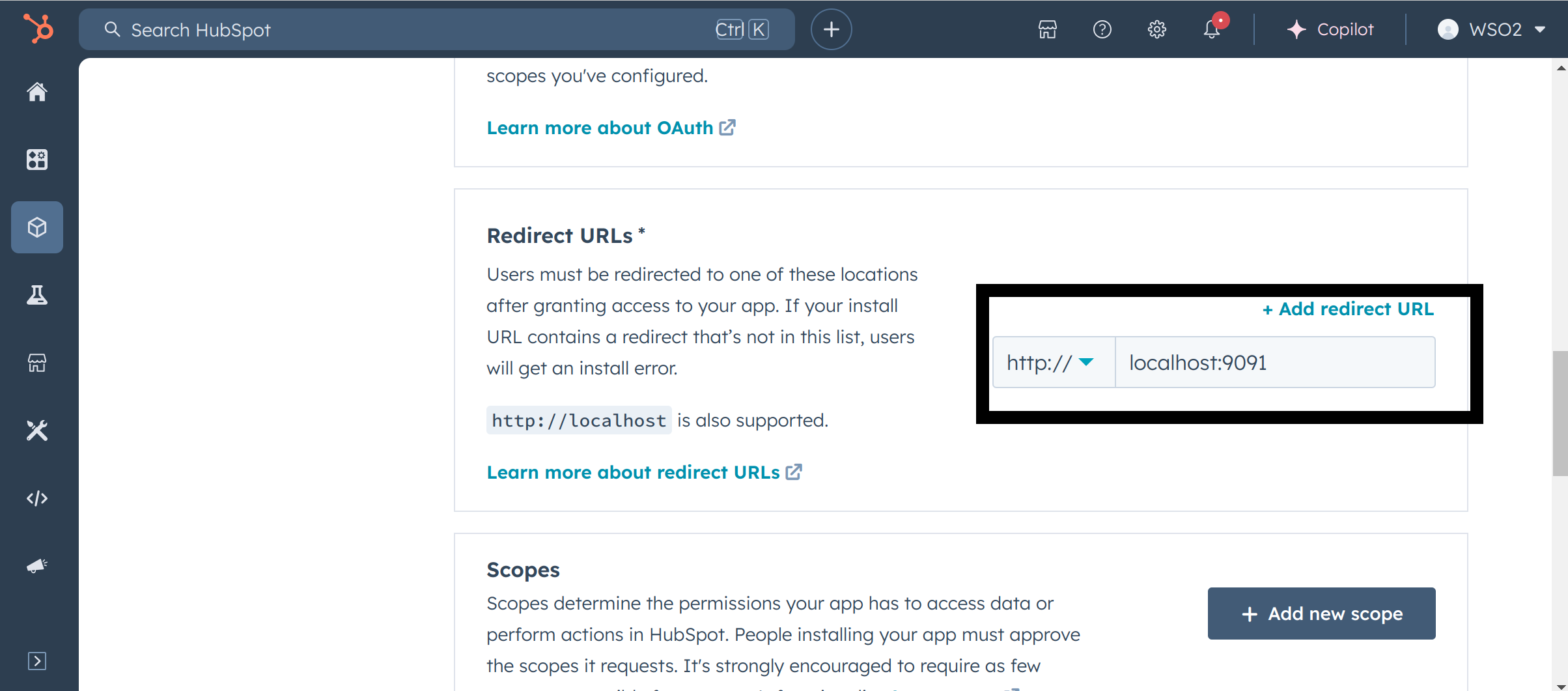

  2. Under Redirect URLs, add your redirect URL.

    Add redirect URL

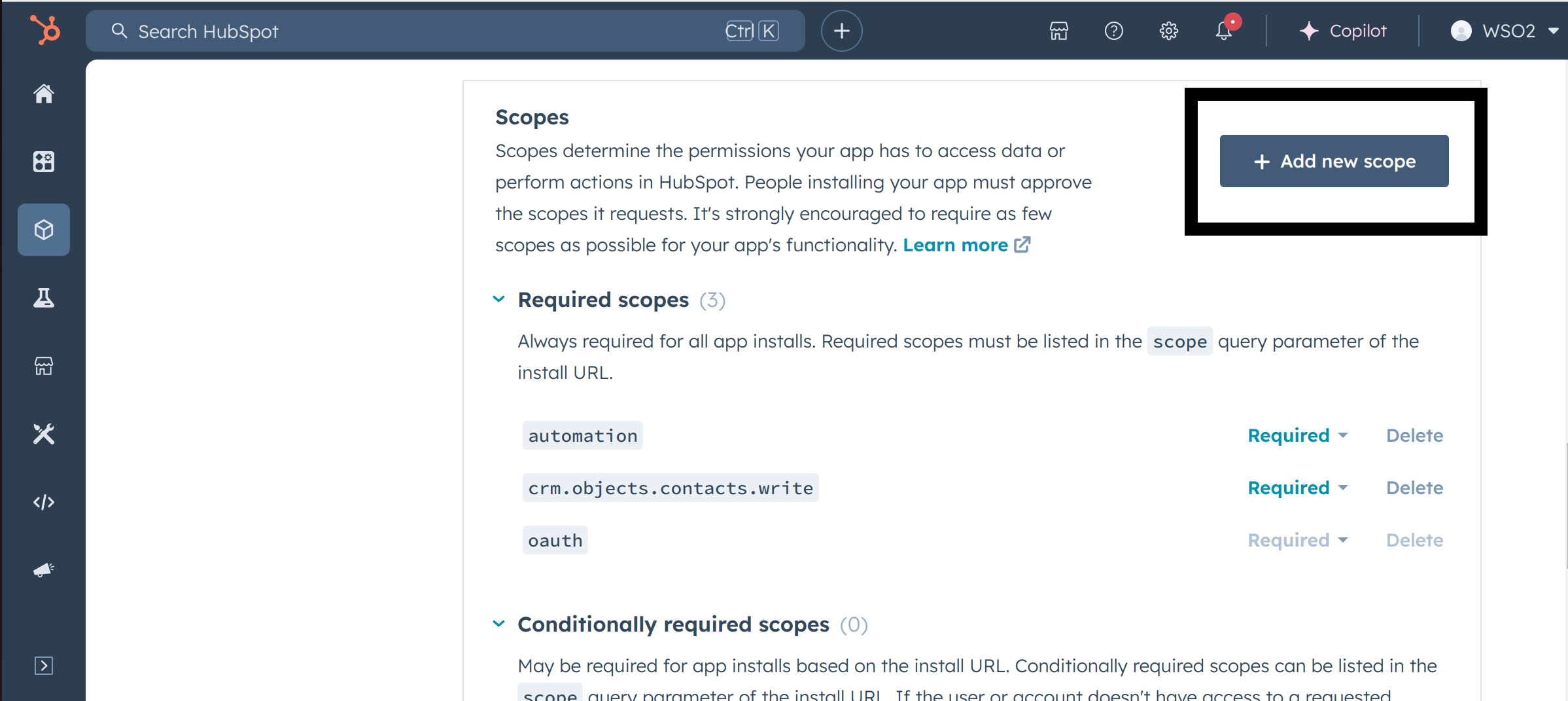

  3. Under Scopes, add the automation scope using the Add new scopes button.

    Add scopes

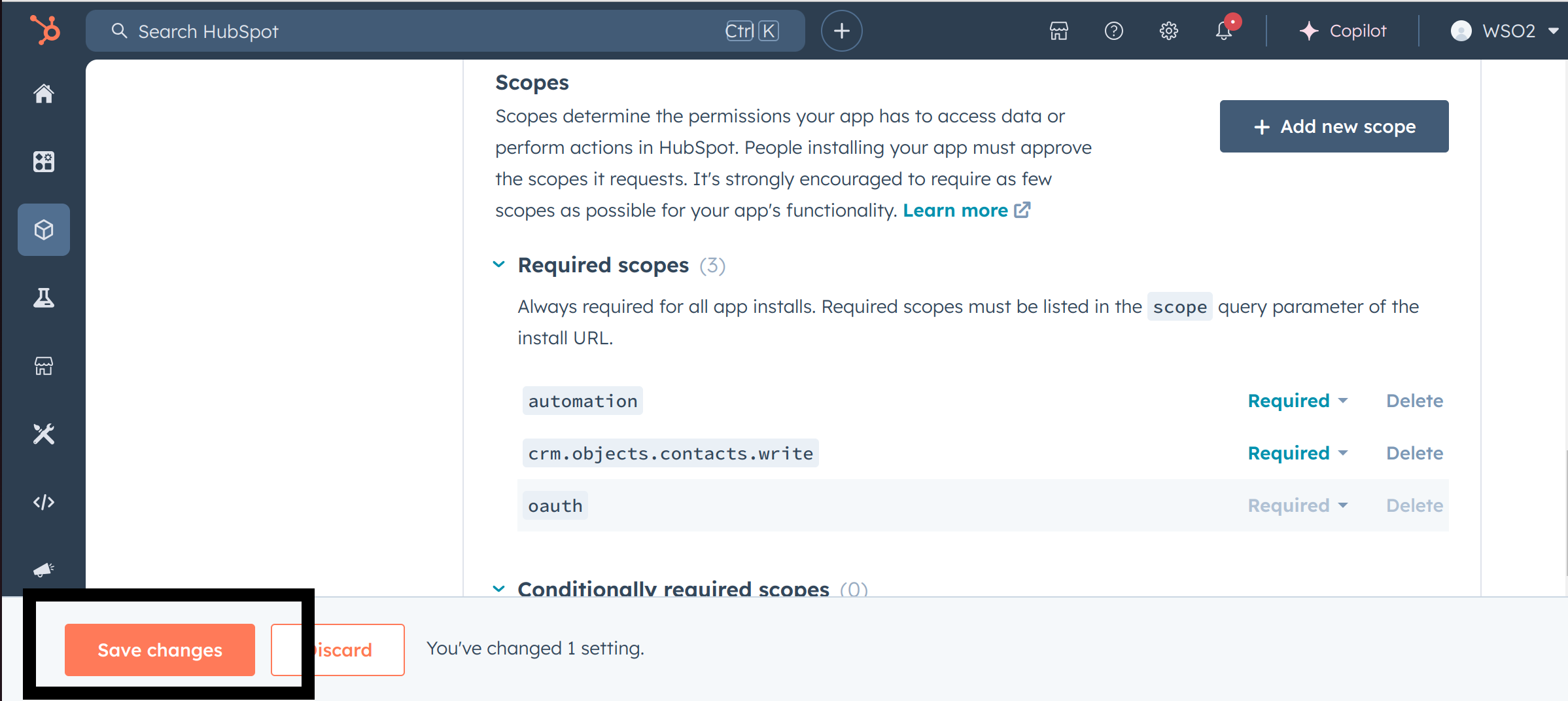

  4. Select Save.

    Save app

Step 4: Get the access token​

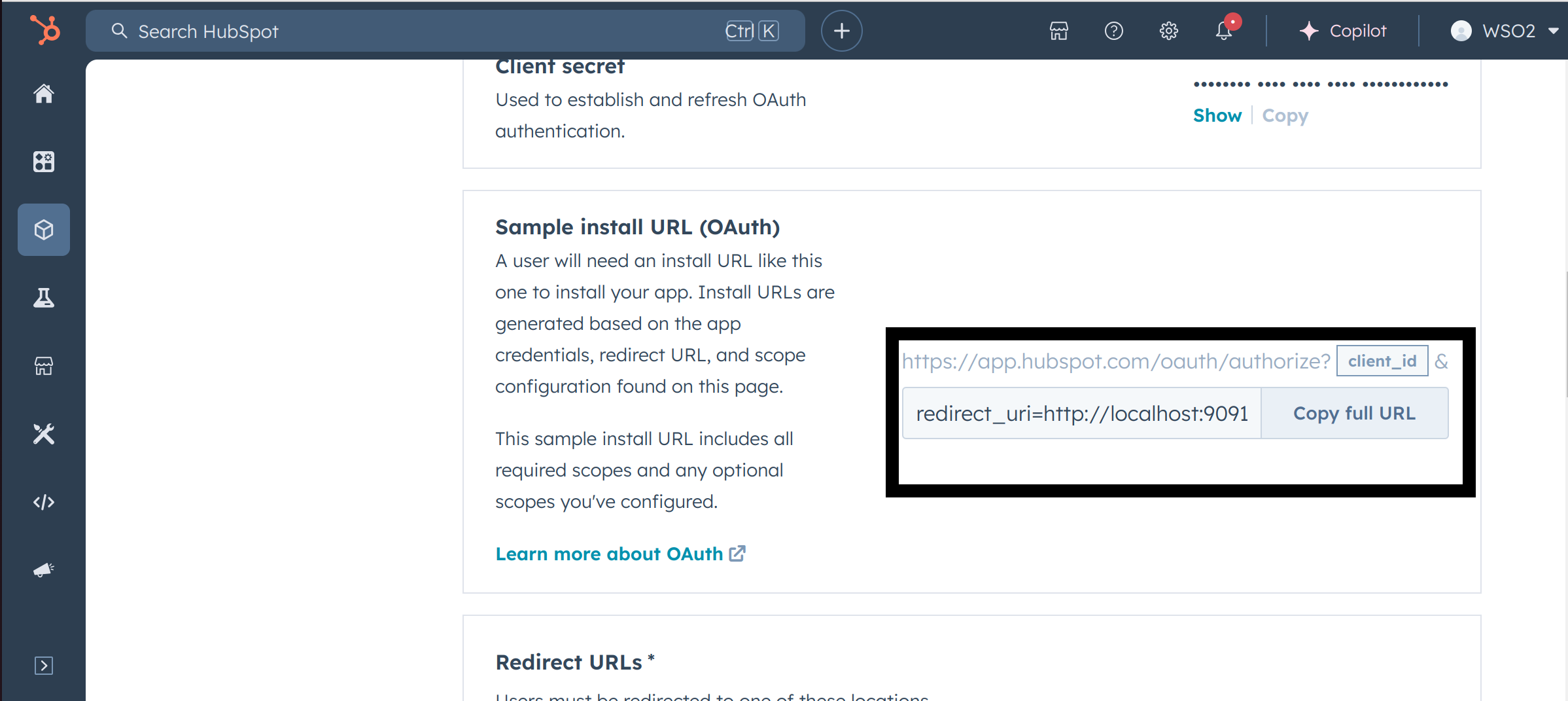

  1. Copy the app installation URL from the Auth tab and open it in a browser.

    Copy install URL

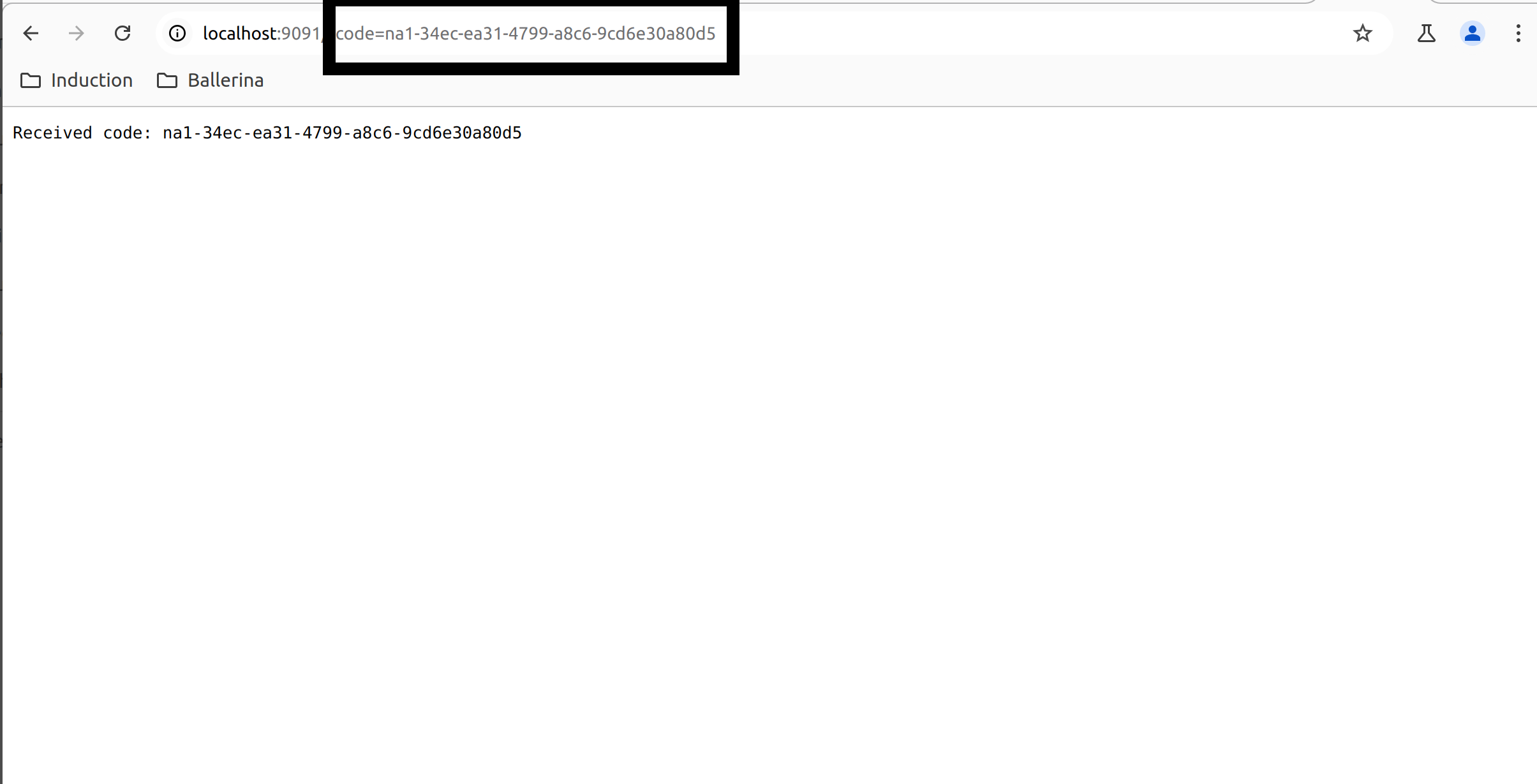

  2. Select your developer test account to authorize the app. An authorization code is displayed in the browser.

    Authorization code

  3. Exchange the code for tokens:

    curl --request POST \
      --url https://api.hubapi.com/oauth/v1/token \
      --header 'content-type: application/x-www-form-urlencoded' \
      --data 'grant_type=authorization_code&code=<CODE>&redirect_uri=<YOUR_REDIRECT_URI>&client_id=<YOUR_CLIENT_ID>&client_secret=<YOUR_CLIENT_SECRET>'

  4. Copy the refresh_token from the response.

Step 5: Get the developer API key​

The Definitions, Functions, and Revisions endpoints require a developer API key. Follow the HubSpot developer tools overview to obtain one.

Step 6: Note your app ID​

Your App ID is displayed on the app settings page and in the developer portal URL. It is required as a path parameter for most Automation Actions API operations.

tip

Store the client ID, client secret, refresh token, and developer API key securely. Use Ballerina's configurable feature and a Config.toml file to supply them at runtime.
