What you'll build​

Build a WSO2 Integrator automation that connects to the HubSpot CRM Commerce Discounts API and retrieves all discount objects. The integration uses an Automation entry point to call the List operation and logs the results as JSON.

Operations used:

  • List : Retrieves all discount objects from your HubSpot CRM account

Architecture​

Prerequisites​

  • A HubSpot account with API access
  • A HubSpot private app token with CRM scopes for commerce discounts

Setting up the HubSpot CRM Commerce Discounts integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot CRM Commerce Discounts connector​

Step 1: Open the connector palette and search for the HubSpot CRM Commerce Discounts connector​

  1. In the Design view, select Add Artifact and select Connection.
  2. The connector palette opens. Use the search field to find the connector.

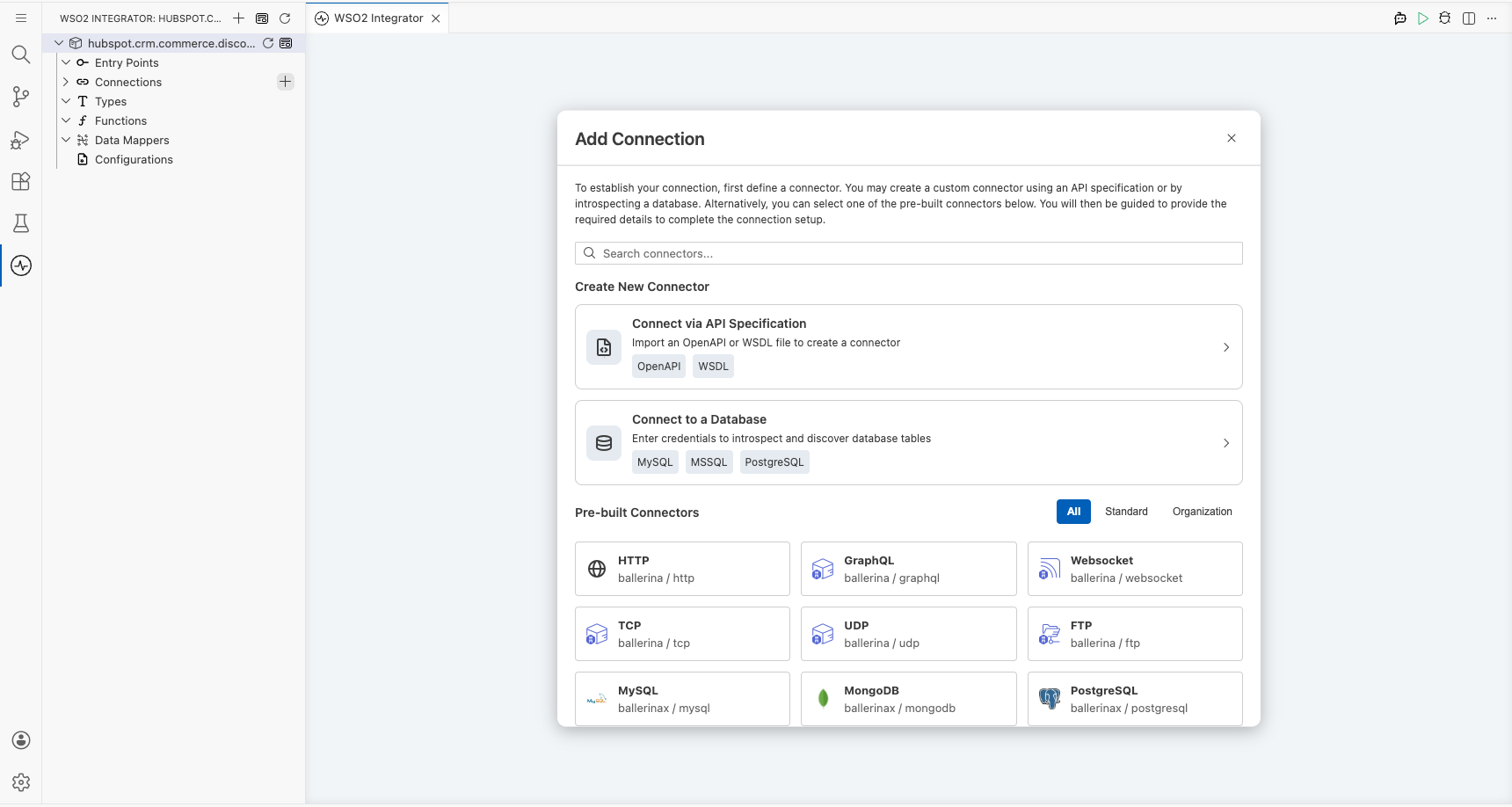

HubSpot CRM Commerce Discounts connector palette open with search field before any selection

  1. Search for hubspot.crm.commerce.discounts in the search field.
  2. Select the HubSpot CRM Commerce Discounts connector from the results.

Configuring the HubSpot CRM Commerce Discounts connection​

Step 2: Fill in the connection parameters and save the connection​

Bind each field to a configurable variable so credentials stay out of your source code.

  • Connection Name : Enter discountsClient
  • Config : Reference a configurable variable hubspotAuthToken that holds your HubSpot API token
  • Service Url : Reference a configurable variable hubspotServiceUrl for the API base URL

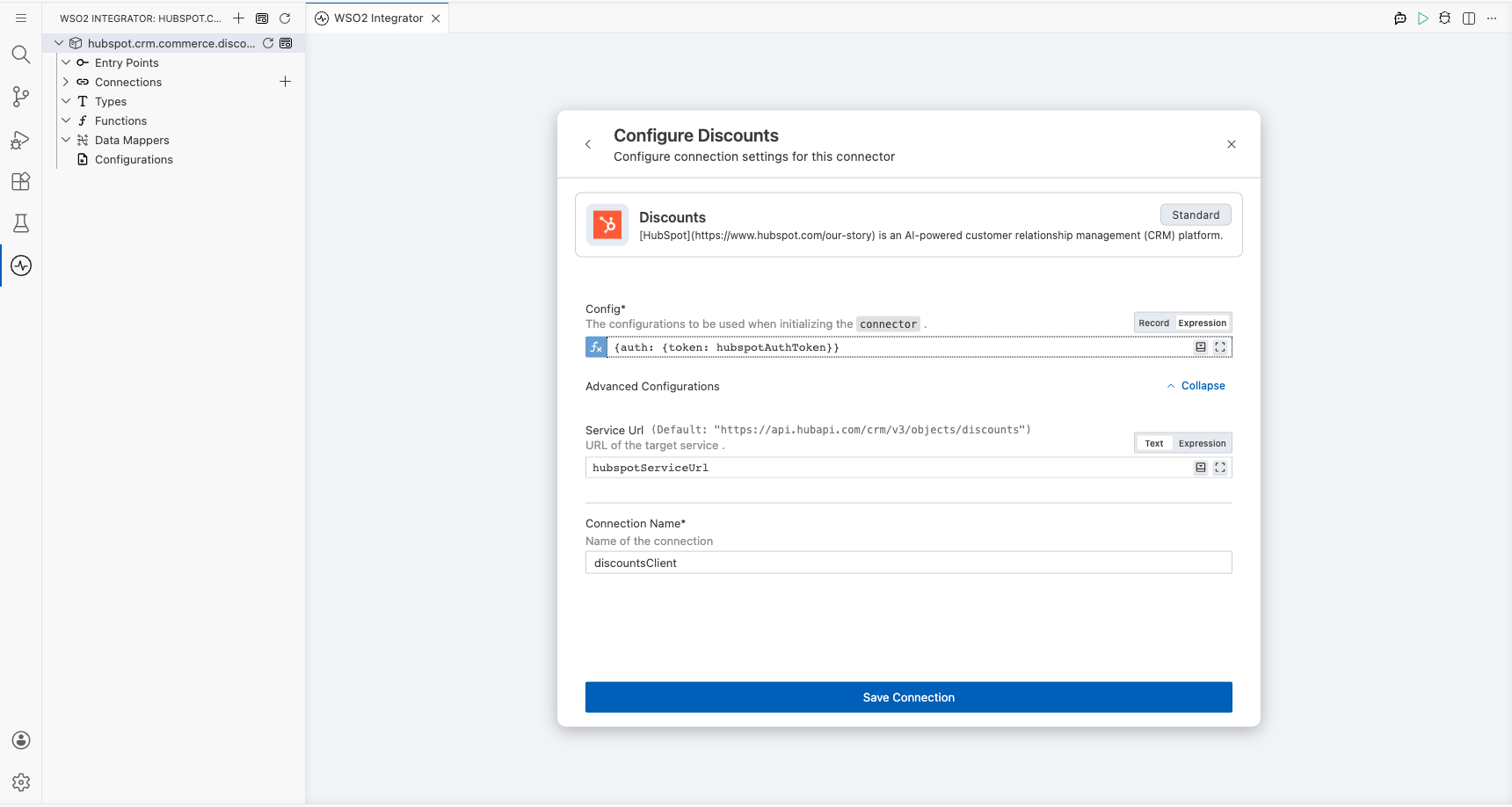

HubSpot CRM Commerce Discounts connection form fully filled with all parameters before saving

Select Save to create the connection.

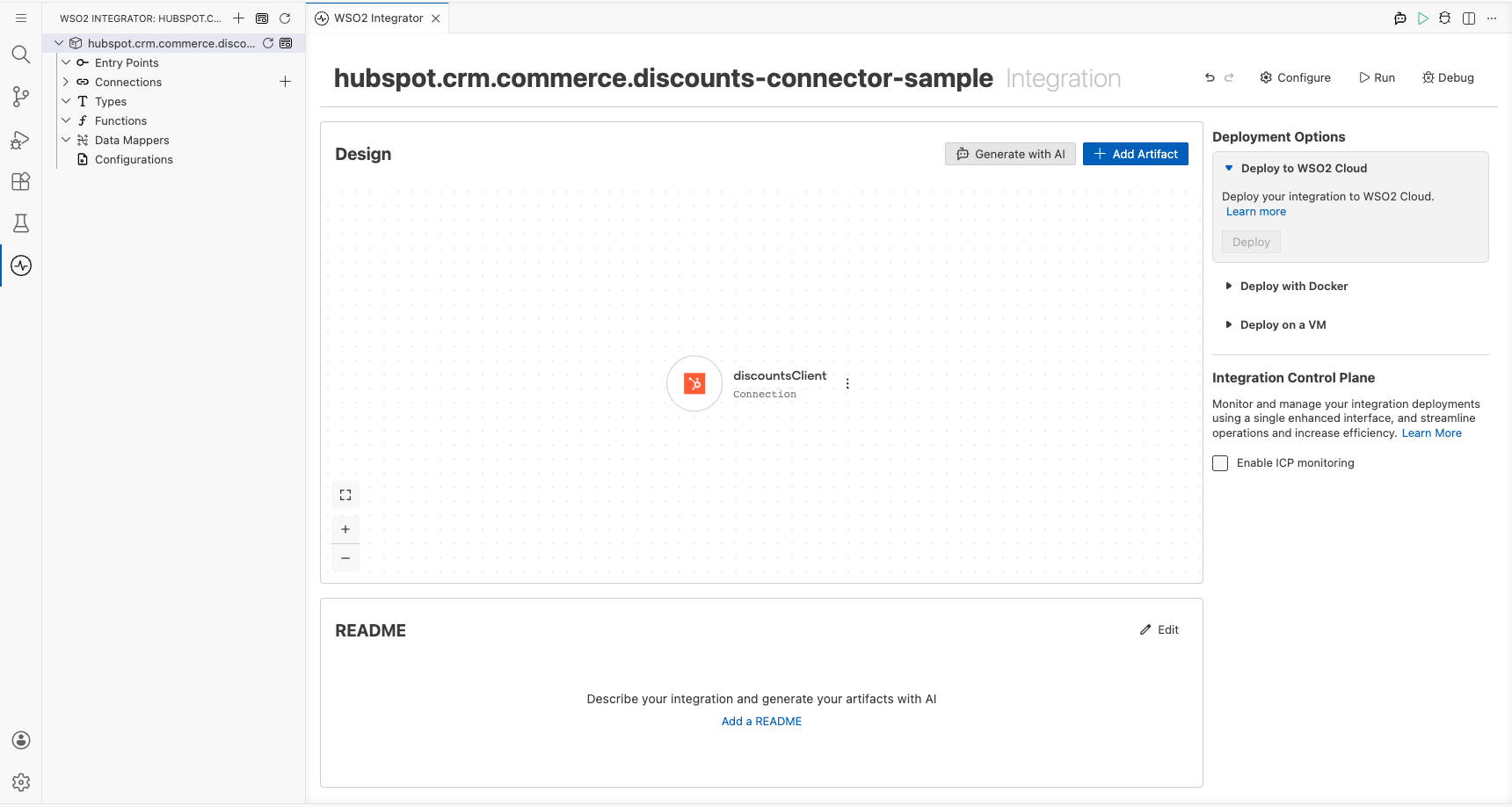

HubSpot CRM Commerce Discounts Connections panel showing discountsClient entry after saving

Step 3: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • hubspotServiceUrl (string) : The base URL for the HubSpot Commerce Discounts API
  • hubspotAuthToken (string) : Your HubSpot private app API token

Configuring the HubSpot CRM Commerce Discounts List operation​

Step 4: Add an Automation entry point​

  1. Select Add Artifact in the Design section.
  2. Select Automation from the artifacts list.
  3. Select Create to add the automation entry point.

Step 5: Select the List operation and configure it​

  1. In the Automation flow canvas, select the + button after the Start node to open the step panel.
  2. Expand the discountsClient connection under the Connections section to see available operations.

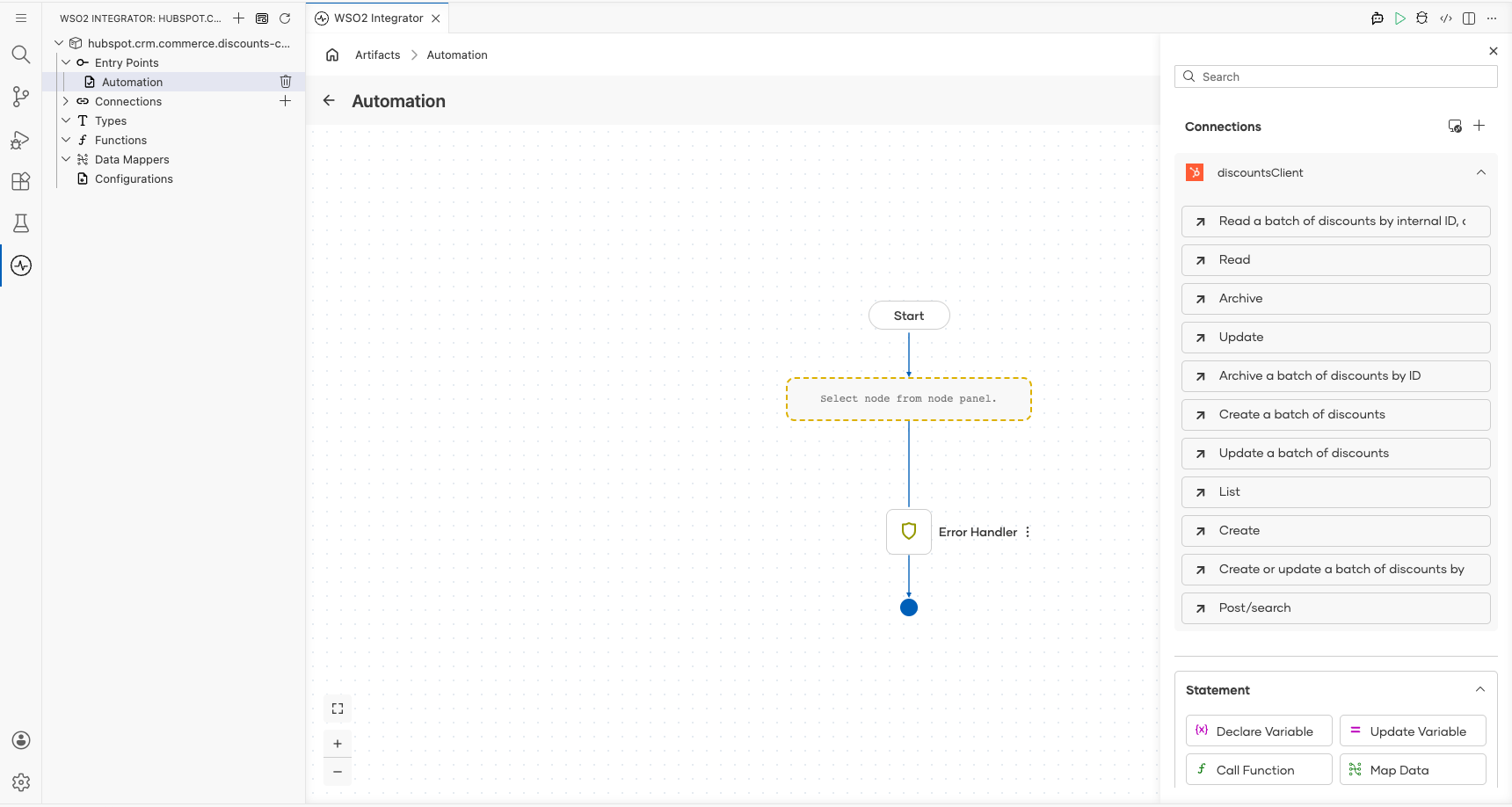

HubSpot CRM Commerce Discounts connection node expanded showing all available operations before selection

  1. Select the List operation.
  2. The operation configuration form appears. This operation has no required parameters. Set the Result variable name to listResult.
  3. Select Save.

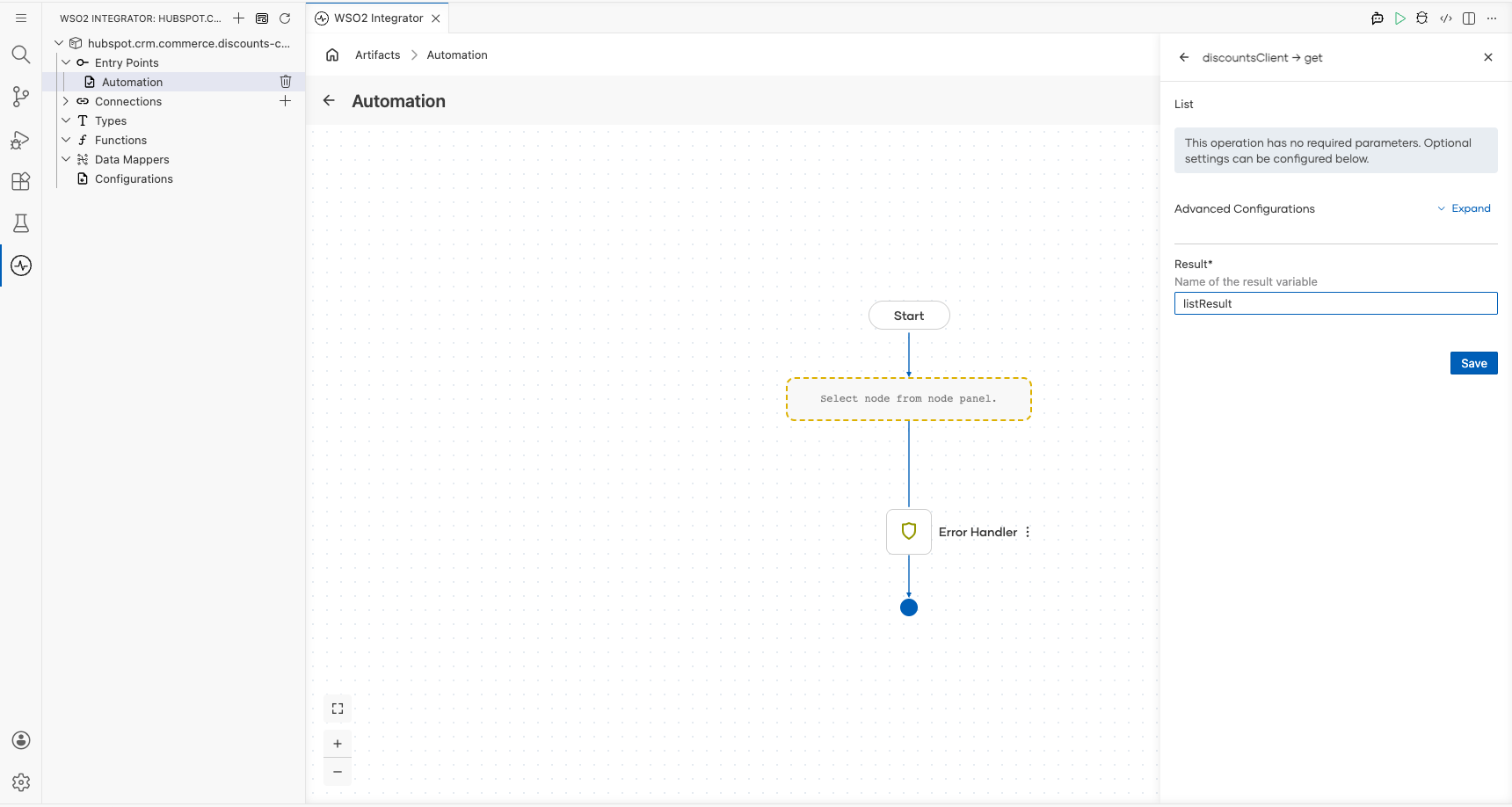

HubSpot CRM Commerce Discounts List operation configuration filled with all values

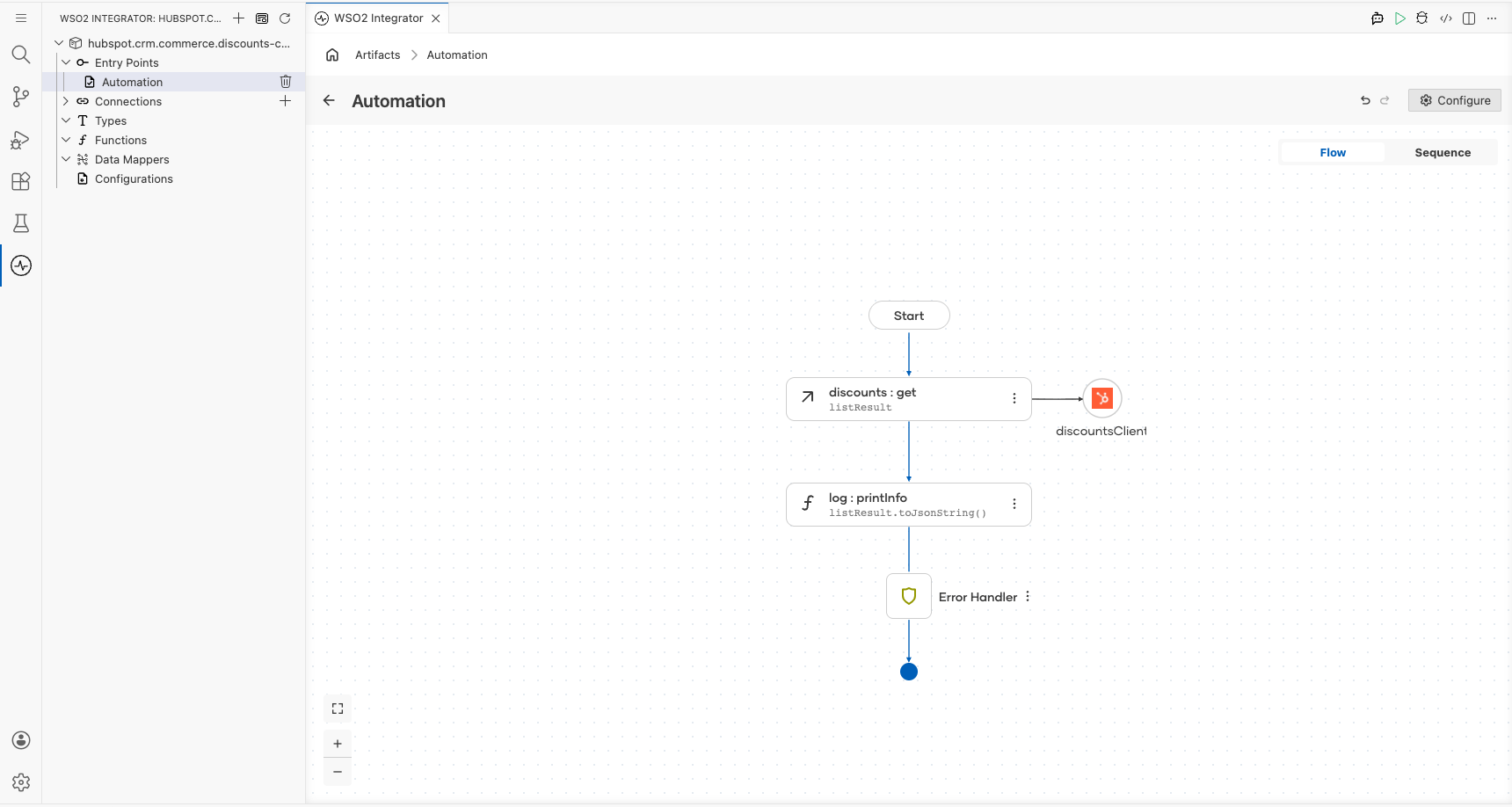

Completed HubSpot CRM Commerce Discounts automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The HubSpot CRM Commerce Discounts connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Discount Manager - see how the HubSpot API can be used to create discount and manage it through endpoints.
  2. Festival Discounts - see how the HubSpot API can be used to create and to manage multiple discounts at a time.
