Example

What you'll build​

Build a WSO2 Integrator automation that connects to the HubSpot CRM Commerce Orders API, retrieves all orders from your HubSpot account, and logs the results as a JSON string.

Operations used:

  • List : Retrieves all commerce orders from your HubSpot CRM account

Architecture​

Prerequisites​

  • A HubSpot account with API access
  • A valid HubSpot authentication token

Setting up the HubSpot CRM Commerce Orders integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot CRM Commerce Orders connector​

Step 1: Open the Add Connection panel​

Select the + button on the flow connection line to open the Node Panel, then expand the Connections section and select the + (Add Connection) button.

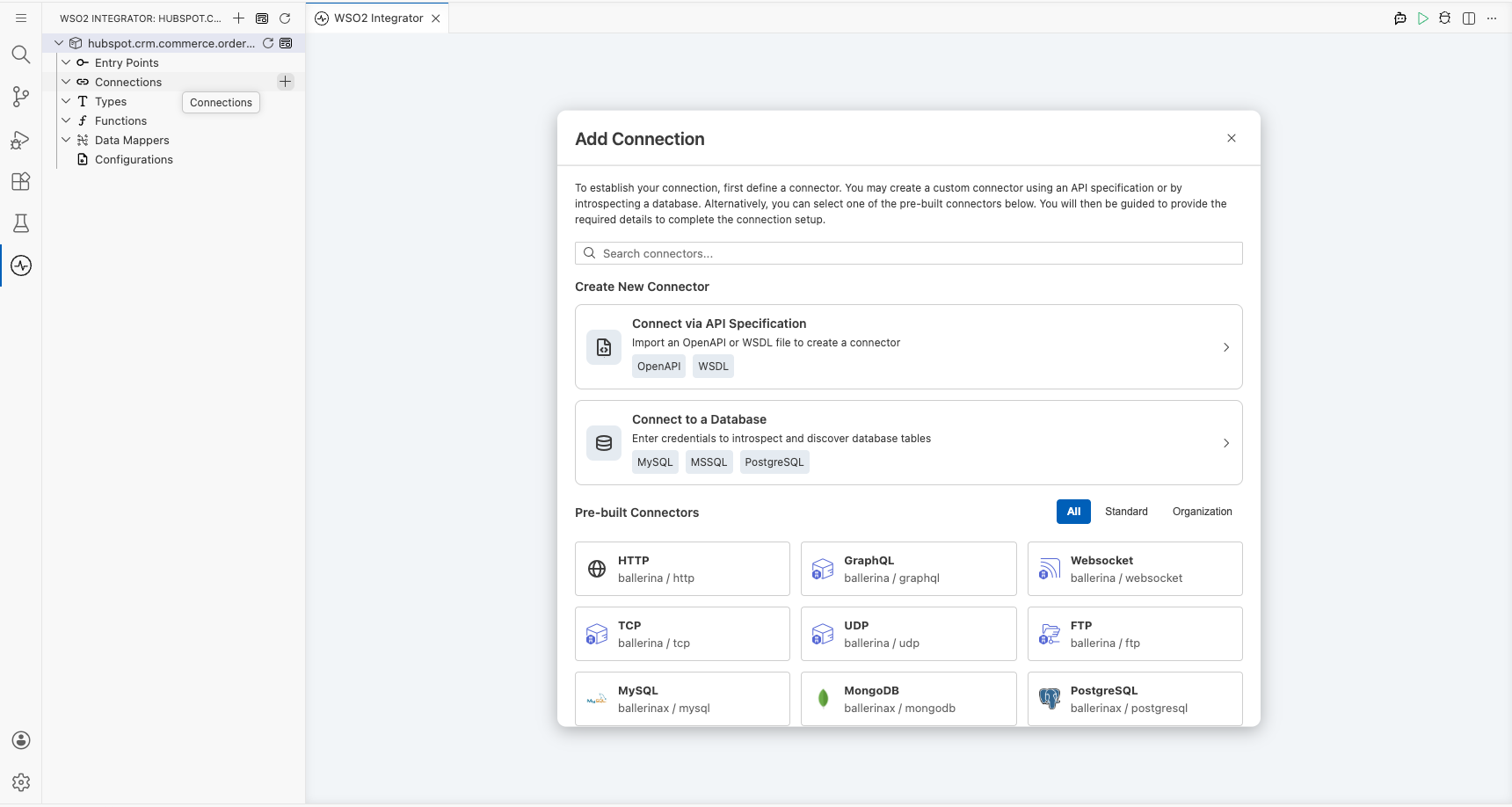

HubSpot CRM Commerce Orders connector palette open with search field before any selection

Configuring the HubSpot CRM Commerce Orders connection​

Step 2: Fill in the connection parameters​

Search for hubspot.crm.commerce.orders in the palette and select the ballerinax/hubspot.crm.commerce.orders connector card to open the New Connection form. Set the Config field to Expression mode and bind each parameter to a configurable variable:

  • auth.token : The HubSpot API authentication token, bound to the hubspotAuthToken configurable variable
  • Connection Name : Set to ordersClient

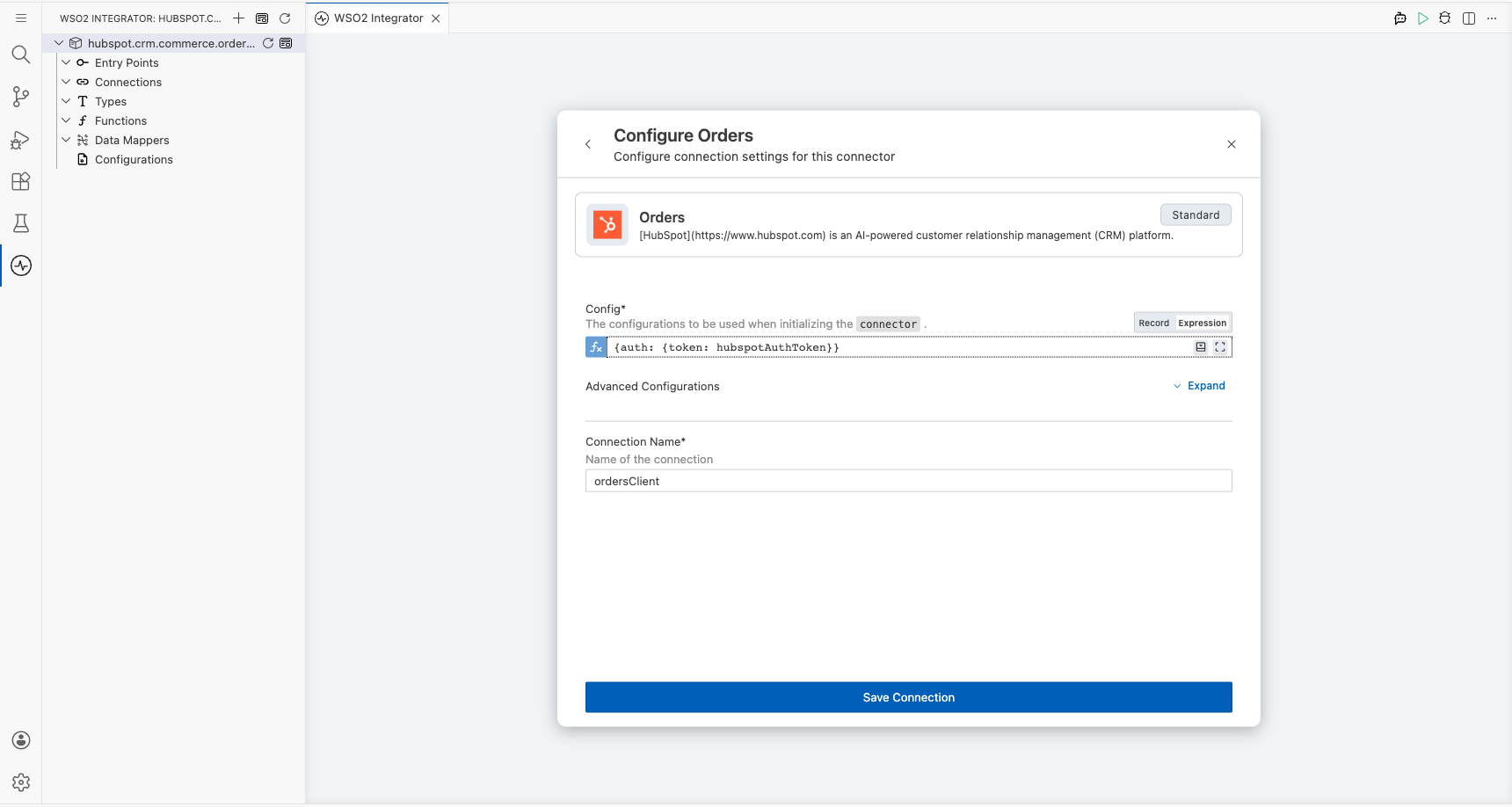

HubSpot CRM Commerce Orders connection form fully filled with all parameters before saving

Step 3: Save the connection​

Select Save to create the connection. The ordersClient connection appears in the Connections section of the left sidebar.

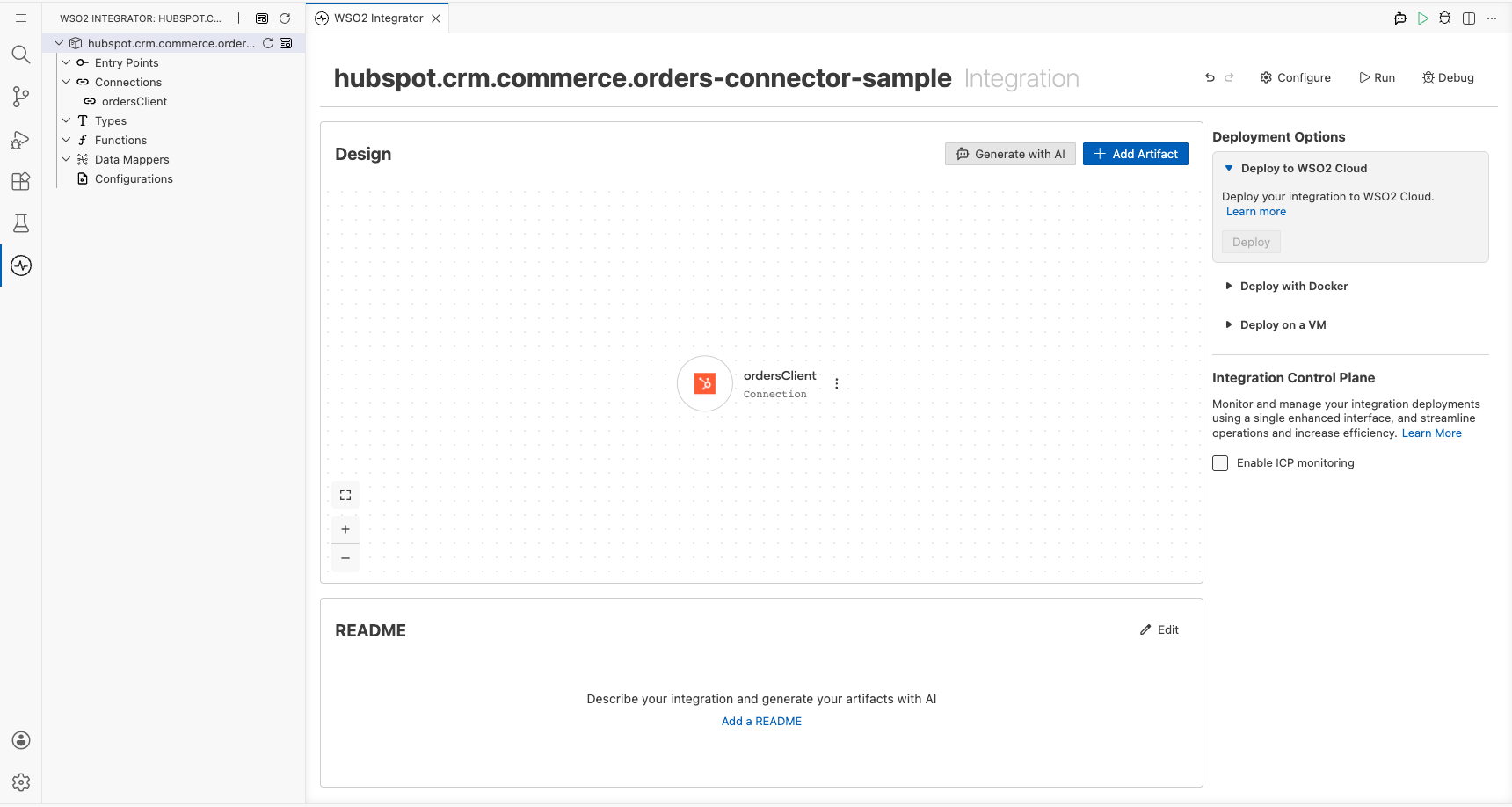

HubSpot CRM Commerce Orders Connections panel showing ordersClient entry after saving

Step 4: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • hubspotAuthToken (string) : Your HubSpot API authentication token

Configuring the HubSpot CRM Commerce Orders List operation​

Step 5: Select and configure the List operation​

Select the + button on the flow connection line to open the Node Panel, then expand the ordersClient connection to reveal all available operations.

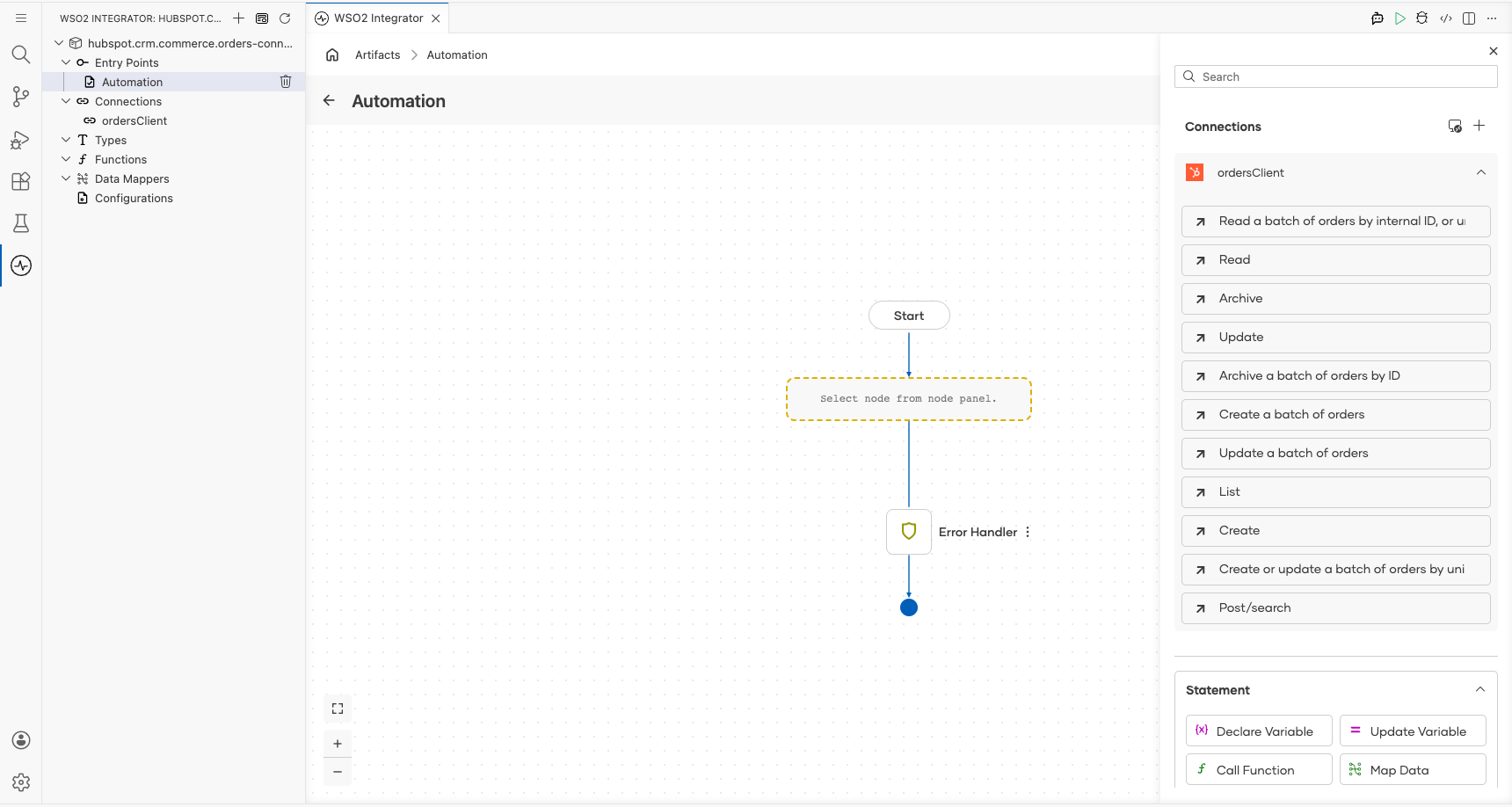

HubSpot CRM Commerce Orders connection node expanded showing all available operations before selection

Select List to open the operation configuration form. The operation has no required parameters. In the Result field, enter result, then select Save.

  • Result : Variable name used to store the list of orders returned by the API

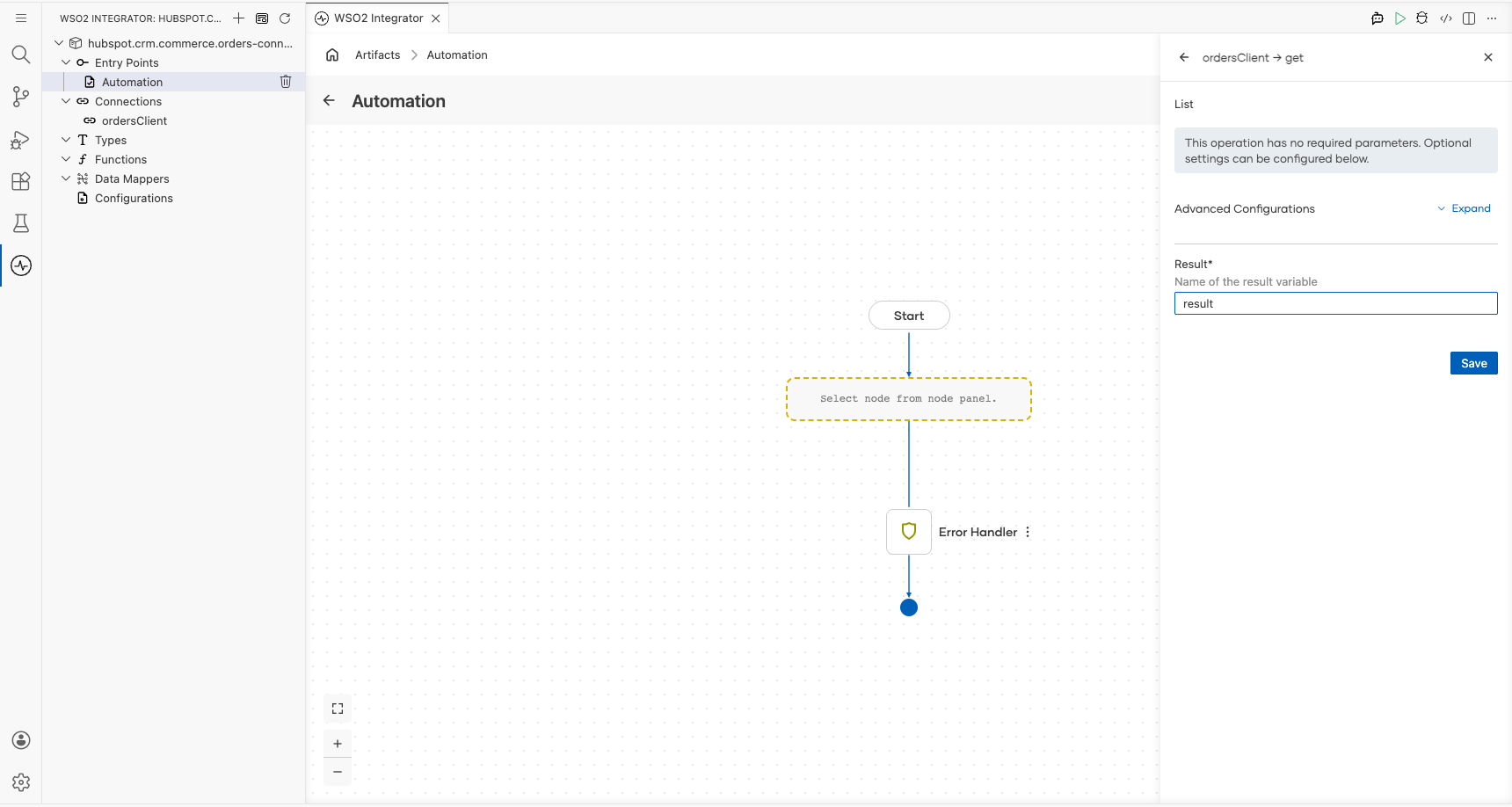

HubSpot CRM Commerce Orders List operation configuration filled with all values

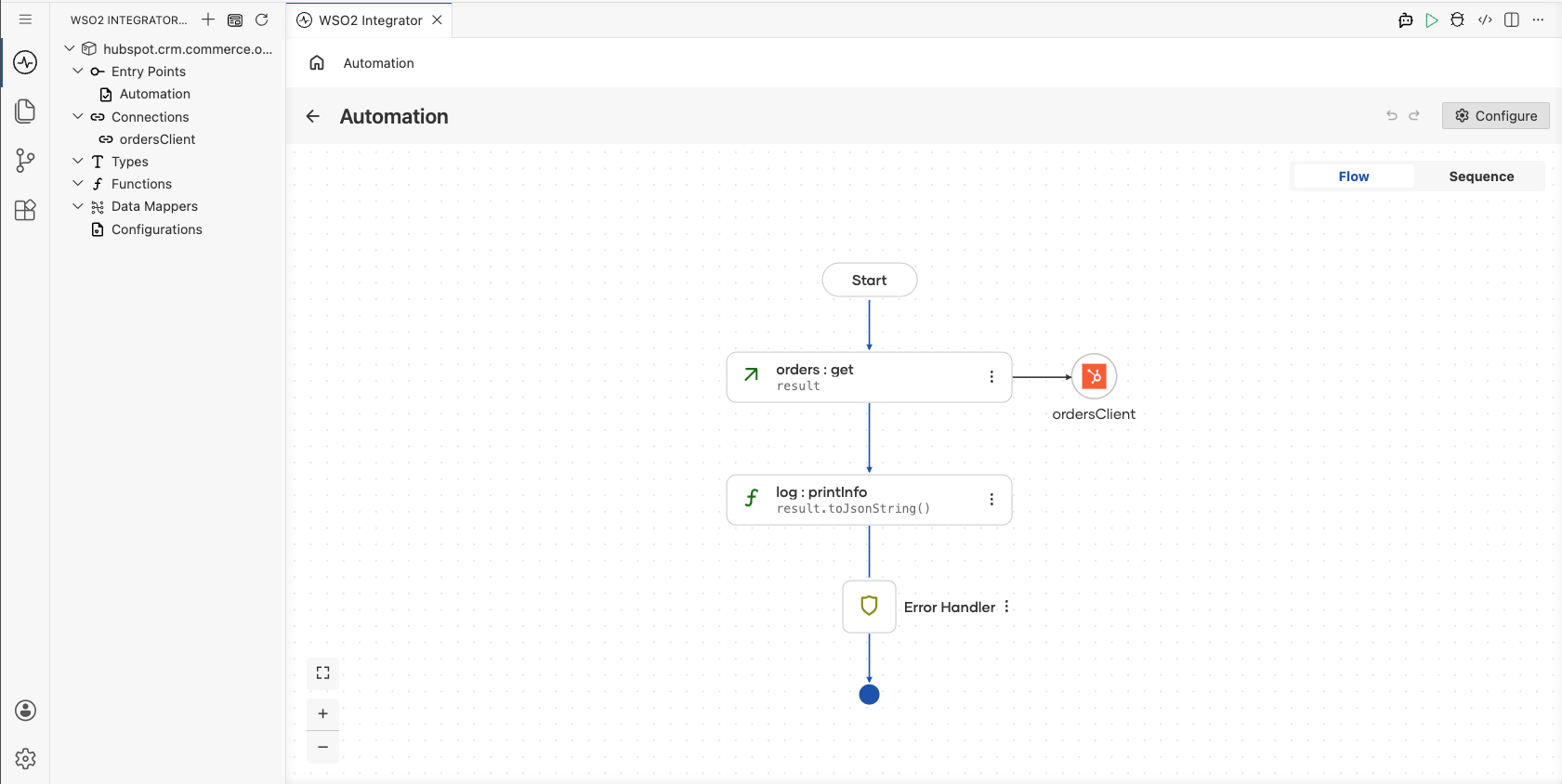

Completed HubSpot CRM Commerce Orders automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The HubSpot CRM Commerce Orders connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Batch Operations - Perform Batch operations on Orders in HubSpot
  2. Order Management - Perform CRUD operations on Orders in HubSpot
  3. Search Operation - Perform Search operations on Orders in HubSpot
