Example

What you'll build​

Build a WSO2 Integrator automation that connects to the HubSpot CRM Commerce Quotes API and retrieves a list of quotes from HubSpot. The integration logs the retrieved quotes as a JSON string for review.

Operations used:

  • get : Retrieves a page of quotes from HubSpot CRM and stores the result in a configurable variable

Architecture​

Prerequisites​

  • A HubSpot account with API access
  • A HubSpot API token with CRM quotes permissions

Setting up the HubSpot CRM Commerce Quotes integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot CRM Commerce Quotes connector​

Step 1: Open the flow canvas and search for the connector​

Select Entry Points > main to open the low-code flow canvas, then select the + button below the Start node to open the node panel. Select Show More Functions and search for hubspot.crm.commerce.quotes to locate the ballerinax/hubspot.crm.commerce.quotes connector.

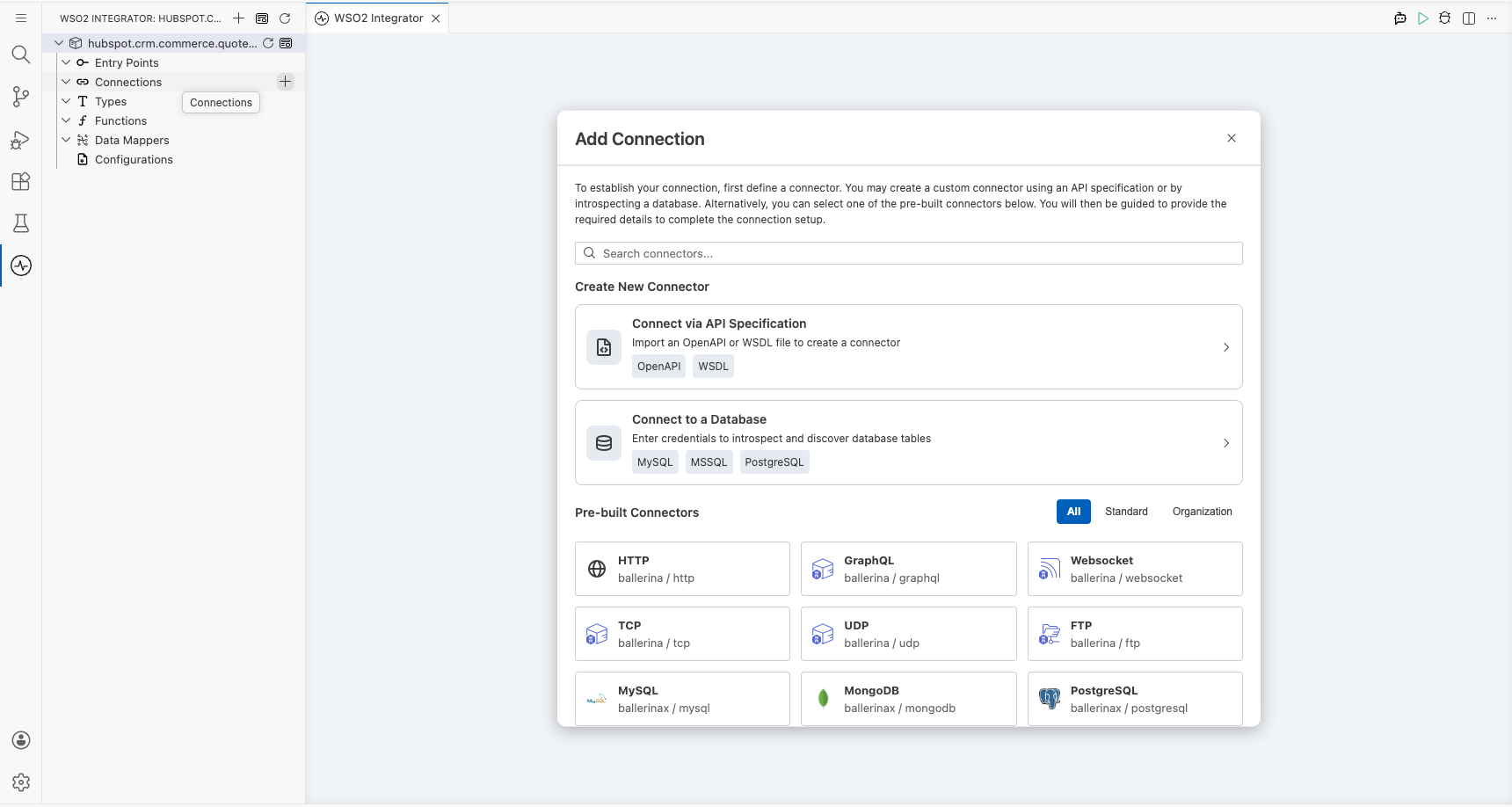

HubSpot CRM Commerce Quotes connector visible in the connector palette before selection

Configuring the HubSpot CRM Commerce Quotes connection​

Step 2: Fill in connection parameters​

After selecting the connector, a New Connection form appears. Bind each field to a configurable variable:

  • Connection Name : Enter quotesClient as the connection name
  • Service Url : Bind to a new configurable variable hubspotQuotesServiceUrl of type string
  • Config : Switch to Expression mode and enter {auth: {token: hubspotQuotesToken}}, binding hubspotQuotesToken as a new string configurable variable

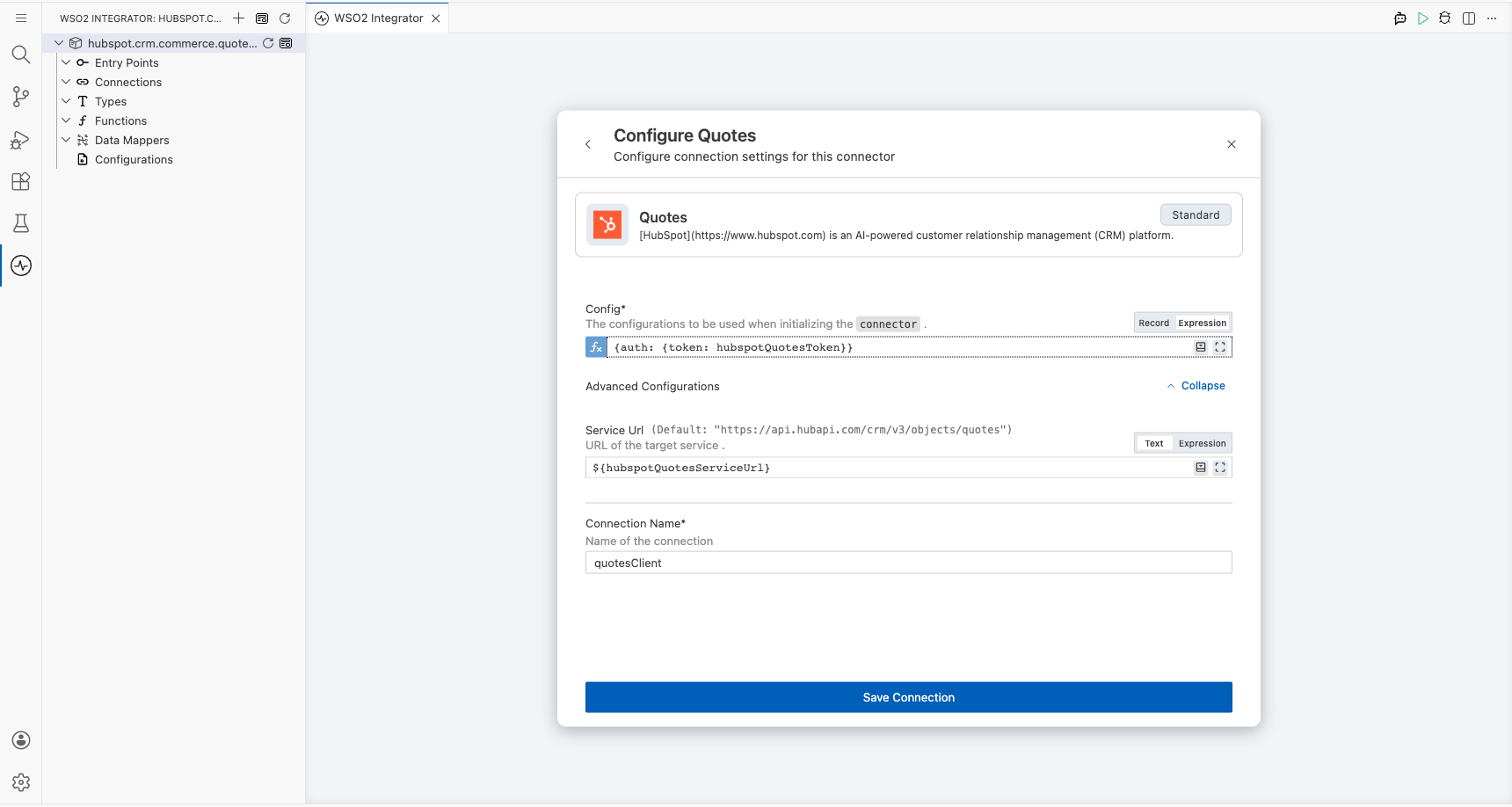

HubSpot CRM Commerce Quotes connection form fully filled with all parameters before saving

Step 3: Save the connection​

Select Save to create the connection. The quotesClient connection now appears in the Connections section of the sidebar and as a badge on the canvas.

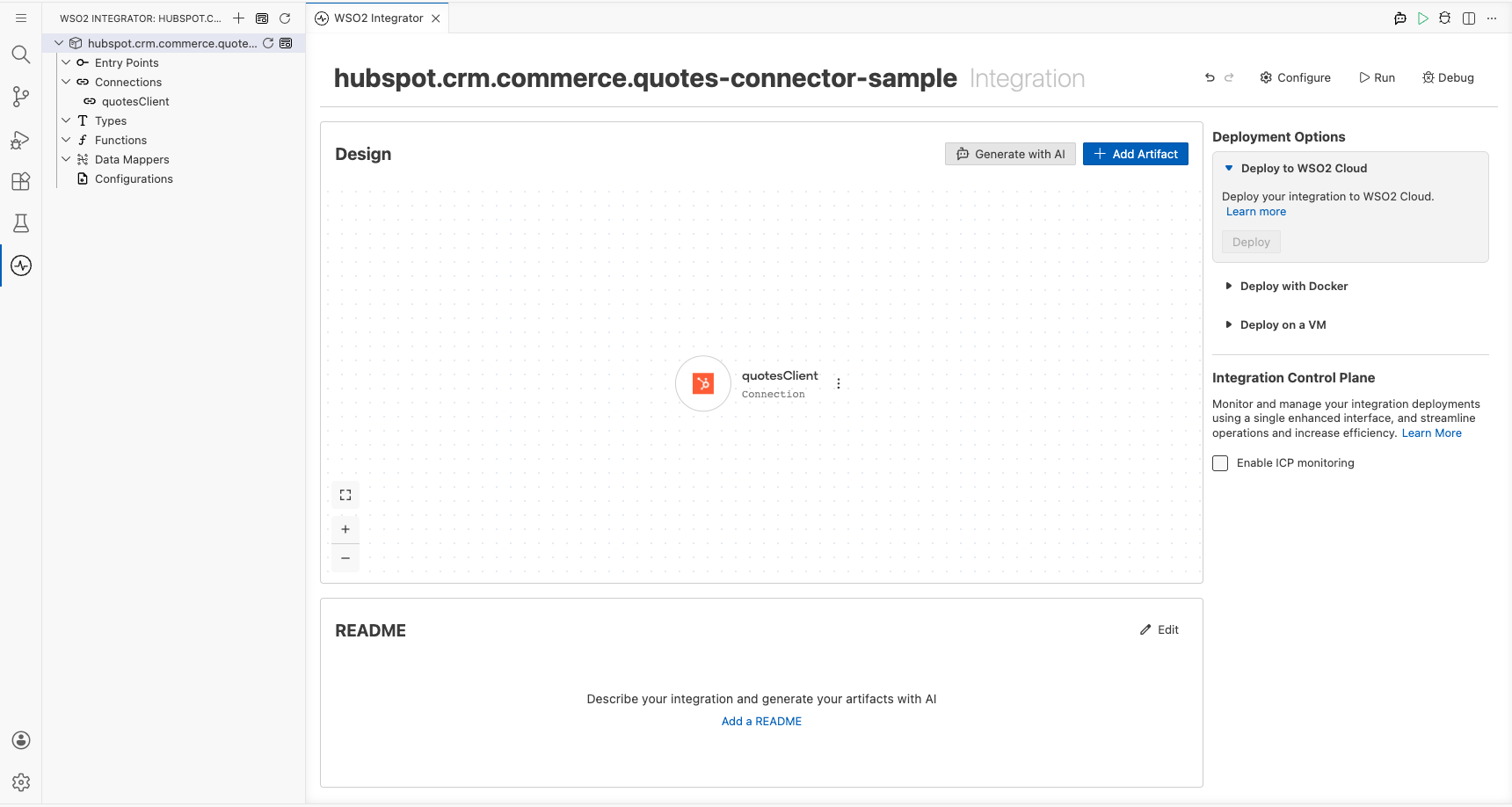

HubSpot CRM Commerce Quotes Connections panel showing quotesClient entry after saving

Step 4: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • hubspotQuotesServiceUrl (string) : The base URL for the HubSpot API, for example https://api.hubapi.com
  • hubspotQuotesToken (string) : Your HubSpot API token with CRM quotes permissions

Configuring the HubSpot CRM Commerce Quotes get operation​

Step 5: Expand the connection node to view available operations​

Select the + button on the flow canvas to open the node panel, then expand the quotesClient connection section to see available operations.

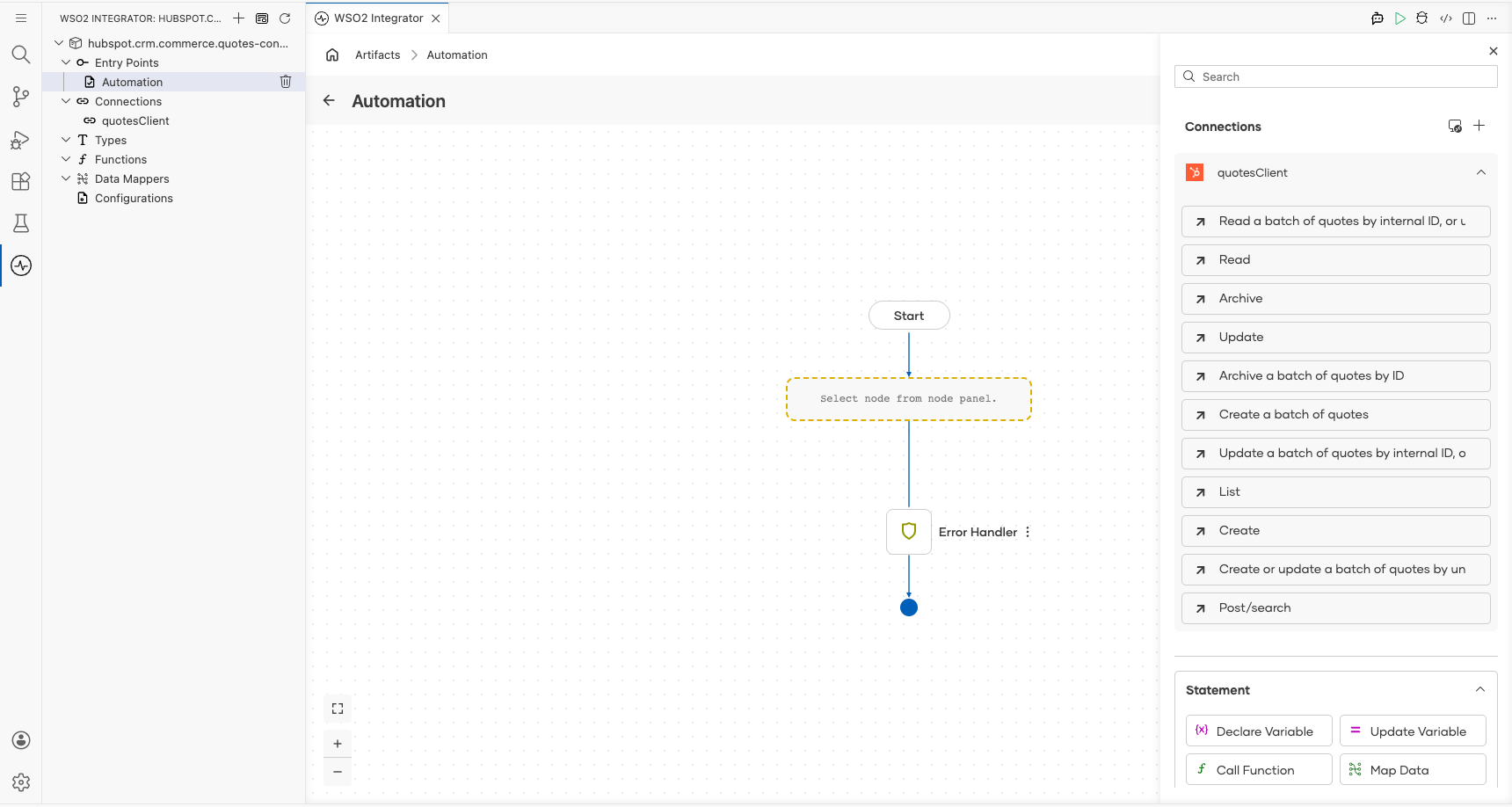

HubSpot CRM Commerce Quotes connection node expanded showing all available operations before selection

Step 6: Select the get operation and configure its parameters​

Select the get (List) operation to open its configuration form, then fill in the following:

  • Variable Name : Enter result as the variable name to store the retrieved quotes
  • Variable Type : Auto-populated as quotes:CollectionResponseSimplePublicObjectWithAssociationsForwardPaging

Select Save to add the operation to the flow.

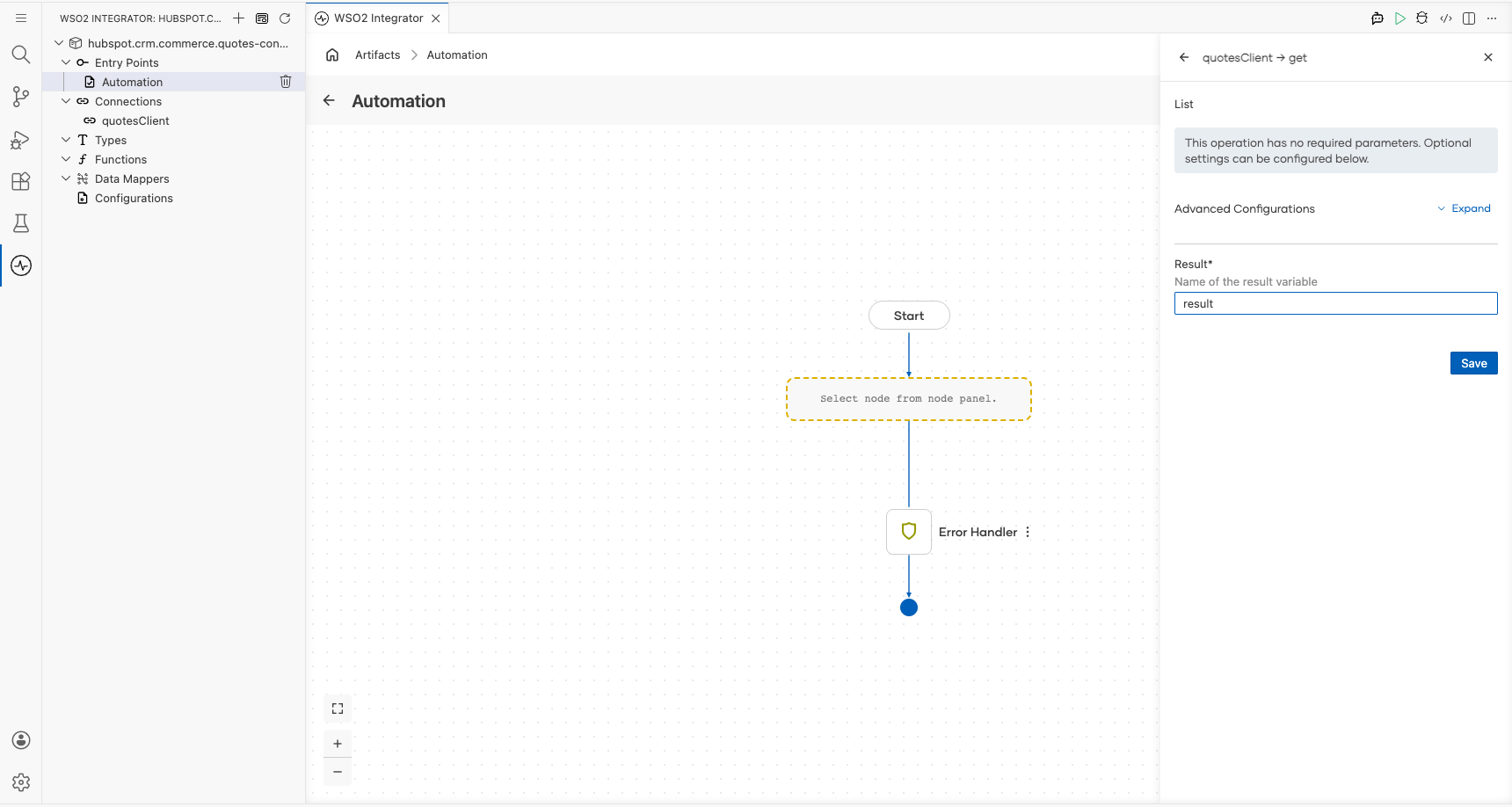

HubSpot CRM Commerce Quotes get operation configuration filled with all values

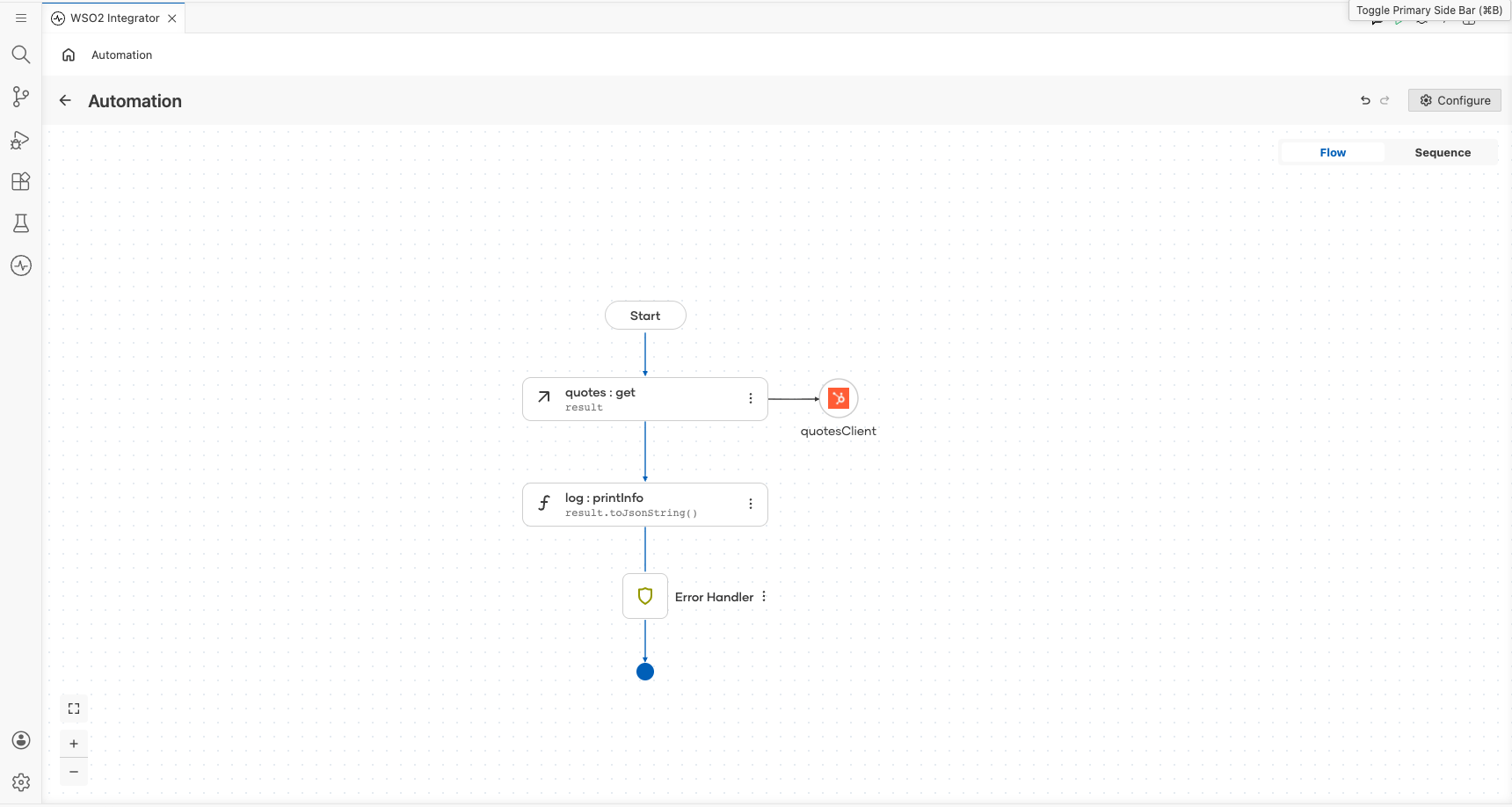

Completed HubSpot CRM Commerce Quotes automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The HubSpot CRM Commerce Quotes connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Sales Analytics System - A store can insert their quotes to the system, and system record and analyses the details on the quotes.
