Example

What you'll build​

Build a WSO2 Integrator automation that connects to the HubSpot CRM Commerce Taxes API and retrieves all tax records from your HubSpot account. The integration uses an Automation entry point to call the List operation and logs a confirmation message on success.

Operations used:

  • List : Retrieves all tax records from the HubSpot CRM Commerce Taxes API.

Architecture​

Prerequisites​

  • A HubSpot developer account with API access
  • A valid HubSpot OAuth token or private app access token

Setting up the HubSpot CRM Commerce Taxes integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot CRM Commerce Taxes connector​

Select Add Connection in the WSO2 Integrator sidebar to open the connector palette.

Step 1: Open the connector palette​

Select the + button next to Connections in the sidebar to open the connector palette.

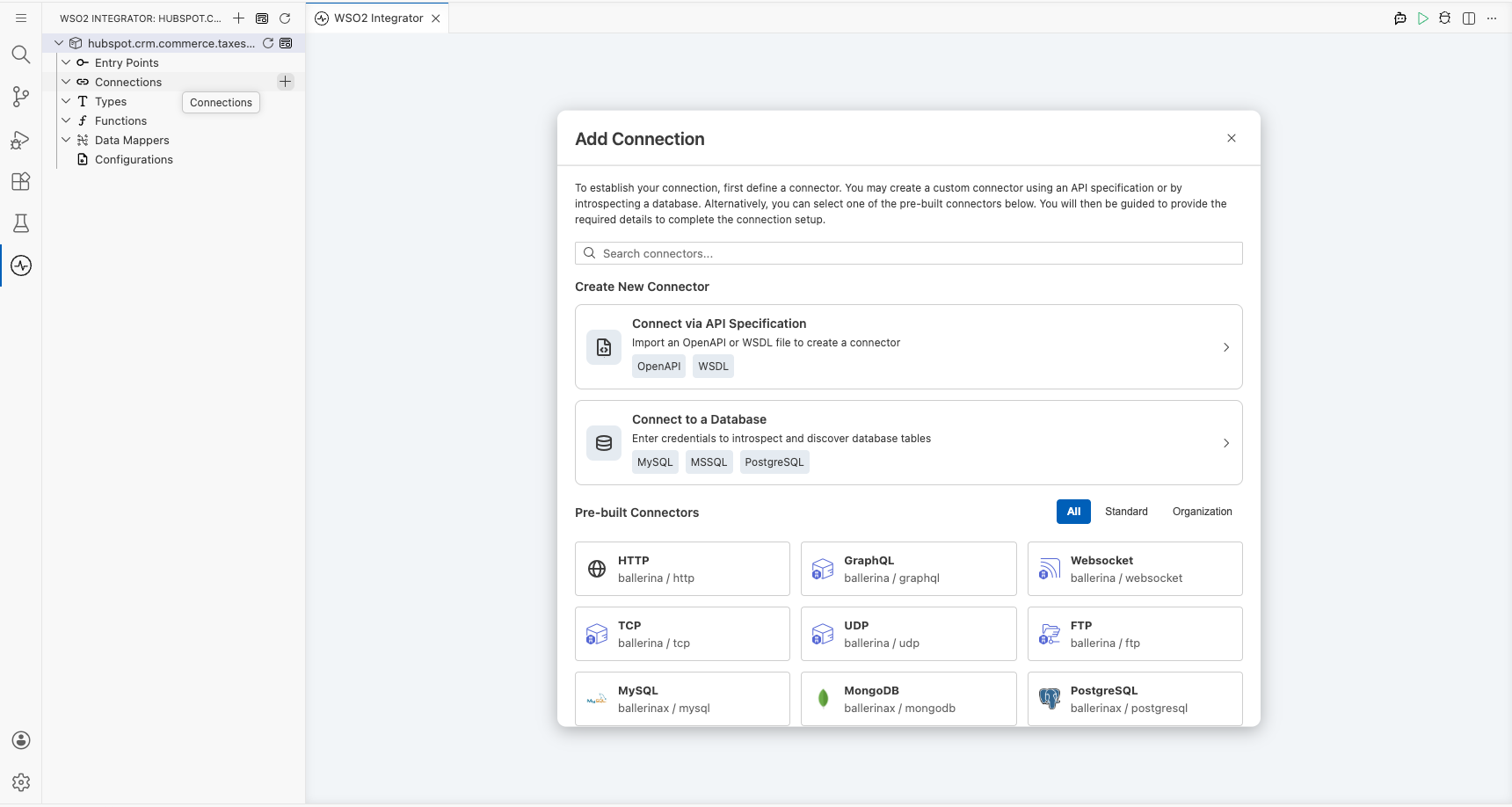

HubSpot CRM Commerce Taxes connector palette open with search field before any selection

Configuring the HubSpot CRM Commerce Taxes connection​

Step 2: Fill in the connection parameters​

Enter the connection details and bind each field to a configurable variable.

  • Connection Name : The name used to identify this connection in the integration
  • Config : Authentication configuration referencing hubspotAuthToken as the OAuth token
  • Service Url : The HubSpot API base URL, referencing hubspotServiceUrl

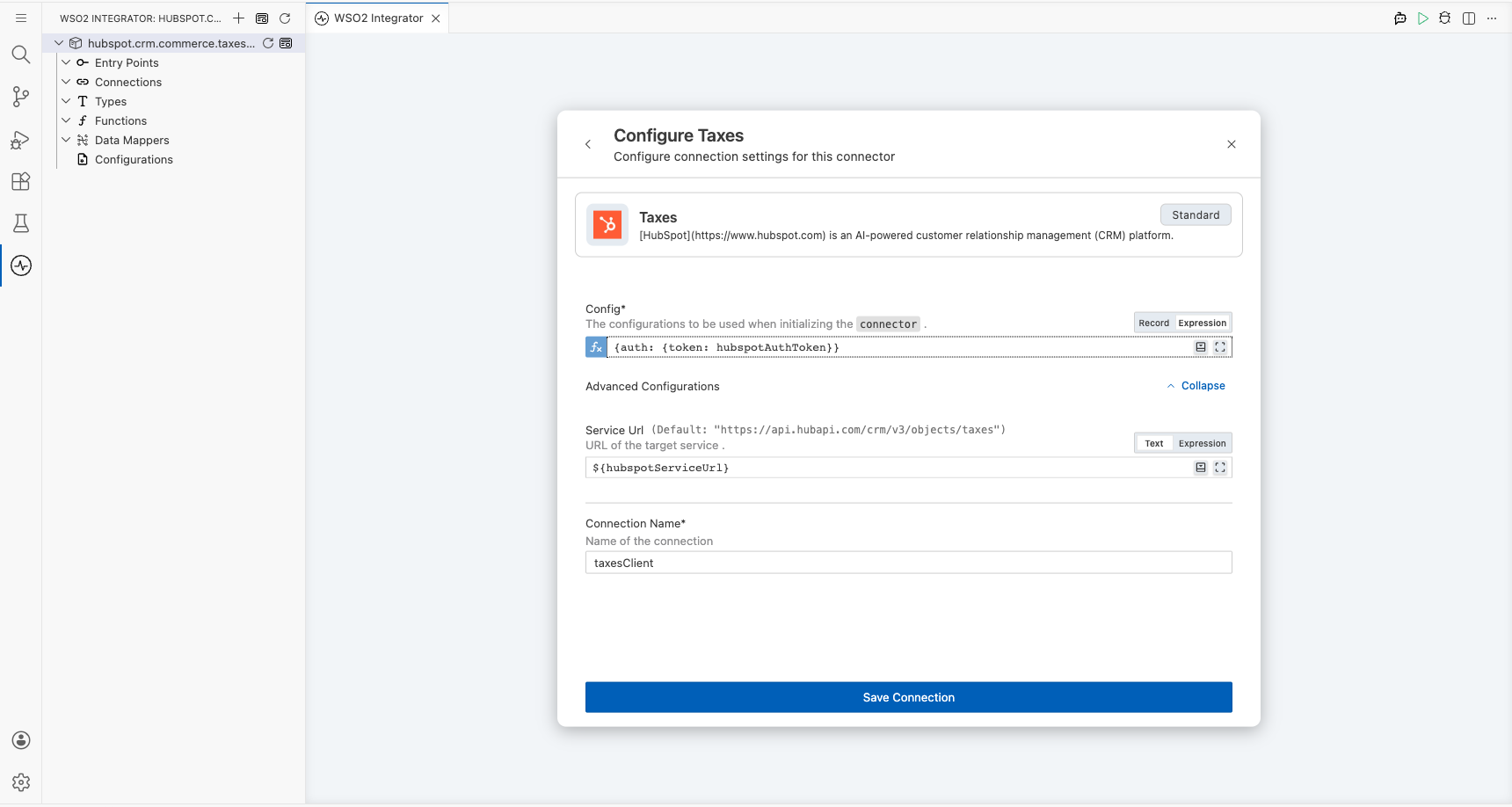

HubSpot CRM Commerce Taxes connection form fully filled with all parameters before saving

Step 3: Save the connection​

Select Save to create the connection. The canvas displays the taxesClient connection card, confirming the connection was created successfully.

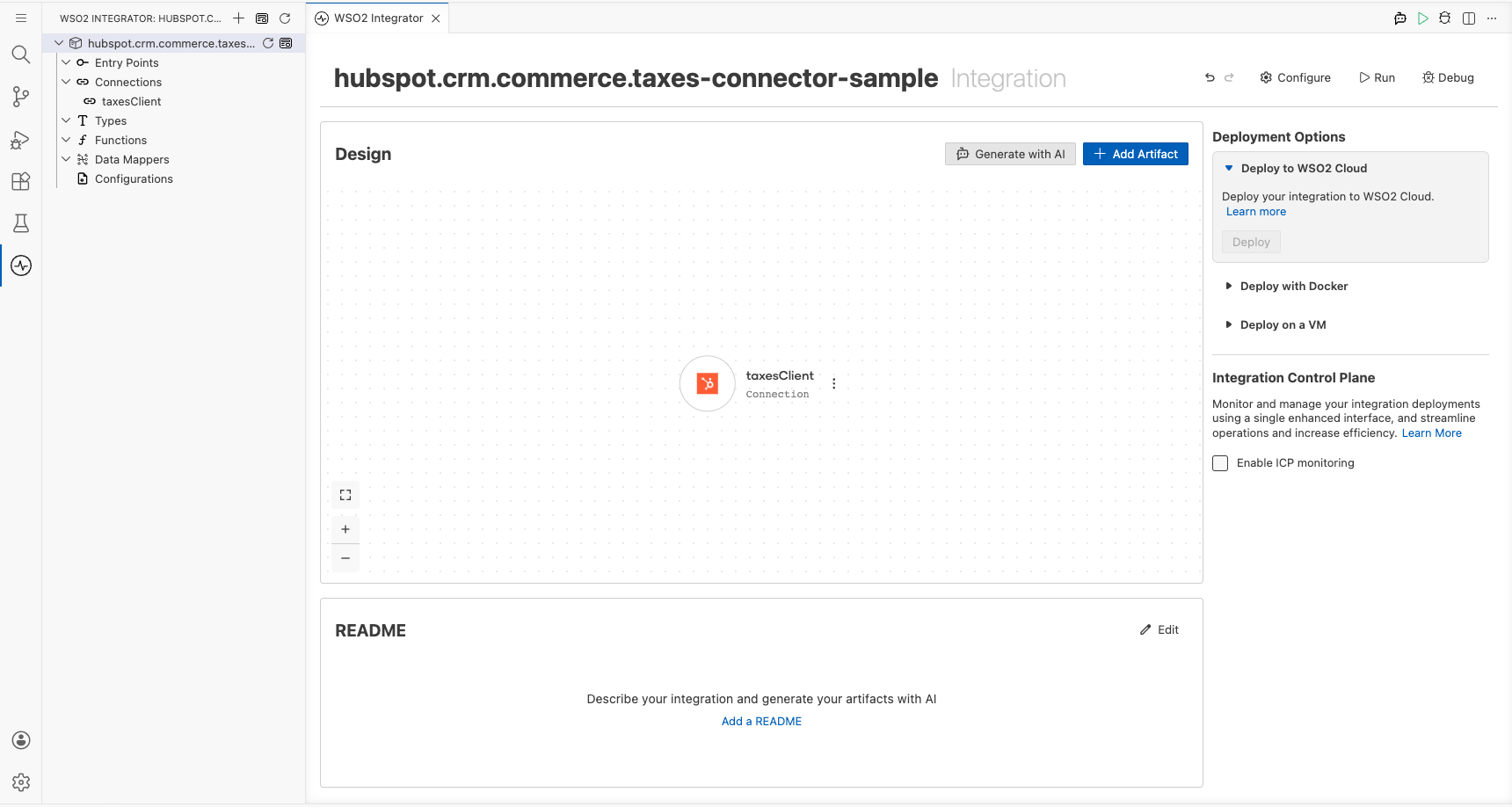

HubSpot CRM Commerce Taxes Connections panel showing taxesClient entry after saving

Step 4: Set actual values for your configurables​

In the left panel, select Configurations and set a value for each configurable listed below.

  • hubspotAuthToken (string) : Your HubSpot OAuth access token or private app token
  • hubspotServiceUrl (string) : The HubSpot API base URL (for example, https://api.hubapi.com)

Configuring the HubSpot CRM Commerce Taxes List operation​

Step 5: Add an Automation entry point​

  1. Select Add Artifact on the design canvas.
  2. Select Automation from the artifact options.
  3. Select Create to add the automation entry point.

Step 6: Select and configure the List operation​

Expand taxesClient in the Connections section of the node panel to view available operations, then select List and configure its parameters.

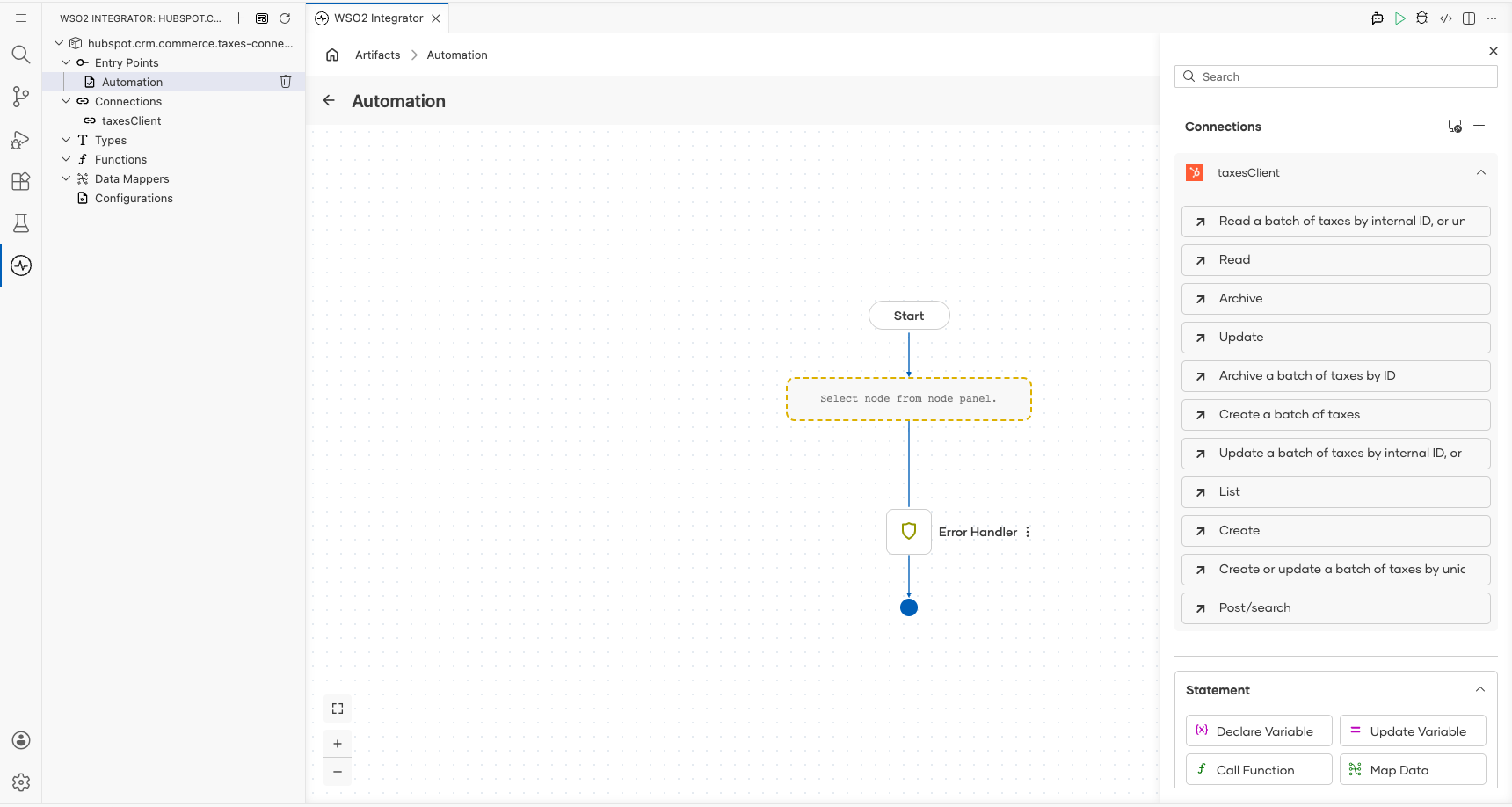

HubSpot CRM Commerce Taxes connection node expanded showing all available operations before selection

  • Result variable : Set to listResult to store the response containing tax records

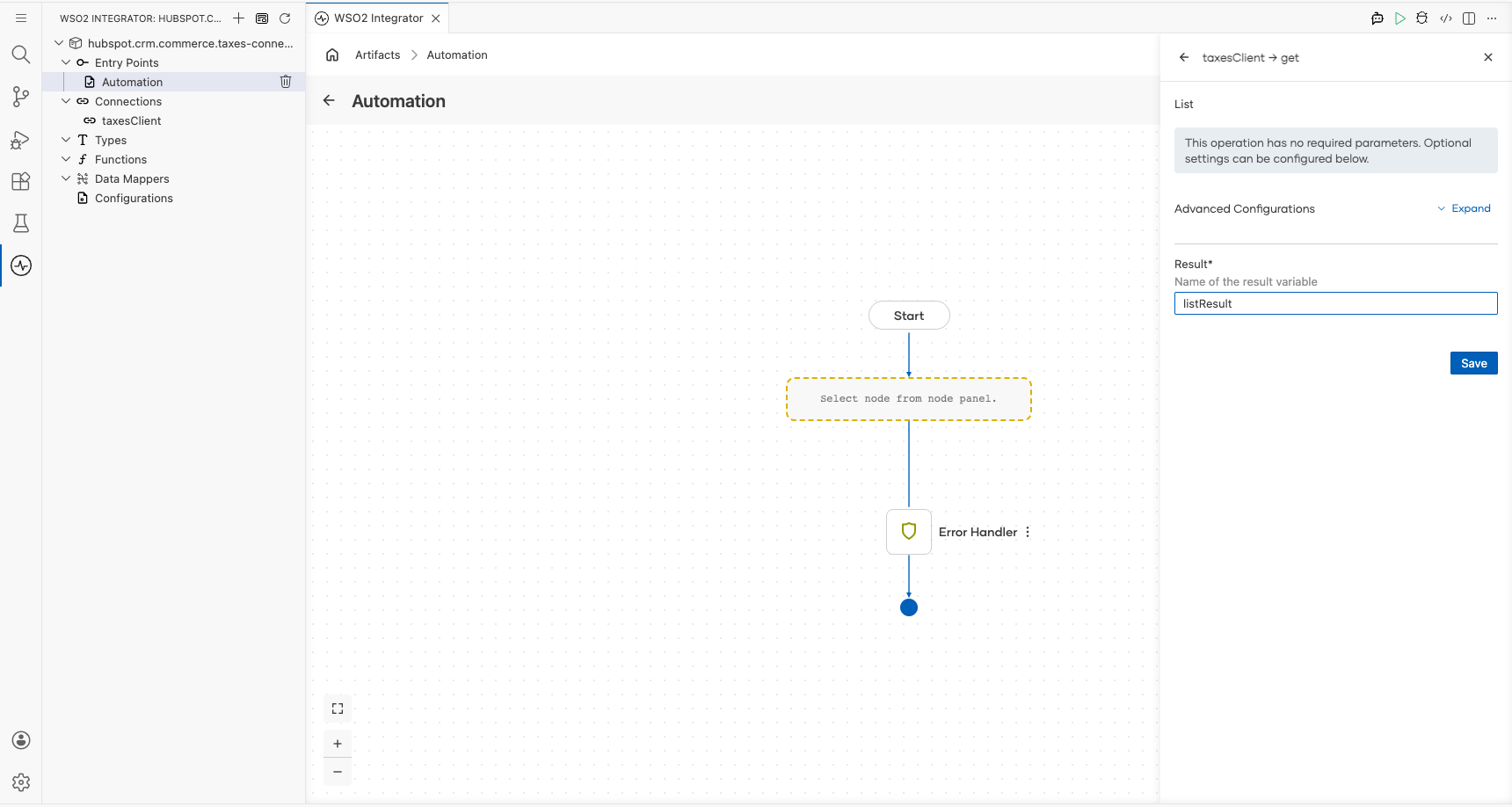

HubSpot CRM Commerce Taxes List operation configuration filled with all values

Select Save to add the operation to the flow.

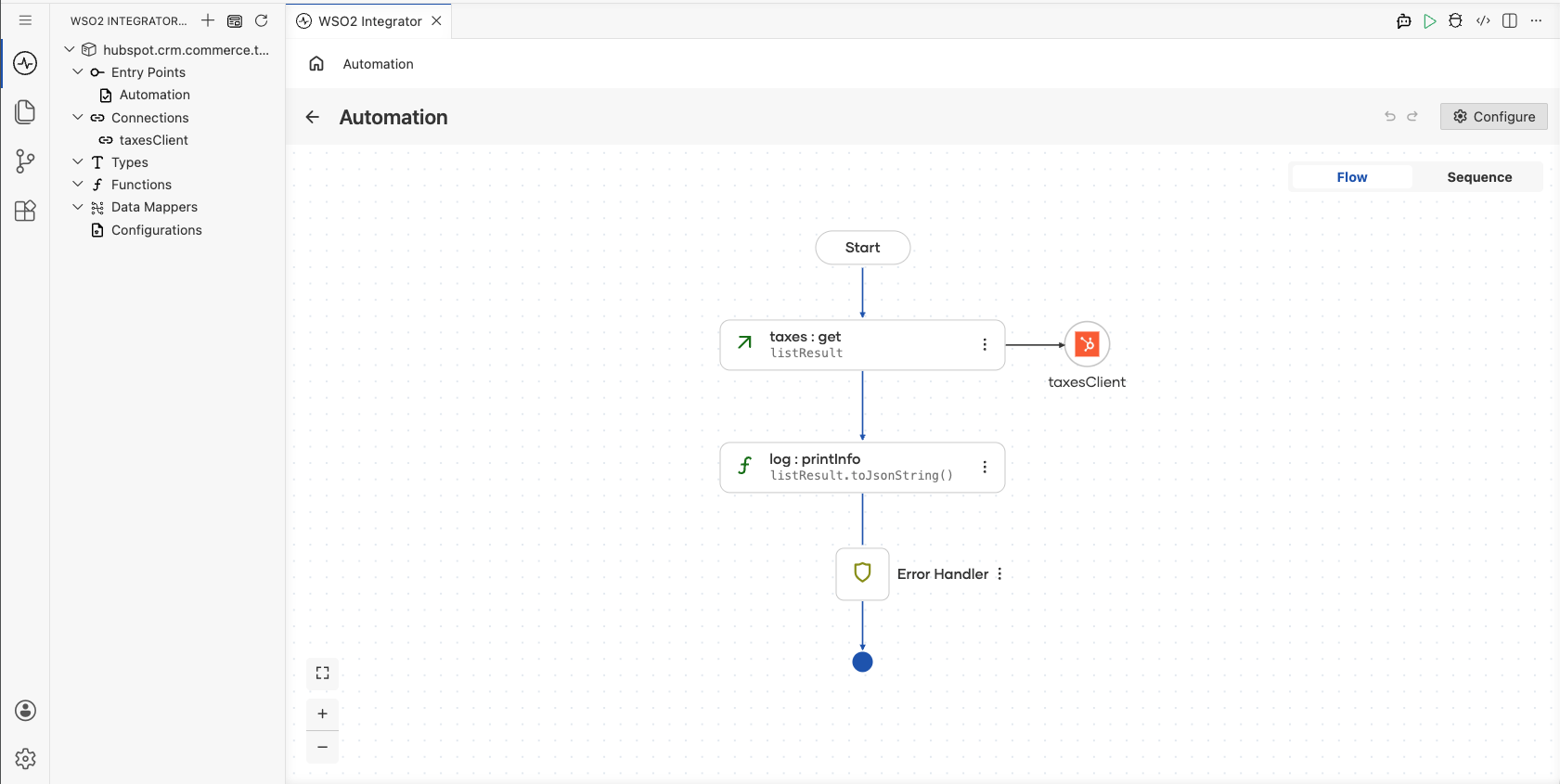

Completed HubSpot CRM Commerce Taxes automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The HubSpot CRM Commerce Taxes connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Manage Taxes - see how the Ballerina hubspot.crm.commerce.taxes connector can be used to create a tax and manage it through the sales pipeline.
  2. Search Taxes - see how the Ballerina hubspot.crm.commerce.taxes connector can be used to search for taxes using properties and create a batch of taxes
