Example

What you'll build​

This integration demonstrates how to connect to the HubSpot CRM Engagements Calls API using the HubSpot CRM Engagements Calls connector in WSO2 Integrator. The workflow creates a call engagement record in HubSpot CRM using the post /crm/v3/engagements/calls operation, populating required call properties such as title, body, duration, and status. The completed integration flow runs as an Automation that invokes the HubSpot connector, logs the returned engagement record, and handles errors gracefully via the built-in Error Handler.

Operations used:

  • post /crm/v3/engagements/calls : Creates a new call engagement record in HubSpot CRM with the specified properties and associations

Architecture​

Prerequisites​

  • A HubSpot developer account with an active app and a private app access token that has scopes for crm.objects.calls.write and crm.objects.calls.read.
  • The HubSpot private app access token ready to be used as the connector's auth credential.

Setting up the HubSpot CRM Engagements Calls integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot CRM Engagements Calls connector​

Step 1: Open the Add Connection palette​

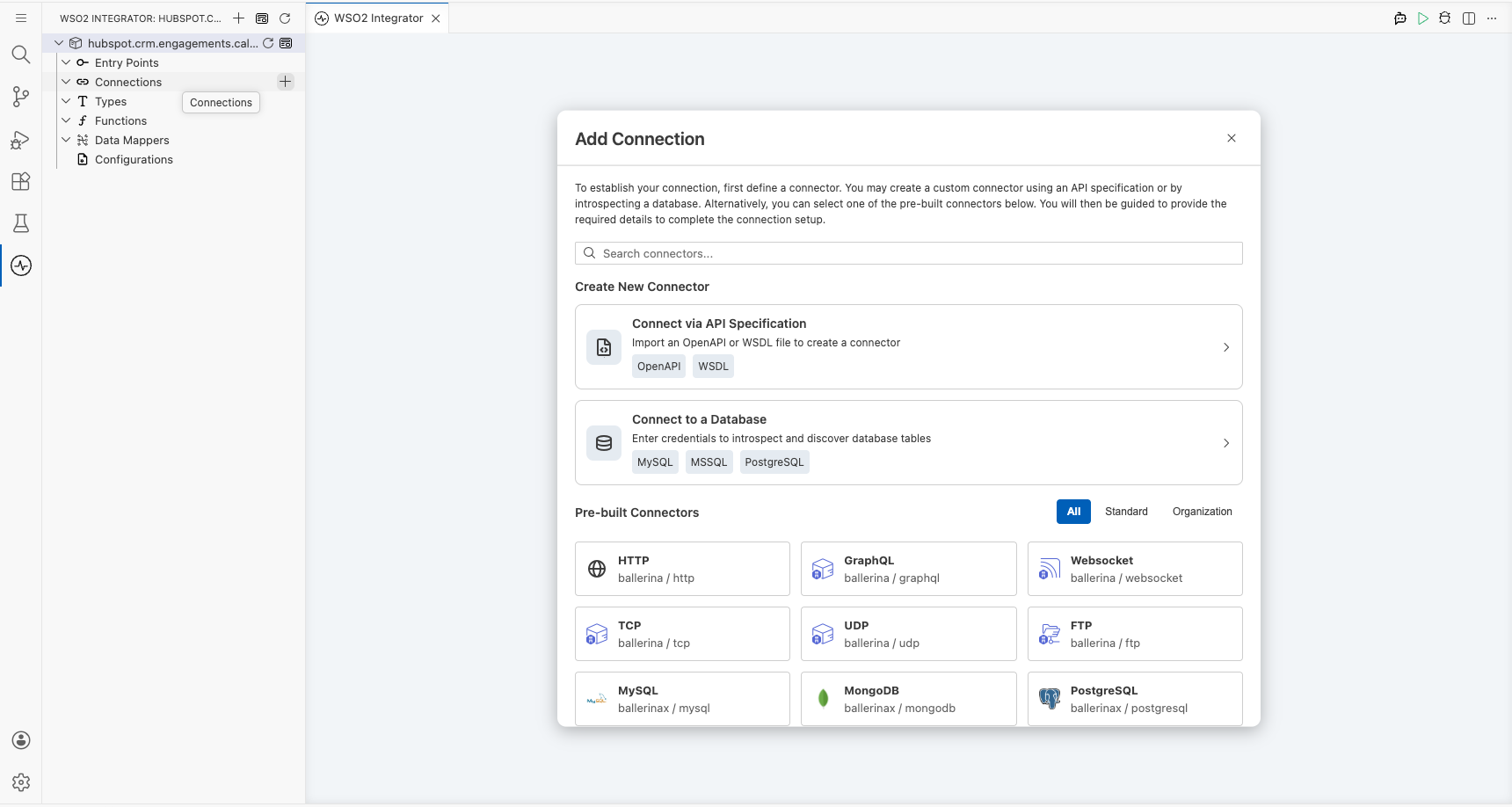

Select Add Connection (or the + icon next to the Connections section) in the low-code canvas to open the connector search palette. Connector palette open showing the search field and available connectors

Step 2: Search for and select the HubSpot CRM Engagements Calls connector​

  1. In the search box, enter hubspot.crm.engagements.calls to filter the connector list.
  2. Locate the Calls connector card.
  3. Select the connector card to open the connection configuration form.

Configuring the HubSpot CRM Engagements Calls connection​

Step 3: Bind connection parameters to configurable variables​

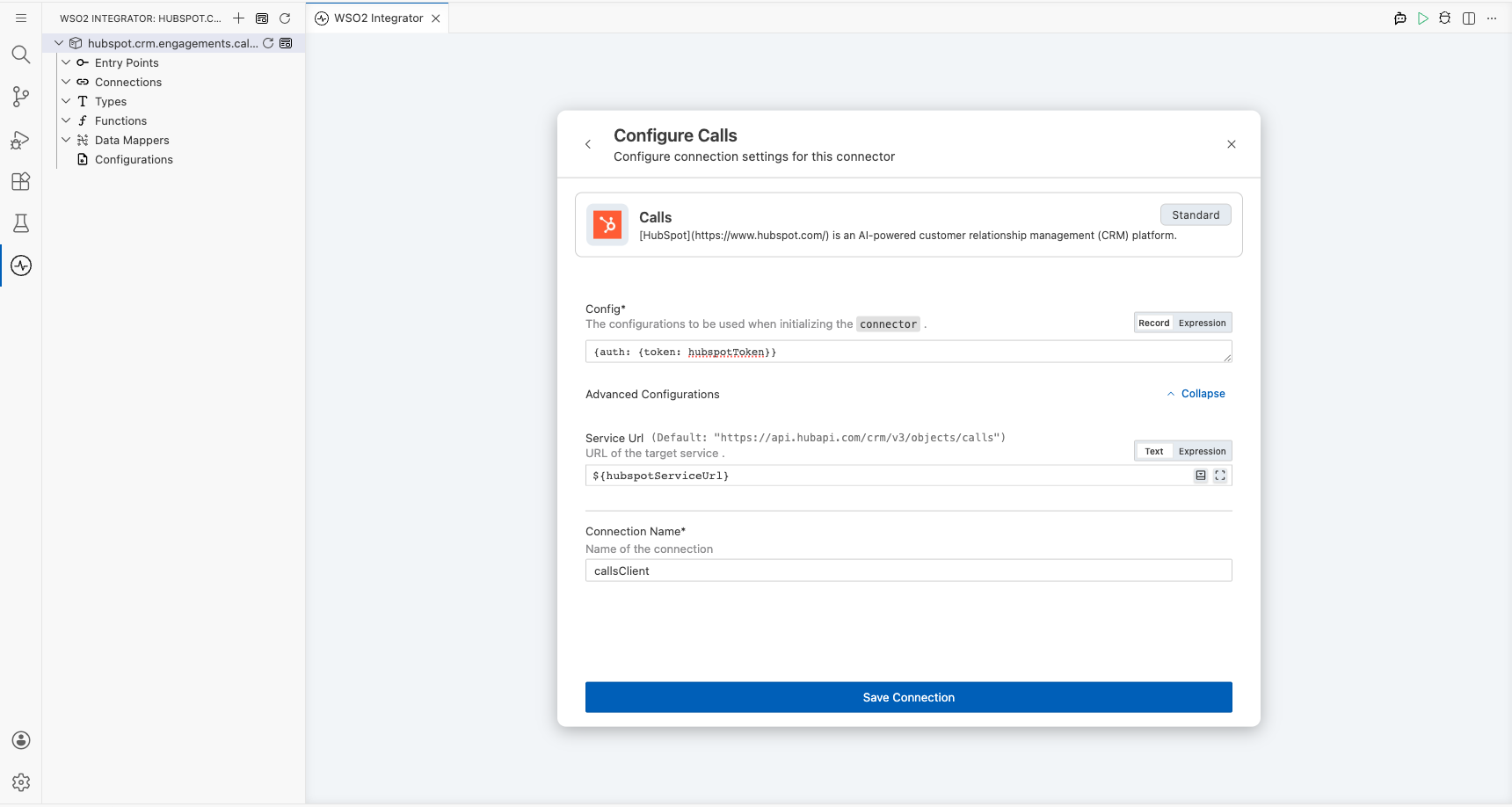

For each non-boolean field in the Configure HubSpot CRM Engagements Calls form, select Open Helper Panel, go to the Configurables tab, select + New Configurable, enter a descriptive variable name and type, and select Save to auto-inject the configurable reference into the field. Repeat for every visible non-boolean field.

  • Config : The connection configuration record containing authentication credentials
  • Service Url : The base URL for the HubSpot CRM Engagements Calls API endpoint Connection form showing all parameters bound to configurable variables before saving

Step 4: Save the HubSpot CRM Engagements Calls connection​

Select Save to persist the connection.

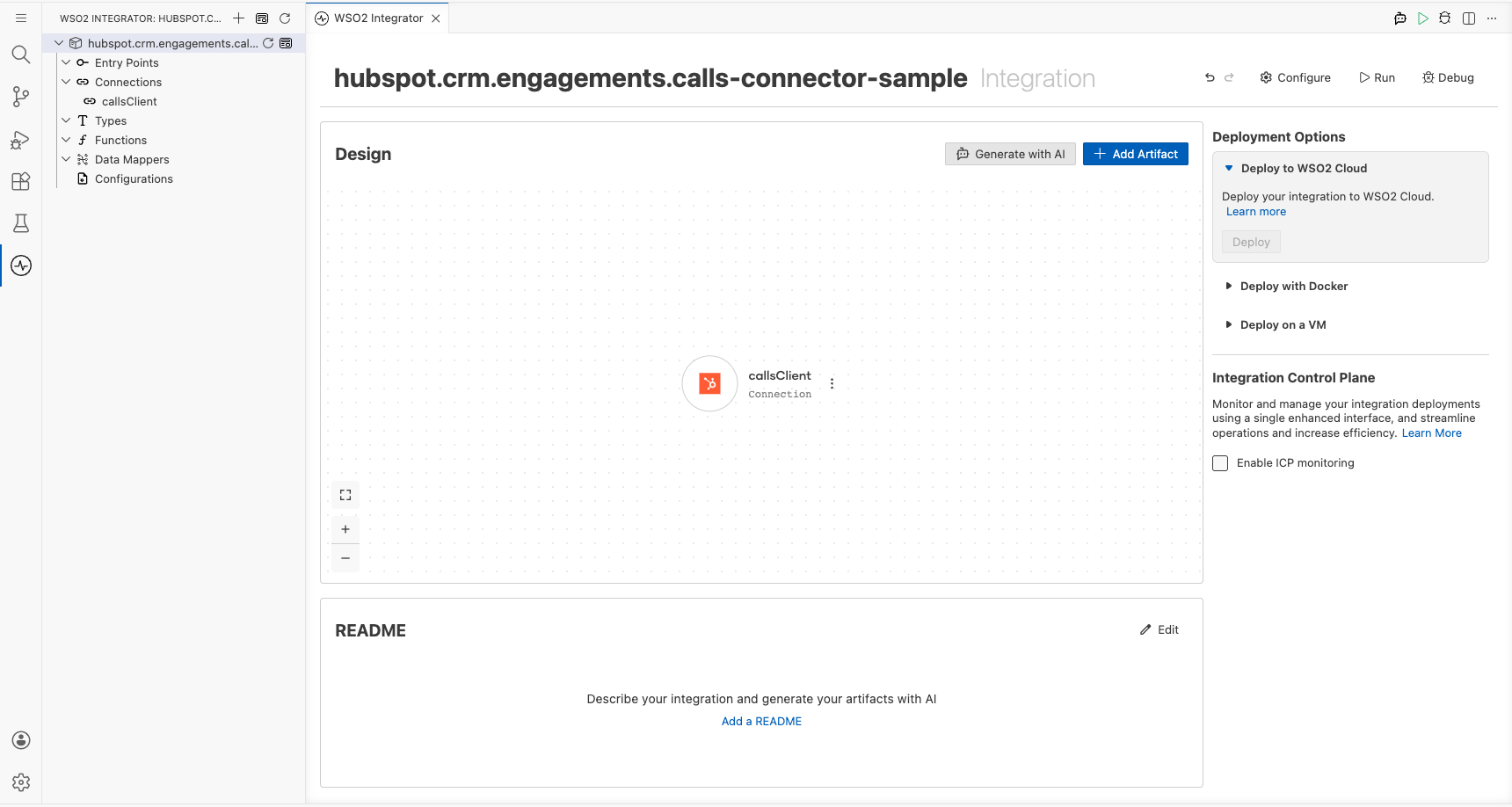

Use hubspot.crm.engagements.calls as the exact connection name. On the low-code canvas, confirm that a connection node named hubspot.crm.engagements.calls appears in the Connections panel. Canvas showing the hubspot.crm.engagements.calls connector node in the Connections panel after saving

Step 5: Set actual values for your configurables​

  1. In the left panel of WSO2 Integrator, select Configurations (listed at the bottom of the project tree, under Data Mappers).
  2. Set a value for each configurable listed below.
  • hubspotServiceUrl (string) : The base URL for the HubSpot CRM Engagements Calls API
  • hubspotToken (string) : Your HubSpot private app access token with CRM calls read/write scopes

Configuring the HubSpot CRM Engagements Calls post operation​

Step 6: Add an Automation entry point​

  1. In the left sidebar, hover over Entry Points and select Add Entry Point, or select Add Artifact on the Design canvas.
  2. Select Automation in the artifact selection panel.
  3. Select Create in the dialog to accept the default settings and add the Automation entry point to the canvas.

Step 7: Select and configure the post /crm/v3/engagements/calls operation​

  1. Select + (Add Step) in the automation flow between the Start and Error Handler nodes.

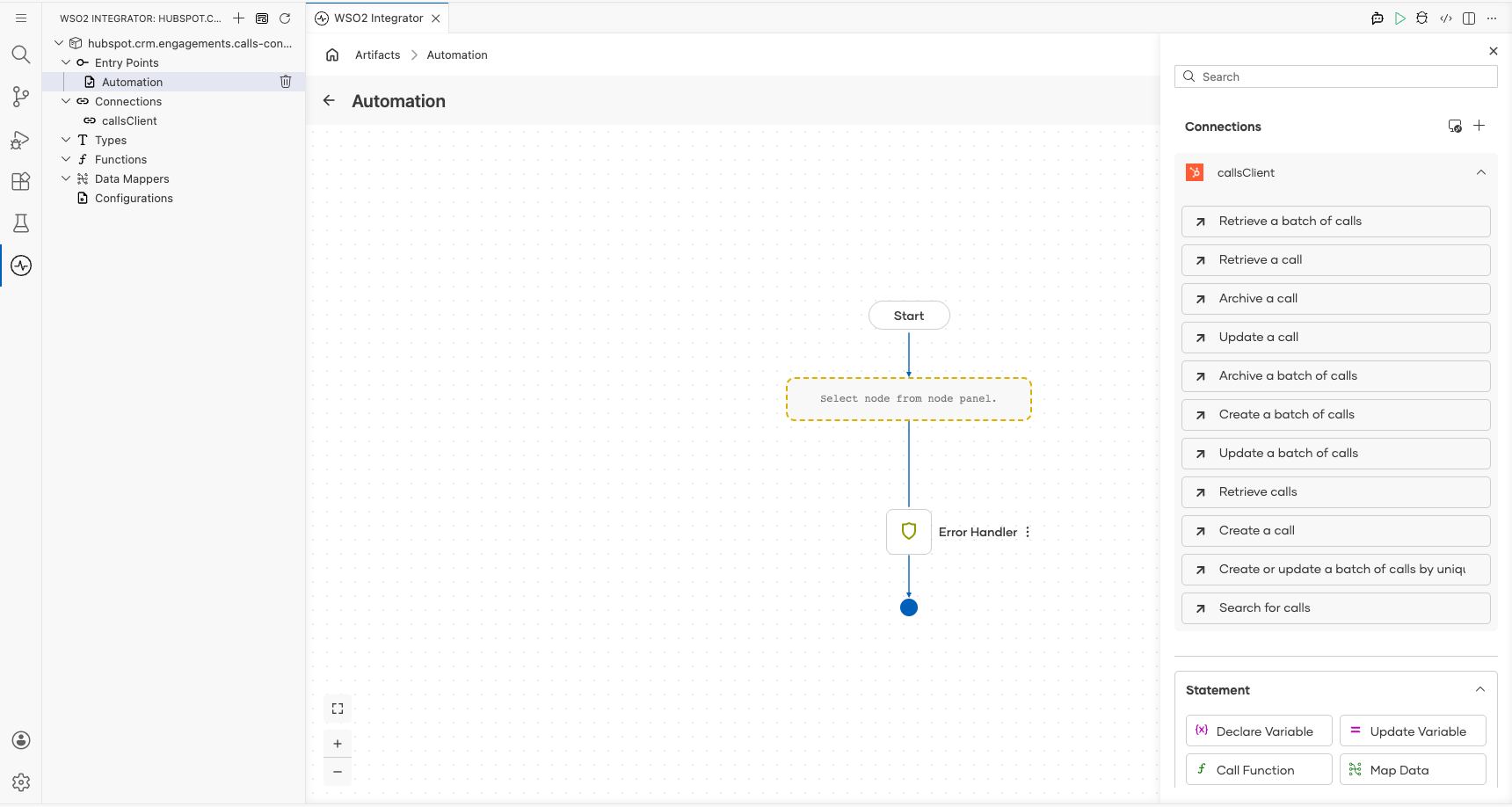

  2. Under Connections in the node panel, select the hubspot.crm.engagements.calls node to expand it and reveal all available operations. hubspot.crm.engagements.calls connection node expanded showing all available operations before selection

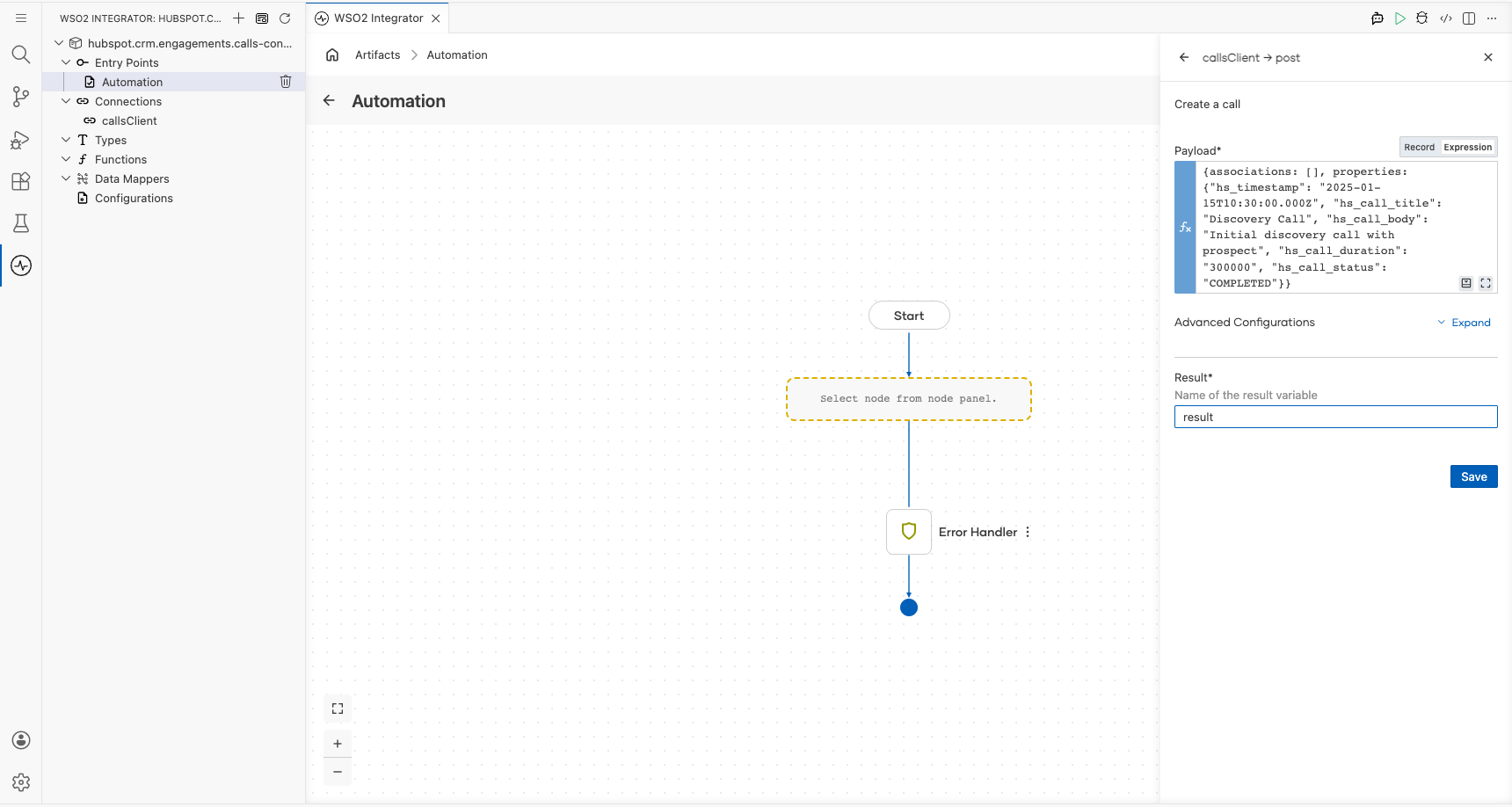

  3. Select Create a call (the post /crm/v3/engagements/calls operation) from the list, then fill in the operation fields:
  • Payload : The SimplePublicObjectInputForCreate record containing the call engagement data, including hs_timestamp, hs_call_title, hs_call_body, hs_call_duration, and hs_call_status
  • Result : The variable name to capture the returned SimplePublicObject; enter result

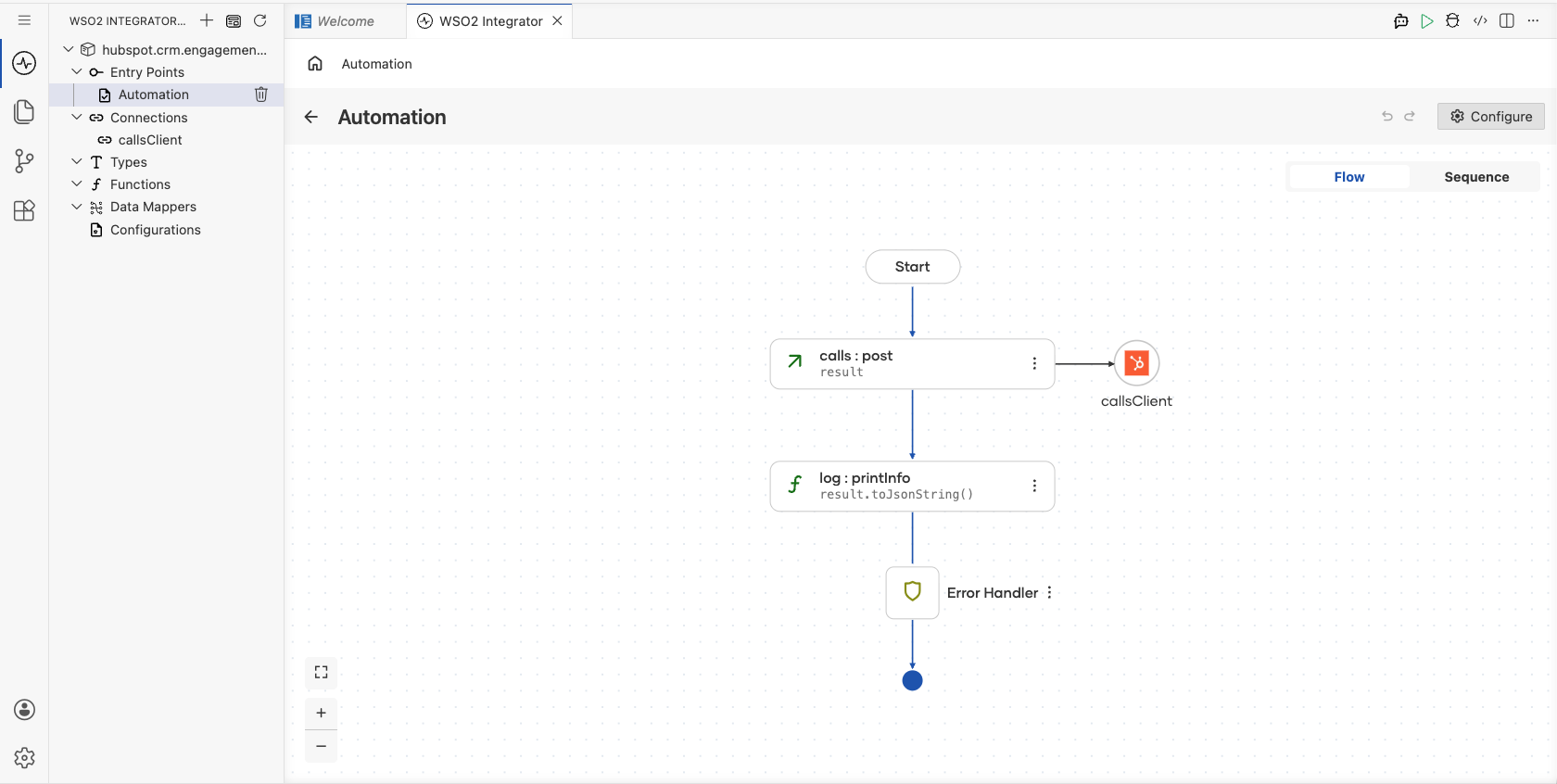

  1. Select Save to add the step to the automation flow. Operation configuration panel showing all fields filled for post /crm/v3/engagements/calls Completed flow showing Automation trigger, post /crm/v3/engagements/calls node, log node, and Error Handler connected on the canvas

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub
