Setup Guide

This guide walks you through creating a HubSpot developer app and obtaining the OAuth 2.0 credentials required to use the HubSpot CRM Extensions Timelines connector.

Prerequisites​

Step 1: Log in to the HubSpot developer portal​

Log in to your HubSpot developer account.

Step 2: Create a developer test account (optional)​

Developer test accounts let you test apps and integrations without affecting real HubSpot data.

  1. Select Test accounts in the left sidebar.

    Developer portal

  2. Select Create developer test account.

    Create test account

  3. Provide a name and select Create.

    Name the test account

note

Developer test accounts are for development and testing only. Do not use them in production.

Step 3: Create a HubSpot app​

  1. Navigate to Apps and select Create App.

    Create app

  2. Provide the app name and description.

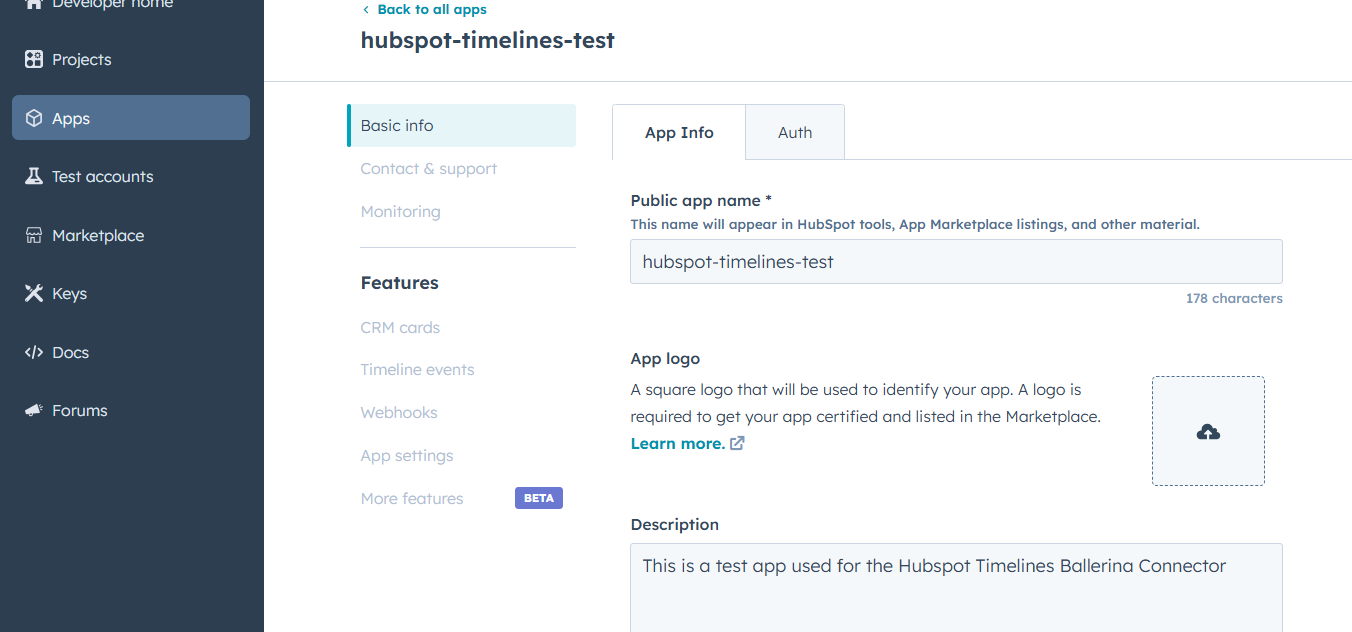

    App name and description

Step 4: Configure authentication​

  1. Under Scopes, select Add new scope and add the required scopes (for example, crm.objects.contacts.read, crm.objects.contacts.write, timeline).

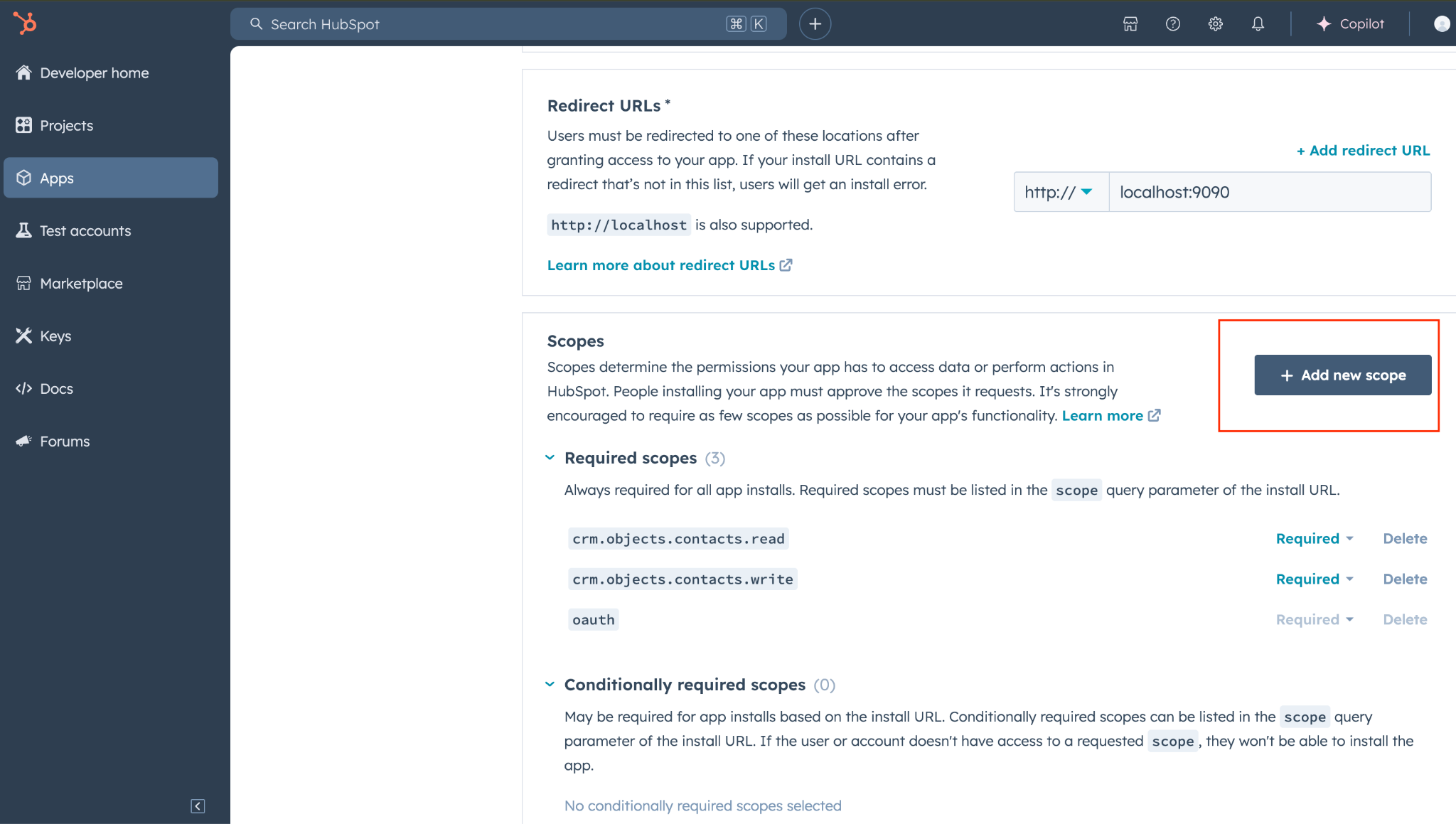

    Set scope

  2. Add your redirect URI and select Create App.

    Create app with redirect

Step 5: Get the client ID and client secret​

In the Auth section, copy the Client ID and Client Secret. Also note your App ID from the app settings page.

Get credentials

Step 6: Get the refresh token​

  1. Construct the authorization URL:

    https://app.hubspot.com/oauth/authorize?client_id=<YOUR_CLIENT_ID>&scope=<YOUR_SCOPES>&redirect_uri=<YOUR_REDIRECT_URI>

  2. Open the URL in a browser and select your developer test account.

  3. Copy the authorization code from the redirect URL.

  4. Exchange the code for tokens:

    curl --request POST \
      --url https://api.hubapi.com/oauth/v1/token \
      --header 'content-type: application/x-www-form-urlencoded' \
      --data 'grant_type=authorization_code&code=<CODE>&redirect_uri=<YOUR_REDIRECT_URI>&client_id=<YOUR_CLIENT_ID>&client_secret=<YOUR_CLIENT_SECRET>'

  5. Copy the refresh_token from the response.

Step 7: Get the developer API key (optional)​

Some endpoints require a developer API key. Follow the HubSpot developer tools overview to obtain one.

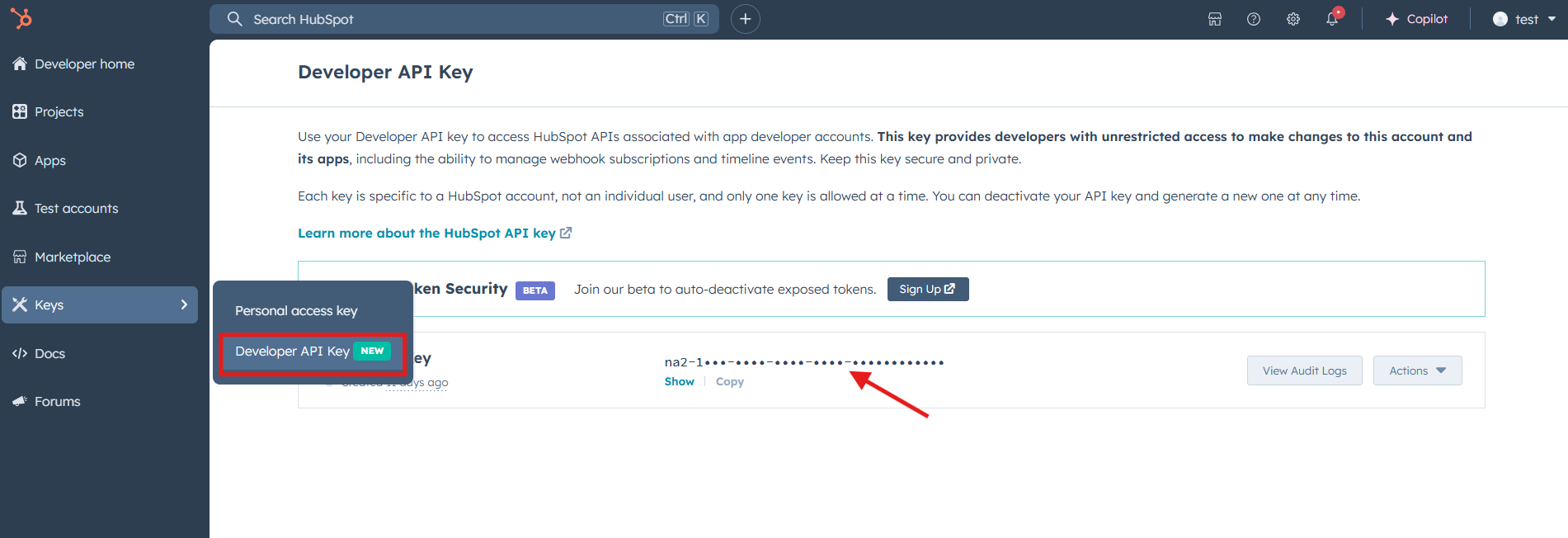

Developer key

tip

Store the client ID, client secret, refresh token, and developer API key securely. Use Ballerina's configurable feature and a Config.toml file to supply them at runtime.
