Example

What you'll build​

Build a WSO2 Integrator automation that uses the HubSpot CRM Extensions Timelines connector to create a custom timeline event template in HubSpot CRM. The integration authenticates with a Bearer token stored as a configurable variable and calls the createEventType operation to register a new event template scoped to a specific HubSpot app.

Operations used:

  • createEventType : Creates a new custom timeline event template for a HubSpot private app, scoped to a CRM object type such as contacts, companies, or deals

Architecture​

Prerequisites​

  • A HubSpot developer account with a private app token that has Timeline API scopes

Setting up the HubSpot Timelines integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot Timelines connector​

Select Add Connection in the Connections section of the WSO2 Integrator sidebar. The connector palette opens.

HubSpot Timelines connector palette open with search field before any selection

Search for hubspot.crm.extensions.timelines in the search field, then select the Timelines connector card to open the connection configuration form.

Configuring the HubSpot Timelines connection​

Step 1: Fill in the connection parameters​

In the Configure Timelines form, bind each connection parameter to a configurable variable:

  • auth.token : Bind to the hubspotAuthToken configurable variable to supply your HubSpot Bearer token

Keep the Connection Name as timelinesClient.

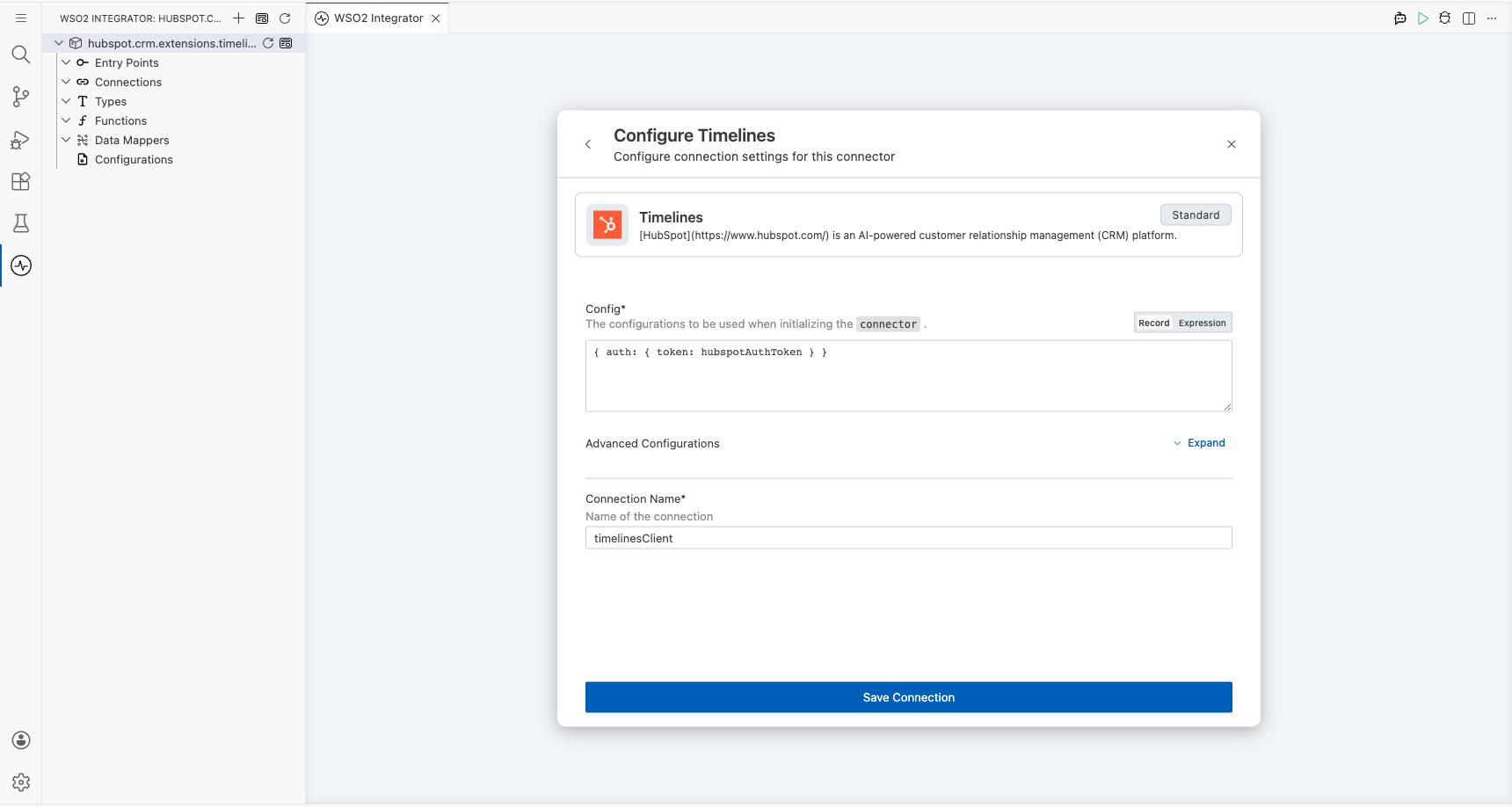

HubSpot Timelines connection form fully filled with all parameters before saving

Step 2: Save the connection​

Select Save Connection to persist the connection. The connector is added to the canvas and appears under Connections in the sidebar.

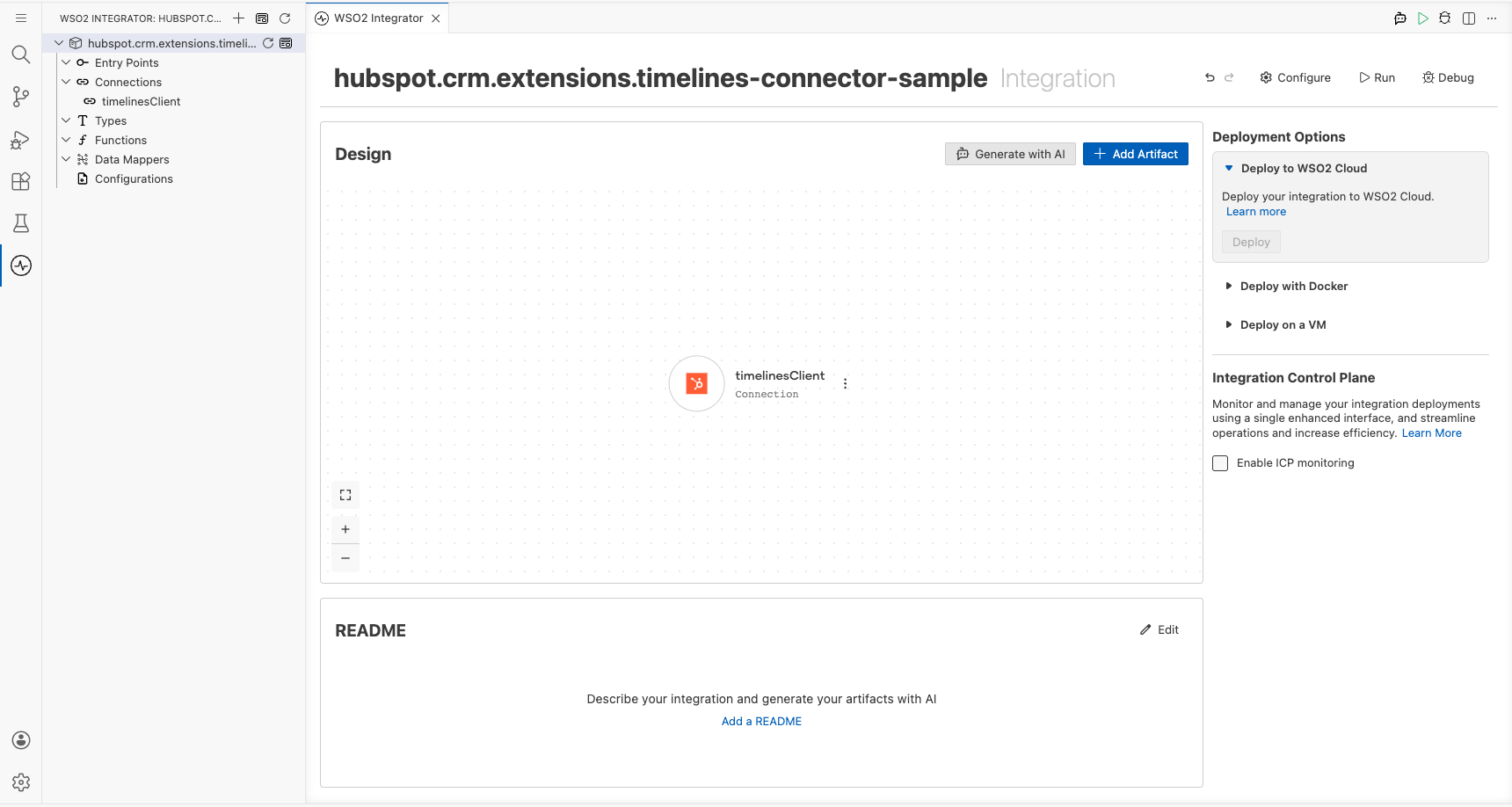

HubSpot Timelines Connections panel showing timelinesClient entry after saving

Step 3: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • hubspotAuthToken (string) : Your HubSpot private app Bearer token (for example, pat-na1-xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx)

Configuring the HubSpot Timelines createEventType operation​

Step 4: Add an Automation entry point​

On the canvas overview, select + Add Artifact. In the Artifacts panel, select Automation, then select Create to scaffold the automation with a main() function.

Step 5: Select and configure the createEventType operation​

Select the + placeholder node between Start and Error Handler on the Automation canvas. The node panel opens. Under Connections, select timelinesClient to expand all available operations.

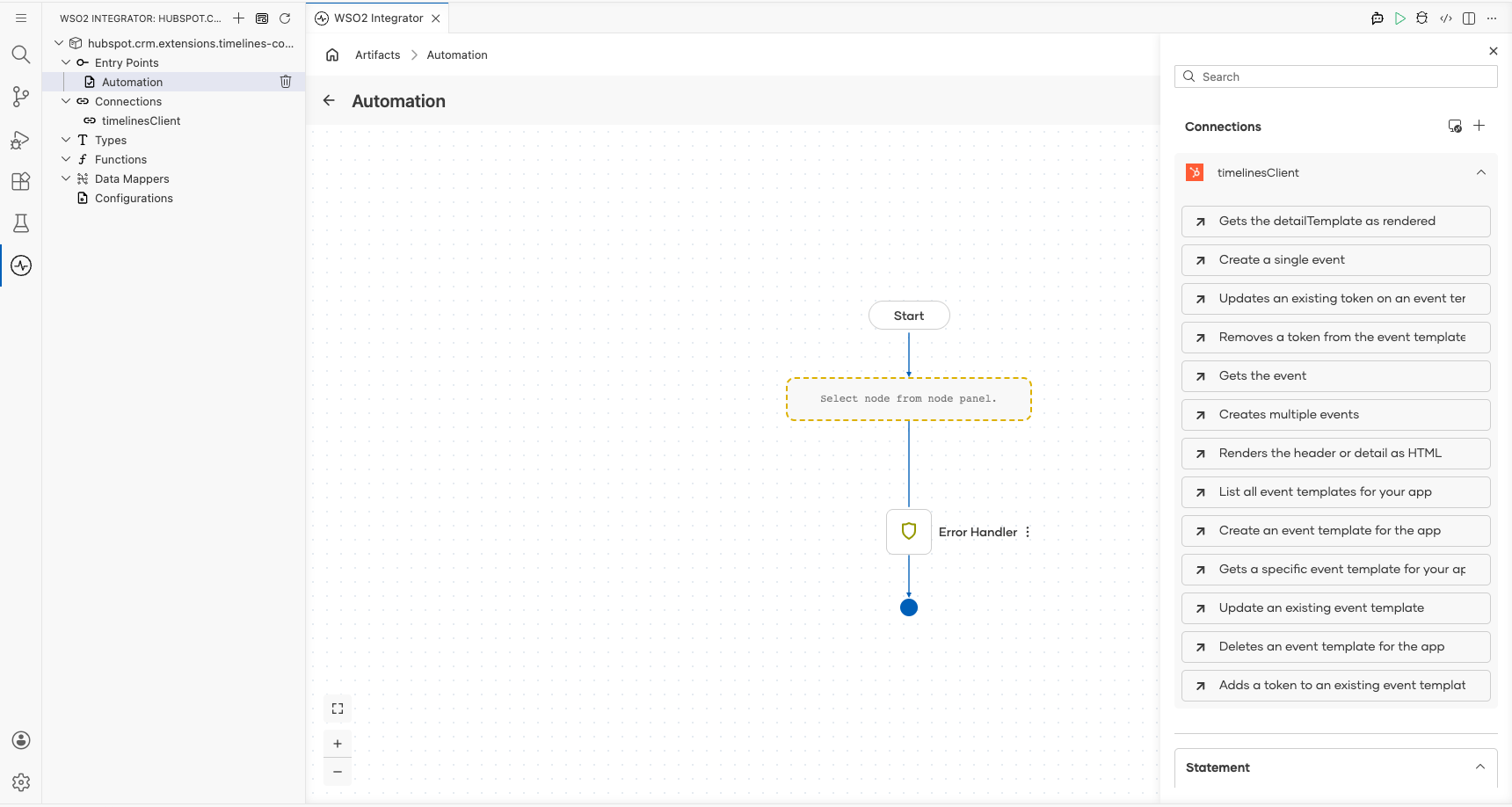

HubSpot Timelines connection node expanded showing all available operations before selection

Select Create an event template for the app (maps to createEventType). In the operation form, fill in the following fields:

  • appId : Your HubSpot app ID
  • payload : A TimelineEventTemplateCreateRequest record specifying the template name, an empty tokens list, and the target objectType (for example, "contacts", "companies", or "deals")
  • result : The variable name for the returned TimelineEventTemplate

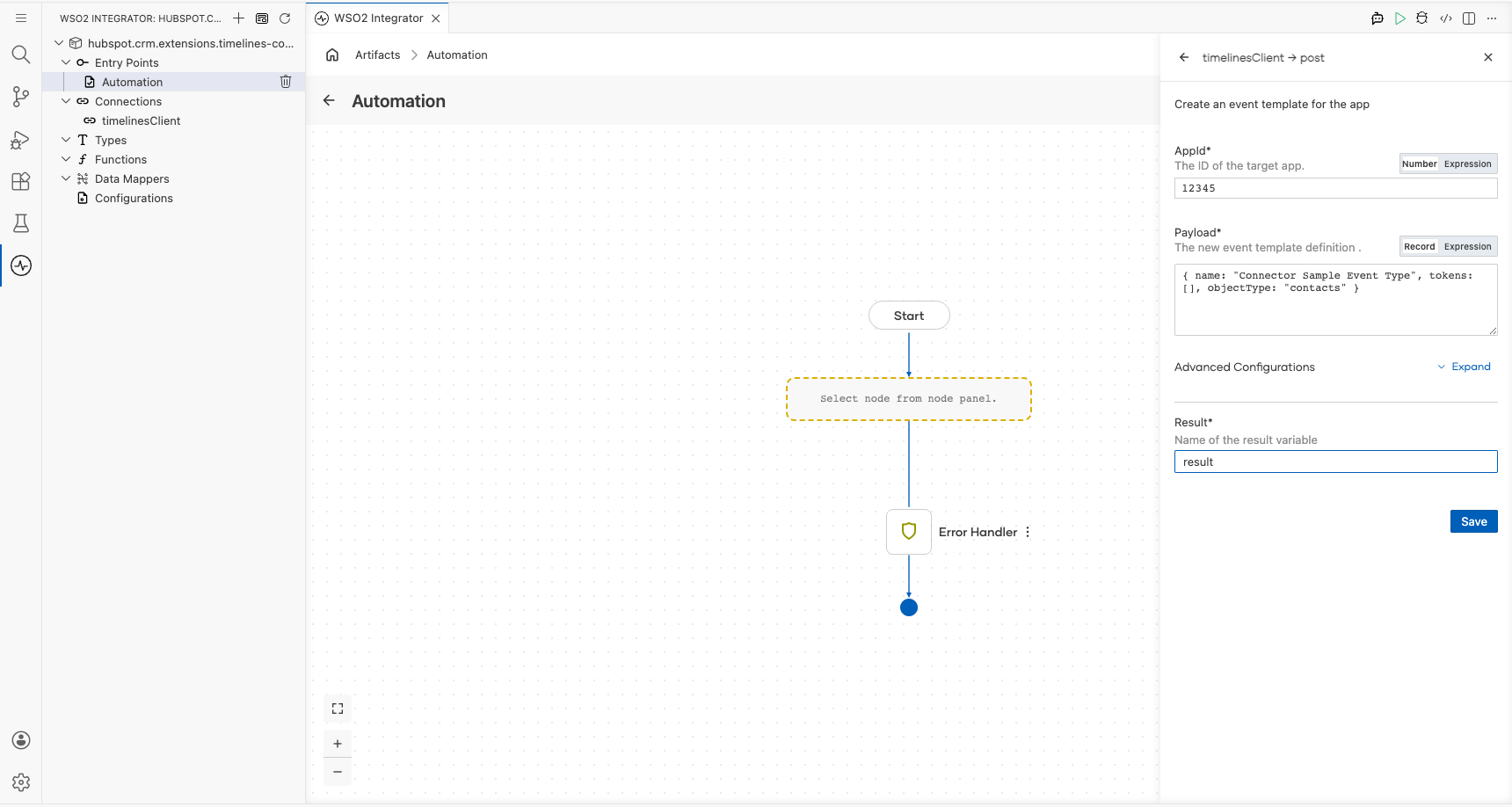

HubSpot Timelines createEventType operation configuration filled with all values

Select Save to add the operation node to the canvas.

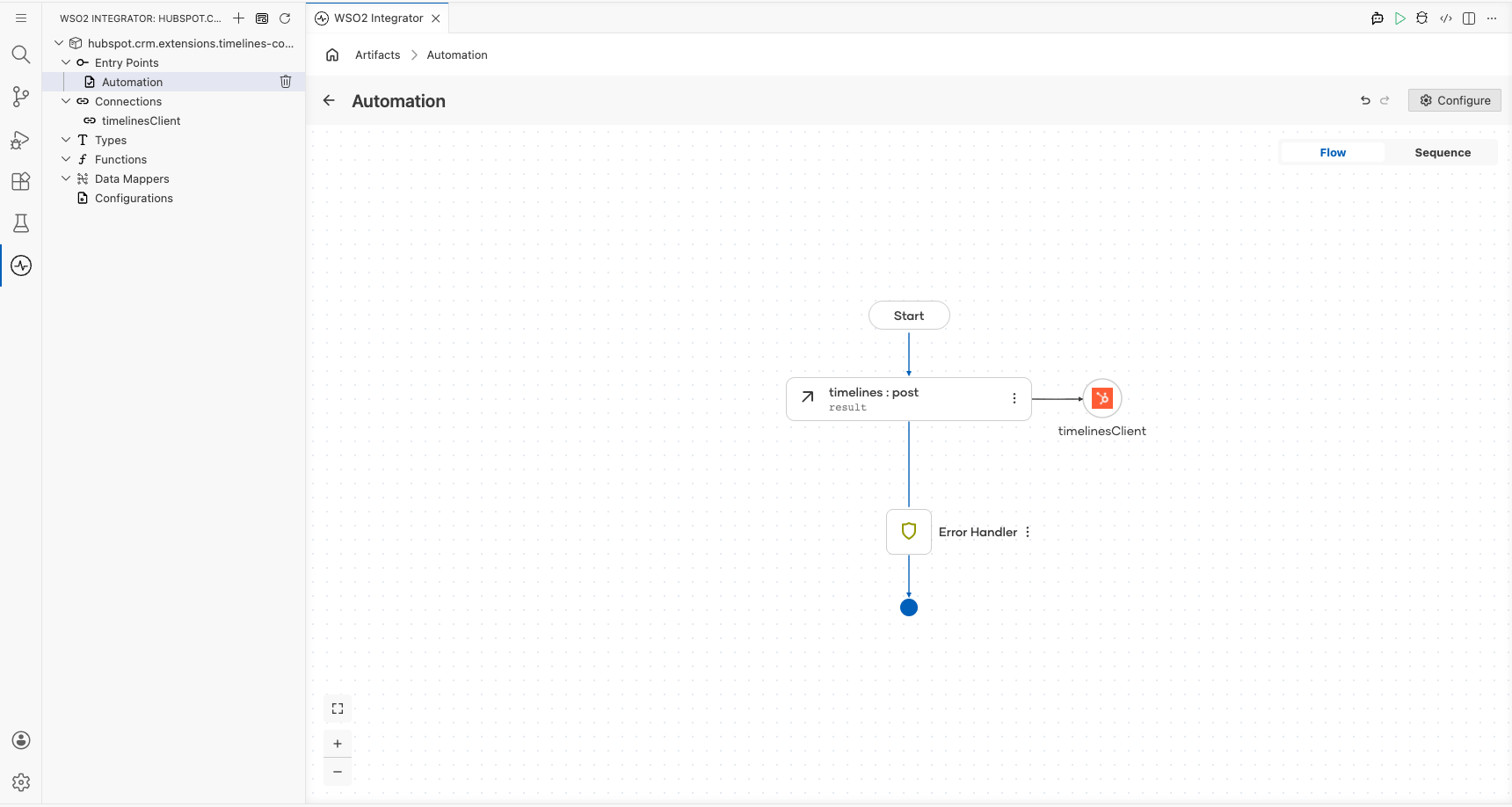

Completed HubSpot Timelines automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The HubSpot CRM Timelines connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Event Creation: This example demonstrates how to create a timeline event template, retrieving existing events, and creating an event using the template with their details in a structured format.
