What you'll build​

Build a WSO2 Integrator automation that connects to HubSpot CRM and retrieves all CRM lists using the ballerinax/hubspot.crm.lists connector. The integration authenticates with a Bearer token and returns the full list of HubSpot CRM lists as a JSON response.

Operations used:

  • getAllLists : Fetches all HubSpot CRM lists and returns a lists:ListsByIdResponse result

Architecture​

Prerequisites​

  • A HubSpot account with a valid Bearer token (private app token)

Setting up the HubSpot CRM Lists integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot CRM Lists connector​

Step 1: Open the Add Connection palette​

Select Add Artifact → Connection (or select + next to Connections in the sidebar) to open the connector search palette.

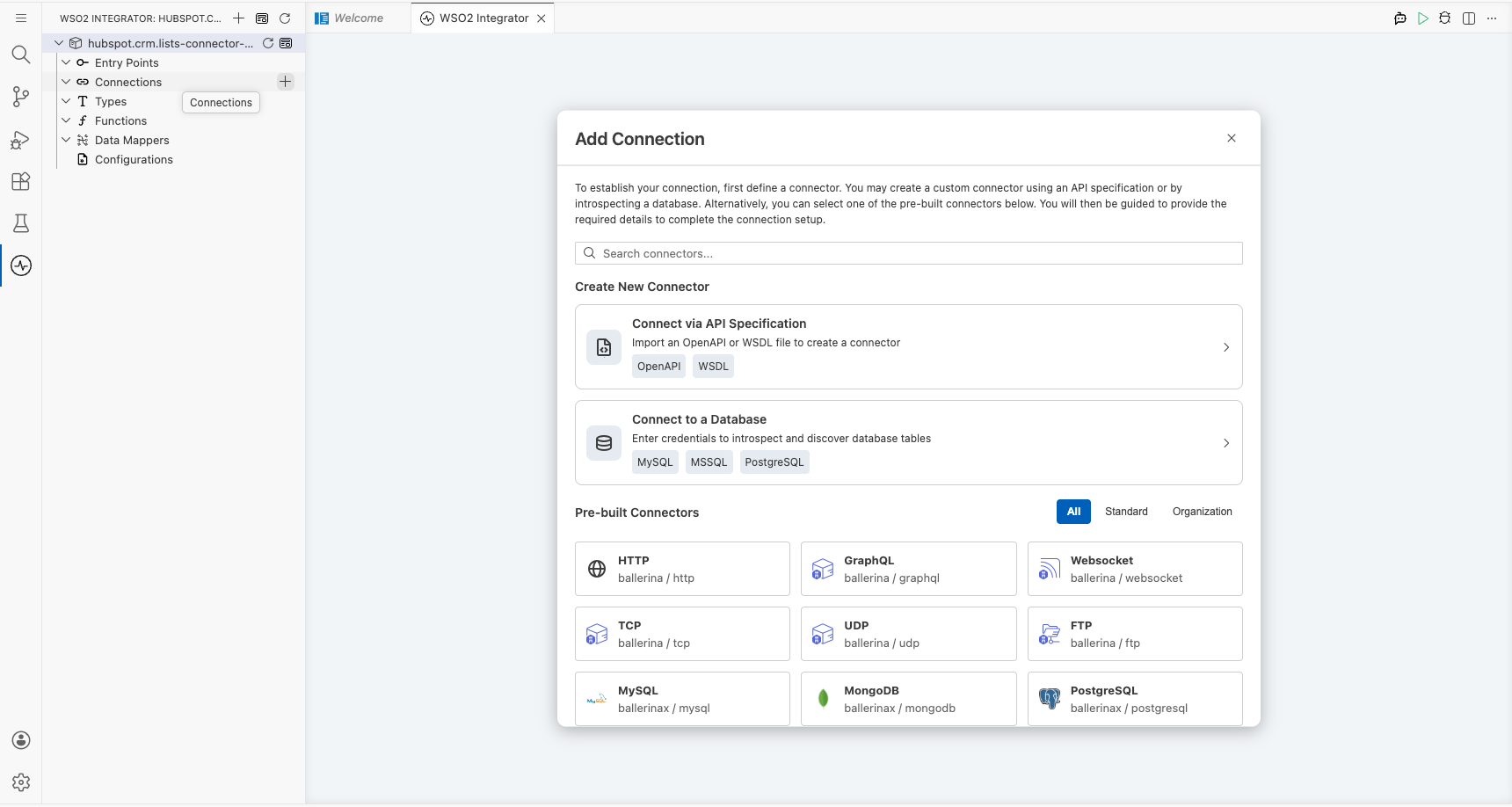

HubSpot CRM Lists connector palette open with search field before any selection

Step 2: Add an Automation entry point​

  1. Select + Add Artifact on the canvas.
  2. Select Automation in the artifact palette.
  3. Select Create to add a new automation with default settings.

The automation flow opens showing a Start → Error Handler skeleton.

Configuring the HubSpot CRM Lists connection​

Step 3: Fill in the connection parameters​

The Configure Lists form opens. Use configurable variables to bind the connection parameters securely.

  • auth: Bearer token configuration referencing the hubspotToken configurable variable: enter {auth: {token: hubspotToken}} in the Config expression field
  • connectionName: Name for this connection: keep the default listsClient

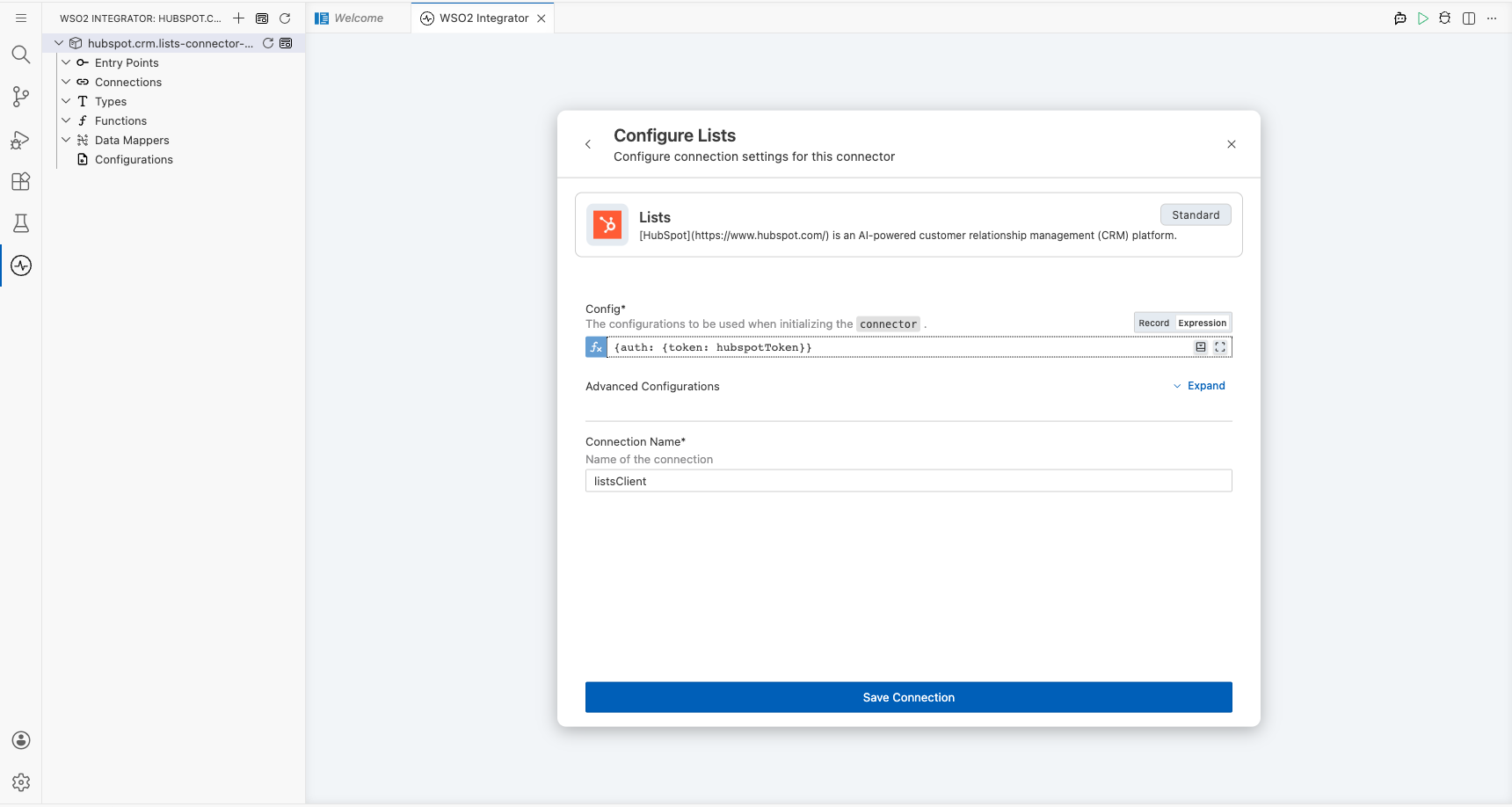

HubSpot CRM Lists connection form fully filled with all parameters before saving

Step 4: Save the connection​

Select Save Connection to persist the connection. The canvas returns to the project overview and shows the listsClient connection node in the Design area.

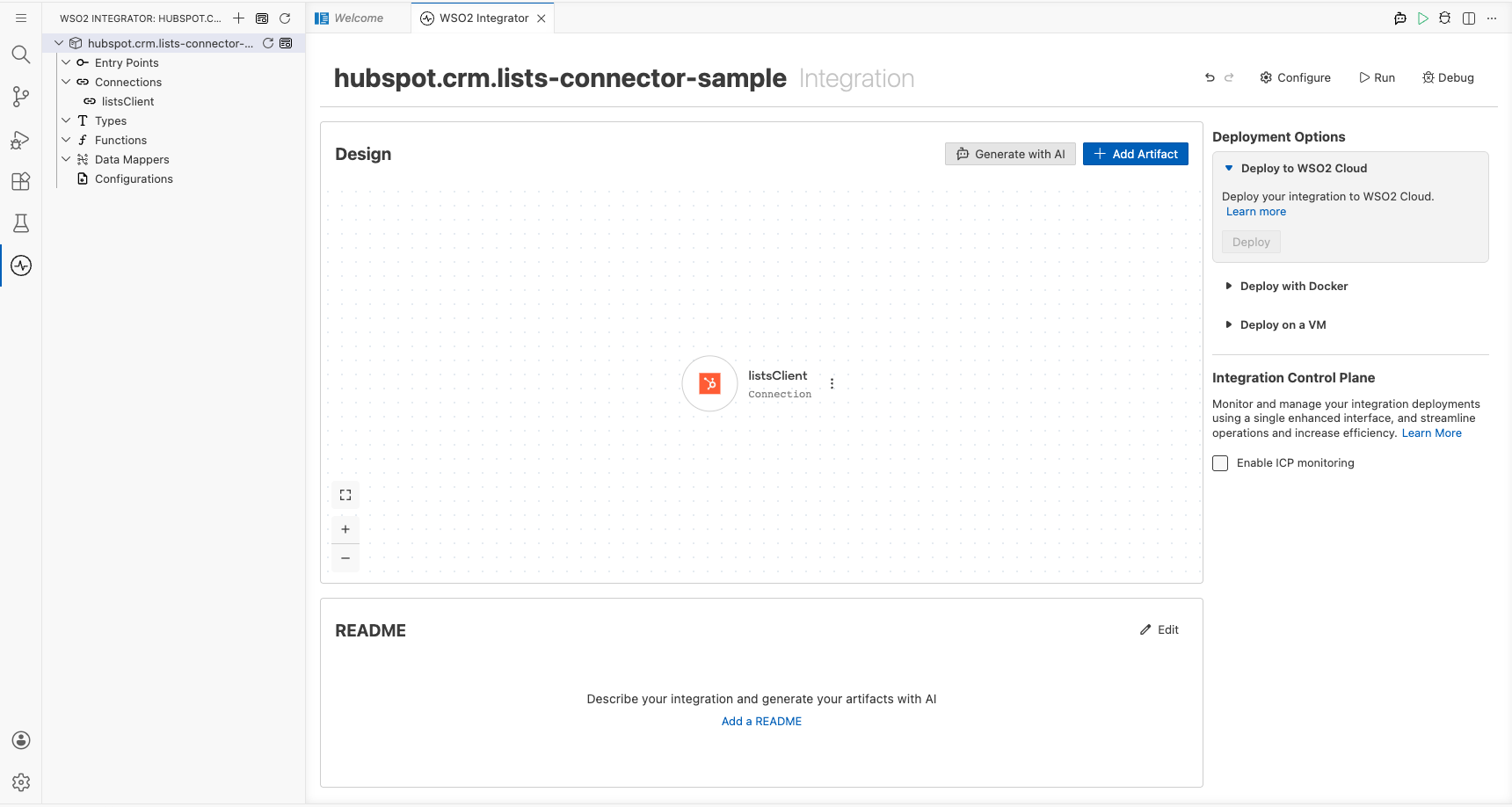

HubSpot CRM Lists Connections panel showing listsClient entry after saving

Step 5: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • hubspotToken (string) : Your HubSpot private app Bearer token

Configuring the HubSpot CRM Lists getAllLists operation​

Step 6: Select and configure the getAllLists operation​

Select the + button between Start and Error Handler to open the step-addition panel.

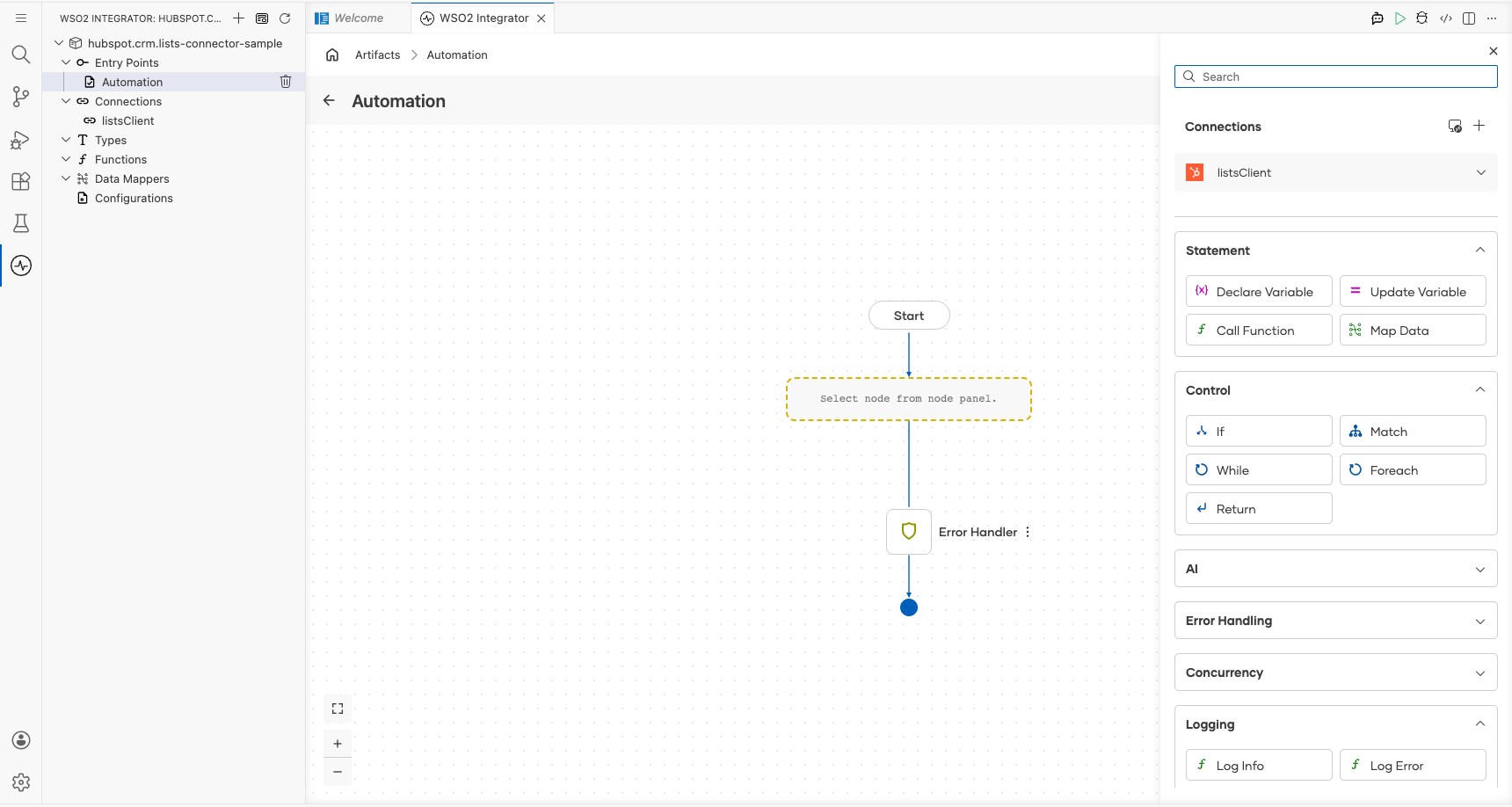

HubSpot CRM Lists connection node expanded showing all available operations before selection

In the Connections section of the panel, expand listsClient and select Get Get All (corresponding to getAllLists). Configure the operation fields:

  • Description: A label for this step: enter Fetch Multiple Lists
  • Result: The variable to store the response: enter result
  • Result Type: The type of the response: set to lists:ListsByIdResponse

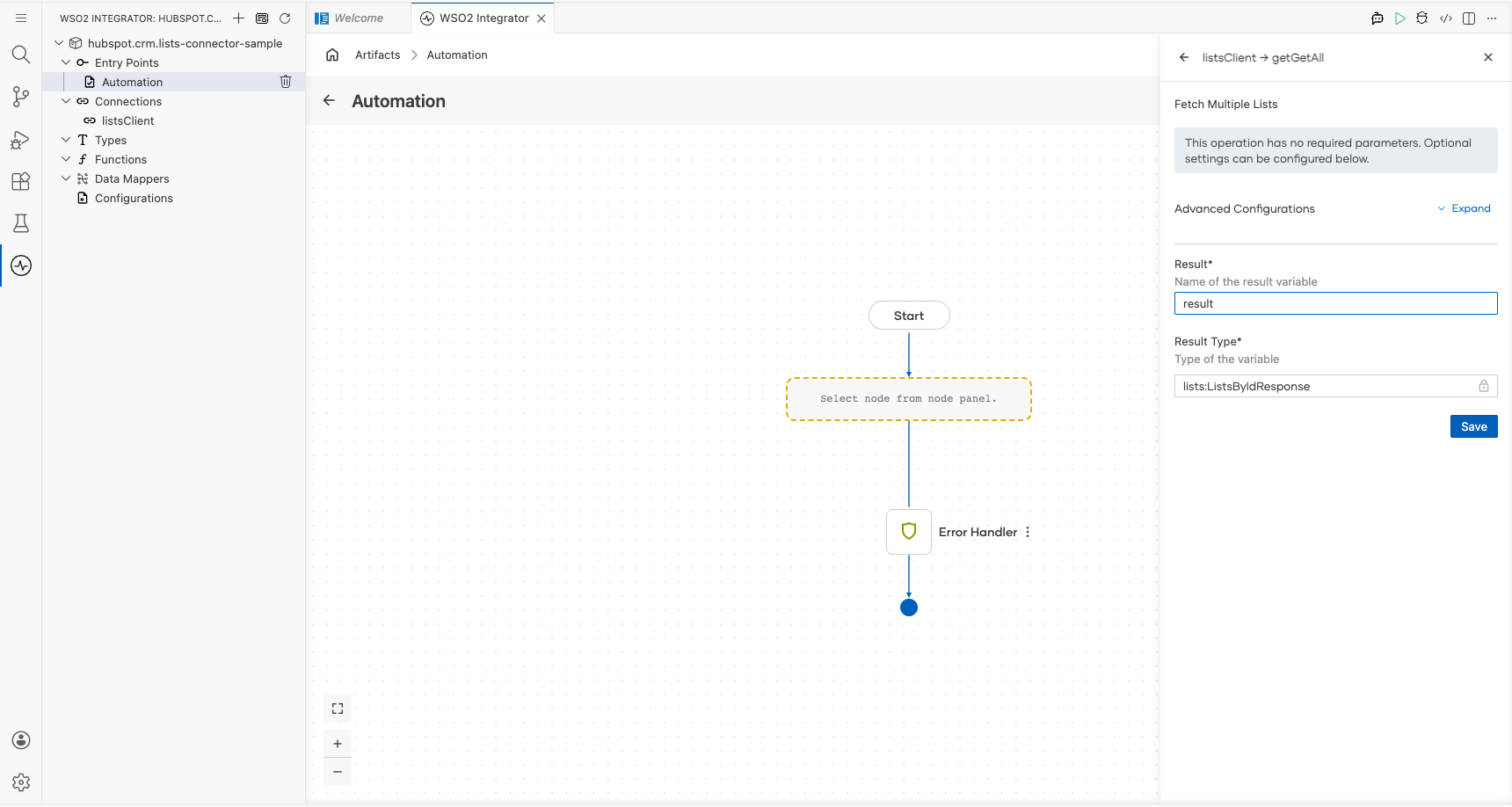

HubSpot CRM Lists getAllLists operation configuration filled with all values

Select Save to add the step to the flow.

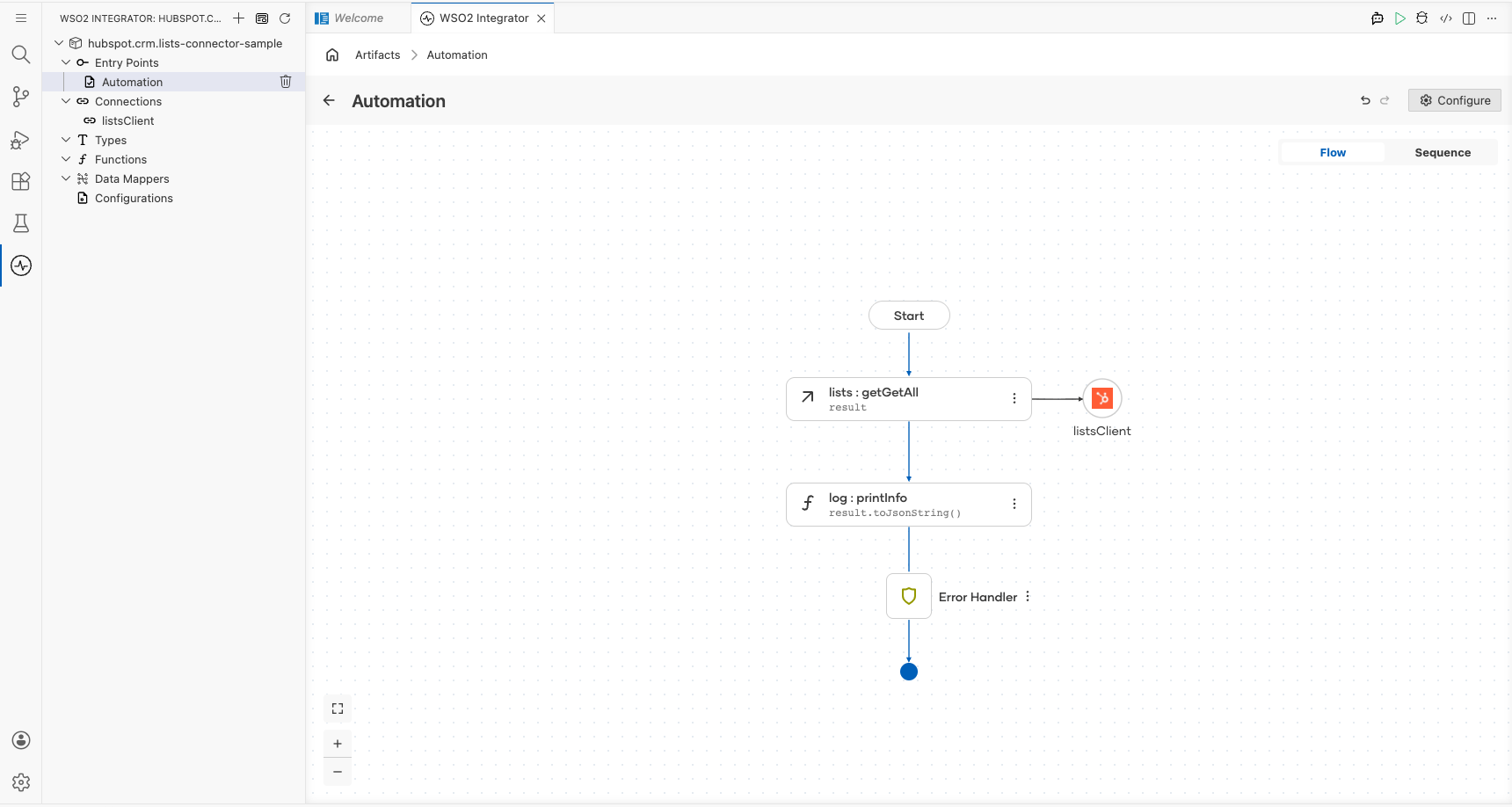

Completed HubSpot CRM Lists automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The HubSpot CRM Lists connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Customer Support Ticket Manager: Integrates with HubSpot CRM Lists to create filtered lists of customer support tickets based on the priority level of the ticket.
  2. Leads Tracker: Integrates with HubSpot CRM Lists to create Manual Lists and add leads(contacts) to the lists.
