What you'll build​

Build an automation that uses the HubSpot CRM Contacts connector to create a new contact and log the response. The integration connects to the HubSpot CRM API using a private app access token stored as a configurable variable.

Operations used:

  • Create : Creates a new contact in HubSpot CRM with properties such as email, first name, last name, and phone number.

Architecture​

Prerequisites​

  • A HubSpot account with a private app access token

Setting up the HubSpot Contacts integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot Contacts connector​

Step 1: Open the Add Connection palette​

Select + Add Connection in the Connections section of the canvas to open the connector palette.

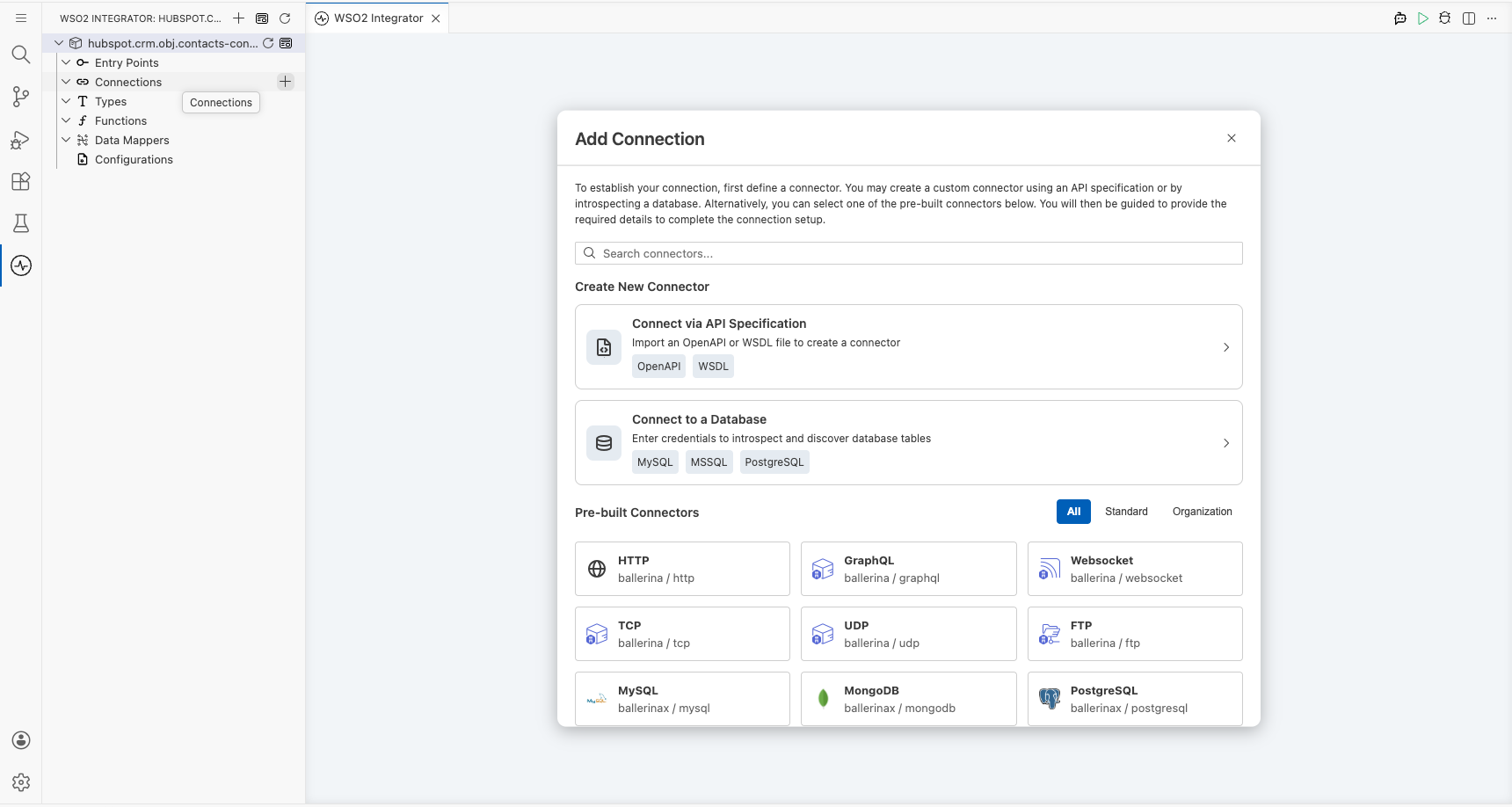

HubSpot Contacts connector palette open with search field before any selection

Configuring the HubSpot Contacts connection​

Step 2: Fill in the connection parameters​

Enter the following parameters in the Configure Contacts form, binding each to a configurable variable to keep secrets out of source code:

  • Config: Authentication configuration: set to an expression that references the hubspotToken configurable variable
  • Service Url: The HubSpot API base URL: bound to the hubspotServiceUrl configurable variable
  • Connection Name : A unique name for this connection instance

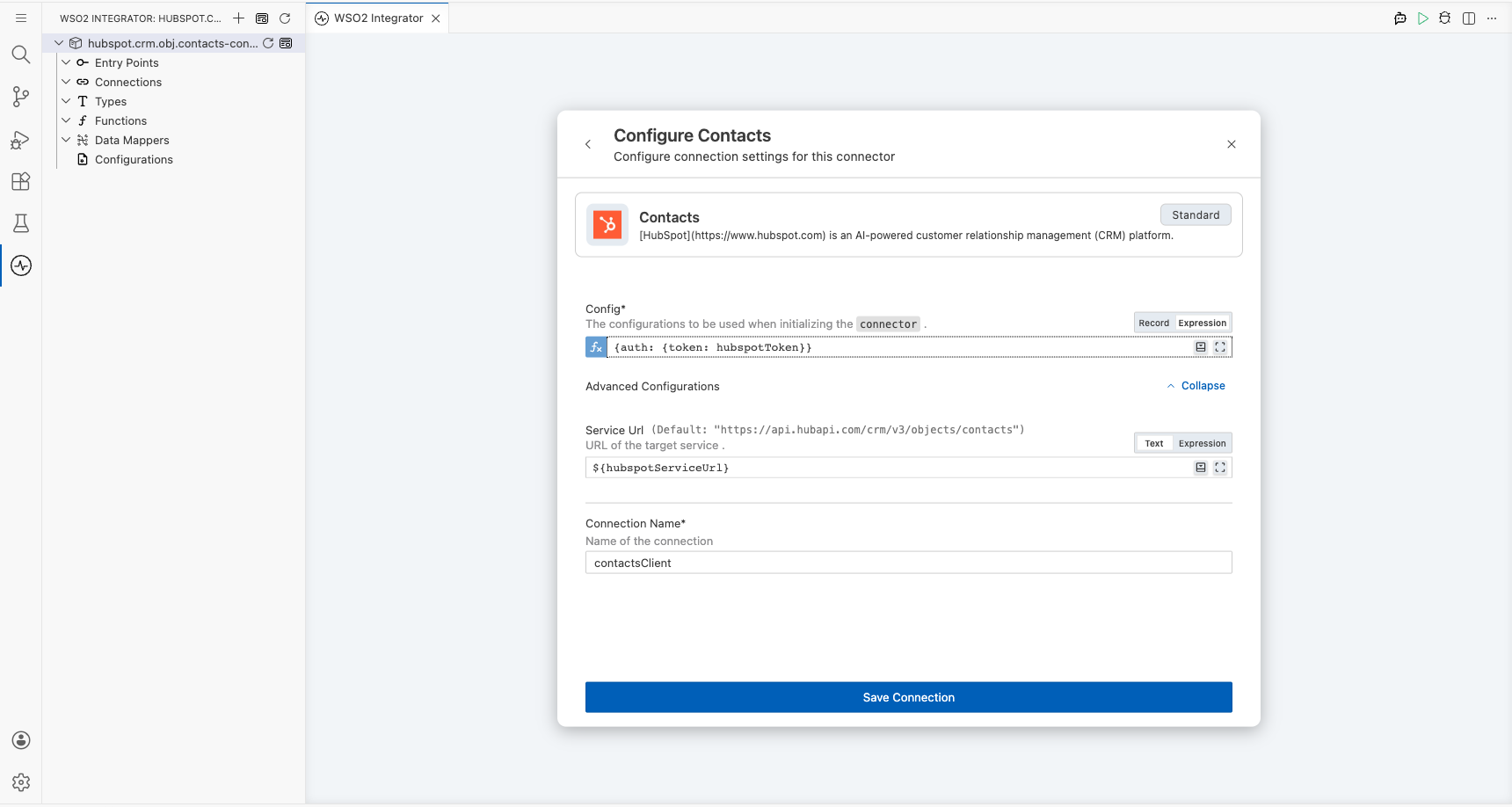

HubSpot Contacts connection form fully filled with all parameters before saving

Step 3: Save the connection​

Select Save Connection to persist the connection. The contactsClient node appears on the canvas and under Connections in the project tree.

HubSpot Contacts Connections panel showing contactsClient entry after saving

Step 4: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • hubspotToken (string) : Your HubSpot private app access token
  • hubspotServiceUrl (string) : The HubSpot CRM Contacts API base URL (for example, https://api.hubapi.com/crm/v3/objects/contacts)

Configuring the HubSpot Contacts Create operation​

Step 5: Add an Automation entry point​

  1. Select + Add Artifact on the canvas.
  2. Under the Automation section, select Automation.
  3. On the Create New Automation screen, select Create.

The flow canvas now shows: Start → (empty slot) → Error Handler.

Step 6: Select and configure the Create operation​

  1. Select the + (add step) button between Start and Error Handler in the flow canvas.
  2. Under Connections, expand contactsClient to reveal all available operations.

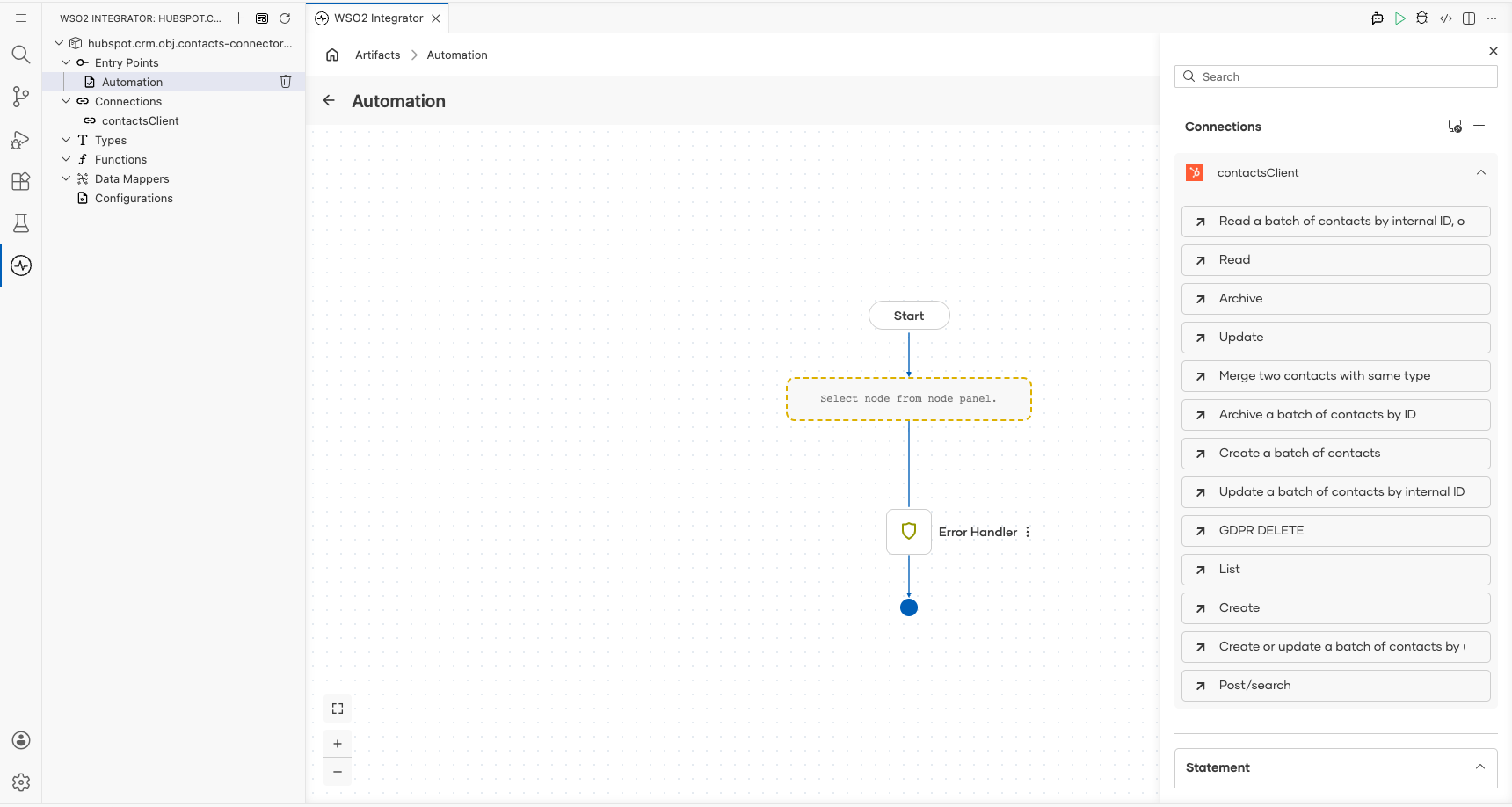

HubSpot Contacts connection node expanded showing all available operations before selection

  1. Select Create (the postCrmV3ObjectsContacts operation).
  2. In the operation form, configure the following parameters:
  • Payload: Contact properties to create: enter an expression with email, firstname, lastname, and phone fields
  • Result : The variable name to store the returned SimplePublicObject

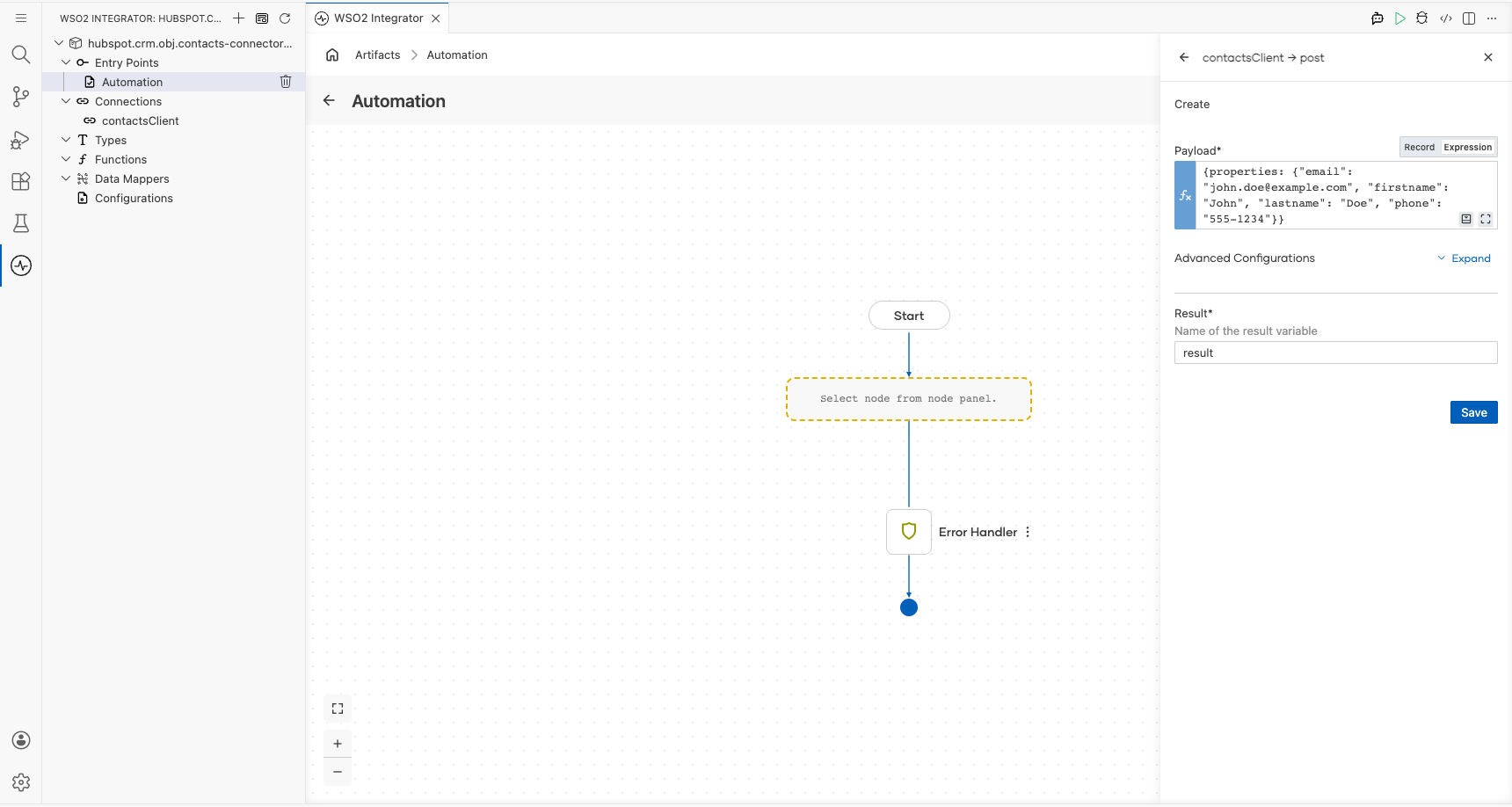

HubSpot Contacts Create operation configuration filled with all values

  1. Select Save to add the step to the flow.

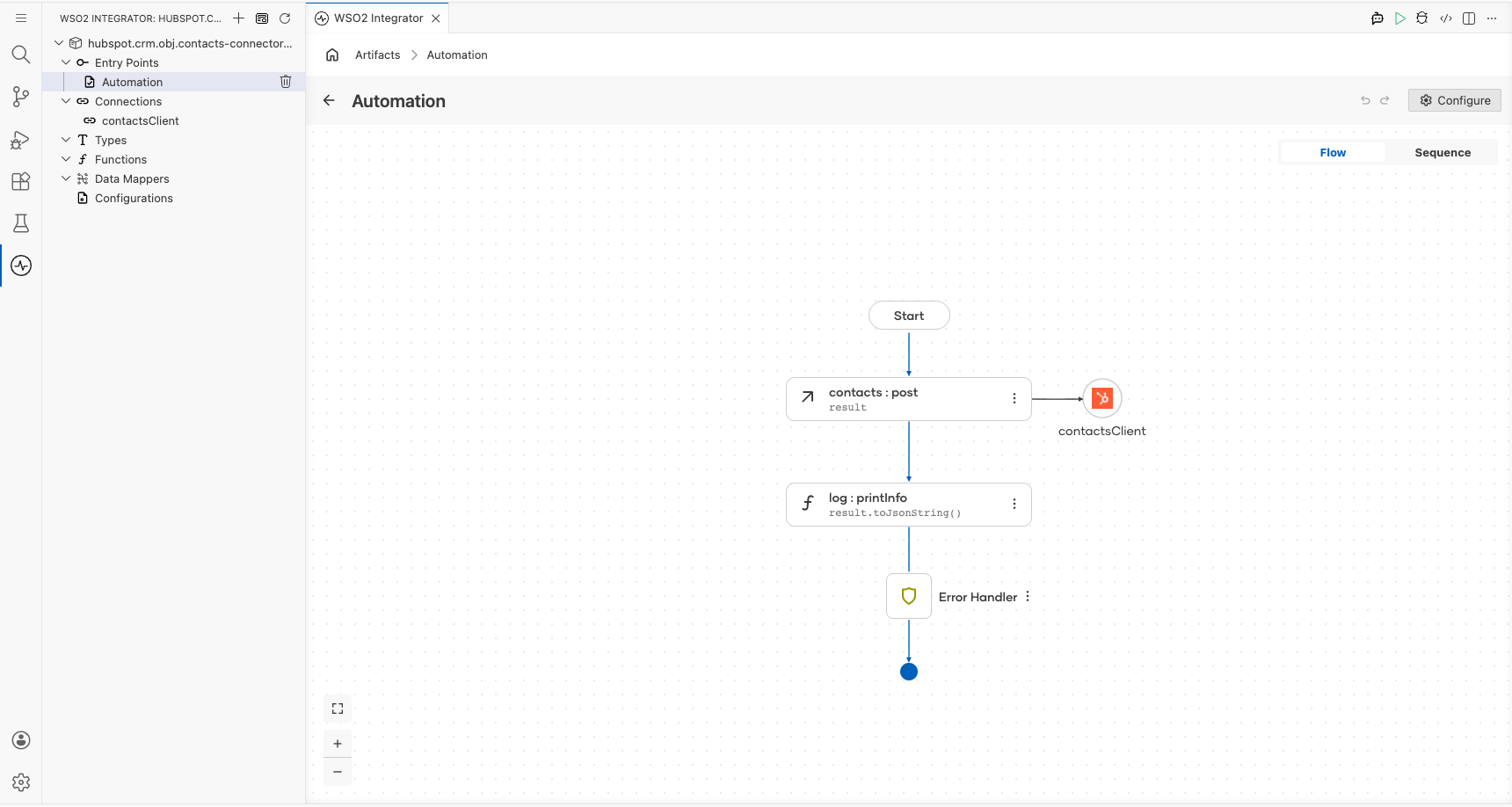

Completed HubSpot Contacts automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Ballerina HubSpot CRM Contacts Connector connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Email-Advertising: Unsubscribe and remove customers based on email addresses of CSV-imported data.
  2. Event-Registration: Event registration and follow-up using CSV-imported data.
