What you'll build​

Build an integration that creates a new lead in HubSpot CRM using the hubspot.crm.obj.leads connector and an Automation entry point. The integration calls the Create operation to submit lead data and returns the resulting object.

Operations used:

  • Create : Creates a new lead in HubSpot CRM with the specified properties and associations

Architecture​

Prerequisites​

  • A HubSpot account with a valid Private App Access Token (Bearer Token) that has CRM Leads read/write scope

Setting up the HubSpot CRM Leads integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot CRM Leads connector​

Step 1: Open the connector palette and select the HubSpot CRM Leads connector​

  1. In the WSO2 Integrator sidebar, select Add Artifact → Connection.
  2. Search for hubspot.crm.obj.leads in the connector palette.
  3. Select the HubSpot CRM Leads connector card from the search results.

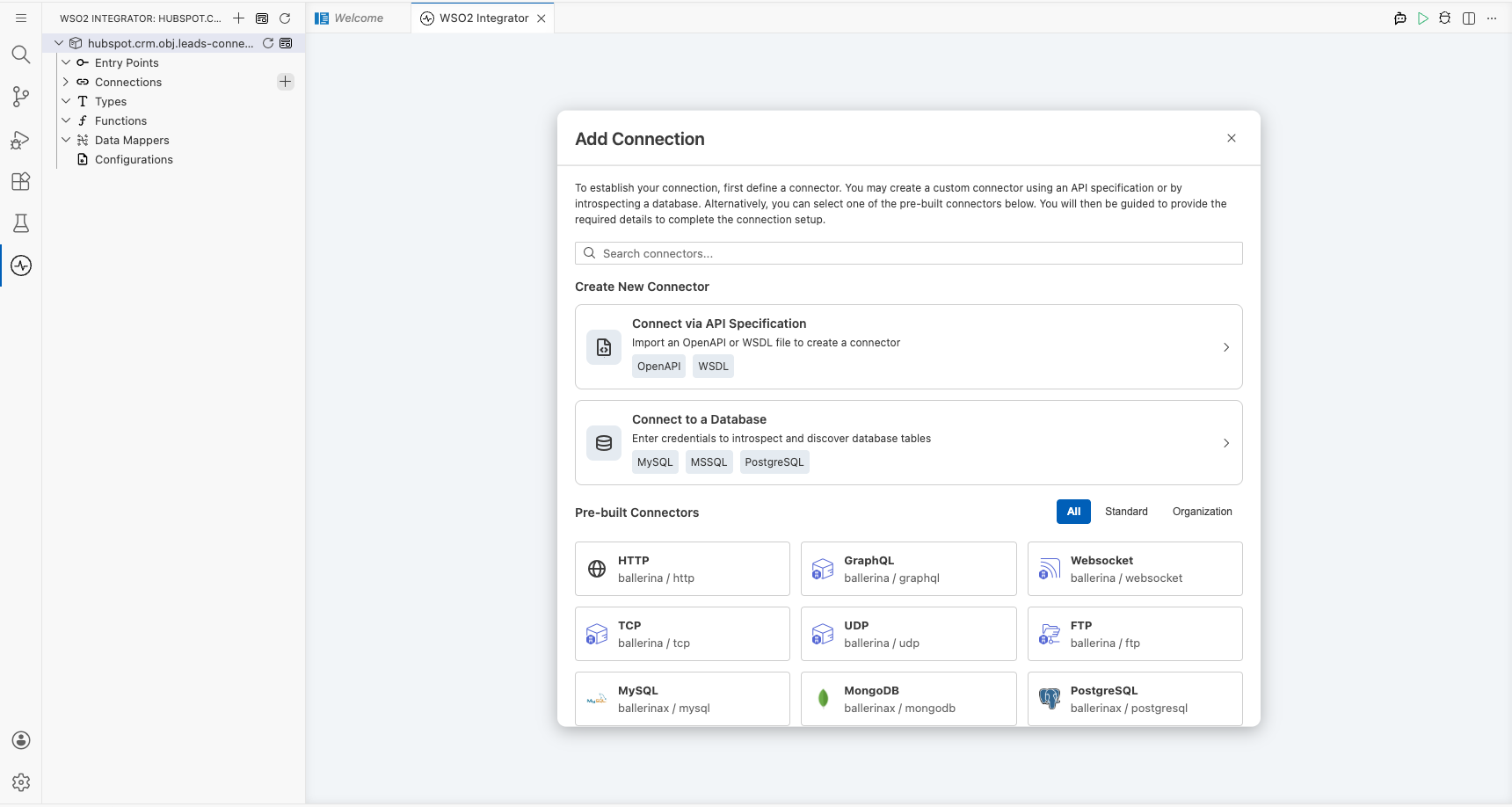

HubSpot CRM Leads connector palette open with search field before any selection

Configuring the HubSpot CRM Leads connection​

Step 2: Fill in the connection parameters​

Bind the connection field to a configurable variable for secure token management:

  • Config : Set to Expression mode and enter the record literal binding the hubspotAuthToken configurable variable for Bearer Token authentication
  • Connection Name : Set to leadsClient

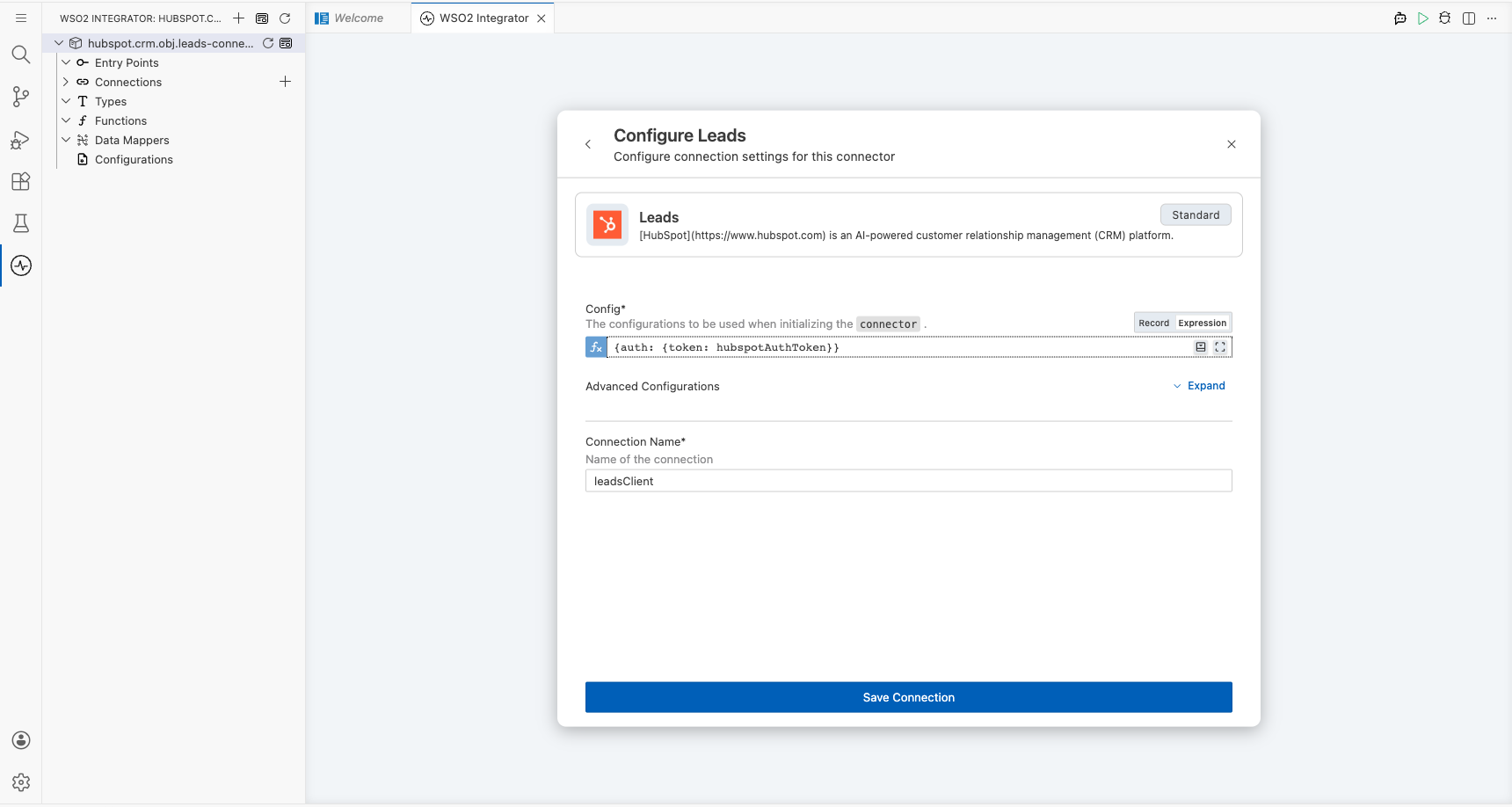

HubSpot CRM Leads connection form fully filled with all parameters before saving

Step 3: Save the connection​

Select Save to persist the connection. The leadsClient connection node appears on the canvas and is listed under Connections in the sidebar.

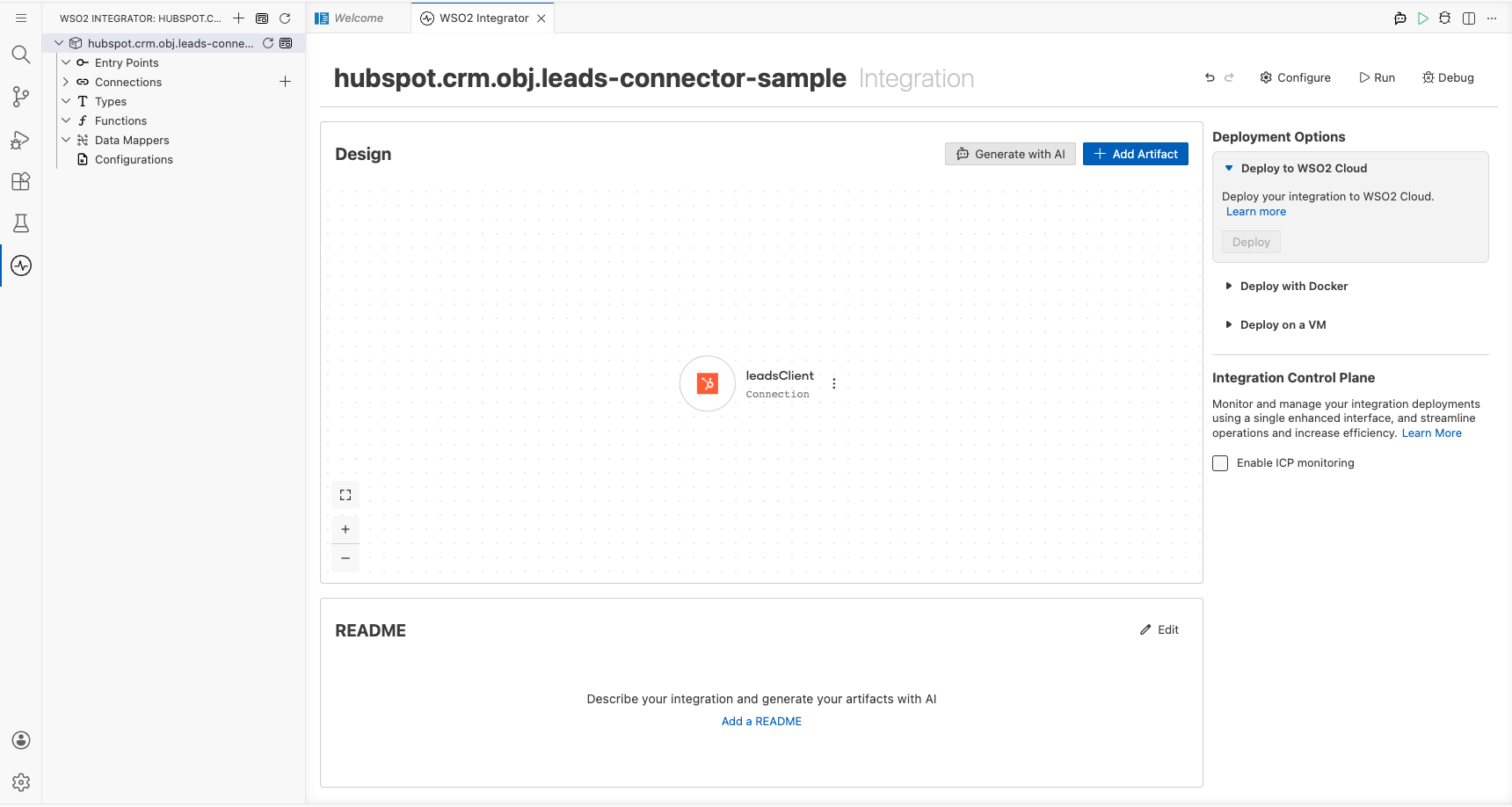

HubSpot CRM Leads Connections panel showing leadsClient entry after saving

Step 4: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • hubspotAuthToken (string) : Your HubSpot Private App Access Token with CRM Leads read/write scope

Configuring the HubSpot CRM Leads Create operation​

Step 5: Add an Automation entry point​

  1. In the sidebar, select Entry Points → Add Entry Point.
  2. Select Automation.
  3. In the Create New Automation form, select Create to use default settings.

An Automation entry point named main appears under Entry Points, and the canvas shows the flow with Start and Error Handler nodes.

Step 6: Select the Create operation and configure its parameters​

  1. Select the + between Start and Error Handler on the canvas.
  2. Under Connections, expand leadsClient to reveal available operations.
  3. Select Create from the operations list.

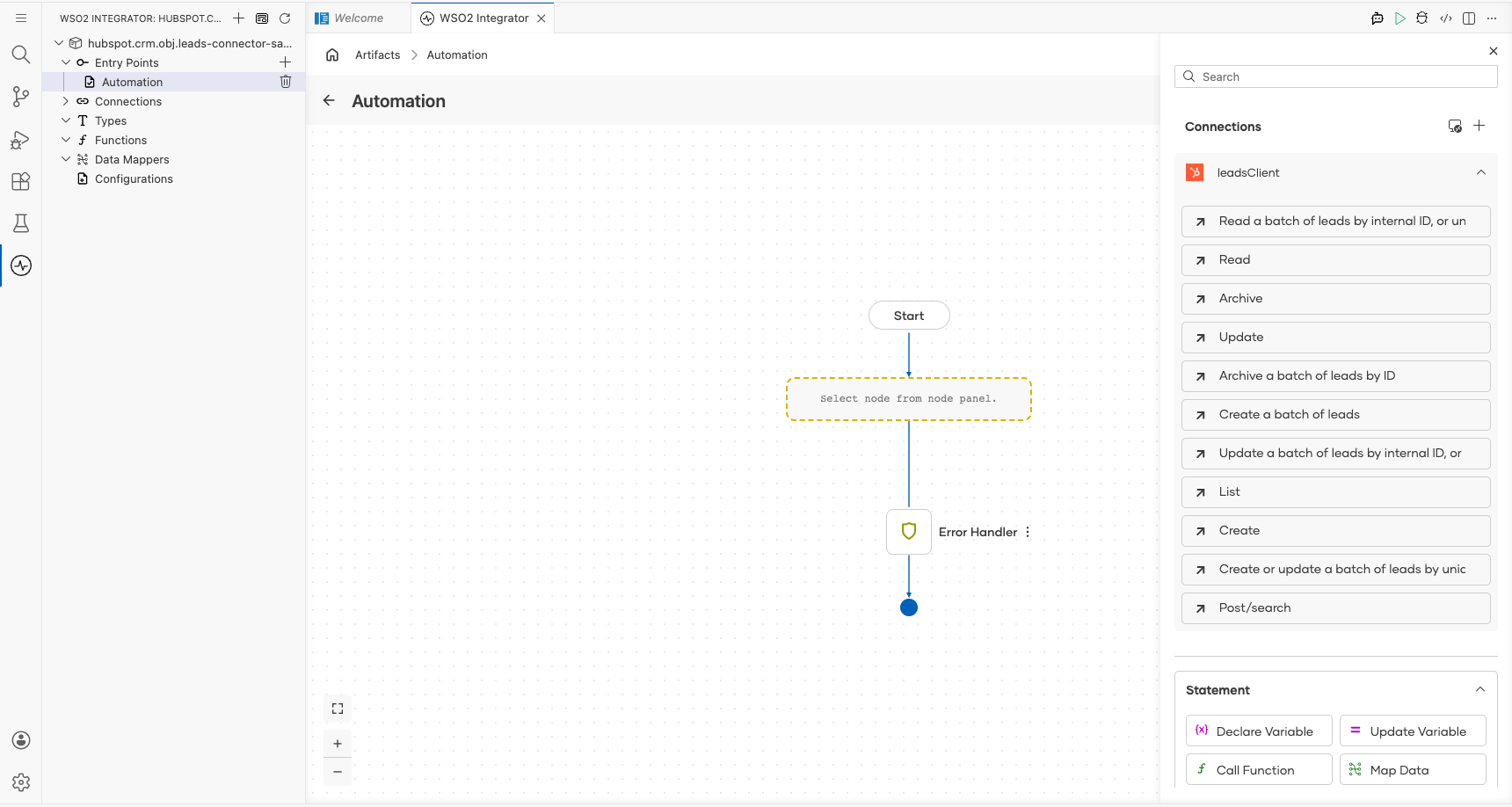

HubSpot CRM Leads connection node expanded showing all available operations before selection

Configure the operation fields:

  • Payload : Set to Expression mode and enter the associations and properties record for the new lead
  • Result : Set to result

Select Save.

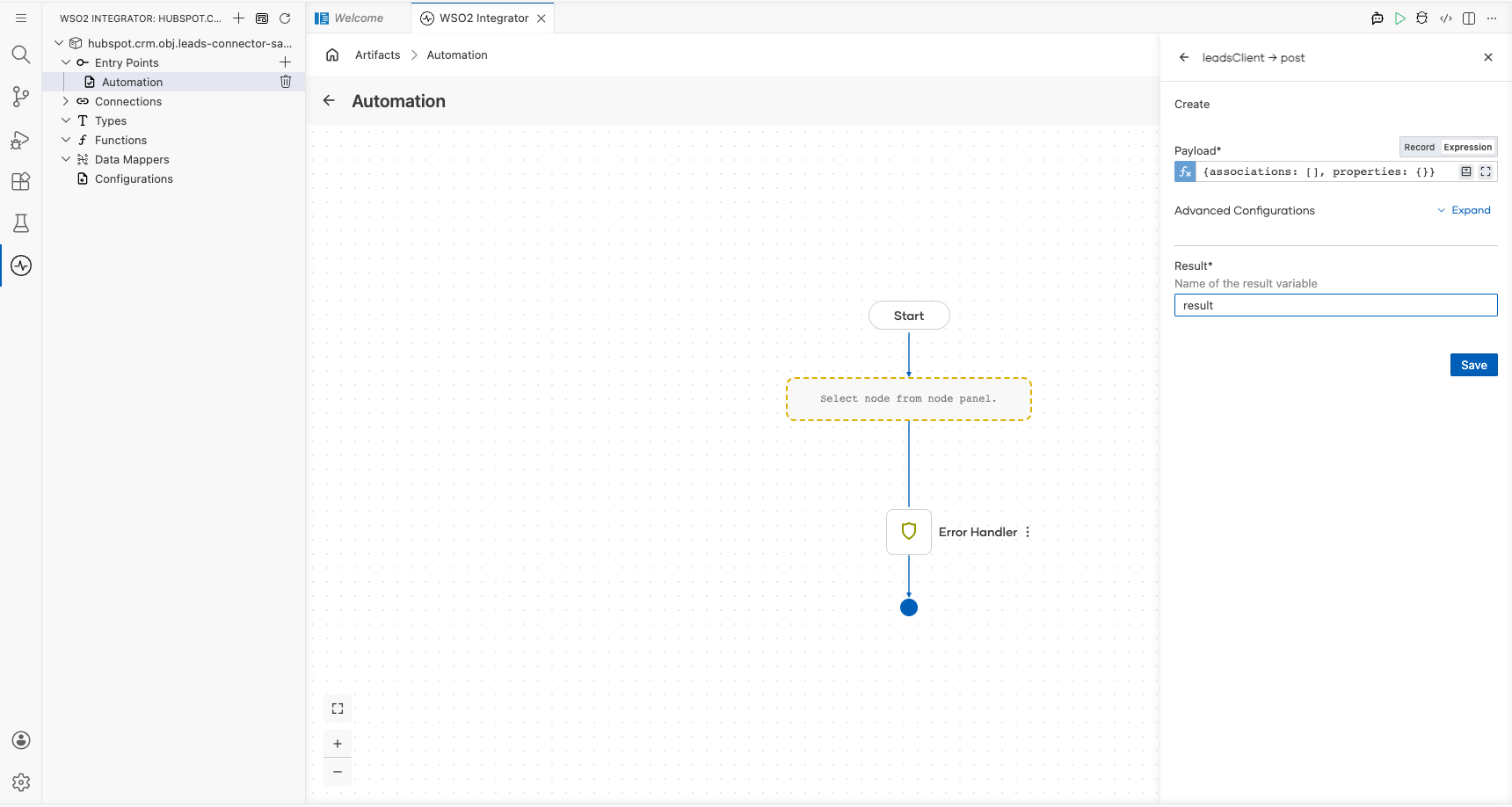

HubSpot CRM Leads Create operation configuration filled with all values

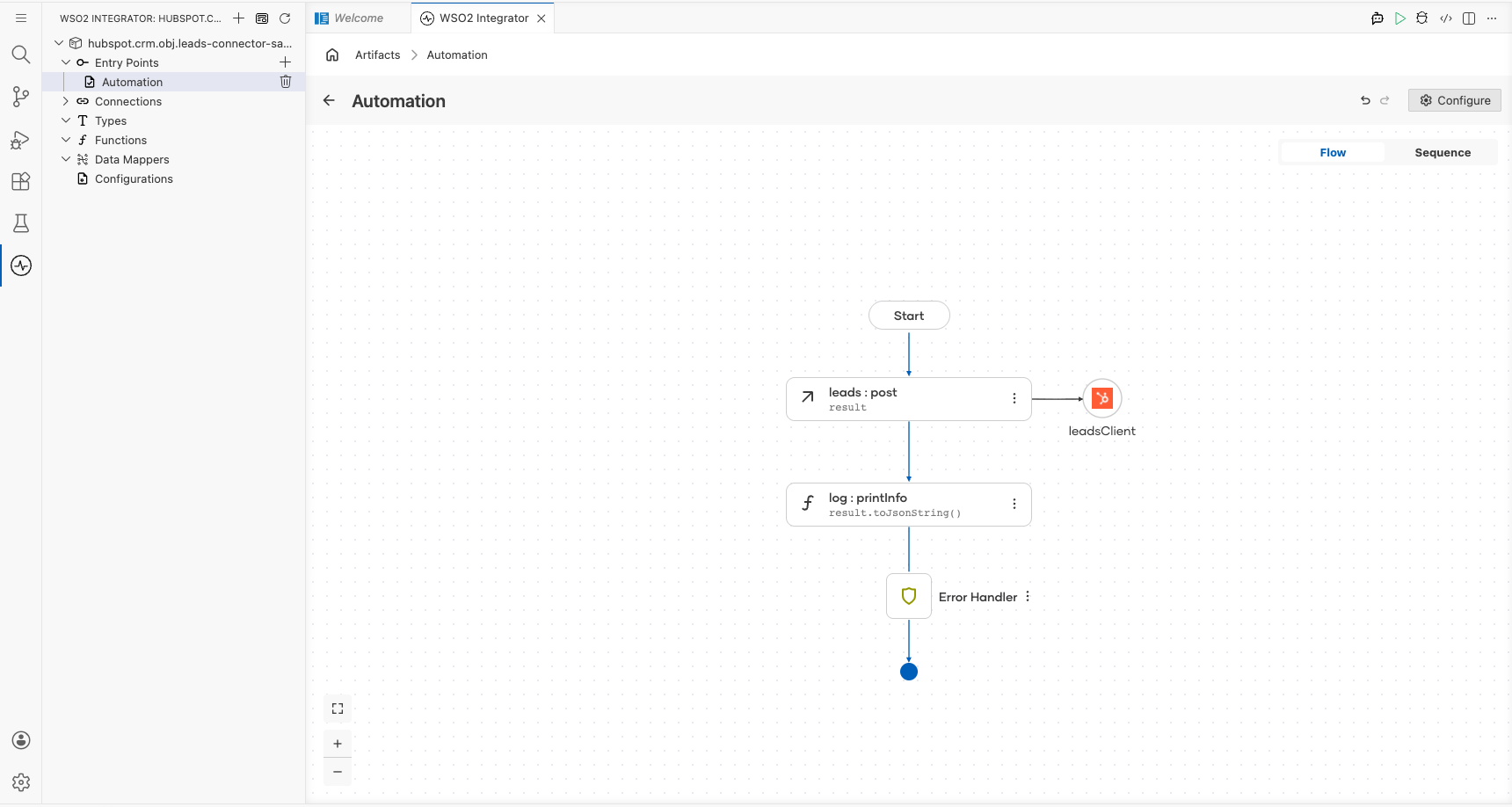

Completed HubSpot CRM Leads automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The ballerinax/hubspot.crm.obj.leads connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  • Real Estate Inquiry Leads: Learn how the HubSpot API can be used to manage and process leads from real estate inquiries.
  • Fitness Center Leads: Discover how the HubSpot API can be utilized to handle leads for fitness center memberships and services.
