What you'll build​

Build an integration that connects to HubSpot CRM and retrieves all custom object schemas using the ballerinax/hubspot.crm.obj.schemas connector. The integration authenticates with a Bearer token and returns a JSON representation of every custom object schema in your HubSpot account.

Operations used:

  • Get all schemas : Retrieves all custom object schemas from HubSpot CRM

Architecture​

Prerequisites​

  • A HubSpot account with API access
  • A valid HubSpot private app Bearer token with crm.schemas.read scope

Setting up the HubSpot CRM Schemas integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot CRM Schemas connector​

Step 1: Open the Add Connection panel​

Select the + button next to Connections in the left sidebar to open the Add Connection palette.

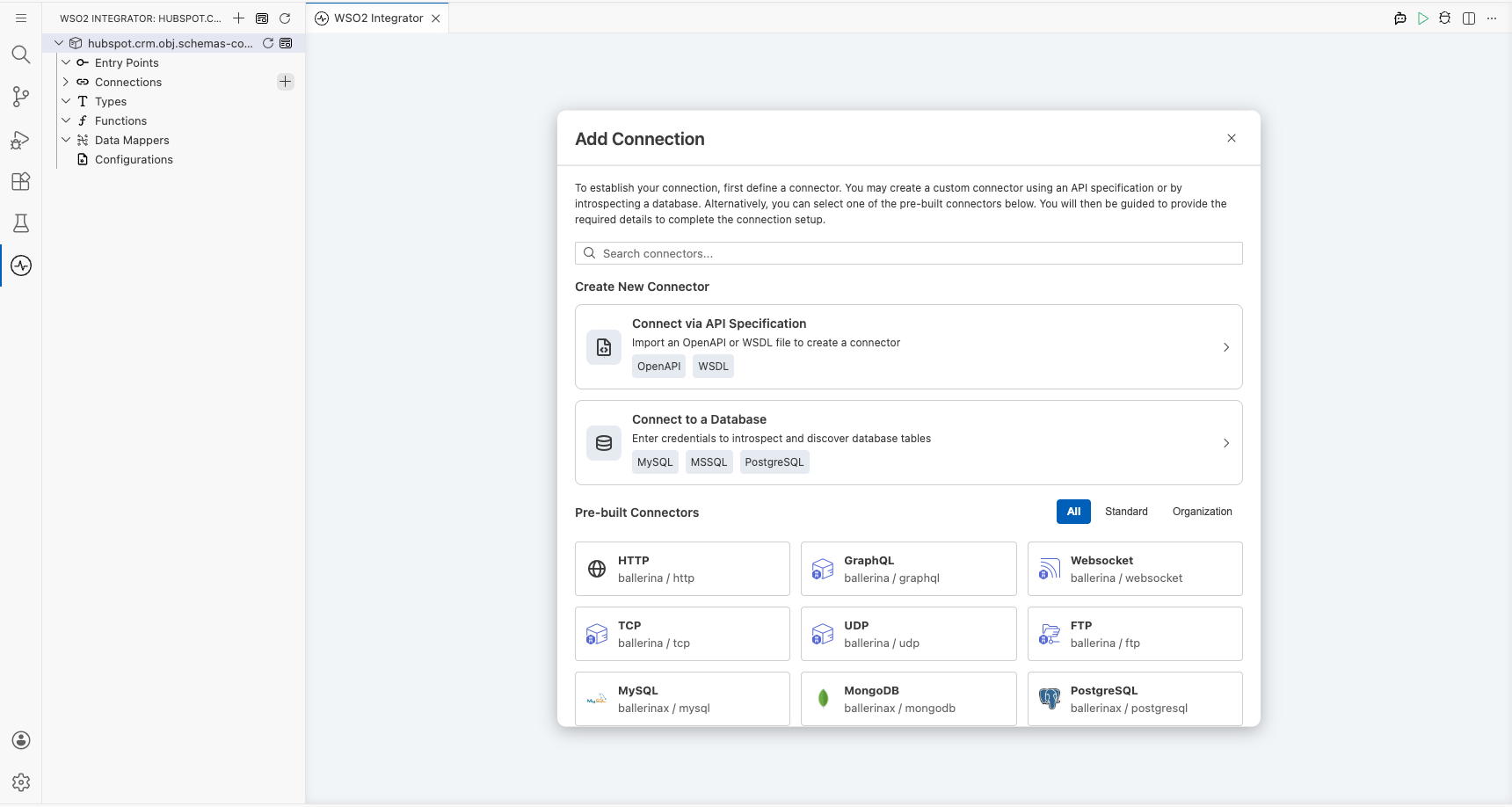

HubSpot CRM Schemas connector palette open with search field before any selection

Configuring the HubSpot CRM Schemas connection​

Step 2: Configure the connection parameters​

Search for hubspot.crm.obj.schemas, select the Schemas connector card, and bind all fields to configurable variables for secure, environment-independent credential management.

  1. In the Add Connection search palette, enter hubspot.crm.obj.schemas.
  2. Select the Schemas connector from the search results to open the configuration form.
  3. Switch the Config field to Expression mode and enter the expression {auth: {token: hubspotAuthToken}} to pass the Bearer token through the BearerTokenConfig auth field.
  4. Bind the Service Url field to the configurable variable hubspotServiceUrl.
  5. Set Connection Name to schemasClient.
  • Config : Authentication configuration using a Bearer token bound to the hubspotAuthToken configurable variable
  • Service Url : The HubSpot API base URL bound to the hubspotServiceUrl configurable variable
  • Connection Name : The name used to reference this connection in the integration flow

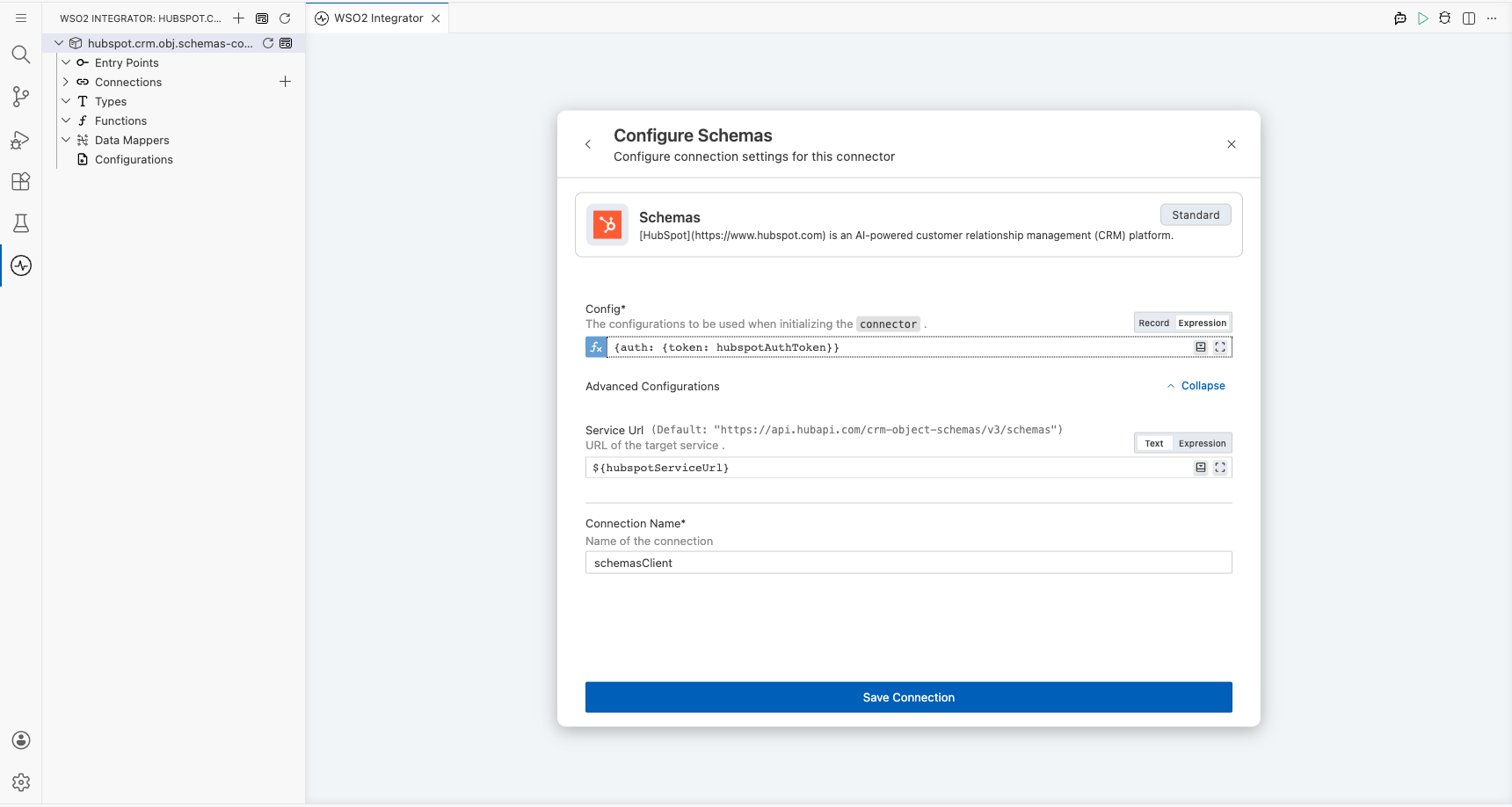

HubSpot CRM Schemas connection form fully filled with all parameters before saving

Step 3: Save the connection​

Select Save Connection to register the schemasClient connection in your project.

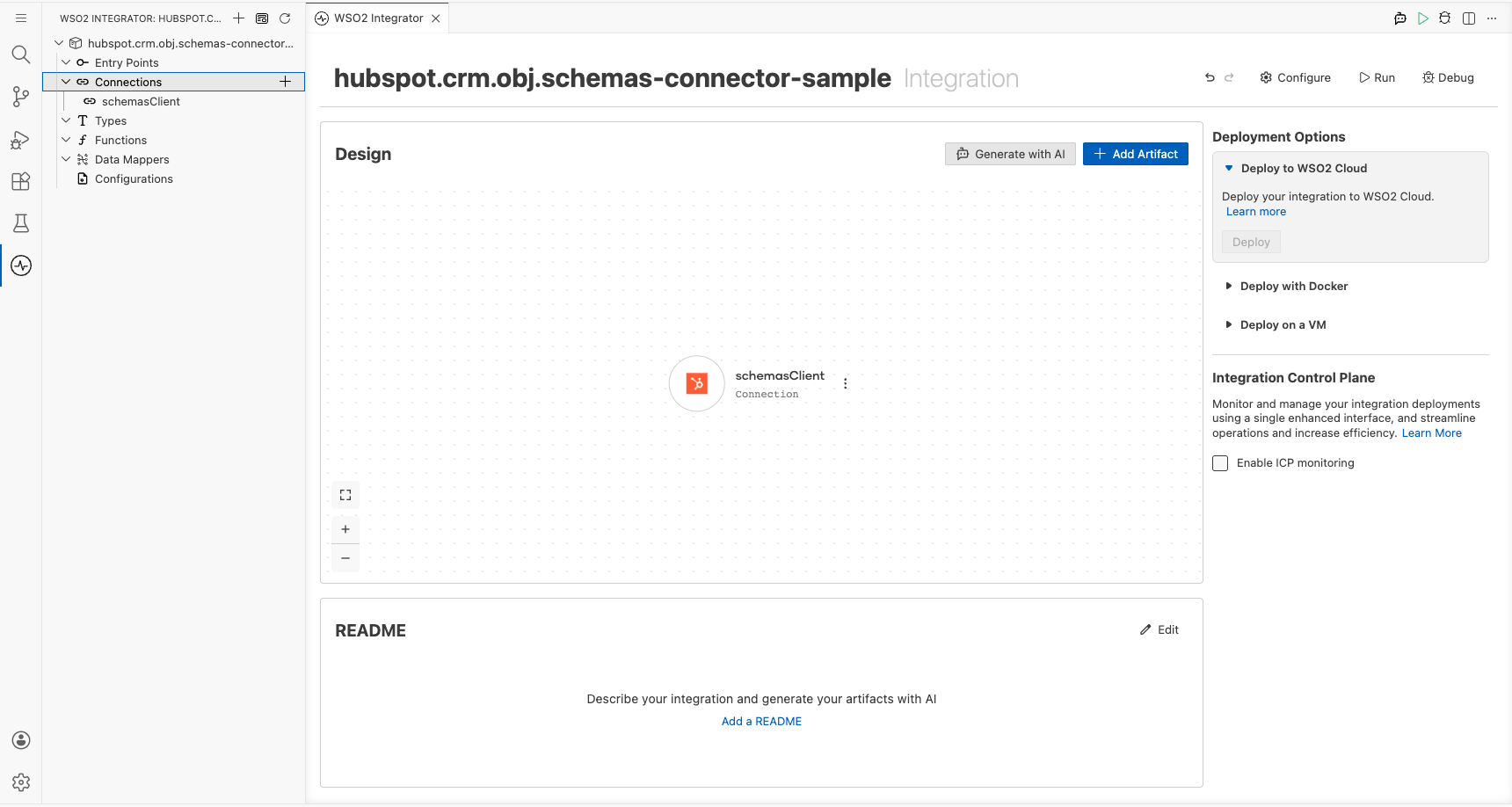

HubSpot CRM Schemas Connections panel showing schemasClient entry after saving

Step 4: Set actual values for your configurables​

In the left panel, select Configurations to open the Configurations panel. Set a value for each configurable listed below.

  • hubspotAuthToken (string) : Your HubSpot private app Bearer token with crm.schemas.read scope
  • hubspotServiceUrl (string) : The HubSpot API base URL for custom object schemas (for example, https://api.hubapi.com/crm-object-schemas/v3/schemas)

Configuring the HubSpot CRM Schemas get all schemas operation​

Step 5: Add an Automation entry point​

Select + Add Artifact in the Design section of the integration overview, then select Automation from the artifact type list and select Create to generate the main() function automation.

Step 6: Select and configure the get all schemas operation​

Expand the schemasClient connection node on the canvas to view available operations, then select Get all schemas and configure its parameters.

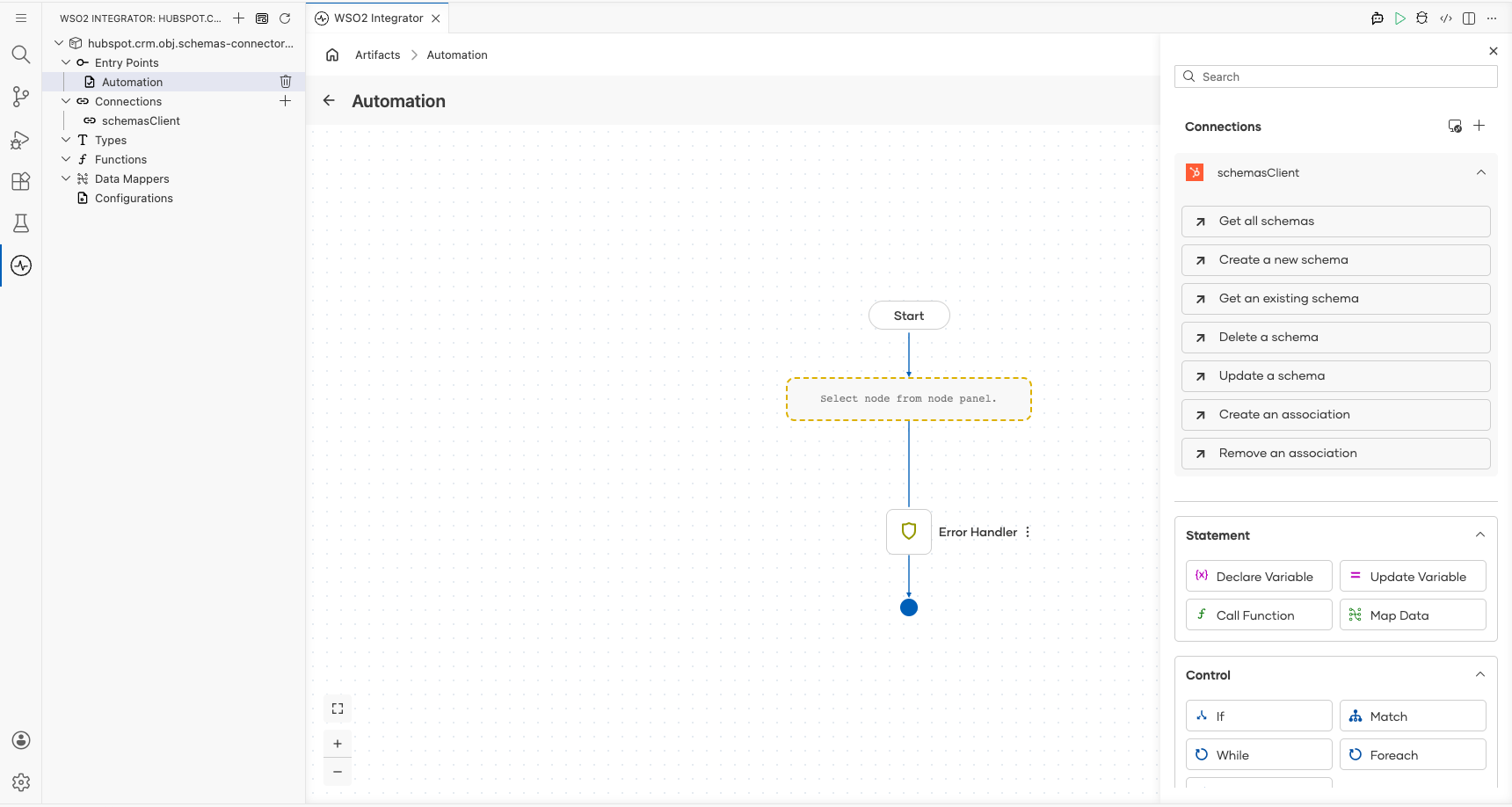

HubSpot CRM Schemas connection node expanded showing all available operations before selection

  1. Select the + button in the Automation canvas flow to open the node panel.
  2. Under Connections, expand schemasClient.
  3. Select Get all schemas to add it to the flow.
  4. Set the Result variable name to result.
  5. Select Save to add the operation to the flow.
  • Result : The variable that stores the retrieved collection of custom object schemas

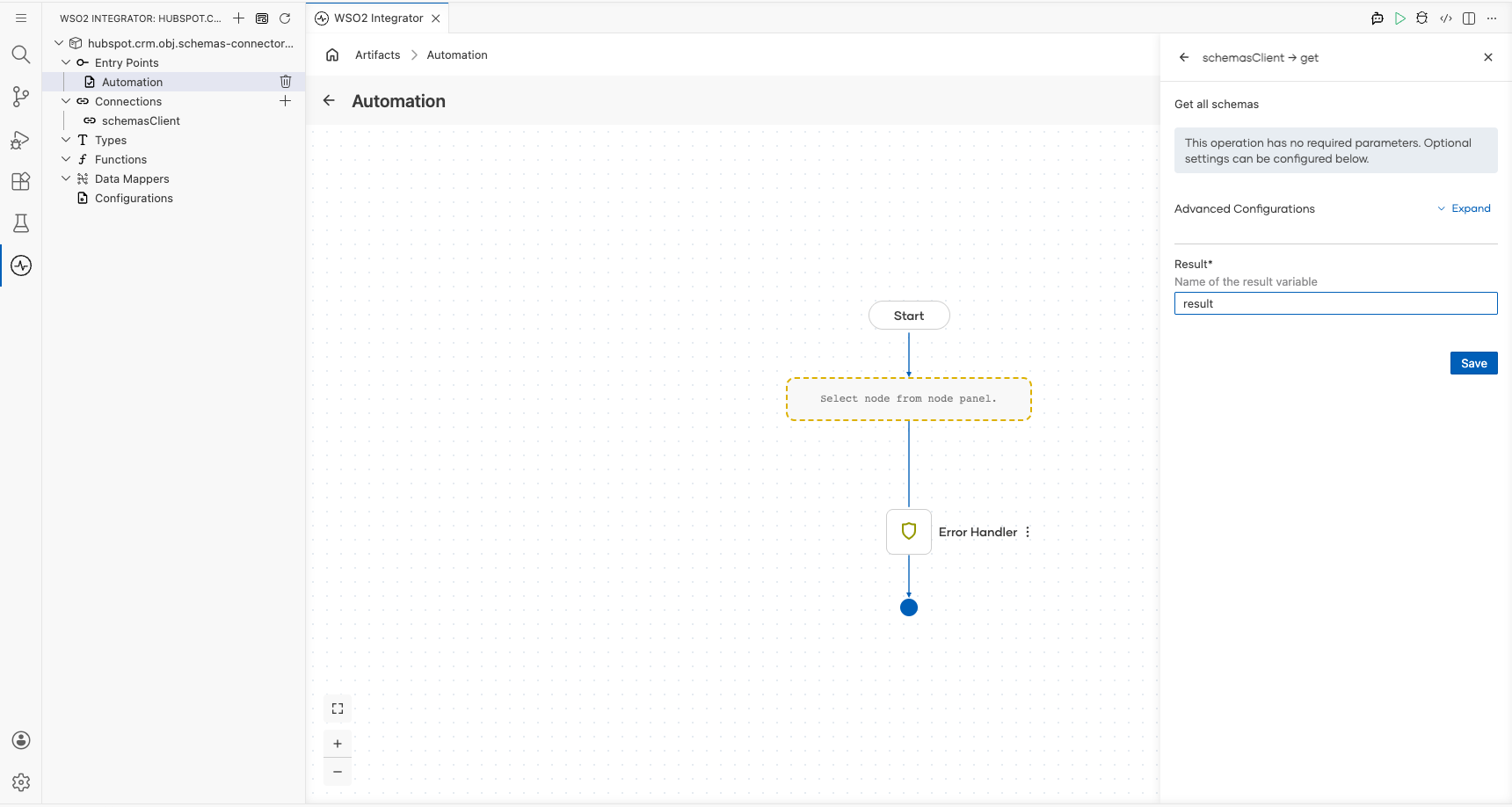

HubSpot CRM Schemas Get all schemas operation configuration filled with all values

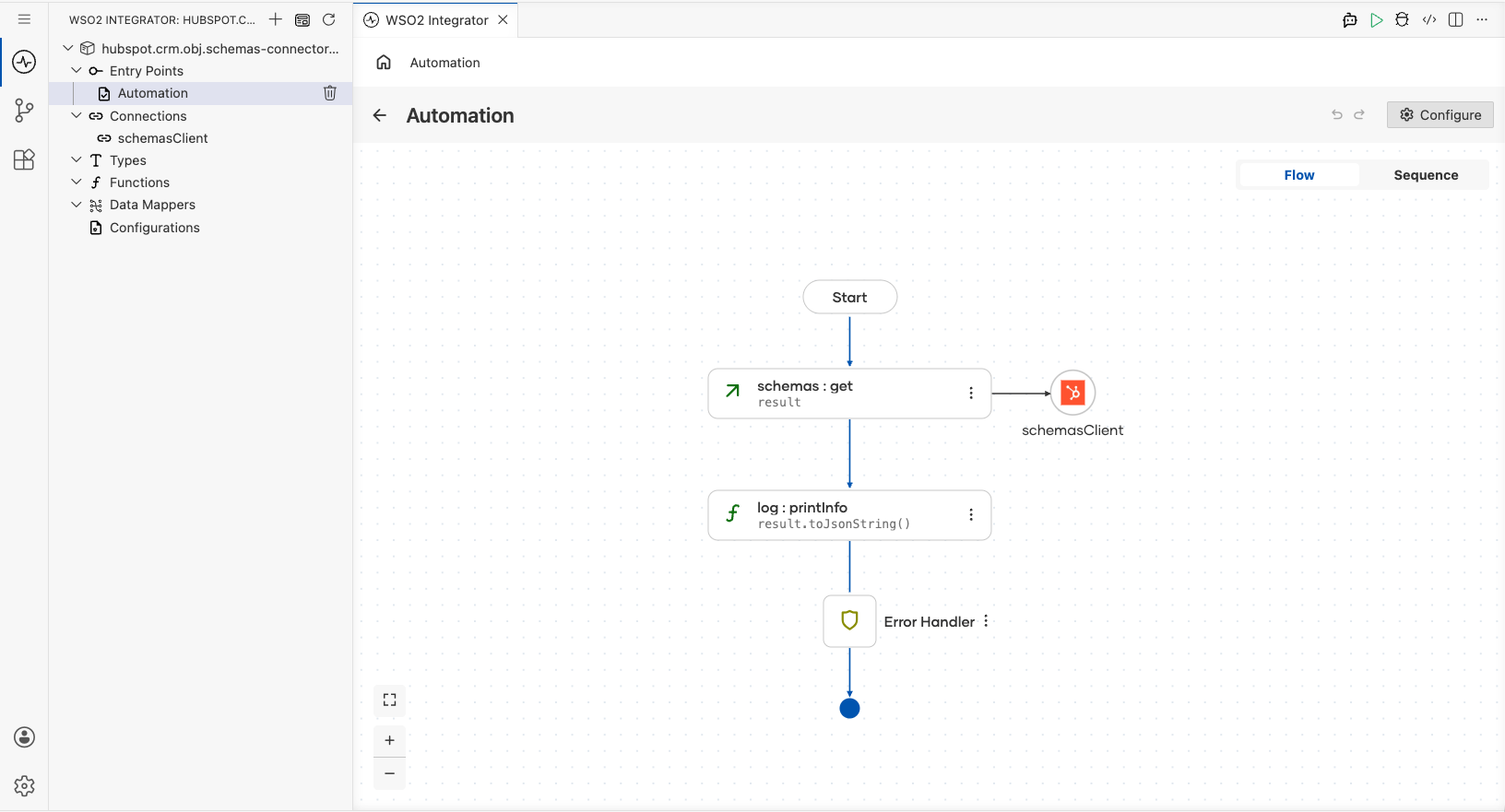

Completed HubSpot CRM Schemas automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The HubSpot CRM Object Schemas connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Author and Book association
  2. Product spec update
