What you'll build​

Build a WSO2 Integrator automation that connects to the HubSpot CRM Properties API and retrieves all property definitions for a given object type (such as contacts). The integration authenticates using a HubSpot private app Bearer token and returns all CRM property definitions in JSON format.

Operations used:

  • getAll : Reads all CRM property definitions for a specified object type

Architecture​

Prerequisites​

  • A HubSpot account with a private app token (OAuth Bearer token)

Setting up the HubSpot CRM Properties integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot CRM Properties connector​

Step 1: Open the Add connection panel​

Select + Add Artifact on the canvas, then under Other Artifacts, select Connection to open the connector search palette.

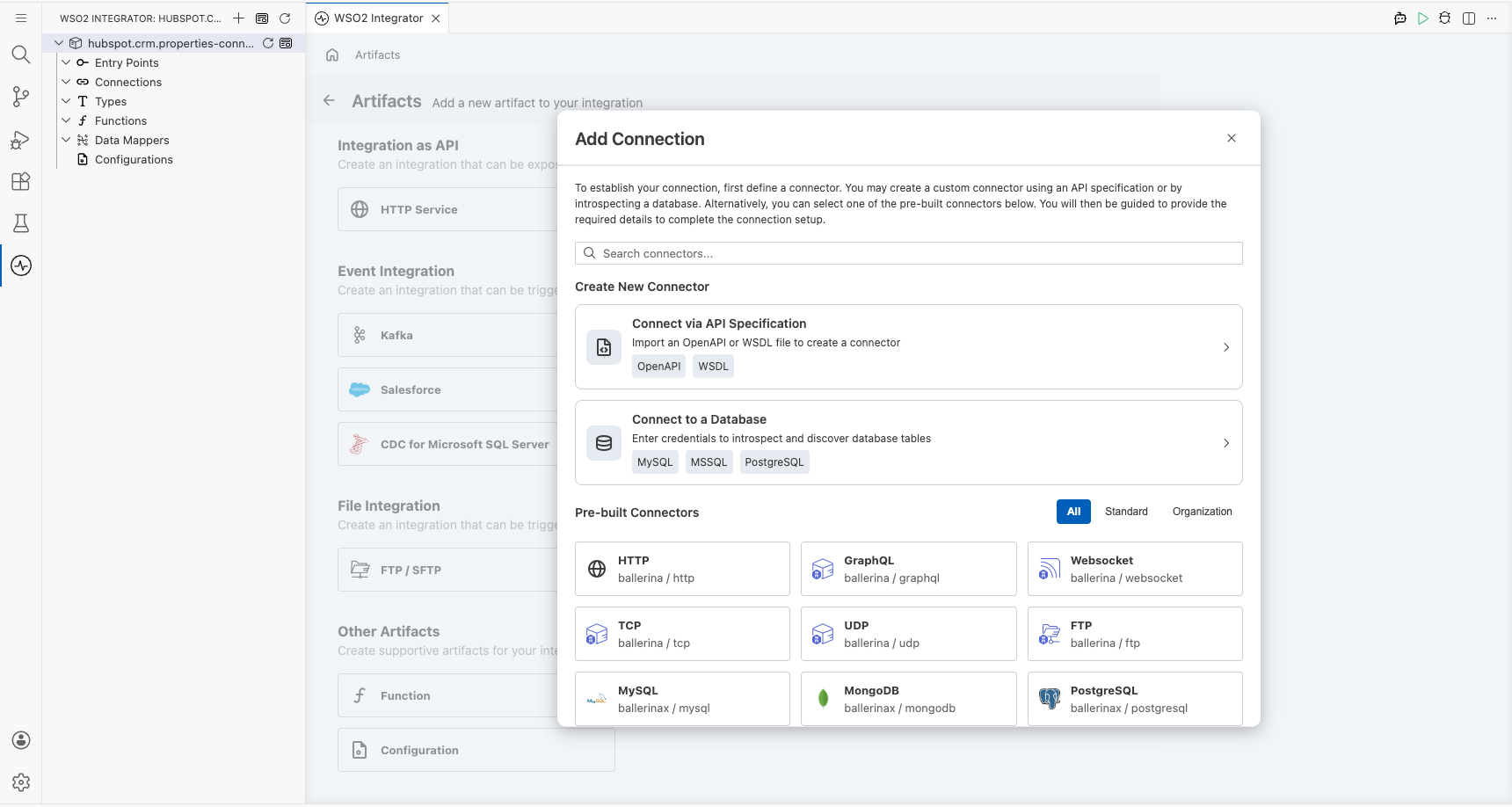

HubSpot CRM Properties connector palette open with search field before any selection

Configuring the HubSpot CRM Properties connection​

Step 2: Fill in the connection parameters​

Search for hubspot in the connector palette and select ballerinax/hubspot.crm.properties. Select Next to open the Configure Properties form. Bind each field to a configurable variable:

  • Config : Set to a ConnectionConfig record using your hubspotAuthToken configurable variable for the Bearer token
  • ServiceUrl : Bind to the hubspotServiceUrl configurable variable (defaults to https://api.hubapi.com/crm/v3/properties)
  • Connection name : Set to propertiesClient

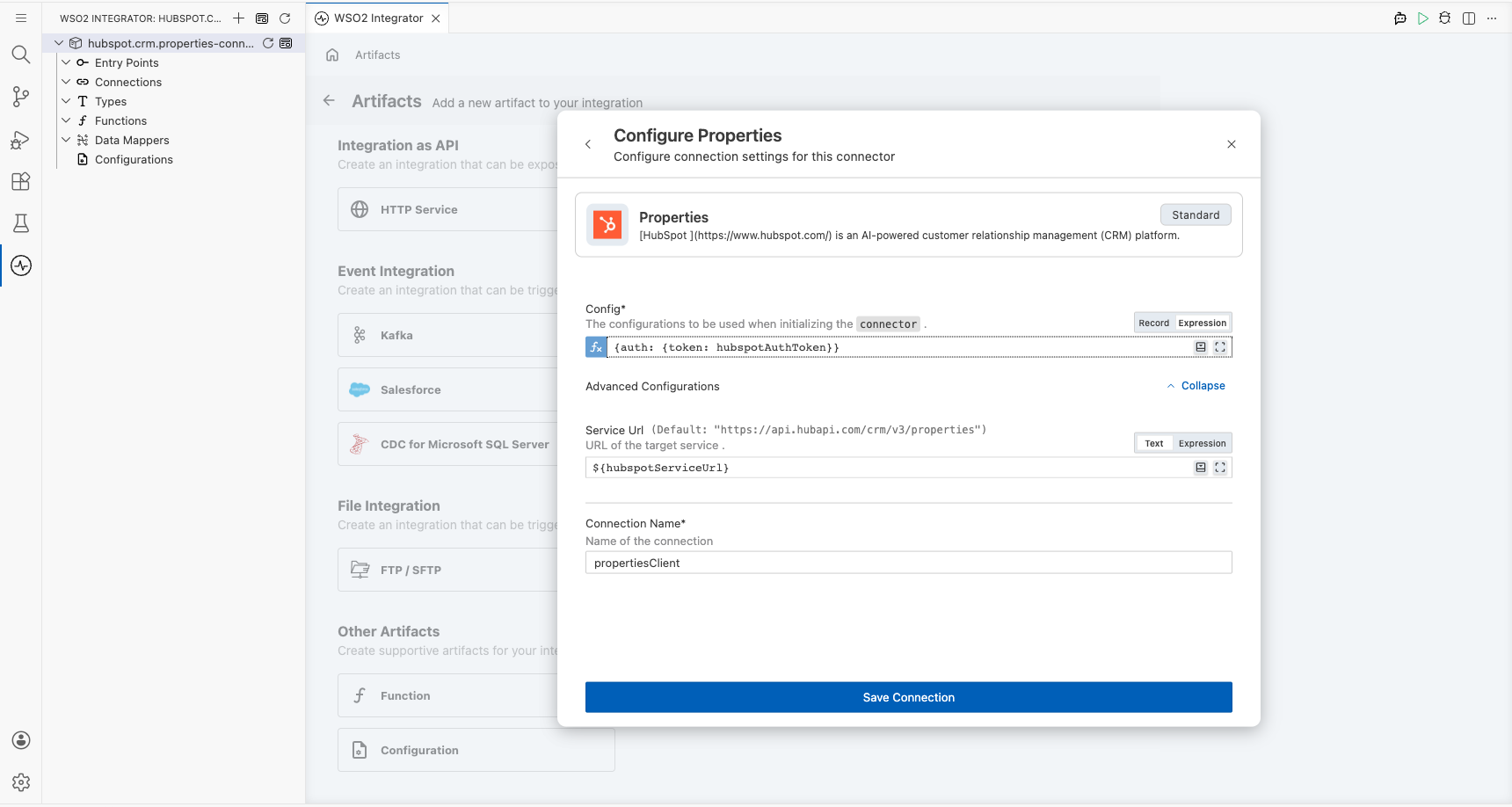

HubSpot CRM Properties connection form fully filled with all parameters before saving

Step 3: Save the connection​

Select Save Connection to persist the connection. Confirm that propertiesClient appears in the Connections panel on the canvas.

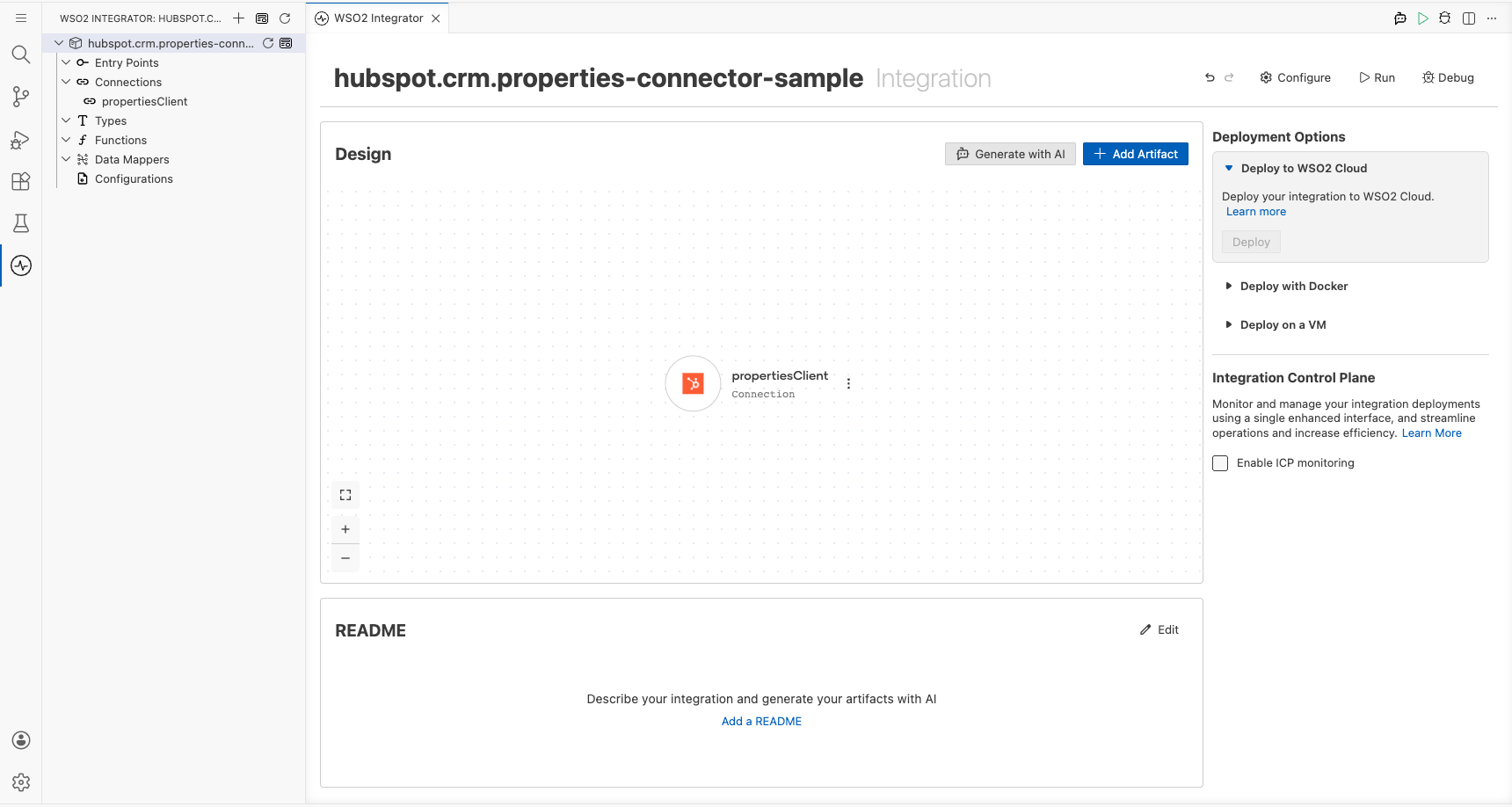

HubSpot CRM Properties Connections panel showing propertiesClient entry after saving

Step 4: Set actual values for your configurables​

In the left panel, select Configurations. Set a value for each configurable listed below:

  • hubspotAuthToken (string) : Your HubSpot private app Bearer token
  • hubspotServiceUrl (string) : The HubSpot CRM Properties API base URL (for example, https://api.hubapi.com/crm/v3/properties)

Configuring the HubSpot CRM Properties getAll operation​

Step 5: Add an automation entry point​

Select + Add Artifact on the canvas, then select Automation under the Automation section. In the Create New Automation dialog, keep the defaults and select Create.

Step 6: Select and configure the getAll operation​

In the flow canvas, select the + button between Start and Error Handler. In the node panel, expand Connections → propertiesClient to see all available operations.

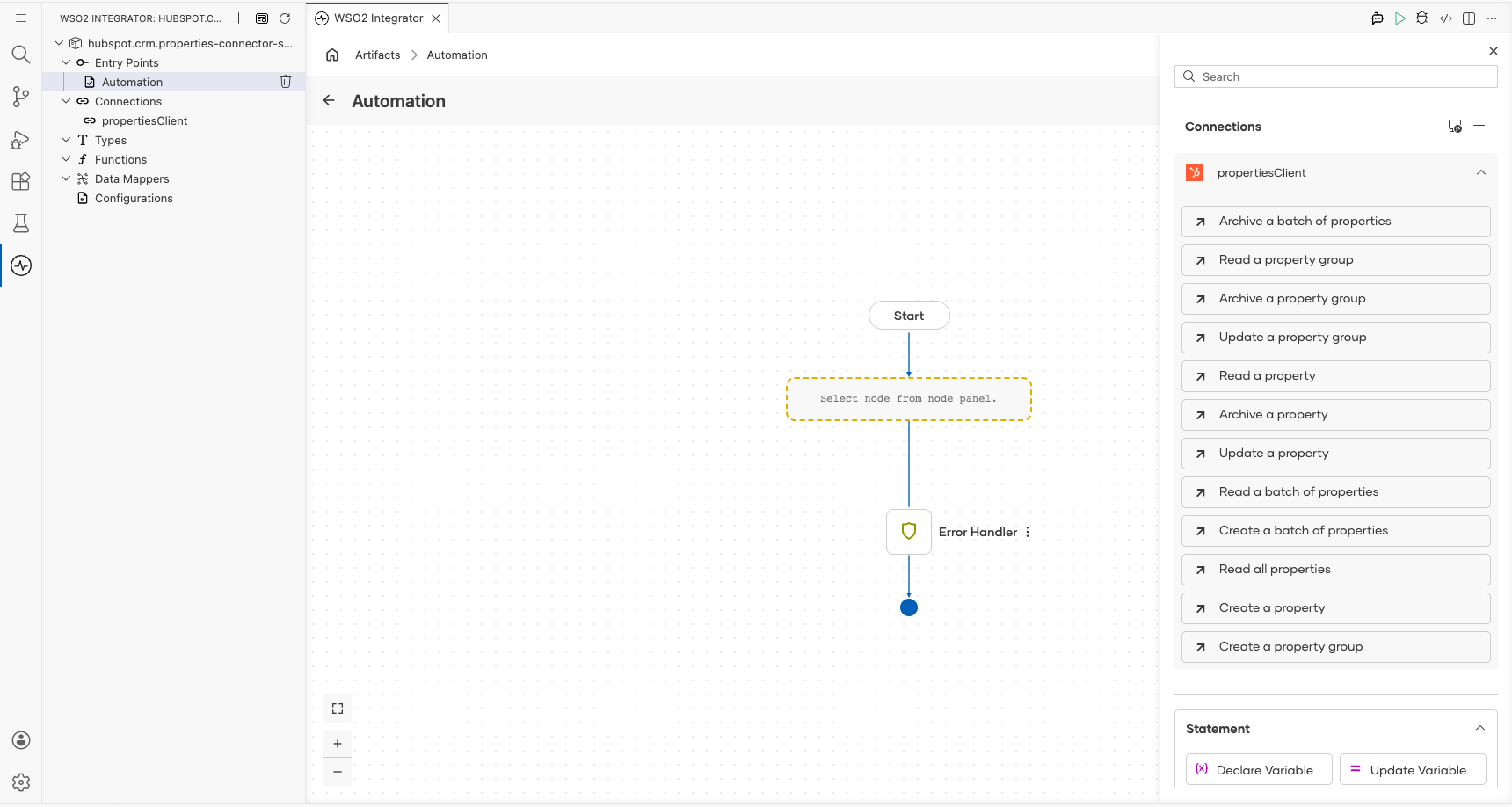

HubSpot CRM Properties connection node expanded showing all available operations before selection

Select Read all properties (the getAll operation) and fill in the operation parameters:

  • ObjectType : The object type to retrieve property definitions for (for example, contacts)
  • Result : The variable name to store the returned collection (for example, result)

Select Save.

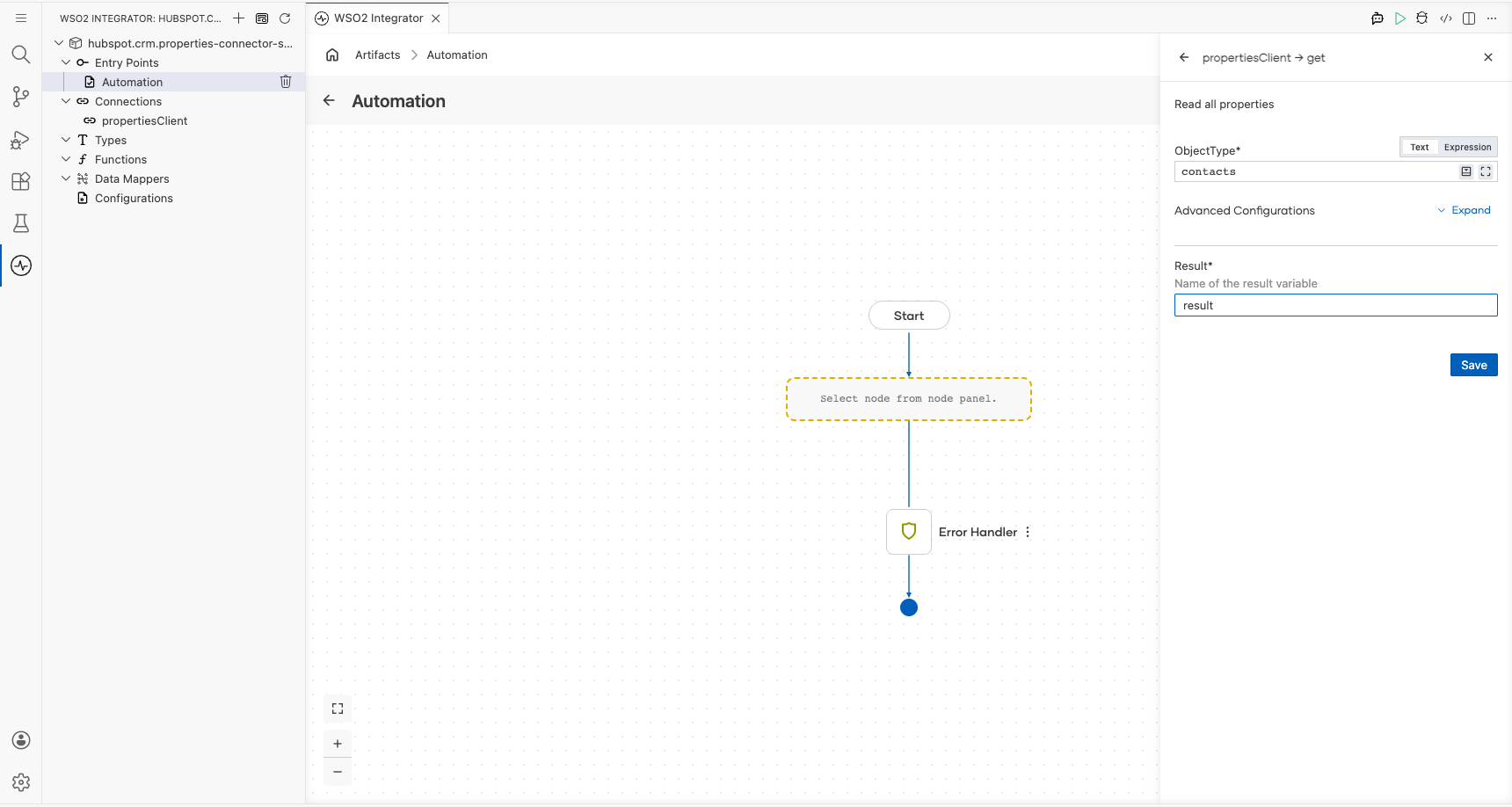

HubSpot CRM Properties getAll operation configuration filled with all values

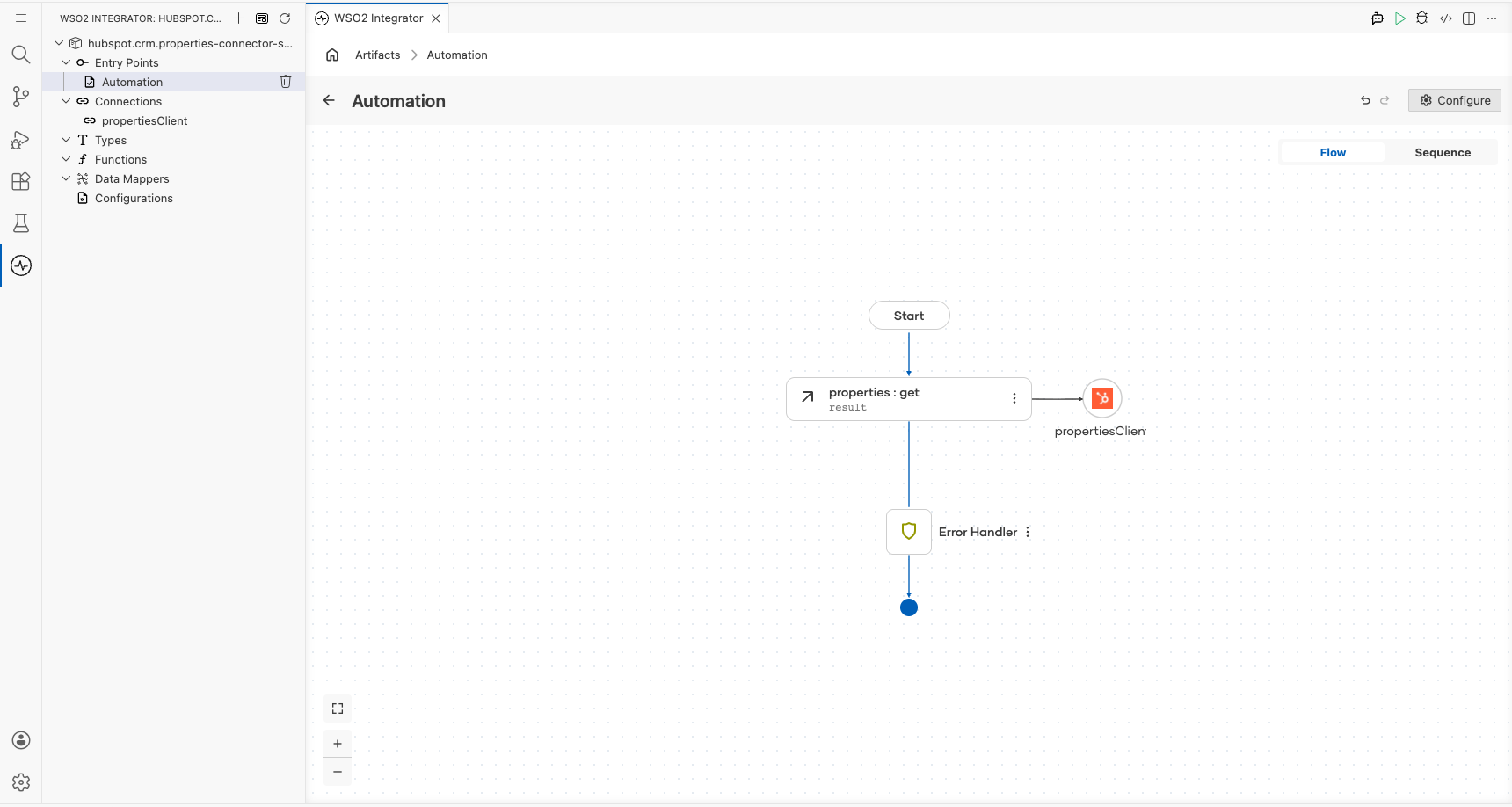

Completed HubSpot CRM Properties automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Ballerina HubSpot CRM Properties Connector connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Customer Behavior Handling
  2. Marketing Preference Management
