Setup Guide

This guide walks you through creating a Salesforce Connected App and obtaining the OAuth 2.0 credentials required to use the Salesforce connector.

Prerequisites

• An active Salesforce account. If you do not have one, sign up for a free Developer Edition.

Step 1: Navigate to App Manager

1. Log in to your Salesforce org.

2. Select the gear icon in the top-right corner and select Setup.

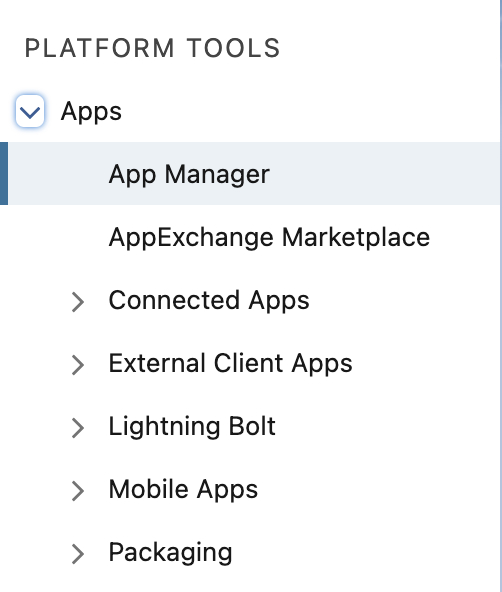

3. In the Quick Find box, type App Manager and select App Manager.



Step 2: Create a connected app

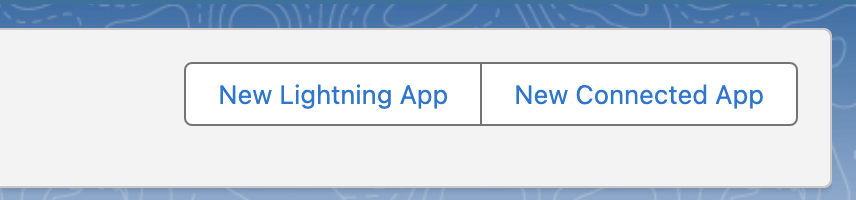

1. Select New Connected App in the top-right corner.



2. Fill in the required fields under Basic Information:

   • Connected App Name: Enter a name (for example, Ballerina Salesforce Connector).
   • API Name: Auto-populated from the name.
   • Contact Email: Enter your email address.

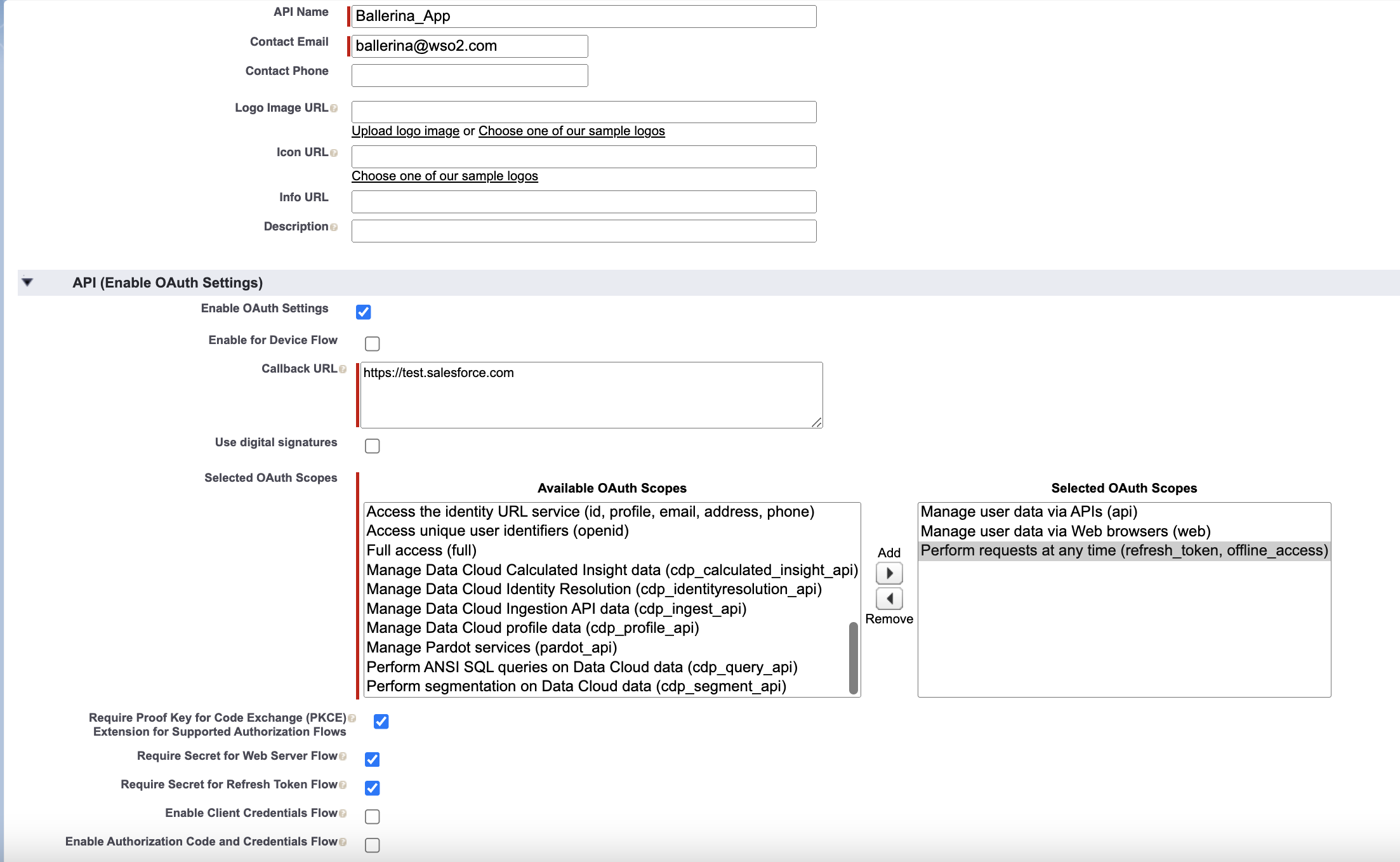

Step 3: Enable OAuth settings

1. Under API (Enable OAuth Settings), check Enable OAuth Settings.
2. Set the Callback URL to https://login.salesforce.com/services/oauth2/success (or your own redirect URI).
3. Under Selected OAuth Scopes, add:
   • Manage user data via APIs (api)
   • Perform requests at any time (refresh_token, offline_access)
4. Select Save, then Continue.

note

It may take 2–10 minutes for the Connected App to become active after saving.

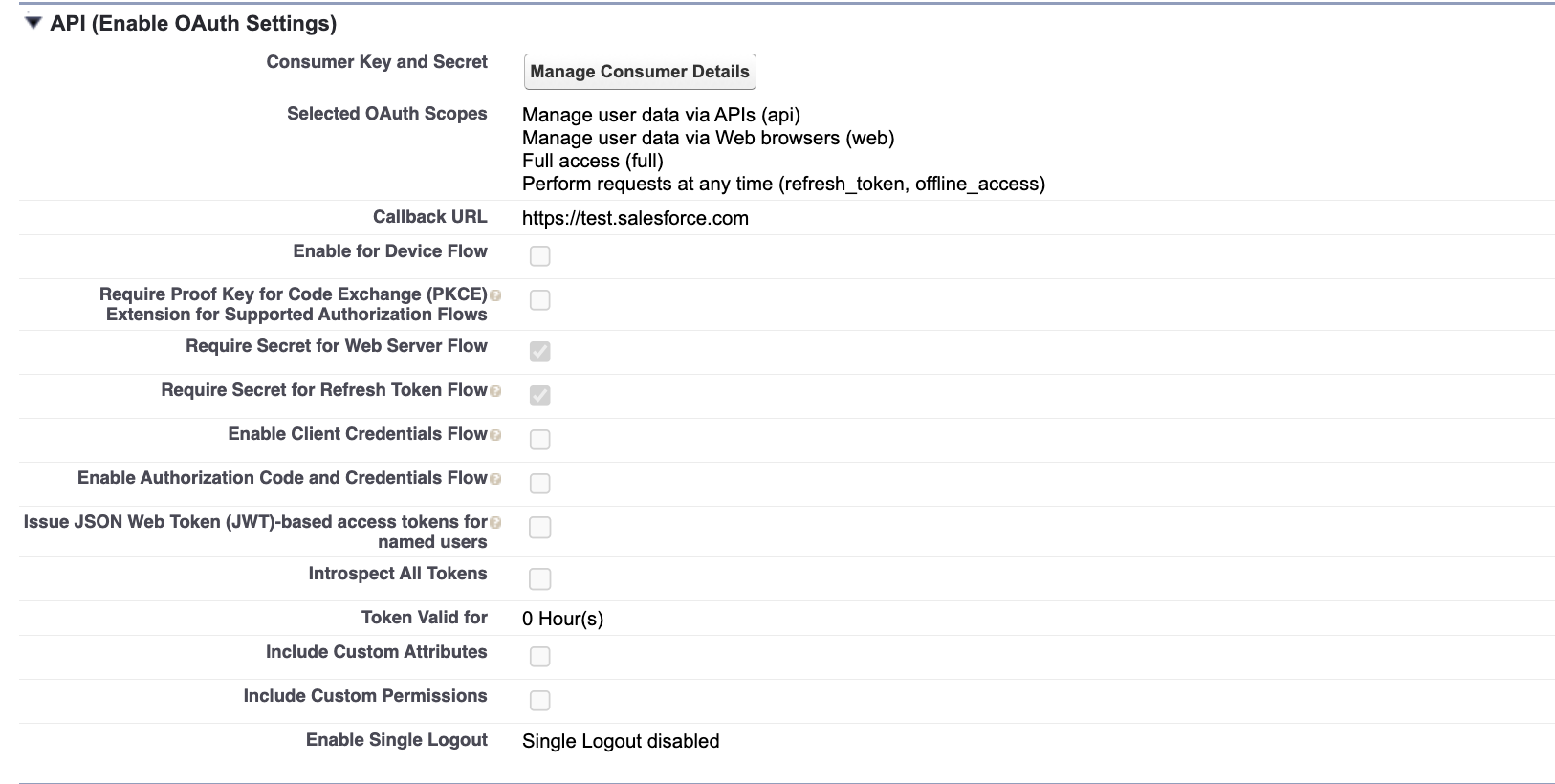

Step 4: Get the consumer key and consumer secret

1. After saving, select Manage Consumer Details (you may need to verify your identity).

2. Copy the Consumer Key — this is your clientId.

3. Copy the Consumer Secret — this is your clientSecret.



tip

Store the Consumer Key and Consumer Secret securely. Use Ballerina's configurable feature and a Config.toml file to supply them at runtime.

Step 5: Generate a refresh token

1. Construct the authorization URL, replacing <YOUR_CLIENT_ID> and <YOUR_CALLBACK_URL>:

   https://login.salesforce.com/services/oauth2/authorize?response_type=code&client_id=<YOUR_CLIENT_ID>&redirect_uri=<YOUR_CALLBACK_URL>&scope=api%20refresh_token%20offline_access

2. Open the URL in a browser and log in with your Salesforce credentials.

3. Authorize the Connected App when prompted.

4. After authorization, Salesforce redirects to your callback URL with a code query parameter. Copy the code value.

5. Exchange the code for tokens:

   curl -X POST "https://login.salesforce.com/services/oauth2/token" \
     -d "grant_type=authorization_code" \
     -d "code=<AUTHORIZATION_CODE>" \
     -d "client_id=<YOUR_CLIENT_ID>" \
     -d "client_secret=<YOUR_CLIENT_SECRET>" \
     -d "redirect_uri=<YOUR_CALLBACK_URL>"

6. Copy the refresh_token from the response.

Step 6: Note your instance base URL

The baseUrl is the Salesforce instance URL for your org:

https://your-instance.salesforce.com

You can find it in the token exchange response as instance_url, or in Setup under My Domain.
