This page contains two end-to-end examples that use the MSSQL connector in WSO2 Integrator:

MSSQL connector example​

Build a WSO2 Integrator automation that connects to a Microsoft SQL Server database using configurable connection parameters and executes an INSERT SQL statement. The integration uses the MSSQL connector to insert a record into a database table safely, without hardcoding credentials in source code.

Operations used:

  • Execute: Runs a parameterized SQL INSERT statement against the connected MSSQL database and returns an execution result.

Architecture​

Prerequisites
  • A running Microsoft SQL Server instance with a table to insert records into.
  • MSSQL database credentials (host, username, password, database name, and port).

Set up the MSSQL integration​

New to WSO2 Integrator?

Follow the Create a new integration guide to set up your integration first, then return here to add the connector.

Add the MSSQL connector​

Open the connector palette and select the MSSQL connector​

  1. From the integration canvas, select + Add Artifact (or the connection + icon).
  2. In the artifact picker, scroll to Other Artifacts and select Connection.
  3. In the connector search palette, type mssql.
  4. Select the MS SQL card to open the Configure MS SQL form.

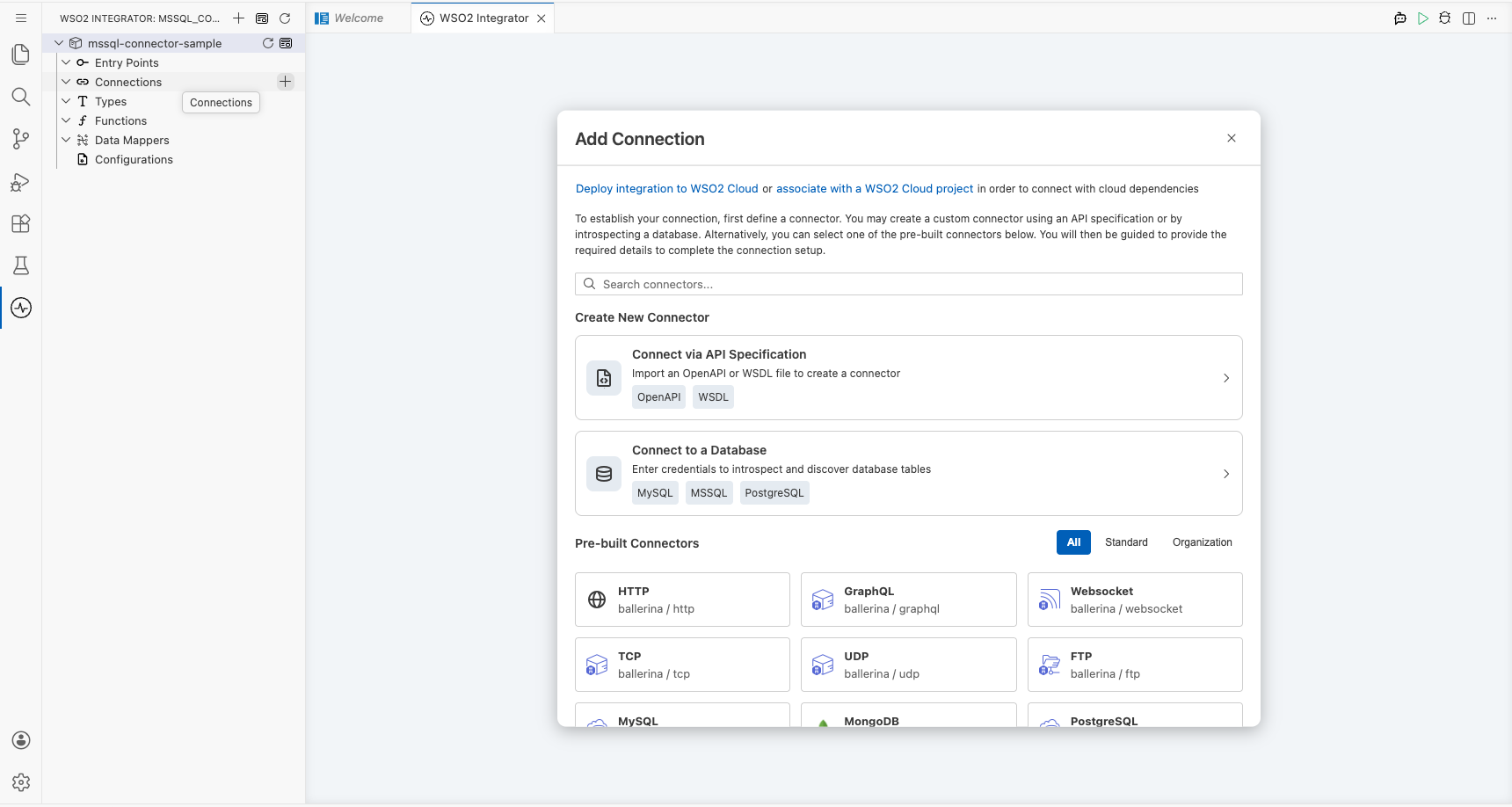

MSSQL connector palette open with search results before selection

Configure the MSSQL connection​

Bind connection parameters to configurable variables​

The Configure MS SQL form opens. All connection parameters are under Advanced Configurations; select Expand if collapsed. For each parameter listed below:

  1. Open the helper panel beside the field and go to the Configurables tab.
  2. Select an existing configurable, or select + New Configurable.
  3. Supply a camelCase name and the appropriate type, then select Save. The configurable is injected into the field.
  • host: MSSQL server hostname, bound to a string configurable named mssqlHost.
  • user: Database username, bound to a string? configurable named mssqlUser.
  • password: Database user password, bound to a string? configurable named mssqlPassword.
  • database: Database name to connect to, bound to a string? configurable named mssqlDatabase.
  • port: MSSQL server port, bound to an int configurable named mssqlPort.

After creating all five configurables, set Connection Name to mssqlClient.

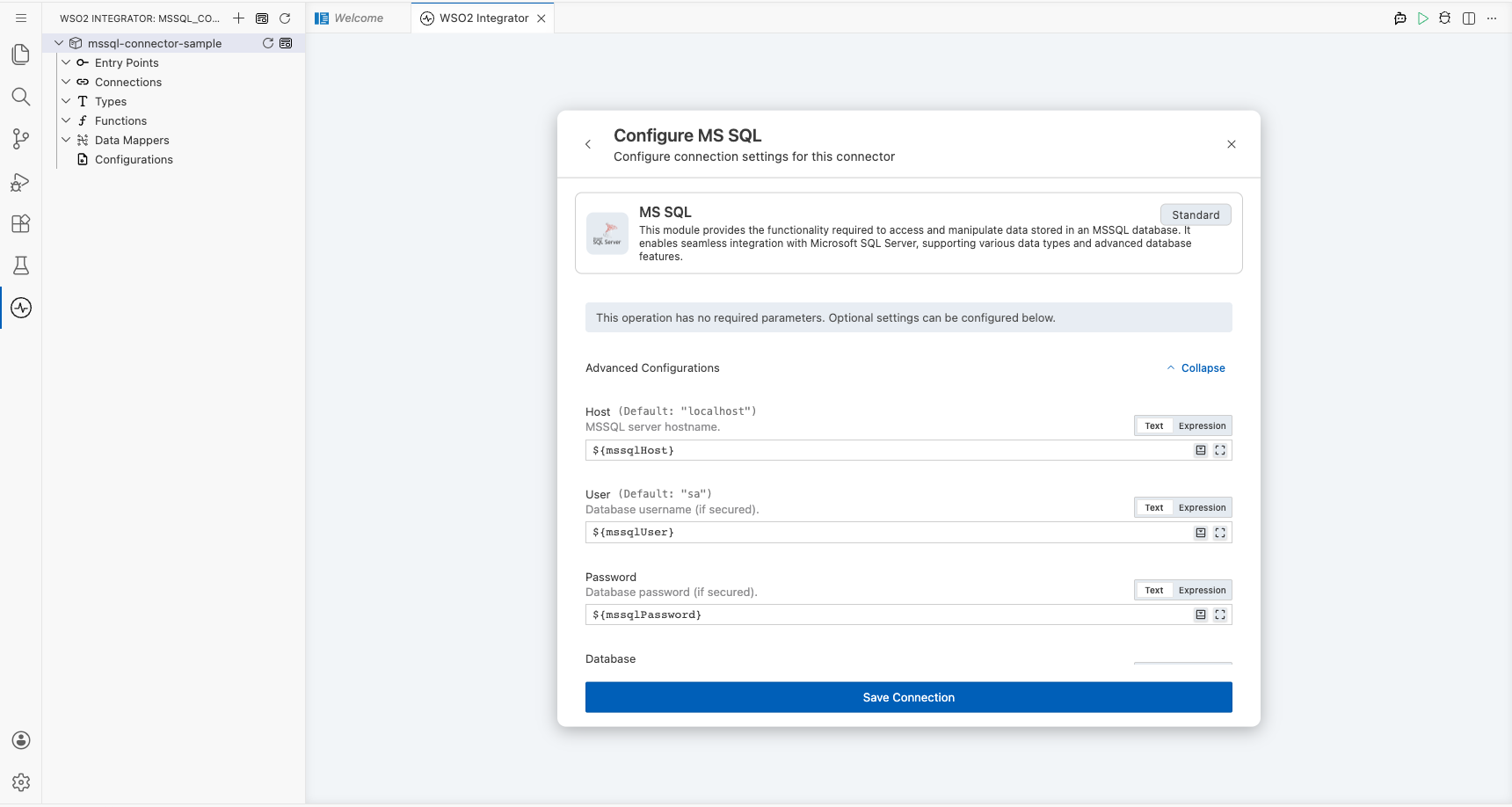

MSSQL connection form fully filled with all parameters before saving

Save the MSSQL connection​

Select Save Connection to save the connector. The canvas returns to the main integration view and displays the mssqlClient connection node. The left-hand sidebar lists it under Connections > mssqlClient.

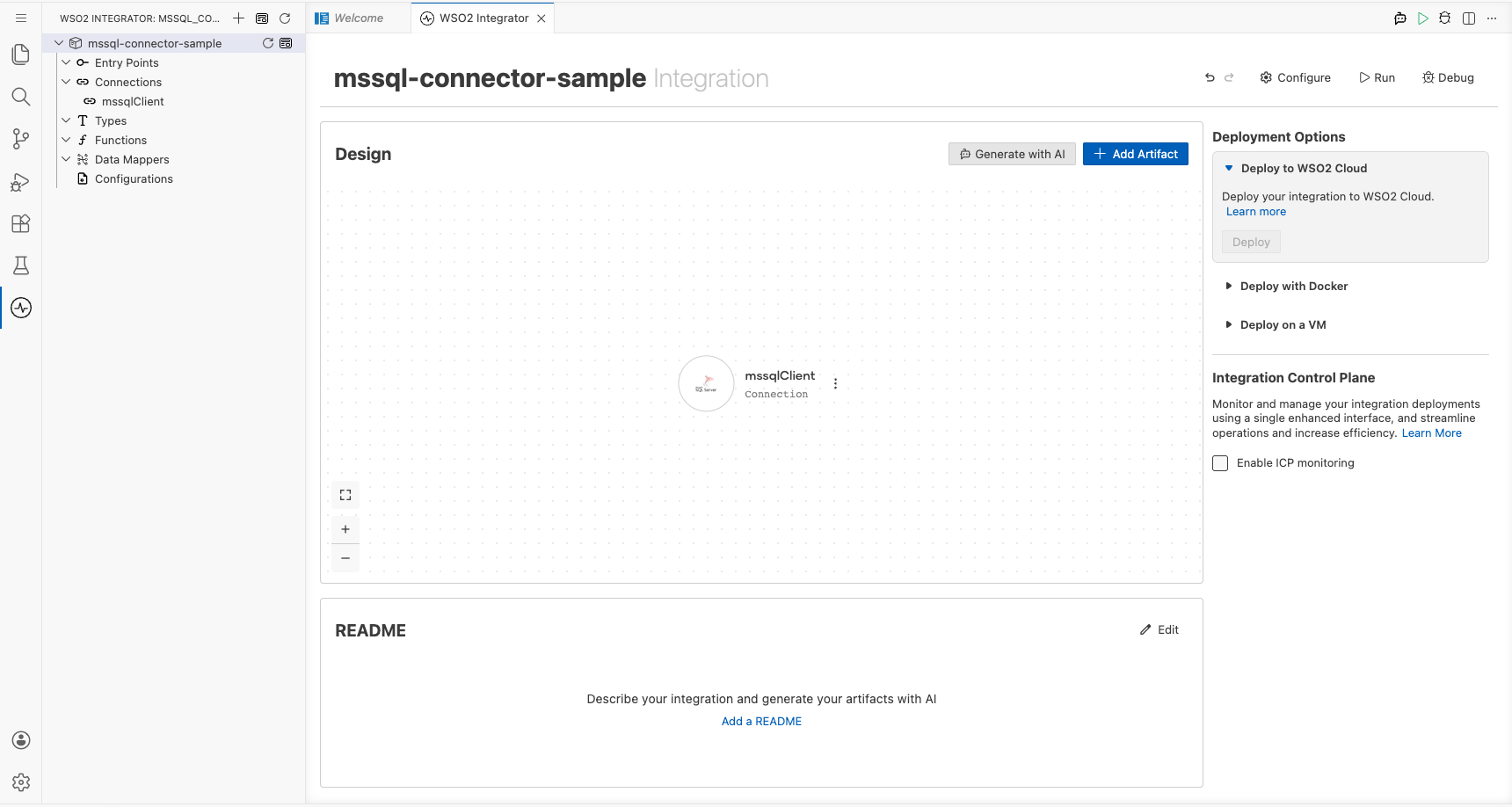

MSSQL Connections panel showing mssqlClient entry after saving

Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • mssqlHost (string): Hostname or IP address of your MSSQL server.
  • mssqlUser (string?): Database username.
  • mssqlPassword (string?): Database user password.
  • mssqlDatabase (string?): Name of the target database.
  • mssqlPort (int): TCP port for the MSSQL server.

Configure the MSSQL execute operation​

Add an automation entry point​

  1. Select + Add Artifact on the canvas.
  2. In the Artifacts panel, select Automation under the Automation section.
  3. In the Create New Automation form, leave the defaults and select Create.

The automation flow editor opens, showing a Start node and an Error Handler node with an empty step slot between them.

Select and configure the execute operation​

  1. In the automation flow, select the + button between Start and Error Handler.
  2. In the node panel, under Connections, select mssqlClient to expand its available operations.

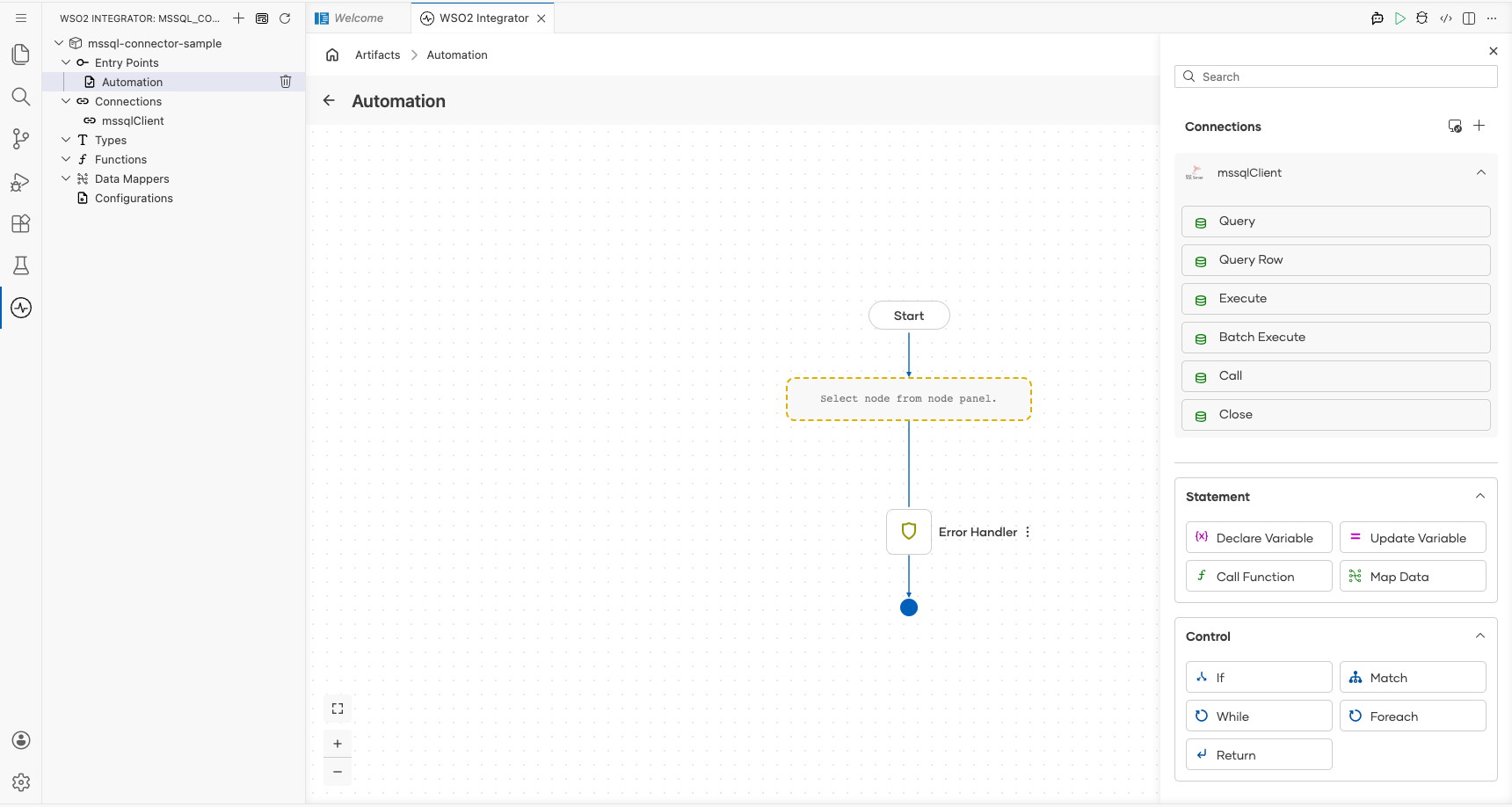

MSSQL connection node expanded showing all available operations before selection

  1. Select Execute to add it to the flow and configure the following parameters:
  • sqlQuery: The SQL INSERT statement to run against the database.
  • result: The variable that stores the execution result (auto-generated as sqlExecutionresult).

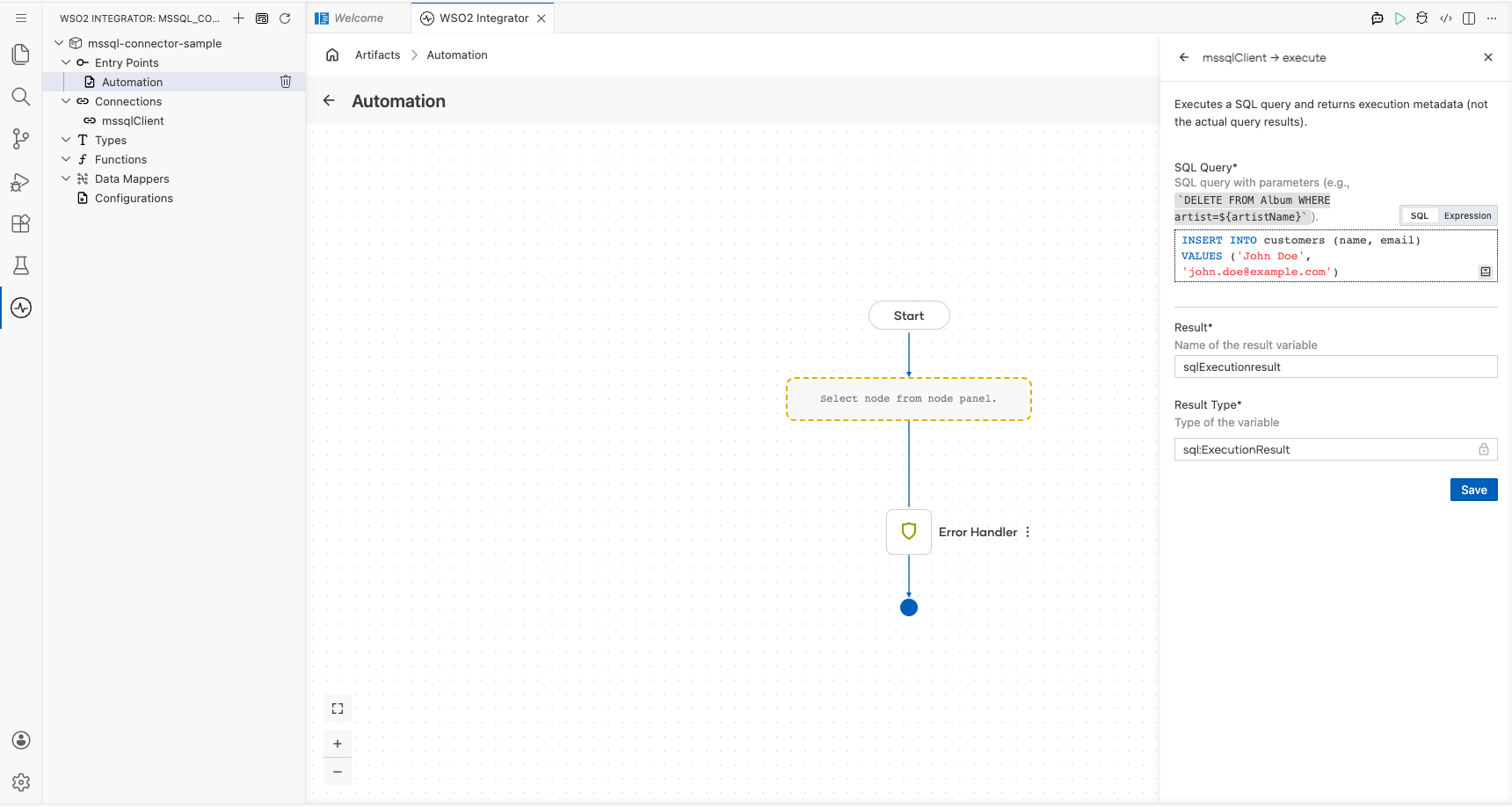

MSSQL execute operation configuration filled with all values

  1. Select Save.

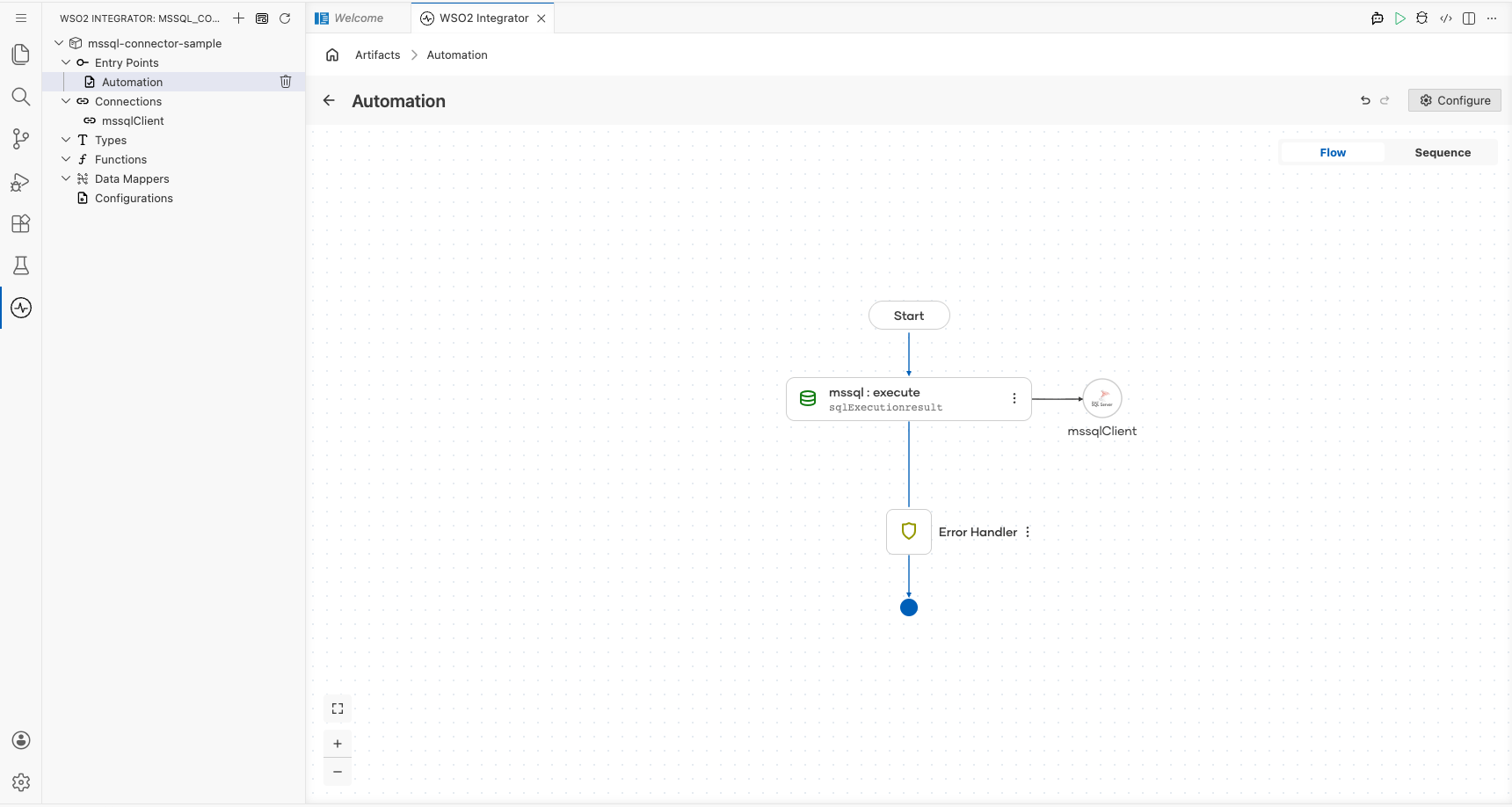

Completed automation flow with mssql execute step

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to WSO2 Integration Platform

View source on GitHub

MSSQL CDC trigger example​

Build a WSO2 Integrator integration that listens for row-level change events on a Microsoft SQL Server table using the CDC trigger from the ballerinax/mssql package. When a new row is inserted into the configured CDC-enabled table, the trigger fires the onCreate handler, which receives the inserted row as a generic record payload. You define a custom MssqlInsertRecord type schema to structure the payload, then print its JSON representation to the integration log using log:printInfo.

Architecture​

Prerequisites
  • A running Microsoft SQL Server instance with Change Data Capture (CDC) enabled on the target database.
  • A database user with sufficient privileges to read CDC change tables.
  • The target table must have CDC enabled (via sys.sp_cdc_enable_table).
  • Network connectivity from the WSO2 Integrator runtime to the SQL Server instance on the configured port.

Set up the MSSQL CDC integration​

New to WSO2 Integrator?

Follow the Create a new integration guide to set up your integration first, then return here to add the trigger.

Add the CDC for Microsoft SQL Server trigger​

Open the artifacts palette and select the CDC trigger​

  1. On the integration canvas, select + Add Artifact to open the Artifacts palette.
  2. In the Event Integration category, locate and select the CDC for Microsoft SQL Server card.

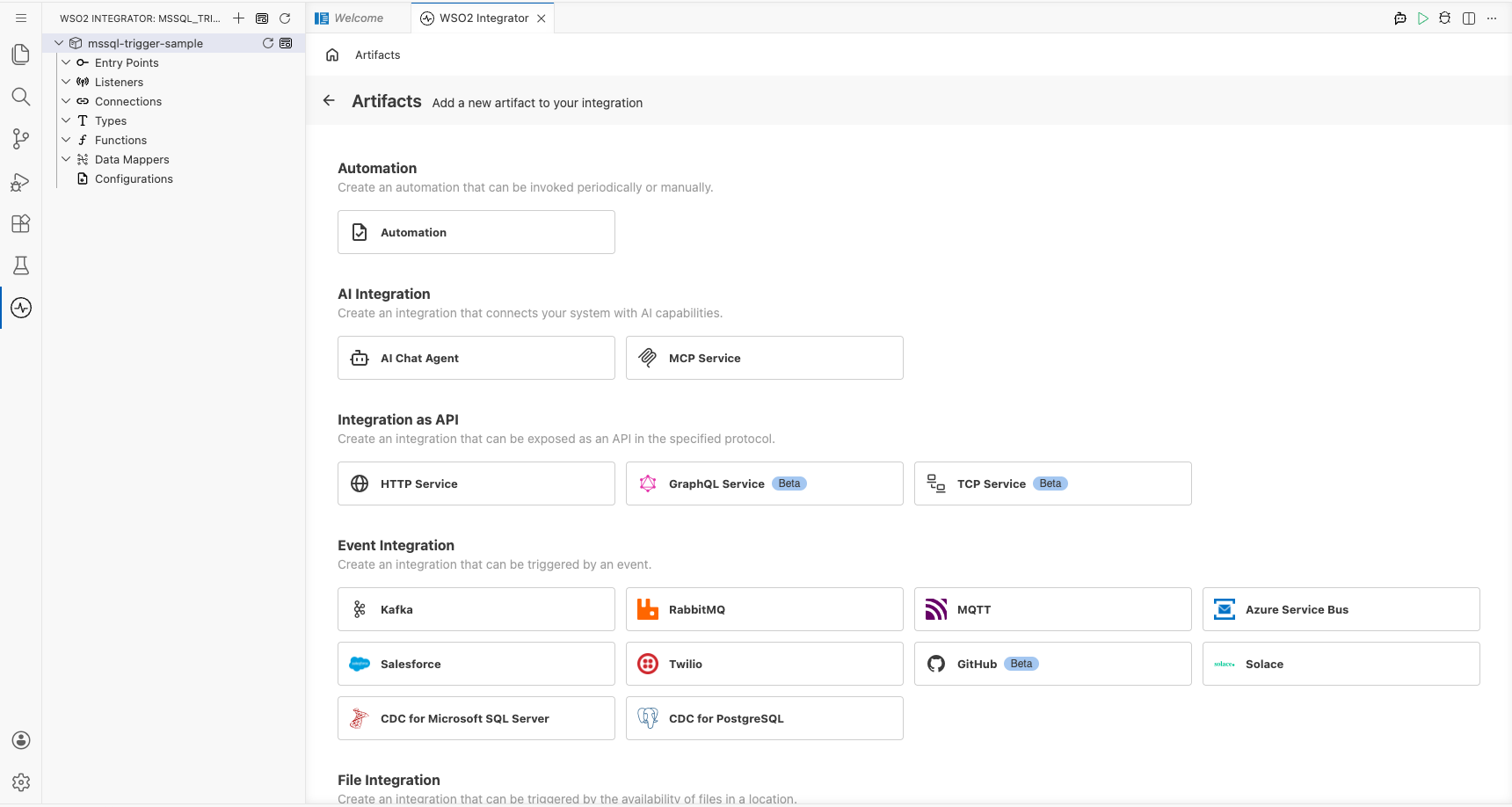

Artifacts palette open showing the Event Integration category with the CDC for Microsoft SQL Server card visible

Configure the CDC listener​

Bind CDC listener parameters to configurable variables​

For each connection parameter in the trigger configuration form, open the Helper Panel, select the Configurables tab, select + New Configurable, enter the variable name and type, and select Save. The value is automatically injected into the field. Repeat for every non-enum, non-boolean parameter.

  • Host: Hostname of the Microsoft SQL Server, bound to a string configurable.
  • Port: TCP port the SQL Server listens on, bound to an int configurable.
  • Username: SQL Server login username with CDC read access, bound to a string configurable.
  • Password: SQL Server login password, bound to a string configurable.
  • Databases: The database to capture changes from (add one entry and bind it), bound to a string configurable.
  • Table: Fully-qualified table name to capture events from (format <database>.<schema>.<table>), bound to a string configurable.

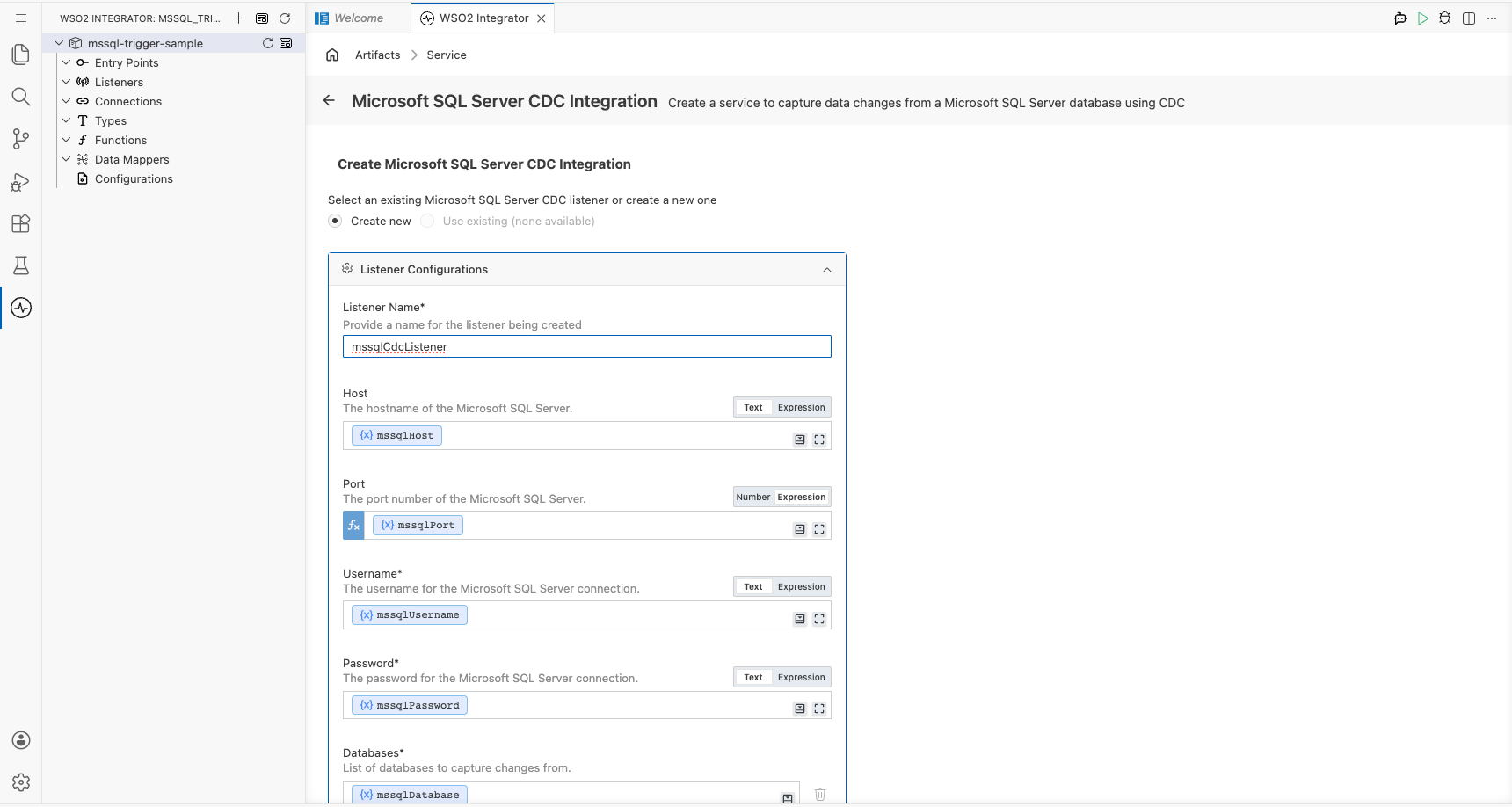

CDC for Microsoft SQL Server trigger configuration form fully filled with all listener parameters before clicking Create

Set actual values for your configurations​

In the left panel of WSO2 Integrator, select Configurations (at the bottom of the project tree, under Data Mappers) to open the Configurations panel. Set a value for each configuration:

  • mssqlHost (string): Hostname or IP address of your SQL Server instance.
  • mssqlPort (int): Port SQL Server listens on.
  • mssqlUsername (string): SQL Server username with permission to read CDC change tables.
  • mssqlPassword (string): Password for the SQL Server user.
  • mssqlDatabase (string): Name of the CDC-enabled database (for example, SalesDB).
  • mssqlTableName (string): Fully-qualified table to watch for changes (for example, SalesDB.dbo.Orders).

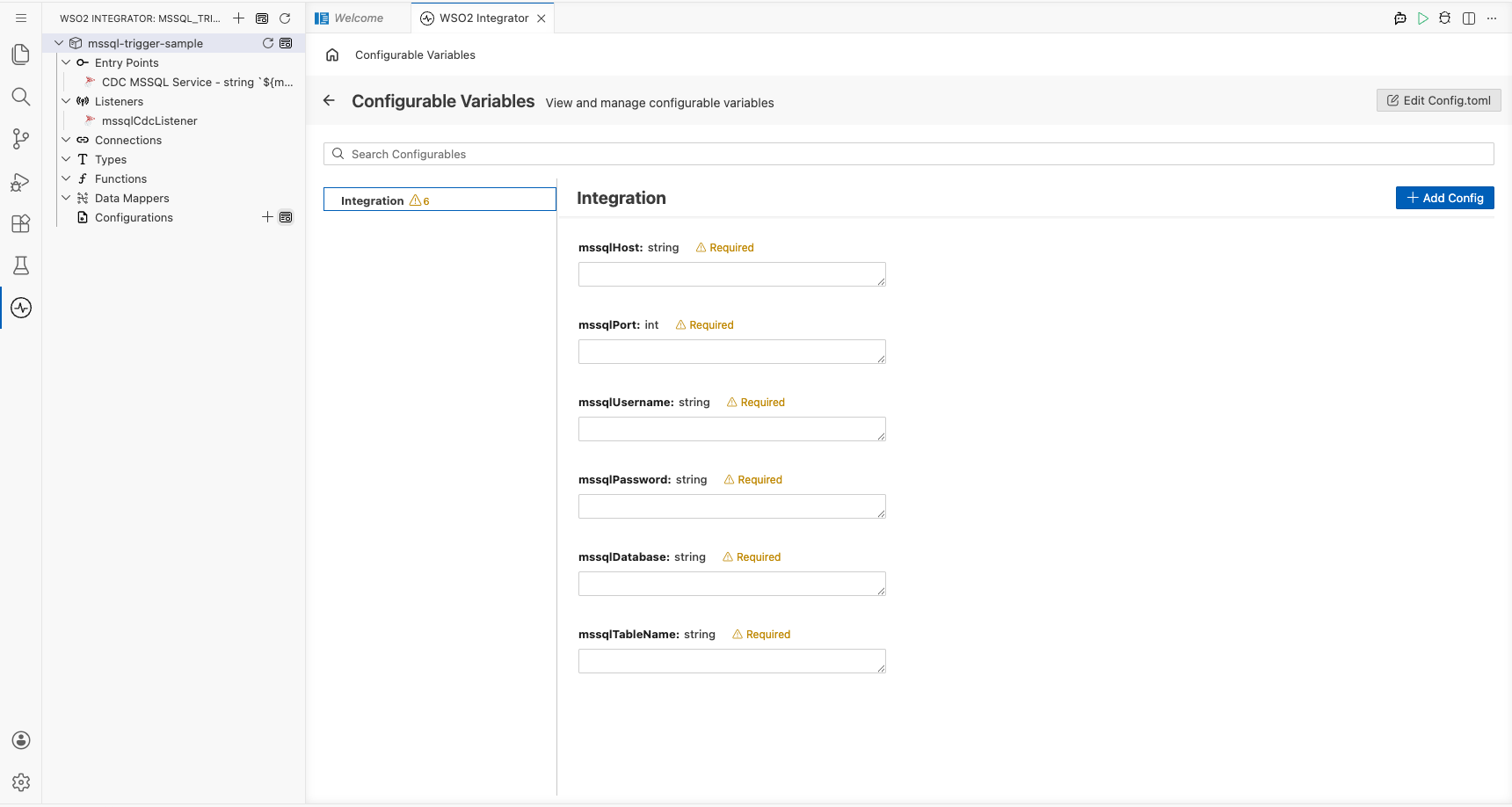

Configurations panel open showing the configurable variables listed with empty value fields

Create the trigger​

Select Create at the bottom of the trigger configuration form. WSO2 Integrator creates the CDC listener and opens the Service view showing the listener chip.

Handle CDC events​

Open the Add Handler side panel​

  1. In the Service view, locate the Event Handlers section and select + Add Handler.
  2. The Select Handler to Add side panel opens, listing the available CDC handler options: onRead, onCreate, onUpdate, onDelete, and onError.

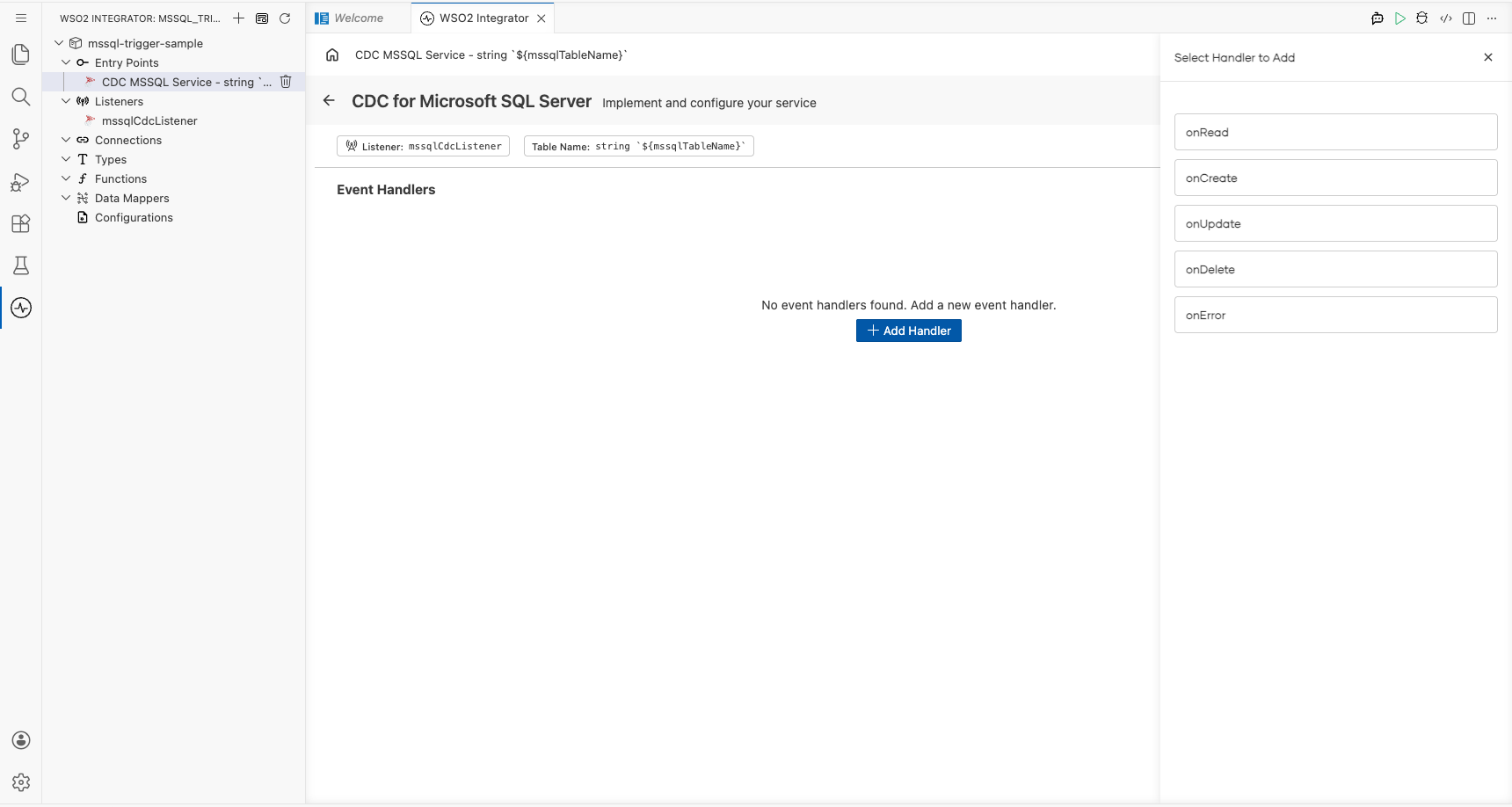

Service view with Select Handler to Add side panel open listing available CDC handler options

Select the onCreate handler and define the message payload type​

  1. In the side panel, select onCreate to open the Message Handler Configuration panel.
  2. In the Message Configuration field, select Define Value to open the type definition modal.
  3. Select the Create Type Schema tab and enter MssqlInsertRecord in the Name field.
  4. Select the + icon next to Fields to add each payload field, entering a field name and a Ballerina type for every field, for example, id (int) and tableName (string).
  5. Select Save to create the record type and bind it to the handler.

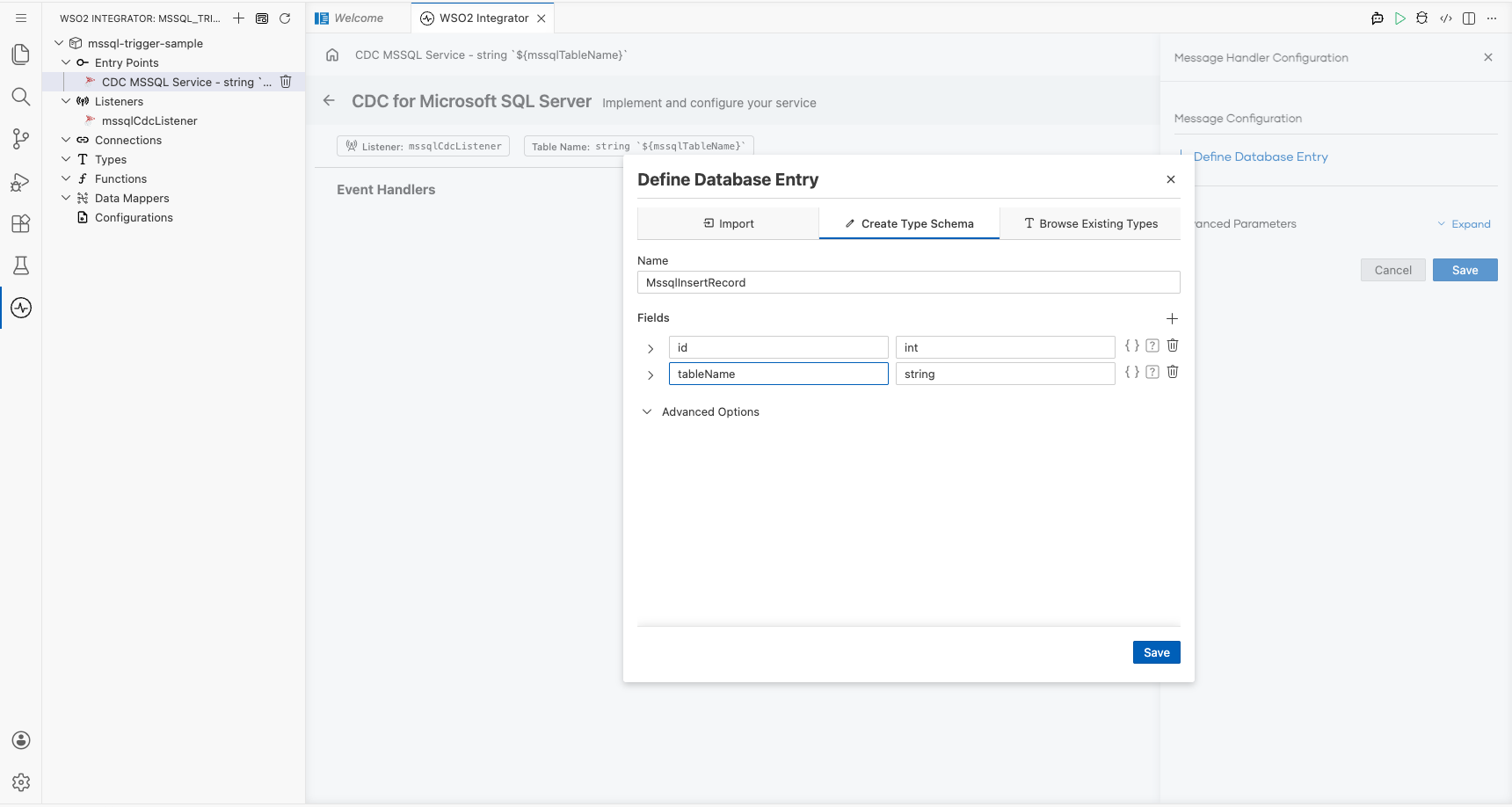

Define Value modal on the Create Type Schema tab showing the MssqlInsertRecord name and fields filled in before Save

Save the handler and add a log statement to the flow​

  1. Select Save on the Message Handler Configuration panel. The flow canvas for the onCreate handler opens.
  2. In the handler flow canvas, add a log:printInfo step with after.toJsonString() as the message.
  3. Verify the log:printInfo node appears between Start and Error Handler on the canvas.

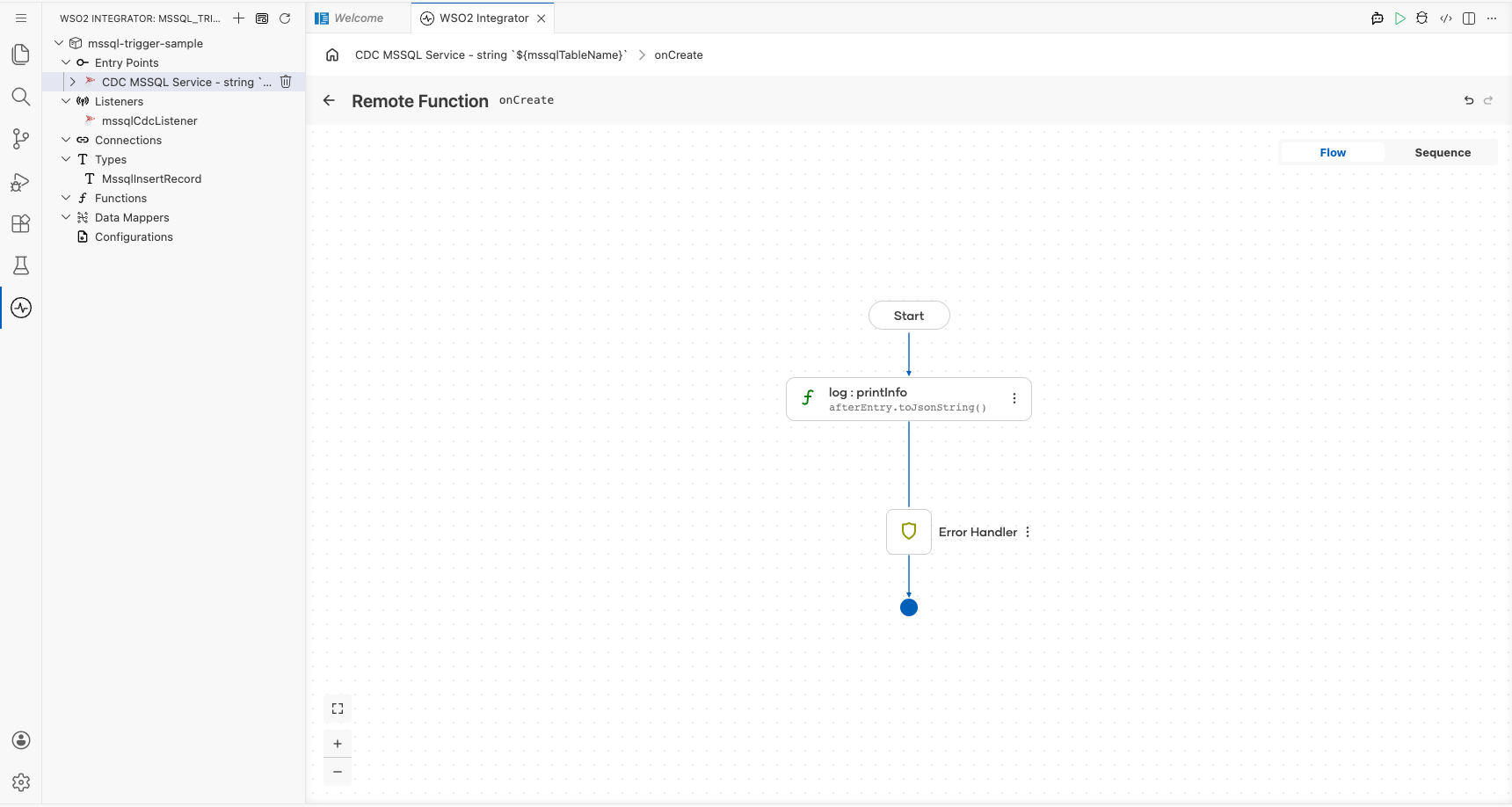

onCreate handler flow canvas showing the log step added

Confirm the handler is registered in the Service view​

Select the back arrow in the canvas header to return to the Service view. The Event Handlers list now shows the registered Event onCreate handler row.

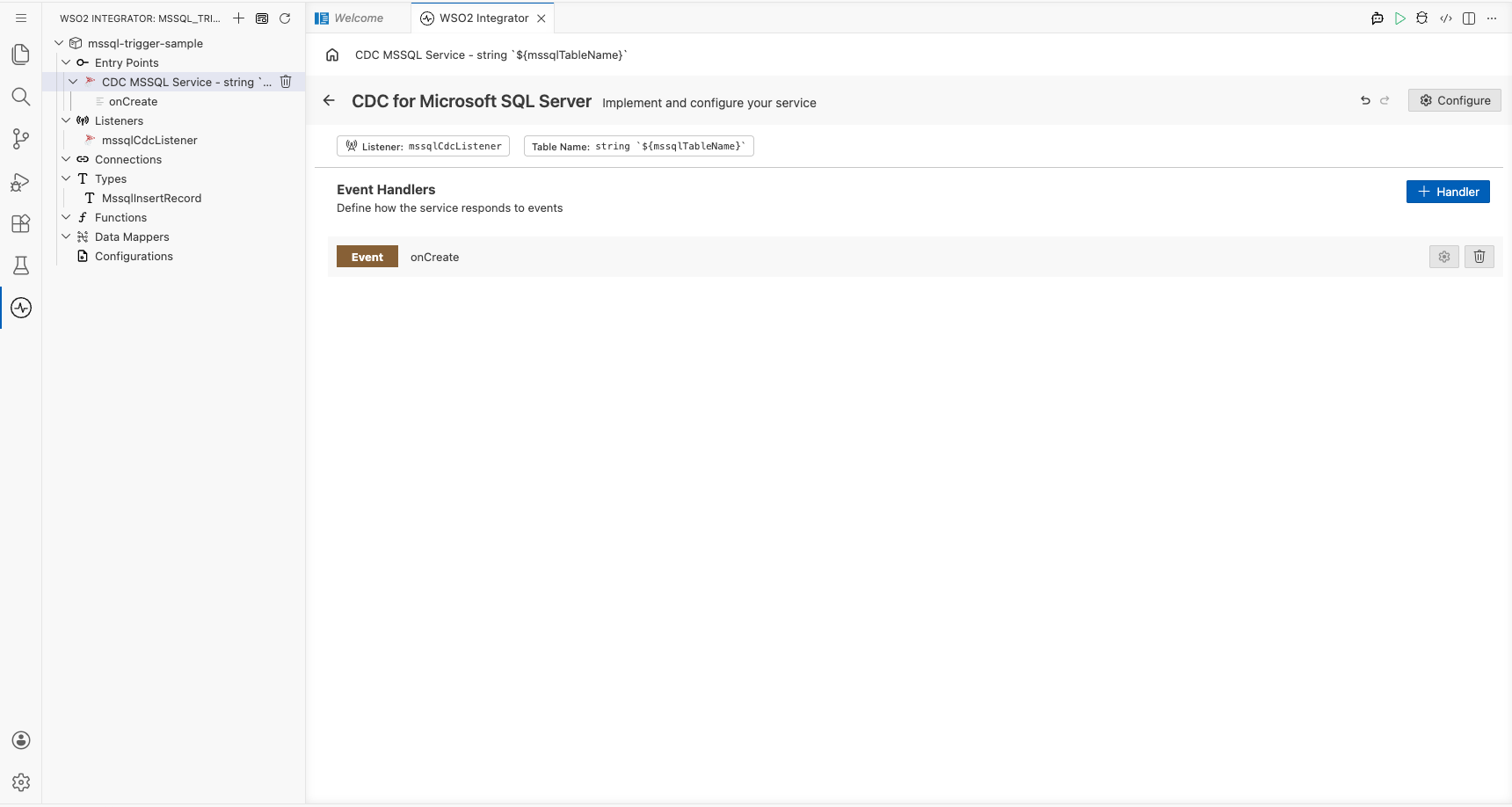

Trigger Service view showing the registered Event onCreate handler row

Run the integration​

Select Run in WSO2 Integrator to start the integration. The CDC listener connects to your SQL Server instance and begins polling the CDC change tables for the configured database and table.

To fire a test event, use one of the following approaches:

  • WSO2 Integrator MSSQL producer: Run a separate WSO2 Integrator integration that uses the MSSQL connector to insert a row into the monitored table. Recommended because it stays within the WSO2 Integrator environment.
  • Native SQL client: Use sqlcmd, Azure Data Studio, or SQL Server Management Studio to execute an INSERT INTO <tableName> (<columns>) VALUES (<values>); statement against the CDC-enabled table.
  • Azure Portal Query Editor: Use the Azure Portal Query Editor or any SQL web client connected to your SQL Server instance, if the server is hosted in Azure SQL Database.

When an insert is detected, the onCreate handler fires and the inserted row appears as a JSON string in the integration log, confirming end-to-end event capture.

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to WSO2 Integration Platform

View source on GitHub
