What you'll build​

This integration uses the ballerinax/sap.commerce.webservices connector to connect to the SAP Commerce Cloud OCC REST API and retrieve commerce data on a scheduled basis. The workflow demonstrates how to authenticate with SAP Commerce Cloud using OAuth2 credentials and call the getBaseSites operation to fetch base site information. The integration runs as an Automation trigger that periodically queries SAP Commerce Cloud and stores the response in a result variable, providing a foundation for commerce data synchronization workflows.

Operations used:

  • getBaseSites : retrieves all base sites configured in the SAP Commerce Cloud instance, returning site identifiers, URLs, and locale settings

Architecture​

Prerequisites​

  • A running SAP Commerce Cloud instance with the OCC REST API enabled and accessible over HTTPS.
  • An OAuth2 client application registered in SAP Commerce Cloud with the required scopes to access base site and catalog resources.
  • The OAuth2 Client ID, Client Secret, and Token URL for your SAP Commerce Cloud OAuth2 client.
  • The base URL of your SAP Commerce Cloud OCC REST API.

Setting up the SAP commerce web services integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the SAP commerce web services connector​

Step 1: Open the add connection palette​

Select Add Connection (or the + icon in the Connections section of the sidebar) to open the connector palette, which displays a search field and a list of available connectors.

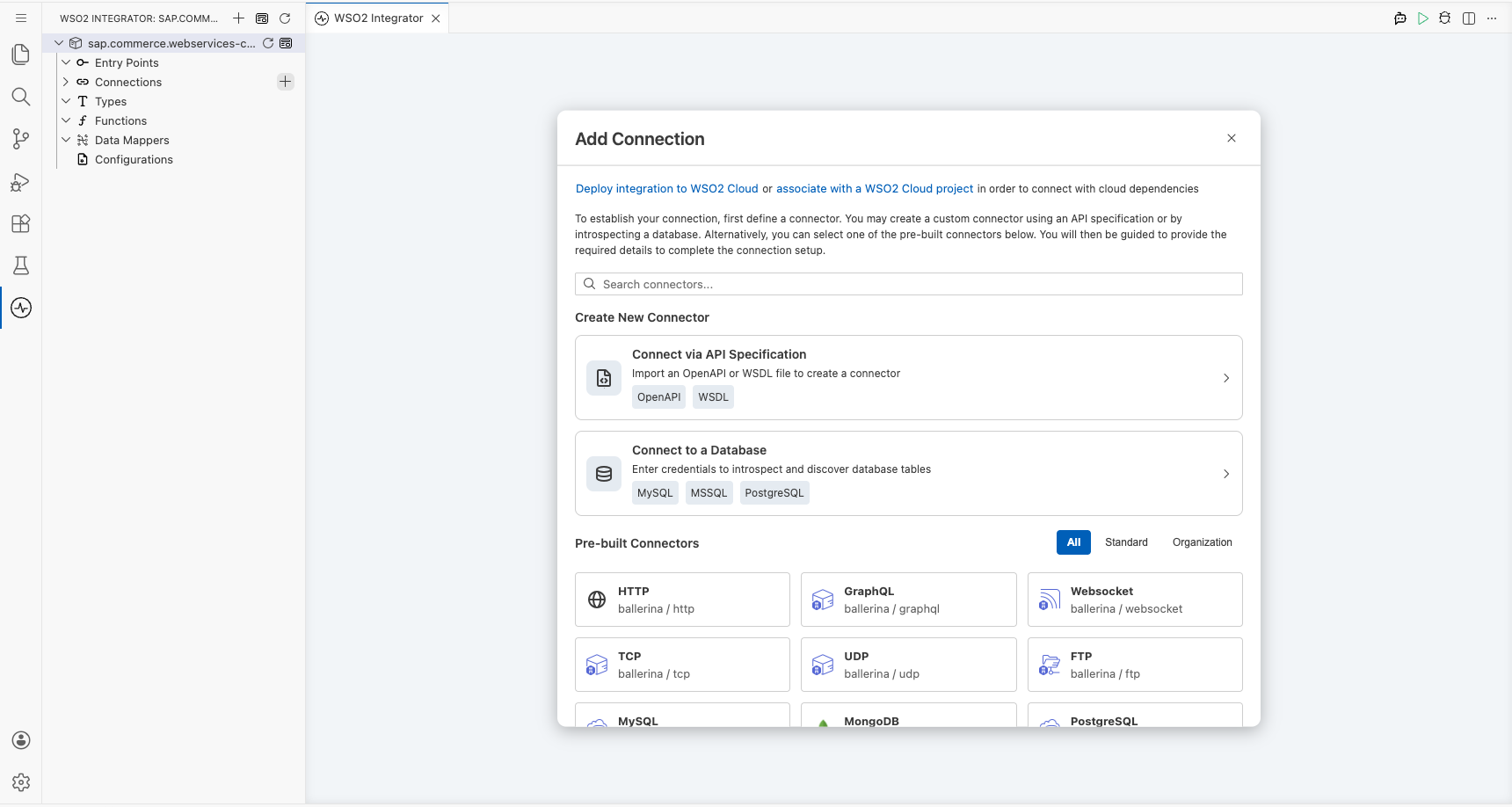

SAP Commerce Web Services connector palette open before search

Step 2: Search for and select the SAP commerce web services connector​

  1. In the palette search box, enter sap.commerce.webservices to filter the connector list.
  2. Locate the ballerinax/sap.commerce.webservices connector card in the results.
  3. Select the connector card to open the inline connection configuration form.

Configuring the SAP commerce web services connection​

Step 3: Bind SAP commerce web services connection parameters to configurables​

For each connection field, open the configurables panel, navigate to the Configurables tab, select + New Configurable, enter the variable name and type, and select Save to automatically inject the configurable reference into the field.

  • Config : the OAuth2 connection configuration record containing authentication credentials for SAP Commerce Cloud, including the token URL, client ID, and client secret
  • Service Url : the base URL of the SAP Commerce Cloud OCC REST API endpoint
  • Connection Name : the identifier used to reference this connection throughout the integration

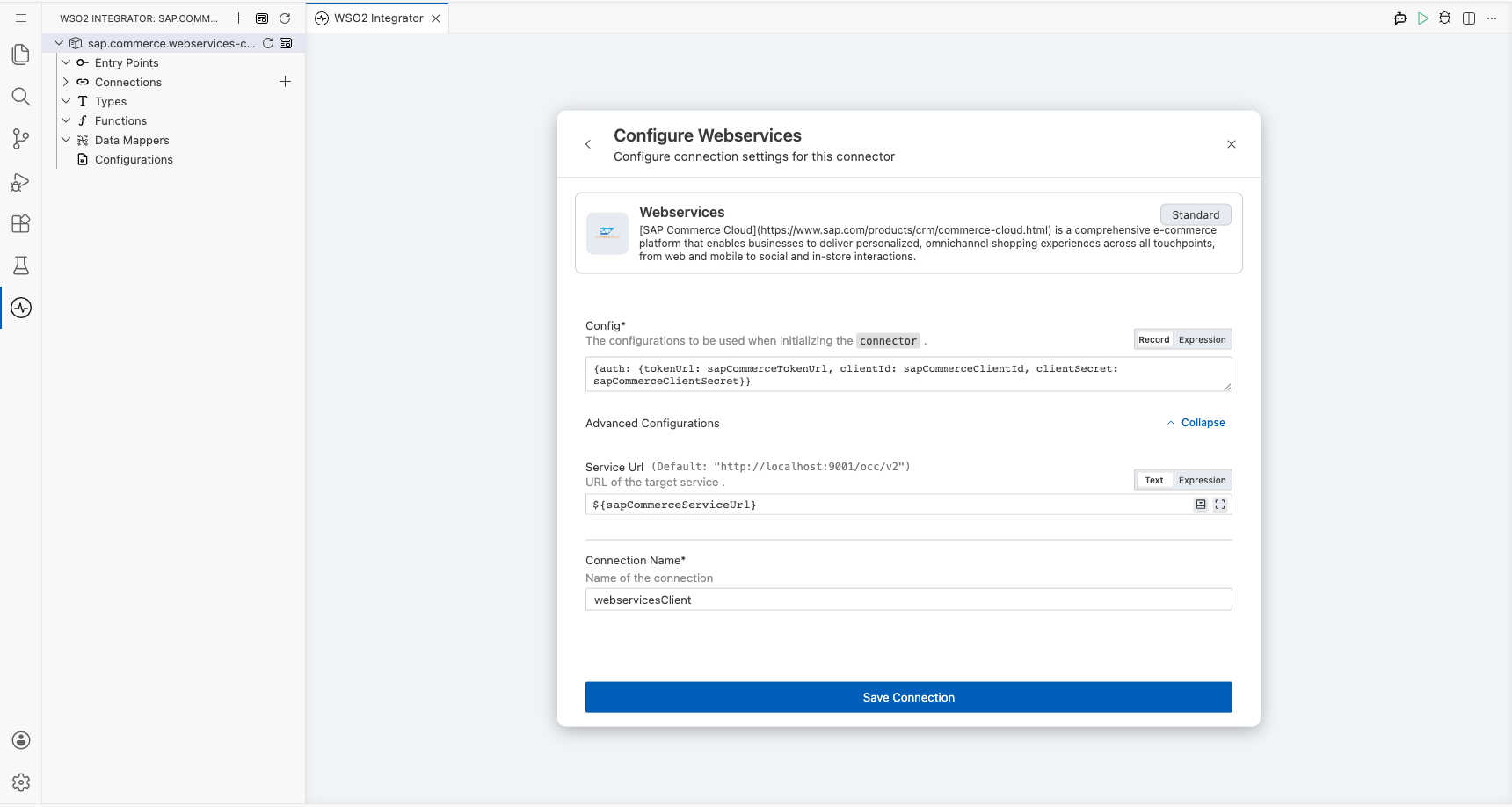

SAP Commerce Web Services connection form with all parameters bound to configurable variables

Step 4: Save the SAP commerce web services connection​

Select Save Connection to persist the connection configuration. The SAP Commerce Web Services connector node now appears in the Connections panel on the low-code canvas.

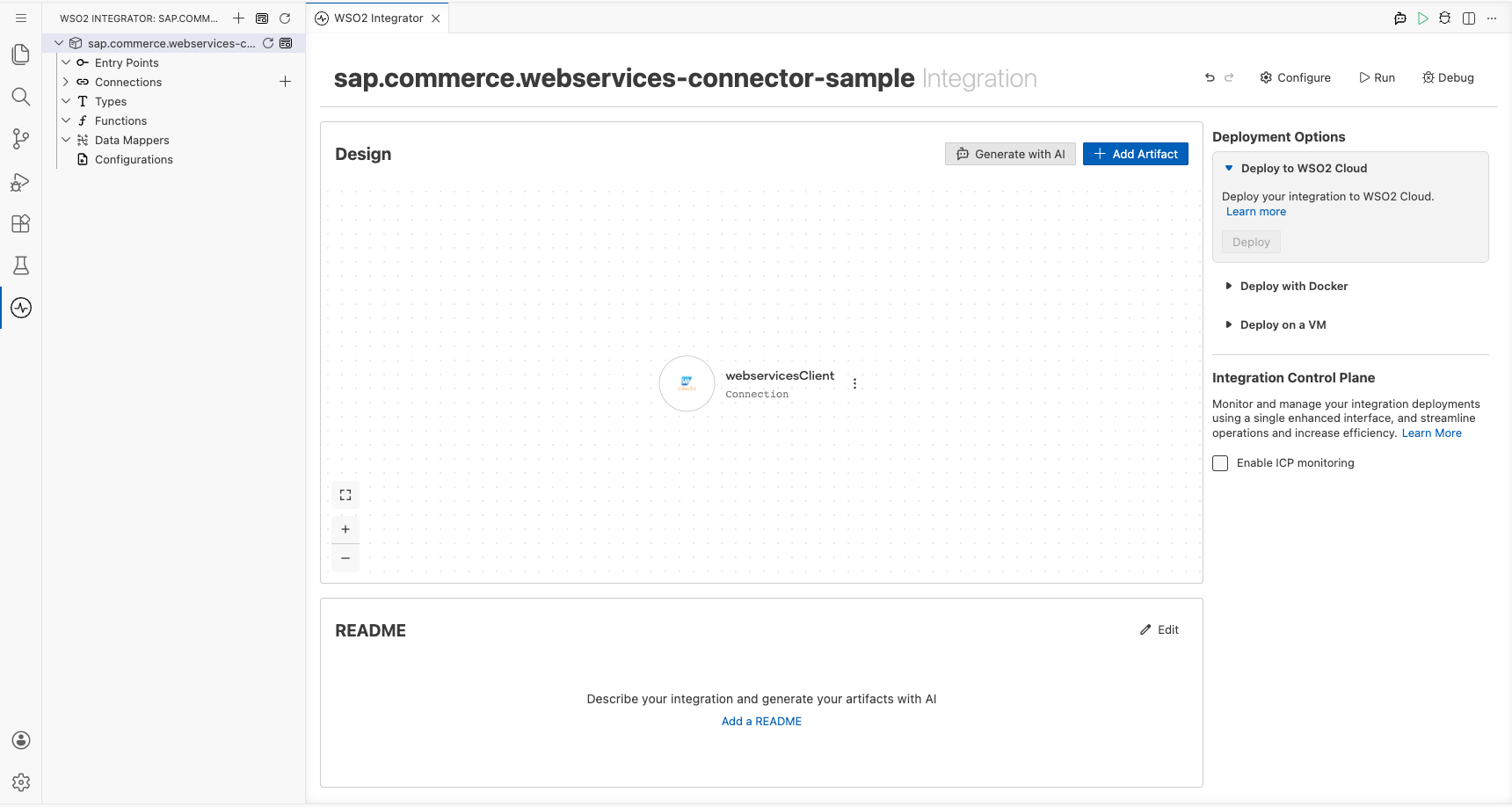

SAP Commerce Web Services connector node visible on the low-code canvas after saving

Step 5: Set actual values for your configurables​

In the left panel of WSO2 Integrator, select Configurations (listed at the bottom of the project tree, under Data Mappers) to open the Configurations panel. Set a value for each configurable listed below.

  • sapCommerceServiceUrl (string) : the full base URL of your SAP Commerce OCC REST API
  • sapCommerceTokenUrl (string) : the OAuth2 token endpoint for your SAP Commerce Cloud instance
  • sapCommerceClientId (string) : your OAuth2 client ID registered in SAP Commerce Cloud
  • sapCommerceClientSecret (string) : your OAuth2 client secret; keep this value secure

Configuring the SAP commerce web services getBaseSites operation​

Step 6: Add an automation entry point​

  1. On the low-code canvas, select + Add Entry Point in the Entry Points section, then select Automation to add a scheduled automation trigger.
  2. Select Create to confirm.
  3. The automation block appears on the canvas with Start and Error Handler nodes in its body.

Step 7: Select and configure the getBaseSites operation​

  1. Inside the automation body, select the + (Add Step) button between the Start and End nodes to open the right-side step panel.
  2. Under Connections in the step panel, select the SAP Commerce Web Services connection node to expand it and reveal all available operations.

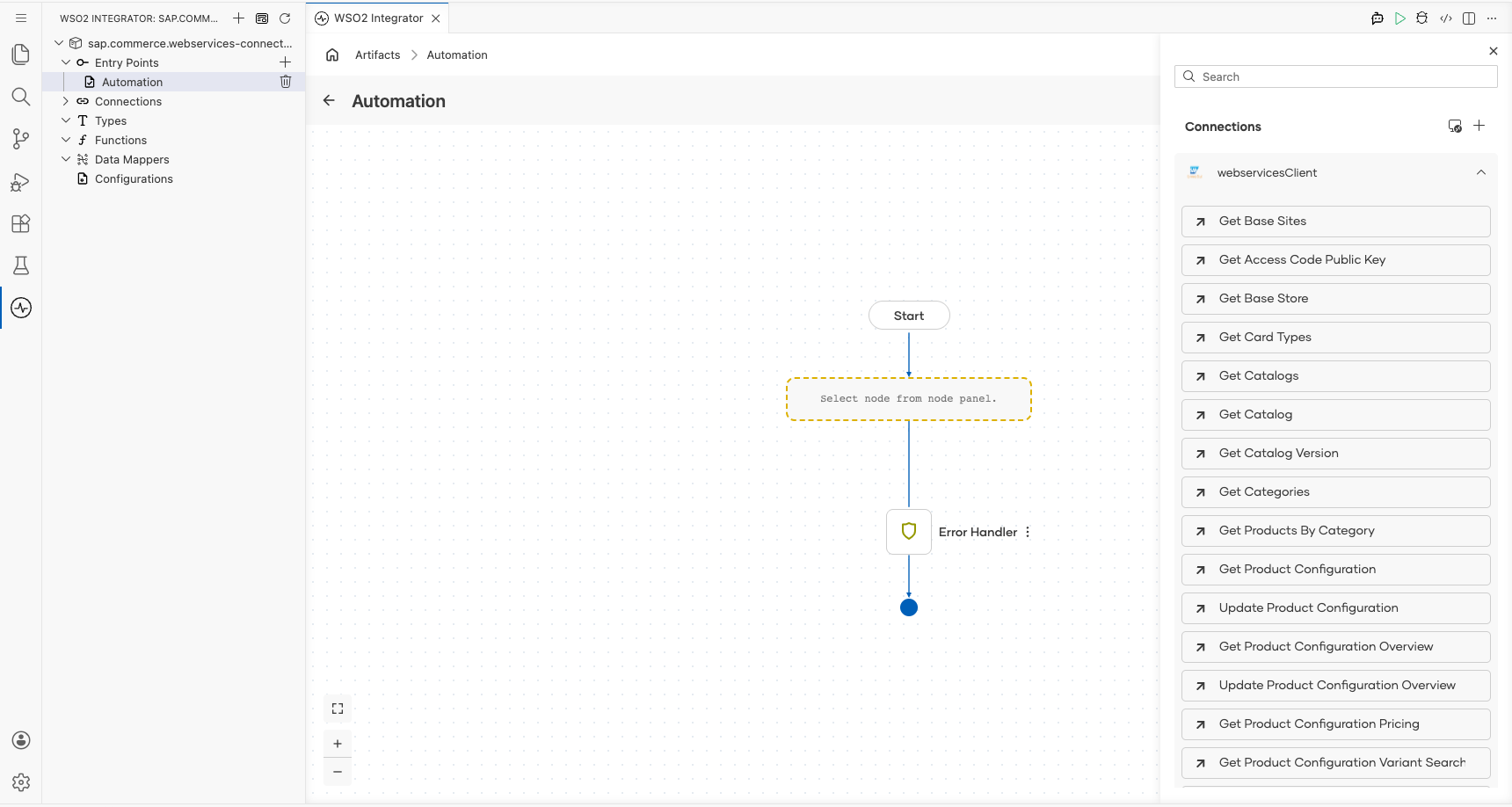

SAP Commerce Web Services connection node expanded showing all available operations before selection

  1. Select Get Base Sites (getBaseSites) from the list of operations and review the operation fields:
  • Result : the name of the variable that will store the operation response
  • Result Type : the type of the result variable
  1. Select Save to add the SAP Commerce Web Services remote function call to the automation flow.

SAP Commerce Web Services getBaseSites operation with all input fields filled

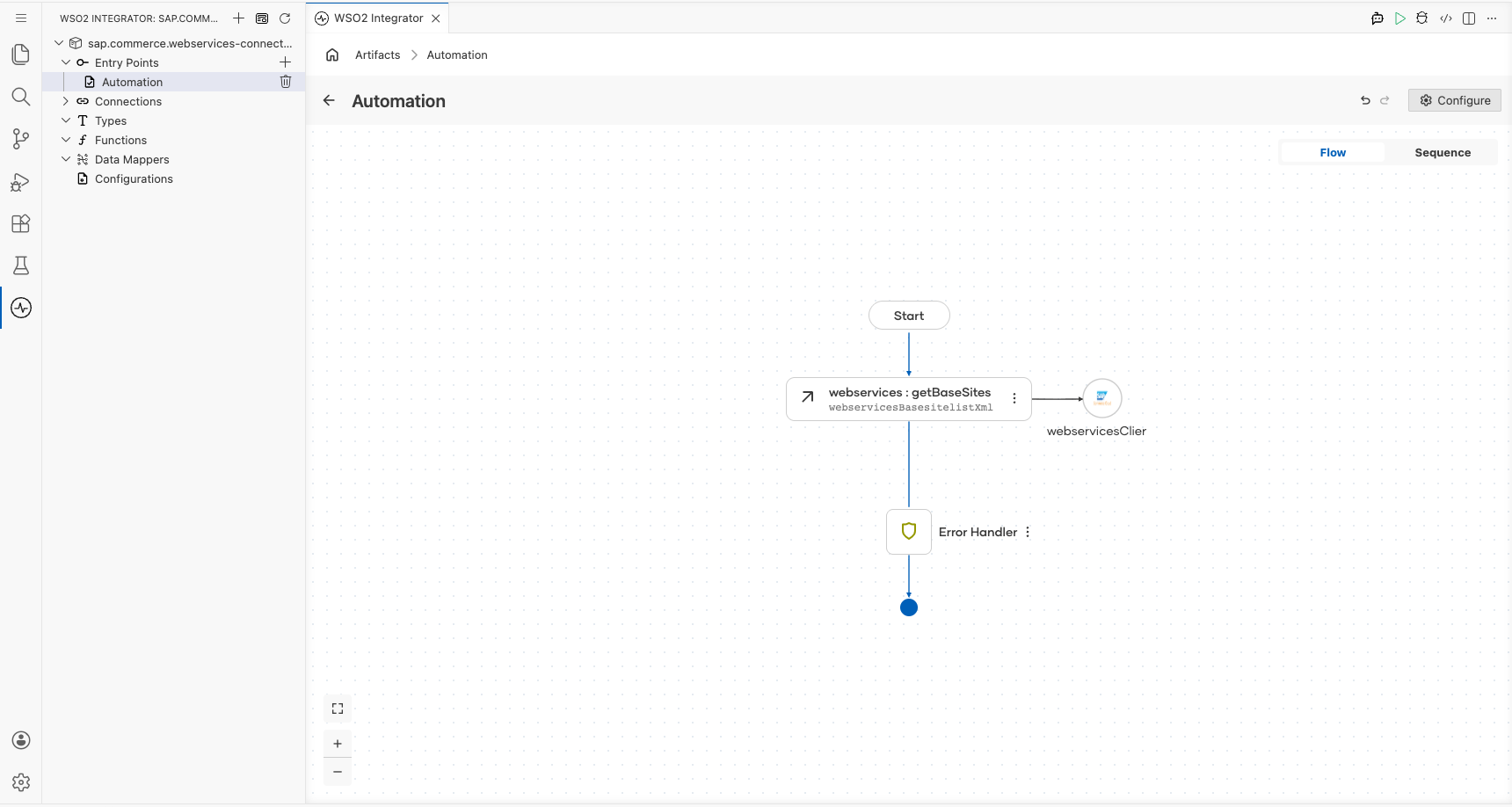

Completed SAP Commerce Web Services integration flow on the low-code canvas

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The sap.commerce.webservices connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Procurement cost center setup - Demonstrates how to configure and manage procurement cost centers using the SAP Commerce Web Services connector.
  2. Catalog inventory management - Illustrates managing product catalogs and inventory levels through SAP Commerce Web Services.
  3. Support ticket management - Shows how to create, update, and track customer support tickets using the connector.
  4. Customer service workflow - Demonstrates automating customer service processes and workflows through SAP Commerce Web Services.
