What you'll build​

Build an automation that retrieves blanket agreements from SAP Business One Sales. The automation stores the response in blanketAgreements and writes it to the integration log.

Operations used:

  • List Blanket Agreements : Retrieves the BlanketAgreements collection

Architecture​

Prerequisites​

  • An SAP Business One account with access to the Service Layer
  • Your SAP Business One company database name, user name, and password

Setting up the SAP Business One Sales integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the SAP Business One Sales connector​

Step 1: Open the connector palette​

Select Add Connection in the Connections section.

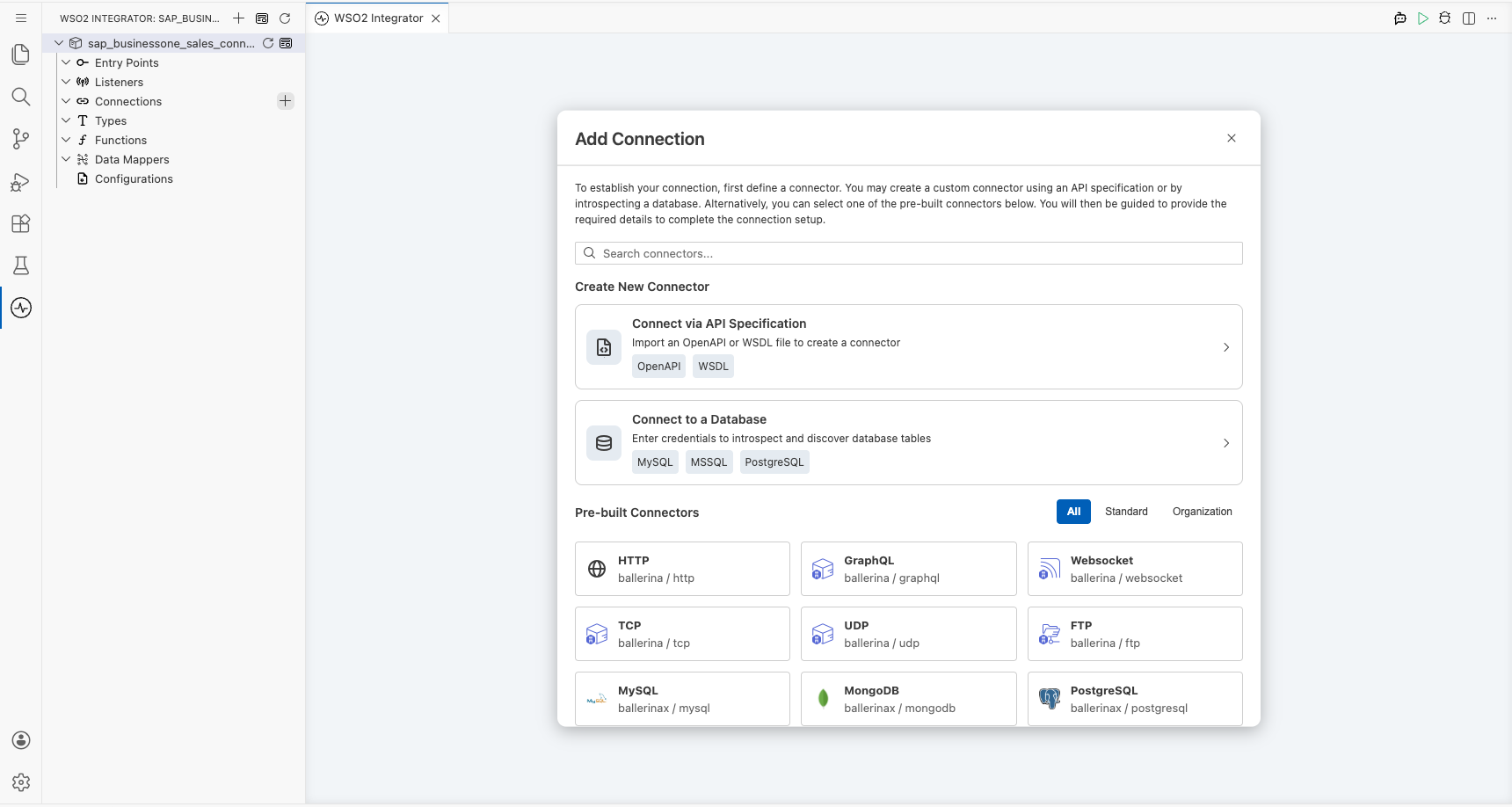

Connector palette open before selecting SAP Business One Sales

Step 2: Select the SAP Business One Sales connector​

  1. Enter sap.businessone.sales in the search field.
  2. Select the SAP Business One Sales connector card.

Configuring the SAP Business One Sales connection​

Step 3: Bind the connection parameters to configurable variables​

Bind the required SAP Business One credentials to configurable variables.

  • Session : Bind the company database, user name, and password variables in the session record

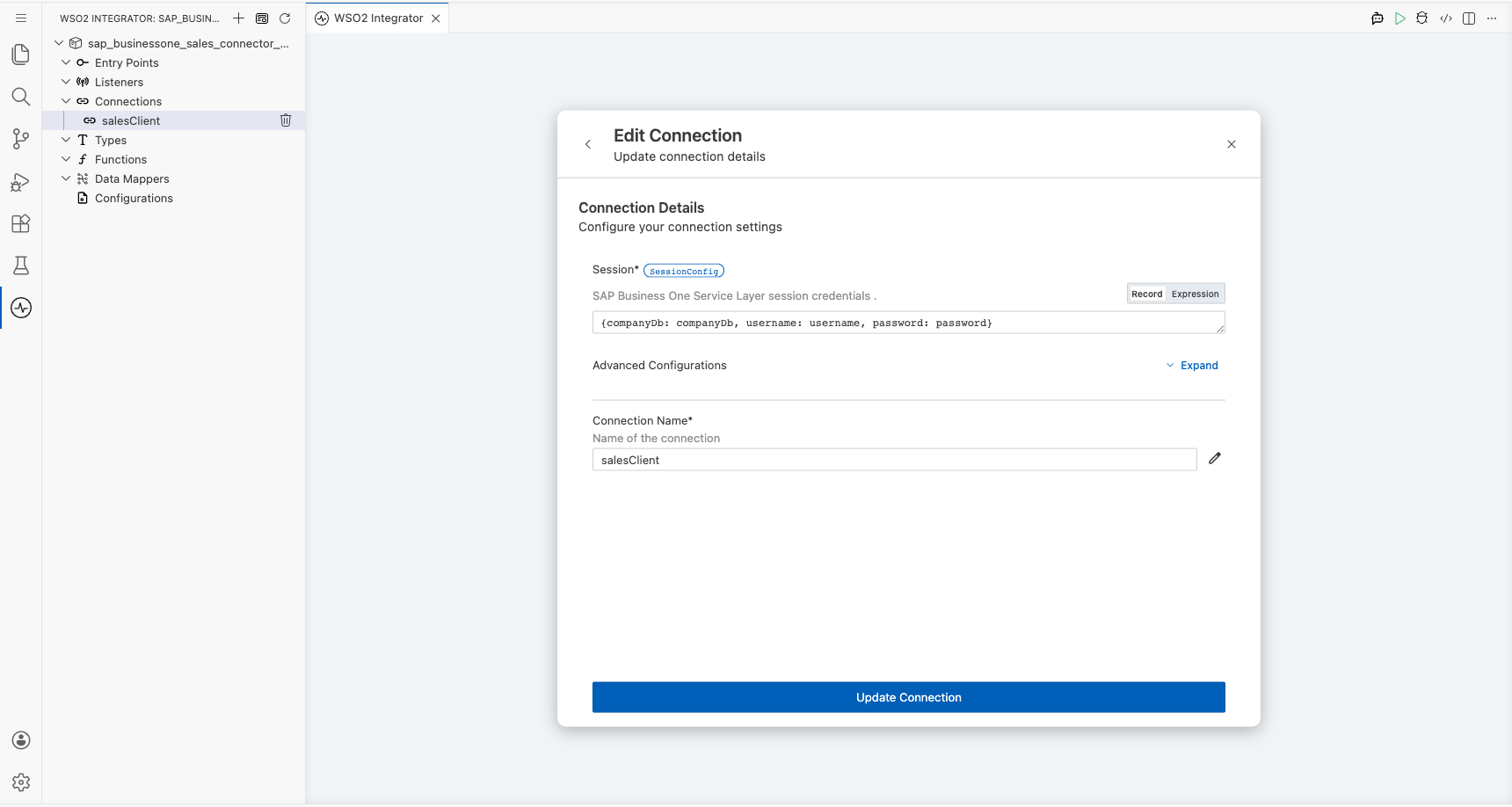

SAP Business One Sales connection form with the Session record bound to configurables before saving

Step 4: Save the connection​

Select Save and verify that the connection appears in the Connections section.

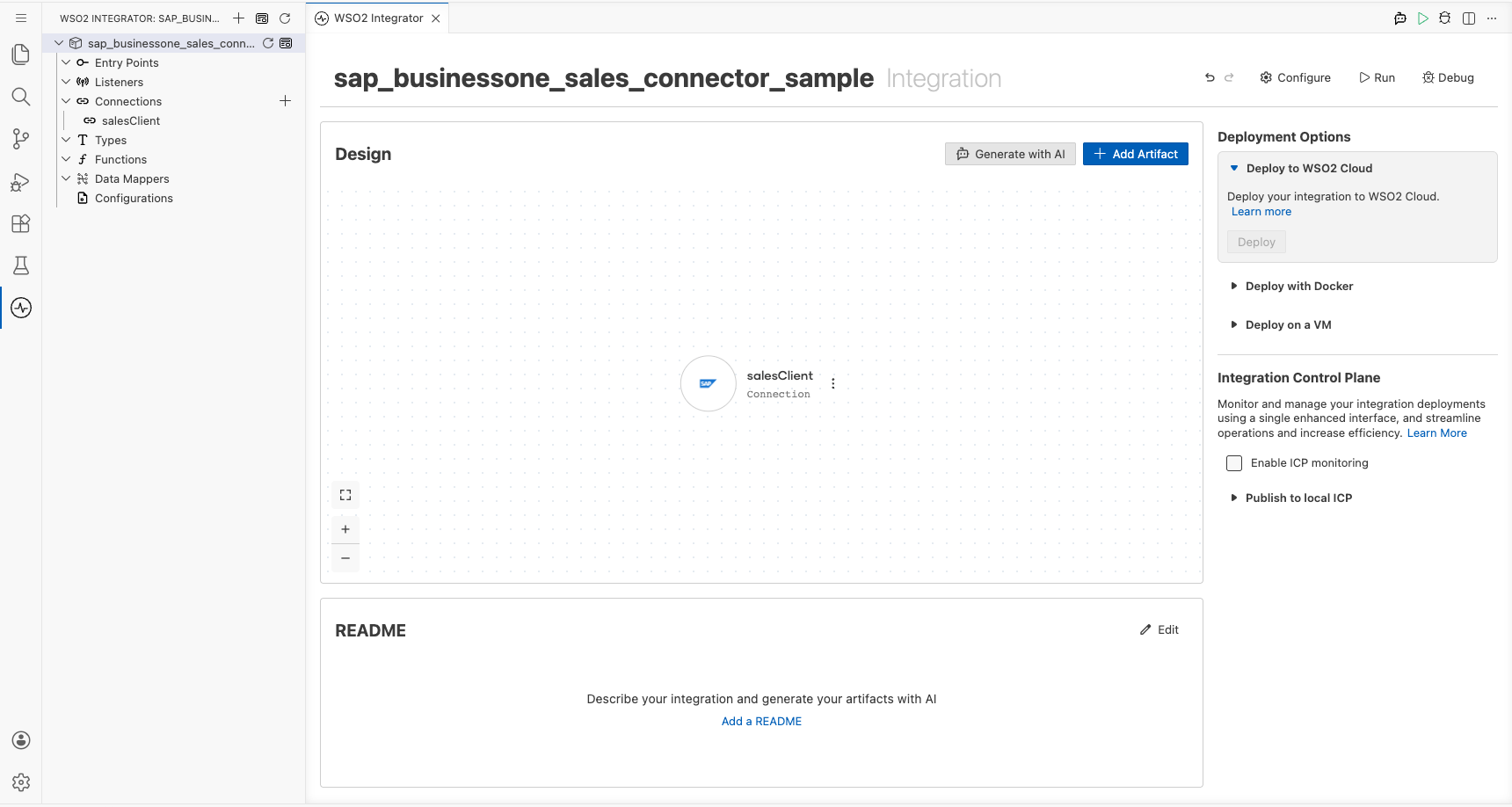

Saved SAP Business One Sales connection visible in the Connections section

Step 5: Set actual values for your configurables​

  1. Select Configurations at the bottom of the project tree under Data Mappers.
  2. Enter a value for each configurable listed below before you run the integration.
  • companyDb (string) : SAP Business One company database name
  • username (string) : SAP Business One user name
  • password (string) : SAP Business One password

Configuring the SAP Business One Sales List Blanket Agreements operation​

Step 6: Add an automation entry point​

  1. Select Add Entry Point next to Entry Points.
  2. Select Automation.
  3. Select Create to accept the settings.

Step 7: Expand the connection and configure the List Blanket Agreements operation​

  1. Select Add Step in the automation flow.
  2. Expand salesClient to display its operations.

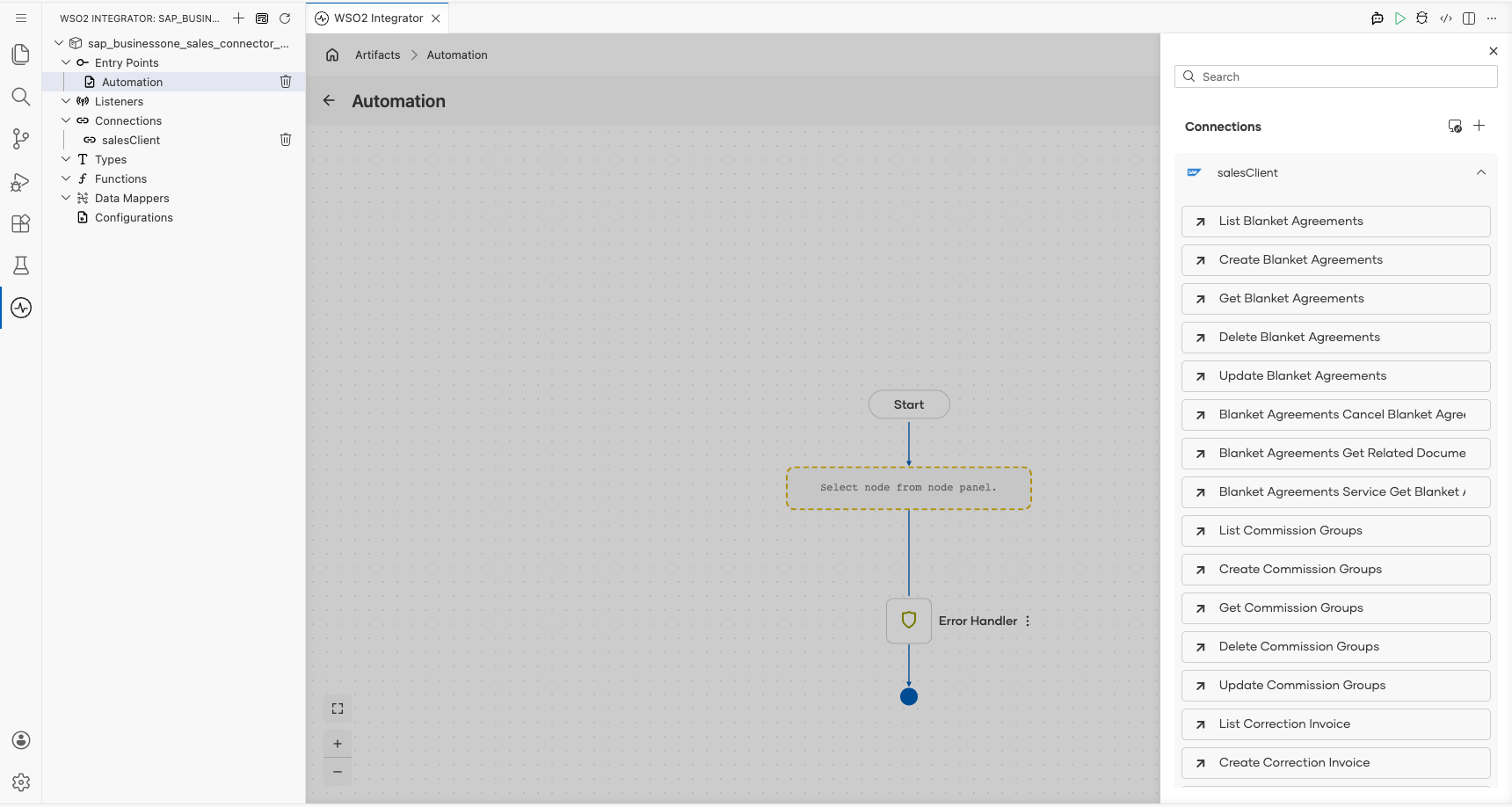

SAP Business One Sales connection expanded to display available operations

Select List Blanket Agreements and enter blanketAgreements as the result variable name.

  • Result : Name the response variable that receives the BlanketAgreements collection

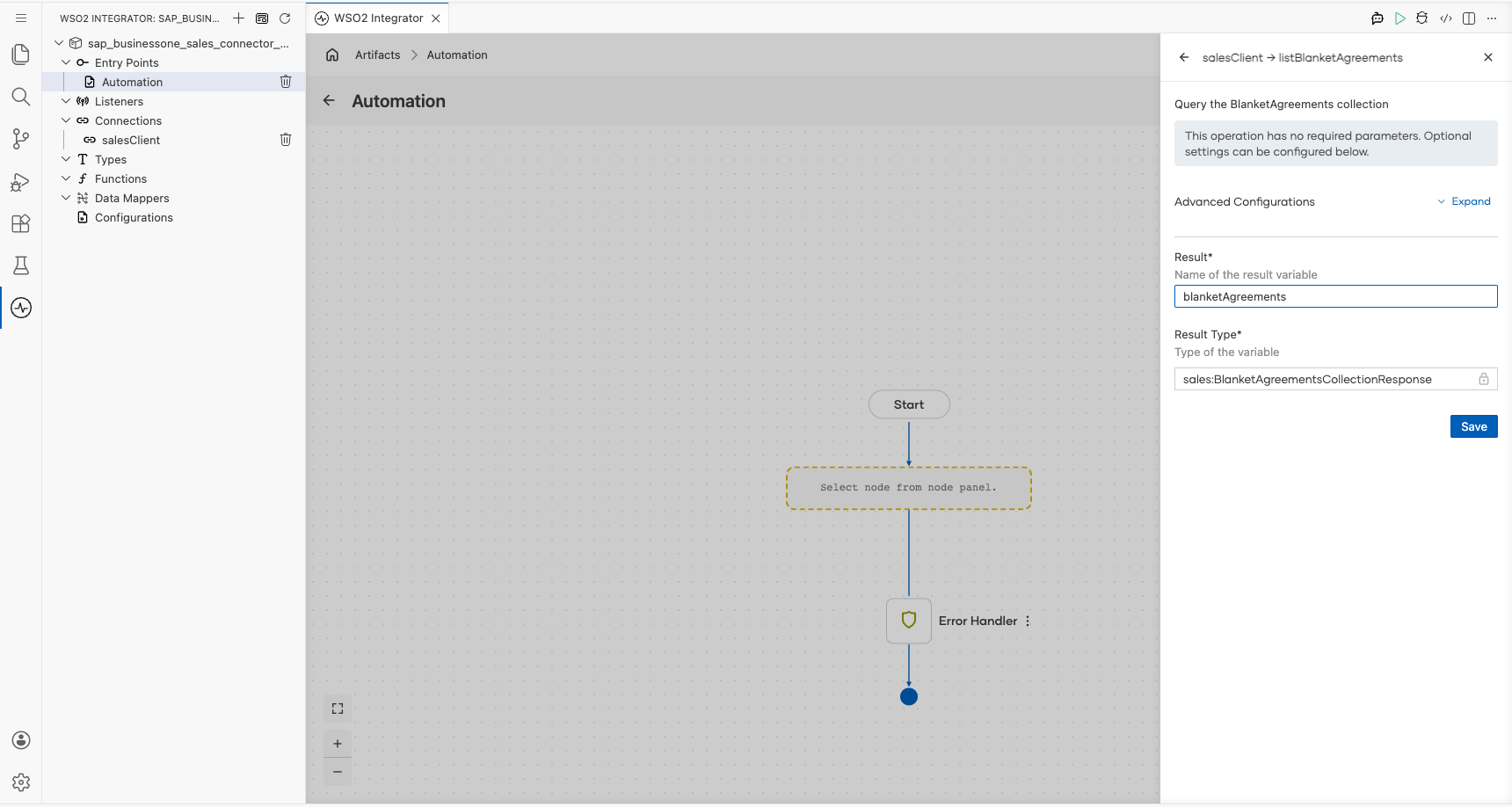

List Blanket Agreements operation form with the result variable configured

Select Save.

Step 8: Log the List Blanket Agreements result​

Add a log action for blanketAgreements, then return to the visual flow.

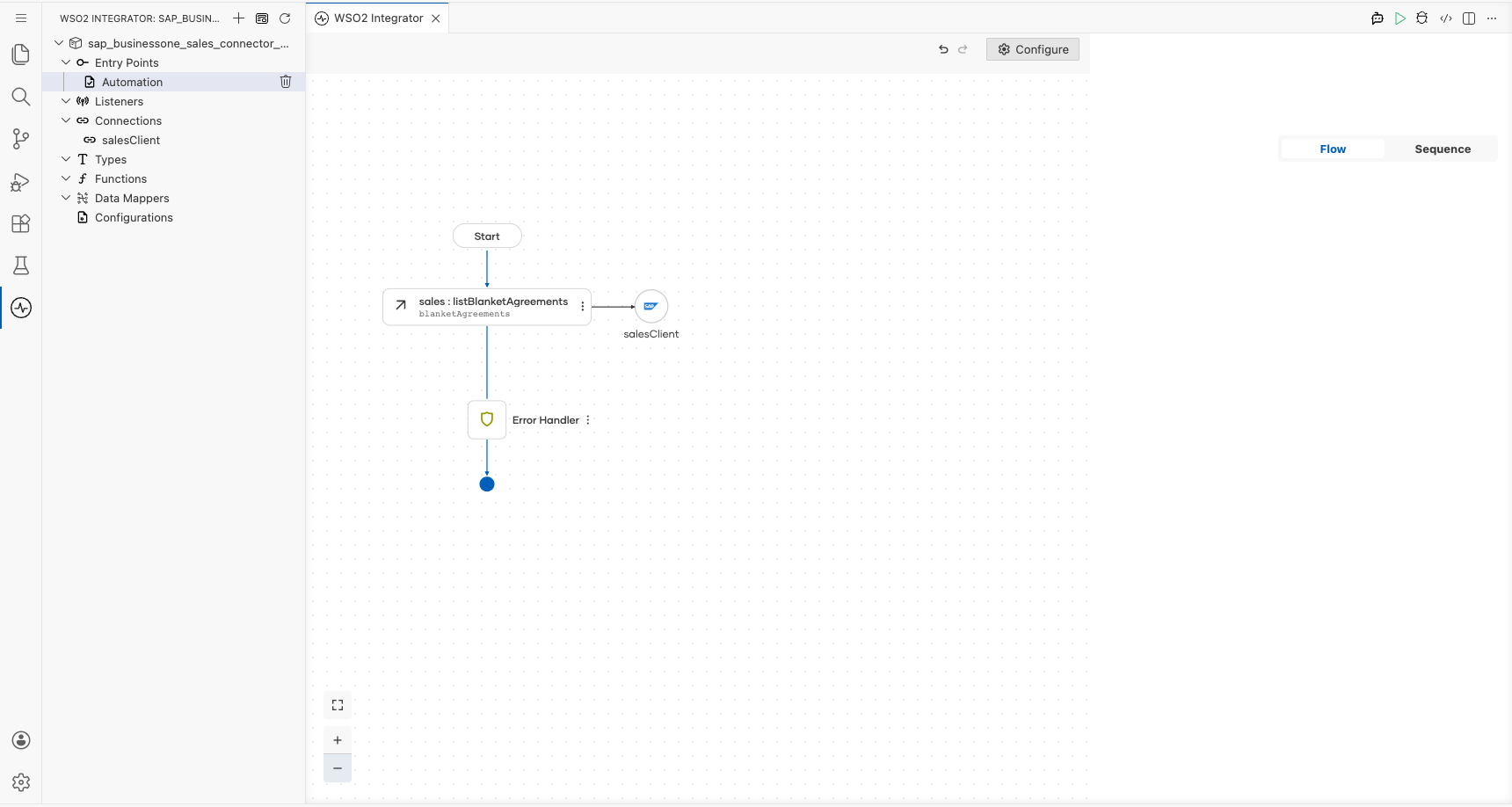

Completed automation flow with the SAP Business One Sales operation

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The SAP Business One connectors provide practical examples illustrating usage in various scenarios. Explore these examples, covering use cases like listing open sales orders, reporting inventory stock, and logging CRM activities.
