Example

What you'll build​

This example demonstrates how to use the SAP Business One Service connector in WSO2 Integrator to list contract templates. The integration queries the templates from SAP Business One Service and stores the response in a variable.

Operations used:

  • listContractTemplates : Queries the ContractTemplates collection from SAP Business One.

Architecture​

Prerequisites​

  • An active SAP Business One Service Layer instance

Setting up the SAP Business One Service integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the SAP Business One Service connector​

Step 1: Open the connector palette​

Select Add Connection in the Connections section.

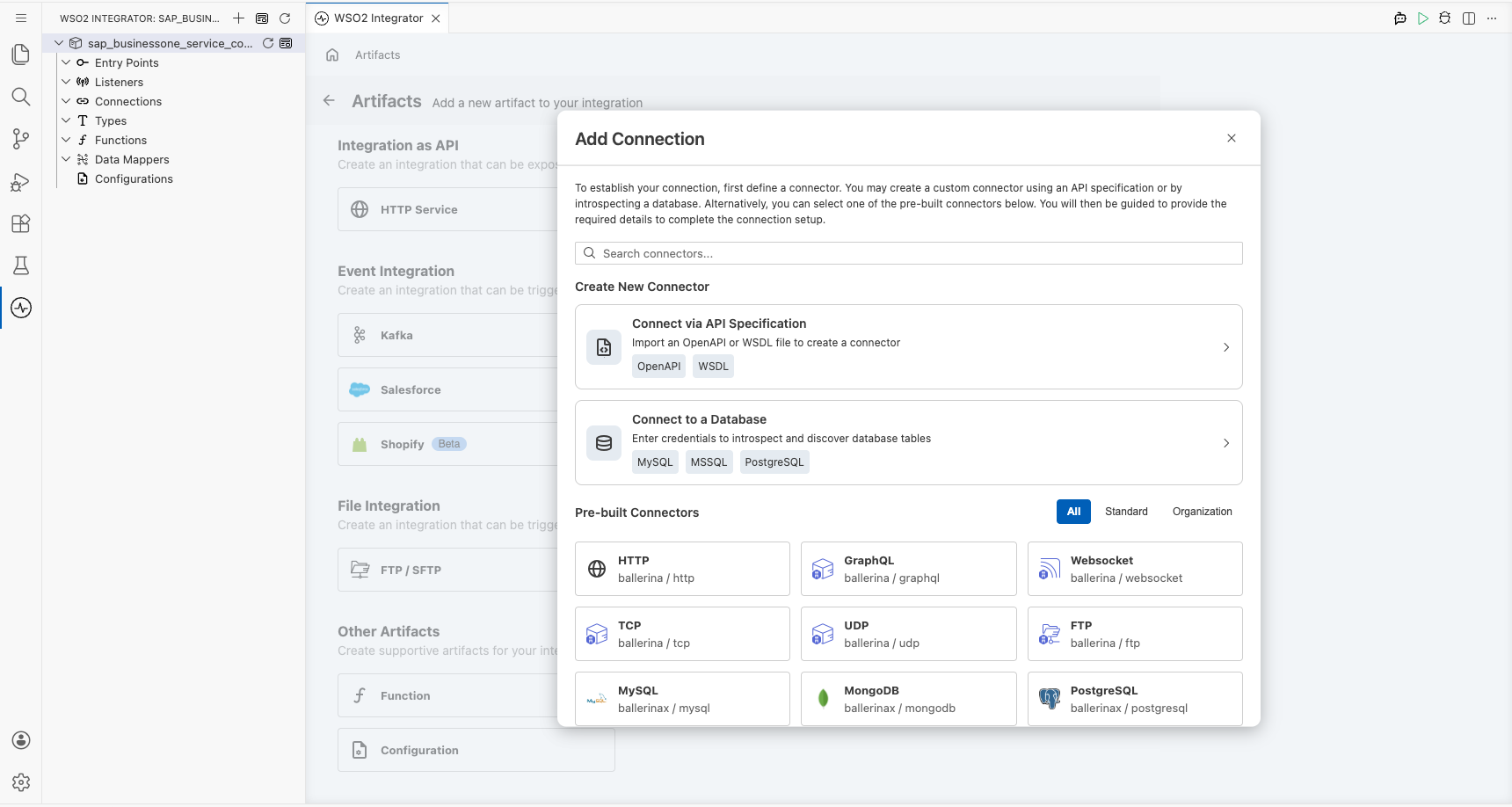

SAP Business One Service connector palette open before selection

Step 2: Select the SAP Business One Service connector​

  1. Enter sap.businessone.service in the search field.
  2. Select the SAP Business One Service connector card.

Configuring the SAP Business One Service connection​

Step 3: Bind the connection parameters to configurable variables​

Bind every required connection field to a configurable variable.

  • Service URL : The base URL of the SAP Business One Service Layer.
  • Company DB : The company database name.
  • Username : The username for authentication.
  • Password : The password for authentication.

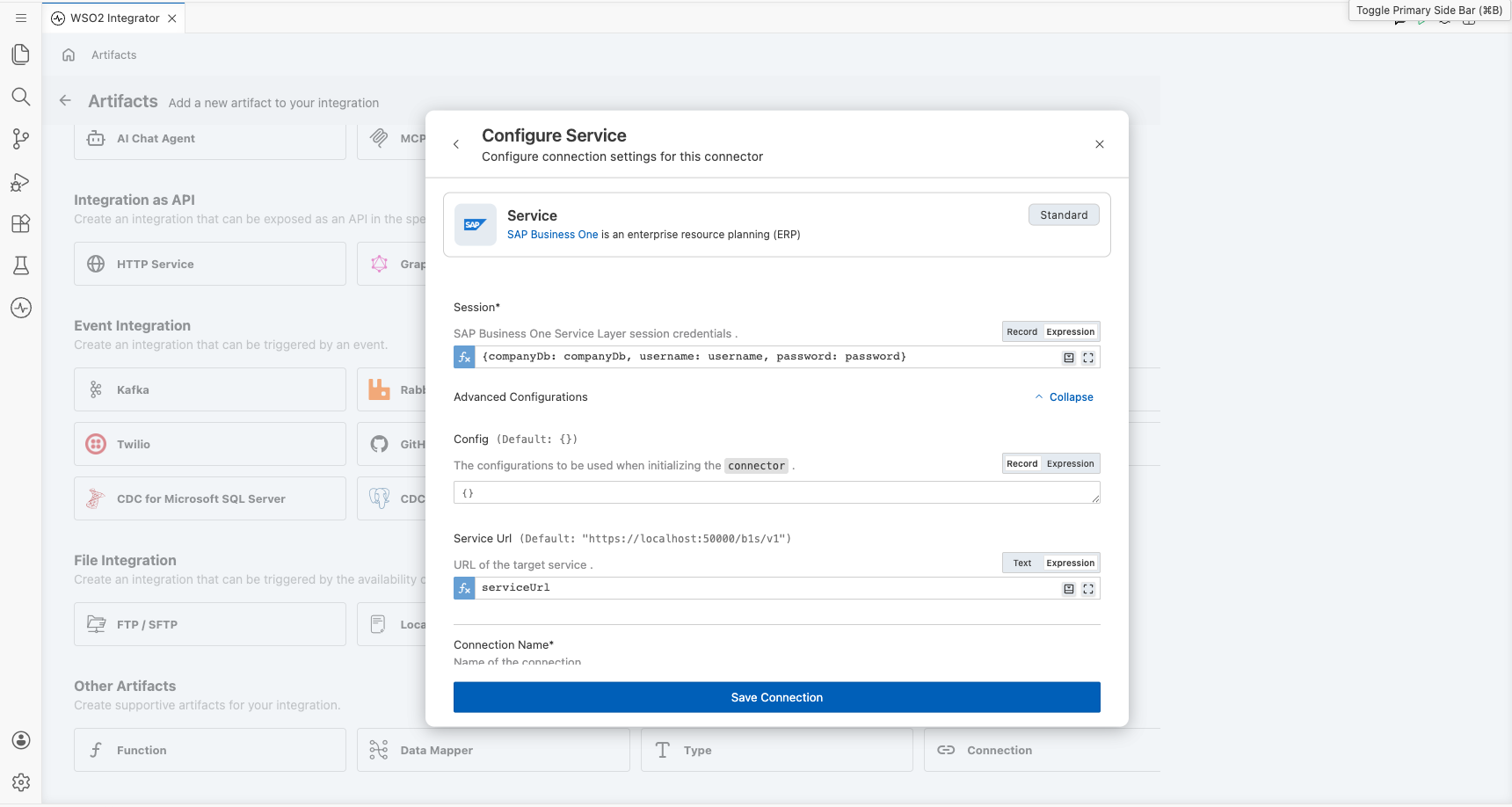

SAP Business One Service connection form with all parameters bound before saving

Step 4: Save the connection​

Select Save and verify that the connection appears in the Connections section.

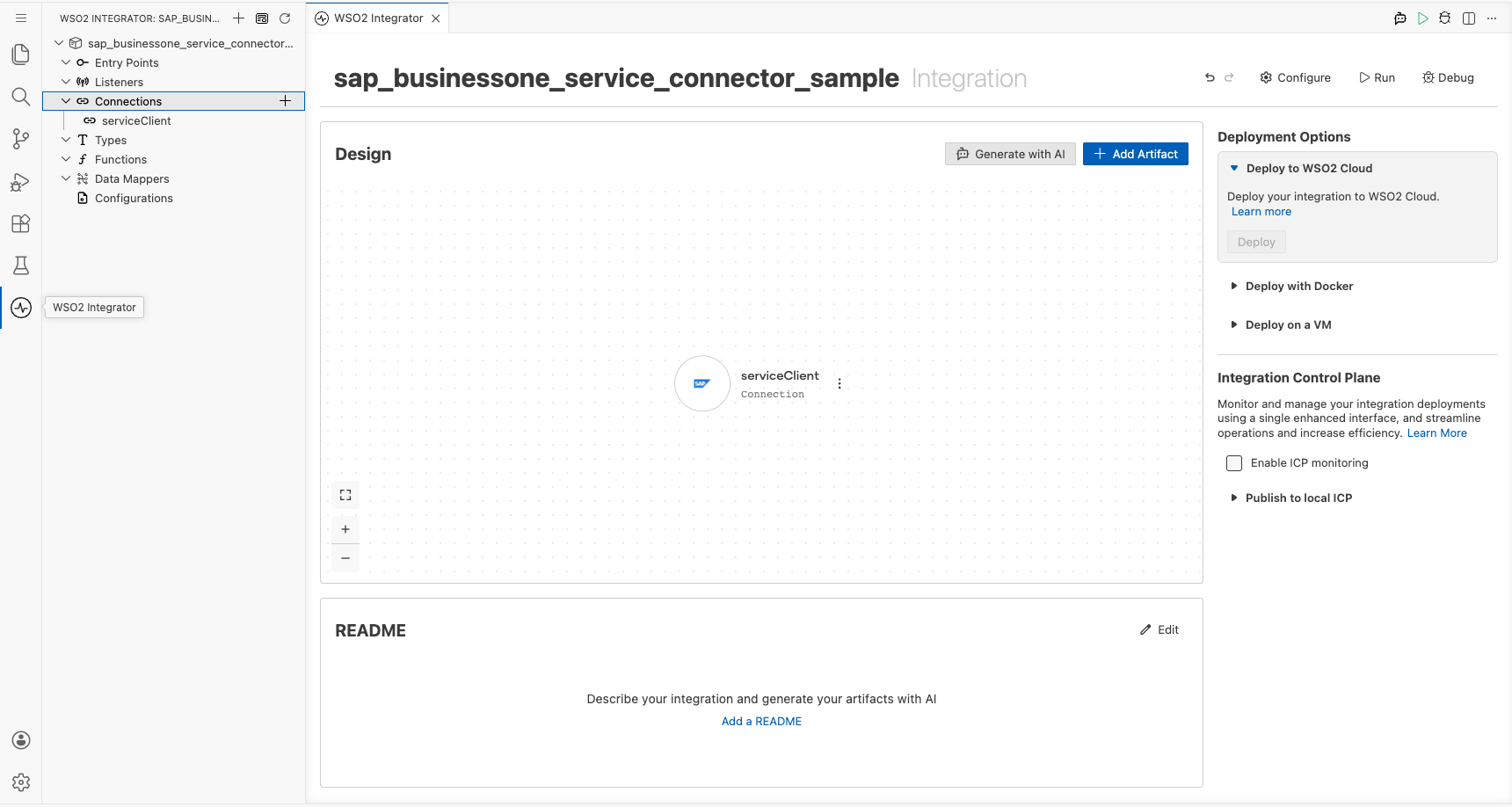

SAP Business One Service connection visible after saving

Step 5: Set actual values for your configurables​

  1. Select Configurations under Data Mappers in the project tree.
  2. Enter a value for each configurable listed below before you run the integration.
  • serviceUrl (string) : The base URL of the SAP Business One Service Layer.
  • companyDb (string) : The company database name.
  • username (string) : The username for authentication.
  • password (string) : The password for authentication.

Configuring the SAP Business One Service List Contract Templates operation​

Step 6: Add an automation entry point​

  1. Select Add Entry Point next to Entry Points.
  2. Select Automation.
  3. Select Create to accept the settings.

Step 7: Expand the connection and configure the List Contract Templates operation​

  1. Select Add Step in the automation flow.
  2. Expand serviceClient to display its operations.

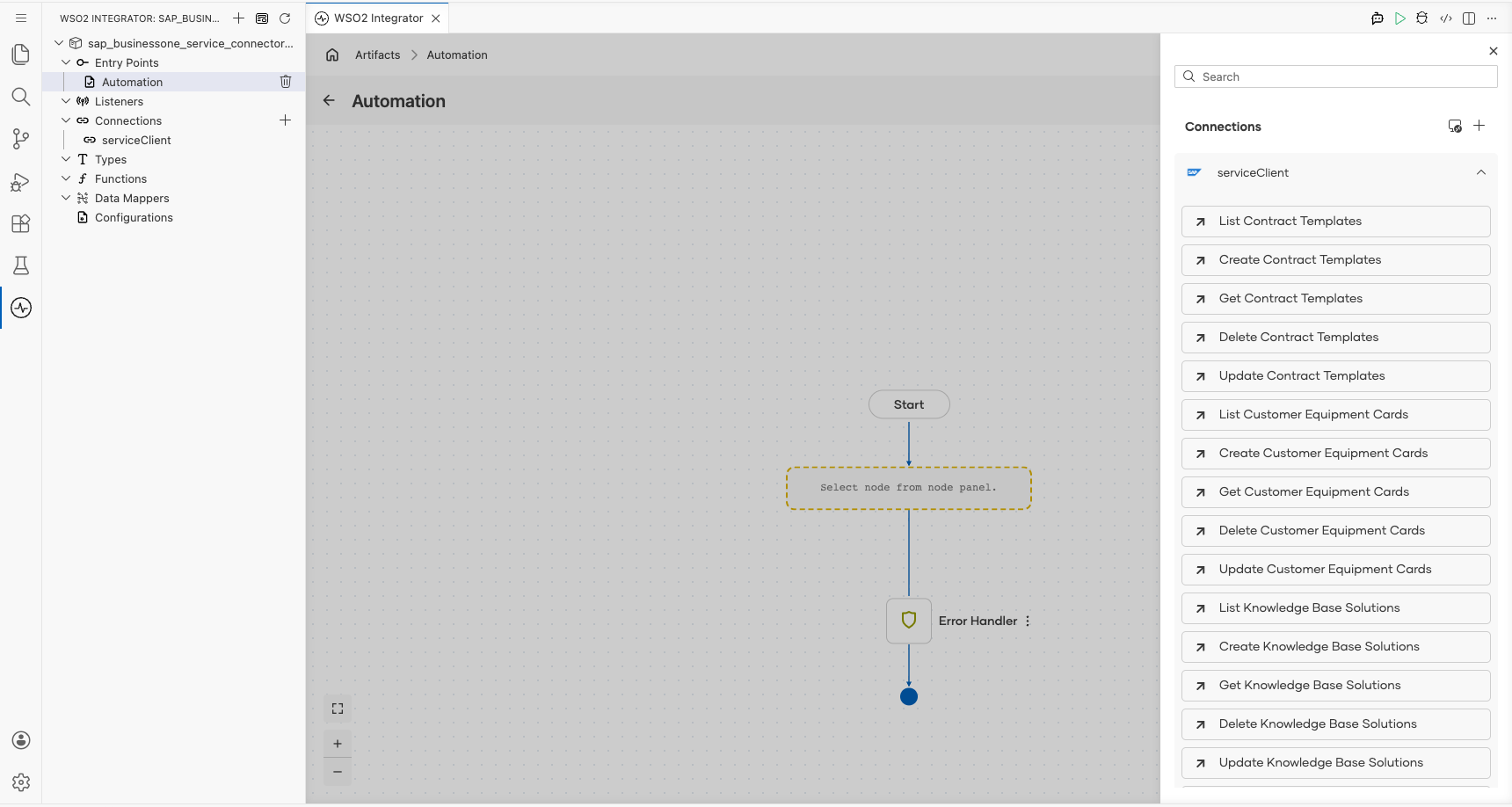

SAP Business One Service connection expanded to display operations before selection

  1. Select List Contract Templates. This operation does not require any request parameters.

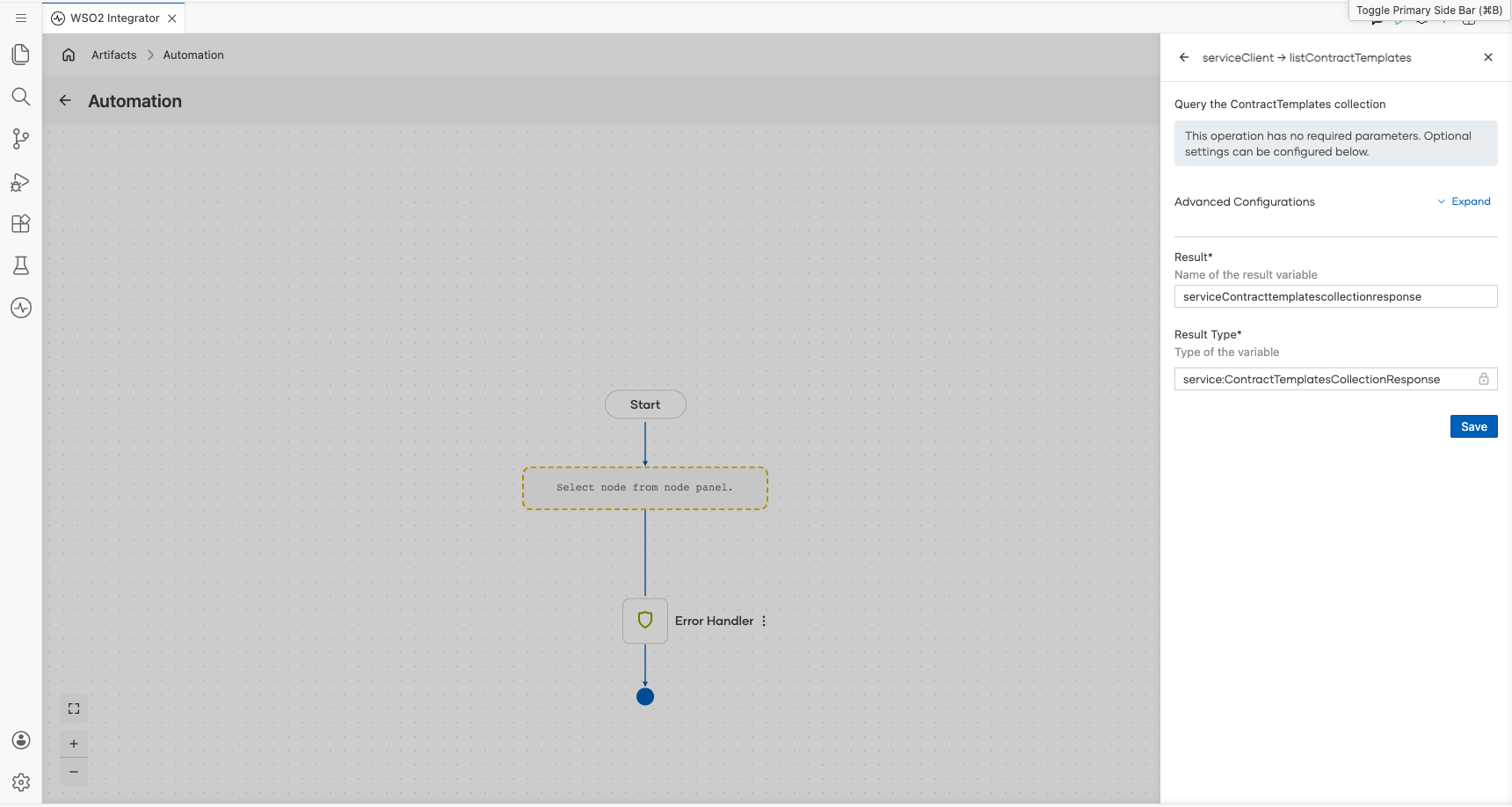

SAP Business One Service List Contract Templates operation configuration form

  1. Select Save.

Step 8: View the completed integration flow​

Verify that the List Contract Templates operation is added to the automation flow.

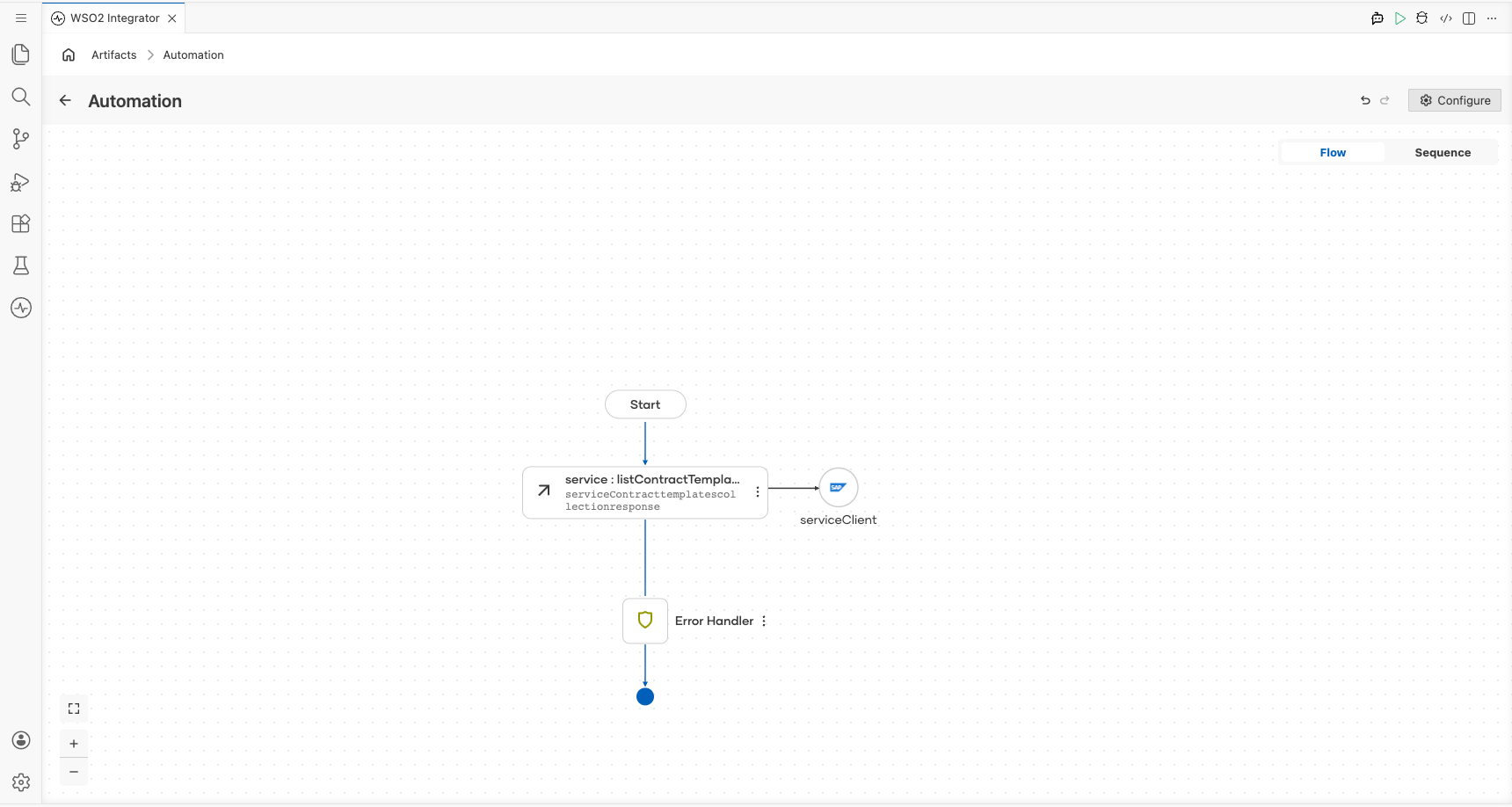

Completed SAP Business One Service flow with the configured operation

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The SAP Business One connectors provide practical examples illustrating usage in various scenarios. Explore these examples, covering use cases like listing open sales orders, reporting inventory stock, and logging CRM activities.
