Example

What you'll build​

Build an integration that authenticates with PayPal using OAuth2 Client Credentials and retrieves a list of invoices, logging the result as JSON. The workflow connects to the PayPal Invoices API and binds the response to a result variable for downstream processing.

Operations used:

  • List invoices : Retrieves a list of invoices from the PayPal Invoices API and binds the response to a configurable result variable

Architecture​

Prerequisites​

  • A PayPal developer account with an app configured for OAuth2 (Client ID and Client Secret)

Setting up the PayPal invoices integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the PayPal invoices connector​

Step 1: Open the add connection palette​

Select the + button in the Connections panel to open the Add Connection palette.

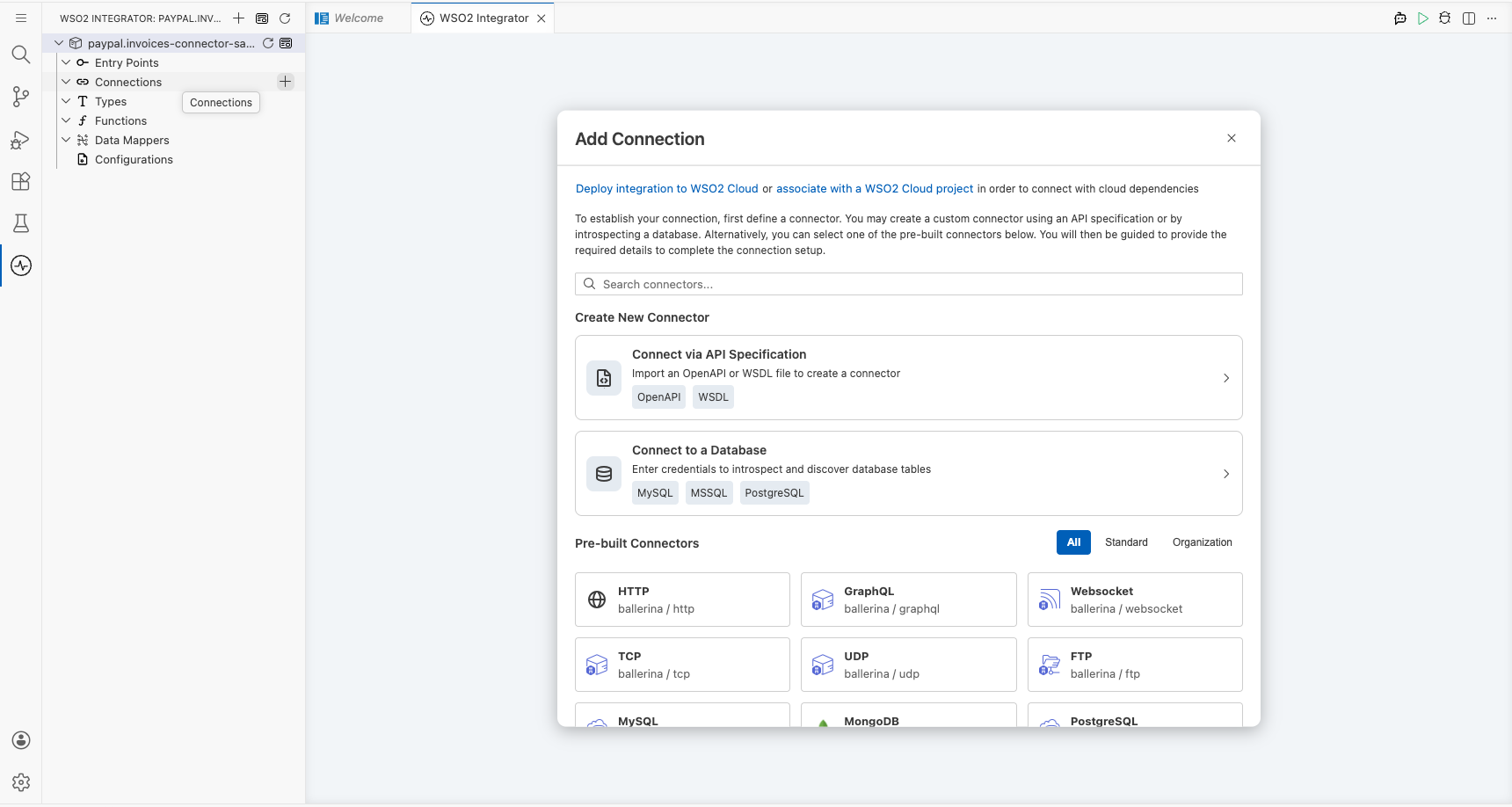

PayPal Invoices connector palette open with search field before any selection

Configuring the PayPal invoices connection​

Step 2: Fill in the connection parameters​

Enter the connection parameters, binding each field to a configurable variable so credentials aren't hard-coded:

  • Config : The OAuth2 client credentials configuration expression, referencing paypalClientId and paypalClientSecret configurable variables
  • Connection Name : A name that identifies this connection on the canvas

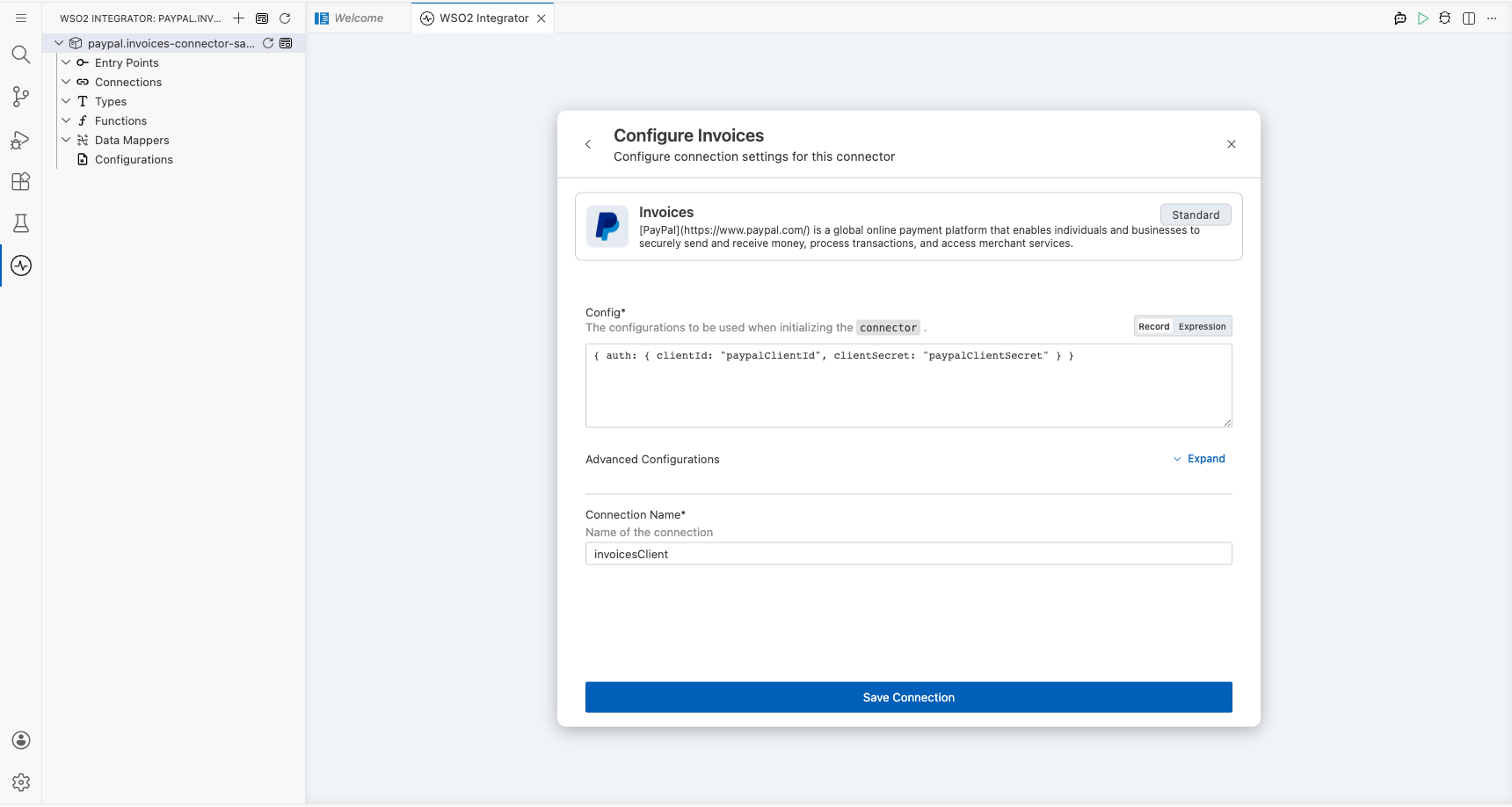

PayPal Invoices connection form fully filled with all parameters before saving

Step 3: Save the connection​

Select Save to persist the connection. The canvas updates to show the invoicesClient connection node, and the sidebar lists it under Connections.

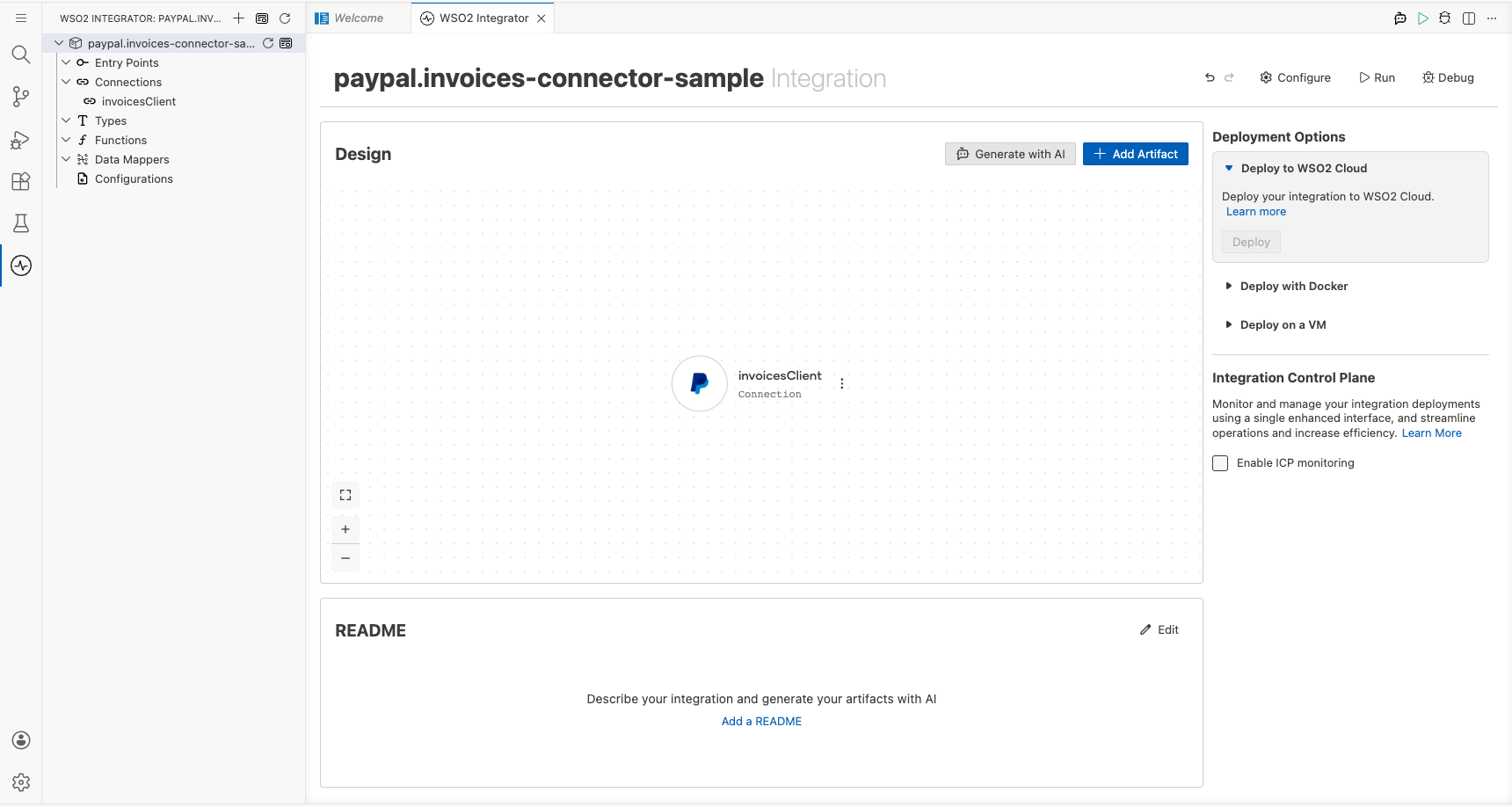

PayPal Invoices Connections panel showing invoicesClient entry after saving

Step 4: Set actual values for your configurables​

In the left panel, select Configurations. Set a value for each configurable listed below:

  • paypalClientId (string) : Your PayPal app's OAuth2 client ID
  • paypalClientSecret (string) : Your PayPal app's OAuth2 client secret

Configuring the PayPal invoices list invoices operation​

Step 5: Add an automation entry point and select the list invoices operation​

  1. Navigate to the Automation canvas under Entry Points.
  2. Select the + add button on the canvas flow line to open the node panel.
  3. Expand the invoicesClient connection section to reveal available operations.
  4. Select List invoices.

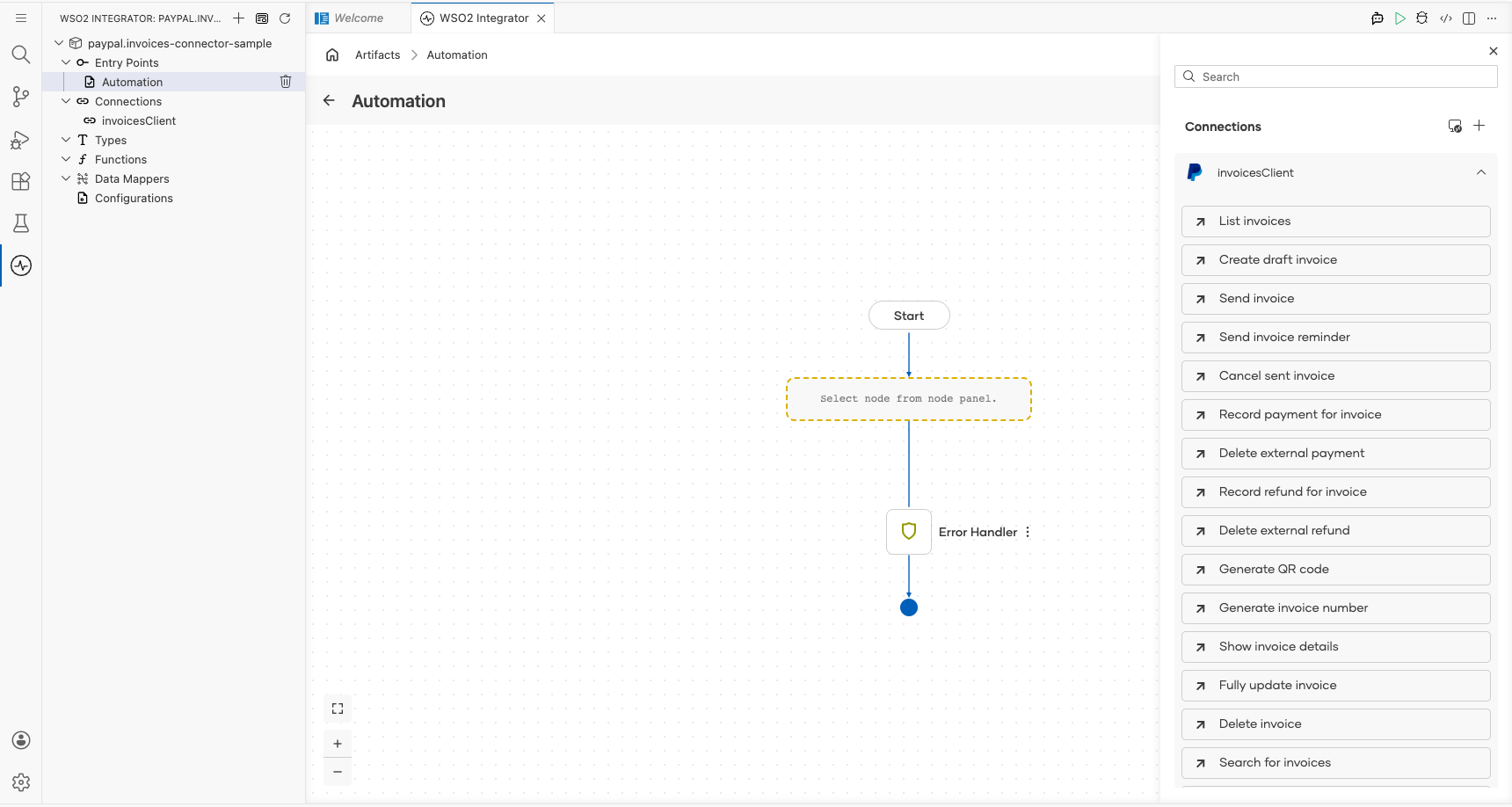

PayPal Invoices connection node expanded showing all available operations before selection

Step 6: Configure the list invoices operation and add a log step​

  1. In the List invoices form, set the Result Variable to result so the API response is bound for downstream use.
  2. Select Save.
  3. Select the + add button between the invoices:get node and the Error Handler node to insert a new step.
  4. From the Logging section, select Log Info.
  5. In the Log Info form, switch the Msg field to Expression mode and enter result.toJsonString().
  6. Select Save.

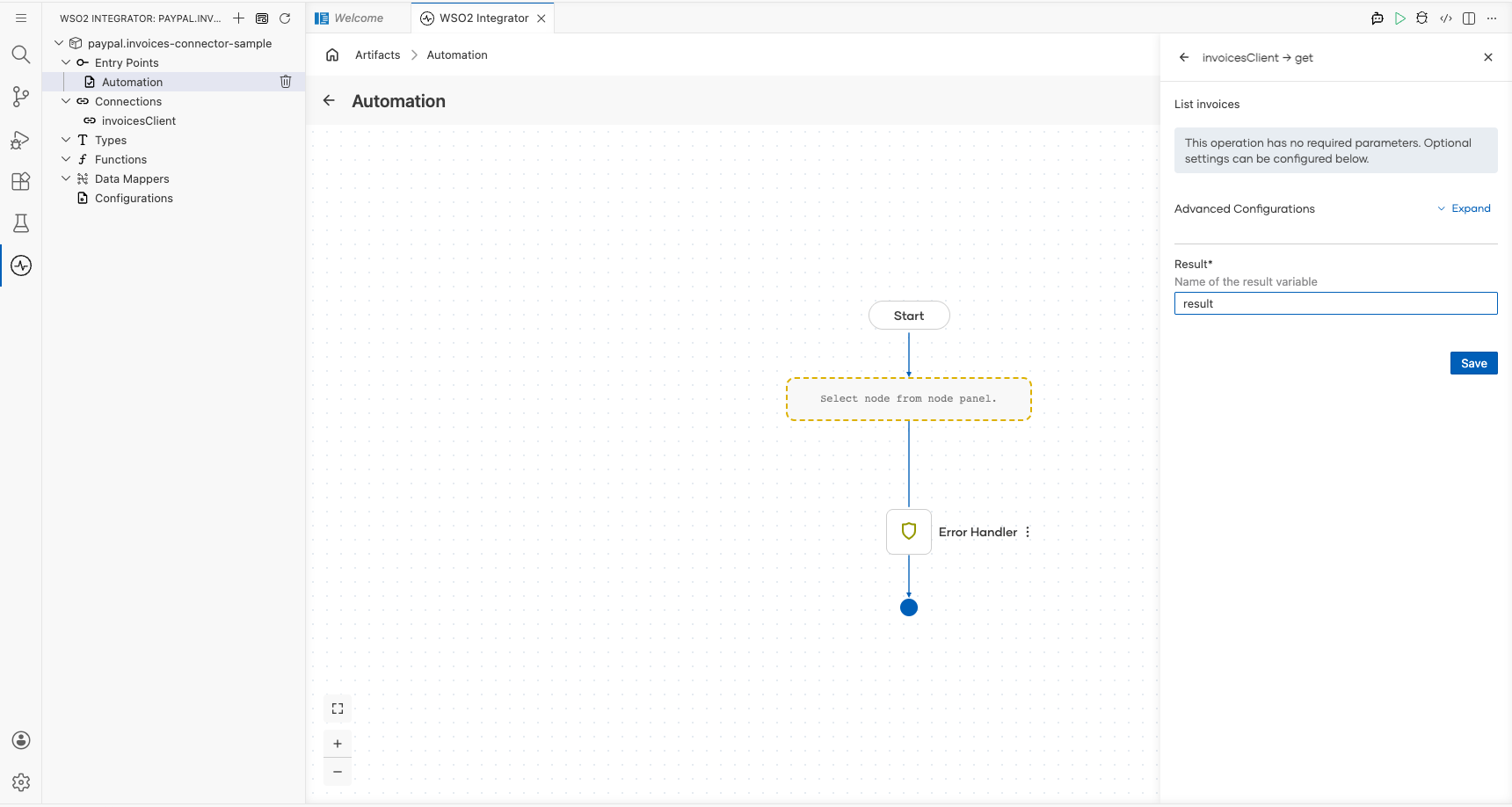

List invoices form with result variable set to result

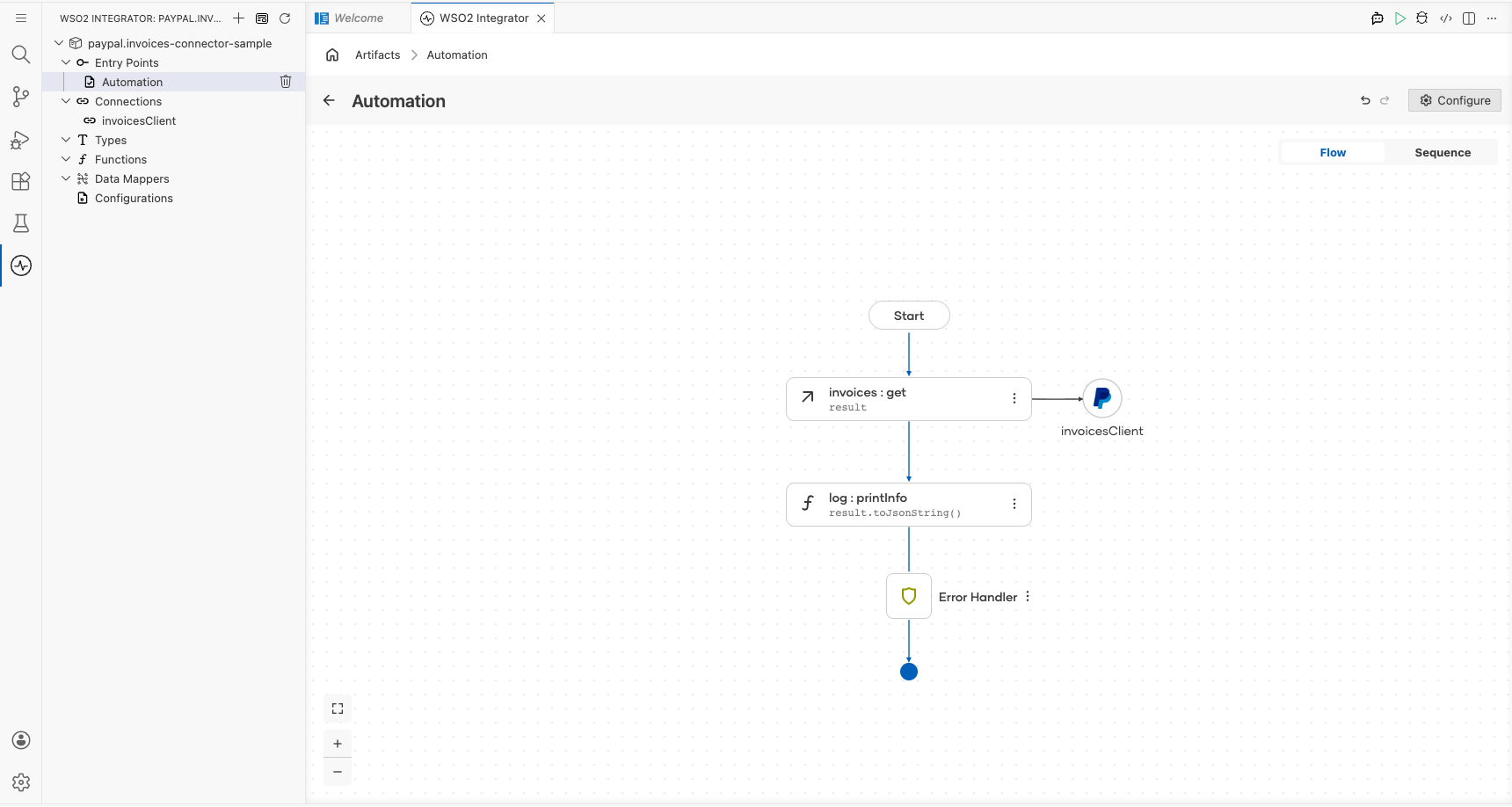

Completed PayPal Invoices automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The PayPal Invoices connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Record invoice: Create and manage draft invoices with detailed billing information and line items.

  2. Send and cancel invoice: Send invoices to customers and handle cancellation scenarios.
