Example

What you'll build​

Build a WSO2 Integrator automation that uses the PayPal Subscriptions connector to retrieve all subscription plans and log the result. The integration uses an Automation entry point to invoke the listPlans operation and captures the response.

Operations used:

  • listPlans : Retrieves all subscription plans from the PayPal Subscriptions API

Architecture​

Prerequisites​

  • A PayPal developer account with OAuth2 client credentials (Client ID and Client Secret)

Setting up the PayPal subscriptions integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the PayPal subscriptions connector​

Step 1: Open the connector palette​

  1. In the WSO2 Integrator sidebar, select Add Artifact.
  2. Select Connection from the artifact options.
  3. In the connector search palette, search for paypal.subscriptions.
  4. Select the ballerinax/paypal.subscriptions connector card to open the connection form.

PayPal Subscriptions connector palette open with search field before any selection

Configuring the PayPal subscriptions connection​

Step 2: Fill in the connection parameters​

Fill in the connection form by binding each field to a configurable variable:

  • Connection Name : Enter subscriptionsClient
  • clientId : Bind to the configurable variable paypalClientId
  • clientSecret : Bind to the configurable variable paypalClientSecret

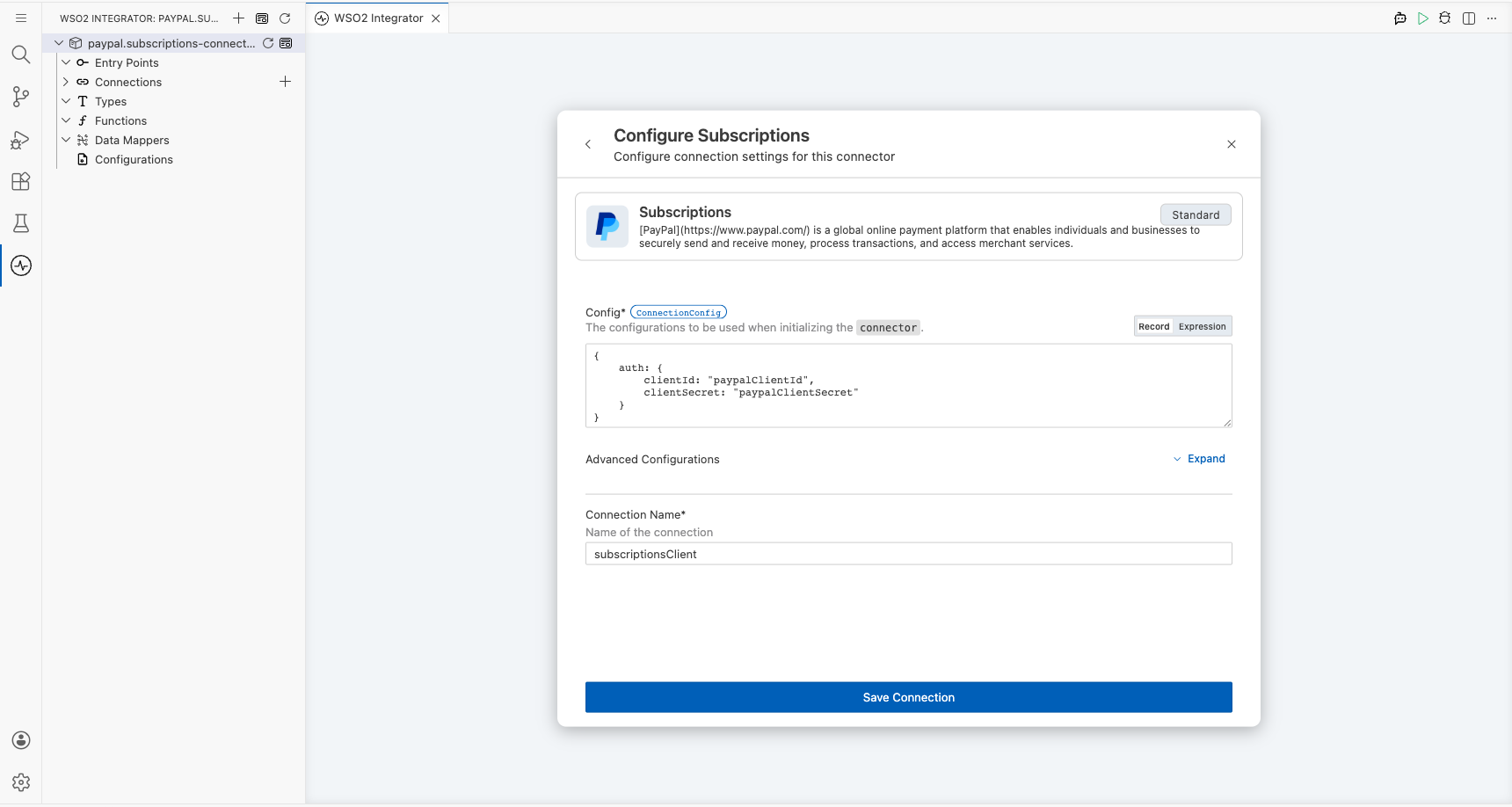

PayPal Subscriptions connection form fully filled with all parameters before saving

Step 3: Save the connection​

Select Save to create the connection. The subscriptionsClient connection appears in the Connections section of the WSO2 Integrator sidebar and on the design canvas.

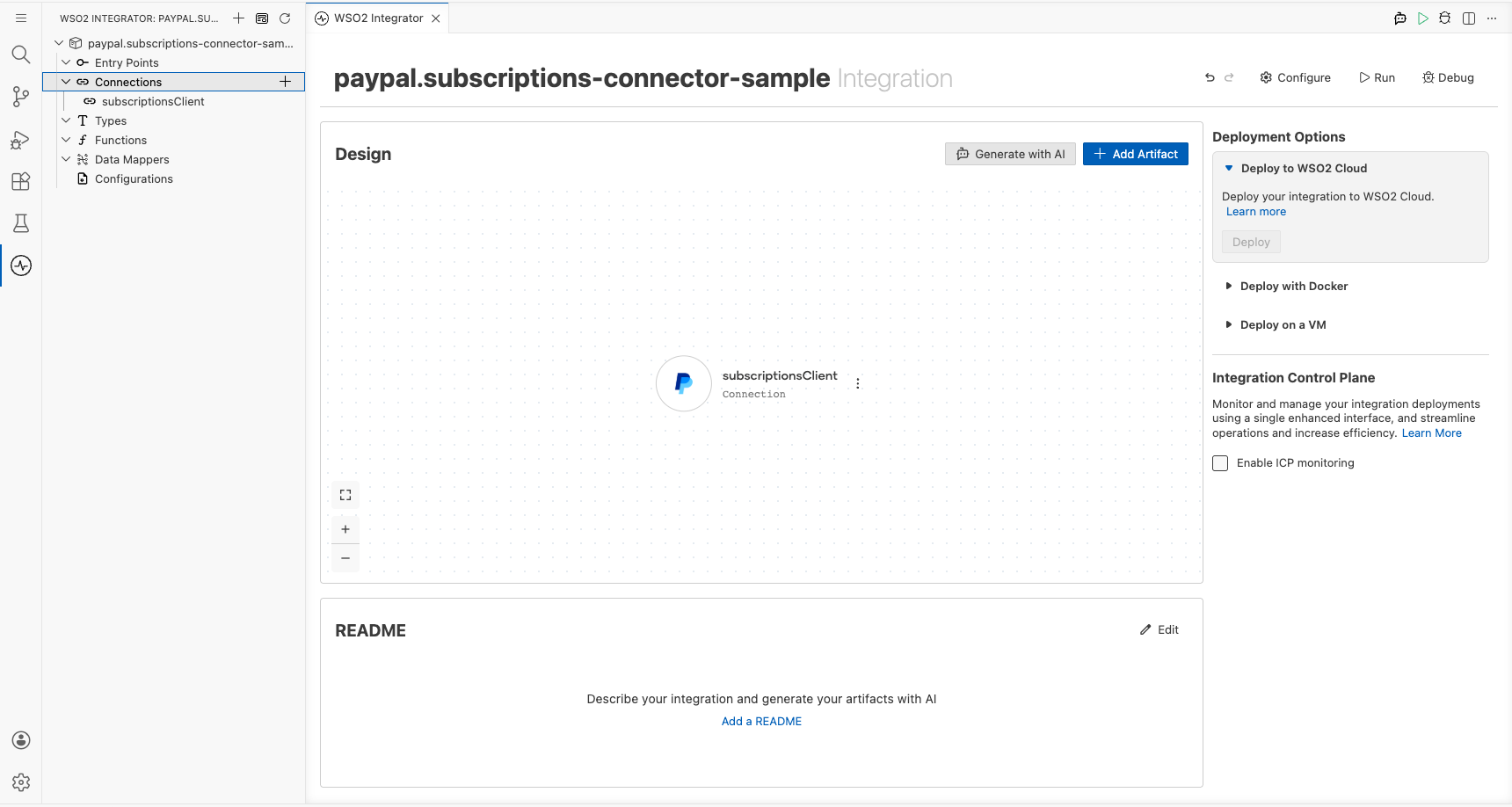

PayPal Subscriptions Connections panel showing subscriptionsClient entry after saving

Step 4: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • paypalClientId (string) : Your PayPal OAuth2 client ID from the PayPal developer dashboard
  • paypalClientSecret (string) : Your PayPal OAuth2 client secret from the PayPal developer dashboard

Configuring the PayPal subscriptions listPlans operation​

Step 5: Add an automation entry point​

  1. Select Add Artifact in the WSO2 Integrator sidebar.
  2. Select Automation as the entry point type.

The Automation entry point main is created and appears under Entry Points in the sidebar.

Step 6: Select and configure the listPlans operation​

  1. Select the main Automation entry point to open its flow view.
  2. In the flow diagram, select the + button to add a new step.
  3. Select the subscriptionsClient connection to view its available operations.

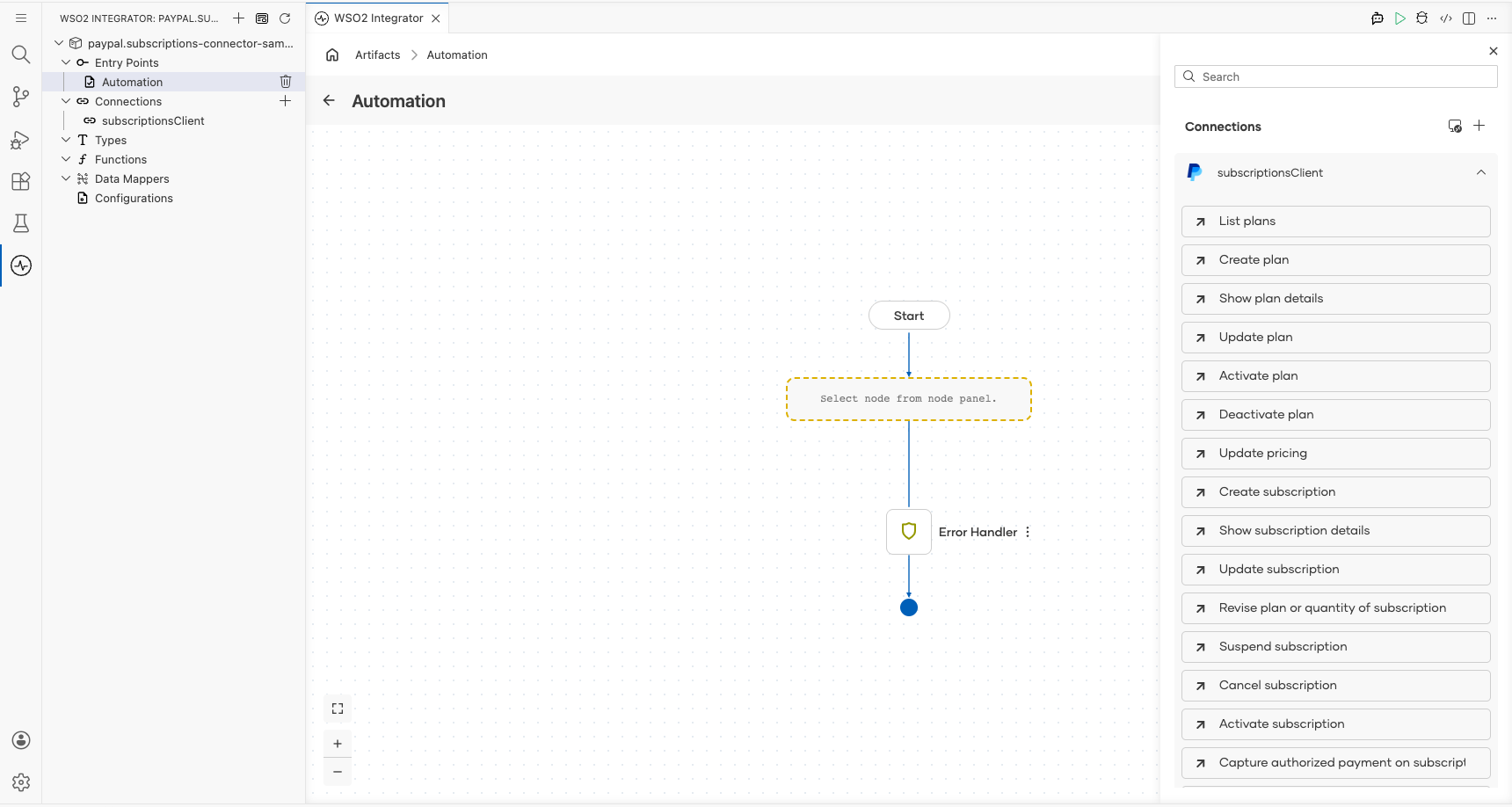

PayPal Subscriptions connection node expanded showing all available operations before selection

  1. Select the List plans operation (listPlans).
  2. Review the available parameters (all optional for this operation) and set the Result Variable name to result.
  3. Select Save to add the operation to the flow.
  • Result Variable : Name of the variable that stores the returned PlanCollection response

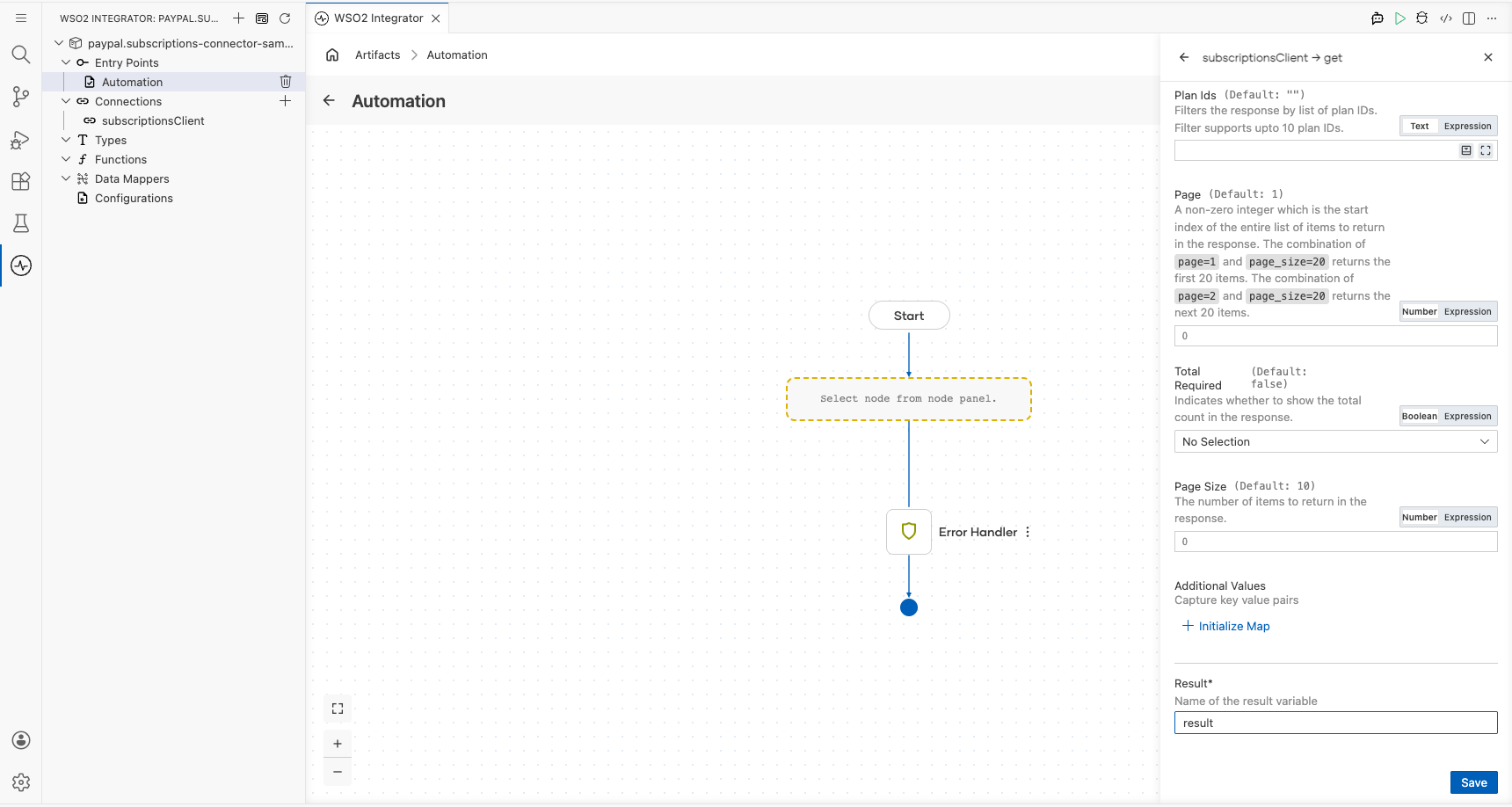

PayPal Subscriptions listPlans operation configuration filled with all values

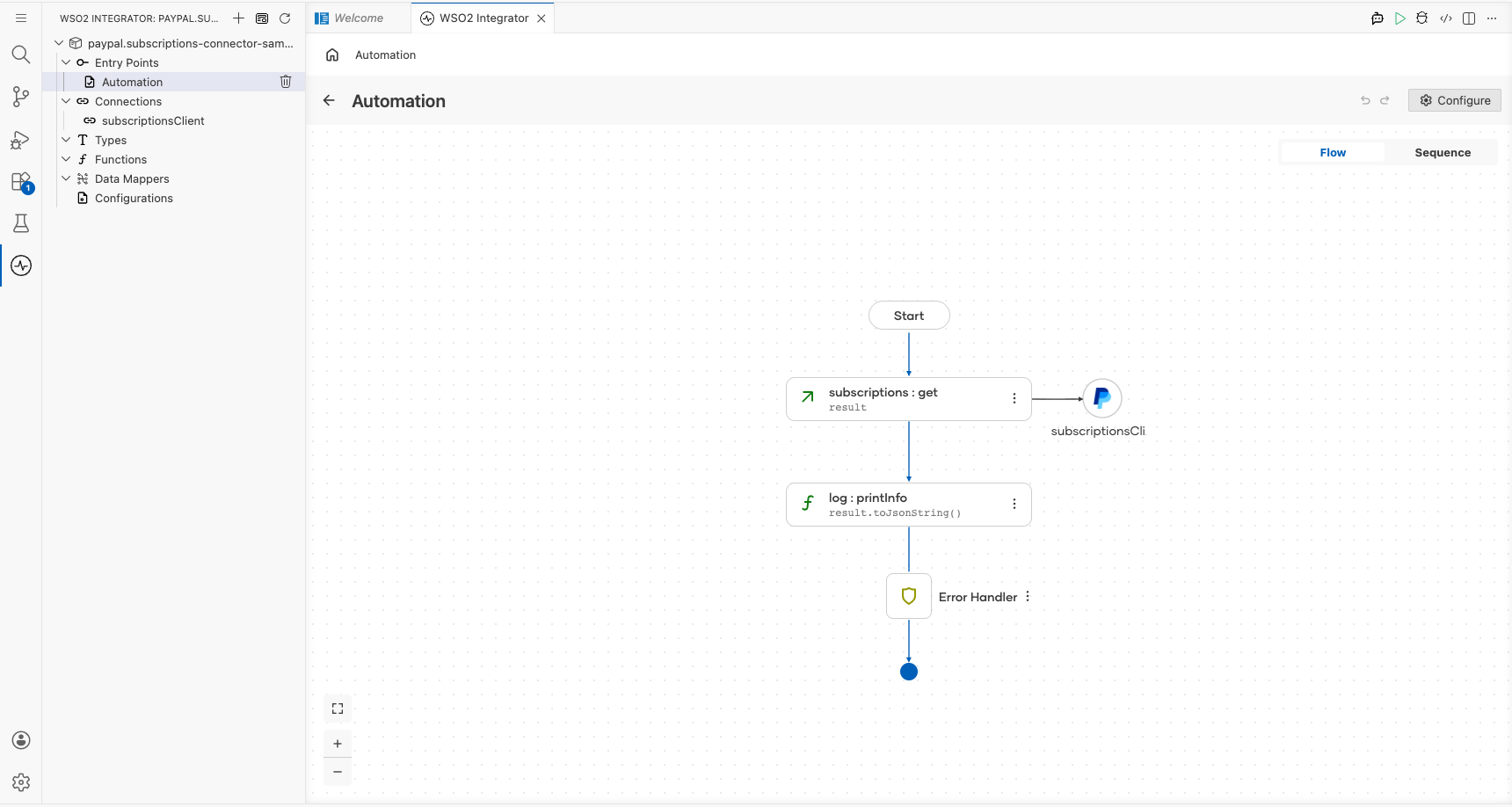

Completed PayPal Subscriptions automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The PayPal Subscriptions connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Create and List Plans: Create a subscription plan and list all available plans.
  2. Monitor and Manage Subscription Status: Retrieve a subscription's status and suspend or reactivate it based on its state.
  3. Manage Premium Subscription: Create a subscription plan, enroll a customer, and retrieve subscription details for a premium membership.
