Example

What you'll build​

Build a WSO2 Integrator automation that connects to Stripe, retrieves a list of customers using the Stripe API, and logs the result. This integration uses configurable variables to securely manage API credentials at runtime.

Operations used:

  • get : Retrieves a list of customers from your Stripe account, sorted by creation date with the most recent customers appearing first.

Architecture​

Prerequisites​

  • A Stripe account with API access
  • A Stripe API key (Bearer token)

Setting up the Stripe integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Stripe connector​

Step 1: Open the add connection panel​

Open the WSO2 Integrator side panel and hover over the Connections tree item, then select the + button that appears to open the Add Connection palette.

Stripe connector palette open with search field before any selection

Step 2: Add an automation entry point​

  1. In the WSO2 Integrator side panel, select Add Artifact.
  2. Select Automation as the entry point type.
  3. Name the automation main.

Configuring the Stripe connection​

Step 3: Configure the connection form​

In the connection form, bind each field to a configurable variable:

  • Connection Name : The display name for this connection instance
  • token : The Stripe Bearer token, bound to the stripeToken configurable variable

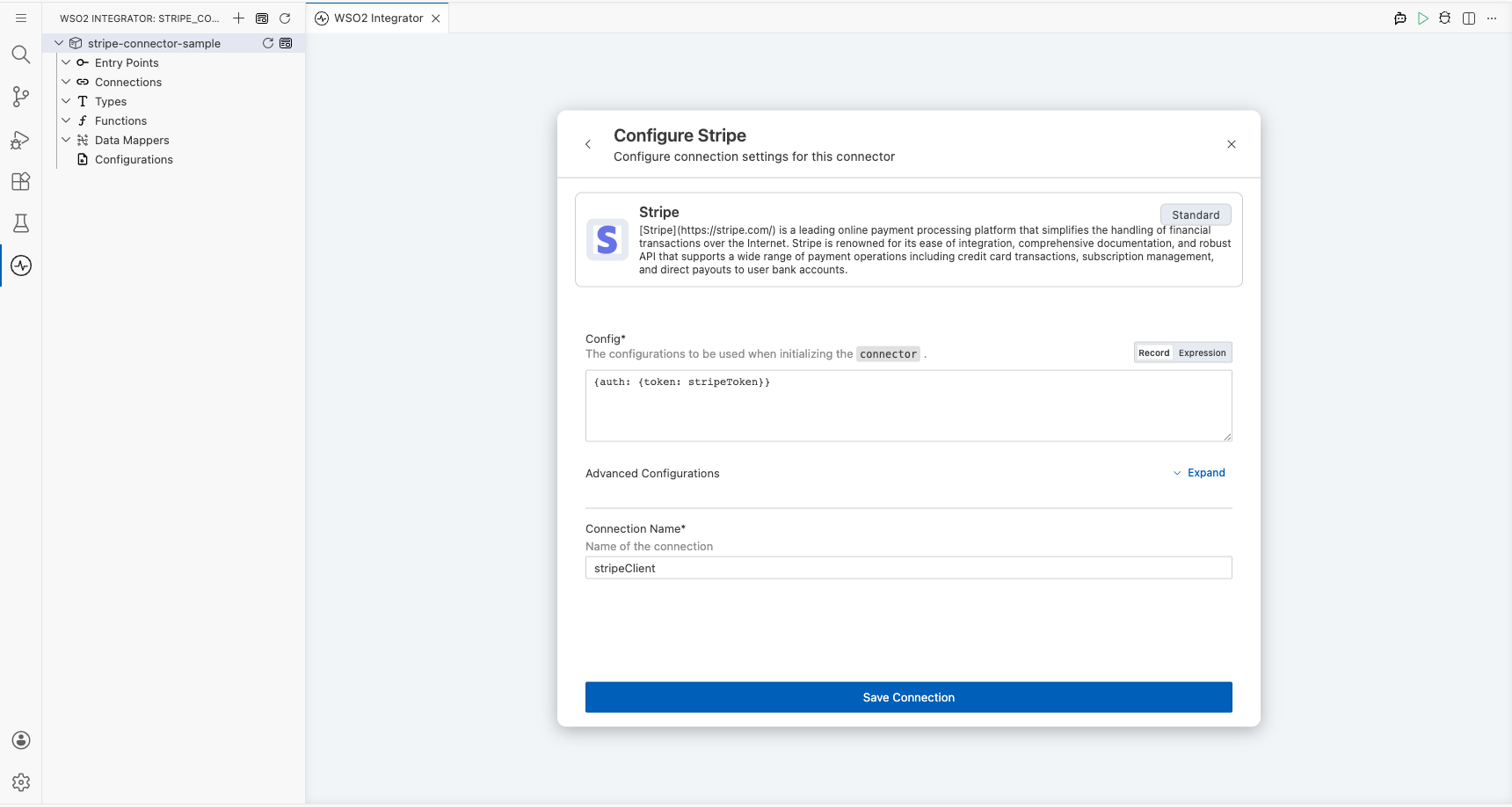

Stripe connection form fully filled with all parameters before saving

Step 4: Save the connection​

Select Save to create the connection. The connection appears in the Connections section of the WSO2 Integrator side panel.

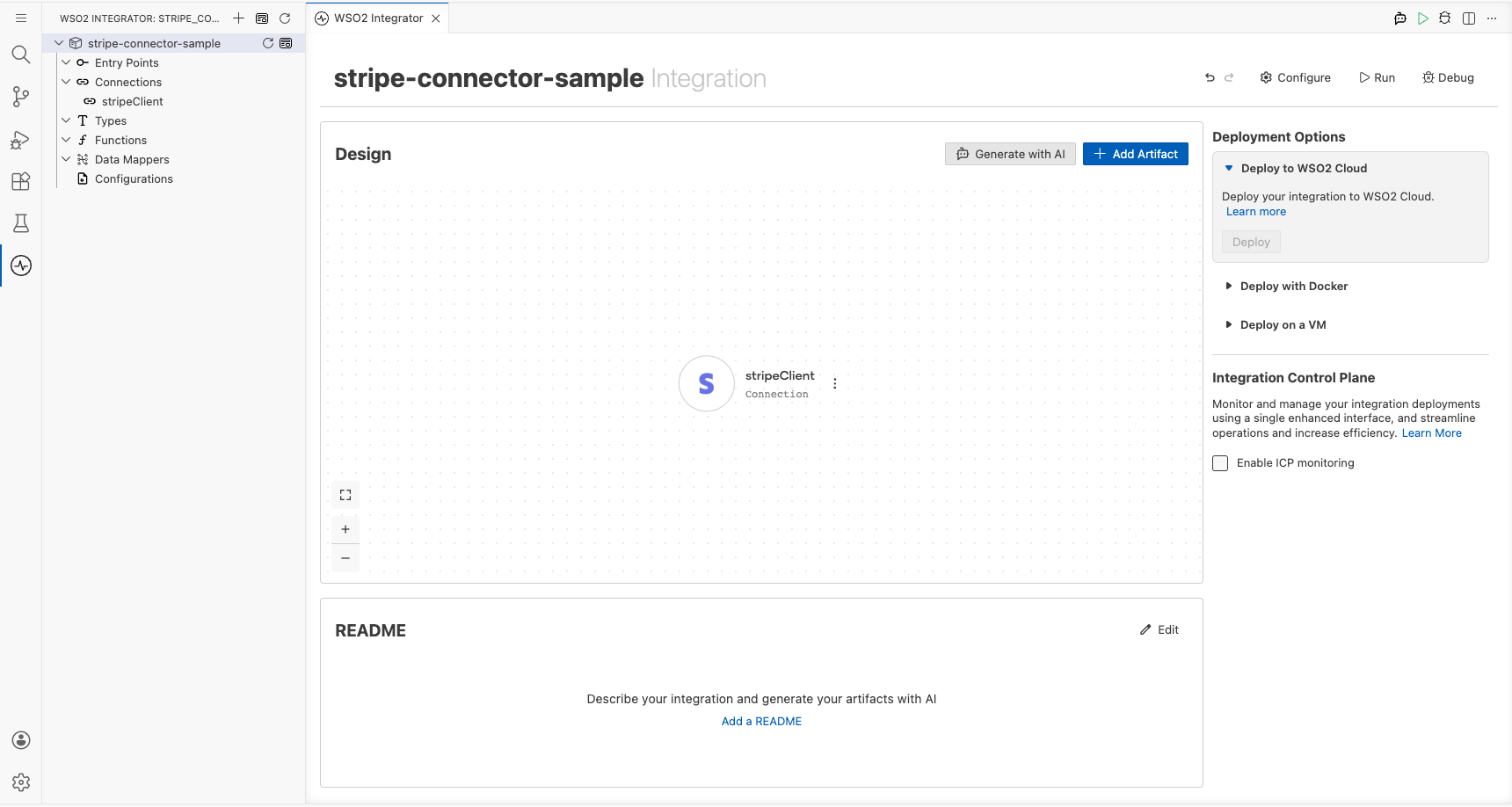

Stripe Connections panel showing stripeClient entry after saving

Step 5: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • stripeToken (string) : Your Stripe API key, obtainable from the Stripe Dashboard under Developers > API keys

Configuring the Stripe get operation​

Step 6: Expand the connection and select the operation​

  1. Select the + button on the edge between the Start node and the Error Handler node.
  2. In the step selection panel, locate the Connections section.
  3. Expand the stripeClient connection to reveal all available Stripe operations.

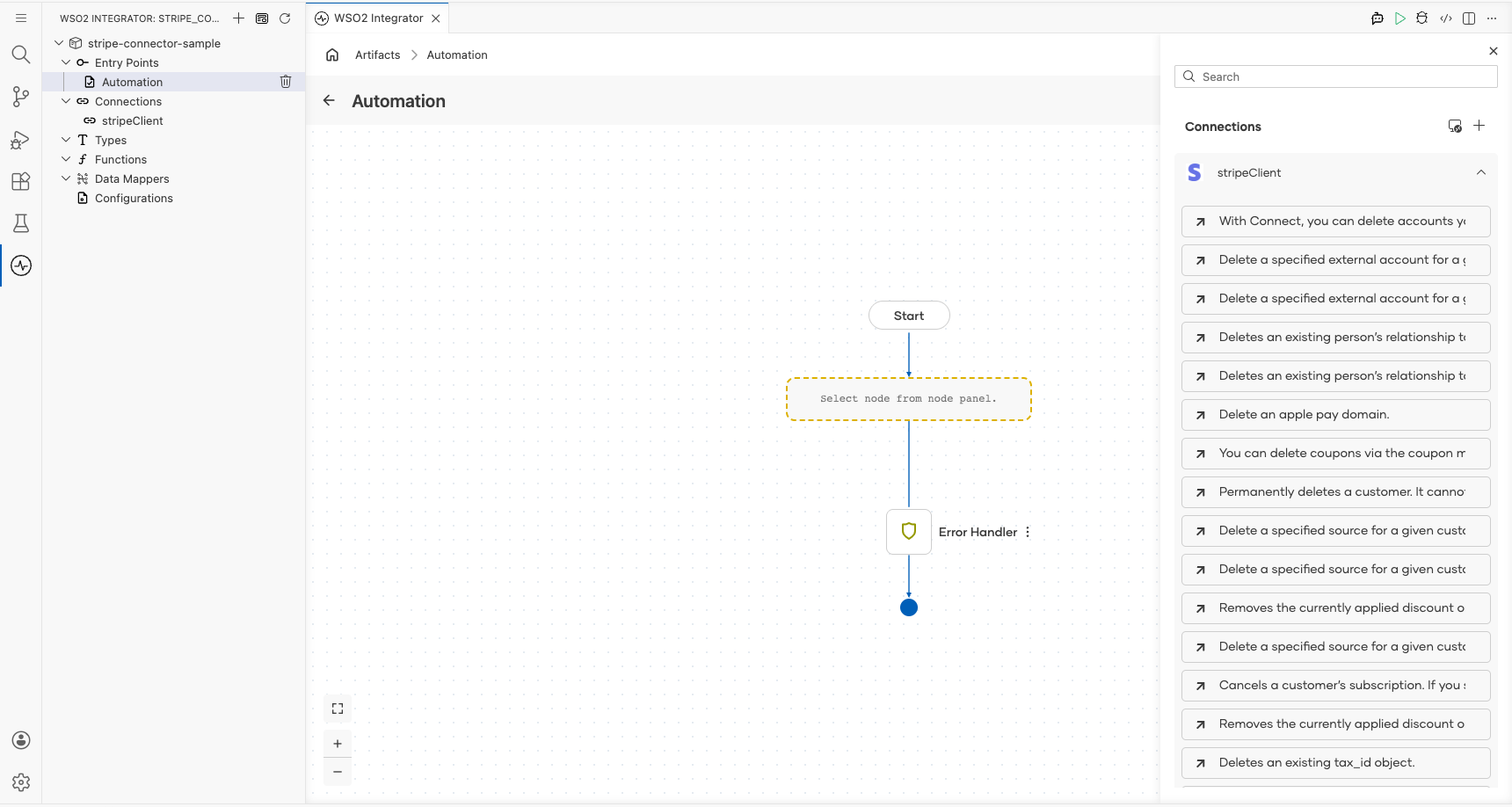

Stripe connection node expanded showing all available operations before selection

  1. Search for customers to filter the operations list.
  2. Select Returns a list of your customers (get operation) from the filtered results, then configure the following:
  • Result : Name of the variable to store the response; set to customerList

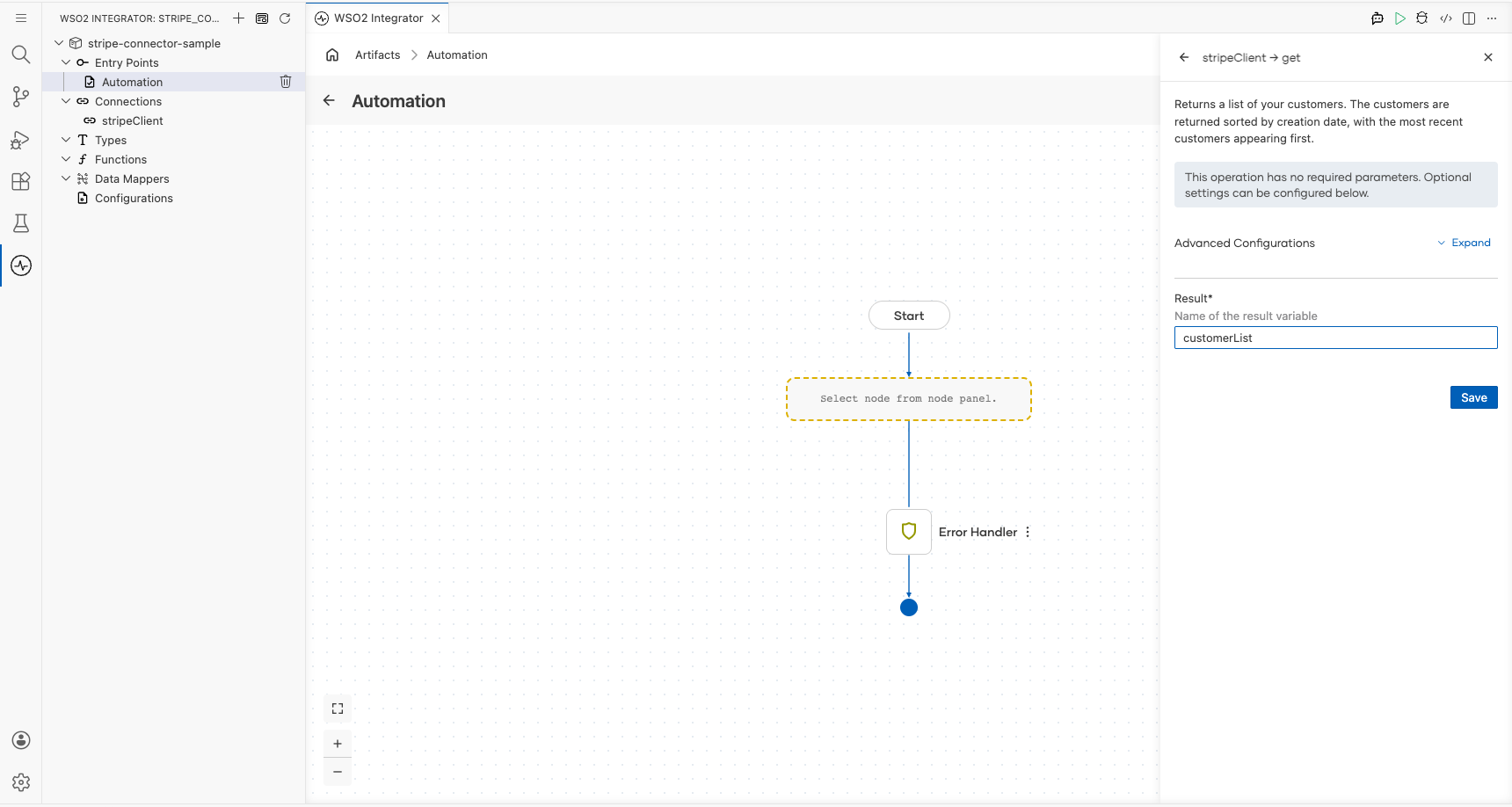

Stripe get operation configuration filled with all values

Select Save to add the operation to the flow.

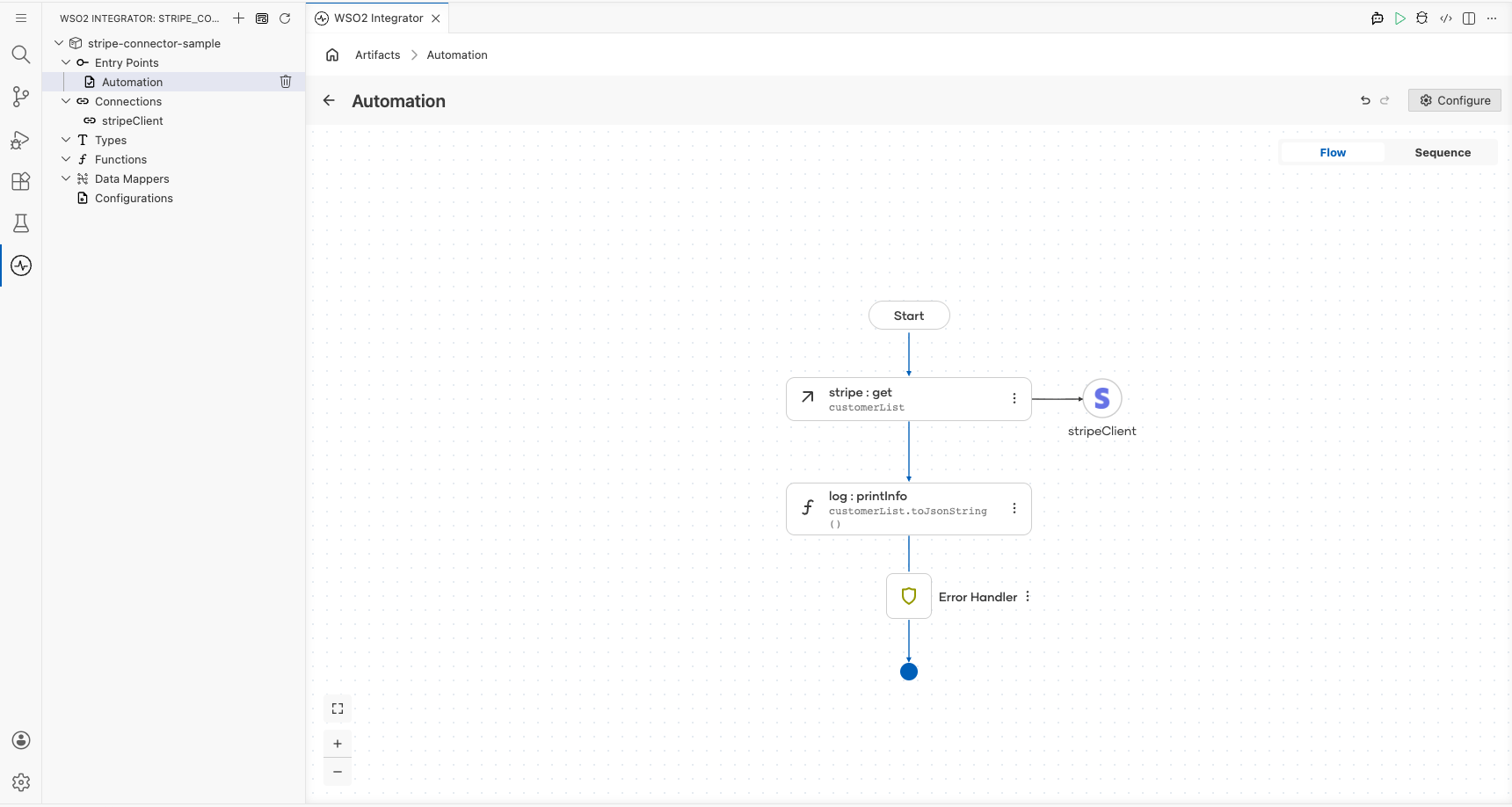

Completed Stripe automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The ballerinax/stripe connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering various Stripe functionalities.

  1. Manage Stripe payments: Manage business payments with Stripe.

  2. Manage one-time charges: Manage one-time charges with Stripe.
