What you'll build​

Build a WSO2 Integrator automation that connects to HubSpot Marketing Campaigns and creates a new marketing campaign using the ballerinax/hubspot.marketing.campaigns connector. The integration authenticates via a Bearer Token and submits a campaign payload to the HubSpot API.

Operations used:

  • Create a campaign : Creates a new marketing campaign in HubSpot with the specified properties.

Architecture​

Prerequisites​

  • A HubSpot account with API access and a valid Bearer Token (Private App token)

Setting up the HubSpot marketing campaigns integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot marketing campaigns connector​

Step 1: Open the add connection panel​

Select the + button next to the Connections section in the WSO2 Integrator side panel to open the Add Connection panel.

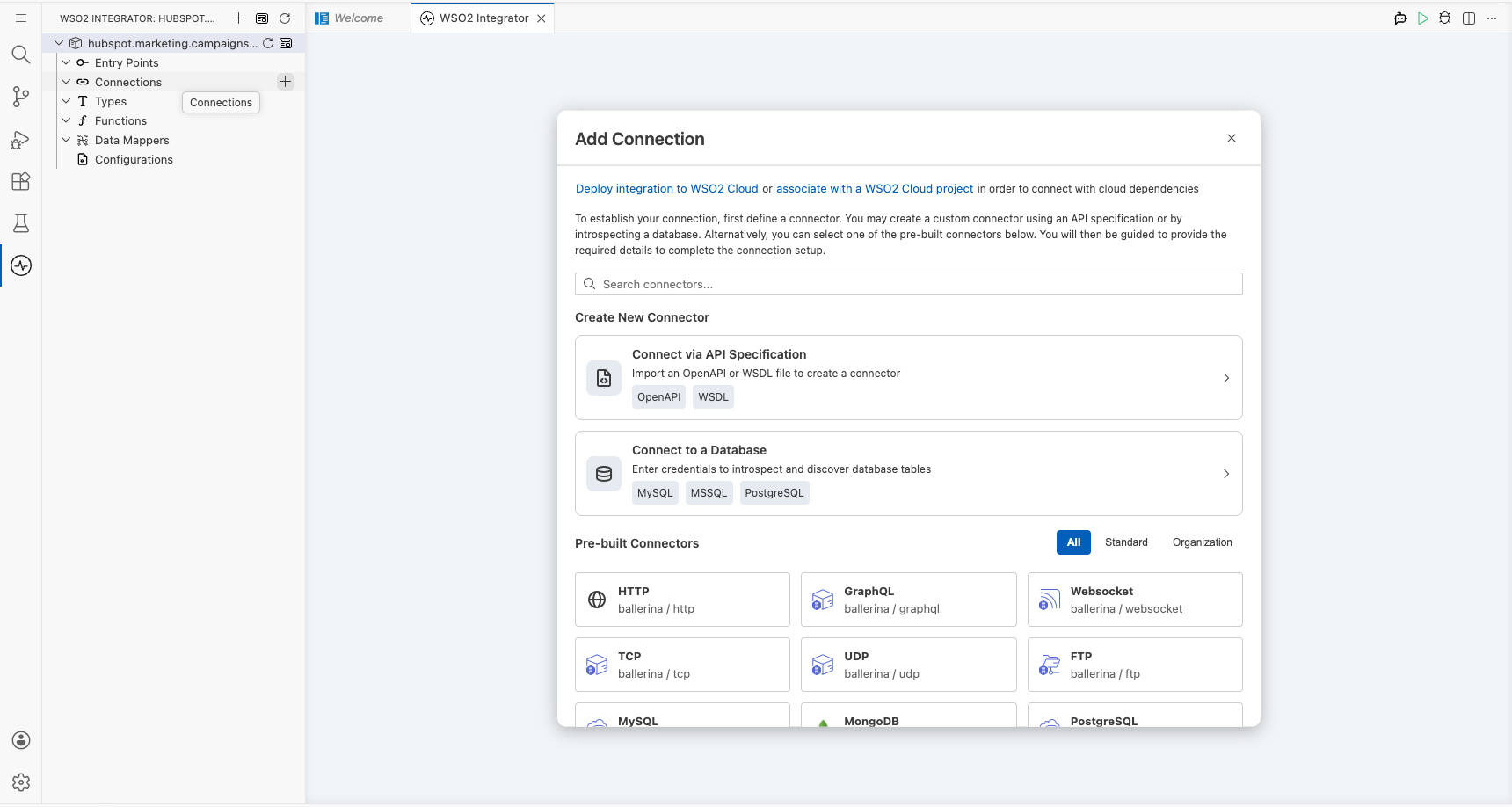

HubSpot Marketing Campaigns connector palette open with search field before any selection

Step 2: Search for and select the HubSpot marketing campaigns connector​

  1. In the search box, enter hubspot to filter available connectors.
  2. Select ballerinax/hubspot.marketing.campaigns from the results to open the connection form.

Configuring the HubSpot marketing campaigns connection​

Step 3: Fill in connection parameters and save​

Bind each connection parameter to a configurable variable, then select Save to persist the connection.

  • Config : The ConnectionConfig record containing authentication details: expand ConnectionConfig → auth → BearerTokenConfig, select the token field, navigate to the Configurables tab, and create a new configurable named hubspotBearerToken of type string
  • Connection Name : The variable name for this connector client instance; enter campaignsClient

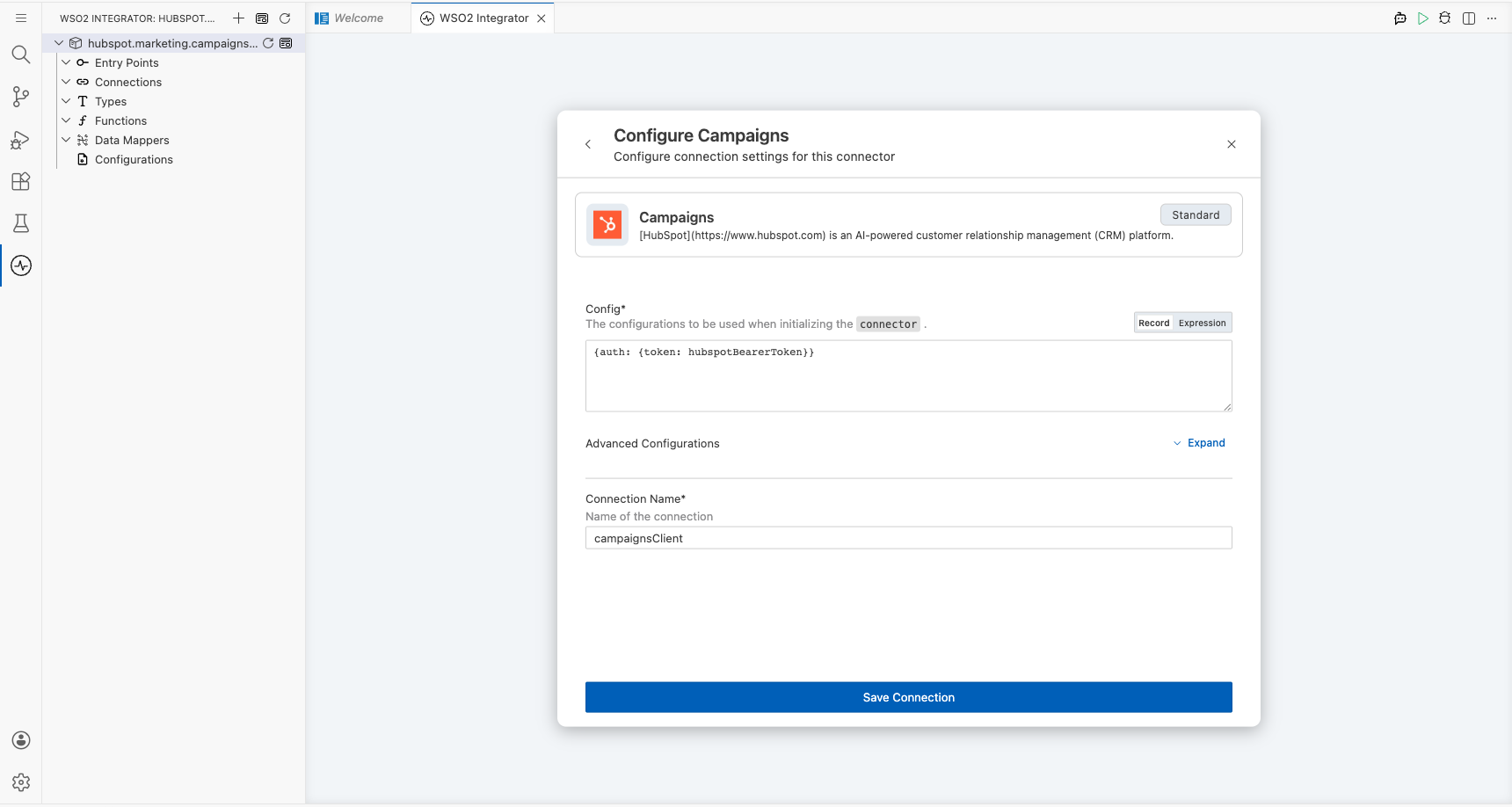

HubSpot Marketing Campaigns connection form fully filled with all parameters before saving

The connection campaignsClient now appears under the Connections section in the project tree.

HubSpot Marketing Campaigns Connections panel showing campaignsClient entry after saving

Step 4: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • hubspotBearerToken (string) : Your HubSpot Private App Bearer Token (e.g., pat-na1-xxxxxxxx-xxxx-xxxx-xxxx-xxxxxxxxxxxx)

Configuring the HubSpot marketing campaigns create a campaign operation​

Step 5: Add an automation entry point​

Select Add Artifact in the WSO2 Integrator side panel and choose Automation. Accept the default name main and select Create. The automation flow canvas opens showing a Start node and an Error Handler node.

Step 6: Select and configure the create a campaign operation​

  1. On the automation canvas, select the + (Add Step) button between the Start node and the Error Handler node.
  2. In the node panel, locate the Connections section and expand campaignsClient to reveal all available operations.

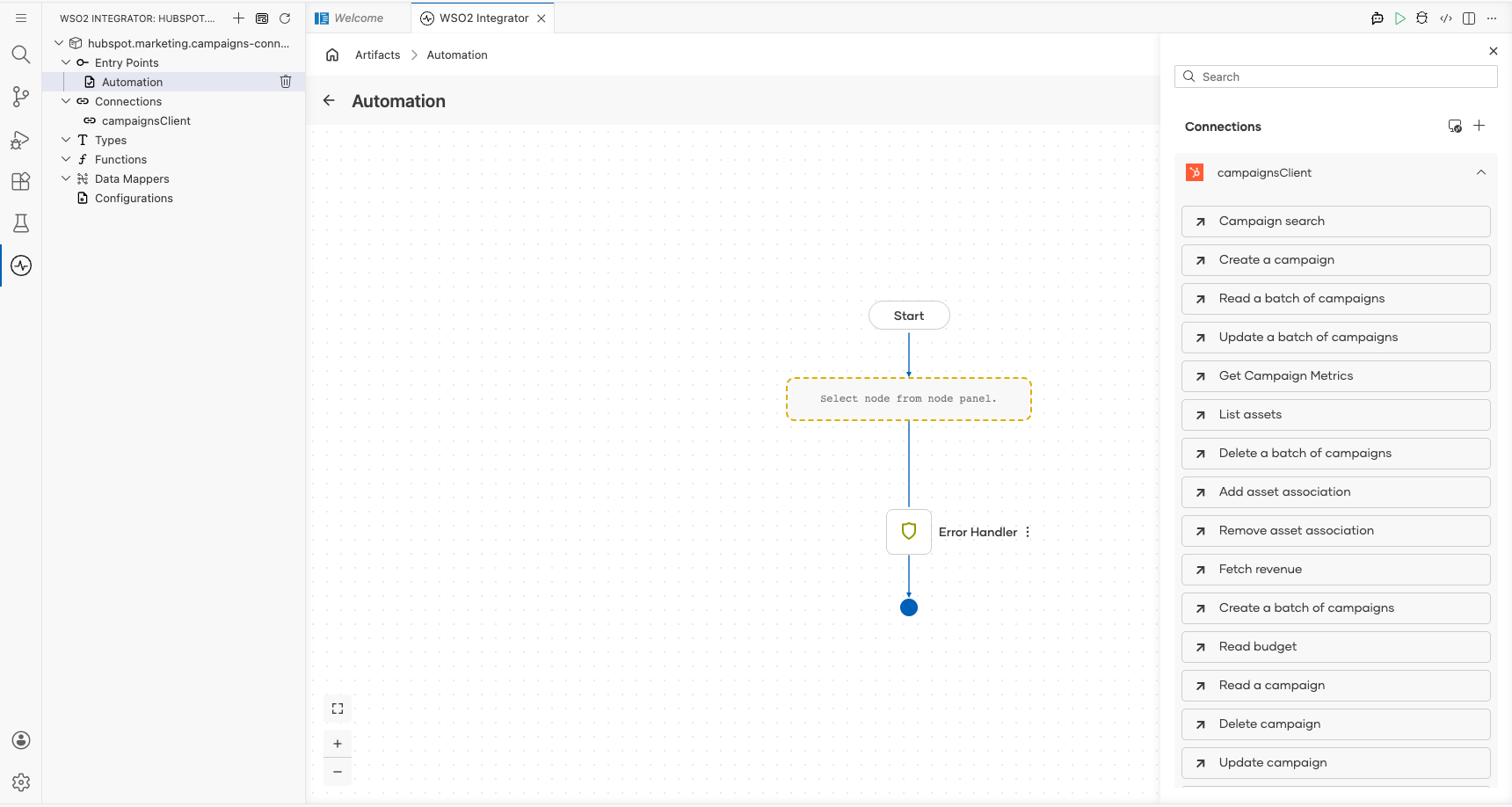

HubSpot Marketing Campaigns connection node expanded showing all available operations before selection

  1. Select Create a campaign (campaignsClient → post) to open the operation form.
  2. Configure the following fields:
  • Payload : The campaign input payload; select the Expression tab and enter {properties: {"hs_name": "Summer Sale Campaign"}}
  • Result : Name of the variable that holds the API response; enter campaignResult

Select Save to add the step to the canvas.

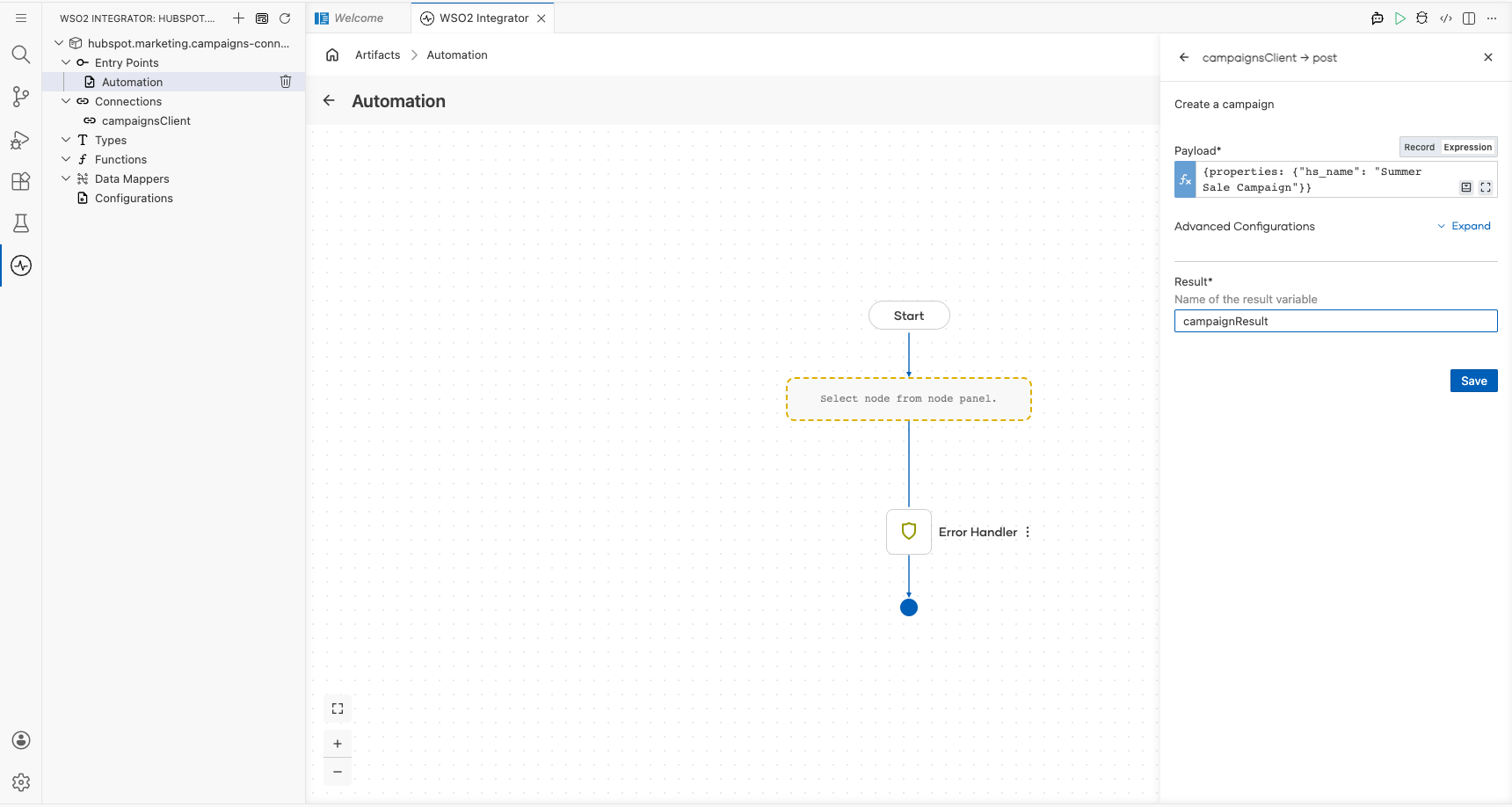

HubSpot Marketing Campaigns Create a campaign operation configuration filled with all values

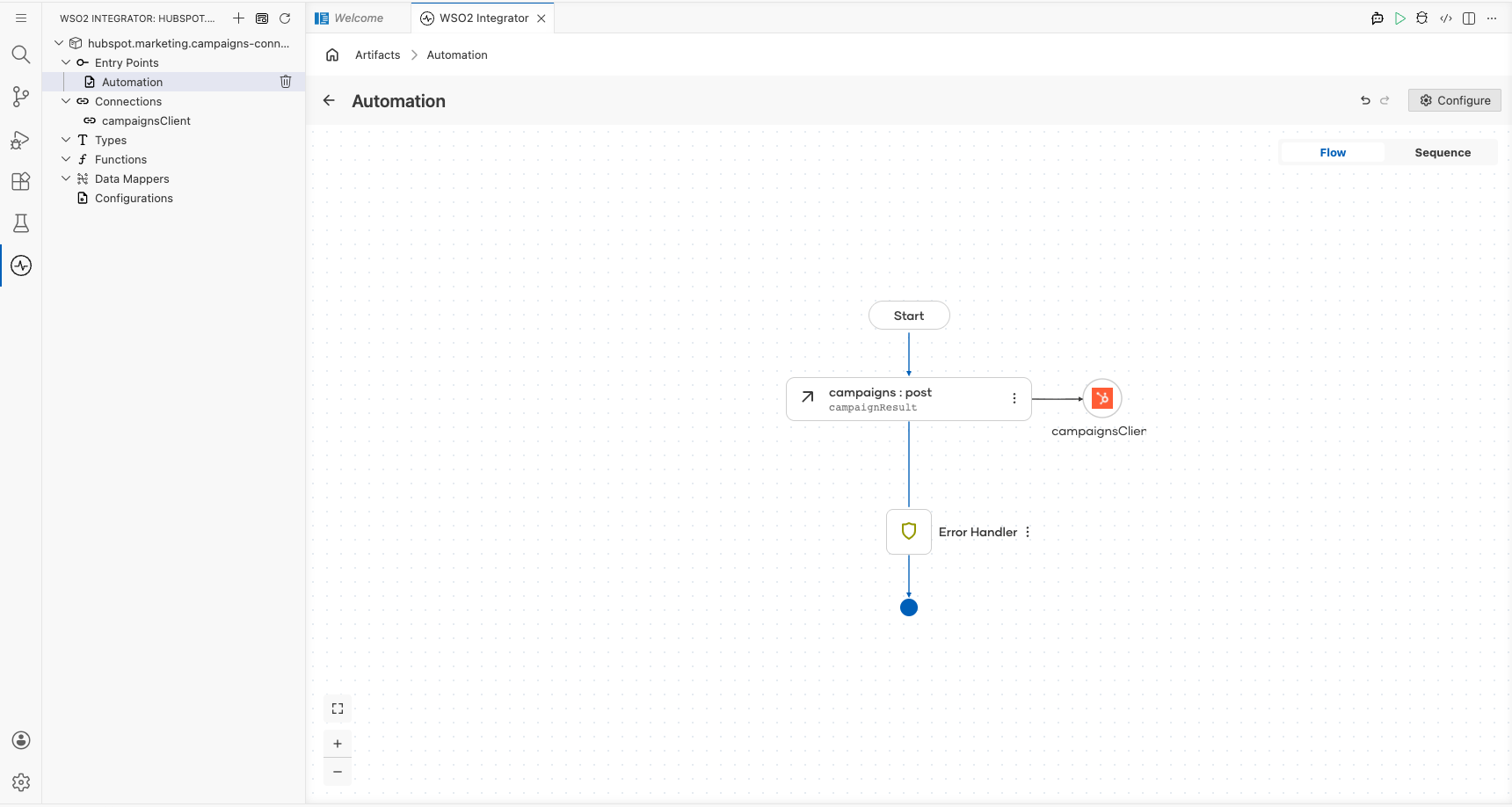

Completed HubSpot Marketing Campaigns automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The HubSpot Marketing Campaigns connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Batch of Campaigns - Fully manage a batch of campaigns
  2. Campaign Lifecycle with Assets - Full life cycle of a campaign associated with assets such as forms
