Setup Guide

This guide walks you through creating a DocuSign developer account and obtaining the OAuth 2.0 credentials required to use the DocuSign Admin connector.

Prerequisites​

Step 1: Create a DocuSign developer account​

If you do not already have a developer account, sign up for free.

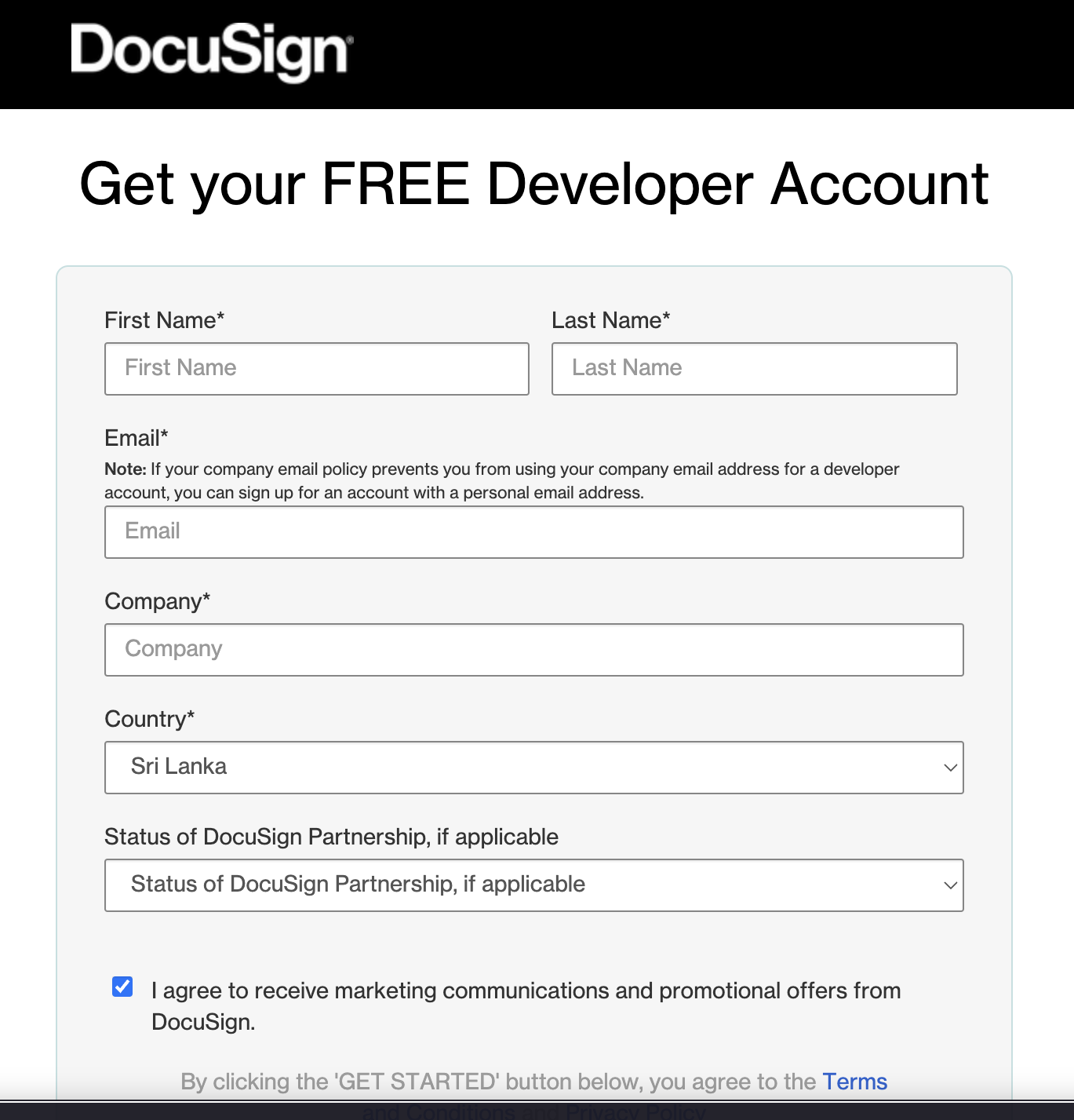

Create a DocuSign developer account

Step 2: Create an integration key and secret key​

  1. Log in to the DocuSign Developer Portal and navigate to Apps and Keys.

  2. Select Add App and Integration Key, enter a name, and select Create App. This generates an Integration Key (your clientId).

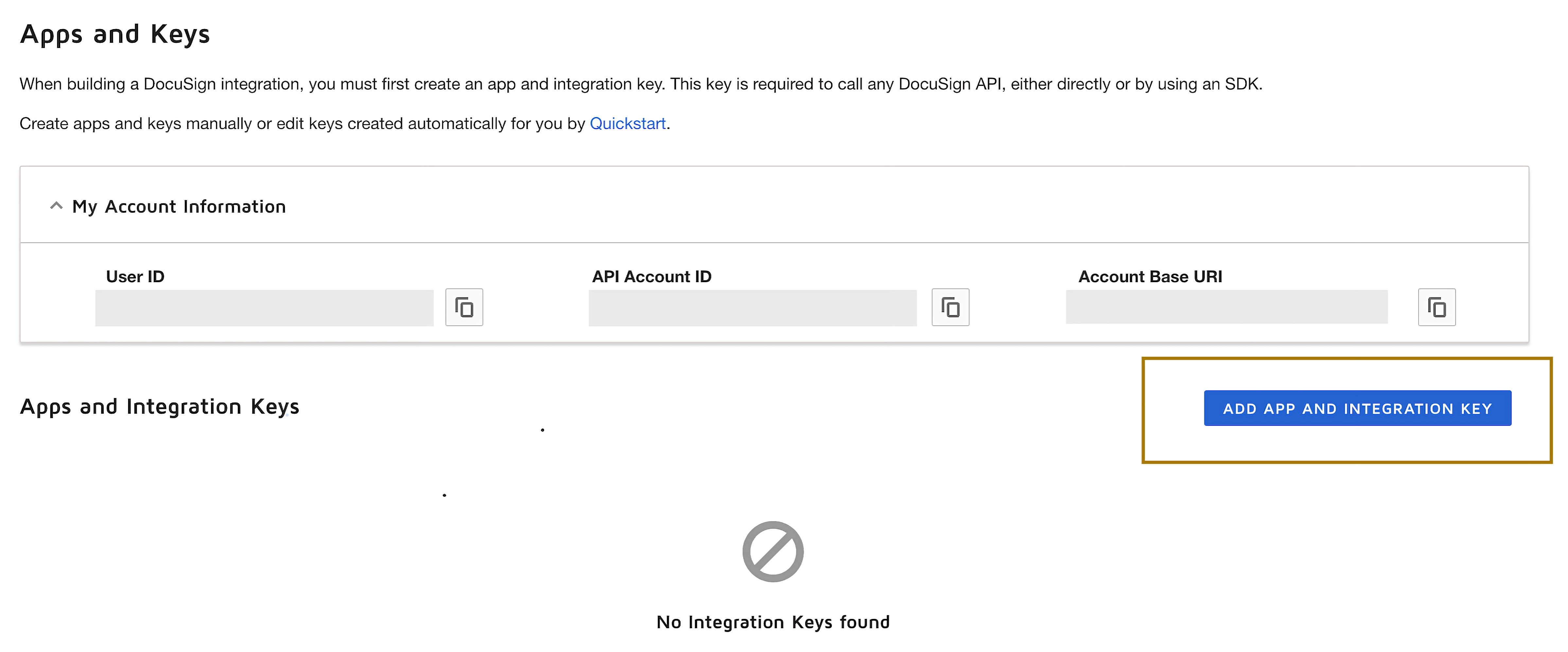

    Apps and integration key

  3. Under Authentication, select Add Secret Key. Copy and save the generated Secret Key (your clientSecret).

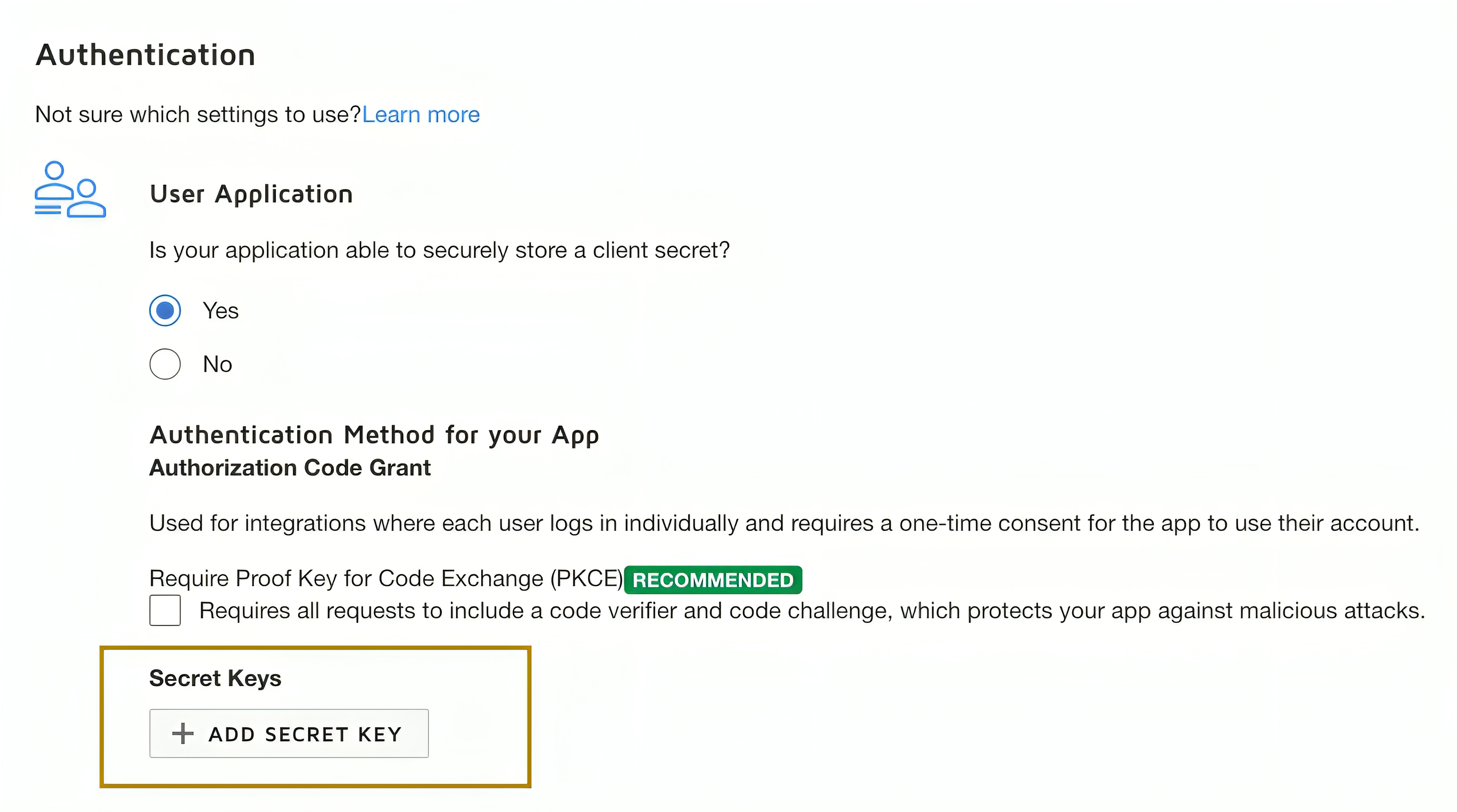

    Add secret key

tip

Store the Integration Key and Secret Key securely. Do not commit them to source control. Use Ballerina's configurable feature and a Config.toml file to supply them at runtime.

Step 3: Add a redirect URI​

  1. On the same app configuration page, under Additional settings, select Add URI.

  2. Enter your redirect URI (for example, http://www.example.com/callback).

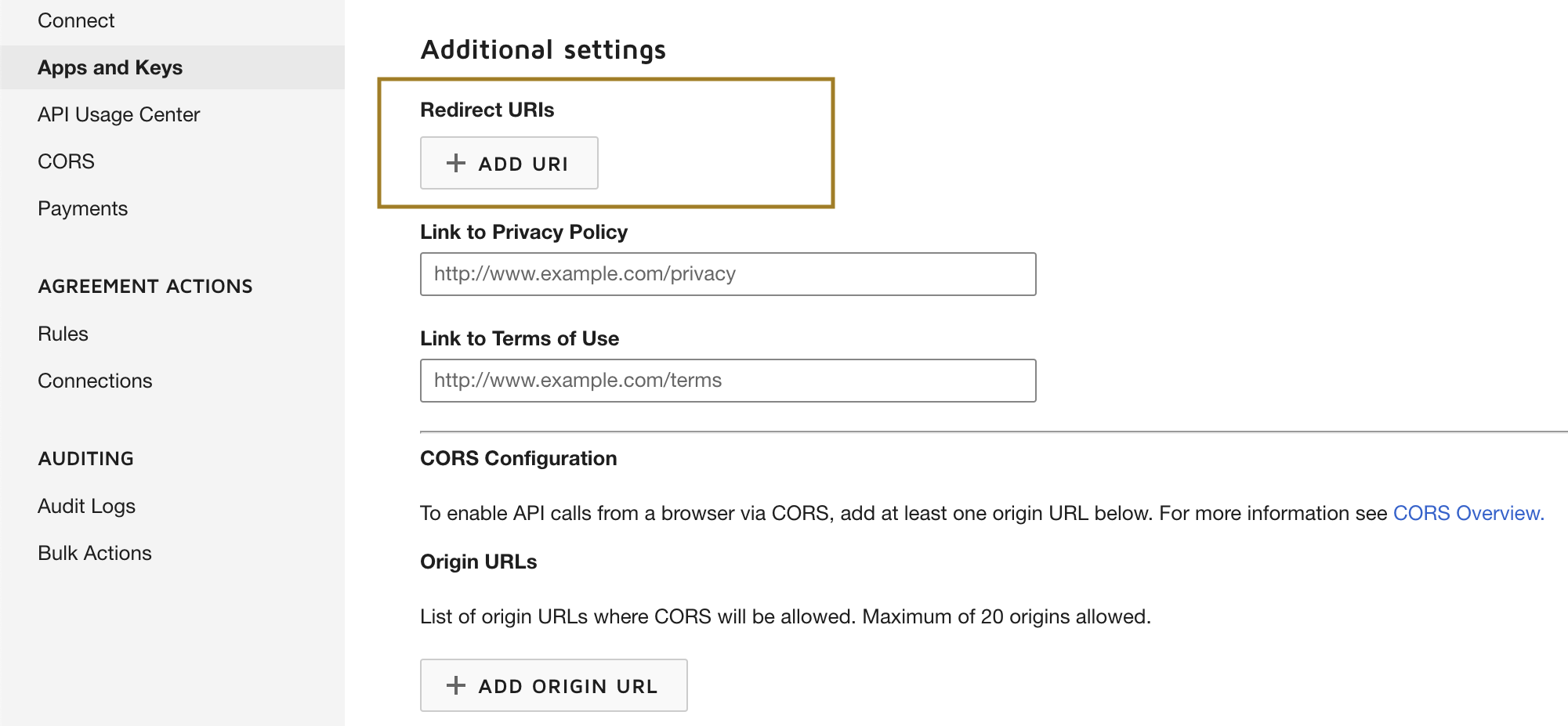

    Add redirect URI

  3. Save the changes.

Step 4: Get the refresh token​

  1. Generate the encoded key by base64-encoding your Integration Key and Secret Key in the format IntegrationKey:SecretKey. You can use a browser console:

    btoa('IntegrationKey:SecretKey')

  2. Open the following authorization URL in your browser, replacing {iKey} with your Integration Key and {redirectUri} with your redirect URI:

    https://account-d.docusign.com/oauth/auth?response_type=code&scope=signature%20organization_read%20group_read%20account_read%20permission_read%20user_read%20user_write&client_id={iKey}&redirect_uri={redirectUri}

  3. Log in and authorize the application. You are redirected to your redirect URI with a code query parameter — this is your authorization code.

  4. Exchange the authorization code for a refresh token:

    curl --location 'https://account-d.docusign.com/oauth/token' \
      --header 'Authorization: Basic {encodedKey}' \
      --header 'Content-Type: application/x-www-form-urlencoded' \
      --data-urlencode 'code={codeFromUrl}' \
      --data-urlencode 'grant_type=authorization_code'

  5. Copy the refresh_token from the response. Use https://account-d.docusign.com/oauth/token as the refresh URL.

note

The scopes above (organization_read, group_read, account_read, permission_read, user_read, user_write) cover Admin API operations. Adjust scopes based on your use case.

Step 5: Prepare for production​

The steps above use the DocuSign developer (demo) environment. When your application is ready for production, follow the DocuSign Go Live guidelines to transition to the production environment. The production base URL is https://api.docusign.net/Management and the OAuth endpoints change from account-d.docusign.com to account.docusign.com.
