Setup Guide

This guide walks you through registering an application in Microsoft Entra ID and obtaining the OAuth 2.0 credentials required to use the Microsoft OneDrive connector.

Prerequisites

• A Microsoft account with OneDrive access. If you do not have one, sign up for a free Microsoft account.
• Access to the Microsoft Entra admin center.

Step 1: Register the application

1. Sign in to the Microsoft Entra admin center.

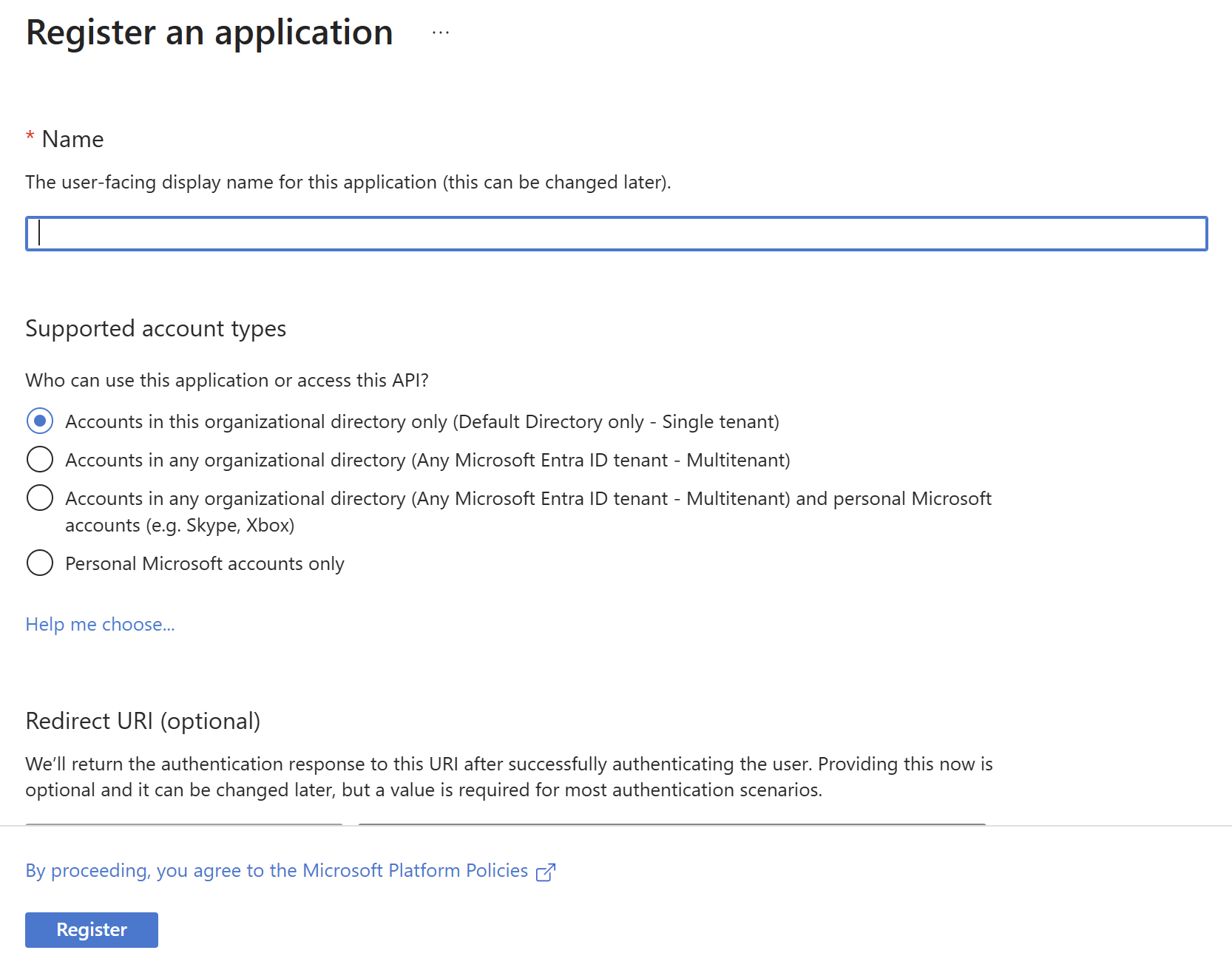

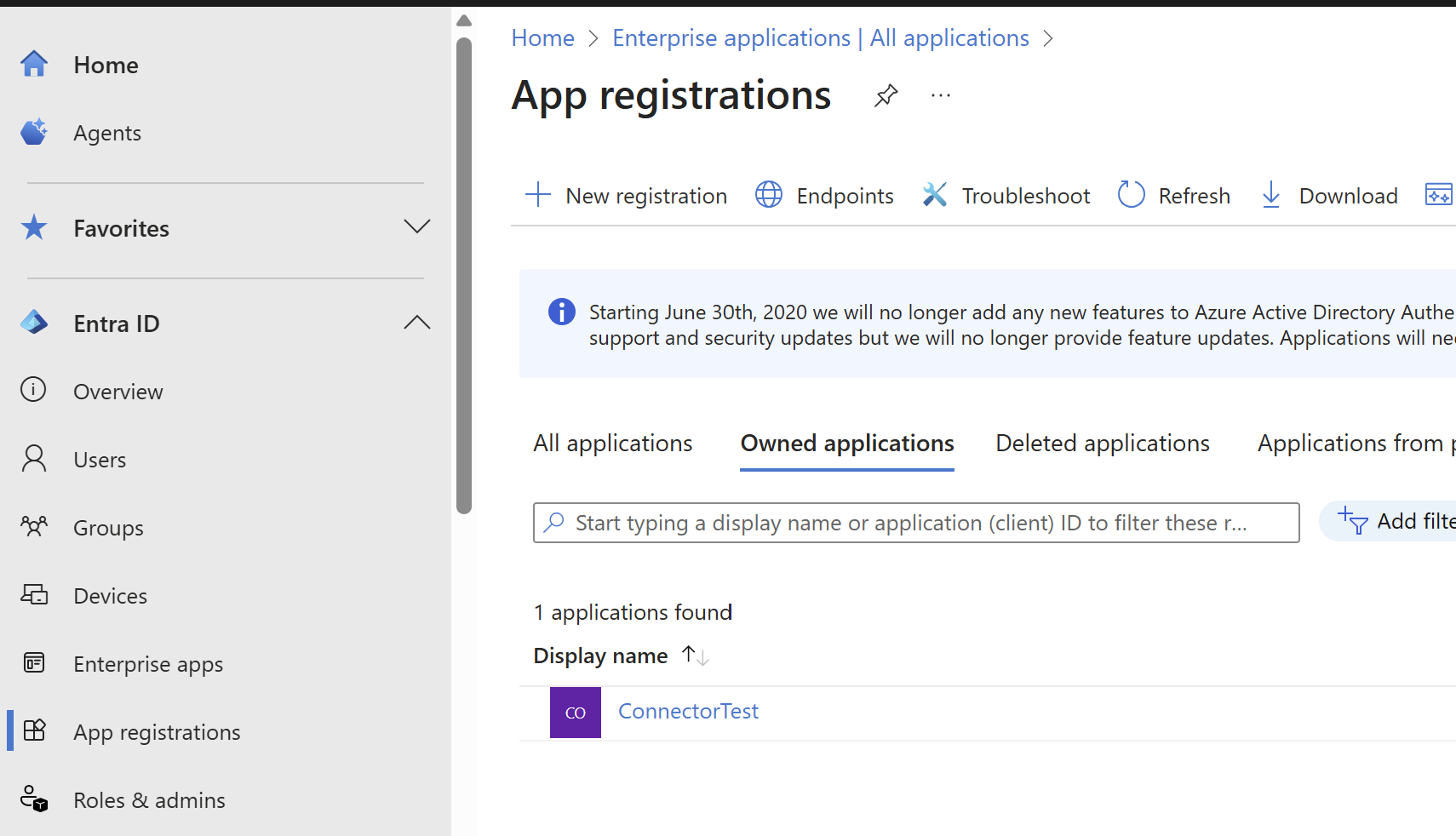

2. Navigate to App registrations and select New registration.



3. Enter a display name for your application.



4. Under Supported account types, select the appropriate option for your use case.

5. Leave Redirect URI blank for now.

6. Select Register.

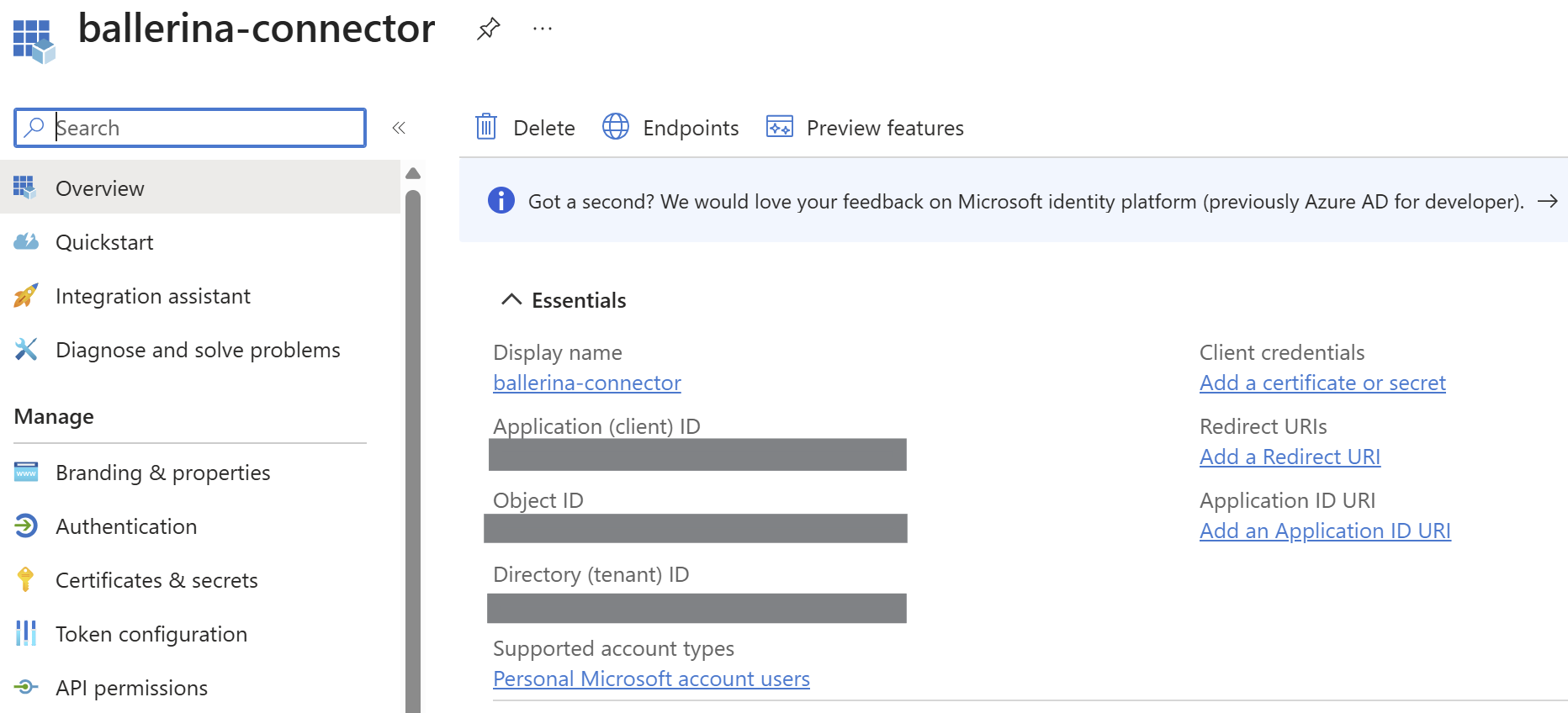

7. After registration, copy the Application (client) ID from the Overview pane.



Step 2: Configure platform settings

1. Under Manage, select Authentication.

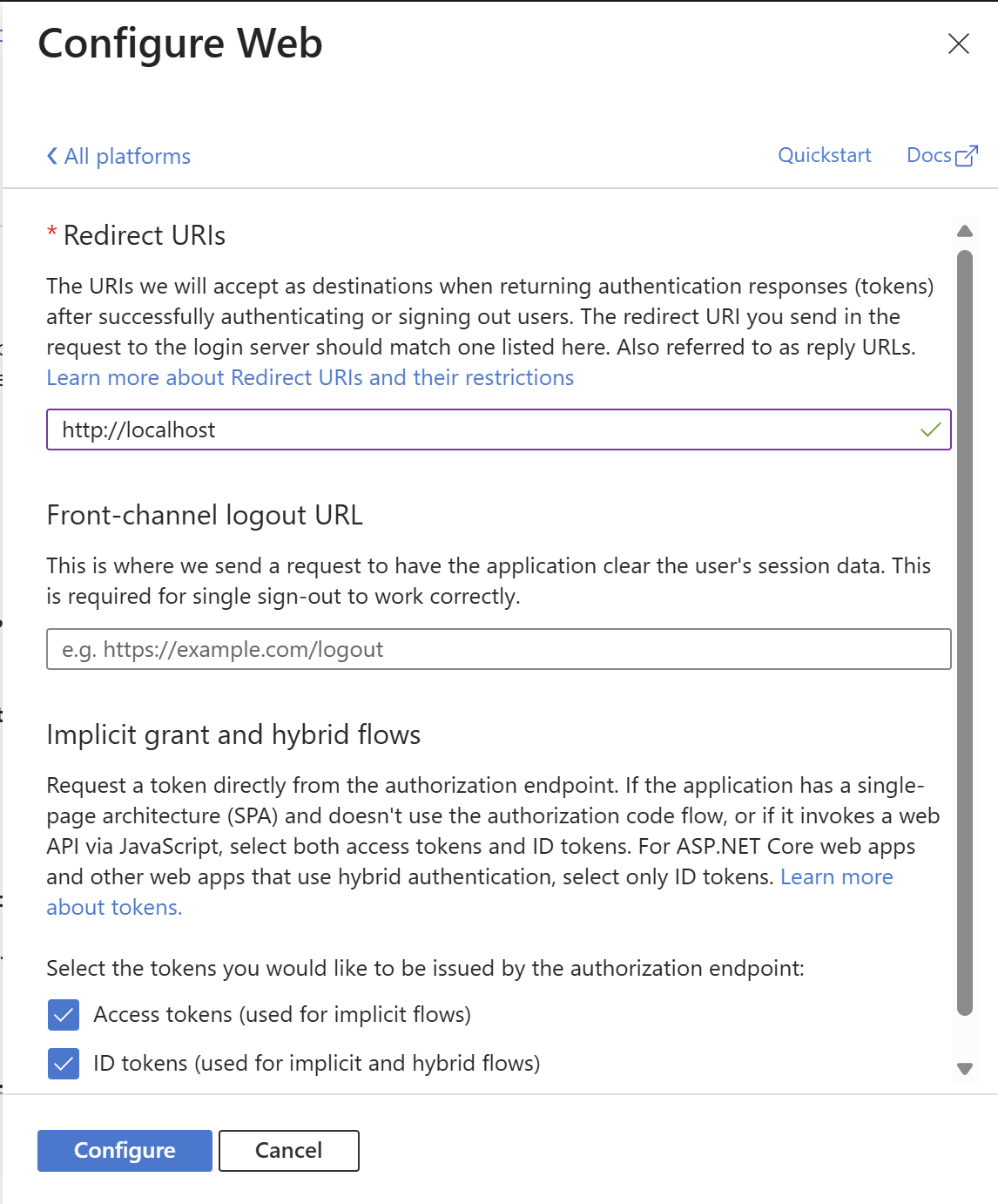

2. Under Platform configurations, select Add a platform and select the Web tile.

3. Set the Redirect URI to http://localhost.



4. Select Configure to save.

Step 3: Add a client secret

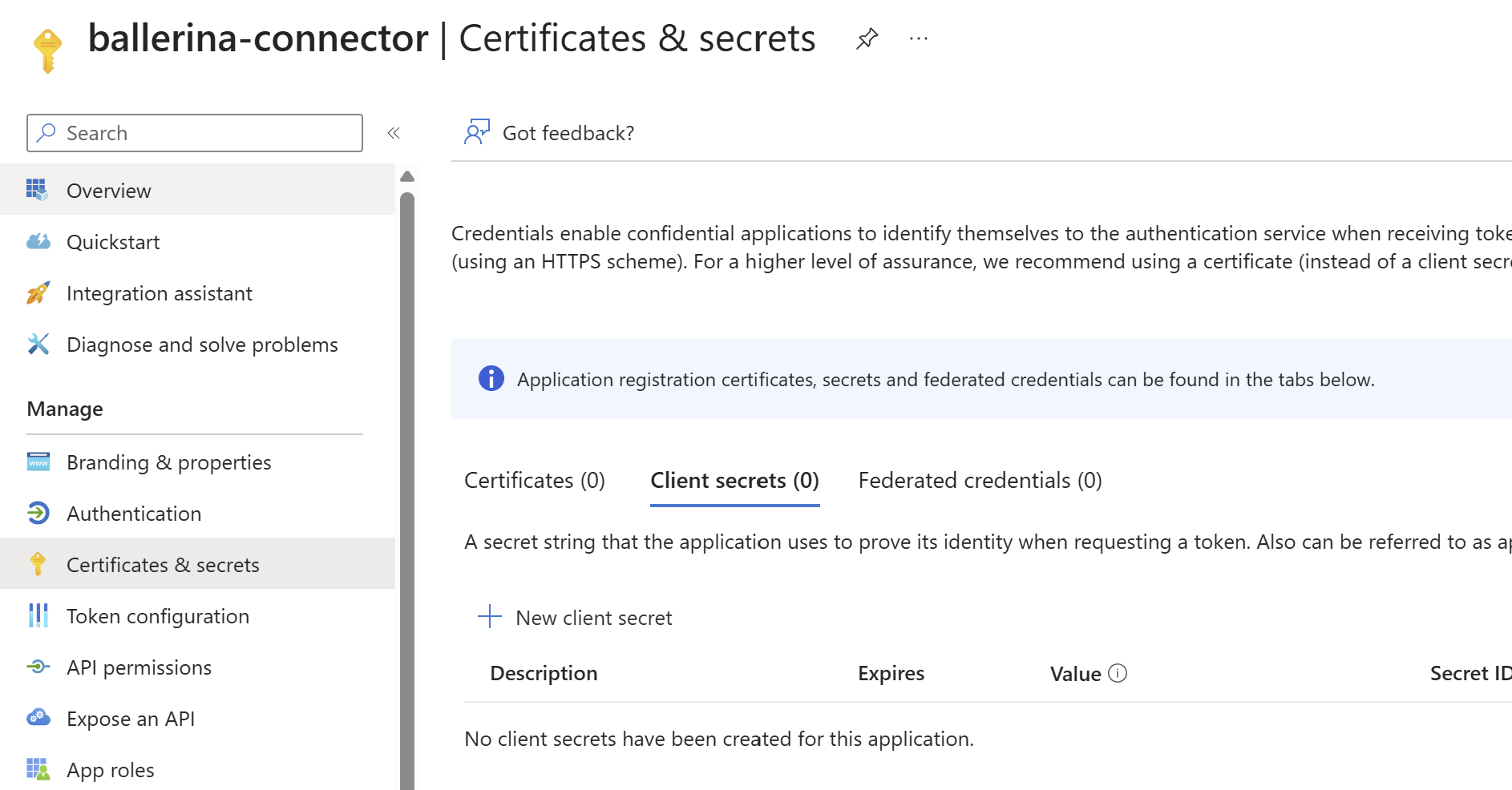

1. Navigate to Certificates & secrets > Client secrets and select New client secret.

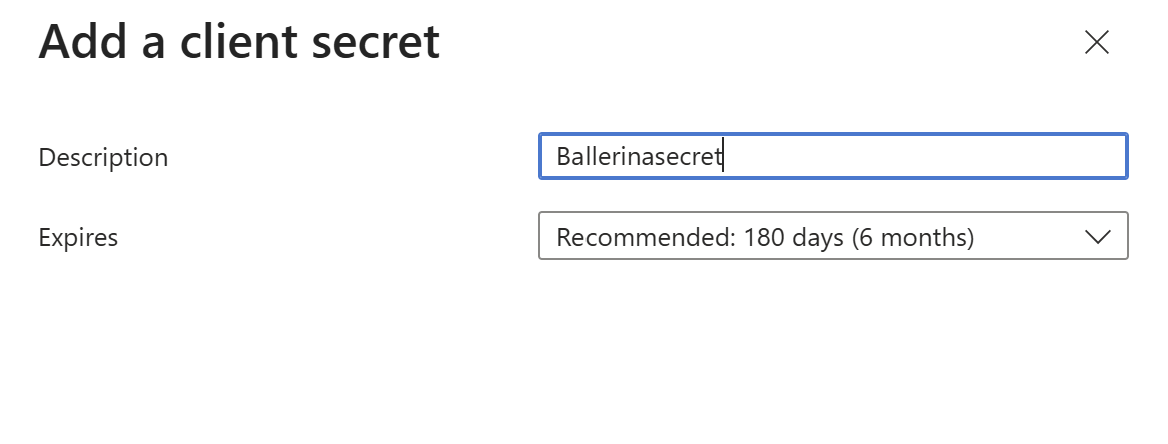

2. Add a description for your client secret.



3. Select an expiration period and select Add.

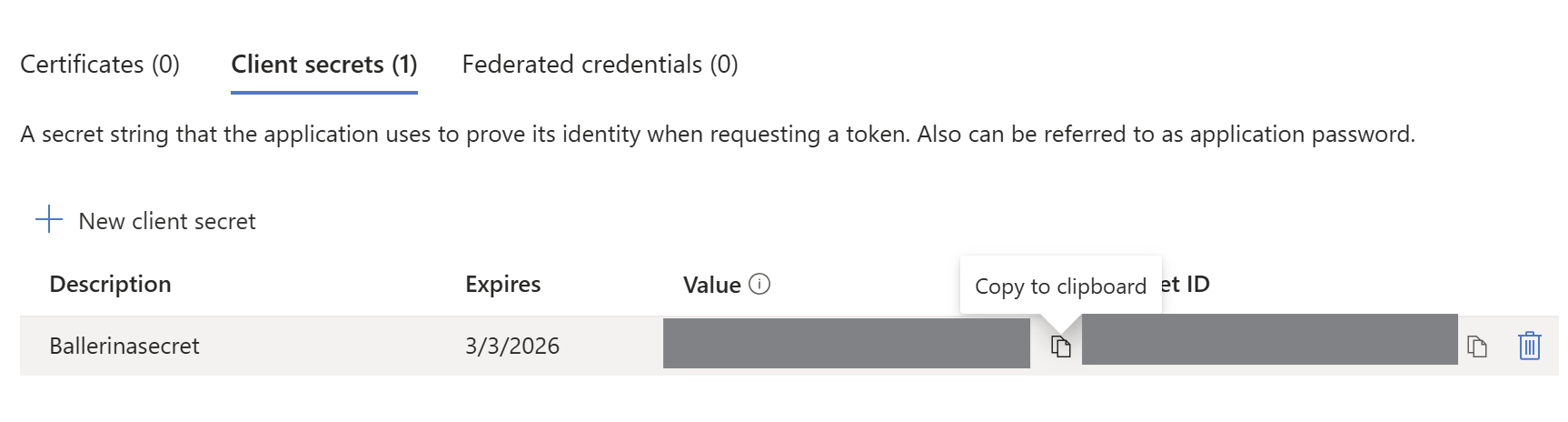

4. Copy and save the Value of the secret immediately — it will not be shown again.



warning

The client secret value is shown only once. Store it securely. Do not commit it to source control. Use Ballerina's configurable feature and a Config.toml file to supply it at runtime.

Step 4: Get the refresh token

1. Construct the authorization URL, replacing <client-id> with your Application (client) ID:

   https://login.microsoftonline.com/common/oauth2/v2.0/authorize?client_id=<client-id>&scope=offline_access%20files.read%20files.read.all%20files.readwrite%20files.readwrite.all&response_type=code&redirect_uri=http://localhost

   Parameter	Description
   client_id	Your Application (client) ID
   scope	offline_access (refresh token), files.read, files.read.all, files.readwrite, files.readwrite.all
   response_type	code
   redirect_uri	Must match the URI configured in Step 2

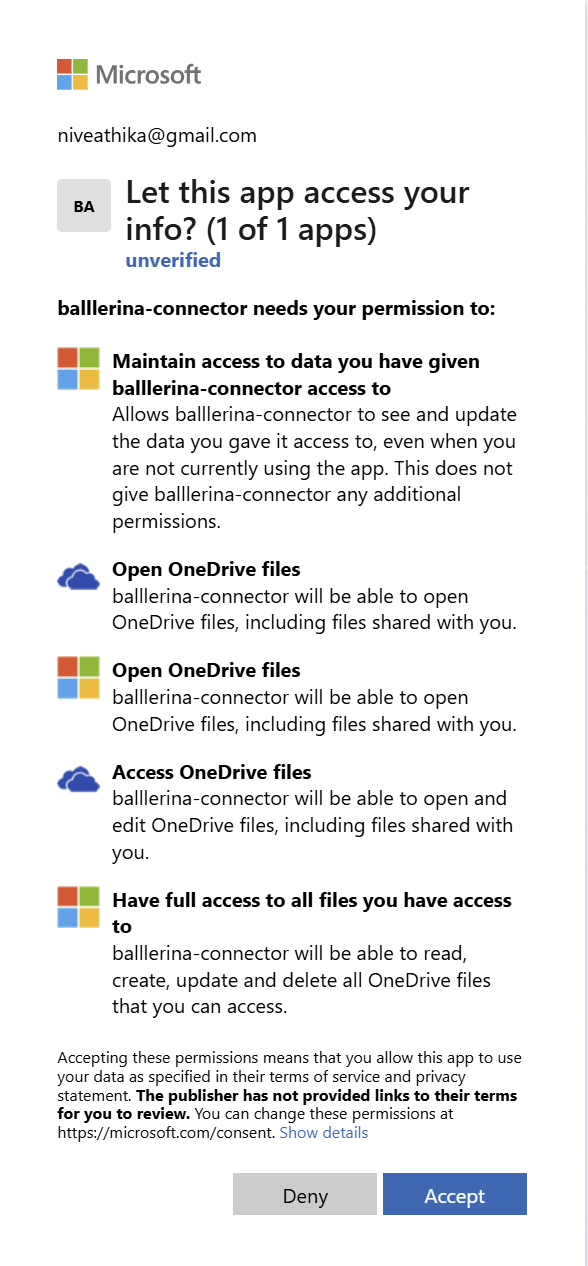

2. Open the URL in a browser, sign in, and select Accept to grant access.



3. After authorization, you are redirected to a URL like:

   http://localhost/?code=<auth-code>

   Copy the code value from the URL.

4. Exchange the code for tokens:

   curl -X POST https://login.microsoftonline.com/common/oauth2/v2.0/token \
     -H "Content-Type: application/x-www-form-urlencoded" \
     -d "client_id=<client-id>&client_secret=<client-secret>&redirect_uri=http://localhost&code=<auth-code>&grant_type=authorization_code"

5. Copy the refresh_token from the response.

What's next

• Action reference: Available operations
