What you'll build​

Build an integration in WSO2 Integrator that uses the Microsoft OneDrive connector to list all available drives. The integration uses an Automation entry point to invoke the listDrive operation and log the results.

Operations used:

  • listDrive : Retrieves all available drives from Microsoft OneDrive

Architecture​

Prerequisites​

  • A Microsoft OneDrive account with a valid access token

Setting up the Microsoft OneDrive integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Microsoft OneDrive connector​

Step 1: Add the Microsoft OneDrive connection​

Select + in the Connections section to open the Add Connection panel.

Microsoft OneDrive connector palette open with search field before any selection

Configuring the Microsoft OneDrive connection​

Step 2: Fill in the connection parameters​

Enter the connection details, binding each field to a configurable variable:

  • connectionName : Enter onedriveClient as the connection name
  • config : Switch to Expression mode and enter {auth: {token: oneDriveToken}}, referencing the oneDriveToken configurable variable that holds your access token at runtime

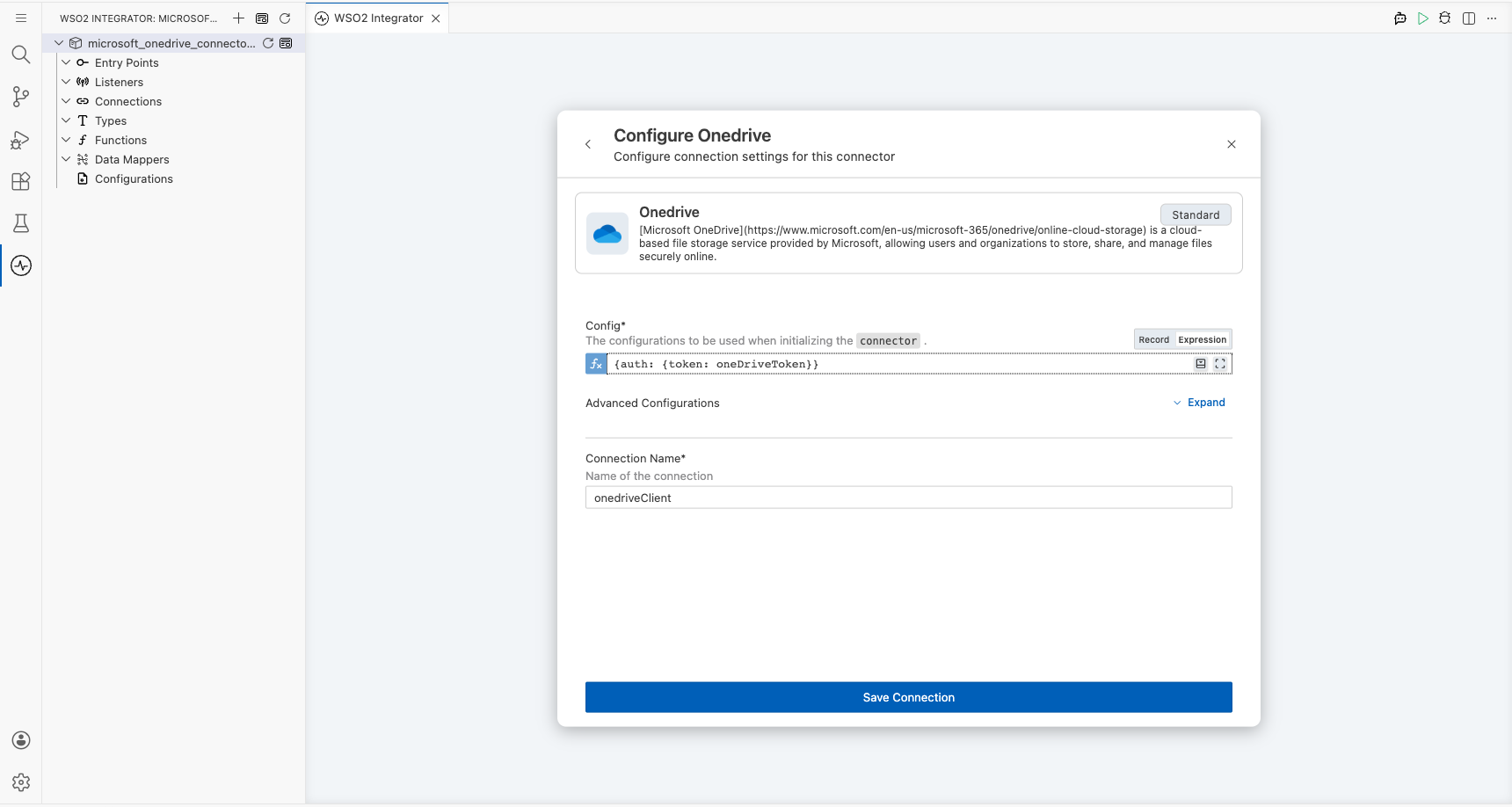

Microsoft OneDrive connection form fully filled with all parameters before saving

Step 3: Save the connection​

Select Save to create the connection. The onedriveClient entry now appears under the Connections section.

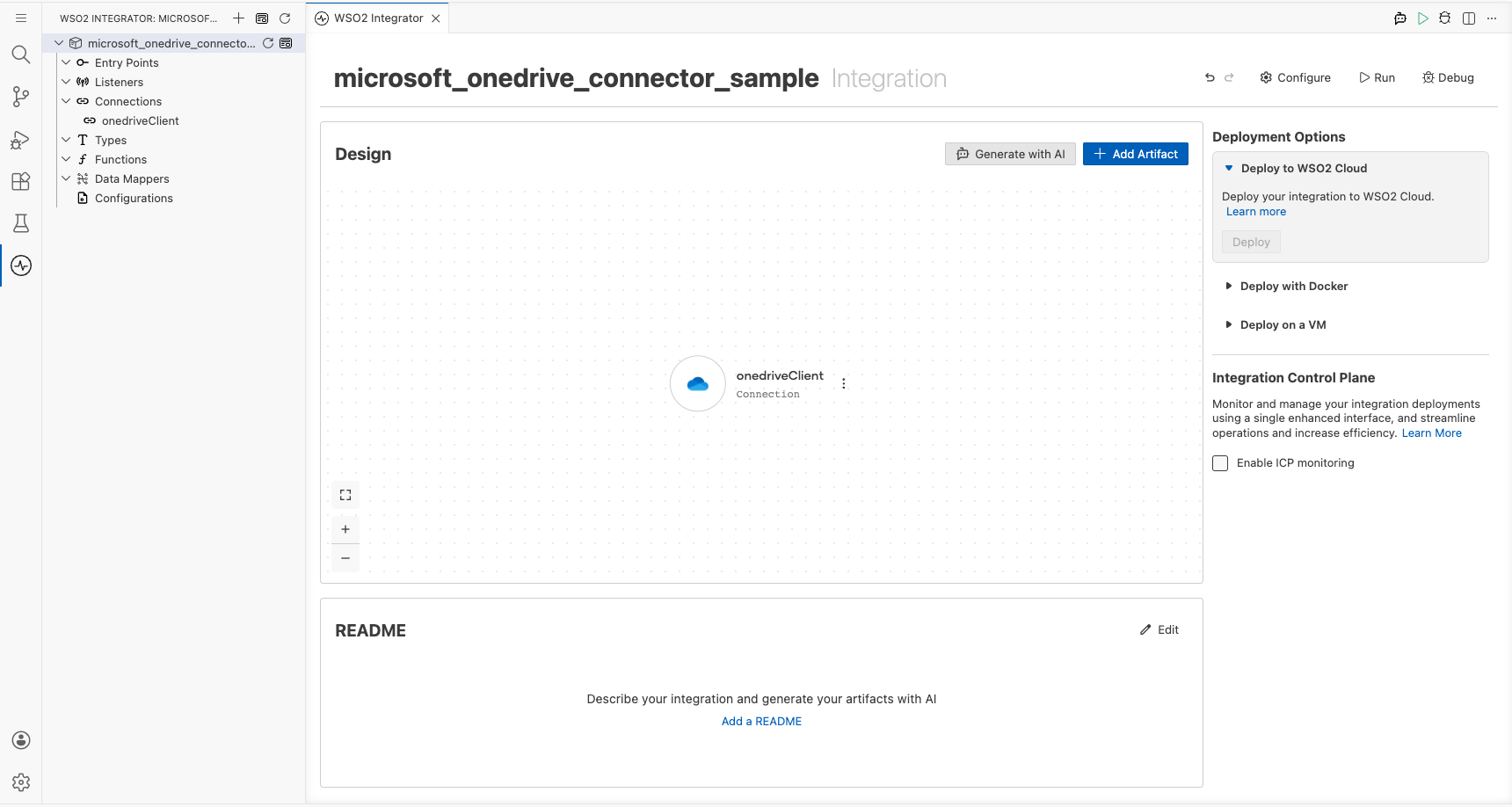

Microsoft OneDrive Connections panel showing onedriveClient entry after saving

Step 4: Set actual values for your configurables​

In the left panel, select Configurations. Set a value for each configurable listed below:

  • oneDriveToken (string) : Your Microsoft OneDrive access token

Configuring the Microsoft OneDrive listDrive operation​

Step 5: Add an Automation entry point​

Select Add Artifact and choose Automation as the entry point type. Enter main as the function name, then select Create to generate the automation entry point.

Step 6: Select and configure the listDrive operation​

Expand the onedriveClient connection node on the canvas to view available operations, then select List Drive to add it to the flow.

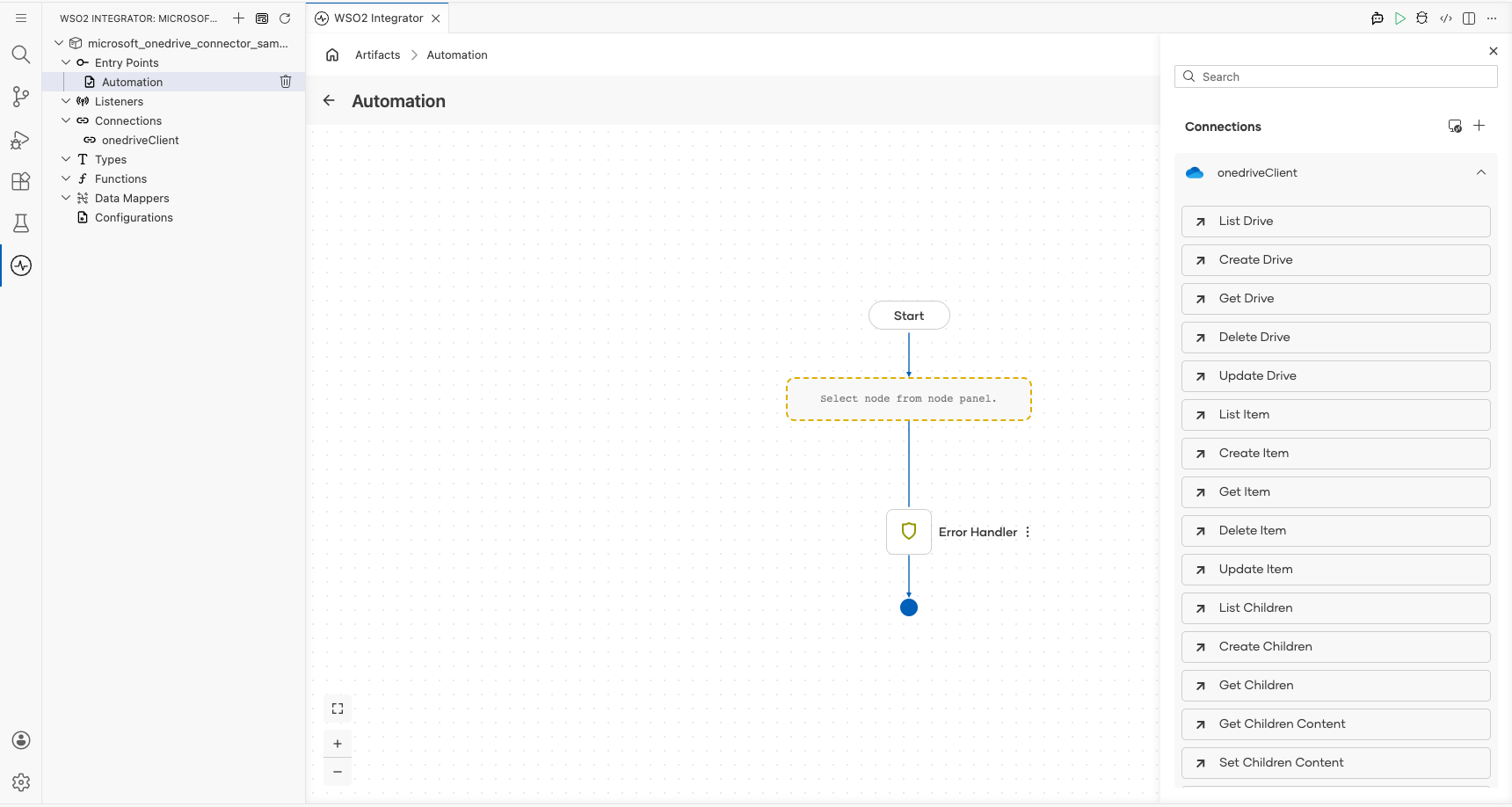

Microsoft OneDrive connection node expanded showing all available operations before selection

Configure the operation parameters:

  • resultVariable : Enter result as the variable name to store the response
  • resultType : Set to onedrive:DriveCollectionResponse

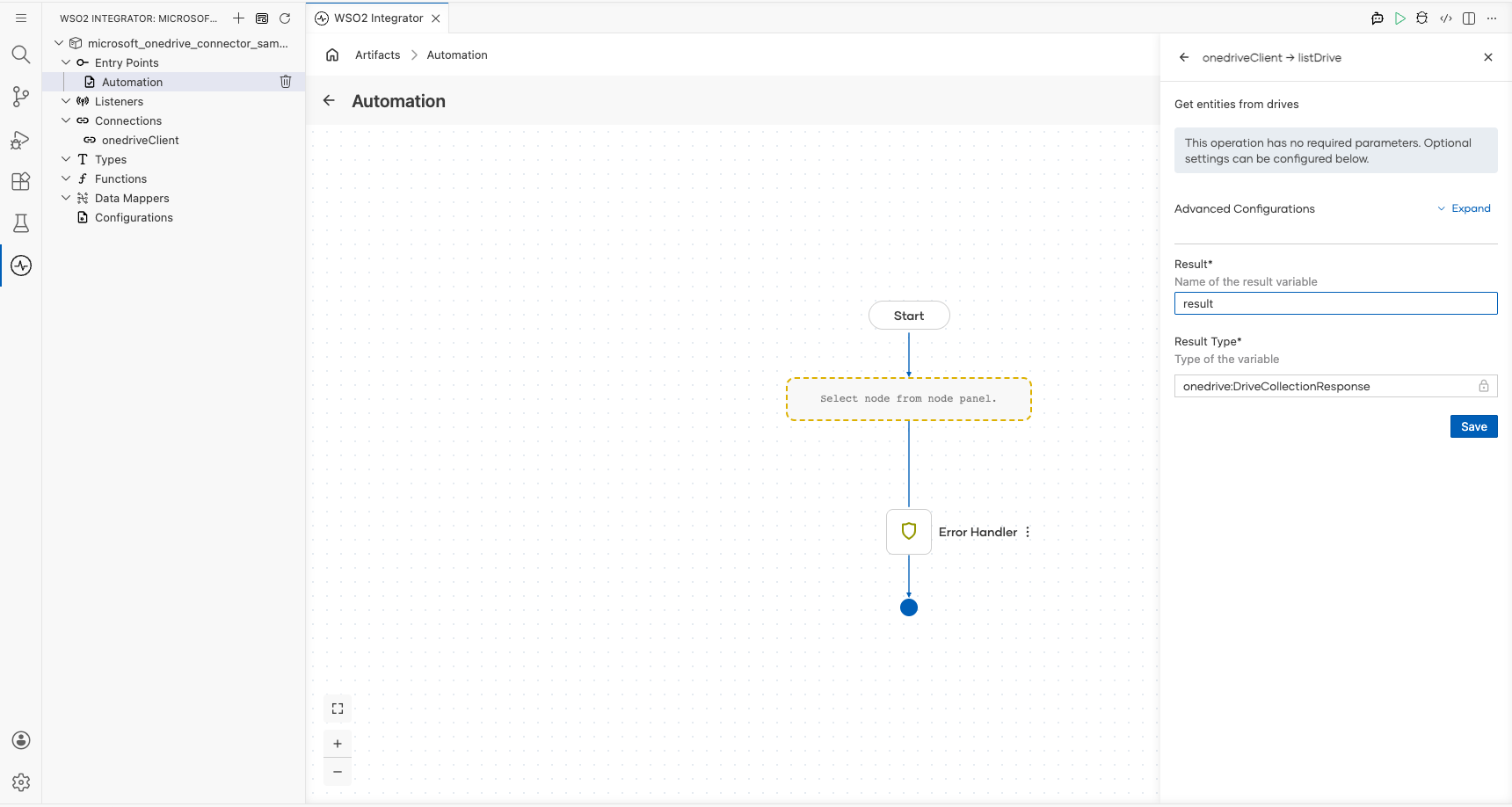

Microsoft OneDrive listDrive operation configuration filled with all values

Select Save to add the operation to the flow.

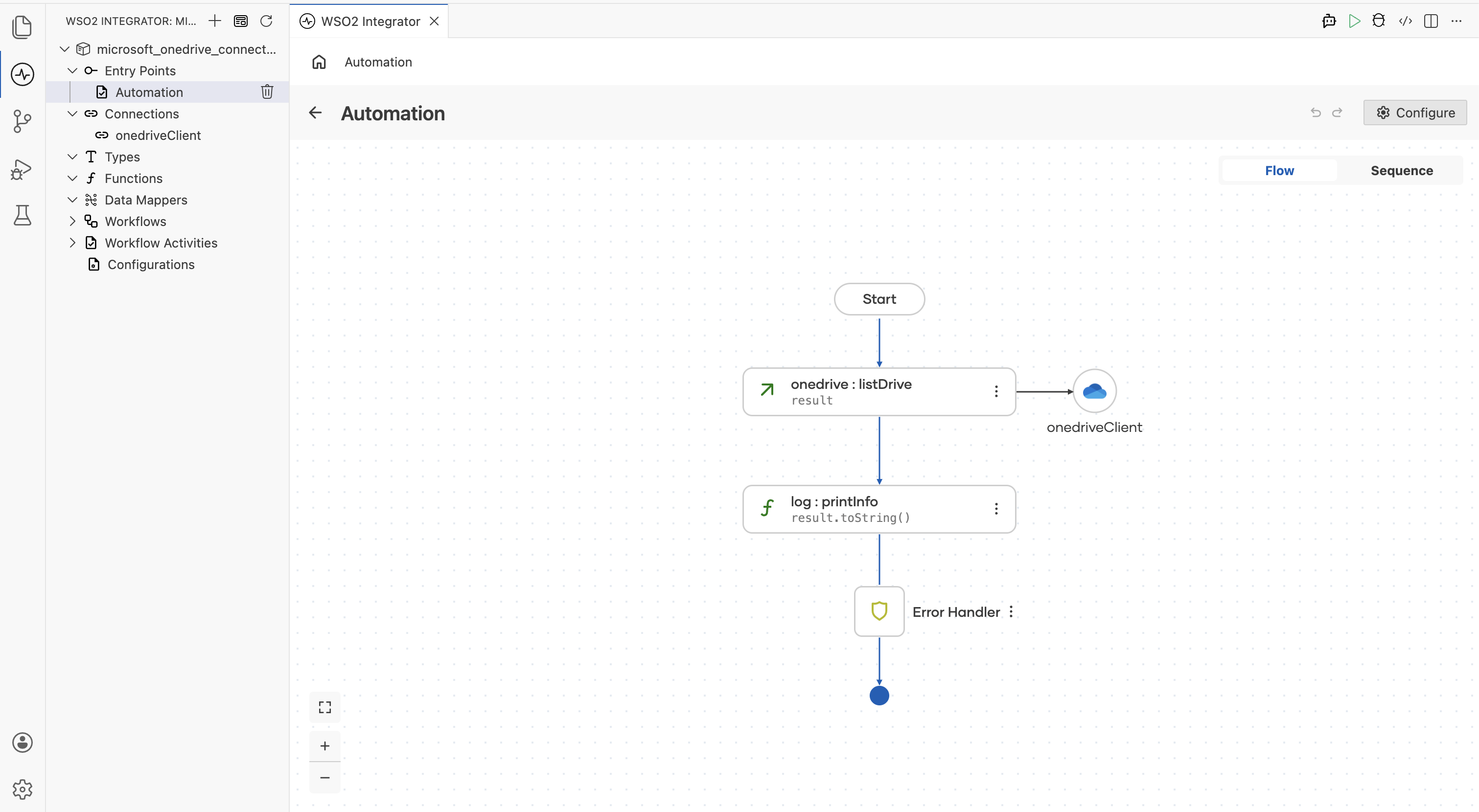

Completed Microsoft OneDrive automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The microsoft.onedrive connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Upload File - This example demonstrates how to use the Ballerina Microsoft OneDrive connector to upload a file from your local system to your OneDrive account.
