Example

What you'll build​

Build an integration that authenticates with Zoom via OAuth 2.0 and retrieves a list of meetings for the authenticated user. The integration uses the Zoom Meetings connector to call the listMeetings operation and stores the result in a variable for further processing.

Operations used:

  • listMeetings : Retrieves all meetings for the authenticated Zoom user

Architecture​

Prerequisites​

  • A Zoom account with an OAuth app configured in the Zoom Marketplace developer portal
  • Zoom OAuth 2.0 credentials: Client ID, Client Secret, and Refresh Token

Setting up the Zoom meetings integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Zoom meetings connector​

Step 1: Open the connector palette​

In the project tree, hover over Connections and select the + (Add Connection) button to open the Add Connection palette.

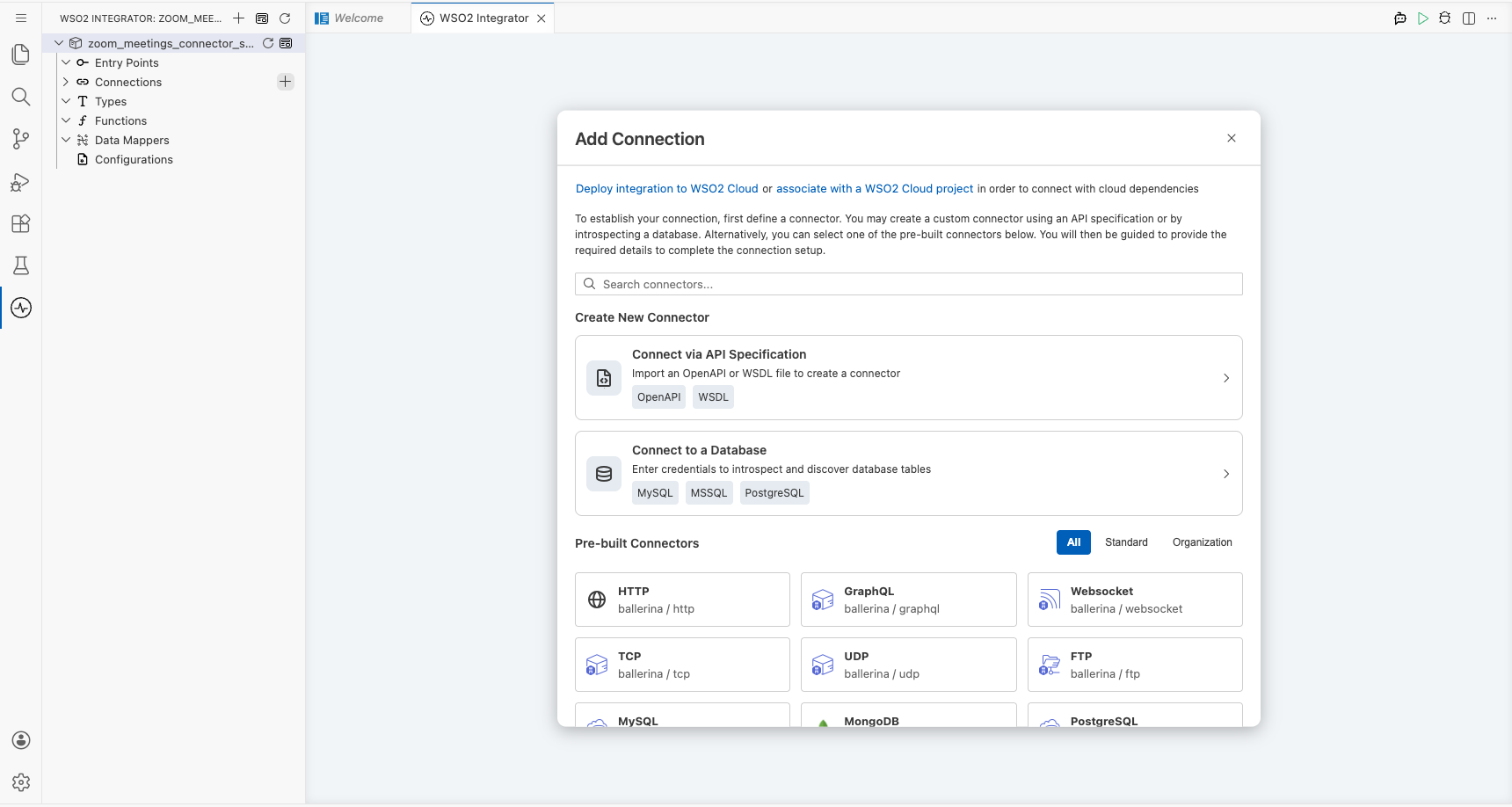

Zoom Meetings connector palette open with search field before any selection

Step 2: Search for and select the Zoom meetings connector​

  1. In the search field at the top of the palette, enter zoom.
  2. Locate Meetings (package ballerinax/zoom.meetings).
  3. Select the connector card to open the Configure Meetings form.

Configuring the Zoom meetings connection​

Step 3: Fill in the connection parameters​

Bind all authentication fields to configurable variables so credentials are never hard-coded. In the Configure Meetings form, ensure the Config field is in Expression mode, then enter the following expression:

{auth: {clientId: zoomClientId, clientSecret: zoomClientSecret, refreshToken: zoomRefreshToken, refreshUrl: zoomRefreshUrl}}

  • auth.clientId : The OAuth app's client ID, bound to the zoomClientId configurable variable
  • auth.clientSecret : The OAuth app's client secret, bound to the zoomClientSecret configurable variable
  • auth.refreshToken : The long-lived refresh token, bound to the zoomRefreshToken configurable variable
  • auth.refreshUrl : The Zoom token endpoint URL, bound to the zoomRefreshUrl configurable variable

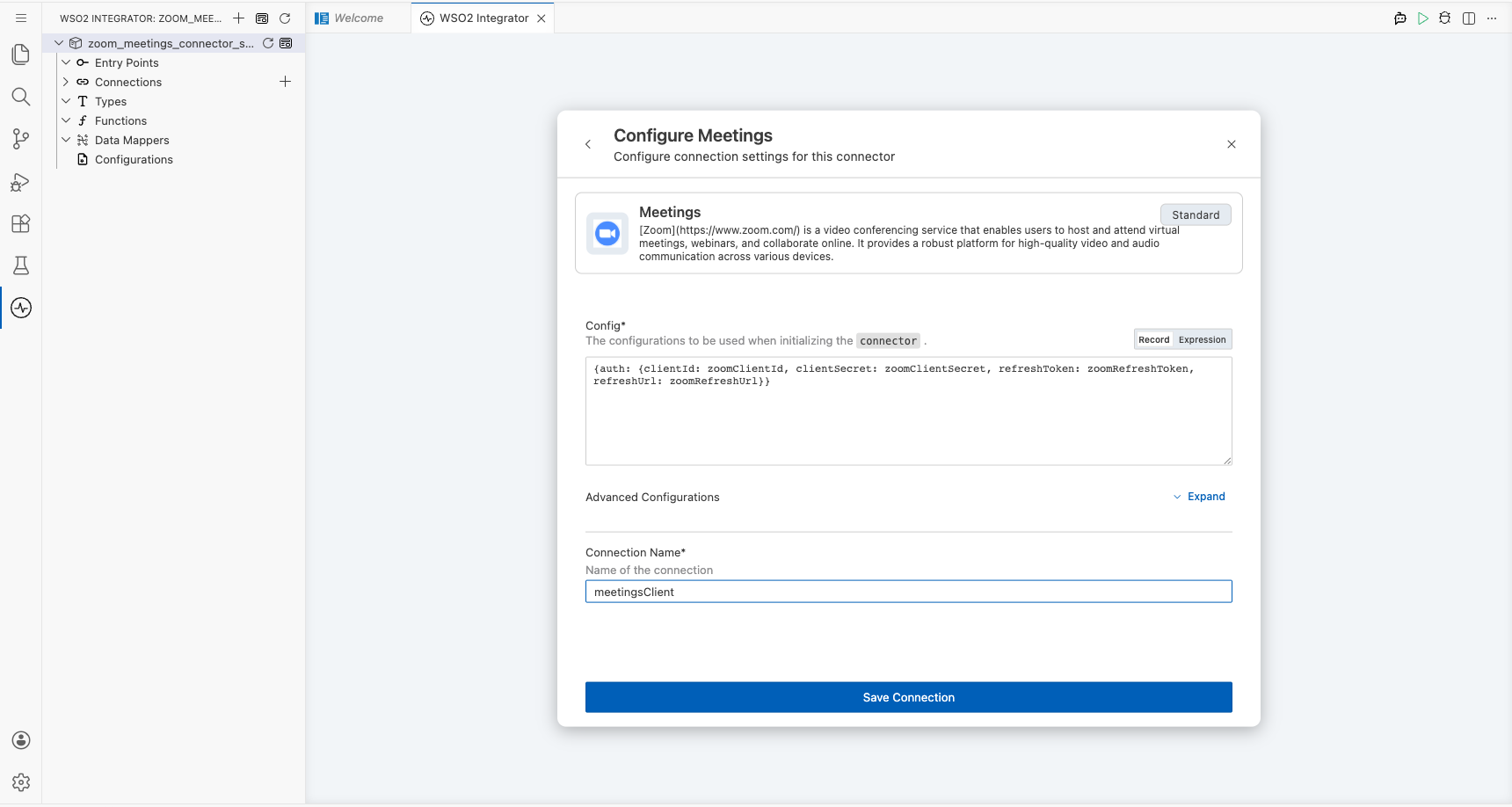

Zoom Meetings connection form fully filled with all parameters before saving

Step 4: Save the connection​

Select Save Connection to persist the connection. The meetingsClient node appears on the design canvas confirming the connection was created.

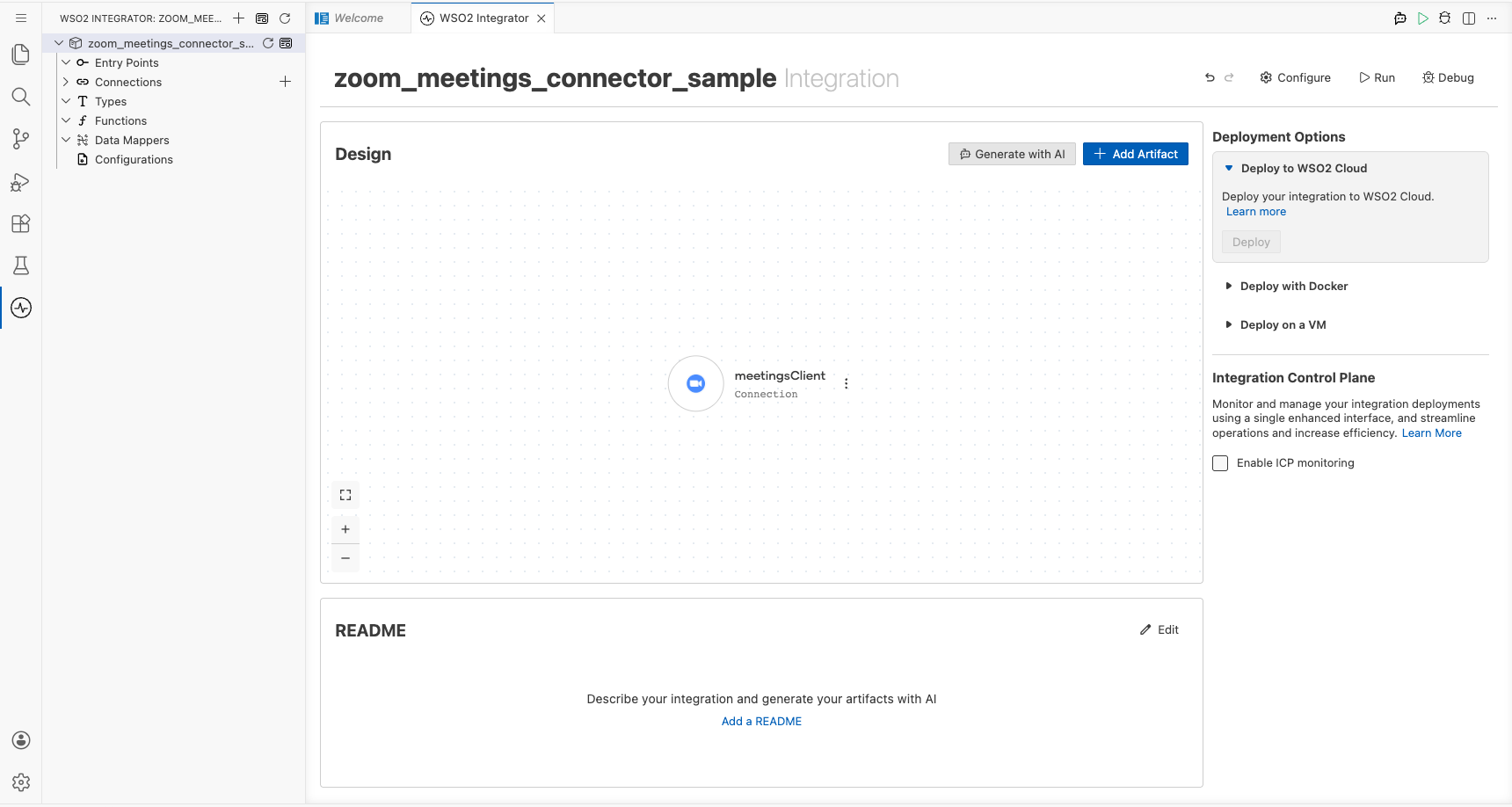

Zoom Meetings Connections panel showing meetingsClient entry after saving

Step 5: Set actual values for your configurables​

  1. In the left panel, select Configurations.
  2. Set a value for each configurable listed below.
  • zoomClientId (string) : Your Zoom OAuth app's client ID from the Zoom Marketplace developer portal
  • zoomClientSecret (string) : Your Zoom OAuth app's client secret from the Zoom Marketplace developer portal
  • zoomRefreshToken (string) : The refresh token obtained via the Zoom OAuth authorization flow
  • zoomRefreshUrl (string) : The Zoom token endpoint, for example https://zoom.us/oauth/token
  • zoomServiceUrl (string) : The Zoom API base URL, for example https://api.zoom.us/v2

Configuring the Zoom meetings listMeetings operation​

Step 6: Add an automation entry point​

  1. On the integration canvas, select + Add Artifact.
  2. Under Automation, select the Automation tile.
  3. Select Create to open the automation flow editor.

Step 7: Select and configure the listMeetings operation​

  1. Select the + button between Start and Error Handler to add a new step.
  2. Under Connections in the node panel, expand meetingsClient to reveal all available operations.

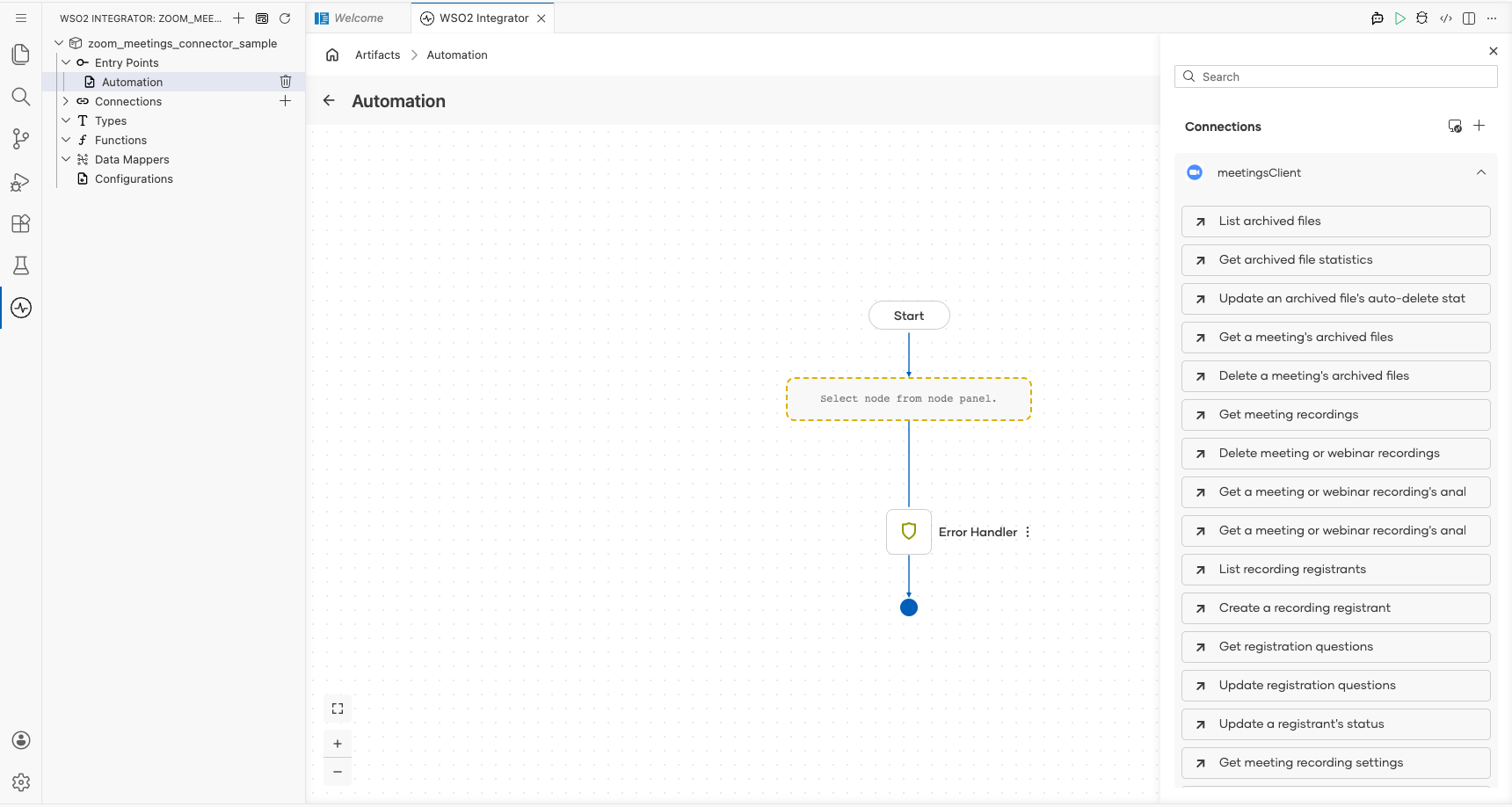

Zoom Meetings connection node expanded showing all available operations before selection

  1. Select List meetings to open its configuration panel.
  2. Fill in the operation fields:
  • userId : Enter me to return meetings for the currently authenticated user
  • result : Enter meetingsList as the variable name to hold the response

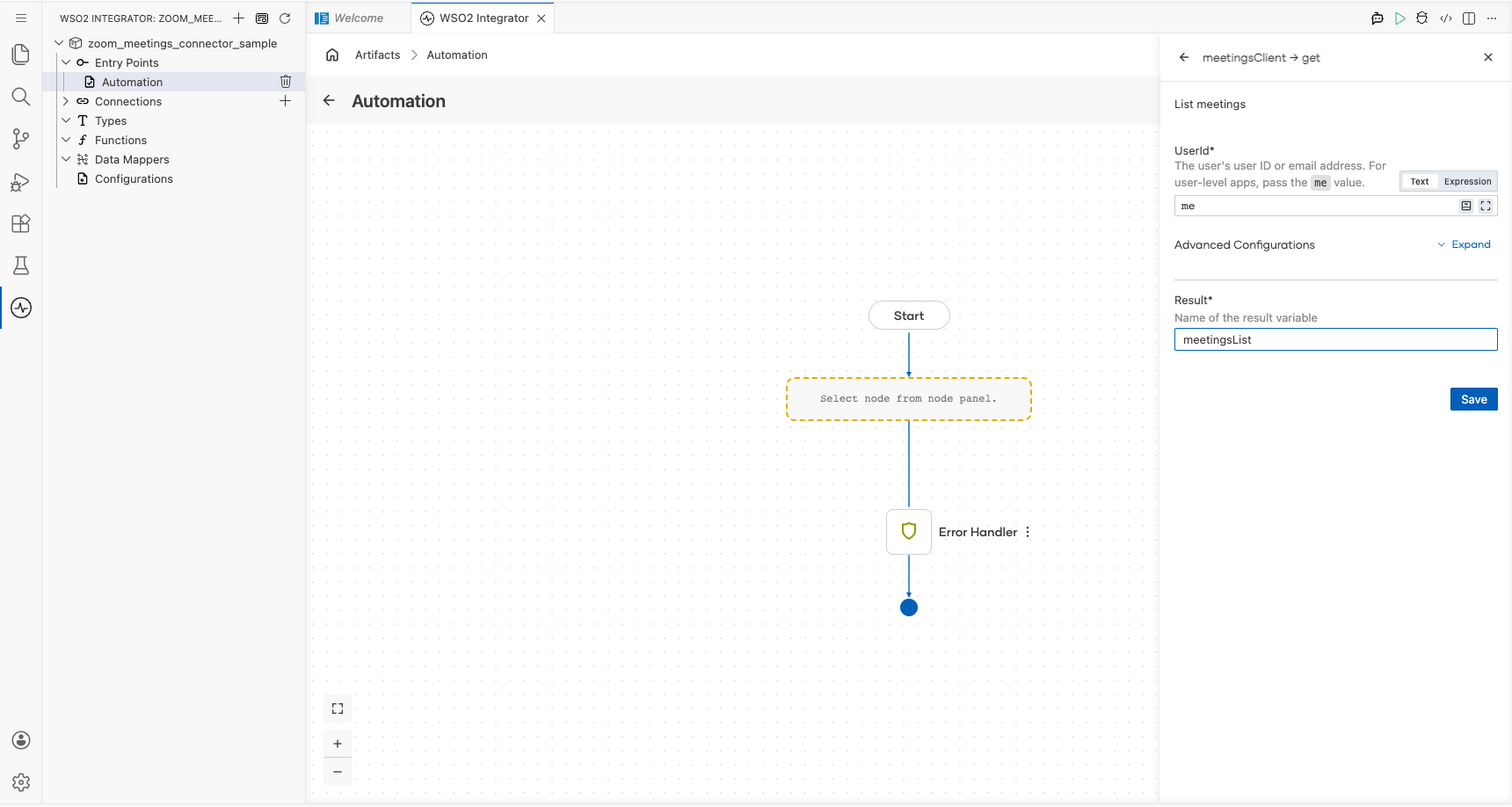

Zoom Meetings listMeetings operation configuration filled with all values

  1. Select Save to add the step to the flow canvas.

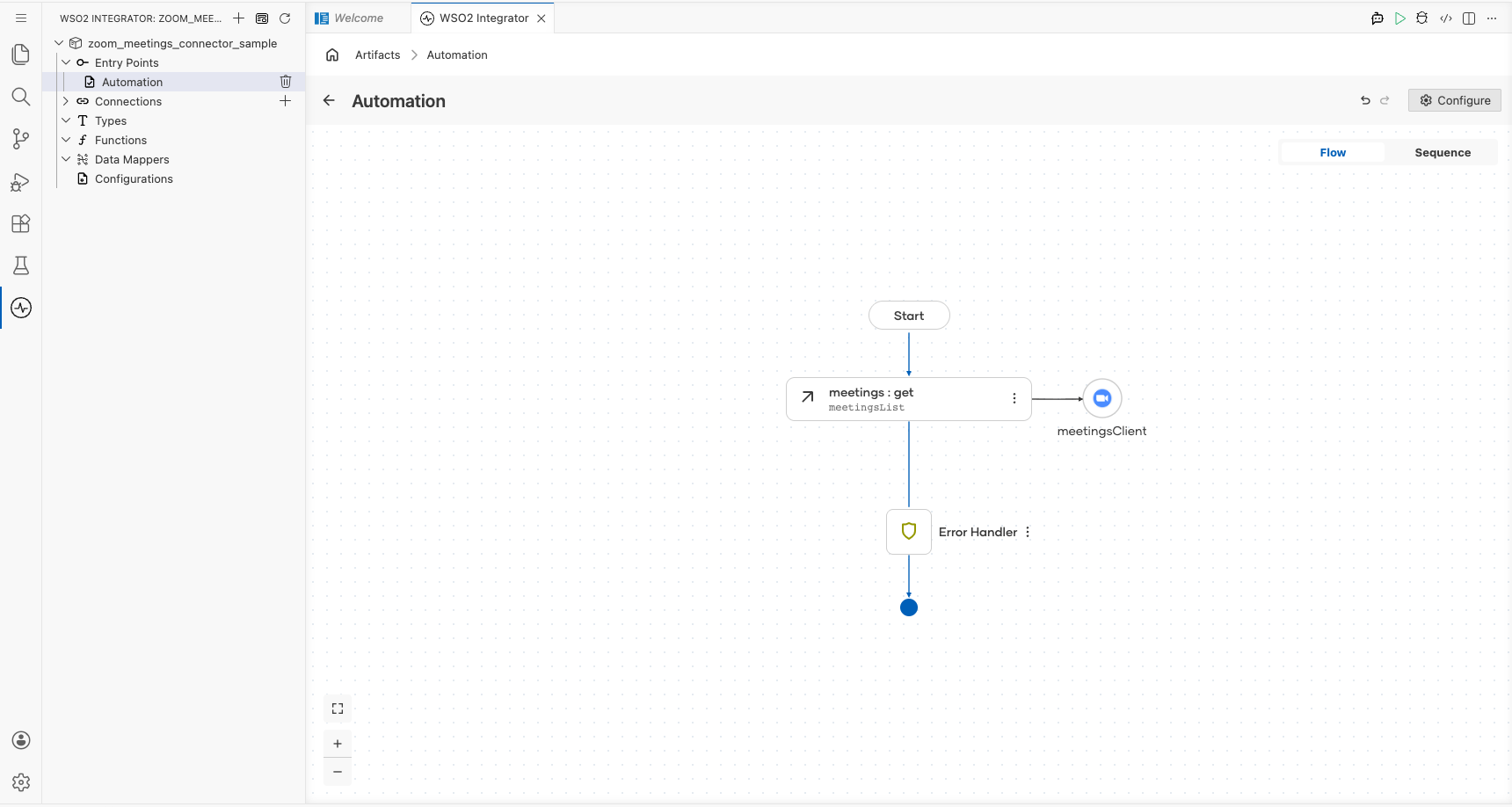

Completed Zoom Meetings automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Zoom Meetings connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Create a Zoom meeting – Creates a new Zoom meeting using the API.

  2. List scheduled meetings – Displays the list of meetings scheduled under a specified Zoom user account.
