Example

What you'll build​

Build a WSO2 Integrator integration that retrieves videoconferencing settings from HubSpot using the ballerinax/hubspot.crm.extensions.videoconferencing connector. The integration calls the HubSpot Videoconferencing Extensions API and logs the retrieved settings as JSON.

Operations used:

  • Get settings : Retrieves videoconferencing settings for a specified HubSpot video conference application

Architecture​

Prerequisites​

  • A HubSpot developer account with a registered video conference app
  • Your HubSpot API key (hapikey)
  • Your video conference application ID (appId)

Setting up the HubSpot videoconferencing integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the HubSpot videoconferencing connector​

Step 1: Open the connector palette​

Select + Add Artifact → Connection (or select the + next to Connections in the sidebar) to open the connector palette.

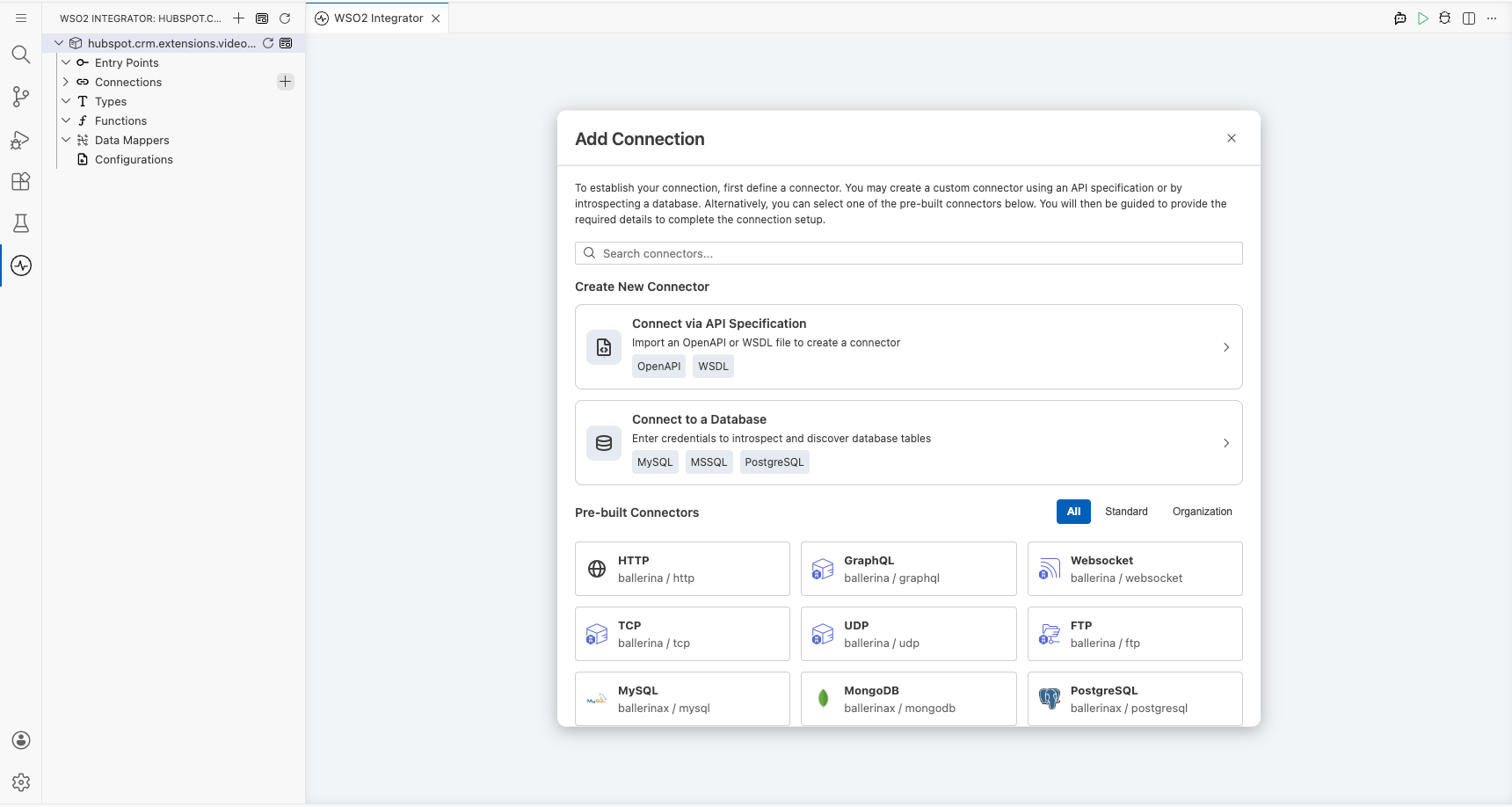

HubSpot Videoconferencing connector palette open with search field before any selection

Step 2: Select the videoconferencing connector​

  1. Enter "videoconferencing" in the search field.
  2. Select Videoconferencing from the ballerinax/hubspot.crm.extensions.videoconferencing package to open the connection form.

Configuring the HubSpot videoconferencing connection​

Step 3: Fill in the connection parameters​

Bind all connection fields to configurable variables so credentials are never hard-coded. Configure the following parameters:

  • hapikey : Your HubSpot API key, bound to a configurable variable
  • serviceUrl : The HubSpot Videoconferencing API base URL, bound to a configurable variable
  • connectionName : Keep the default videoconferencingClient

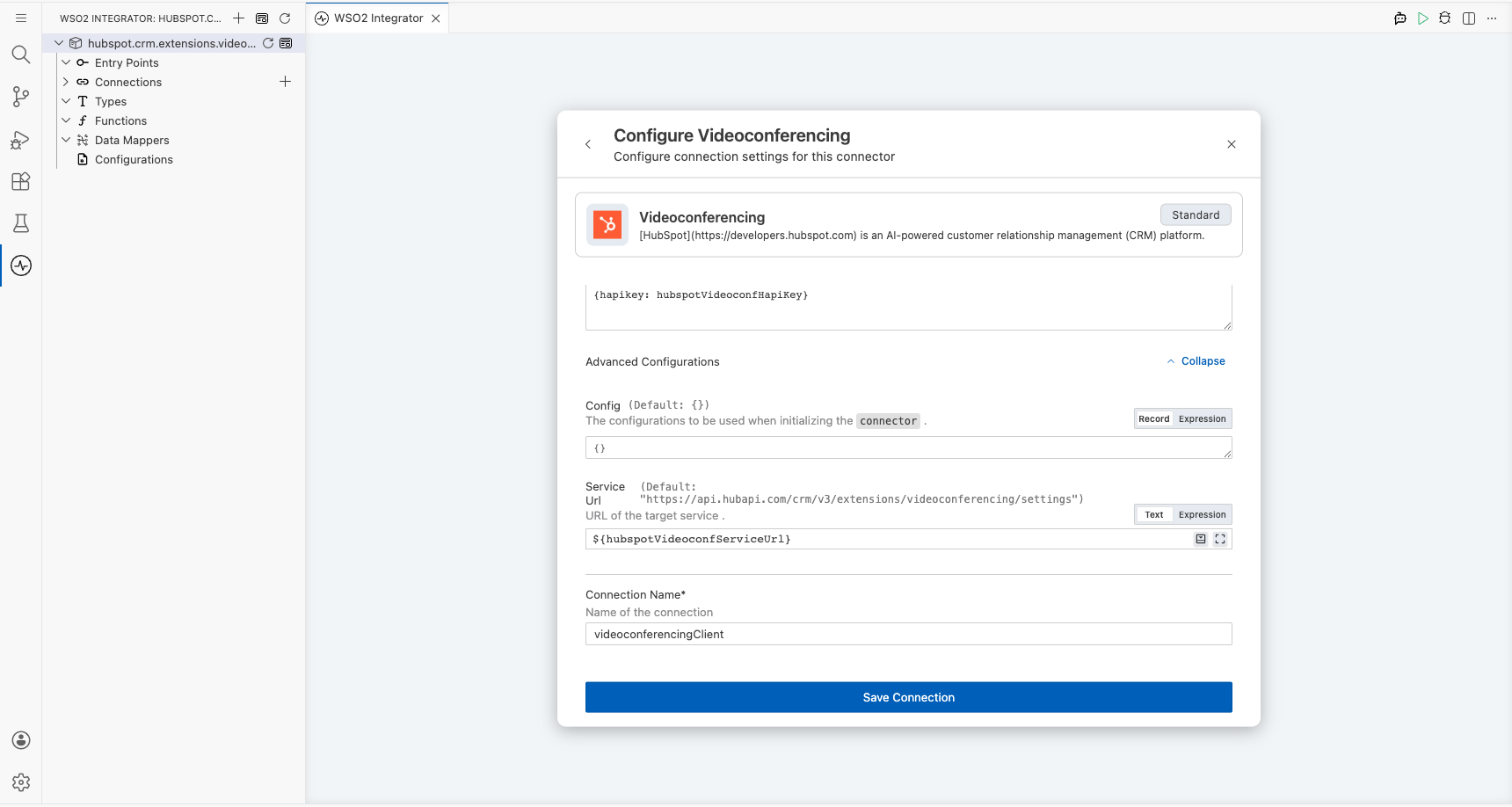

HubSpot Videoconferencing connection form fully filled with all parameters before saving

Step 4: Save the connection​

Select Save Connection to persist the connection. Confirm that videoconferencingClient appears in the Connections panel.

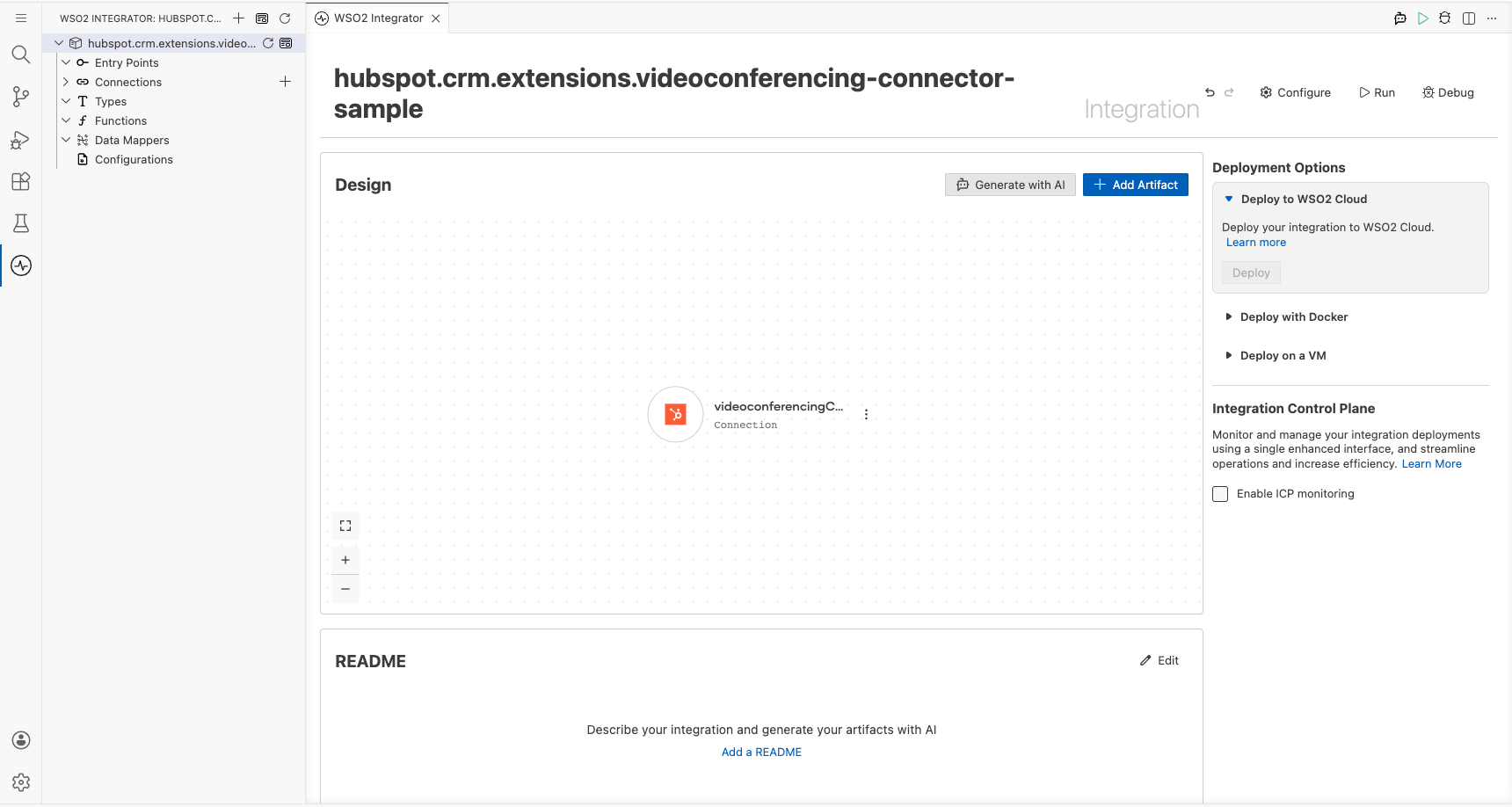

HubSpot Videoconferencing Connections panel showing videoconferencingClient entry after saving

Step 5: Set actual values for your configurables​

In the left panel, select Configurations and set a value for each configurable listed below:

  • hubspotVideoconfHapiKey (string) : Your HubSpot API key
  • hubspotVideoconfServiceUrl (string) : The HubSpot Videoconferencing API base URL (for example, https://api.hubapi.com/crm/v3/extensions/videoconferencing/settings)
  • hubspotVideoconfAppId (int) : The video conference application ID registered in your HubSpot developer portal

Configuring the HubSpot videoconferencing Get settings operation​

Step 6: Add an Automation entry point​

  1. In the Design overview, select + Add Artifact.
  2. Under Automation, select Automation.
  3. In the Create New Automation form, select Create to accept the default settings.

The Automation flow canvas opens with Start and Error Handler nodes.

Step 7: Select and configure the Get settings operation​

Select the + button between Start and Error Handler, then expand Connections → videoconferencingClient in the node panel. Select Get settings and configure the following parameter:

  • appId : The video conference application ID, bound to the hubspotVideoconfAppId configurable variable (cast to int:Signed32)

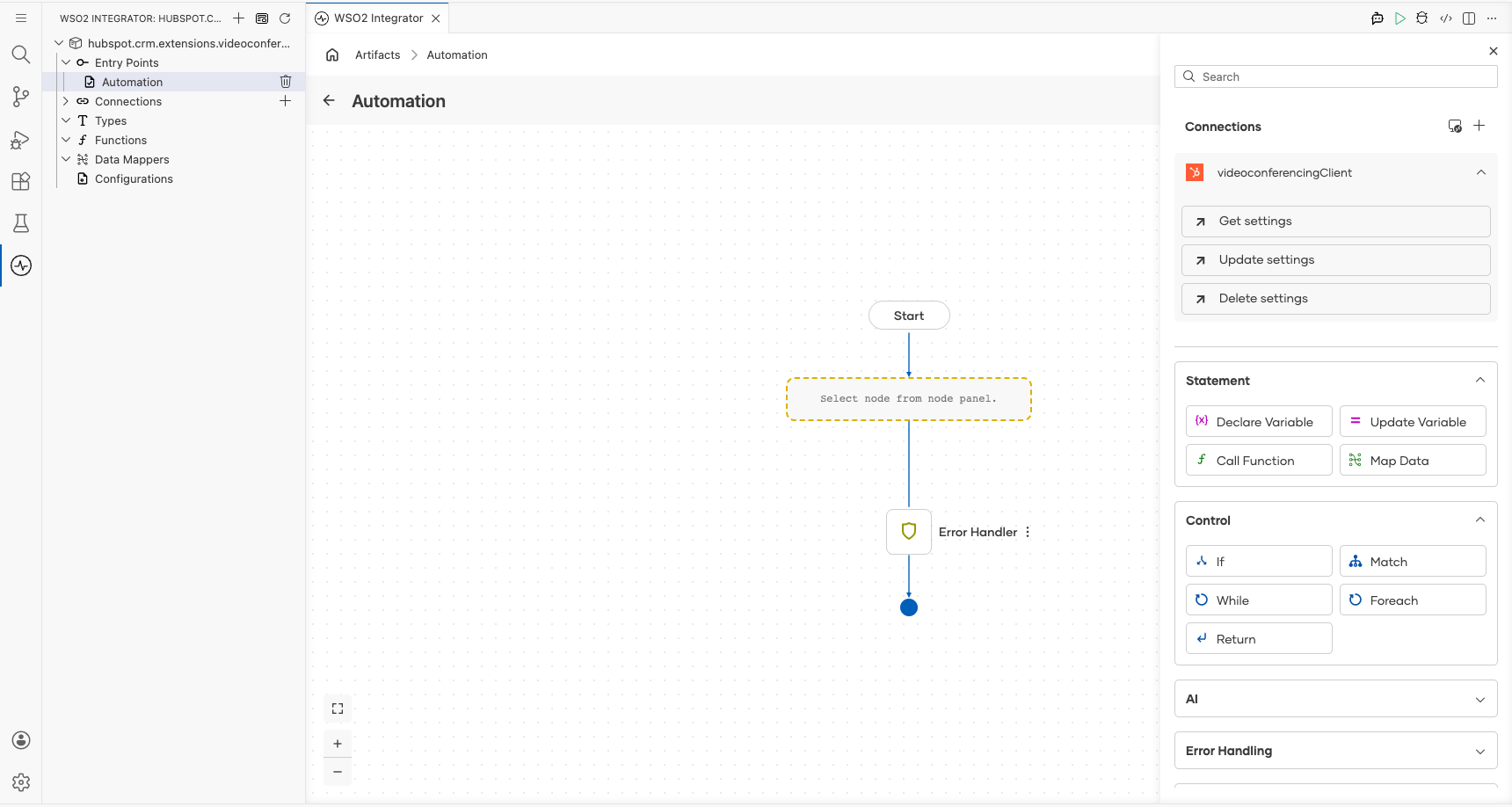

HubSpot Videoconferencing connection node expanded showing all available operations before selection

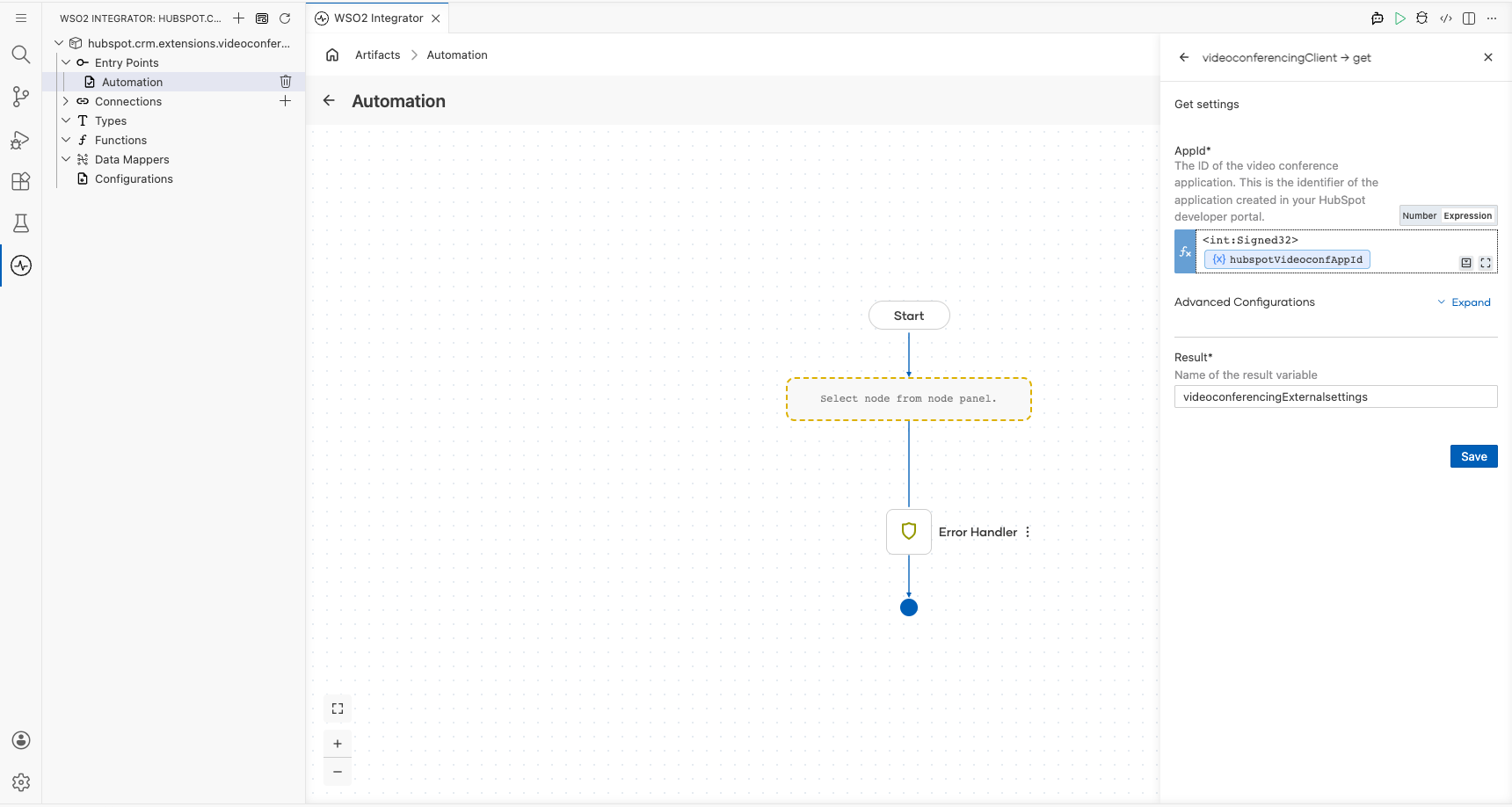

HubSpot Videoconferencing Get settings operation configuration filled with all values

Select Save to apply the configuration.

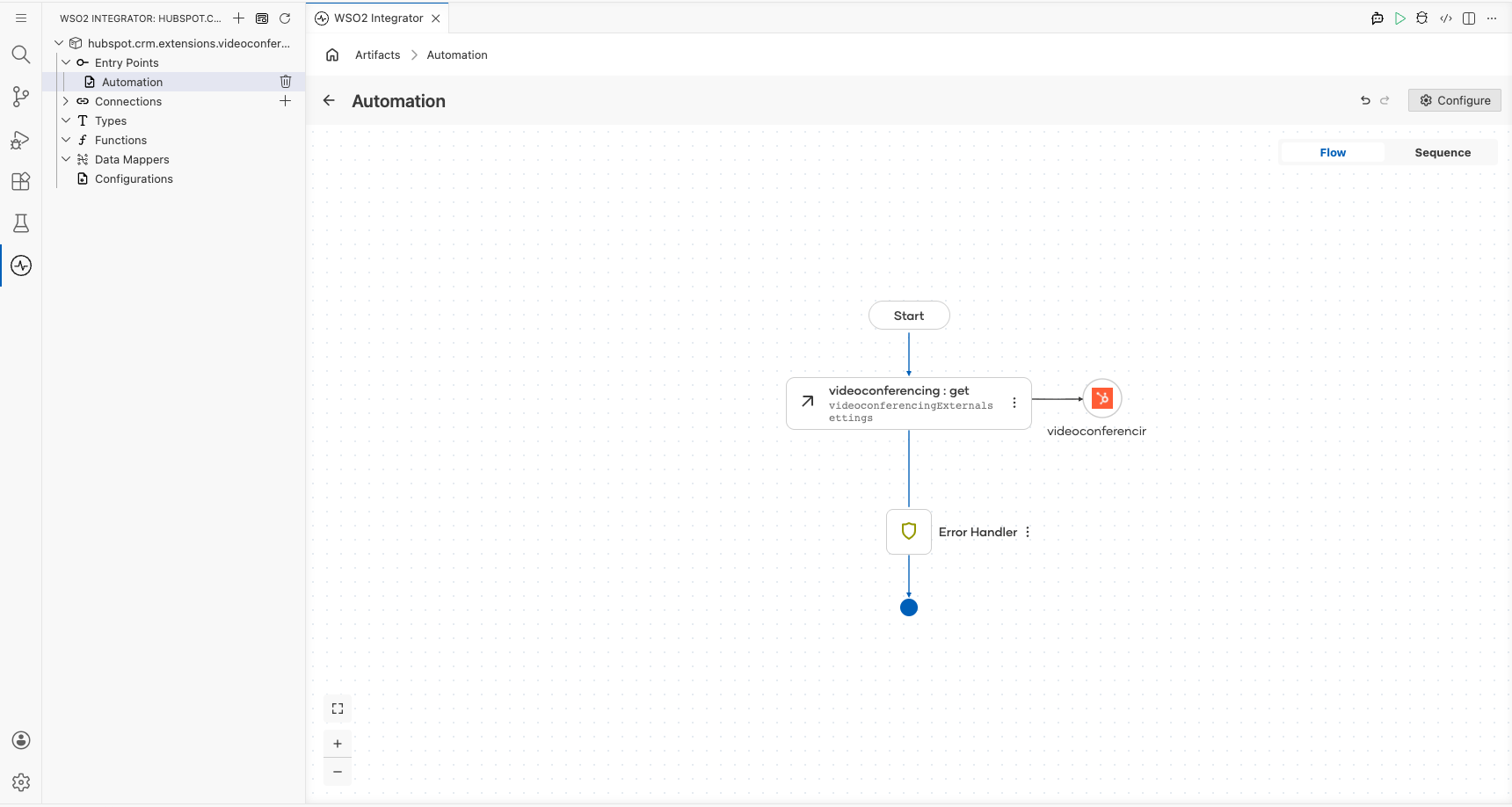

Completed HubSpot Videoconferencing automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The HubSpot CRM Video conference connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Save settings for a video conferencing service - This example demonstrates how to save settings in HubSpot CRM for a video conferencing service using the connector.
  2. Remove saved settings for a video conferencing service - This example demonstrates how to remove the saved settings in HubSpot CRM for an external video conferencing application using the connector.
