What you'll build​

Build a WSO2 Integrator automation that uses the PayPal Orders connector to create a new order via the PayPal API. The integration runs as an Automation entry point and logs the result of the order creation as a JSON string.

Operations used:

  • Create order : Creates a new PayPal order with a specified purchase intent and units

Architecture​

Prerequisites​

  • A PayPal developer account with a Client ID and Client Secret for OAuth2 authentication

Setting up the PayPal orders integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the PayPal orders connector​

Step 1: Open the connector palette​

In the project overview, select Add Artifact, then under Other Artifacts select Connection to open the connector palette.

PayPal Orders connector palette open with search field before any selection

Step 2: Add an automation entry point​

In the project overview, select Add Artifact, then select Automation under the Automation category, and select Create to add the Automation entry point. The flow canvas opens with a Start node and an Error Handler node.

Configuring the PayPal orders connection​

Step 3: Configure connection parameters​

Search for Orders (PayPal) in the connector palette, select the Orders connector card to open the configuration form, and enter the following parameters using configurable variables for your OAuth2 credentials:

  • config : Set to Expression mode referencing paypalClientId and paypalClientSecret configurable variables for OAuth2 authentication
  • connectionName : The name used to reference this connection in the flow

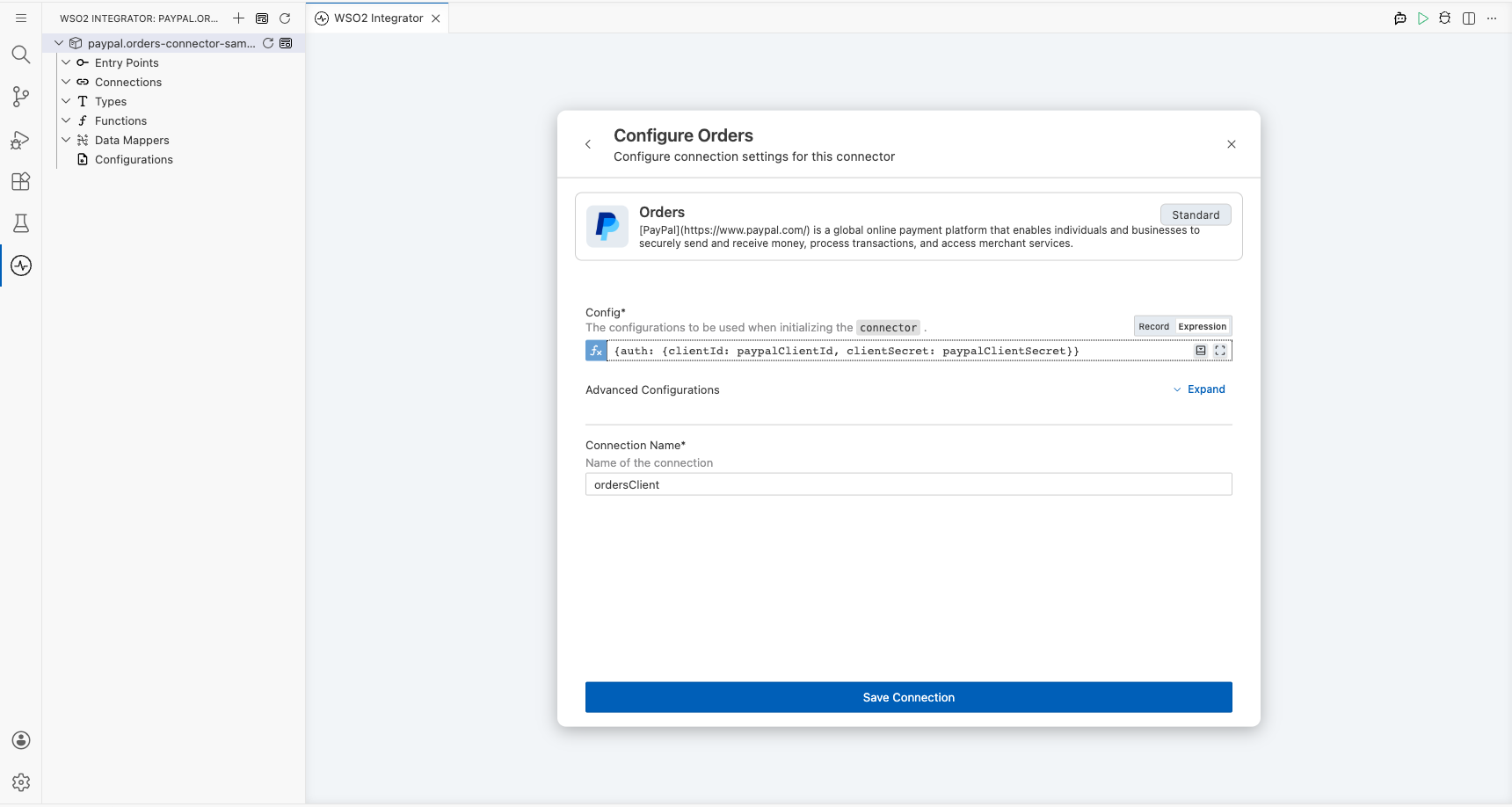

PayPal Orders connection form fully filled with all parameters before saving

Step 4: Save the connection​

Select Save Connection to persist the connection. The connection is now visible in the project overview under Connections.

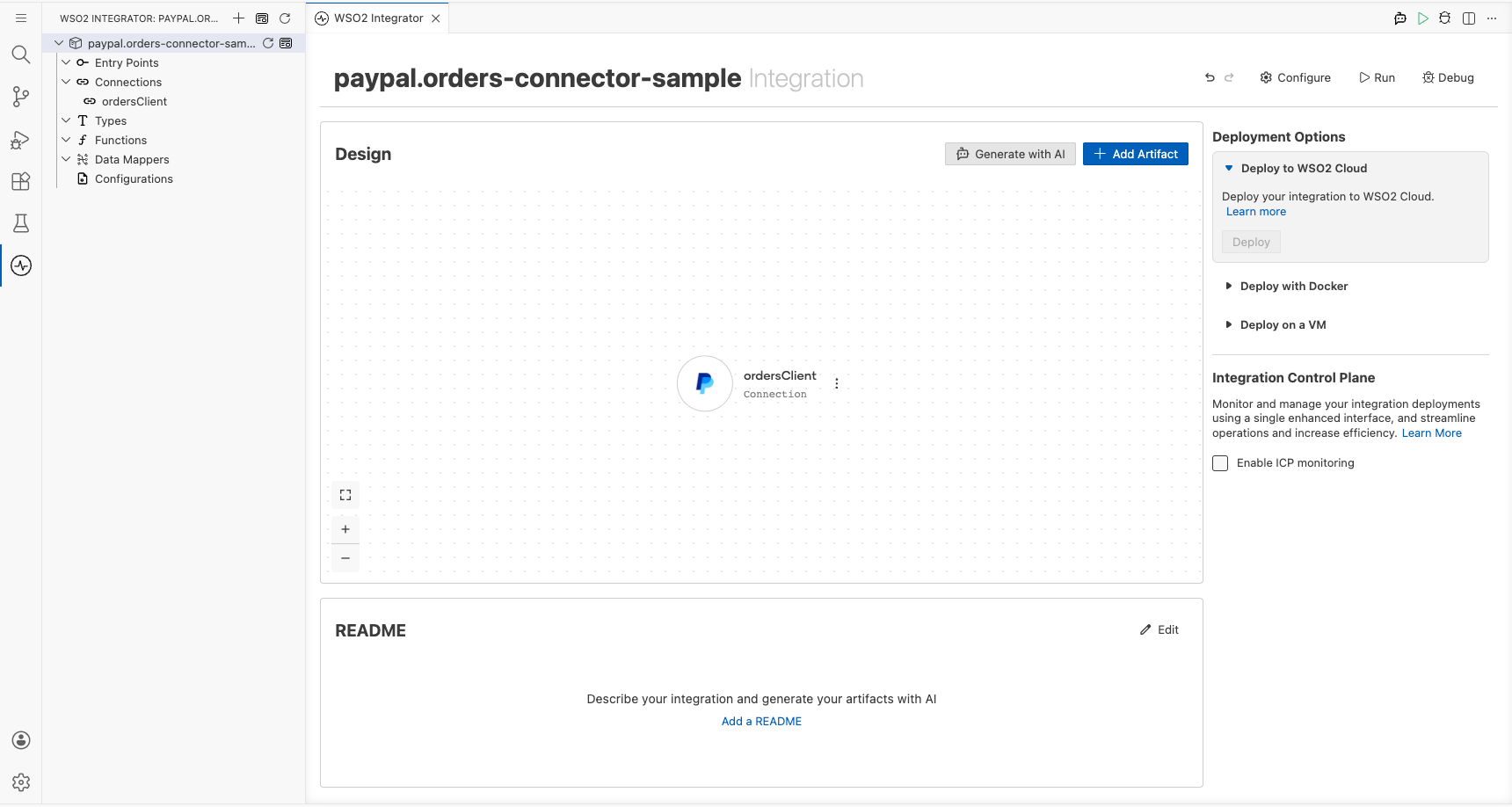

PayPal Orders Connections panel showing ordersClient entry after saving

Step 5: Set actual values for your configurables​

In the left panel, select Configurations and set a value for each configurable listed below:

  • paypalClientId (string) : Your PayPal OAuth2 client ID from the PayPal Developer Dashboard
  • paypalClientSecret (string) : Your PayPal OAuth2 client secret from the PayPal Developer Dashboard

Configuring the PayPal orders create order operation​

Step 6: Select and configure the create order operation​

  1. Select the + button on the flow canvas to open the node panel.
  2. Expand the ordersClient connection under Connections to see available operations.

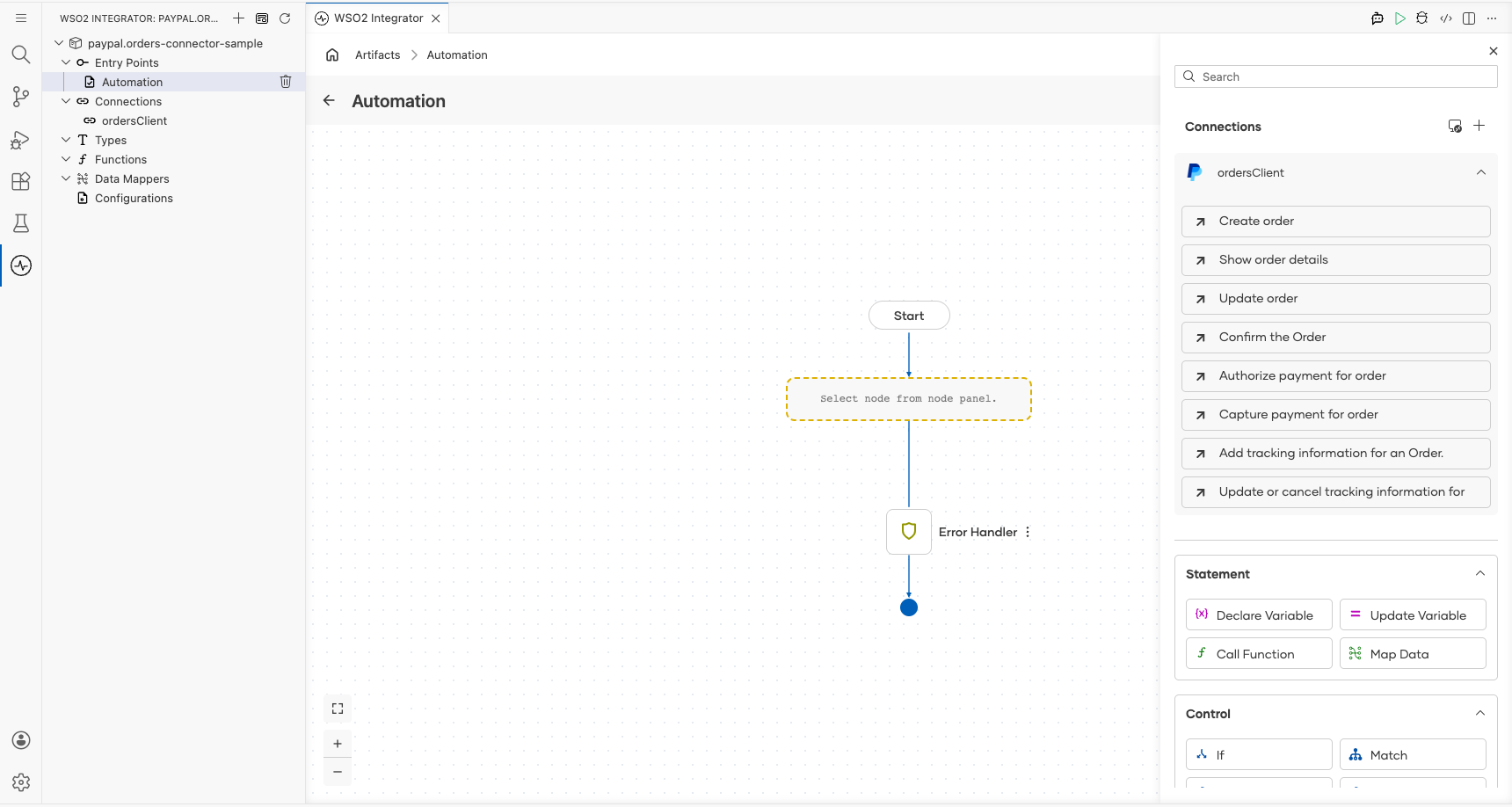

PayPal Orders connection node expanded showing all available operations before selection

  1. Select Create order to add it to the flow, then configure the following parameters:
  • payload : An OrderRequest value specifying the purchase units and intent for the new order
  • result : The variable that stores the returned order details

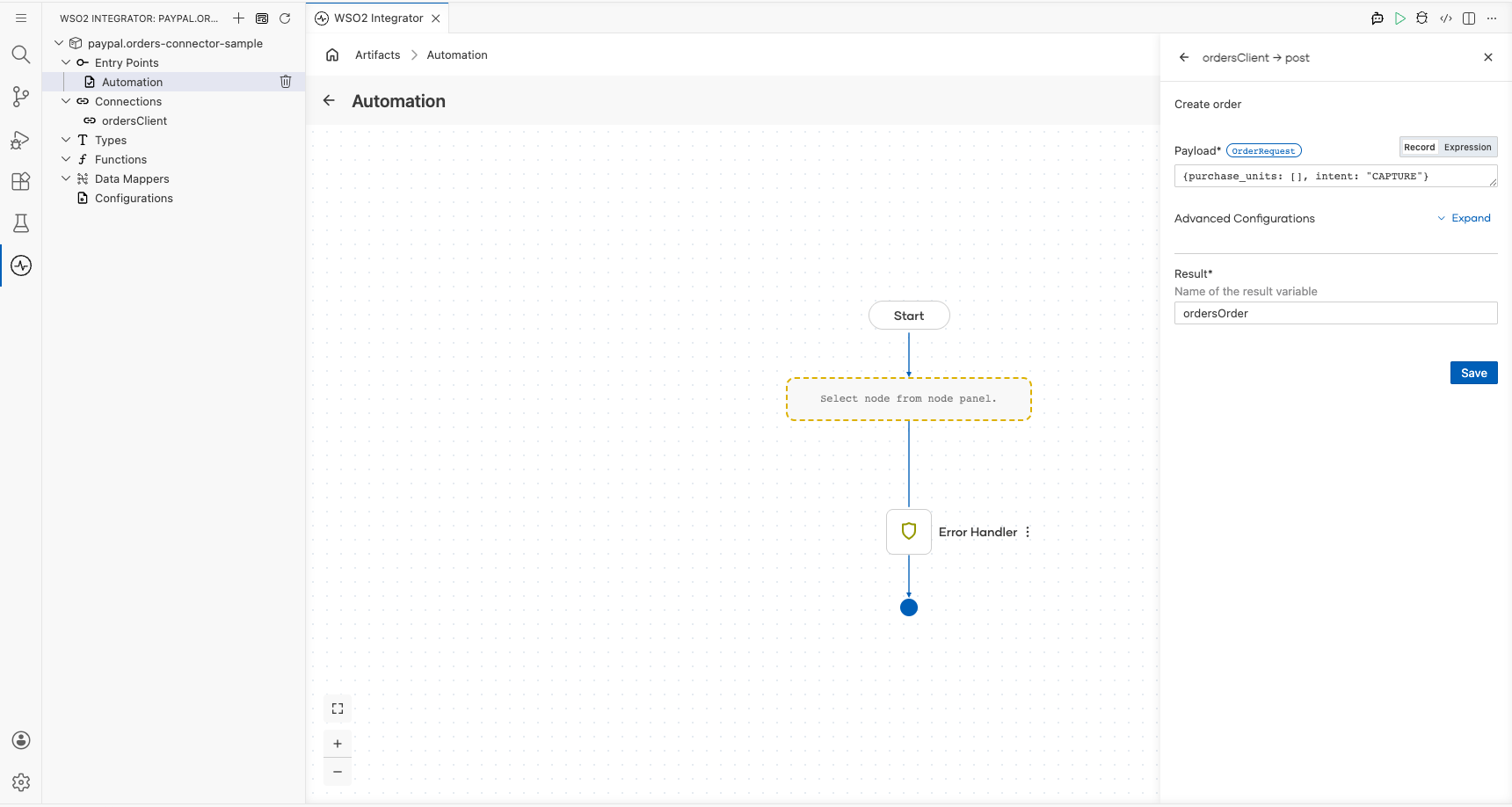

PayPal Orders Create order operation configuration filled with all values

Select Save to apply the configuration.

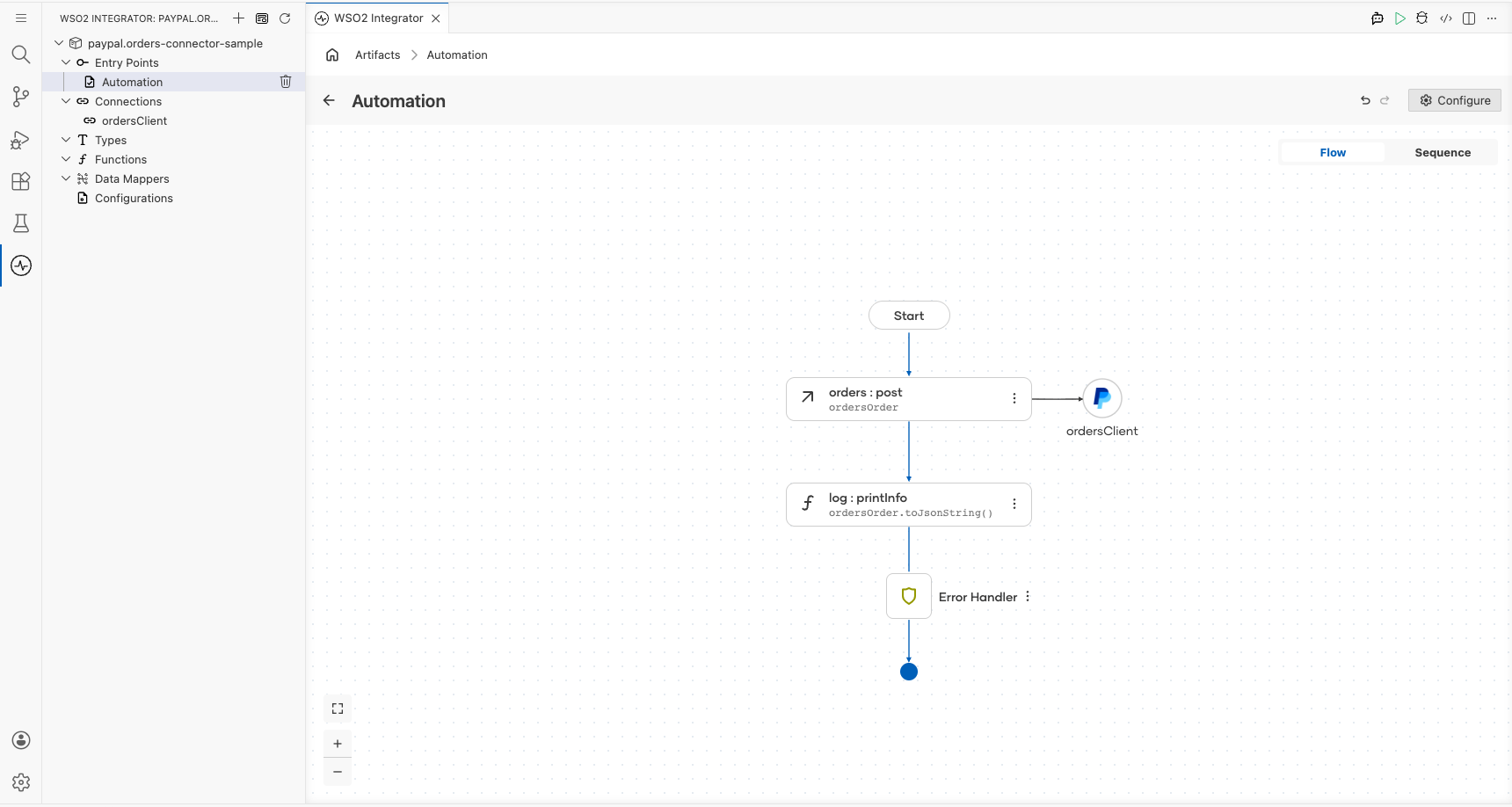

Completed PayPal Orders automation flow

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The PayPal Orders connector provides practical examples illustrating usage in various scenarios. Explore these examples, covering the following use cases:

  1. Order lifecycle: Process a complete PayPal order from creation and updates through confirming and capturing payments.

  2. Manage shipping: Enrich an order with shipping details, add or update tracking information, and push shipment updates back to PayPal.
