Example

What you'll build​

This integration connects WSO2 Integrator to the Asana project management API using the ballerinax/asana connector. It demonstrates how to authenticate with the Asana API using a Personal Access Token, configure the Asana connection with configurable variables, and call the getWorkspaces operation on a schedule using an Automation entry point. The complete flow on the canvas shows an Automation trigger → Asana Remote Function → End, running periodically to retrieve all Asana workspaces accessible to the authenticated user.

Operations used:

  • Get multiple workspaces: Retrieves all Asana workspaces accessible to the authenticated user

Architecture​

Prerequisites​

  • An active Asana account with API access enabled.
  • An Asana Personal Access Token (PAT) generated from your Asana developer settings at https://app.asana.com/0/my-apps.
  • (Optional) An Asana Workspace GID if operations require a workspace identifier.

Setting up the Asana integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Asana connector​

Step 1: Open the connector palette​

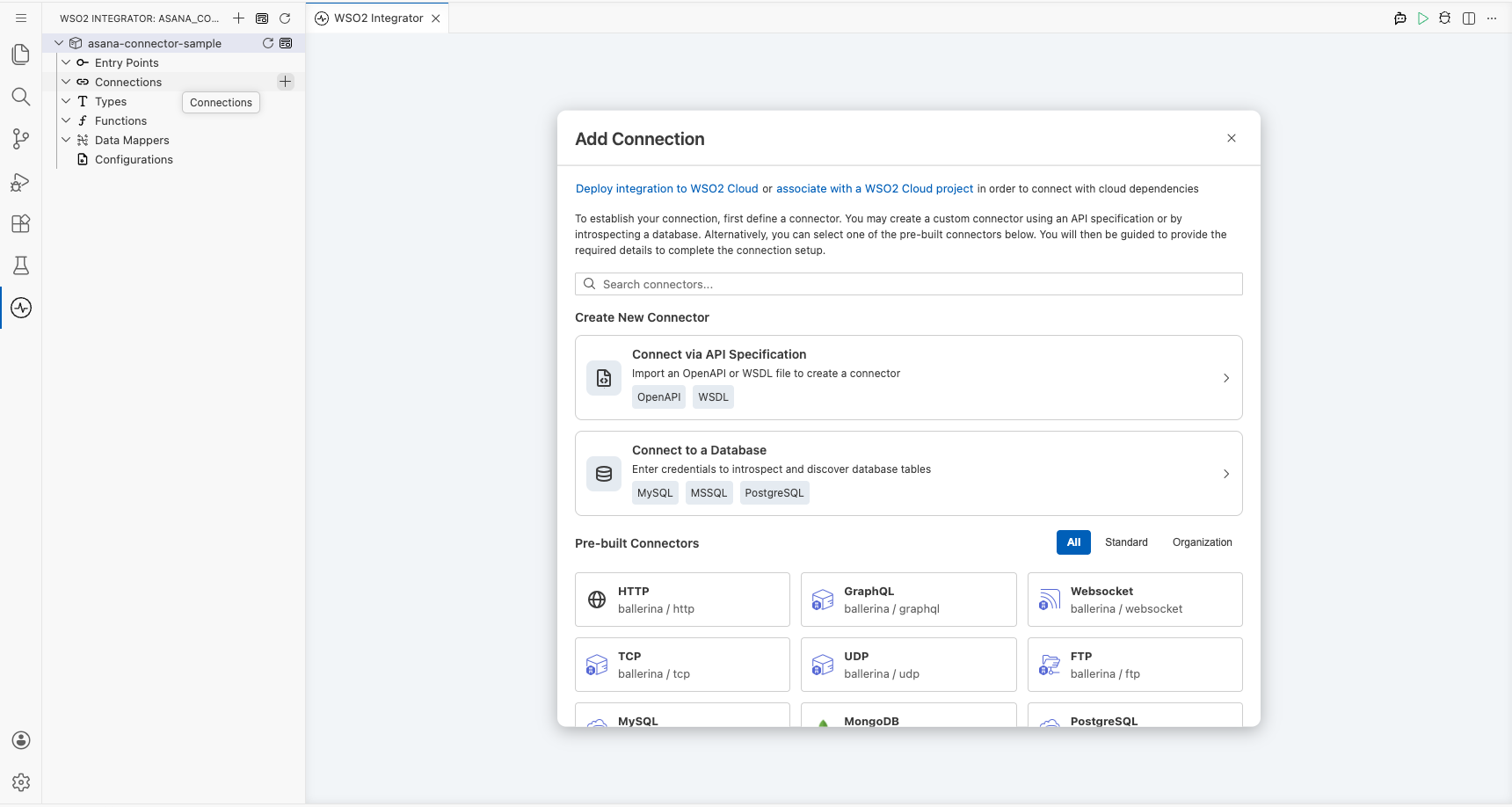

Select Add Connection in the Connections section of the left sidebar to open the connector search palette, which displays a search field and a list of pre-built connectors. Asana connector palette open with search field before any selection

Step 2: Search for and select the Asana connector​

Enter "asana" in the search box to filter the connector list, then select the Asana connector card (ballerinax/asana) to open its connection configuration form.

Configuring the Asana connection​

Step 3: Bind Asana connection parameters to configurable variables​

In the connection configuration form, bind each required field to a configurable variable. The following parameters were configured:

  • Config : The connection configuration record containing the authentication settings for the Asana connector. The auth.token field is bound to the asanaToken configurable variable.

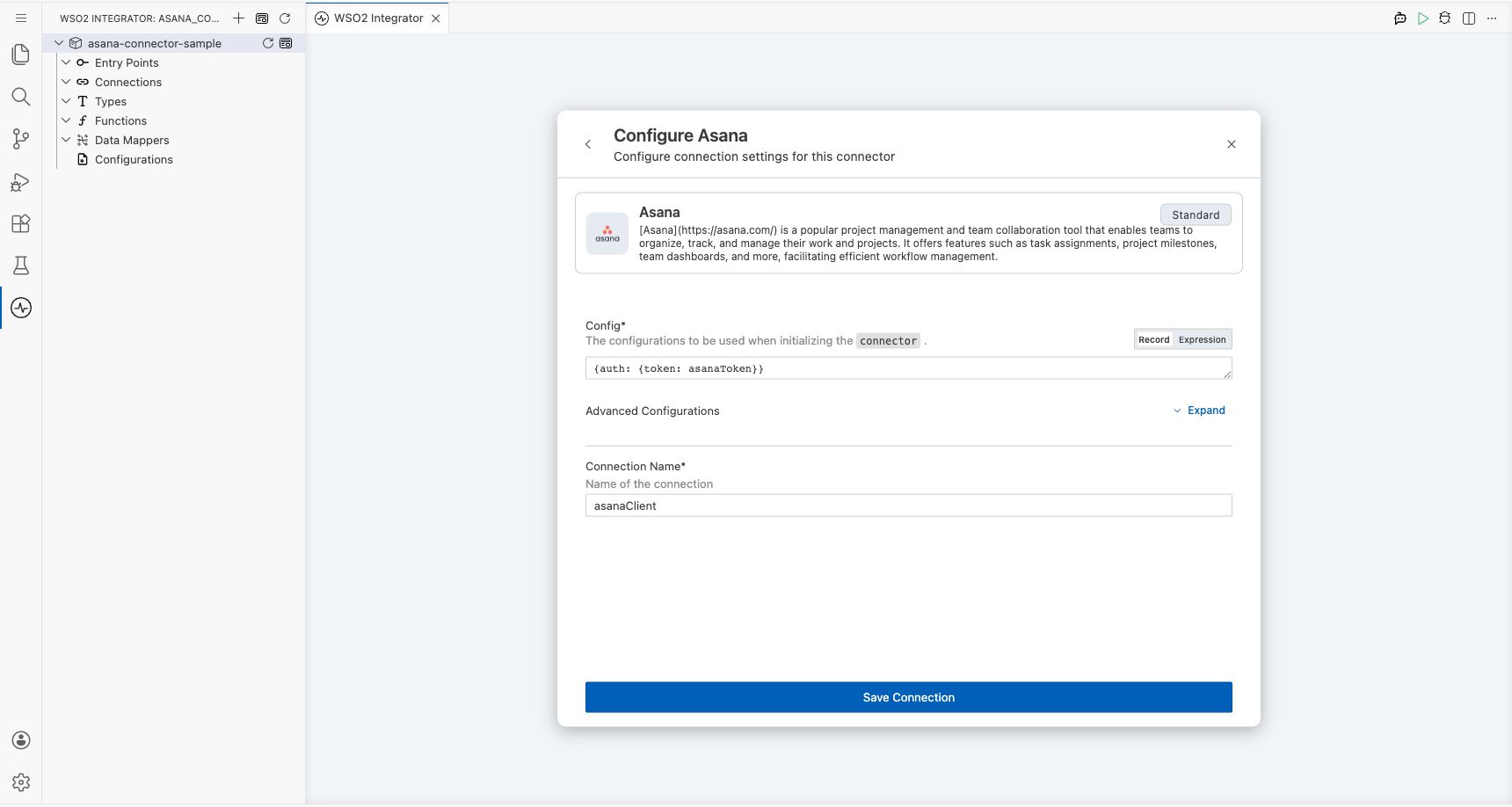

Asana connection form fully filled with all parameters before saving

Step 4: Save the Asana connection​

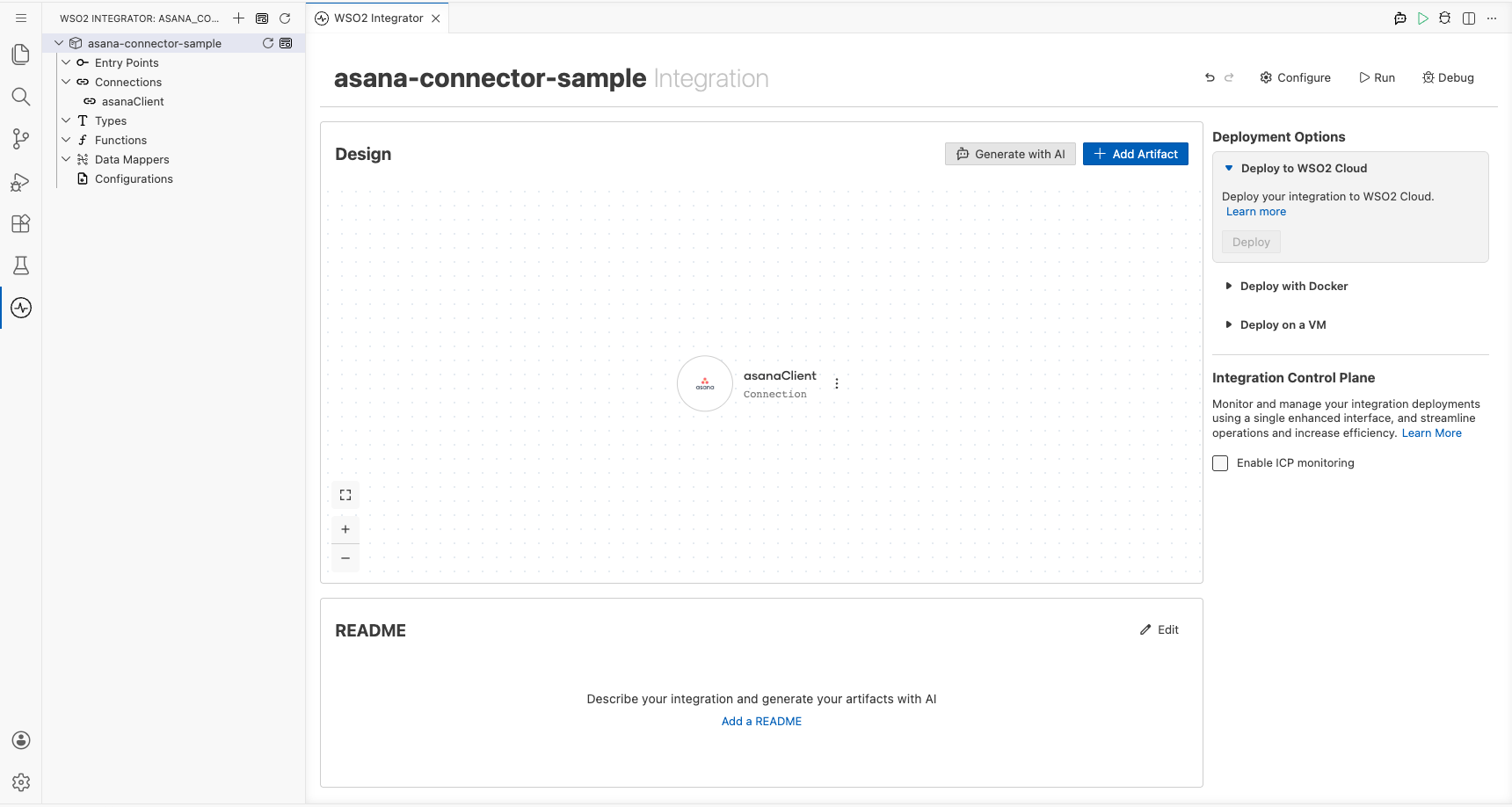

Select Save Connection to persist the Asana connection configuration. The asanaClient connector node now appears on the integration design canvas. Asana Connections panel showing asanaClient entry after saving

Step 5: Set actual values for your configurables​

  1. In the left panel of WSO2 Integrator, select Configurations (listed at the bottom of the project tree, under Data Mappers).
  2. Set a value for each configurable listed below.
  • asanaToken (string) : Your Asana Personal Access Token from https://app.asana.com/0/my-apps

Configuring the Asana get multiple workspaces operation​

Step 6: Add an automation entry point​

  1. In the low-code canvas, select Add Artifact in the Design section.
  2. Select Automation in the artifact selection panel.
  3. Accept the default schedule settings and select Create to add the automation to the canvas.

Step 7: Expand the Asana connection and select the get multiple workspaces operation​

  1. In the automation flow body on the canvas, select the + (Add Step) button between the Start and Error Handler nodes to open the step-addition panel.
  2. Under Connections in the step panel, select the asanaClient connection node to expand it and reveal all available Asana API operations.

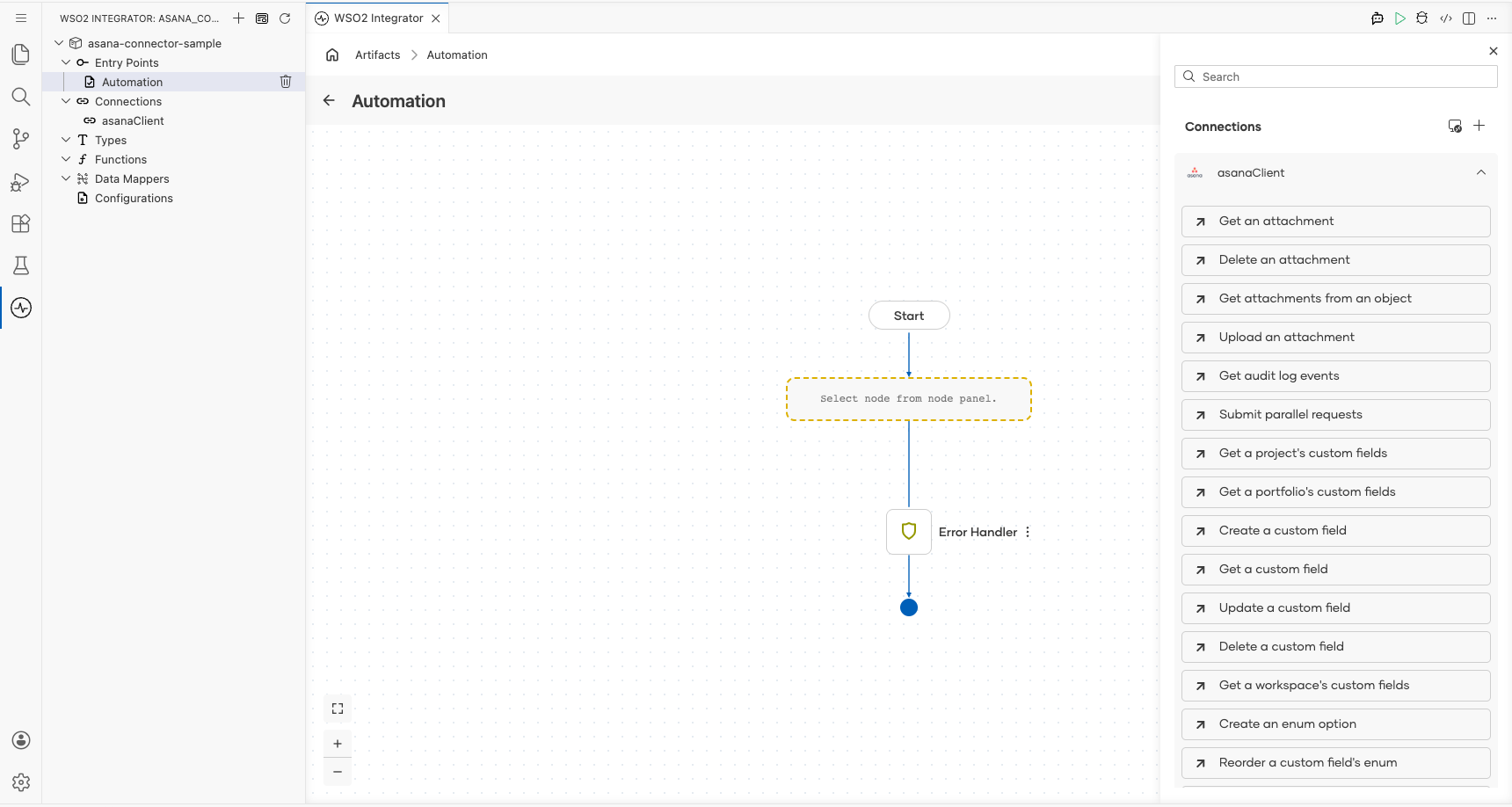

Asana connection node expanded showing all available operations before selection

  1. Select Get multiple workspaces from the list, then fill in the operation fields:
  • Result : Name of the result variable that stores the response from the Get multiple workspaces operation.
  1. Select Save to add the Asana operation step to the automation flow.

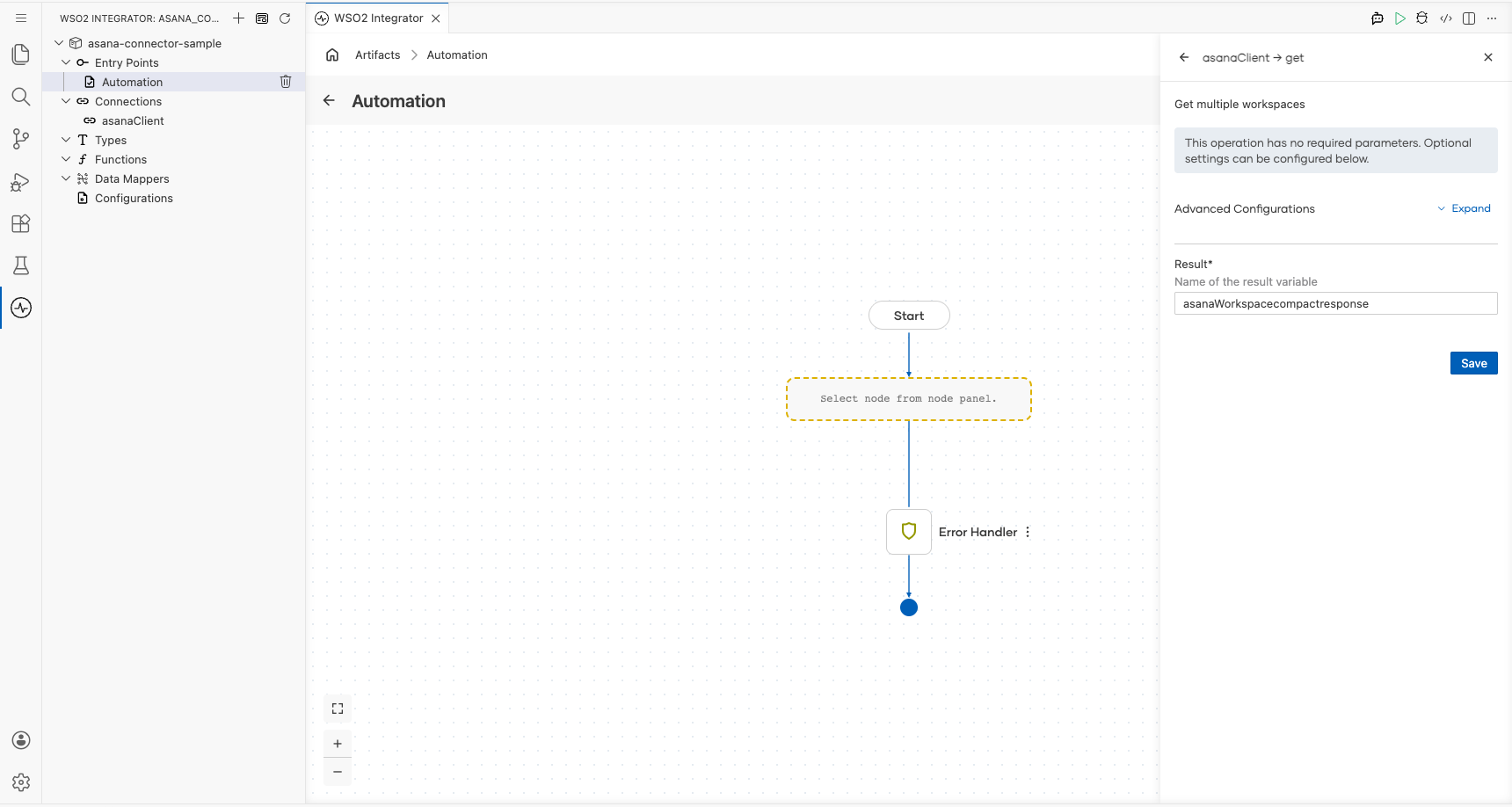

Asana Get multiple workspaces operation configuration filled with all values

Step 8: Verify the completed automation flow​

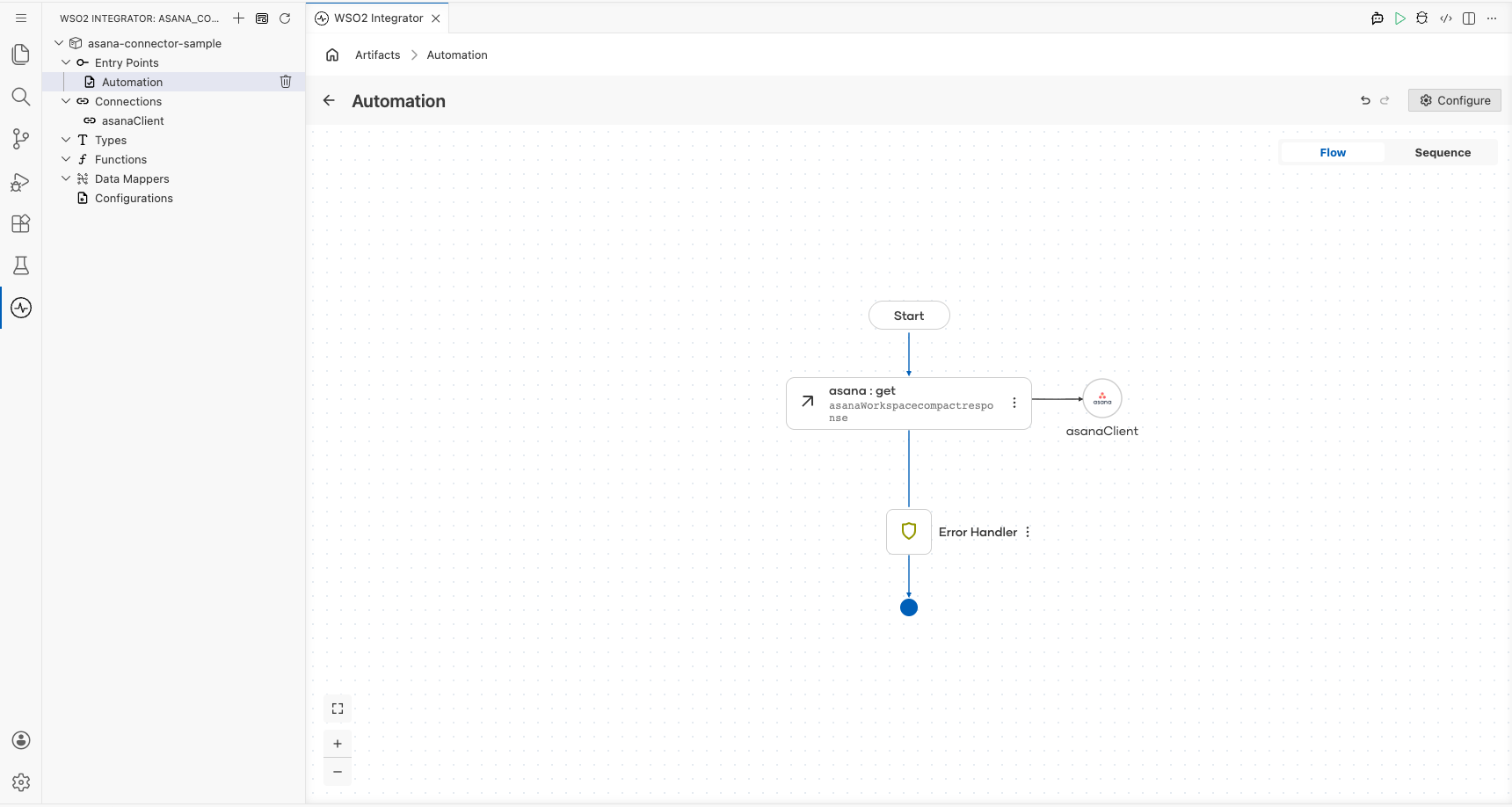

The completed canvas flow shows the Automation entry point → asana : get (Get multiple workspaces) → Error Handler → End, with the asanaClient connection linked to the operation node. Completed Asana automation flow on the low-code canvas

Try it yourself​

Try this sample in WSO2 Integration Platform.

Deploy to Devant

View source on GitHub

More code examples​

The Asana connector offers practical examples illustrating its use in various scenarios. Explore these examples, covering the following use cases:

  1. Employee onboarding process automation: Automate the onboarding process of new employees using Asana projects and tasks.
  2. Team workload balancer: Evaluate and balance the workload of a given team using Asana tasks and assignments.
