What you'll build​

Build a Google Calendar integration that creates a new calendar event using OAuth2 credentials stored as configurable variables. The integration runs as an Automation entry point and connects to Google Calendar via the ballerinax/googleapis.calendar connector.

Operations used:

  • Create Event : Creates a new event in a specified Google Calendar using an InputEvent record with start time, end time, and summary.

Architecture​

Prerequisites​

  • A Google Cloud project with OAuth2 credentials: Client ID, Client Secret, and Refresh Token.

Setting up the Google calendar integration​

New to WSO2 Integrator? Follow the Create a New Integration guide to set up your integration first, then return here to add the connector.

Adding the Google calendar connector​

Select Add Connection in the Connections section of the left sidebar (or select the + button next to Connections) to open the Add Connection palette.

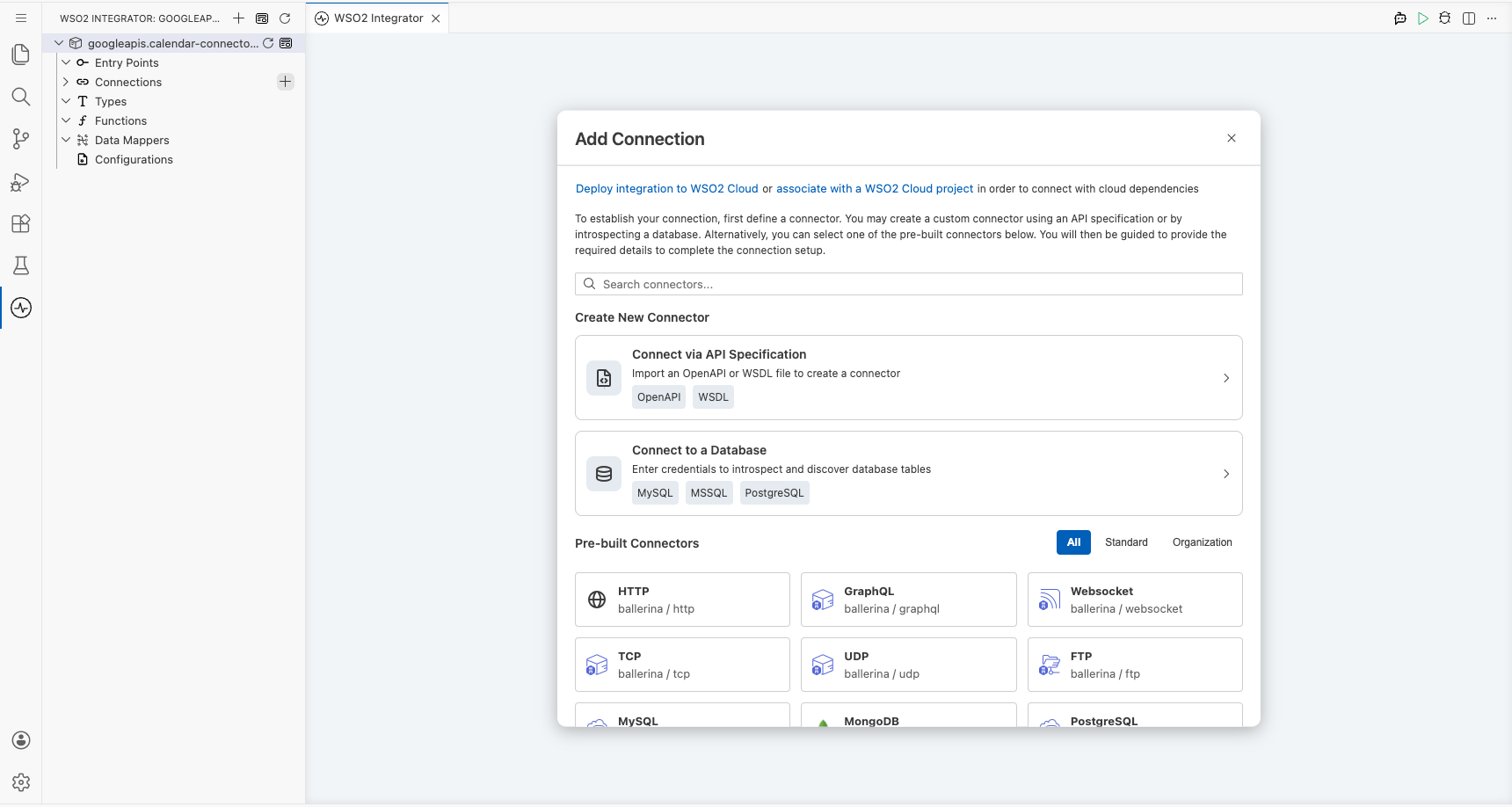

Google Calendar connector palette open with search field before any selection

Step 1: Search for and select the Google calendar connector​

Search for "calendar" in the palette and select the ballerinax/googleapis.calendar connector card to open the connection configuration form.

Configuring the Google calendar connection​

Step 2: Fill in connection parameters​

Bind each OAuth2 field in the Configure Calendar form to a configurable variable. Select the record icon next to the Config field to open the Record Configuration modal, then map the following parameters:

  • refreshUrl : The OAuth2 token endpoint URL, bound to a configurable variable
  • refreshToken : The OAuth2 refresh token, bound to a configurable variable
  • clientId : The OAuth2 client ID, bound to a configurable variable
  • clientSecret : The OAuth2 client secret, bound to a configurable variable

Set the Connection Name to calendarClient.

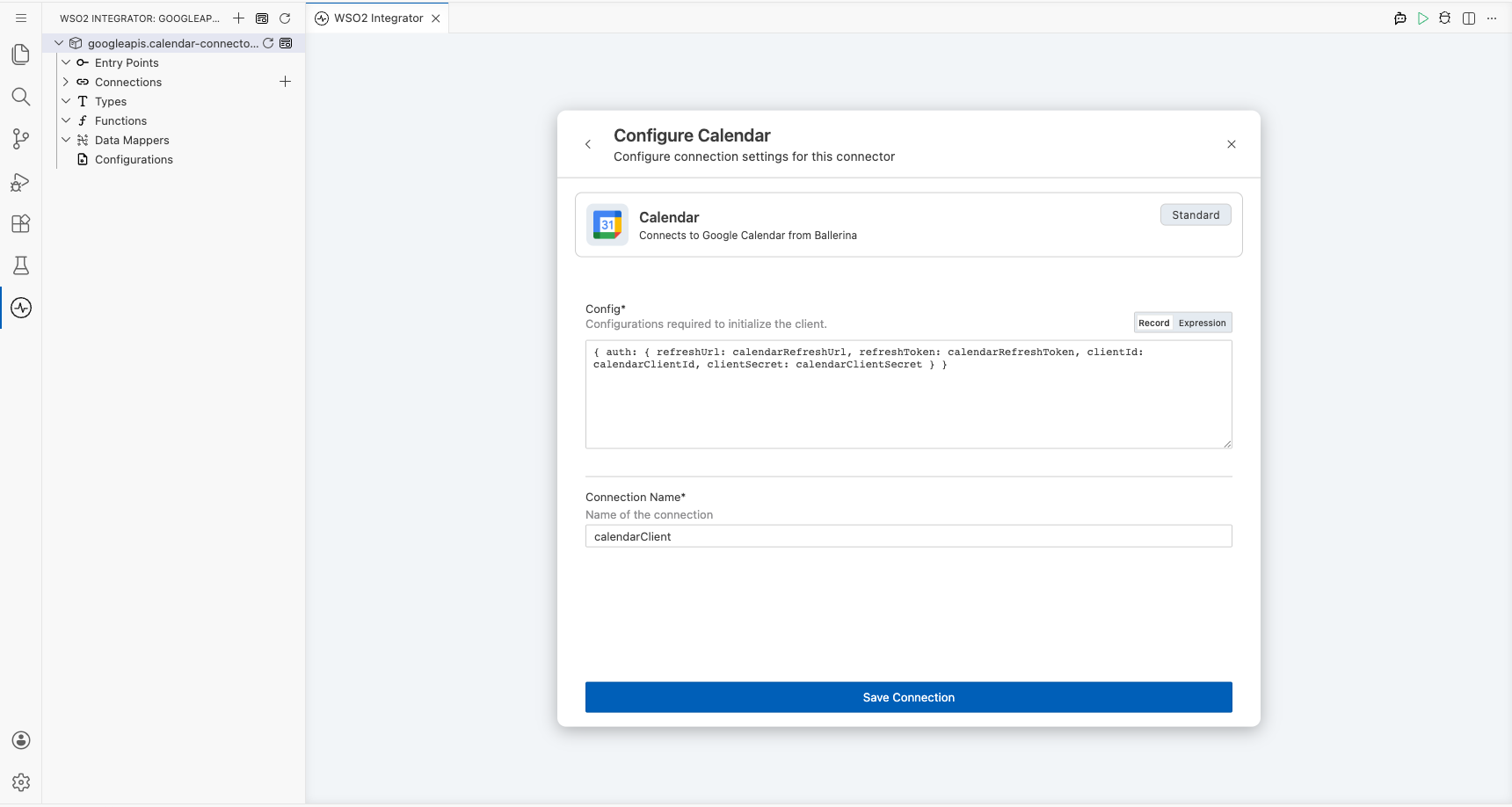

Google Calendar connection form fully filled with all parameters before saving

Step 3: Save the connection​

Select Save. The calendarClient connection node appears in the Connections panel.

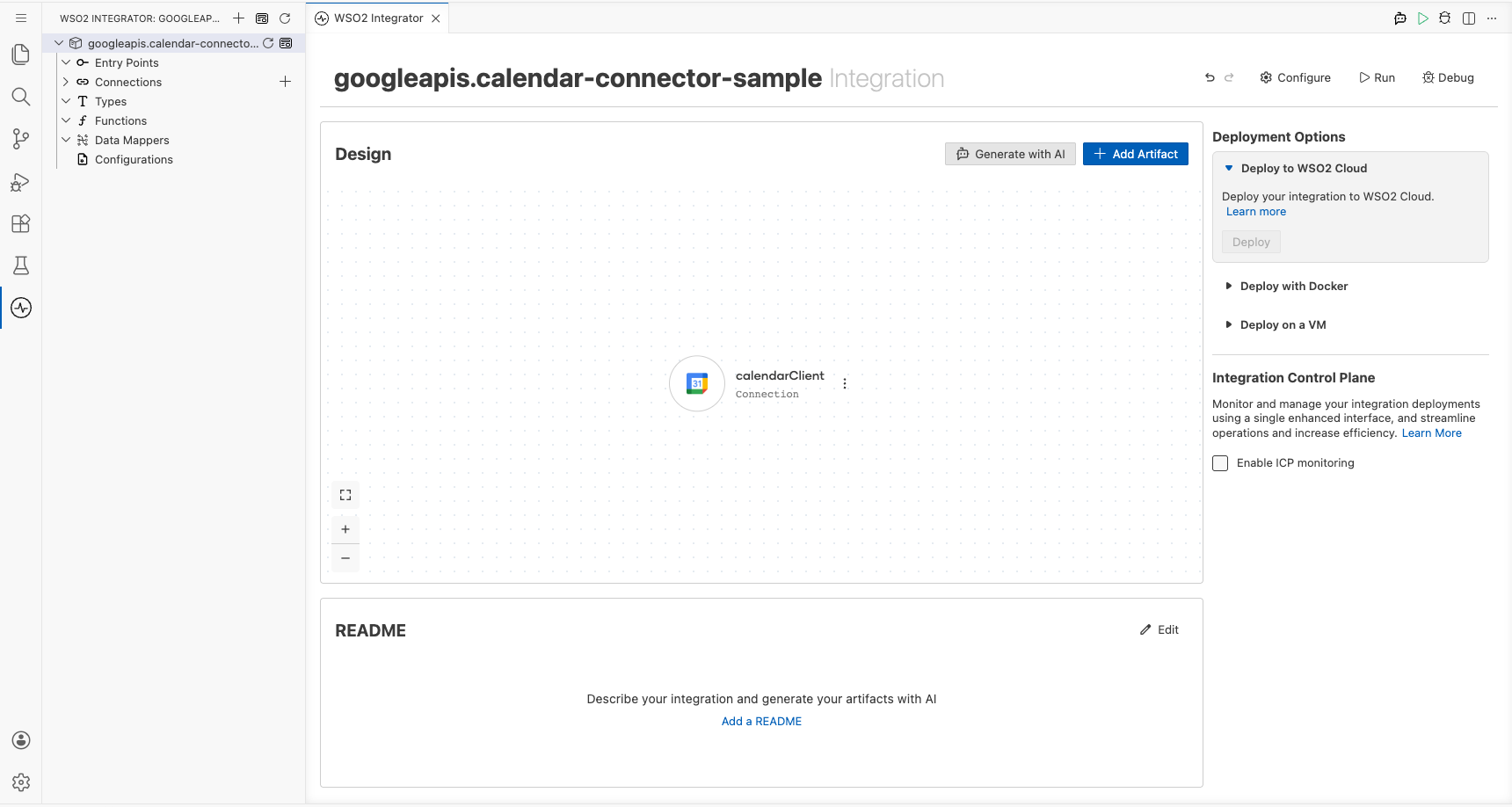

Google Calendar Connections panel showing calendarClient entry after saving

Step 4: Set actual values for your configurables​

In the left panel, select Configurations. Set a value for each configurable listed below:

  • calendarRefreshUrl (string) : The OAuth2 token endpoint; use https://oauth2.googleapis.com/token
  • calendarRefreshToken (string) : Your OAuth2 refresh token obtained from Google Cloud Console
  • calendarClientId (string) : Your OAuth2 client ID from Google Cloud Console
  • calendarClientSecret (string) : Your OAuth2 client secret from Google Cloud Console

Configuring the Google calendar createEvent operation​

Step 5: Add an automation entry point​

In the left sidebar under Entry Points, select + to add a new entry point. Select Automation and name it main. The Automation flow canvas opens, showing a Start node and an Error Handler node.

Step 6: Select and configure the createEvent operation​

Expand the calendarClient connection node on the canvas to view available operations.

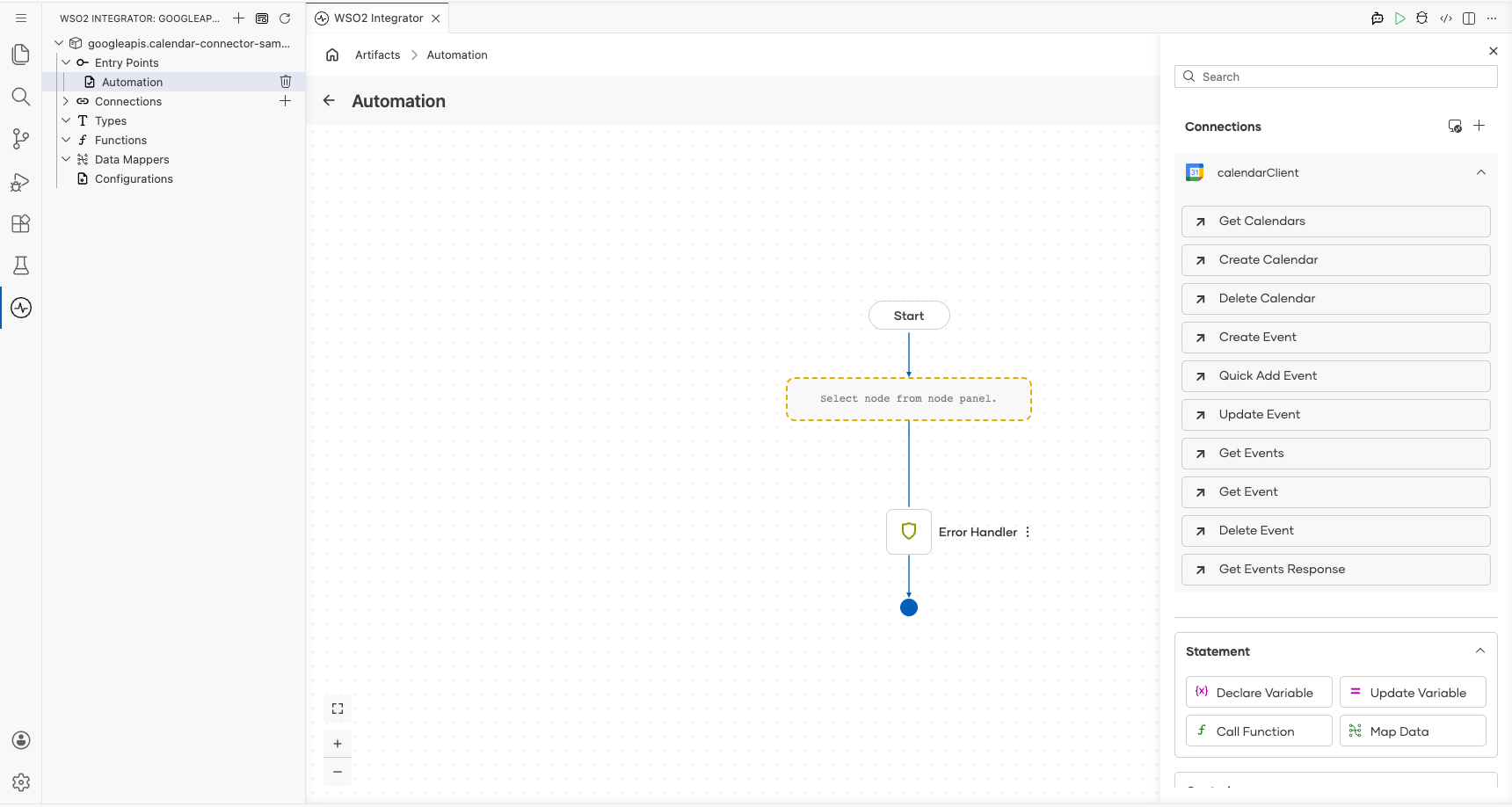

Google Calendar connection node expanded showing all available operations before selection

Select Create Event to open the operation configuration form, then fill in the following fields:

  • calendarId : The calendar identifier; use "primary" for the user's default calendar
  • event : A complete InputEvent record with summary, start, and end fields (each Time record requires dateTime and timeZone)
  • result variable : Leave the default name calendarEvent

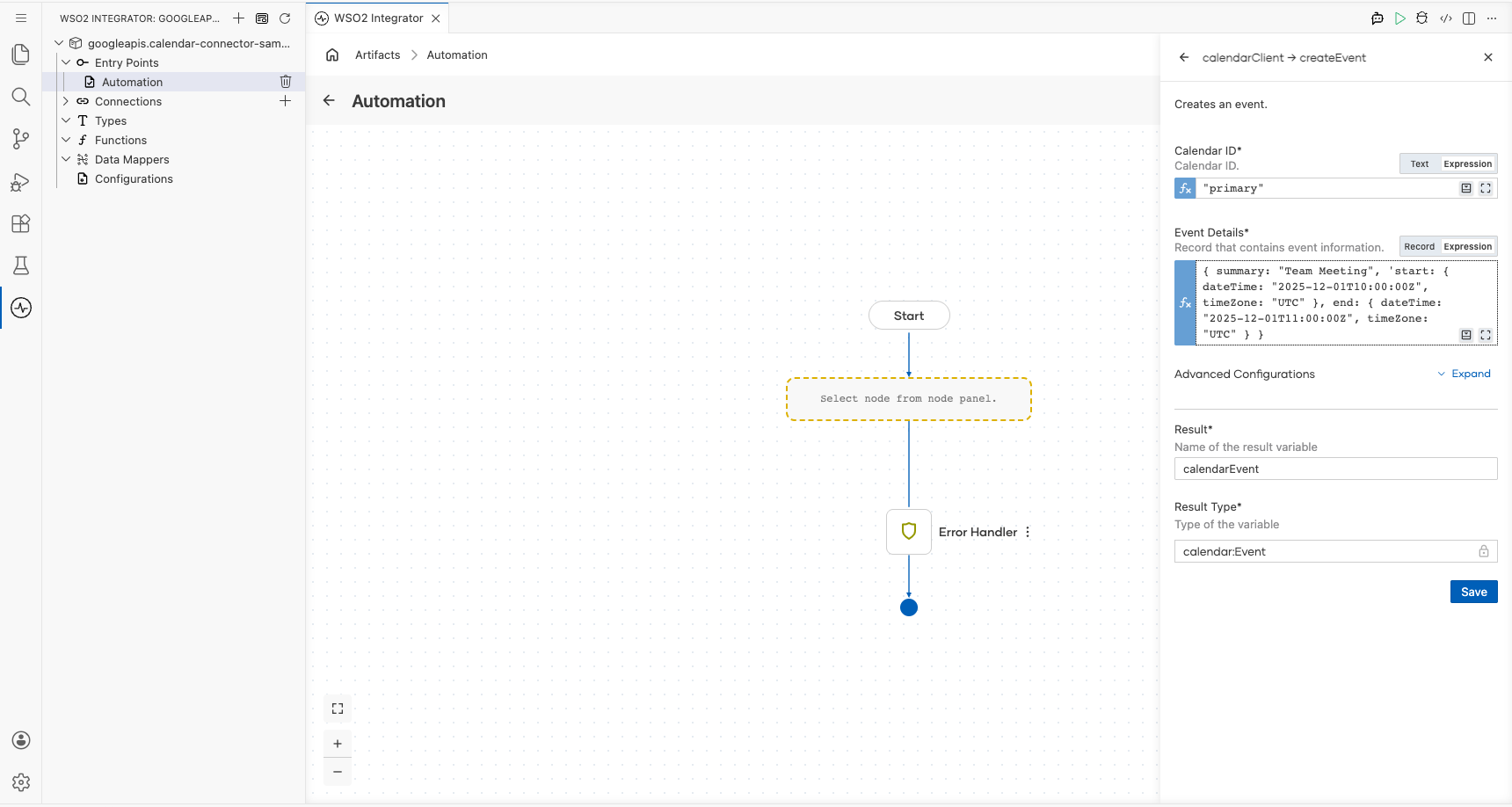

createEvent operation configuration filled with all values

Select Save. The calendar : createEvent node is added to the Automation flow canvas, connected to the calendarClient connection.

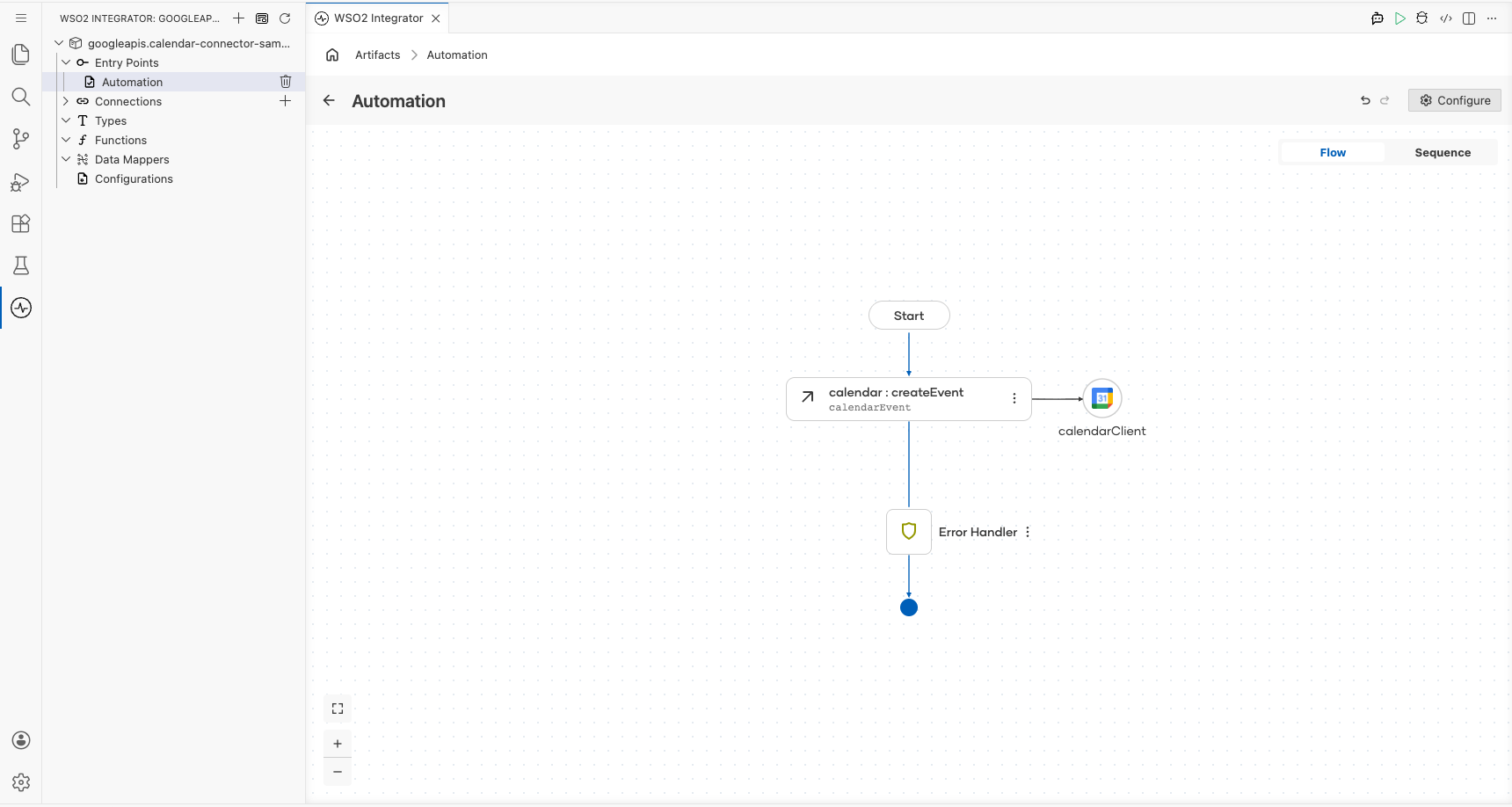

Completed Google Calendar automation flow
